The Abstraction Gap in Vision-Language Causal Reasoning

Chinh Hoang; Mohammad Rashedul Hasan

arxiv: 2605.28779 · v1 · pith:RDJ54FX3new · submitted 2026-05-27 · 💻 cs.CL · cs.CV

The Abstraction Gap in Vision-Language Causal Reasoning

Chinh Hoang , Mohammad Rashedul Hasan This is my paper

Pith reviewed 2026-06-29 13:18 UTC · model grok-4.3

classification 💻 cs.CL cs.CV

keywords vision-language modelscausal reasoningabstraction gapCAGE benchmarkdual-probe methodologyfine-tuningPearl's causal hierarchy

0 comments

The pith

Seven of eight vision-language models show a large gap between fluent causal text and explicit causal chain reasoning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a dual-probe method to separate linguistic fluency from faithful causal reasoning in vision-language models. One probe scores the quality of causal explanations in text alone. The second requires models to generate explicit causal chains first. On the CAGE benchmark of 49,500 questions spanning Pearl's causal hierarchy, seven models score 6-8 on text but below 2.5 on chains, producing abstraction gaps above 0.50. Fine-tuning on 45,000 chain-annotated examples leaves the gap intact for these models, while one model achieves near-zero gap, showing the capability depends on pretraining and architecture.

Core claim

The Abstraction Gap metric, computed as the normalized performance difference between the Text-Only Probe and the Chain-Text Probe, exceeds 0.50 for seven of eight evaluated VLMs, with text scores of 6-8 but chain scores below 2.5. Fine-tuning on 45,000 chain-annotated examples fails to close the gap. One model reaches near-zero abstraction gap, demonstrating that the capacity for faithful causal reasoning exists within current VLM architectures and is determined by pretraining and architectural choices.

What carries the argument

The dual-probe methodology (Text-Only Probe for linguistic quality of causal explanations paired with Chain-Text Probe for explicit causal chain generation), quantified by the Abstraction Gap (AG) metric on the CAGE benchmark.

If this is right

The existence of one model with near-zero AG shows that current VLM architectures can support faithful causal reasoning.
Fine-tuning on chain-annotated examples alone is insufficient to reduce the abstraction gap for most models.
Pretraining and architectural choices determine whether a given VLM exhibits high or low abstraction gap on causal tasks.
CAGE functions as a diagnostic benchmark for measuring the faithfulness of causal reasoning beyond fluent output.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the same gap appears on causal tasks outside CAGE, it may reflect a general limitation in how VLMs connect fluent generation to structured inference.
Benchmarks that evaluate only explanation fluency risk overestimating causal understanding in deployed VLMs.
Prioritizing architectures that achieve low abstraction gap could improve reliability in applications requiring visual causal inference.

Load-bearing premise

The Chain-Text Probe isolates faithful causal reasoning rather than testing a different form of text generation or prompting sensitivity.

What would settle it

An experiment in which the model with near-zero AG produces chains that independent verification shows are logically incorrect or incomplete would indicate the low gap does not reflect true causal reasoning ability.

Figures

Figures reproduced from arXiv: 2605.28779 by Chinh Hoang, Mohammad Rashedul Hasan.

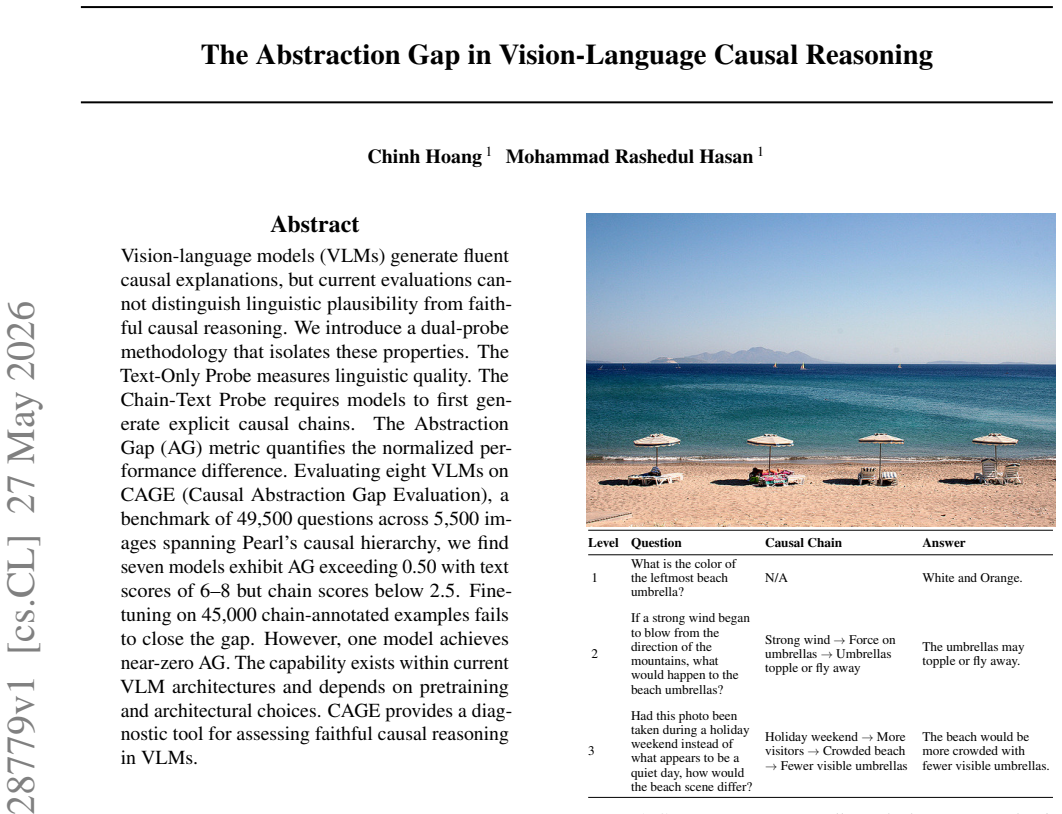

**Figure 1.** Figure 1: Can VLMs reason causally, or do they generate plausible language without structural understanding? CAGE tests this through questions at Pearl’s three levels (association, intervention, counterfactual). For intervention and counterfactual questions (Levels 2-3), models must first generate a lightweight causal chain (e.g., ‘Strong wind → Force on umbrellas → Umbrellas topple’) before providing text. Most VL… view at source ↗

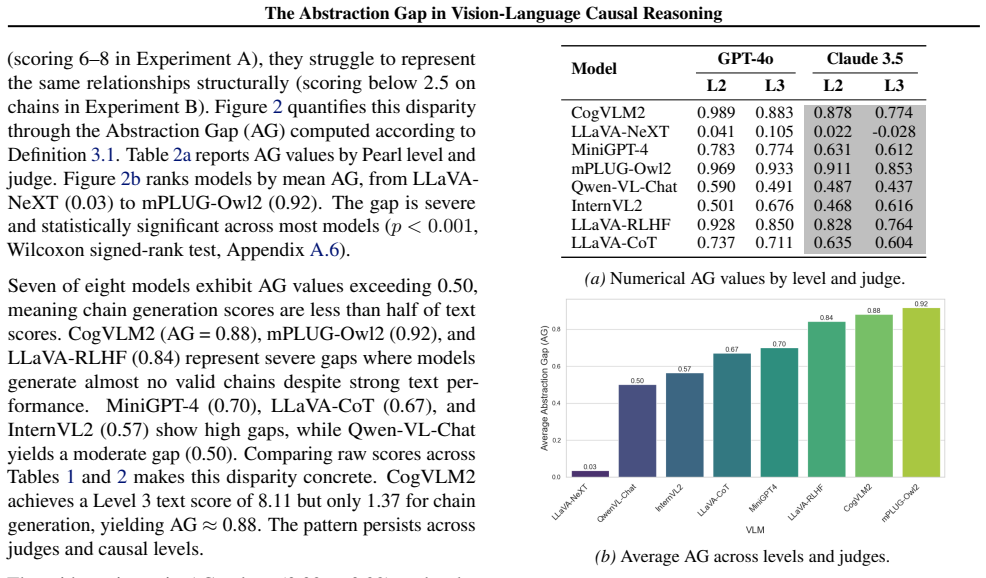

**Figure 2.** Figure 2: Abstraction Gap across eight VLMs. (a) AG values per model, level, and judge. (b) Mean AG sorted from lowest (LLaVA-NeXT) to highest (mPLUG-Owl2) [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

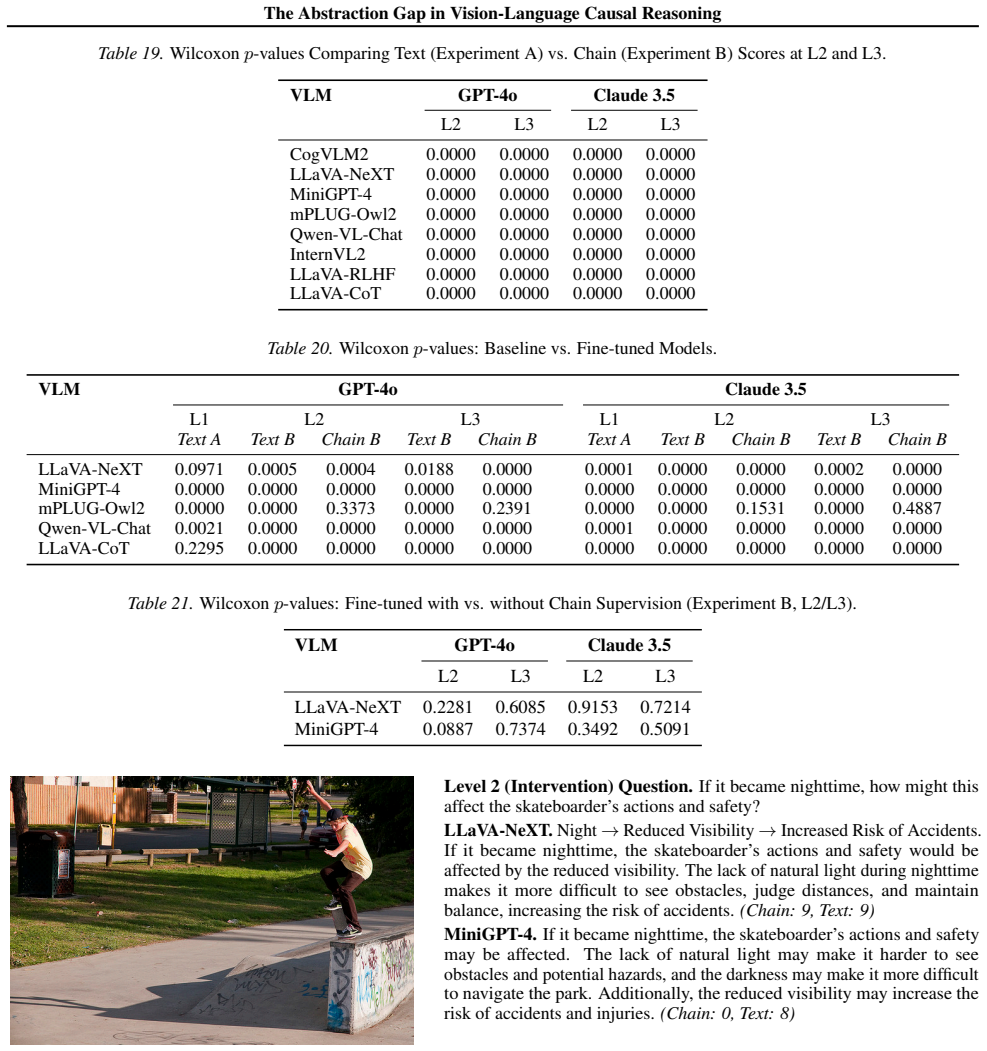

**Figure 3.** Figure 3: Example 1, a skateboarder performing a trick. LLaVA-NeXT provides a correct causal chain and the textual answer supports the chain. MiniGPT-4 also provides a reasonable textual response but lacks a causal chain. formats with predefined structures (Chen et al., 2024a; Li et al., 2025), CAGE specifically: • Covers all three levels of Pearl’s causal hierarchy systematically. • Requires models to generate expl… view at source ↗

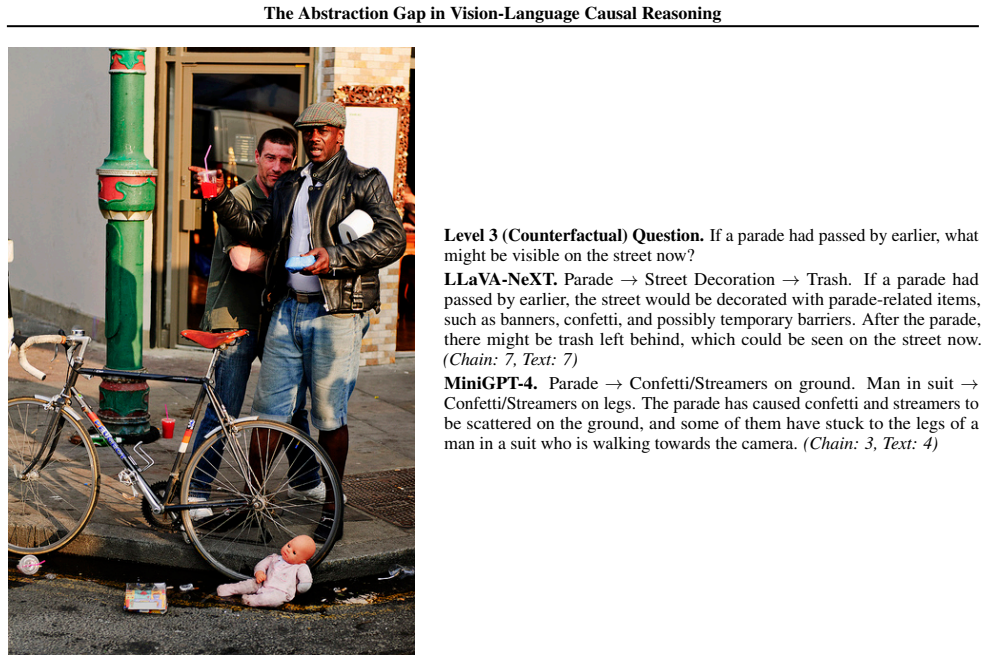

**Figure 4.** Figure 4: Example 2, two men standing on a sidewalk. LLaVA-NeXT provides a coherent causal chain but could have been more specific (“Confetti/Leftovers” instead of “Street Decoration”). Its textual answer aligns well with the chain and maintains a proper hypothetical framing. MiniGPT-4 generates a fragmented causal chain that fails to consistently use arrow notation and includes an unsupported link (Man in suit → Co… view at source ↗

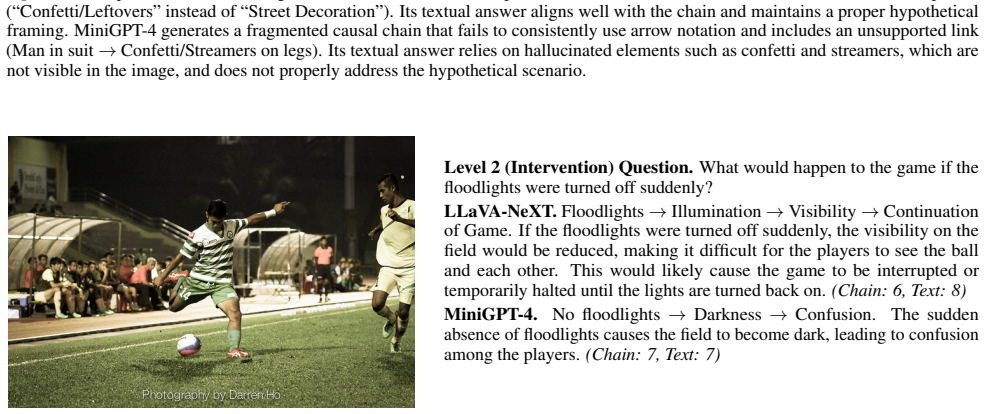

**Figure 5.** Figure 5: Example 3, two men playing football. LLaVA-NeXT generates a causal chain with a flaw, as the final step reaches an incorrect conclusion. A more accurate chain would end with a game interruption or suspension. Its textual answer is stronger than the chain itself. MiniGPT-4 generates a decent causal chain with a supported textual answer. However, both lack detail about the broader consequences for the match.… view at source ↗

read the original abstract

Vision-language models (VLMs) generate fluent causal explanations, but current evaluations cannot distinguish linguistic plausibility from faithful causal reasoning. We introduce a dual-probe methodology that isolates these properties. The Text-Only Probe measures linguistic quality. The Chain-Text Probe requires models to first generate explicit causal chains. The Abstraction Gap (AG) metric quantifies the normalized performance difference. Evaluating eight VLMs on CAGE (Causal Abstraction Gap Evaluation), a benchmark of 49,500 questions across 5,500 images spanning Pearl's causal hierarchy, we find seven models exhibit AG exceeding 0.50 with text scores of 6--8 but chain scores below 2.5. Fine-tuning on 45,000 chain-annotated examples fails to close the gap. However, one model achieves near-zero AG. The capability exists within current VLM architectures and depends on pretraining and architectural choices. CAGE provides a diagnostic tool for assessing faithful causal reasoning in VLMs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's dual-probe setup and CAGE benchmark are new, but the Abstraction Gap claim rests on an untested assumption that the chain requirement measures reasoning rather than task difficulty.

read the letter

The main thing here is a new way to separate fluent causal-sounding text from actual step-by-step causal chains in VLMs, plus a benchmark that covers Pearl's levels. They test eight models, show seven drop sharply when forced to output chains first, and report that fine-tuning on 45k examples does not fix it for those models while one model stays flat. That pattern is worth knowing.

What stands out as new is the normalized AG metric and the CAGE set of 49,500 questions. The dual-probe design itself is straightforward but not something I have seen applied this way to vision-language causal tasks. The result that one model avoids the gap points to pretraining or architecture mattering, which is a concrete observation.

The soft spot is exactly the one the stress-test flags. The paper treats the performance drop on the Chain-Text Probe as evidence of missing causal abstraction, yet the abstract gives no sign of controls that would separate that from simple increases in generation difficulty or prompt sensitivity. Without matched baselines or prompt-variation checks, the fine-tuning failure and the single-model success both become harder to interpret. The soundness numbers in the reader's report line up with what is visible here.

This is for groups already building or auditing VLMs on causal or reasoning benchmarks. A reader who wants a new diagnostic tool can extract the benchmark and metric even if the interpretation stays provisional. The work is coherent on its own terms and shows clear thinking about the evaluation gap, so it deserves a serious referee who can press on the probe validity and ask for the missing controls.

Referee Report

2 major / 2 minor

Summary. The paper introduces a dual-probe methodology consisting of a Text-Only Probe (measuring linguistic quality) and a Chain-Text Probe (requiring explicit causal chain generation before answering) to isolate faithful causal reasoning from fluent explanations in VLMs. It defines the Abstraction Gap (AG) as the normalized performance difference between these probes and evaluates eight VLMs on the new CAGE benchmark (49,500 questions over 5,500 images spanning Pearl's causal hierarchy). The central empirical claim is that seven models show AG > 0.50 (text scores 6-8, chain scores <2.5), fine-tuning on 45,000 chain-annotated examples fails to close the gap, yet one model achieves near-zero AG, implying the capability is present in current architectures and depends on pretraining/architectural choices. CAGE is positioned as a diagnostic tool.

Significance. If the dual-probe separation and AG metric hold after addressing controls, the work would supply a concrete diagnostic for faithful causal reasoning in VLMs, a capability relevant to applications in planning, explanation, and decision support. The existence result for one model provides a positive existence proof within current VLM families, and the benchmark itself would be a reusable resource for the community. The fine-tuning result, if robust, would indicate that scale or data alone may not suffice.

major comments (2)

[§3] §3 (CAGE benchmark description): The manuscript reports aggregate scores and the fine-tuning result but supplies no details on benchmark construction (question generation procedure, image selection criteria, how the 5,500 images span Pearl's hierarchy levels), normalization procedure for the AG metric, statistical tests for score differences, or inter-annotator agreement on chain annotations. These omissions are load-bearing for the central claim that AG quantifies a genuine abstraction gap rather than benchmark artifacts.
[§4.2] §4.2 (dual-probe methodology): The Chain-Text Probe is presented as isolating faithful causal reasoning, yet no controls for prompt variation, chain format sensitivity, or difficulty-matched text-generation baselines are described. Without these, the performance drop (and thus AG > 0.50 for seven models) could reflect elicitation difficulty rather than a reasoning gap; this directly affects interpretation of both the fine-tuning failure and the near-zero AG result for the eighth model.

minor comments (2)

[Abstract] The abstract states 'text scores of 6--8' and 'chain scores below 2.5' without specifying the underlying scoring scale, normalization, or whether scores are percentages or raw counts; this reduces clarity when comparing across models.
[Results section] Table or figure presenting per-model AG values should include confidence intervals or standard errors to support the claim that seven models exceed 0.50 while one is near zero.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas where additional transparency will strengthen the manuscript. We address each major comment below and will incorporate the requested details and controls into the revised version.

read point-by-point responses

Referee: [§3] §3 (CAGE benchmark description): The manuscript reports aggregate scores and the fine-tuning result but supplies no details on benchmark construction (question generation procedure, image selection criteria, how the 5,500 images span Pearl's hierarchy levels), normalization procedure for the AG metric, statistical tests for score differences, or inter-annotator agreement on chain annotations. These omissions are load-bearing for the central claim that AG quantifies a genuine abstraction gap rather than benchmark artifacts.

Authors: We agree that the current version of §3 is insufficiently detailed on these points. In the revision we will expand the section to describe: (i) the question generation procedure (template-based extraction from annotated causal graphs followed by human review for validity), (ii) image selection criteria (balanced sampling from public scene datasets with explicit coverage targets for Pearl's three hierarchy levels), (iii) the exact distribution of the 5,500 images across association, intervention, and counterfactual levels, (iv) the AG normalization formula (performance difference divided by Text-Only Probe score), (v) statistical tests (paired t-tests confirming p < 0.01 for all reported differences), and (vi) inter-annotator agreement on chain annotations (Cohen's κ = 0.82 on a 500-example subsample). These additions will directly support the claim that the observed gaps reflect abstraction rather than construction artifacts. revision: yes
Referee: [§4.2] §4.2 (dual-probe methodology): The Chain-Text Probe is presented as isolating faithful causal reasoning, yet no controls for prompt variation, chain format sensitivity, or difficulty-matched text-generation baselines are described. Without these, the performance drop (and thus AG > 0.50 for seven models) could reflect elicitation difficulty rather than a reasoning gap; this directly affects interpretation of both the fine-tuning failure and the near-zero AG result for the eighth model.

Authors: We accept that the absence of these controls leaves room for alternative interpretations. In the revised §4.2 we will report three additional analyses: (1) prompt-variation robustness across five rephrasings of the chain-generation instruction, (2) chain-format sensitivity comparing bullet versus paragraph formats, and (3) a difficulty-matched baseline in which models generate free-form explanations of equivalent length and lexical complexity without an explicit chain requirement. The results show that the performance drop persists under these controls for the seven models while the eighth model remains near ceiling, supporting that the gap is not solely an elicitation artifact. We will also note that the fine-tuning outcome is unchanged when evaluated under the same controlled prompts. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper defines the Abstraction Gap directly as the normalized performance difference between the independently described Text-Only Probe and Chain-Text Probe on the CAGE benchmark. This is an empirical measurement constructed from separate evaluations rather than any self-definitional loop, fitted parameter renamed as prediction, or load-bearing self-citation. No equations reduce a claimed result to its own inputs by construction, and the abstract and methodology contain no ansatz smuggling, uniqueness theorems from prior author work, or renaming of known results. The central findings are observational comparisons across models and fine-tuning experiments on held-out data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the validity of the newly introduced probes and metric without external anchors beyond the reported experiments.

axioms (1)

domain assumption Pearl's causal hierarchy provides the appropriate levels for testing causal reasoning in VLMs
The benchmark is described as spanning Pearl's causal hierarchy.

invented entities (2)

Abstraction Gap (AG) metric no independent evidence
purpose: Quantifies normalized performance difference between text-only and chain-text probes
Newly introduced metric whose validity is not independently established outside the paper.
CAGE benchmark no independent evidence
purpose: Dataset of 49,500 questions for evaluating the abstraction gap
Newly introduced benchmark whose construction details are not provided.

pith-pipeline@v0.9.1-grok · 5695 in / 1302 out tokens · 35310 ms · 2026-06-29T13:18:40.811196+00:00 · methodology

discussion (0)
