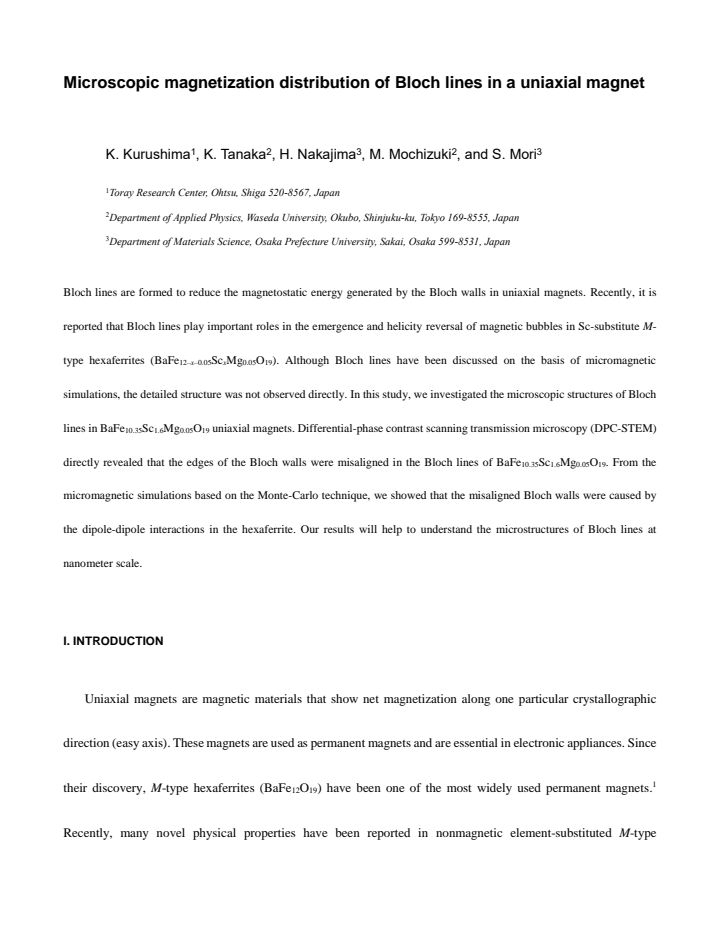

Microscopic magnetization distribution of Bloch lines in a uniaxial magnet
Pith reviewed 2026-05-25 11:32 UTC · model grok-4.3
The pith
DPC-STEM imaging shows that Bloch wall edges are misaligned inside Bloch lines of a uniaxial hexaferrite magnet.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Direct DPC-STEM observation establishes that the edges of Bloch walls are misaligned within Bloch lines, and Monte Carlo micromagnetic simulations show that the misalignment is produced by the dipole-dipole interactions present in the hexaferrite lattice.
What carries the argument
Differential-phase contrast scanning transmission microscopy (DPC-STEM) for real-space magnetization mapping, combined with Monte Carlo micromagnetic simulations that incorporate dipole-dipole terms.
If this is right
- Bloch lines in Sc-substituted M-type hexaferrites possess a specific misaligned wall geometry at the nanometer scale.
- The same dipole-driven misalignment should appear in any uniaxial magnet whose magnetostatic energy is dominated by long-range dipole fields.
- Control of Bloch-line structure offers a route to influence the nucleation and helicity reversal of magnetic bubbles in these hexaferrites.
Where Pith is reading between the lines
- The observed misalignment may alter the energy barrier for bubble motion or collapse in devices that rely on these materials.
- Varying the Sc substitution level while repeating the DPC-STEM measurement would test whether the misalignment scales with the strength of the dipole field.
- Similar edge displacements could be searched for in other uniaxial magnets such as rare-earth garnets or thin-film perpendicular media.
Load-bearing premise
The misalignment seen in the images is produced by dipole-dipole interactions rather than by sample defects, surface roughness, or preparation-induced strain.
What would settle it
A micromagnetic simulation run without dipole-dipole interactions that still produces the same wall-edge misalignment would falsify the claimed cause.
read the original abstract
Bloch lines are formed to reduce the magnetostatic energy generated by the Bloch walls in uniaxial magnets. Recently, it is reported that Bloch lines play important roles in the emergence and helicity reversal of magnetic bubbles in Sc-substitute M-type hexaferrites (BaFe$_{12-x-0.05}$Sc$_{x}$Mg$_{0.05}$O$_{19}$). Although Bloch lines have been discussed on the basis of micromagnetic simulations, the detailed structure was not observed directly. In this study, we investigated the microscopic structures of Bloch lines in BaFe$_{10.35}$Sc$_{1.6}$Mg$_{0.05}$O$_{19}$ uniaxial magnets. Differential-phase contrast scanning transmission microscopy (DPC-STEM) directly revealed that the edges of the Bloch walls were misaligned in the Bloch lines of BaFe$_{10.35}$Sc$_{1.6}$Mg$_{0.05}$O$_{19}$. From the micromagnetic simulations based on the Monte-Carlo technique, we showed that the misaligned Bloch walls were caused by the dipole-dipole interactions in the hexaferrite. Our results will help to understand the microstructures of Bloch lines at nanometer scale.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports a direct experimental observation via differential-phase contrast scanning transmission electron microscopy (DPC-STEM) that the edges of Bloch walls are misaligned within Bloch lines in the uniaxial hexaferrite BaFe10.35Sc1.6Mg0.05O19. Monte Carlo micromagnetic simulations are then used to attribute this misalignment specifically to dipole-dipole interactions.
Significance. The experimental visualization of Bloch-line microstructure at the nanometer scale is a clear strength and would be of interest for understanding magnetic bubble dynamics in Sc-substituted M-type hexaferrites. If the simulations can be shown to isolate the dipole-dipole contribution through explicit controls, the combined result would provide a useful microscopic link between magnetostatic energy minimization and observed wall-edge geometry.
major comments (2)
- [Abstract] Abstract: the statement that 'the misaligned Bloch walls were caused by the dipole-dipole interactions' is load-bearing for the interpretive claim, yet the abstract (and the description of the simulation results) gives no indication that control runs were performed with the dipole-dipole term disabled or that sensitivity to sample-specific defects, surface roughness, or anisotropy gradients was tested; without such controls the causal attribution remains under-supported relative to the experimental observation.
- [Results / Experimental Methods] The manuscript provides no quantitative comparison (e.g., measured misalignment angle or wall-edge offset with uncertainty) between the DPC-STEM images and the simulated magnetization maps, nor any statement of sample thickness, orientation precision, or experimental error bars; these omissions directly affect the strength of the claim that the observed misalignment is intrinsic rather than preparation- or defect-related.
minor comments (2)
- The composition is written inconsistently between the title/abstract (BaFe10.35Sc1.6Mg0.05O19) and the introductory sentence (BaFe12-x-0.05ScxMg0.05O19); a single consistent formula should be used throughout.
- Figure captions and text should explicitly state the field of view, pixel size, and any post-processing applied to the DPC-STEM images so that the spatial resolution of the reported misalignment can be assessed.
Simulated Author's Rebuttal
We thank the referee for the constructive comments, which highlight areas where the manuscript can be strengthened. We address each major comment below and outline the revisions we will make.
read point-by-point responses
-
Referee: [Abstract] Abstract: the statement that 'the misaligned Bloch walls were caused by the dipole-dipole interactions' is load-bearing for the interpretive claim, yet the abstract (and the description of the simulation results) gives no indication that control runs were performed with the dipole-dipole term disabled or that sensitivity to sample-specific defects, surface roughness, or anisotropy gradients was tested; without such controls the causal attribution remains under-supported relative to the experimental observation.
Authors: We agree that the current description does not explicitly document control simulations with the dipole-dipole term disabled. In the revised manuscript we will add a dedicated paragraph in the simulation section presenting results obtained with the dipole-dipole interaction switched off; these runs show that the wall-edge misalignment vanishes, thereby supporting the attribution. We will also include a brief robustness check against small variations in anisotropy and surface roughness parameters. revision: yes
-
Referee: [Results / Experimental Methods] The manuscript provides no quantitative comparison (e.g., measured misalignment angle or wall-edge offset with uncertainty) between the DPC-STEM images and the simulated magnetization maps, nor any statement of sample thickness, orientation precision, or experimental error bars; these omissions directly affect the strength of the claim that the observed misalignment is intrinsic rather than preparation- or defect-related.
Authors: We acknowledge that quantitative metrics and experimental parameters are missing. The revised manuscript will include (i) measured wall-edge offsets extracted from multiple DPC-STEM images together with standard deviations, (ii) the sample thickness determined from the FIB preparation and confirmed by EELS, and (iii) a short methods paragraph stating the orientation precision and estimated experimental uncertainties. These additions will allow a direct numerical comparison with the simulated maps and strengthen the claim that the misalignment is intrinsic. revision: yes
Circularity Check
No circularity: direct experimental imaging with forward simulations for interpretation
full rationale
The central result is an experimental DPC-STEM observation of edge misalignment in Bloch lines. Monte Carlo micromagnetic simulations are invoked only to attribute the observed misalignment to dipole-dipole interactions; the abstract gives no indication that model parameters were fitted to the experimental images and the misalignment then recovered by construction as a 'prediction.' No self-definitional equations, fitted-input predictions, load-bearing self-citations, or ansatz smuggling appear in the provided text. The derivation chain therefore remains self-contained against external benchmarks.
