A Multitask Network for Localization and Recognition of Text in Images

Mohammad Reza Sarshogh , Keegan E. Hines This is my paper

Pith reviewed 2026-05-25 18:48 UTC · model grok-4.3

classification 💻 cs.CL cs.CV
keywords text localizationtext recognitionmulti-task networkend-to-end OCRfeature pyramid networkdynamic poolingconvolutional attention
0
0 comments X

The pith

One end-to-end network localizes and recognizes text in images without post-processing or word grouping.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a multi-task model that performs text localization and recognition in a single pass for lexicon-free extraction from complex documents. A convolutional backbone combined with a feature pyramid network supplies a shared feature map to three heads that handle localization, classification, and recognition. Dynamic pooling preserves high-resolution details inside regions of interest, while a convolutional attention block replaces recurrent layers for the recognition task. The resulting system reports strong results on benchmark datasets in non-traditional OCR settings where separate pipelines typically require extra steps.

Core claim

The authors claim that a single trainable network simultaneously solves text localization and text recognition, with text segments identified directly and without post-processing, cropping, or word grouping, by routing a shared representation from a convolutional backbone and feature pyramid network into three model heads.

What carries the argument

Three model heads (localization, classification, text recognition) attached to a shared convolutional backbone plus feature pyramid network, plus dynamic pooling and convolutional attention for recognition.

If this is right

  • Text extraction pipelines can collapse from multiple stages into one forward pass.
  • High-resolution information inside detected regions improves recognition accuracy without separate cropping.
  • Convolutional attention can replace recurrent networks for sequence recognition while maintaining or improving accuracy.
  • The approach works in challenging non-traditional OCR regimes where lexicon-free methods are needed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The architecture may lower latency in document scanning applications by eliminating separate detection and recognition models.
  • Similar shared-representation designs could apply to other paired vision tasks such as detecting objects and describing them.
  • Performance on highly variable fonts or scripts would test whether the dynamic pooling and attention mechanisms generalize beyond the reported benchmarks.

Load-bearing premise

The shared features produced by the backbone and pyramid network are rich enough to support accurate performance from all three heads at once.

What would settle it

If running the model on standard OCR benchmarks produces text segments that still require cropping or grouping to form complete words, the claim of identification without post-processing would be refuted.

Figures

Figures reproduced from arXiv: 1906.09266 by Keegan E. Hines, Mohammad Reza Sarshogh.

Figure 1
Figure 1. Figure 1: Example output on a sample image from ICDAR DeTEXT challenge. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Model Architecture. Image features are extracted through a shared convolutional backbone consisting of a shallow DenseNet and a Feature Pyramid [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

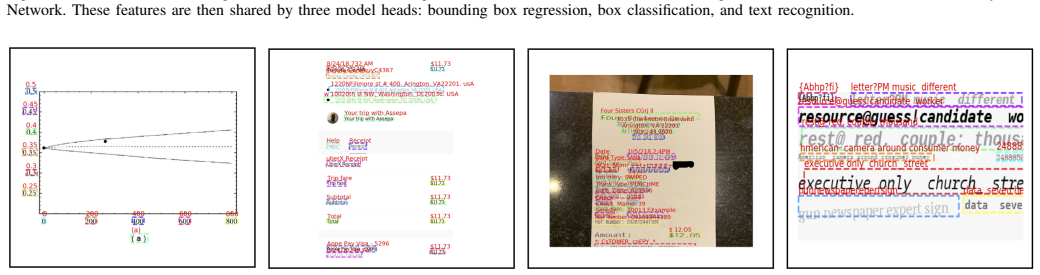

Figure 3. Figure 3: Examples of model output with detected bounding boxes shown as dashed lines and predicted text shown in red. From left to right: (1) an image [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Example of model output where it failed to distinguish independent [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Visualization of attention vectors at inference time for several RoIs. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

We present an end-to-end trainable multi-task network that addresses the problem of lexicon-free text extraction from complex documents. This network simultaneously solves the problems of text localization and text recognition and text segments are identified with no post-processing, cropping, or word grouping. A convolutional backbone and Feature Pyramid Network are combined to provide a shared representation that benefits each of three model heads: text localization, classification, and text recognition. To improve recognition accuracy, we describe a dynamic pooling mechanism that retains high-resolution information across all RoIs. For text recognition, we propose a convolutional mechanism with attention which out-performs more common recurrent architectures. Our model is evaluated against benchmark datasets and comparable methods and achieves high performance in challenging regimes of non-traditional OCR.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper presents an end-to-end trainable multi-task network for lexicon-free text extraction from complex documents. It simultaneously performs text localization and recognition with no post-processing, cropping, or word grouping. A convolutional backbone combined with a Feature Pyramid Network supplies a shared representation to three heads (localization, classification, recognition). Dynamic pooling retains high-resolution RoI information, and a convolutional attention mechanism is proposed for recognition that is claimed to outperform recurrent models. The model is asserted to achieve high performance on benchmark datasets in non-traditional OCR regimes.

Significance. If the empirical results and architectural details support the claims, the work would offer a meaningful contribution to scene text recognition by demonstrating a unified architecture that eliminates separate post-processing stages and leverages shared multi-scale features across tasks. The dynamic pooling and attention-based recognizer represent potentially useful technical ideas for maintaining resolution and improving sequence modeling in OCR.

major comments (2)
  1. [Abstract] Abstract: The assertion that the model 'achieves high performance in challenging regimes of non-traditional OCR' and is 'evaluated against benchmark datasets and comparable methods' supplies no quantitative results, error bars, dataset names/splits, or ablation studies, rendering the central empirical claim unverifiable from the provided text.
  2. [Abstract] Abstract: The description of how the shared FPN representation benefits the three heads, how dynamic pooling interacts with RoIs, and how the convolutional attention mechanism is implemented remains at a high level with no equations, pseudocode, or architectural diagrams, preventing assessment of whether the claimed simultaneous localization+recognition without post-processing is actually achieved.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will revise the abstract to improve the verifiability and specificity of our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that the model 'achieves high performance in challenging regimes of non-traditional OCR' and is 'evaluated against benchmark datasets and comparable methods' supplies no quantitative results, error bars, dataset names/splits, or ablation studies, rendering the central empirical claim unverifiable from the provided text.

    Authors: We agree that the abstract would benefit from including specific quantitative results to make the empirical claims verifiable. In the revised manuscript, we will update the abstract to report key performance metrics from our evaluations on benchmark datasets (including dataset names and splits), comparisons with comparable methods, and references to ablation studies and any available error bars or variance measures from the experiments section. revision: yes

  2. Referee: [Abstract] Abstract: The description of how the shared FPN representation benefits the three heads, how dynamic pooling interacts with RoIs, and how the convolutional attention mechanism is implemented remains at a high level with no equations, pseudocode, or architectural diagrams, preventing assessment of whether the claimed simultaneous localization+recognition without post-processing is actually achieved.

    Authors: We acknowledge the abstract provides only a high-level overview. We will revise it to include more specific details on the shared FPN representation benefiting the localization, classification, and recognition heads, the role of dynamic pooling in retaining high-resolution RoI information, and the convolutional attention mechanism for recognition. We will also explicitly clarify that the model achieves simultaneous localization and recognition in an end-to-end fashion with no post-processing, cropping, or word grouping required. Due to typical abstract length limits, we will reference the detailed equations, pseudocode, and diagrams in the methods section for full assessment. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper describes an empirical multitask neural architecture (convolutional backbone + FPN + three heads + dynamic pooling + convolutional attention) for simultaneous text localization and recognition. All load-bearing elements are design choices and benchmark evaluations rather than equations or parameters that reduce by construction to the inputs. No self-citations, fitted quantities renamed as predictions, or uniqueness theorems appear in the provided abstract and description; the central claim of end-to-end operation without post-processing is presented as an architectural outcome, not a definitional tautology.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard deep-learning training assumptions and on the empirical effectiveness of the proposed architectural modules; no new physical entities or ad-hoc constants are introduced.

free parameters (1)
  • network weights and hyperparameters
    All model parameters are learned from training data; their specific values are not stated in the abstract.
axioms (1)
  • standard math Standard assumptions of gradient-based optimization and back-propagation through shared layers
    End-to-end multitask training presupposes these properties hold for the combined loss.
