An evaluation framework for sparse 4D (3D + time) imaging reconstruction via bootstrapped cross-validation

Yuhe Zhang , Zisheng Yao , Zhe Hu , Tobias Ritschel , Pablo Villanueva-Perez This is my paper

Pith reviewed 2026-05-20 06:54 UTC · model grok-4.3

classification 📡 eess.IV physics.comp-phphysics.data-anphysics.optics
keywords 4D imagingsparse reconstructionbootstrapped cross-validationdeep learningX-ray imagingimage evaluationultrafast imagingreconstruction assessment
0
0 comments X

The pith

Bootstrapped cross-validation estimates 4D reconstruction quality from sparse data without ground truth by measuring correlations across data subsets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a new evaluation framework for assessing how well deep learning methods reconstruct 4D images from limited measurements. It works by dividing the acquired data into independent subsets, reconstructing each separately, and then calculating correlations between those reconstructions. High agreement suggests the method is reliably capturing the true dynamics, while low agreement indicates potential issues. This approach is particularly useful for ultrafast X-ray imaging of dynamic processes like droplet collisions where no perfect reference exists. It draws from similar validation techniques used in cryo-electron microscopy.

Core claim

The bootstrapped cross-validation framework estimates reconstruction performance in the absence of ground truth by quantifying correlations between reconstructions generated from independently sampled subsets of the acquired sparse 4D data. This provides both qualitative and quantitative assessment and was tested on simulated water droplet collision experiments using the 4D-ONIX deep-learning method for sparse and ultra-sparse X-ray datasets.

What carries the argument

Bootstrapped cross-validation that splits the measured data into subsets, reconstructs from each, and uses correlation as a proxy for fidelity to the true 4D object.

If this is right

  • Reconstruction performance can be assessed qualitatively and quantitatively without a 4D reference.
  • Supports informed decisions on experimental strategies in ultrafast imaging.
  • Applies to deep learning methods for reconstructing from sparse spatiotemporal measurements.
  • Validated in scenarios with water droplet collisions in X-ray imaging.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This framework might generalize to evaluate reconstructions in other sparse imaging domains like medical CT or astronomy.
  • If subset correlations reliably predict error, algorithms could be tuned to maximize such agreement during development.
  • Real-world adoption could reduce reliance on expensive or impossible ground truth acquisitions in dynamic imaging studies.

Load-bearing premise

Agreement between reconstructions from independently sampled data subsets serves as a faithful proxy for how accurately each reconstruction matches the true underlying 4D object.

What would settle it

In simulations where ground truth is known, if the correlation scores from the framework do not correspond to the actual reconstruction errors measured against ground truth, the method would be shown ineffective as a proxy.

Figures

Figures reproduced from arXiv: 2605.19160 by Pablo Villanueva-Perez, Tobias Ritschel, Yuhe Zhang, Zhe Hu, Zisheng Yao.

Figure 1
Figure 1. Figure 1: Schematic of the bootstrapped cross-validation framework. (a) Illustration of the workflow [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: The corresponding reconstruction yˆ i(k) = F i(k) [P i(k) ] is therefore a random estimator of the true 4D object y. Consider a pairwise cross-validation estimator, with yˆ i(k) a and yˆ i(k) b be two indepen￾dent reconstructions from the two independent sampled subsets P i(k) a and P i(k) b . The cross-validation metric is defined as C = M(yˆ i(k) a , yˆ i(k) b ), (4) where M(·, ·) denotes a 4D evaluation… view at source ↗
Figure 2

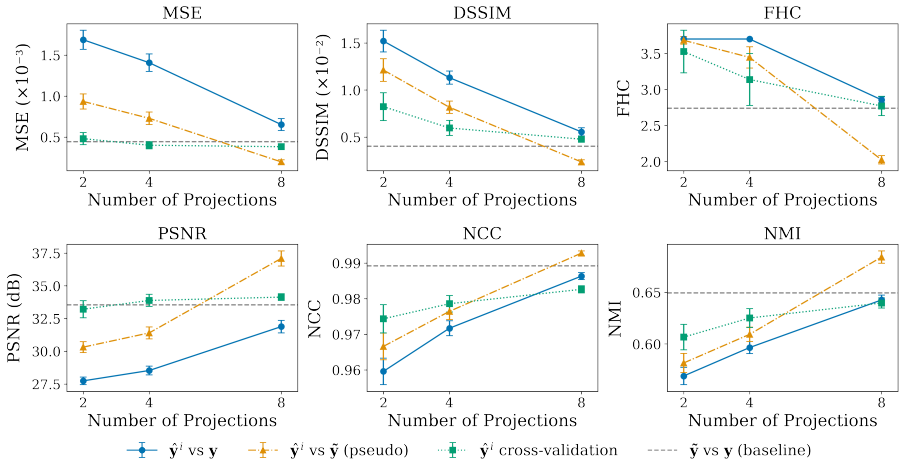

Figure 2. Figure 2: Performance evaluation of 4D reconstructions under sparse spatial sampling. The performance [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance evaluation of 4D reconstructions under ultra-sparse spatial sampling. The per [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
read the original abstract

Four-dimensional (4D; 3D + time) microscopic imaging has emerged as a powerful technique for investigating dynamic phenomena in complex systems, enabling direct visualization of structural evolution in space and time. However, when pushing the limits of spatiotemporal resolution, most time-resolved imaging techniques yield inherently sparse 4D datasets. While deep learning-based reconstruction methods have shown promise in reconstructing 4D from sparse spatiotemporal measurements, a practical approach for evaluating their performance in the absence of a 4D reference has, to the best of our knowledge, been lacking. Here, we present a bootstrapped cross-validation framework that estimates reconstruction performance by quantifying correlations between reconstructions generated from independently sampled subsets of the acquired data, as inspired by the 3D validation strategy in cryo-electron microscopy, where reconstructions from split datasets are compared to assess resolutions. This enables both qualitative and quantitative assessment in the absence of ground truth. We investigate two representative scenarios with sparse and ultra-sparse X-ray datasets and validate this approach using 4D-ONIX, a 4D deep-learning reconstruction method, on simulated water droplet collision experiments. The proposed approach provides a reference-free framework for performance estimation and support for better-informed experimental strategies across a wide range of ultrafast imaging applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a bootstrapped cross-validation framework for evaluating deep-learning reconstructions of sparse and ultra-sparse 4D (3D+time) imaging data in the absence of ground truth. Reconstructions are generated from independently sampled subsets of the measured data, and their mutual correlations are used as a proxy for reconstruction quality; the approach is inspired by split-dataset resolution assessment in cryo-EM and is demonstrated on simulated water-droplet collision experiments using the 4D-ONIX reconstructor.

Significance. If the central proxy assumption holds after proper calibration, the framework would supply a practical, reference-free tool for both qualitative and quantitative performance estimation in ultrafast X-ray and related 4D imaging modalities where ground truth is unavailable. The explicit link to cryo-EM practice and the use of controlled simulated data are constructive elements that could help guide experimental design across a range of sparse spatiotemporal imaging applications.

major comments (2)
  1. [Abstract] Abstract: the central claim that subset-correlation provides a faithful quantitative proxy for fidelity to the unknown true 4D object is load-bearing, yet the abstract reports no numerical correlation values, no error analysis, and no explicit regression of the proxy metric against ground-truth quantities (voxel-wise MSE, SSIM, etc.) across sparsity levels in the simulated droplet data. Without this calibration the transfer to true no-GT settings remains untested.
  2. [Validation section] Validation on simulated droplet collisions: the skeptic concern is material here—if the 4D-ONIX network learns consistent biases from the full measurement statistics, high inter-subset correlation can occur even when absolute accuracy is low. The manuscript must therefore show that the observed correlation tracks actual reconstruction error magnitude (or at least does not systematically overestimate fidelity) before the quantitative-assessment claim can be accepted.
minor comments (2)
  1. Clarify the precise bootstrapping or splitting procedure (number of subsets, sampling strategy in the ultra-sparse regime) so that readers can judge whether representative data variations are captured.
  2. Add a short discussion of potential failure modes (e.g., when the reconstructor exhibits strong consistent bias) to strengthen the limitations paragraph.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important aspects of calibration and validation that we address below. We outline revisions that will strengthen the manuscript without altering its core contributions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that subset-correlation provides a faithful quantitative proxy for fidelity to the unknown true 4D object is load-bearing, yet the abstract reports no numerical correlation values, no error analysis, and no explicit regression of the proxy metric against ground-truth quantities (voxel-wise MSE, SSIM, etc.) across sparsity levels in the simulated droplet data. Without this calibration the transfer to true no-GT settings remains untested.

    Authors: We agree that the abstract would benefit from explicit quantitative support for the proxy metric. The full manuscript already contains the requested regressions and error analyses on the simulated droplet data (comparing subset correlations to voxel-wise MSE and SSIM across sparsity levels), but these are not summarized numerically in the abstract. We will revise the abstract to include representative correlation values and a brief statement of the observed regression performance, thereby providing the calibration evidence directly in the abstract. revision: yes

  2. Referee: [Validation section] Validation on simulated droplet collisions: the skeptic concern is material here—if the 4D-ONIX network learns consistent biases from the full measurement statistics, high inter-subset correlation can occur even when absolute accuracy is low. The manuscript must therefore show that the observed correlation tracks actual reconstruction error magnitude (or at least does not systematically overestimate fidelity) before the quantitative-assessment claim can be accepted.

    Authors: We share this concern and have used the simulated droplet data precisely to test it. Because ground truth is available, we directly compare inter-subset correlations against voxel-wise reconstruction errors computed from the known true object. The existing validation already demonstrates that higher correlations correspond to lower errors and that the proxy does not systematically overestimate fidelity within the tested sparsity regimes. To make this relationship more explicit and address the skeptic concern head-on, we will add a dedicated panel or supplementary table showing the correlation-versus-error scatter and associated regression statistics. revision: partial

Circularity Check

0 steps flagged

No significant circularity; framework is a self-contained methodological proposal validated externally

full rationale

The paper proposes a bootstrapped cross-validation approach that quantifies correlations between reconstructions from independently sampled data subsets to estimate performance without ground truth, drawing inspiration from established cryo-EM split-dataset practices. This is a standard statistical validation technique rather than a derivation that reduces to its own inputs by construction. No equations, fitted parameters, or predictions are presented that equate to the method itself; validation occurs on simulated droplet collision data with available ground truth, providing independent external benchmarking. No self-citations are load-bearing for the core premise, no uniqueness theorems are imported from prior author work, and no ansatzes are smuggled in. The central claim therefore remains self-contained and does not exhibit circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on a single domain assumption about subset agreement proxying true accuracy; no free parameters or new physical entities are introduced.

axioms (1)
  • domain assumption Agreement between reconstructions from independently sampled data subsets reliably indicates reconstruction fidelity to the true 4D object
    This is the central premise that allows the method to operate without ground truth; it is stated in the abstract as the basis for both qualitative and quantitative assessment.

pith-pipeline@v0.9.0 · 5778 in / 1278 out tokens · 49291 ms · 2026-05-20T06:54:43.036372+00:00 · methodology
