The Cosmic Ray Life Cycle in Galaxy Clusters

Francesco de Gasperin , Marcus Br\"uggen , Henrik Edler , Reinout J. van Weeren , Tiziana Venturi , Gianfranco Brunetti This is my paper

Pith reviewed 2026-06-25 19:45 UTC · model grok-4.3

classification 🌌 astro-ph.CO
keywords galaxy clusterscosmic raysradio halosradio relicsmagnetic fieldssynchrotron emissionturbulenceSKA observations
0
0 comments X

The pith

SKA-Mid and SKA-Low can map magnetic fields and low-energy cosmic rays throughout galaxy clusters via their radio emissions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that gravitational energy released during the growth of galaxy clusters is converted into heat, amplified magnetic fields, and cosmic ray electrons through turbulence and shock waves. These electrons produce large-scale synchrotron radio sources such as halos and relics. A sympathetic reader cares because these processes shape the evolution of the universe's largest structures and reveal how cosmic rays are accelerated on cluster scales. The paper argues that SKA-Mid in bands 1 and 2 together with SKA-Low provide the necessary sensitivity to polarized and low-frequency emission to study both the magnetic field geometry and the faint reservoir of low-energy cosmic rays, while also tracking interactions across gigayear timescales.

Core claim

Within the cosmic web, gravitational energy tied to cluster formation and AGN activity is converted to heat via turbulence and shock waves; this amplifies magnetic fields and accelerates cosmic ray electrons that emit synchrotron radiation on the scale of entire clusters, appearing as radio halos, radio relics, and related sources. SKA-Mid (Bands 1 and 2) and SKA-Low are ideally suited to probe the resulting magnetic field structures and the large reservoir of low-energy cosmic rays because of their sensitivity to polarized and low-frequency emission.

What carries the argument

Synchrotron emission from cosmic ray electrons, which directly traces the amplified magnetic fields and the population of accelerated particles produced by turbulence and shocks.

If this is right

  • Deep SKA observations of selected nearby clusters will yield a comprehensive view of cosmic ray acceleration processes.
  • Wide-area SKA surveys will capture the long-term interactions of these sources over gigayear timescales.
  • The high sensitivity to low-frequency emission will reveal acceleration mechanisms for low-energy cosmic rays that remain unexplored.
  • Polarized emission data will map magnetic field structures across entire clusters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same SKA capabilities could be applied to map cosmic ray populations in other large-scale structures such as filaments of the cosmic web.
  • If the low-energy cosmic ray reservoir is detected, it would constrain the efficiency of microphysical acceleration processes beyond standard shock and turbulence models.
  • Repeated observations over years could test whether AGN activity or gravitational processes dominate the energy budget in different cluster environments.

Load-bearing premise

Turbulence and shock waves are the dominant mechanisms that convert gravitational energy into cosmic rays and magnetic field amplification inside galaxy clusters.

What would settle it

SKA observations of a sample of nearby clusters that detect no polarized low-frequency emission from expected radio halos or relics, or that show no signatures of the predicted low-energy cosmic ray reservoir.

Figures

Figures reproduced from arXiv: 2606.26005 by Francesco de Gasperin, Gianfranco Brunetti, Henrik Edler, Marcus Br\"uggen, Reinout J. van Weeren, Tiziana Venturi.

Figure 1

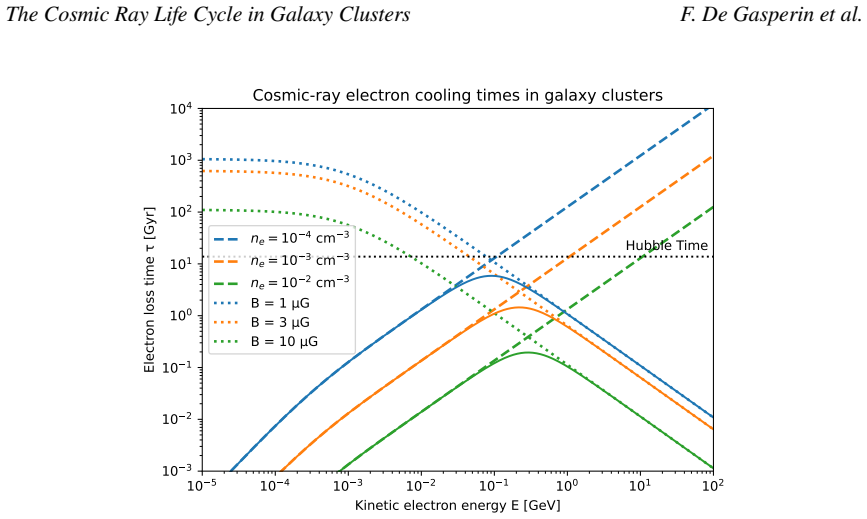

Figure 1. Figure 1: Cooling time of CR electrons under typical ICM conditions due to Coulomb and IC/synchrotron interaction as a function of their kinetic energy. The density and magnetic field strengths ranges from typical values in the outskirts of galaxy clusters to the central regions. CR electrons can remain long-lived if they are injected in low-density environments and at late cosmic times. Electrons with kinetic energ… view at source ↗
Figure 2

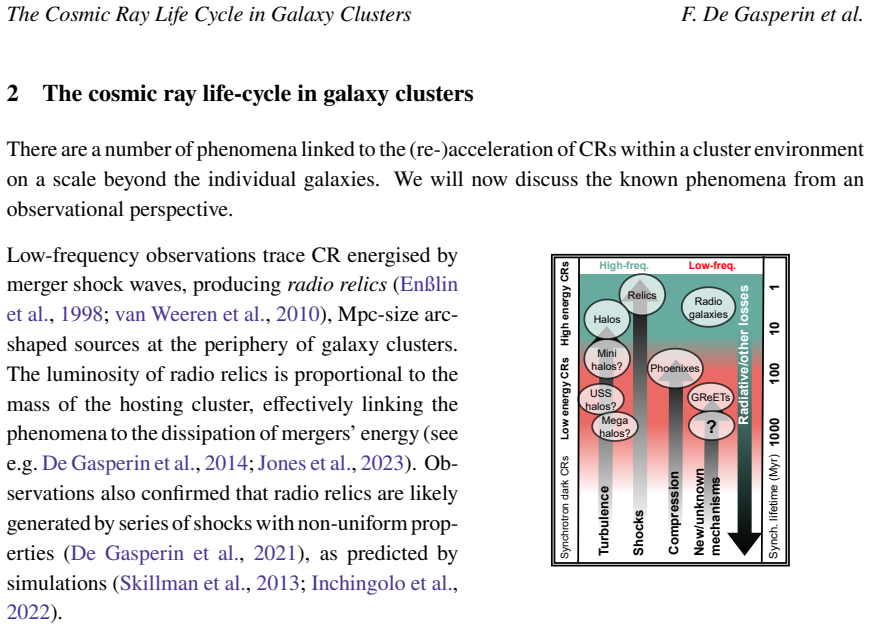

Figure 2. Figure 2: CRs (re)-energisation/ageing pro￾cesses (arrows) in clusters and related observa￾tional phenomena (ovals). CR energy increases from bottom to top. Low-frequency observations trace CR energised by merger shock waves, producing radio relics (Enßlin et al., 1998; van Weeren et al., 2010), Mpc-size arc￾shaped sources at the periphery of galaxy clusters. The luminosity of radio relics is proportional to the mas… view at source ↗
Figure 3

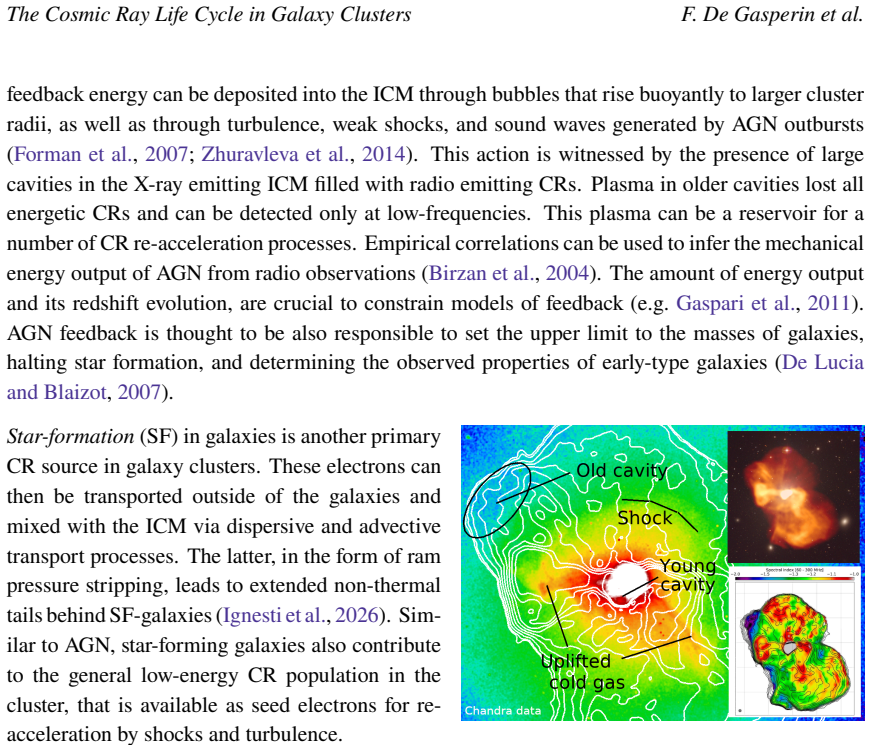

Figure 3. Figure 3: M87 is one of the best example of AGN feedback in action. Here we labelled some of the features present in X-ray data. In the small pan￾els, the LOFAR 54 MHz image and the spectral index map showing active/young regions (red) and dead/old regions (blue). Star-formation (SF) in galaxies is another primary CR source in galaxy clusters. These electrons can then be transported outside of the galaxies and mixed… view at source ↗
Figure 5

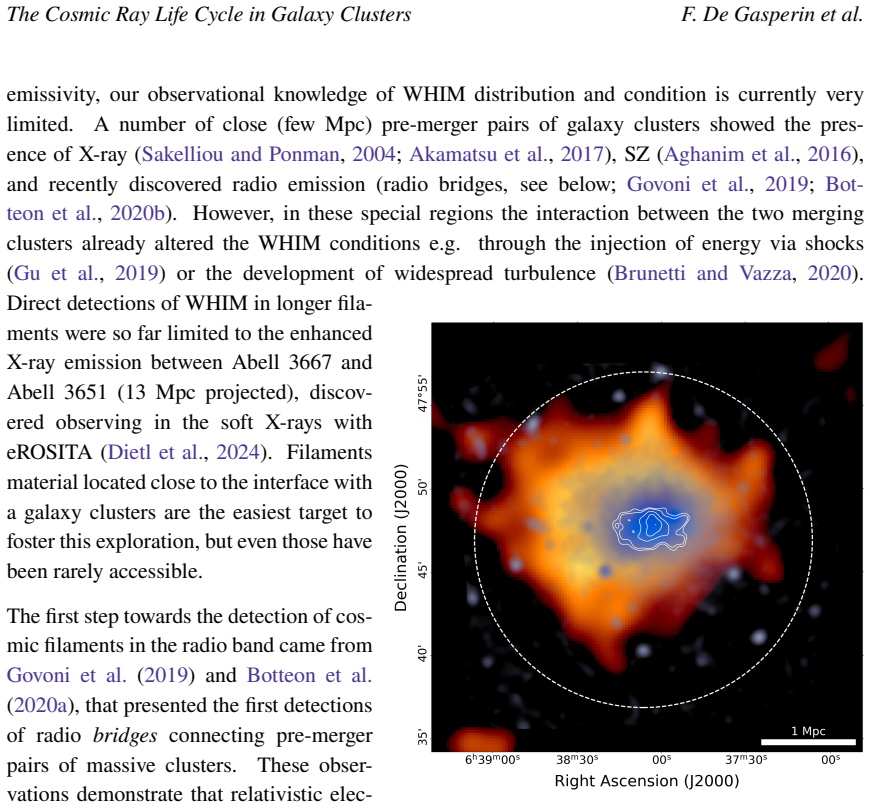

Figure 5. Figure 5: In orange the first detection of a radio Megahalo (Cuciti et al., 2022), with a size of 3 Mpc it extends up to the virial radius (dotted line), occupying a volume 30 times larger than classical radio halos (outlined with contours). In blue the X-ray emission from the ICM. Direct detections of WHIM in longer fila￾ments were so far limited to the enhanced X-ray emission between Abell 3667 and Abell 3651 (13 … view at source ↗
Figure 4

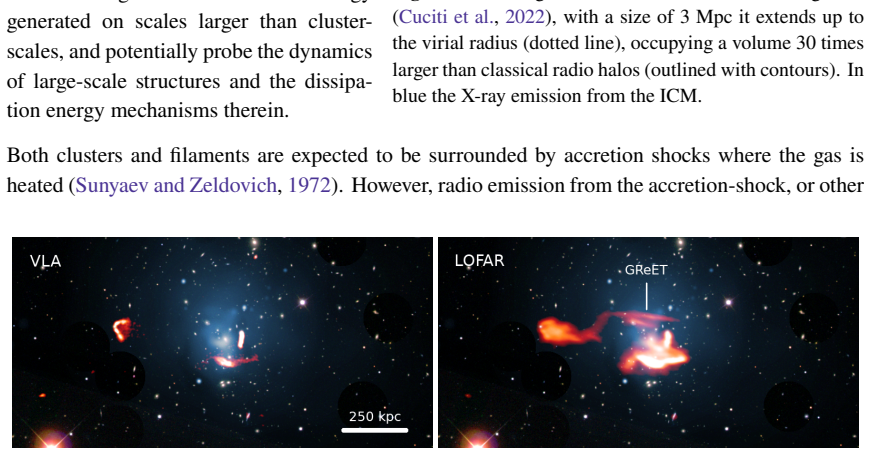

Figure 4. Figure 4: Left: the galaxy cluster Abell 1033 at conventional frequencies (1.4 GHz). Right: the discovery of the first GReET, a new type of radio source visible uniquely at very low frequencies. 6 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

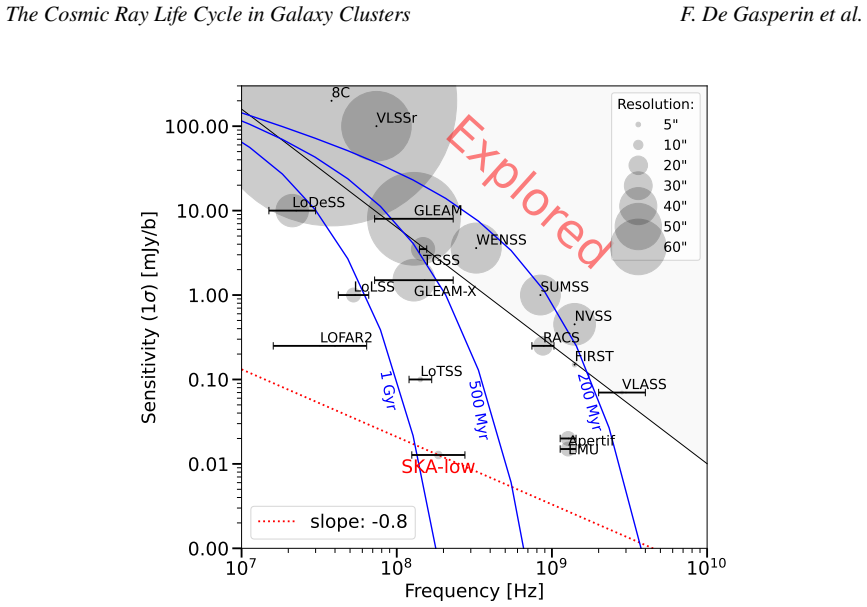

Figure 6. Figure 6: Location in a sensitivity-frequency plot of a possible SKA-low all-sky survey compared to past and on-going large area surveys. Blue lines are the SED of a radio source after ageing (following a standard JP model; Jaffe and Perola, 1973) for 0.2, 0.5, and 1 Gyr. clear detections, have remained elusive. One step forward in the exploration of cluster boundaries came with the discovery of a new population of … view at source ↗
Figure 7

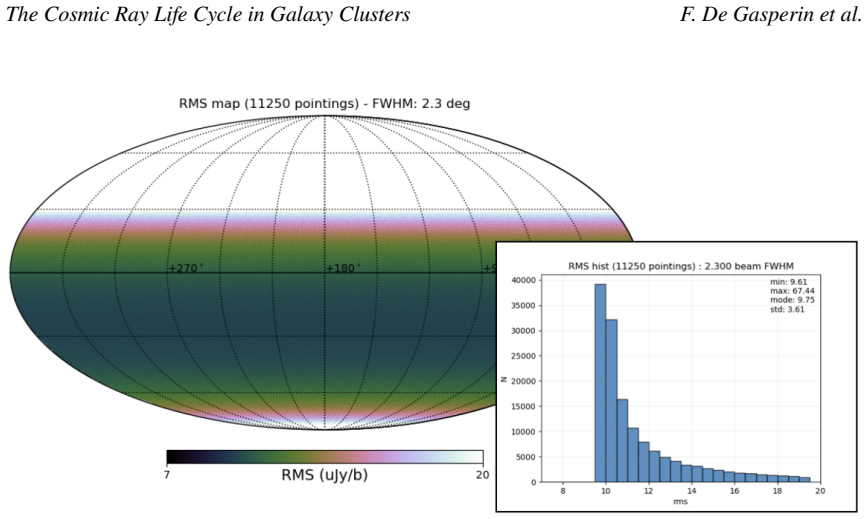

Figure 7. Figure 7: RMS noise map of the simulated SKA-Low survey described in Sec. 5. The declination gradient is due to the dipole beam combined with a uniform time integration. The histogram shows the number of pixels per bin of rms noise. 5 A SKA-Low survey to study the cosmic web The large angular size of clusters outskirts and cosmic filaments combined with the (expected) low strength of the magnetic fields, makes the d… view at source ↗
read the original abstract

Within the cosmic web, gravitational energy, linked to the formation and growth of the Universe's largest structures and the activity of active galactic nuclei (AGN), is converted to heat through processes such as turbulence and shock waves. These processes have a fundamental impact on the evolution of galaxy clusters. For example, they lead to the amplification of magnetic fields and the production of cosmic ray (CR) electrons that emit continuum radio waves via synchrotron emission. This produces sources on scales of the entire hosting clusters. These large radio sources in galaxy clusters are often classified based on their morphological appearance as radio halos, cluster radio shocks (radio relics), and other types. To understand the CR acceleration processes in galaxy clusters (and beyond), and to gain a comprehensive view of these sources, including their long-term interactions, SKA telescope should conduct both deep observations of a carefully selected sample of nearby clusters as well as shallower wide-area surveys. Thanks to their capabilities - in particular the sensitivity to polarised and low-frequency emission - SKA-Mid (Bands 1 and 2) and SKA-Low are ideally suited to probing magnetic field structures in galaxy clusters, as well as the large reservoir of low-energy CRs that may be accelerated by yet-unexplored microphysical mechanisms. The high sensitivity to low-frequency emission will also be fundamental to detect the long term actions and interactions of these phenomena over gigayear timescales.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript reviews how turbulence and shock waves convert gravitational energy into heat, magnetic field amplification, and cosmic-ray electron acceleration within galaxy clusters, producing large-scale synchrotron sources classified as radio halos and cluster radio shocks. It recommends that SKA-Mid (Bands 1 and 2) and SKA-Low perform both deep targeted observations of nearby clusters and shallower wide-area surveys to study magnetic-field structures and the low-energy CR population, citing the telescopes' sensitivity to polarized and low-frequency emission as key advantages.

Significance. The review synthesizes established cluster astrophysics and translates it into concrete SKA observing strategies. If the underlying processes are as described in the prior literature, the recommendations could usefully inform SKA early-science planning and help prioritize observations that probe CR acceleration and B-field evolution on gigayear timescales.

minor comments (2)
  1. [Abstract] Abstract, first paragraph: the clause 'SKA telescope should conduct' is grammatically imprecise; rephrasing to 'the SKA should conduct' would improve readability.
  2. [Introduction (inferred from abstract)] The manuscript would benefit from explicit citations to the key review papers on turbulence-driven CR acceleration and relic formation when stating the dominance of these mechanisms.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive review, accurate summary of the manuscript, and recommendation to accept. No major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; descriptive review with no derivations

full rationale

This is a review/white-paper summarizing established cluster physics (turbulence/shocks amplifying B-fields and accelerating CR electrons) and recommending SKA observing strategies. No new quantitative model, derivation, or falsifiable prediction is advanced; the central claim is an observational recommendation whose validity rests on the prior literature rather than on any internal step that could be internally inconsistent or under-supported within the paper itself. No equations, fitted parameters, or self-referential predictions appear in the provided text, so no load-bearing step reduces to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the text relies on standard astrophysical background.

pith-pipeline@v0.9.1-grok · 5803 in / 1050 out tokens · 18242 ms · 2026-06-25T19:45:39.324965+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
