CryoNet: A Deep Learning Framework for Multi-Modal Debris-Covered Glacier Mapping. A Case Study of the Poiqu Basin, Central Himalaya

Farzaneh Barzegar , Tobias Bolch , Norbert Kuehtreiber , Silvia L. Ullo This is my paper

Pith reviewed 2026-05-22 01:33 UTC · model grok-4.3

classification 📡 eess.IV cs.CVcs.LG
keywords debris-covered glaciersglacier mappingdeep learningmulti-modal remote sensingSentinel-2InSARconvolutional neural networkHimalaya
0
0 comments X

The pith

CryoNet fuses multi-modal satellite layers in a custom CNN to map debris-covered glaciers with over 90 percent IoU.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops CryoNet to automatically outline glaciers in high-mountain terrain where debris makes ice look like ordinary rock and soil from above. It stacks Sentinel-2 optical bands with elevation derivatives, radar coherence, texture measures, and other processed layers as input to a ResNet101 encoder-decoder network that includes nested skips and attention blocks. A sympathetic reader would care because reliable glacier boundaries matter for tracking freshwater loss and climate-driven change without labor-intensive field work. The model reports strong segmentation scores on the Poiqu Basin data and holds up when applied to an Alpine test region.

Core claim

CryoNet is an encoder-decoder CNN built on a ResNet101 backbone with nested skip connections and spatial-channel Squeeze-and-Excitation attention. It ingests a multi-modal stack of Sentinel-2 bands, DEM topographic variables, spectral indices, PCA, InSAR coherence and phase, tasseled-cap features, and GLCM texture to classify pixels as clean-ice glaciers, debris-covered glaciers, or glacial lakes. In the Poiqu Basin the network reaches an overall IoU of 90.52 percent and an IoU of 90.46 percent on the debris-covered class while exceeding the scores of DeepLabV3+, SegFormer, and U-Net.

What carries the argument

CryoNet, a ResNet101-based encoder-decoder CNN with nested skip connections and scSE attention, that fuses a stack of optical, topographic, radar, and texture layers to segment glacier surfaces.

If this is right

  • Large-scale glacier inventories become practical in regions where optical images alone cannot distinguish debris cover.
  • Consistent time-series mapping of glacier extent supports better estimates of ice-volume change and water-resource impacts.
  • The same trained weights can be applied to other mountain ranges, as shown by the transfer test to the Mont Blanc Massif.
  • Layer-importance analysis identifies which data sources contribute most, guiding efficient future data-collection choices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Open multi-modal pipelines of this type could be extended to produce regularly updated global glacier maps from freely available archives.
  • If the model remains stable when some expensive layers are dropped, operational systems could run on lower-cost data streams.
  • Linking the output boundaries directly to glacier-flow or mass-balance models would let researchers test whether mapping errors propagate into climate projections.

Load-bearing premise

The auxiliary layers supply enough independent signal to separate debris-covered ice from rocks and soil that appear identical in ordinary optical images.

What would settle it

Apply the trained model to imagery where the InSAR or DEM layers are removed or misaligned and observe whether accuracy on debris-covered areas drops to the level of the single-modal baseline networks.

Figures

Figures reproduced from arXiv: 2605.21527 by Farzaneh Barzegar, Norbert Kuehtreiber, Silvia L. Ullo, Tobias Bolch.

Figure 1
Figure 1. Figure 1: Poiqu basin in WGS84 geographic coordinate [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

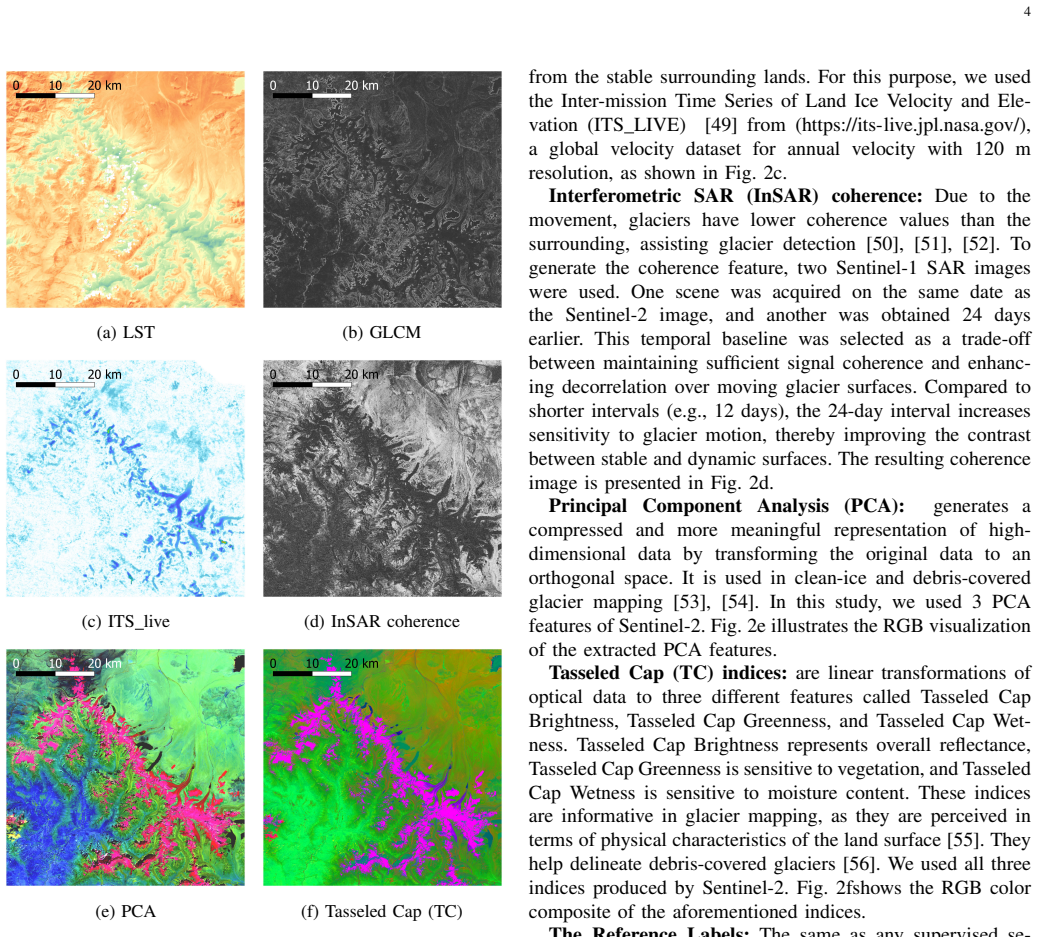

Figure 2
Figure 2. Figure 2: LST, PCA, TC, GLCM, and ITS-live velocity used [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The Reference Labels consistent glacier dataset for HMA. This dataset improves the original inventory by adjusting steep ice and snow￾covered slopes and shaded components, based on multi￾temporal Landsat imagery. It should be noted that this introduces a temporal mismatch between the reference glacier outlines and the Sentinel-2 imagery used in this study (2018). However, such discrepancies are common in g… view at source ↗
Figure 4
Figure 4. Figure 4: CryoNet architecture contrast between debris-covered ice and surrounding non￾glacial terrain. By leveraging multi-scale feature fusion and joint spatial–channel attention, the model enhances class sep￾arability and boundary delineation in heterogeneous mountain environments. The training configuration is detailed in the following section. D. Training and testing strategy To train CryoNet, we conducted a se… view at source ↗

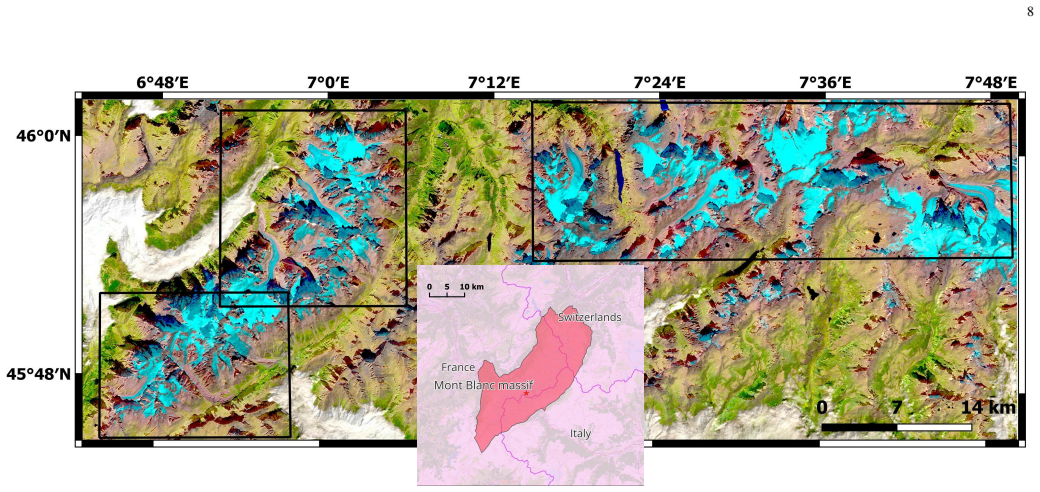

Figure 5
Figure 5. Figure 5: Mont Blanc Massif Region. The black boxes show the areas of interest used in this study. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of overall accuracy between different [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Confusion matrices IV. DISCUSSION The experimental results demonstrate that integrating multi￾source data with the proposed attention-enhanced nested encoder-decoder architecture substantially improves the delin￾eation of debris-covered and clean-ice glaciers. Compared with DeepLabV3+, SegFormer, and the classical U-Net, CryoNet consistently achieved higher accuracy, precision, and IoU across all classes. … view at source ↗
Figure 8
Figure 8. Figure 8: Prediction results on an unseen subset: (a) the corresponding ground truth, (b) Predictions of CryoNet, (c) Predictions [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Prediction results on an unseen subset in Mont Blanc Massif, Alps: (a), (b), (c) [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗

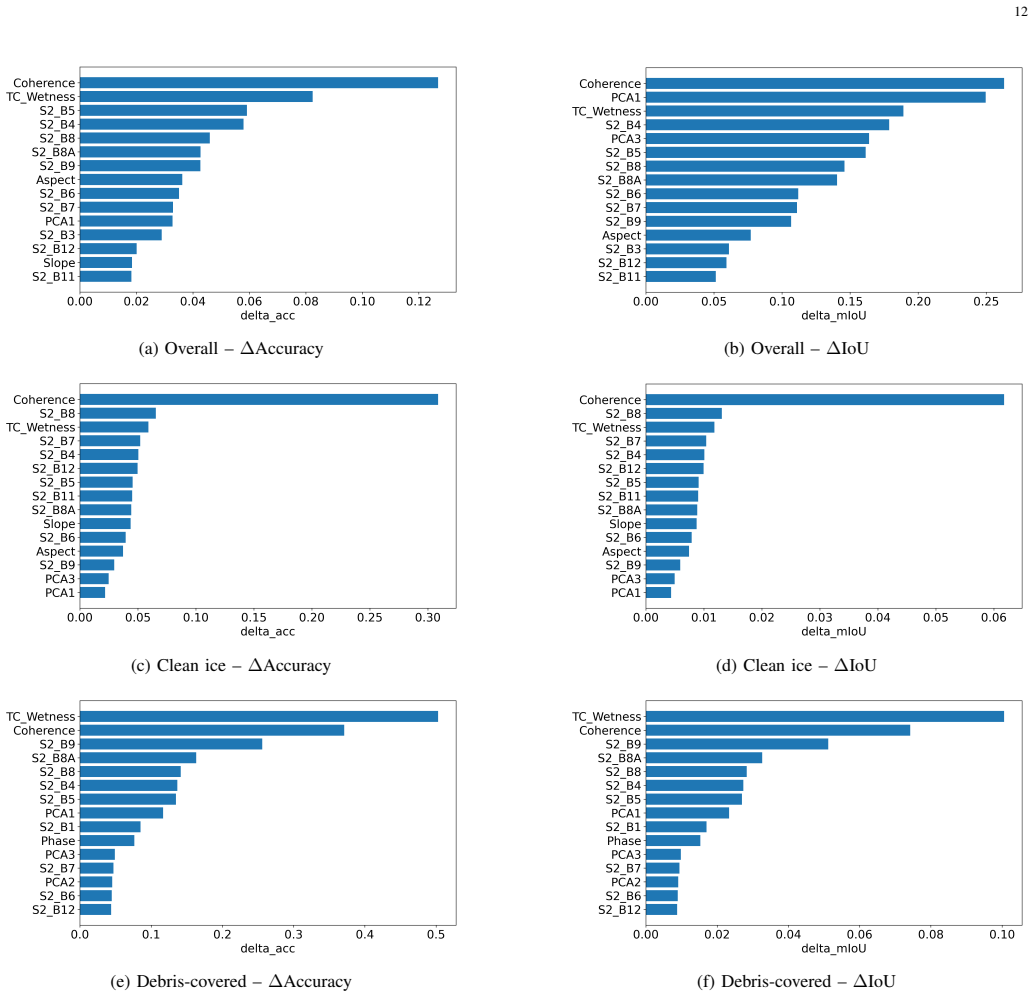

Figure 10
Figure 10. Figure 10: Permutation-based channel importance for overall performance (top row), clean ice mapping (middle row), and [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
read the original abstract

Glaciers play a critical role as freshwater reserves and indicators of climate change, yet their automatic delineation, especially for debris-covered glaciers, remains challenging due to spectral similarity with surrounding terrain. This study introduces CryoNet, a deep learning framework that leverages a rich multi-modal dataset combining Sentinel-2 optical imagery, DEM-derived topographic variables, spectral indices, Principal Component Analysis (PCA), InSAR coherence and phase, tasseled-cap features, and GLCM texture to discriminate clean-ice glaciers, debris-covered glaciers, and glacial lakes. CryoNet is an encoder-decoder CNN with nested skip connections and spatial-channel Squeeze-and-Excitation (scSE) attention, built upon a ResNet101 encoder to capture hierarchical contextual and spatial features. The study is conducted in the Poiqu Basin in the central Himalaya, and transferability is evaluated by applying the trained model to the Mont Blanc Massif in the Alps. We additionally analyse the importance of each data layer in improving glacier mapping performance. The proposed model achieves an overall IoU of 90.52%, mean Recall of 98.08%, and mean Precision of 92.26%. For debris-covered glaciers specifically, CryoNet obtains an IoU of 90.46%, a recall of 95.79%, and a precision of 94.21%. Across both per-class and overall metrics, CryoNet surpasses DeepLabV3+, SegFormer, and U-Net, taken as state-of-the-art (SOTA) references, demonstrating its effectiveness for robust glacier mapping in complex high-mountain environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces CryoNet, a ResNet101-based encoder-decoder CNN with nested skip connections and scSE attention modules, for semantic segmentation of clean-ice glaciers, debris-covered glaciers, and glacial lakes. It fuses a multi-modal stack comprising Sentinel-2 optical bands, DEM derivatives, InSAR coherence and phase, tasseled-cap indices, GLCM textures, PCA, and spectral indices. The model is trained and evaluated in the Poiqu Basin (central Himalaya) and tested for transferability on the Mont Blanc Massif (Alps). Reported metrics include overall IoU of 90.52%, mean recall 98.08%, mean precision 92.26%, and debris-covered glacier IoU of 90.46% (recall 95.79%, precision 94.21%), outperforming DeepLabV3+, SegFormer, and U-Net baselines; an ablation study on input-layer importance is also presented.

Significance. If the performance claims are confirmed under controlled input conditions, the work would advance automated debris-covered glacier mapping in complex terrain, supporting freshwater and climate-change studies. The explicit transfer evaluation to an independent Alpine region and the layer-importance analysis constitute clear strengths that enhance reproducibility and interpretability.

major comments (2)
  1. [Results section (comparison to baselines)] Results section (comparison to baselines): The claim that CryoNet surpasses DeepLabV3+, SegFormer, and U-Net with a debris-covered IoU of 90.46% does not specify whether the baseline models received the identical multi-modal input stack (DEM derivatives, InSAR coherence/phase, GLCM, PCA, tasseled-cap) or only Sentinel-2 optical bands. If the baselines were trained on fewer channels, the performance delta cannot be attributed to the nested skips and scSE attention; the layer-importance analysis shows multi-modality helps but does not resolve this head-to-head fairness issue.
  2. [Methods section] Methods section: No information is provided on training-set size, number of patches or pixels, cross-validation procedure, or standard-error estimates for the reported IoU, precision, and recall values. Without these details the central quantitative claims (overall IoU 90.52%, debris-covered IoU 90.46%) cannot be fully assessed for robustness or statistical significance.
minor comments (2)
  1. [Abstract] The abstract states that the three baselines are 'taken as state-of-the-art (SOTA) references' but does not briefly motivate their selection relative to other recent glacier-mapping architectures.
  2. [Layer-importance analysis figure] Figure showing layer-importance results would be clearer if it included error bars or a statistical test supporting the ranking of input contributions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review, which has helped us identify areas where the manuscript can be clarified and strengthened. We address each major comment point by point below.

read point-by-point responses

  1. Referee: Results section (comparison to baselines): The claim that CryoNet surpasses DeepLabV3+, SegFormer, and U-Net with a debris-covered IoU of 90.46% does not specify whether the baseline models received the identical multi-modal input stack (DEM derivatives, InSAR coherence/phase, GLCM, PCA, tasseled-cap) or only Sentinel-2 optical bands. If the baselines were trained on fewer channels, the performance delta cannot be attributed to the nested skips and scSE attention; the layer-importance analysis shows multi-modality helps but does not resolve this head-to-head fairness issue.

    Authors: We thank the referee for identifying this important point on ensuring a fair comparison. All baseline models (DeepLabV3+, SegFormer, and U-Net) were trained and evaluated on the identical multi-modal input stack used for CryoNet, which includes Sentinel-2 optical bands, DEM derivatives, InSAR coherence and phase, tasseled-cap indices, GLCM textures, PCA components, and spectral indices. The observed performance improvements can therefore be attributed to CryoNet’s architectural components, specifically the nested skip connections and scSE attention modules. We will revise the Results section to explicitly state that the baselines received the full multi-modal input stack. revision: yes

  2. Referee: Methods section: No information is provided on training-set size, number of patches or pixels, cross-validation procedure, or standard-error estimates for the reported IoU, precision, and recall values. Without these details the central quantitative claims (overall IoU 90.52%, debris-covered IoU 90.46%) cannot be fully assessed for robustness or statistical significance.

    Authors: We agree that these details are necessary to allow readers to fully evaluate the robustness of the quantitative results. In the revised manuscript we will expand the Methods section to report the training-set size (number of patches and total pixels), the cross-validation procedure (5-fold cross-validation), and standard-error estimates for IoU, precision, and recall computed across the validation folds. These additions will directly address the concern regarding statistical assessment of the reported metrics. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results on held-out and external test data are independent of model inputs

full rationale

The paper reports standard empirical performance metrics (IoU, precision, recall) for a trained encoder-decoder CNN on a held-out test set within the Poiqu Basin plus a fully separate Alpine transferability region. These quantities are measured outcomes, not quantities defined by construction from the training inputs or fitted parameters. No mathematical derivation chain exists that reduces a claimed result to a self-referential definition, fitted subset, or load-bearing self-citation. The architecture (ResNet101 + nested skips + scSE) and multi-modal feature stack are presented as design choices whose contribution is assessed via explicit layer-importance ablation, supplying an internal check that does not collapse into the target metrics. Baselines are invoked as external SOTA references without any indication that their training protocol is defined inside the present work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central performance claim rests on the standard assumption that a supervised CNN can learn discriminative features from the listed remote-sensing layers; no additional free parameters or invented physical entities are introduced beyond ordinary model training.

axioms (1)
  • domain assumption Convolutional neural networks with attention can learn hierarchical spatial and channel features sufficient to discriminate debris-covered ice from surrounding terrain when supplied with the described multi-modal stack.
    Invoked implicitly by the choice of ResNet101 encoder plus scSE blocks and the decision to fuse optical, topographic, InSAR, and texture inputs.

pith-pipeline@v0.9.0 · 5851 in / 1373 out tokens · 43997 ms · 2026-05-22T01:33:41.480580+00:00 · methodology
