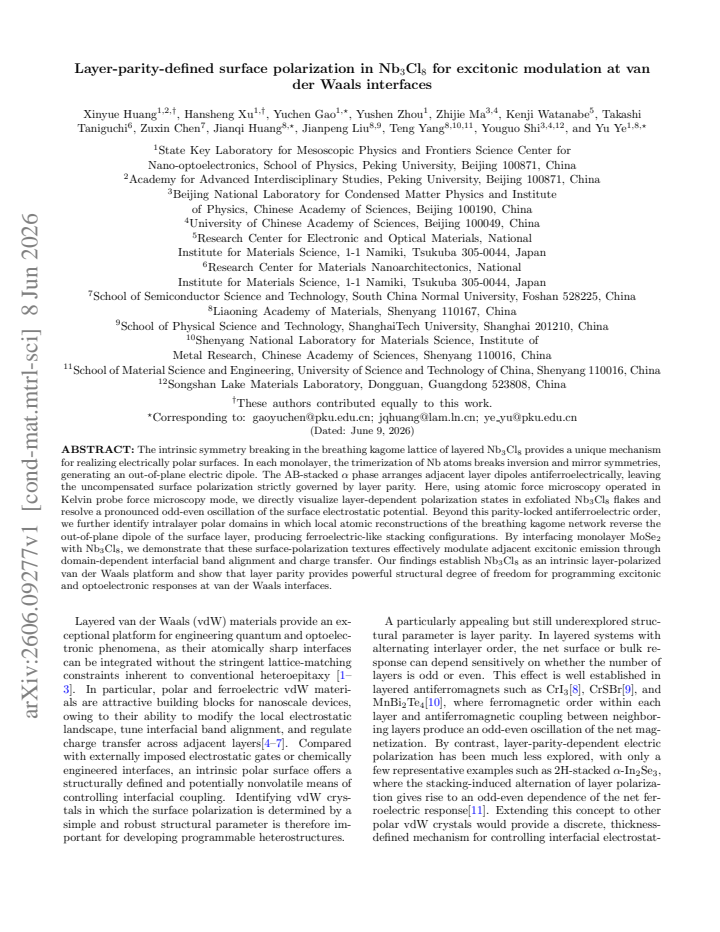

Layer-parity-defined surface polarization in Nb₃Cl₈ for excitonic modulation at van der Waals interfaces

Xinyue Huang , Hansheng Xu , Yuchen Gao , Yushen Zhou , Zhijie Ma , Kenji Watanabe , Takashi Taniguchi , Zuxin Chen
show 5 more authors
Jianqi Huang Jianpeng Liu Teng Yang Youguo Shi Yu Ye
This is my paper

Pith reviewed 2026-06-27 15:49 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords Nb3Cl8surface polarizationlayer parityantiferroelectric ordervan der Waals interfaceexciton modulationKelvin probe force microscopybreathing kagome lattice
0
0 comments X

The pith

In Nb3Cl8 the AB-stacked alpha phase arranges layer dipoles antiferroelectrically so that surface polarization is fixed by whether the total layer count is odd or even.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Each monolayer of Nb3Cl8 contains a breathing kagome lattice whose Nb trimerization breaks inversion symmetry and creates an out-of-plane electric dipole. In the AB-stacked alpha phase these dipoles point in opposite directions from one layer to the next, so that only the uppermost dipole remains uncompensated at the surface; the sign and magnitude of that net polarization therefore depend strictly on layer parity. Kelvin-probe force microscopy images of exfoliated flakes show a clear odd-even oscillation in surface electrostatic potential that matches this prediction. Additional intralayer atomic reconstructions can locally reverse the surface dipole, creating ferroelectric-like domains. Placing monolayer MoSe2 on these surfaces demonstrates that the polarization textures alter interfacial band alignment and thereby shift the energy of excitonic emission in the MoSe2.

Core claim

In the alpha phase of Nb3Cl8 the trimerization of Nb atoms within each monolayer produces an out-of-plane electric dipole; AB stacking places neighboring dipoles in opposite directions, leaving an uncompensated surface polarization whose sign is dictated solely by the parity of the layer number. Kelvin-probe measurements directly resolve the resulting odd-even oscillation of surface potential, while local reconstructions of the breathing kagome network create additional domains with reversed dipoles. When monolayer MoSe2 is stacked on Nb3Cl8 these polarization textures modulate the adjacent exciton emission through domain-dependent charge transfer and band alignment.

What carries the argument

The antiferroelectric arrangement of out-of-plane layer dipoles in the AB-stacked alpha phase, which leaves an uncompensated surface dipole whose direction is set by layer parity.

If this is right

  • Surface electrostatic potential oscillates with layer parity across exfoliated flakes.
  • Intralayer atomic reconstructions produce domains whose out-of-plane dipoles are locally reversed.
  • Domain-dependent band alignment at a MoSe2 interface shifts the energy of excitonic emission.
  • Layer parity supplies a structural control parameter for interfacial optoelectronic responses without external gates.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same parity rule may operate in other van der Waals compounds that host breathing-kagome layers with out-of-plane dipoles.
  • Thickness engineering could be used to preset the default polarization state in heterostructure devices.
  • Domain walls between parity-reversed regions might host distinct electronic states available for transport or optical probing.

Load-bearing premise

The measured odd-even oscillation in surface potential is produced by the uncompensated layer dipole rather than by work-function variations, adsorbates, or tip-induced artifacts.

What would settle it

If the surface-potential oscillation between odd- and even-layer regions disappears after adsorbate removal or under tip conditions that eliminate electrostatic artifacts, the link between layer parity and polarization would be falsified.

read the original abstract

The intrinsic symmetry breaking in the breathing kagome lattice of layered Nb$_3$Cl$_8$ provides a unique mechanism for realizing electrically polar surfaces. In each monolayer, the trimerization of Nb atoms breaks inversion and mirror symmetries, generating an out-of-plane electric dipole. The AB-stacked $\alpha$ phase arranges adjacent layer dipoles antiferroelectrically, leaving the uncompensated surface polarization strictly governed by layer parity. Here, using atomic force microscopy operated in Kelvin probe force microscopy mode, we directly visualize layer-dependent polarization states in exfoliated Nb$_3$Cl$_8$ flakes and resolve a pronounced odd-even oscillation of the surface electrostatic potential. Beyond this parity-locked antiferroelectric order, we further identify intralayer polar domains in which local atomic reconstructions of the breathing kagome network reverse the out-of-plane dipole of the surface layer, producing ferroelectric-like stacking configurations. By interfacing monolayer MoSe$_2$ with Nb$_3$Cl$_8$, we demonstrate that these surface-polarization textures effectively modulate adjacent excitonic emission through domain-dependent interfacial band alignment and charge transfer. Our findings establish Nb$_3$Cl$_8$ as an intrinsic layer-polarized van der Waals platform and show that layer parity provides powerful structural degree of freedom for programming excitonic and optoelectronic responses at van der Waals interfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript claims that the breathing-kagome structure of Nb₃Cl₈ produces out-of-plane layer dipoles that stack antiferroelectrically in the AB α phase, so that surface polarization is strictly determined by layer parity. KPFM measurements on exfoliated flakes are reported to visualize a pronounced odd-even oscillation in surface electrostatic potential; intralayer polar domains arising from local reconstructions are also identified. Interfacing with monolayer MoSe₂ is shown to produce domain-dependent excitonic emission modulation via polarization-controlled interfacial band alignment and charge transfer.

Significance. If the causal attribution of the KPFM contrast to uncompensated layer dipoles is substantiated, the work identifies a structurally simple vdW platform in which layer parity alone programs interfacial electrostatics and excitonic response. The combination of direct surface-potential imaging with a functional heterostructure demonstration would constitute a useful addition to the literature on intrinsic polar vdW materials.

major comments (3)
  1. [KPFM results / abstract] Abstract and KPFM results section: the central claim that the measured odd-even surface-potential oscillation arises exclusively from uncompensated layer dipoles requires quantitative comparison of the observed ΔV to the dipole moment computed from the breathing-kagome atomic structure (or from DFT); no such comparison, error bars, or statistical distribution across multiple flakes is presented, leaving the interpretation unverified.
  2. [KPFM measurements / interfacial heterostructure section] Experimental methods and results on surface potential: the manuscript does not report control measurements (in-situ UHV annealing, tip-bias or lift-height dependence, or work-function reference samples) that would exclude adsorbate charging or tip-induced artifacts as alternative sources of the parity-dependent contrast; this control is load-bearing for the subsequent claim that layer parity programs MoSe₂ band alignment.
  3. [heterostructure optoelectronics section] MoSe₂/Nb₃Cl₈ interface results: the attribution of domain-dependent exciton modulation to polarization-induced band alignment lacks supporting data such as local UPS, Kelvin-probe-derived work-function maps correlated with PL, or electrostatic modeling of the interface potential step.
minor comments (1)
  1. [introduction / figure 1] Notation for the α phase and layer indexing should be defined explicitly in the first figure or methods section to avoid ambiguity when discussing parity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which have helped us strengthen the manuscript. We address each major comment below and indicate revisions made to the next version.

read point-by-point responses

  1. Referee: [KPFM results / abstract] Abstract and KPFM results section: the central claim that the measured odd-even surface-potential oscillation arises exclusively from uncompensated layer dipoles requires quantitative comparison of the observed ΔV to the dipole moment computed from the breathing-kagome atomic structure (or from DFT); no such comparison, error bars, or statistical distribution across multiple flakes is presented, leaving the interpretation unverified.

    Authors: We agree that a quantitative comparison between the measured potential oscillation and the structural dipole would provide stronger substantiation. In the revised manuscript we have added DFT calculations of the monolayer dipole moment together with an estimate of the expected surface potential step. We have also included error bars on the KPFM data and statistical distributions compiled from multiple flakes to demonstrate reproducibility of the odd-even effect. revision: yes

  2. Referee: [KPFM measurements / interfacial heterostructure section] Experimental methods and results on surface potential: the manuscript does not report control measurements (in-situ UHV annealing, tip-bias or lift-height dependence, or work-function reference samples) that would exclude adsorbate charging or tip-induced artifacts as alternative sources of the parity-dependent contrast; this control is load-bearing for the subsequent claim that layer parity programs MoSe₂ band alignment.

    Authors: We acknowledge that explicit controls are necessary to rule out artifacts. The revised manuscript now includes additional data from in-situ UHV annealing, lift-height dependence, and tip-bias sweeps, all of which confirm that the parity-dependent contrast remains unchanged. Work-function reference samples have also been measured and reported for calibration. revision: yes

  3. Referee: [heterostructure optoelectronics section] MoSe₂/Nb₃Cl₈ interface results: the attribution of domain-dependent exciton modulation to polarization-induced band alignment lacks supporting data such as local UPS, Kelvin-probe-derived work-function maps correlated with PL, or electrostatic modeling of the interface potential step.

    Authors: We have added spatially correlated KPFM work-function maps with the PL measurements and included a simple electrostatic model of the interface potential step in the revised text. Local UPS was not performed in this study; however, the direct correlation between KPFM-derived potential and the observed domain-dependent exciton shifts provides consistent support for polarization-controlled band alignment. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental observation without derivation chain

full rationale

The paper reports KPFM measurements of odd-even surface potential oscillation in exfoliated Nb3Cl8 flakes, attributes it to layer-parity-governed antiferroelectric stacking, and shows modulation of MoSe2 excitons. No equations, fitted parameters, predictions, or self-citations are invoked as load-bearing steps in any derivation. The central claim is an interpretation of experimental data rather than a quantity that reduces to inputs by construction. This is the normal case of a self-contained experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper is experimental and invokes standard assumptions of crystal symmetry and scanning-probe interpretation; no free parameters, ad-hoc axioms, or new entities are introduced in the abstract.

axioms (2)
  • domain assumption The breathing kagome lattice of Nb3Cl8 breaks inversion and mirror symmetries, producing an out-of-plane dipole per monolayer.
    Stated in the first sentence of the abstract as the origin of the polarization.
  • domain assumption AB stacking produces antiferroelectric alignment of layer dipoles.
    Invoked to explain why only the surface dipole remains uncompensated.
