PiXTime: A Model for Federated Time Series Forecasting with Heterogeneous Data across Nodes

T0 review · 5 major / 6 minor · reviewed 2026-08-03 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read PiXTime makes federated time-series forecasting work when nodes sample at different rates and track different variables.

desk verdict A sensible, clearly described architecture for heterogeneous federated time series forecasting, but the headline SOTA claim is not actually tested by the main federated experiments—only by confounded or baseline-free ablations. read the letter →

arxiv 2601.05613 v2 pith:SMXSCK3A submitted 2026-01-09 cs.LG cs.AI

Yiming Zhou , Jiahao Wang , Mingyue Cheng , Hao Wang , Defu Lian , Enhong Chen This is my paper
classification cs.LGcs.AI
keywords federatedlearningtimeseriesforecastingheterogeneousdatamulti-granularityvariablealignmentparameterdecouplingTransformerpatchembedding
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that the main obstacle to federated time-series forecasting is structural heterogeneity across nodes: different sampling rates produce different time granularities, and different instruments produce different variable sets. To solve this, PiXTime splits the model into node-personalized modules that adapt raw series into a shared representation space, and a globally shared transformer backbone that is identical across nodes and communicates via federated aggregation. A shared variable-embedding table gives every variable category a consistent semantic token, so nodes with different variables can still transfer knowledge. The paper argues this design makes federated learning practical for real-world distributed time series, and shows experimentally that it outperforms existing forecasting baselines in both federated and non-federated settings.

What carries the argument

The central mechanism is a two-way alignment strategy inside a transformer. First, a personalized Patch Embedding at each node cuts the target series into non-overlapping patches of the same physical time interval, regardless of how many samples each node has, and linearly maps each patch to a token of the global dimension D. Second, a globally shared VE Table stores one embedding per variable category, retrieves the embedding for each auxiliary variable, and adds it to that variable's token before the shared Auxiliary Encoder. The shared transformer then consists of an Auxiliary Encoder that treats each auxiliary variable as a token, and a Target Decoder that processes patch tokens plus a l

What would settle it

Create a federated network where nodes train on non-overlapping calendar ranges (e.g., node A has 2015–2016, node B has 2017–2018) at identical sampling rates, and compare PiXTime's per-node forecast error against each node training locally. If the federated model does not match or beat local training, the shared tokens are misaligned and the central claim fails.

Watch

Extended reading notes

Core claim

The central claim is that parameter decoupling—keeping patch embedding and projection head local to each node while sharing a transformer encoder-decoder and a global variable-embedding table—resolves the conflict between heterogeneous private data and the homogeneous-model requirement of federated learning. Each node patches its target series using the same physical time interval, so patches of different lengths (due to different sampling rates) become tokens of a unified dimension that carry consistent temporal meaning. The global VE Table assigns a learnable vector to each variable category, is synchronized across nodes through federated aggregation, and its consistent semantics let the s

Load-bearing premise

All nodes' time series must be physically time-aligned, meaning they cover the same calendar time period, so that patches cut by the same physical time interval represent semantically equivalent moments across nodes.

Editorial extensions

If this is right

  • Federated networks can pool data from sensors with different sampling rates without resampling to a common frequency, removing a major practical preprocessing burden.
  • Institutions with entirely different sets of auxiliary variables can still contribute to one shared forecaster, since variable semantics are aligned by the globally synchronized embedding table.
  • The abstract-token cross-attention design gives a concrete template for merging variable-level and patch-level representations, which is directly reusable outside federated settings.
  • The method transfers to non-federated single-node forecasting, meaning organizations that do not need federated learning can adopt the same architecture and still match or beat specialized baselines.
  • The state-of-the-art results suggest that heterogeneity, when aligned properly through personalized adapters, is a source of extra training signal rather than an obstacle.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The time-alignment assumption limits the method to nodes that share a common calendar period; an extension could inject absolute timestamps or a learned time-position embedding so nodes with disjoint time ranges can still align semantically.
  • The VE Table effectively creates a shared variable ontology across nodes; a testable extension is whether unseen variables at inference time can be handled by retrieving their nearest embedding, enabling cold-start variable support.
  • The performance gain in the mixed-granularity federated experiment suggests that multi-granularity data contains complementary signals; one could test whether adding more than two sampling rates per variable yields further improvements.
  • Because the shared backbone is a standard transformer, the same personalization-and-alignment recipe could be lifted to other sequence models (e.g., state-space models) as long as local adapters keep the token dimension fixed.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 6 minor

Summary. PiXTime is a transformer-based federated time-series forecasting model designed to handle nodes with structurally heterogeneous data: different sampling rates (time granularities) and different sets of auxiliary variables. The architecture uses node-personalized Patch Embedding modules to map variable-length patches to a common token dimensionality, a globally shared VE Table that injects variable-category embeddings, a shared Auxiliary Encoder and Target Decoder, and local projection heads. The paper claims state-of-the-art performance in heterogeneous federated environments and competitive results on standard non-federated benchmarks, with experiments on eight datasets. The central design idea is coherent, but the experimental evidence for the headline claim is incomplete: the main federated benchmark (Table 2) uses homogeneous variable sets and granularities across nodes, while the heterogeneous experiments (Table 3, Fig. 3) are either confounded or lack baseline comparisons.

Significance. If the claims were fully supported, PiXTime would be a useful contribution to federated time-series forecasting: the parameter-decoupling design is clean, the idea of a globally aggregated variable-embedding table is novel, and the paper provides open-source code and detailed experimental settings. The non-federated results (Table 1) suggest the architecture is competitive in centralized settings, which is a meaningful strength. However, the paper's distinguishing claim—state-of-the-art in environments with structurally heterogeneous data—is not yet established by the reported experiments. The gaps identified below are load-bearing for the central contribution and require additional, carefully controlled evaluations.

major comments (5)
  1. [Section 4.2, Table 2] The main federated benchmark partitions each dataset among eight nodes using DistributedSampler, so every node sees the same variable set, the same sampling rate, and the same physical time grid. This setup tests statistical (sample) heterogeneity, not the structural heterogeneity—different time granularities and different variable sets—that the paper claims to address. Consequently, the headline 'state-of-the-art in heterogeneous federated environments' is not supported by this table. The experiment should either be reframed as a homogeneous-structure federated benchmark or supplemented with a structurally heterogeneous one.
  2. [Section 4.3, Table 3] The Patch Embedding experiment is confounded. In the 'mix' condition, the hourly node's prediction lengths are shortened to {24, 48, 84, 180} to align physical time intervals with the 15-minute node, and the model trains on both datasets. The improvement over the 'h' single-node condition could thus come from (i) a larger total training set, (ii) shorter forecast horizons for the hourly node, or (iii) the additional fine-grained data, rather than from the Patch Embedding's granularity alignment per se. A controlled ablation that matches data volume and horizon difficulty (e.g., training the hourly node alone on an equivalent amount of data, or ablating Patch Embedding within the mix) is necessary.
  3. [Section 4.3, Fig. 3] The VE Table ablation compares PiXTime with and without variable embedding. While internally controlled, it does not include any existing federated forecasting model or baseline adapted to the same heterogeneous-variable protocol. Without such comparisons, the results cannot support the claim that PiXTime achieves state-of-the-art performance in heterogeneous federated environments. Please add baselines (e.g., FedAvg with per-node imputation, local-only models, and recent federated time-series methods) under identical data-partition and communication settings.
  4. [Section 3, Patch Embedding] The method explicitly assumes that nodes' input series are physically time-aligned: 'Given that the inputs across nodes are physically time-aligned, we recommend using the same physical time interval...'. If nodes cover different calendar ranges, have different sequence lengths, or contain missing periods, the shared Transformer will receive semantically misaligned tokens, and the parameter-decoupling framework would not apply. This is a strong structural restriction that should be stated as a limitation and, ideally, tested by relaxing it (e.g., nodes starting at different dates).
  5. [Section 3, Eq. (3); Section 4.3] The VE Table assumes a shared global taxonomy of variable categories. The paper does not explain how individual nodes map their local variable channels to this common table in a realistic cross-organization setting. The experiments sidestep this by sampling random subsets of columns from a single dataset, where variable categories are trivially aligned by column index. For genuinely heterogeneous variable sets with different semantic meanings or naming conventions, the mapping itself is part of the problem and needs to be addressed or explicitly assumed.
minor comments (6)
  1. [Title] The arXiv metadata title says 'Heterogeneous Data across Nodes' while the paper's internal title says 'Heterogeneous Data Structures Across Nodes'. Please align them.
  2. [Section 3, Eq. (5)] The notation 'acro' is used without definition; it appears to denote the abstract token after cross-attention. Please define it explicitly or use a clearer superscript.
  3. [Section 4.2] The phrase 'the entire network shares a common training set' is ambiguous. Clarify that all nodes use distributed partitions of the same global training set, not that raw data is shared.
  4. [Section 4.2] PiXTime communicates only a subset of its parameters (shared modules), while baselines communicate all parameters. Please report the communication cost per round or justify that the comparison is fair despite unequal communication budgets.
  5. [Section 4.3, Table 3] When describing the adjusted prediction lengths {24, 48, 84, 180}, it would be clearer to state the corresponding physical forecast horizons (e.g., 6 hours, 12 hours, 21 hours, 45 hours) so the reader can verify the alignment with the 15-minute node.
  6. [Section 4.3, Fig. 3] The caption says 'Each reported value is the average over results from four different predicted lengths,' but it is not stated whether the values are also averaged over nodes. Please specify the aggregation procedure.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: PiXTime's architecture is empirical and self-contained; the under-supported heterogeneous-SOTA claim is an evidence gap, not a definitional reduction.

full rationale

The paper's chain is architectural rather than inferential: Equations (1)-(7) define the forward pass and loss, and no target quantity is reused as an input to derive itself. The VE Table is a set of learnable embeddings fit to data, not a 'prediction' of those embeddings, and its evaluation is a with/without ablation (Fig. 3). The federated comparison in Table 2 partitions each dataset among nodes with the same granularity and variable set, so it does not actually test structural heterogeneity; the Table 3 'mix' experiment is confounded by data volume and finer granularity, and Fig. 3 has no external baseline. These are support gaps for the claimed 'state-of-the-art in heterogeneous federated environments,' not circular reductions. The self-citations (Liang et al. 2023; Zhou et al. 2025) appear in related-work context and are not load-bearing to the architecture or its evaluation. No uniqueness theorem, ansatz-imported-by-citation, or renaming of known results is present. Thus the paper is not circular; concerns about benchmark sufficiency belong to correctness/evidence quality rather than circularity.

Assumptions & free parameters 0 free parameters · 3 assumptions · 1 invented entities

The model relies on several domain assumptions about the data and the FL setup that are not verified with real-world heterogeneous networks. The VE table is a new component supported only by internal ablations.

assumptions (3)
  • domain assumption All nodes' input time series are physically time-aligned (same calendar period), so the same physical time interval corresponds to the same temporal window across nodes.
    Stated in Section 3 Patch Embedding: 'Given that the inputs across nodes are physically time-aligned, we recommend using the same physical time interval...' The alignment of varying-length patches to uniform tokens depends on this.
  • domain assumption The complete set of variable categories across the federated network (n_all) is known a priori and consistent, so the global VE Table can be enumerated.
    Section 3 Federated Aggregation: 'the VETable is a list of n_all learnable tensors, where n_all is the total number of variable categories in the network.' In practice, discovering all categories without sharing data is nontrivial.
  • domain assumption FedOPT aggregation of the shared modules (VE table, encoder, decoder) preserves the semantic alignment between nodes' variable embeddings and target representations.
    The paper assumes federated aggregation of the shared modules leads to a useful global model; this is standard FL assumption but not proven for heterogeneous token spaces.
invented entities (1)
  • Global VE Table
    purpose: Store a learnable embedding for each variable category, synchronized across nodes, to align variable semantics for cross-node transfer.
    The only evidence is the paper's own ablation (Fig. 3), which is an internal comparison, not an external falsifiable handle.

how reviews work

0 comments
Cite this review

Pith. "Pith review of PiXTime: A Model for Federated Time Series Forecasting with Heterogeneous Data across Nodes." pith.science (2026). https://pith.science/paper/SMXSCK3A

@misc{pith2026260105613,
  author       = {Pith},
  title        = {Pith review of: PiXTime: A Model for Federated Time Series Forecasting with Heterogeneous Data across Nodes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SMXSCK3A}},
  note         = {Machine review of arXiv:2601.05613}
}
read the original abstract

While collaborative forecasting on distributed time series is highly desirable, directly pooling localized datasets is often impractical due to data sharing constraints. Federated learning offers a promising alternative, yet conventional federated learning algorithms require homogeneous model architectures, which are incompatible with the structural discrepancies, such as unaligned temporal resolutions and mismatched variable channels, commonly observed across decentralized nodes. To bridge this gap, we introduce PiXTime, a novel Transformer-based framework designed to natively accommodate and leverage structurally heterogeneous temporal data. At its core, PiXTime adopts a parameter-decoupling architecture, strategically partitioning the model into localized personalized modules and a globally aggregated shared backbone. Specifically, node-specific local modules act as dimensional adapters, projecting raw sequences of diverse lengths into a unified representation space. Concurrently, a globally synchronized VE Table injects consistent categorical identities into the feature space, allowing the shared backbone to collaboratively learn and generalize representations across inconsistent variable distributions. Comprehensive evaluations on multiple benchmarks demonstrate that PiXTime achieves state-of-the-art performance in heterogeneous federated environments, while maintaining robust superiority in standard homogeneous and centralized forecasting settings.

Figures

Figures reproduced from arXiv: 2601.05613 by the authors.

Figure 1
Figure 1. The dilemma of federated learning under diverse data [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

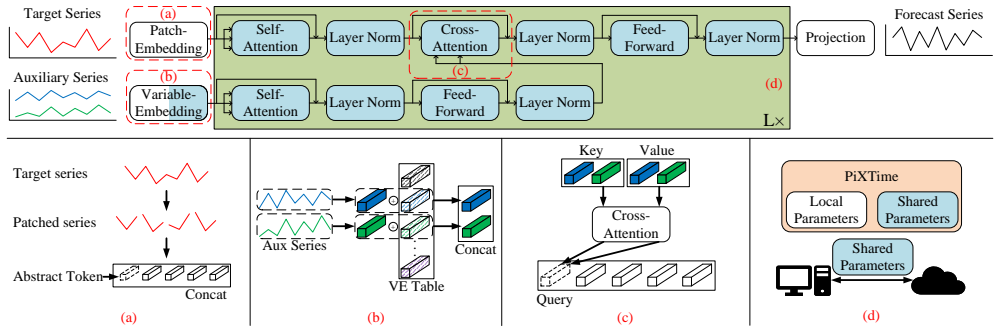

Figure 2. The architecture of PiXTime. (a) The target series is sliced temporally and mapped into a token sequence, then an abstract token [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Ablation study of the VE Table in federated networks with [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
