arxiv: 2605.23580 · v1 · pith:SP3GVA6Vnew · submitted 2026-05-22 · 💻 cs.CV

Calibration-Informative Region Selection for Online LiDAR--Camera Calibration in Agricultural Environments

Rajitha de Silva , Grzegorz Cielniak This is my paper

Pith reviewed 2026-05-25 05:00 UTC · model grok-4.3

classification 💻 cs.CV
keywords LiDAR-camera calibrationsupport maponline calibrationcross-modal residualsextrinsic parameterssemantic regionsagricultural environmentsKITTI dataset
0
0 comments X

The pith

Calibration evidence for LiDAR-camera systems is spatially and semantically non-uniform, with some regions providing stronger cues.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that not all observations contribute equally to constraining the extrinsic parameters between LiDAR and camera. It decouples the calibration process into initial alignment, residual extraction via CMRNext and MDPCalib, support-map computation, and support-aware refinement, then demonstrates that the resulting dense support map highlights regions where cross-modal agreement is consistent. On the Bacchus Long-Term dataset and KITTI this map reveals that semantic categories differ in how reliably they supply calibration information. When refinement is restricted to high-support areas on KITTI, translation error decreases while rotation gains stay limited. A sympathetic reader would care because discarding low-support observations removes noise that would otherwise degrade online calibration in changing outdoor scenes.

Core claim

The central claim is that a dense calibration support map, formed by aggregating cross-modal agreement over aligned observations, identifies spatially and semantically non-uniform regions of reliable calibration evidence; restricting refinement to those regions improves translation accuracy on KITTI while rotational accuracy shows only limited gains.

What carries the argument

The dense calibration support map that aggregates cross-modal agreement over aligned observations to highlight where calibration evidence is consistently reliable.

If this is right

  • Calibration evidence varies across semantic regions in both agricultural and urban scenes.
  • Support-guided refinement yields better translation accuracy on KITTI.
  • Rotational accuracy shows only limited improvement from the same refinement step.
  • The support map can be computed from any cross-modal residual extractor that produces dense image-plane correspondences.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same support-map logic could be applied to other sensor pairs that produce dense residuals.
  • In long-term agricultural deployments the map might be used to weight observations from static terrain over moving crops.

Load-bearing premise

That the cross-modal residuals extracted by CMRNext and MDPCalib primarily reflect extrinsic calibration error rather than scene-dependent factors such as texture, lighting, or moving objects.

What would settle it

Running the support-guided refinement on the BLT dataset and finding no reduction in translation error relative to using all regions would falsify the claim that high-support areas supply stronger calibration cues.

Figures

Figures reproduced from arXiv: 2605.23580 by Grzegorz Cielniak, Rajitha de Silva.

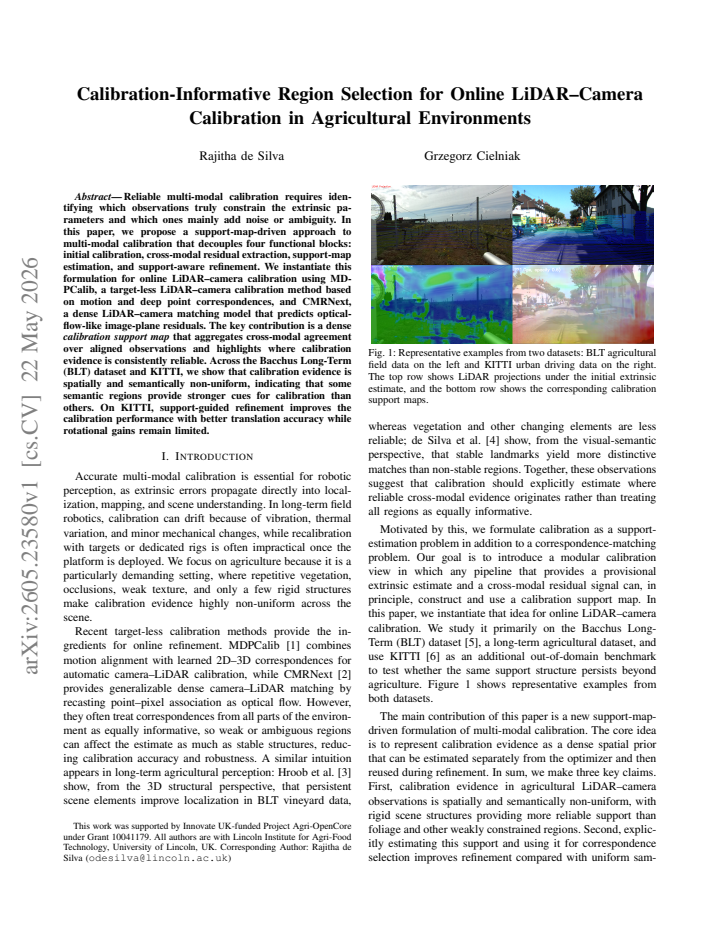

Figure 1
