EMG-Based Adaptation of Anisotropic Virtual Fixtures for Robot-Assisted Surgical Resection and Dissection

Dario Onfiani , Michael Dyck , Luigi Biagiotti , Julian Klodmann This is my paper

Pith reviewed 2026-06-27 06:42 UTC · model grok-4.3

classification 💻 cs.RO
keywords EMG controlvirtual fixturesrobot-assisted surgeryanisotropic constraintslaparoscopic resectionintent detectionadaptive assistancedissection tasks
0
0 comments X

The pith

EMG signals from forearm muscles let surgeons dynamically expand or disengage anisotropic virtual fixtures during resection and dissection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an adaptive virtual fixture system for robot-assisted laparoscopic surgery that changes shape in real time according to the surgeon's intent. Forearm muscle contractions detected by EMG control whether the fixture guides the tool tightly or allows free movement. A pilot study on a standardized training task found gains in accuracy and consistency plus lower reported mental effort and frustration.

Core claim

An EMG-driven interface modulates the geometry of an anisotropic virtual fixture so that forearm contractions expand or release the constraint, letting the surgeon switch seamlessly between constrained precise motion and unrestricted repositioning while performing resection and dissection.

What carries the argument

Real-time EMG-based modulation of an anisotropic virtual fixture that expands or disengages on detected forearm muscle intent.

If this is right

  • Task accuracy and movement consistency increase relative to fixed-geometry fixtures.
  • Perceived cognitive load, physical effort, and frustration decrease for the surgeon.
  • The same muscle-signal interface can be applied to other delicate laparoscopic maneuvers.
  • Seamless on-the-fly fixture changes reduce the need to switch between different assistance modes manually.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be tested in longer procedures to check whether reduced frustration persists over time.
  • Combining EMG with other signals such as eye tracking might further improve intent prediction reliability.
  • The anisotropic fixture shape might be tuned per procedure type rather than kept generic.

Load-bearing premise

EMG readings from forearm contractions can be mapped reliably to the surgeon's immediate intent without false triggers or noticeable lag.

What would settle it

A controlled trial in which EMG intent detection produces frequent mismatches with actual surgeon goals, resulting in no accuracy gain or added errors during the resection task.

Figures

Figures reproduced from arXiv: 2606.13340 by Dario Onfiani, Julian Klodmann, Luigi Biagiotti, Michael Dyck.

Figure 1

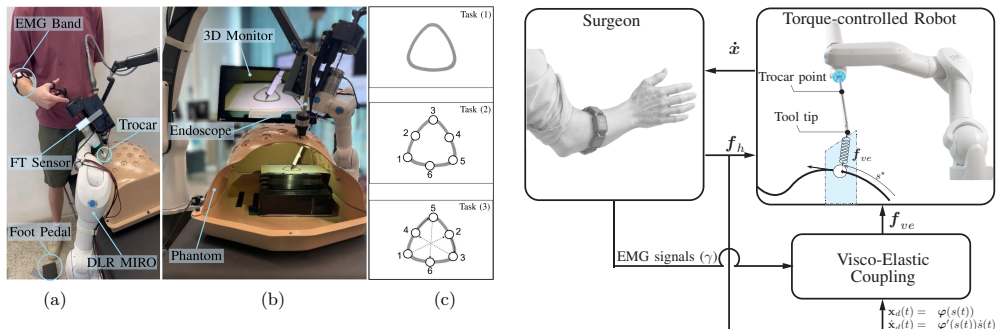

Figure 1. Figure 1: Experimental overview: (a) the robotic platform and user interface, (b) the custom drawing apparatus for the validation study, (c) standardized tasks mimicking surgical surgemes. surgical plans. Adaptive strategies overcome these limi￾tations by modifying constraints online. Environment￾driven adaptation employs vision algorithms to track anatomical targets and update the path in real-time [15], while perf… view at source ↗
Figure 3

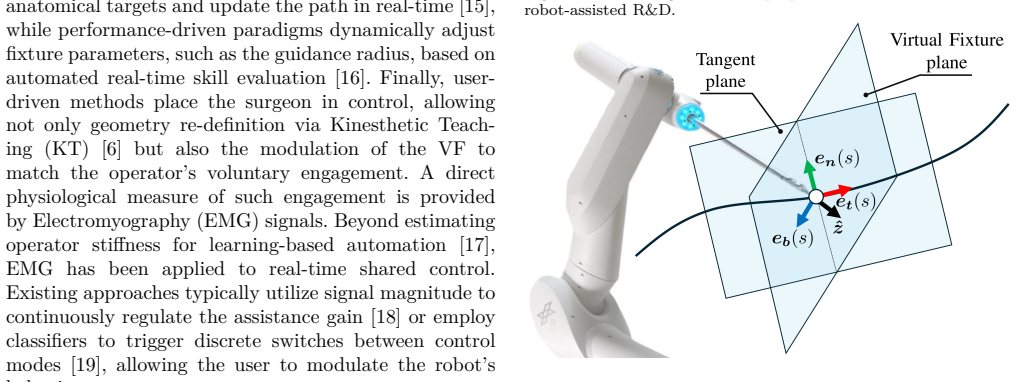

Figure 3. Figure 3: Reference path generation and frame construction. the integration of an EMG-based control mechanism that enables continuous adaptation of the constraint size based on the surgeon’s muscular co-contraction; and (iii) the design of a dynamic (dis-)engagement mechanism ensuring consistent initialization of virtual mass dynamics from any user-selected point along the path. II. Adaptive Virtual Fixture Framewor… view at source ↗
Figure 4

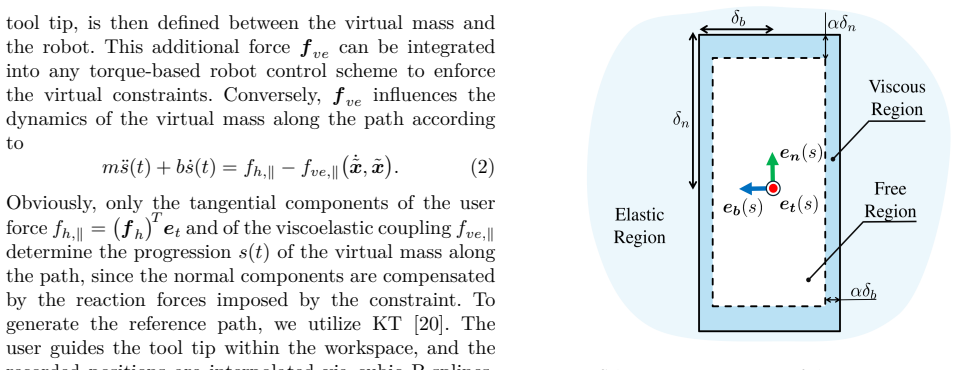

Figure 4. Figure 4: Schematic representation of the anisotropic constraint. activated within a transition band of width αδi , with α ∈ [0, 1]: di(|x˜i|, δi) =    Di, if |x˜i| > δi, |x˜i| − (1 − α)δi αδi Di, if (1 − α)δi ≤ |x˜i| ≤ δi, 0, otherwise. (8) This independent formulation along the normal and binormal directions results in a rectangular guidance corridor. While simple to implement, the sharp corners of th… view at source ↗
Figure 5

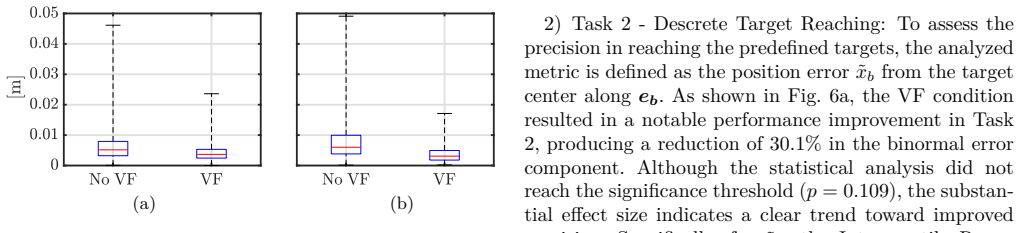

Figure 5. Figure 5: Deviation with respect to the reference path, obtained during the execution of (a) Task 1 and (b) Task 3. for LMMs and standard p-values for Wilcoxon tests. All reported p-values are two-tailed with a significance threshold of α < 0.05. V. Results and Discussions Given the distinct nature of the experimental tasks, results are presented and immediately discussed within their specific context to facilitate … view at source ↗
Figure 6

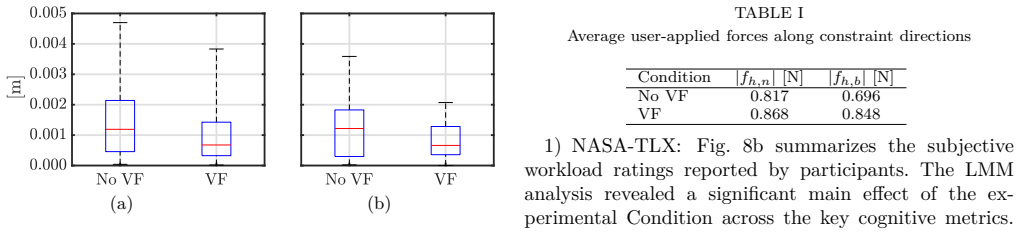

Figure 6. Figure 6: Boxplots of the binormal component of the position error x˜b in (a) Task 2 and (b) Task 3. (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

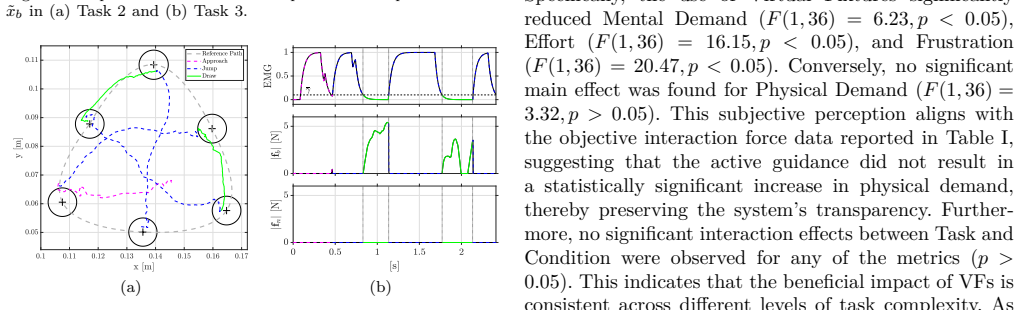

Figure 7. Figure 7: Analysis of Task 3 execution. (a) Trajectory followed by the TCP, highlighting transitions between constrained and unconstrained segments. (b) VF normal and binormal forces vs. the user’s EMG signal and system activation. direction of allowed motion, no significant difference was found (p > 0.05), confirming that the assistance remains perfectly transparent where the user is intended to move freely. Conver… view at source ↗
Figure 8

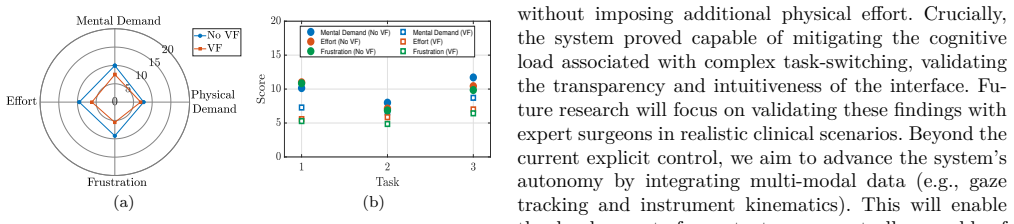

Figure 8. Figure 8: (a) Subjective evaluation scores from NASA-TLX. (b) Es￾timated marginal means of NASA-TLX scores for the statistically significant dimensions (p < 0.05). (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

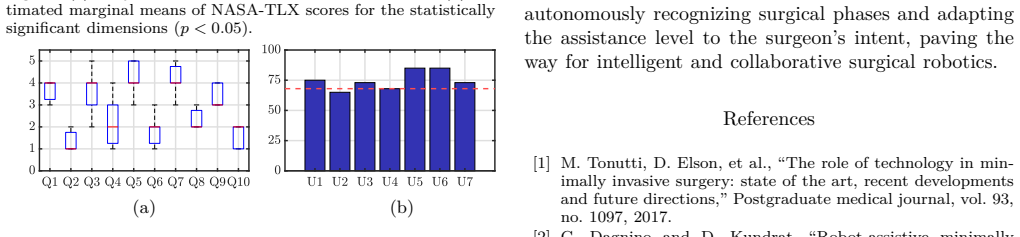

Figure 9. Figure 9: System Usability Scale results. (a) Questionwise dis￾tribution of scores. The items correspond to the standard SUS questions [34]. (b) Total SUS scores for each participant. nificantly improves task execution compared to free mo￾tion. Specifically, being able to utilize the guidance VF leads to demonstrably lower tracking errors and higher movement consistency. By confining the tool motion within a safe co… view at source ↗
read the original abstract

In this paper, we address the development of an adaptive assistance system for robot-assisted laparoscopic surgery, specifically for delicate tasks such as Resection and Dissection. Even if Virtual Fixtures offer significant advantages for guiding a surgeon's movements, conventional Virtual Fixtures are often defined by fixed geometries, lacking the flexibility to adapt to the surgical workflow or the surgeon's immediate intent. To address these limitations, we propose a novel framework for an adaptive and anisotropic virtual fixture. In addition, we introduce an intuitive control interface that modulates the fixture's geometry in real-time based on the surgeon's intent, inferred from EMG signals. This approach allows the surgeon to dynamically expand or disengage the constraint by contracting their forearm muscles, enabling seamless transitions between precise guided motion and free repositioning of the tool. Experimental results from a pilot user study, based on a standardized surgical training task, demonstrate the effectiveness of the proposed method. The system showed significant improvements in task accuracy and movement consistency, alongside a reduction in perceived cognitive load, effort, and frustration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a novel framework for adaptive and anisotropic virtual fixtures in robot-assisted laparoscopic surgery for resection and dissection. The fixtures are modulated in real time by an EMG-based interface that infers surgeon intent from forearm muscle contractions, enabling dynamic expansion or disengagement of the constraint. A pilot user study on a standardized surgical training task reports significant gains in task accuracy and movement consistency together with reductions in perceived cognitive load, effort, and frustration.

Significance. If the EMG-based adaptation proves reliable, the work could meaningfully extend virtual-fixture assistance by adding intuitive, intent-driven flexibility without requiring manual mode switches. The combination of anisotropic geometry with real-time EMG modulation addresses a recognized limitation of fixed fixtures and may reduce surgeon workload in delicate tasks; the pilot results, if substantiated with component-level metrics, would constitute a useful empirical demonstration in the human-robot interaction literature for surgical robotics.

major comments (2)
  1. [Pilot User Study / Results] Pilot User Study / Results: the reported improvements in accuracy, consistency, and NASA-TLX scores are presented only as aggregate task-level outcomes. No EMG-specific metrics (classification accuracy, latency, false-trigger rate, inter-subject variability, or robustness to fatigue/electrode shift) are supplied, so the central attribution of gains to the adaptive mechanism rather than the underlying anisotropic fixture or training effects cannot be verified.
  2. [Framework Description] Framework Description: the mapping from EMG signal features to fixture modulation commands is described at a high level but lacks quantitative validation of the intent-inference step (e.g., confusion matrix or ROC analysis), which is load-bearing for the claim that the system enables “seamless transitions” based on surgeon intent.
minor comments (2)
  1. [Abstract] Abstract: the claim of “significant improvements” is stated without any accompanying p-values, effect sizes, or participant count; these details should be added for completeness even in an abstract.
  2. [Framework] Notation: the precise definition of the anisotropic fixture geometry (e.g., the anisotropy parameters and how they are scaled by the EMG signal) is introduced without an accompanying equation or diagram reference in the early sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the recognition of the work's potential significance. We address each major comment below.

read point-by-point responses

  1. Referee: [Pilot User Study / Results] Pilot User Study / Results: the reported improvements in accuracy, consistency, and NASA-TLX scores are presented only as aggregate task-level outcomes. No EMG-specific metrics (classification accuracy, latency, false-trigger rate, inter-subject variability, or robustness to fatigue/electrode shift) are supplied, so the central attribution of gains to the adaptive mechanism rather than the underlying anisotropic fixture or training effects cannot be verified.

    Authors: We agree that the pilot study presents only aggregate task-level outcomes without EMG-specific metrics such as classification accuracy, latency, or false-trigger rates. The study was scoped as an initial end-to-end evaluation of the integrated system on a standardized surgical task, with primary outcomes focused on accuracy, consistency, and workload rather than component-level EMG analysis. This does limit the strength of attribution to the adaptive mechanism alone. In revision we will add an explicit limitations subsection acknowledging this gap and outlining future component-level validation. revision_made = partial. revision: partial

  2. Referee: [Framework Description] Framework Description: the mapping from EMG signal features to fixture modulation commands is described at a high level but lacks quantitative validation of the intent-inference step (e.g., confusion matrix or ROC analysis), which is load-bearing for the claim that the system enables “seamless transitions” based on surgeon intent.

    Authors: The framework description is intentionally concise to emphasize the novel integration of anisotropic fixtures with real-time EMG modulation and the user-study results. We recognize that quantitative validation of the intent-inference step (e.g., confusion matrices) would strengthen claims about seamless transitions. Such detailed classifier metrics were not collected in this pilot. We will revise the framework section to provide additional pipeline details where available and to state the absence of full quantitative validation as a limitation, with plans for future work. revision_made = partial. revision: partial

Circularity Check

0 steps flagged

No significant circularity; claims rest on empirical user study validation

full rationale

The paper proposes an adaptive anisotropic virtual fixture framework modulated in real time by EMG-inferred surgeon intent and validates effectiveness through a pilot user study on a standardized surgical task, reporting gains in accuracy, consistency, and reduced cognitive load. No mathematical derivation, first-principles prediction, parameter fitting, or uniqueness theorem is presented that could reduce to its own inputs by construction. The central claims are supported by external experimental results rather than self-referential definitions, self-citations, or renamed known patterns, making the work self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are identifiable from the abstract alone; the system description implies standard assumptions in robotics and signal processing but none are detailed.
