Heavy hadronic molecules with pion exchange and quark core couplings: a guide for practitioners

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Pith's one-line read X(3872) is best described as a shallow D D* molecule in which one-pion exchange and a small charmonium core provide comparable attraction.

desk verdict An honest practitioner review with a real normalization correction and a new c-cbar-OPEP calculation; the qualitative picture holds, but the quantitative 'comparable roles' claim rests on a model-scaled cutoff with no quoted uncertainty. read the letter →

arxiv 1908.08790 v2 pith:T6IS6IMG submitted 2019-08-23 hep-ph nucl-th

classification hep-phnucl-th
keywords hadronicmoleculesexchangepionquarkhadronsheavyinteraction
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Exotic hadrons are particles that do not fit the simple quark model of mesons, one quark and one antiquark, or baryons, three quarks. One popular explanation is the hadronic molecule: a loose bound state of two ordinary mesons held together by the leftover strong force, similar to a proton and neutron forming a deuteron. The paper focuses on X(3872), discovered in 2003 with a mass almost exactly at the threshold of a D and D* meson pair. The authors explain in detail how the exchange of a pion between the light quarks inside these mesons produces a tensor force that mixes orbital angular momentum states and creates attraction. This attraction is close to, but not quite enough to, bind the system on its own. The missing attraction comes from coupling to an intrinsic charmonium core, a compact charm-anticharm state. In the combined model, the molecular component dominates at large distances, while the core contributes about six percent of the wave function, consistent with production rates measured at high-energy colliders. The same framework applied to the charged Zc states shows a weaker pion attraction because of isospin factors, making a molecular interpretation less likely. The paper also corrects a missing factor of the square root of two in earlier calculations by the same group, which had reduced the apparent role of pion exchange.
Extended reading notes

Core claim

The load-bearing claim is that 'effects of the c¯c-D ¯D∗ coupling and OPEP are comparable in X(3872)' (Section 4.3). If correct, X(3872) is a shallow D bar-D* molecule with about 6% c bar-c admixture, bound by two comparable mechanisms: the tensor force from one-pion exchange and the coupling to a compact charmonium core.

Load-bearing premise

The conclusion that OPEP alone does not bind the D bar-D* system, making the c bar-c coupling necessary, hinges on the cutoff Lambda_D = 1.13 GeV obtained by scaling the nucleon cutoff Lambda_N = 837 MeV with the quark-model size ratio r_N/r_D = 1.35 (Section 4.2, 'In [54,55], the cutoff ... Lambda = 1.13 GeV is obtained'). If the D-meson cutoff were a few hundred MeV larger, the standard point (g_A = 0.55, Lambda_D) would move into the bound region of Figure 7, and the central claim of comparable roles would weaken.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This paper is a pedagogical review of hadronic molecules, focusing on the role of one-pion exchange (OPEP) and the coupling of molecular components to compact quark cores. The authors derive the heavy-meson effective Lagrangian, the OPEP for P(*) anti-P(*) systems, and an energy-transfer-corrected pion mass, then apply the formalism to X(3872), Zc, and pentaquarks. The central quantitative claim is that X(3872) is a shallow D anti-D* molecule with a small (about 6%) c-cbar admixture, bound by two comparable mechanisms: the tensor part of OPEP and the coupling to a compact charmonium core. The paper also benchmarks the OPEP approach by reproducing deuteron properties with a single cutoff parameter, and it corrects a previously overlooked normalization factor in heavy-meson OPEP potentials.

Significance. If the central claim holds, the paper provides a coherent and relatively minimal model of X(3872) as a hybrid molecule, connecting the molecular picture to the observed production rates and isospin-breaking decay pattern. The detailed derivations of the OPEP, the treatment of the imaginary part for the inelastic D-D* channel with an optical-theorem check, and the deuteron benchmark are strengths that make the article genuinely useful as a guide for practitioners. The explicit correction of the missing √2 factor in earlier OPEP potentials is a valuable service to the community. The main weakness is the sensitivity of the central conclusion to the extrapolated D-meson cutoff, which the paper does not quantify.

major comments (3)
  1. [§4.2, Figure 7] The conclusion that OPEP alone does not bind the D anti-D* system at the standard parameters (g_A = 0.55, Λ_D = 1.13 GeV) is the load-bearing premise for the claim that the c-cbar coupling is necessary for binding. However, Λ_D is obtained by scaling the nucleon cutoff with the quark-model size ratio r_N/r_D = 1.35 from Ref. [55], and the paper gives no uncertainty on this ratio or on the dipole form-factor extrapolation. Figure 7 shows that at g_A = 0.55 the OPEP-only boundary lies at Λ ≈ 1.6 GeV, so increasing Λ_D by about 40%, which is within plausible quark-model uncertainties, would move the system into the bound region. If OPEP alone binds at the actual Λ_D, the c-cbar coupling is not required for binding, and the quoted 5.9% admixture becomes a property of a particular cutoff choice rather than a robust structural statement. The authors should quantify the uncertainty in Λ_D or, at minimum, show how the qualitative conclusion changes when Λ_D is varied within a reasonable range.
  2. [§4.3, Tables 8 and 9] The claim that the c-cbar coupling and OPEP contribute comparably to binding X(3872) is based on the reductions of |c_ccbar|^2 (from 8.6% to 5.9%) and the D-state probability (from 2.0% to 0.6%) when both mechanisms are included. These probabilities are highly sensitive to the binding energy (0.16 MeV) and to the axial coupling g_A, which the authors themselves acknowledge later in the section. Equation (82) shows that the rms radius diverges as the binding energy approaches zero, so small variations in the input parameters can change the probability ratios significantly. Since the model is tuned to a specific binding energy, the 'comparable roles' conclusion is not robust to parameter variations. A sensitivity analysis varying the binding energy and g_A within the quoted experimental and theoretical uncertainties is needed before drawing this sharp conclusion, or the claim should be softened to a qualitative statement.
  3. [§4.3, Eq. (158)] The c-cbar to D anti-D* coupling strength g_c-cbar is determined by fitting the X(3872) mass, so the existence of a bound state is imposed by construction. The subsequently quoted outputs, such as the c-cbar probability, the isospin mixing ratio, and the decay spectrum peak position, are therefore only partially independent predictions. The paper should state this explicitly and, where possible, cross-check the fitted coupling against independent observables such as the B → D anti-D* K production rate or the line shape of the J/ψ ππ channel, to assess how much of the central scenario is constrained by data rather than by the fitting procedure.
minor comments (4)
  1. [Table 7] The charm-sector mass difference ΔM_PP* is listed as 145 MeV, but the quoted masses m_D = 1867 MeV and m_D* = 2009 MeV give a difference of 142 MeV. The stated value µ^2 = (37.3i)^2 MeV^2 is consistent with ΔM = 142 MeV, not 145 MeV. Please correct the table or the text.
  2. [§4.2] The expression 'µ^2 = (37.3i)^2 [MeV^2]' is dimensionally confusing; it should be written as µ = 37.3i MeV or µ^2 = −(37.3)^2 MeV^2.
  3. [§3.4, footnote] The footnote announcing the correction of the missing √2 factor in earlier OPEP potentials is welcome, but the numerical impact of this correction on previous conclusions (e.g., the binding of X(3872) in Refs. [54–60]) is not quantified. A brief statement of the size of the effect would help practitioners decide how much of the earlier literature needs to be revised.
  4. [§5.3, Figure 21] For the charm sector, the boundary plot shows that at the mean value g_σ ≲ 1.8 a very large cutoff Λ ~ 4 GeV is needed to bind the isovector states. The paper should comment on whether such a large cutoff is physically sensible or whether it indicates the need for additional short-range dynamics.

Circularity Check

1 steps flagged · score 4.0 of 10

Partial circularity: g_{c\bar c} is fitted to the X(3872) mass, so the bound state and its 0.16 MeV binding energy are imposed; the 5.9% c\bar c probability and 'comparable roles' conclusion are outputs of that same fit, though not algebraically forced.

  1. fitted input called prediction [Section 4.3, around Eq. (158) and the parameter paragraph for Tables 8 and 9.]
    "The coupling strength gc¯c is taken so as to produce the observed mass of X(3872). ... As for the c¯c-OPEP model, the OPEP cutoff Λ = ΛD is the standard one obtained from the D-meson size as marked in figure 7 in the previous subsection. The c¯c-D ¯D coupling strength, gc¯c, in the c¯c-OPEP model is taken to be a free parameter to fit the binding energy."

    g_{c\bar c} is the parameter that generates the short-range attraction in the c\bar c-D\bar D^* mechanism. Fitting it to the observed X(3872) mass imposes the existence of the near-threshold bound state and its 0.16 MeV binding energy rather than predicting them. The paper then uses the same fitted solution to quote |c_{c\bar c}|^2 = 0.059 and a D-state probability of 0.006, and interprets the reductions from the one-mechanism models as evidence that the c\bar c coupling and OPEP are comparable. Those probabilities are nontrivial Schrodinger-equation outputs and are not literally equal to the fit parameter, so the circularity is partial; however, the central structural conclusion is diagnosed in a model whose binding energy is an input, not an output.

full rationale

The paper is largely a self-contained pedagogical derivation: g_A is extracted from D*→Dπ, the OPEP is derived from chiral Lagrangians, and the nucleon cutoff is anchored to the deuteron. The main caveat is in Section 4.3, where g_{c\bar c} is fitted to the X(3872) mass; this makes the existence and binding energy of the state an input. The 5.9% c\bar c admixture and the 'comparable roles' conclusion are partially dependent on that fit, though they are not identical to the fitted parameter. The scaling Λ_D = 1.13 GeV from the nucleon cutoff is an externally anchored estimate (with an acknowledged uncertainty), not a by-construction circular loop. The self-citations to [115] and [183] provide provenance for the model and tables, but the numerical results are displayed in the present paper, so they do not by themselves force the conclusion. Overall: one partial fitted-input circularity, score 4.

Assumptions & free parameters 9 free parameters · 4 assumptions · 0 invented entities

The central calculation rests on a chain of fitted parameters: g_A from D* decay, Lambda_N from the deuteron, Lambda_D and Lambda_B from quark-model size ratios, and g_c-bar-c from the X(3872) mass itself. No new particles or forces are introduced; the c bar-c core is the known chi_c1(2P) charmonium state predicted by quark models.

free parameters (9)
  • g_A (heavy meson axial coupling) = 0.55 (from D*+ to D+ pi0 width)
    Axial coupling in the heavy meson chiral Lagrangian; extracted from the measured D* decay width in Section 2.3; sets the overall strength of the OPEP.
  • Lambda_N (nucleon OPEP cutoff) = 837 MeV
    Nucleon dipole cutoff fitted to the deuteron binding energy in Section 3.3; anchor for the heavy-meson cutoffs.
  • Lambda_D (D meson OPEP cutoff) = 1.13 GeV
    D-meson cutoff obtained from Lambda_N times r_N/r_D = 1.35 from the quark model in Section 4.2; determines whether OPEP alone binds the D bar-D* system.
  • Lambda_B (B meson OPEP cutoff) = 1.08 GeV
    B-meson cutoff from r_N/r_B = 1.29 in Section 4.2; used for bottom-sector predictions.
  • g_c-bar-c (c bar-c to D bar-D* coupling) = 0.05110 (c bar-c), 0.04445 (c bar-c-OPEP), 0.04136 (decay model)
    Coupling of the c bar-c core to D bar-D* channels; fitted to reproduce the observed X(3872) mass in Sections 4.3 and 4.4.
  • Lambda_q (form factor cutoff for c bar-c coupling) = 0.5 GeV
    Momentum cutoff in the c bar-c to D bar-D* form factor; constrained by the absence of a chi_c1(2P) enhancement in B to D bar-D* K in Section 4.3.
  • v0 and v-tilde0 (rearrangement and meson-meson strengths) = 0.1929 and -0.1886
    Strengths of the D bar-D* to J/psi omega/rho rearrangement and the D to D bar interaction; free parameters set by reproducing the X(3872) mass in the decay model of Section 4.4.
  • m_c-bar-c (bare c bar-c mass) = not quoted
    Bare mass of the c bar-c core before channel coupling; adjusted to place X(3872) near threshold in the coupled-channel models of Section 4.3.
  • g_sigma (sigma meson coupling) = 0.76 to 3.65
    Sigma-meson coupling varied in Section 5.3 to bracket short-range attraction uncertainty in the isovector channels.
assumptions (4)
  • standard math Schrodinger equation and quantum mechanical coupled-channel formalism are valid for the D bar-D* systems.
    Used throughout Sections 4 and 5 to define bound states, scattering lengths, and wave functions.
  • domain assumption Heavy quark spin symmetry relates the D and D* couplings to the pion through a single axial coupling g_A.
    Section 2.2; without this, the P P* pi and P* P* pi vertices would have independent strengths.
  • domain assumption One-pion exchange with a dipole form factor and a subtracted contact term captures the relevant long-range interaction; shorter-range meson exchanges are effectively absorbed into the cutoff.
    Section 3.2; this modeling choice lets the paper compare OPEP-only results with deuteron data.
  • ad hoc to paper The c bar-c to D bar-D* transition potential is a Lorentzian in momentum space with cutoff Lambda_q = 0.5 GeV.
    Section 4.3; chosen to reproduce the absence of a chi_c1(2P) bump, not derived from first principles.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Heavy hadronic molecules with pion exchange and quark core couplings: a guide for practitioners." pith.science (2026). https://pith.science/paper/T6IS6IMG

@misc{pith2026190808790,
  author       = {Pith},
  title        = {Pith review of: Heavy hadronic molecules with pion exchange and quark core couplings: a guide for practitioners},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/T6IS6IMG}},
  note         = {Machine review of arXiv:1908.08790}
}
abstract

We discuss selected and important features of hadronic molecules as one of promising forms of exotic hadrons near thresholds. Using examples of $D \bar D^*$ systems such as $X(3872)$ and $Z_c$, emphasis is put on the roles of the one pion exchange interaction between them and their coupling to intrinsic quark states. Thus hadronic molecules emerge as admixtures of the dominant long-range hadron structure and short-range quark structure. For the pion exchange interaction, properties of the tensor force are analyzed in detail. More coupled channels supply more attractions, and heavier constituents suppress kinetic energies, providing more chances to form hadronic molecules of heavy hadrons. Throughout this article, we show details of basic ideas and methods.

Figures

Figures reproduced from arXiv: 1908.08790 by the authors.

Figure 1
Figure 1. Decomposition of two-body interaction into s, t, u and c (contact) channels. Microscopically, the pion couples to the constituent quarks that are dynamically generated by SSB. Combined with the quark model wave functions of hadrons, the coupling strengths as well as form factors are estimated, schematically by Vπhh0 = X i hh 0 |Vπqiqi |hi, (1) where the sum is taken over the light quarks (i) in the hadrons as shown … view at source ↗
Figure 2

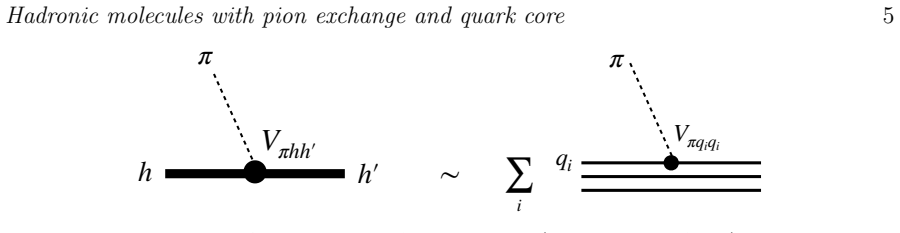

Figure 2. Schematic view of a pion hadron (nucleon in this figure) coupling. σ · r type. This leads to the tensor force causing mixing of orbital motions of different angular momenta by two units. This provides extra attraction which contributes significantly to the formation of molecules. Although the importance of the tensor force has long been recognized in nuclear physics [27, 28], quantitative understanding has progresse… view at source ↗
Figure 3
Figure 3. Quark model diagram for the decay of D∗ → Dπ. The wave functions χi,f are written as a product of the plain wave for the center of mass and internal part including spin, φi,f (r) χi,f (t, X, r) = exp (−iωi,f t + iPi,f · X) φi,f (r) , (51) where ωi,f are the energies of the initial D¯ ∗ and final D¯ mesons. Expressing pi by the relative momentum pr as pi = m m + M Pi + pr , (52) we can perform the t and X-integral le… view at source ↗
Figures from the paper (18 more)
Figure 4
Figure 4. Figure 4: One meson exchange potential. The vertex structure of σ · q is needed for the one-pion exchange potential (OPEP) of the nucleon. For φφ or NN the line widths of bold or normal are irrelevant. It will become relevant when discussing the potential for P (∗)P (∗) . 3.2. O…
Figure 5
Figure 5. Figure 5: The spectrum of DD¯ ∗ and DDπ¯ . Actual case with isospin breaking (left) and a simplified one (right). ϵμqμ −ϵ* μ qμ x y D D D* D* ∑ p,p′ ,q D(p) + 2 D¯(p′) π(q) D(p) π(q) D¯(p′) = Im D¯ *(−p) D¯(p′) π(q) D(p) D*(−p′) D¯ *(−p) π(q) D¯(p′) D¯ *(−p) D(p) + P = 0 D¯ *(−p…
Figure 6
Figure 6. Figure 6: The optical theorem for a DD¯ ∗ bound state decaying into DDπ¯ . The three-body decay is computed by the diagrams in the first (upper) line of figure 6, which are for the decay of the quasi-bound state at rest (P = 0) into D(p), D¯(p 0 ), π(q). Note that there are two …
Figure 7
Figure 7. Figure 7: Boundary lines separating the regions where a bound state exists or not. The solid (i) and long-dashed (ii) lines are the results with and without the energy transfer, respectively. The dot-dashed line (iii) is the result without the D(∗)D¯(∗) channel (see the text for…
Figure 8
Figure 8. Figure 8: The central and tensor components of the OPEP for the X(3872) (152),  gA 2fπ 2 C(r; m,Λ) and  gA 2fπ 2 T(r; m,Λ) respectively, with various effective pion masses and (gA,Λ) = (0.55, 1.13 GeV). The solid, dashed and dashed-dot lines correspond to the potentials with…
Figure 9
Figure 9. Figure 9: The boundaries of the D(∗)D¯(∗) (solid line) and B(∗)B¯(∗) (dashed double￾dotted line) bound states in the (gA,Λ) plane. The boundary of the D(∗)D¯(∗) state is the same as the boundary (i) in figure 7. The vertical solid line shows the value of gA = 0.55, and the horiz…
Figure 10
Figure 10. Figure 10: (a) The D0D¯ ∗0 and (b) the D+D∗− wave function of X(3872) in the OPEP model; solid lines are for DD¯ ∗ ( 3S1), dashed lines for (3D1) and dotted lines for D∗D¯ ∗ ( 5D1). The long dashed lines are for those of [115], which corresponds the cc¯-model in tables 8 and 9, …
Figure 11
Figure 11. Figure 11: The DD¯ ∗ wave function of X(3872) in the isospin basis. The solid (dashed) line is for the isospin 0 (1) wave function of the cc¯ model. The sign of the wave functions is taken to be positive at small r. (a) D(*)0 D¯(*)0 � � � � � � � ��� ��� ��� ��� ��� � [��] ���� …
Figure 12

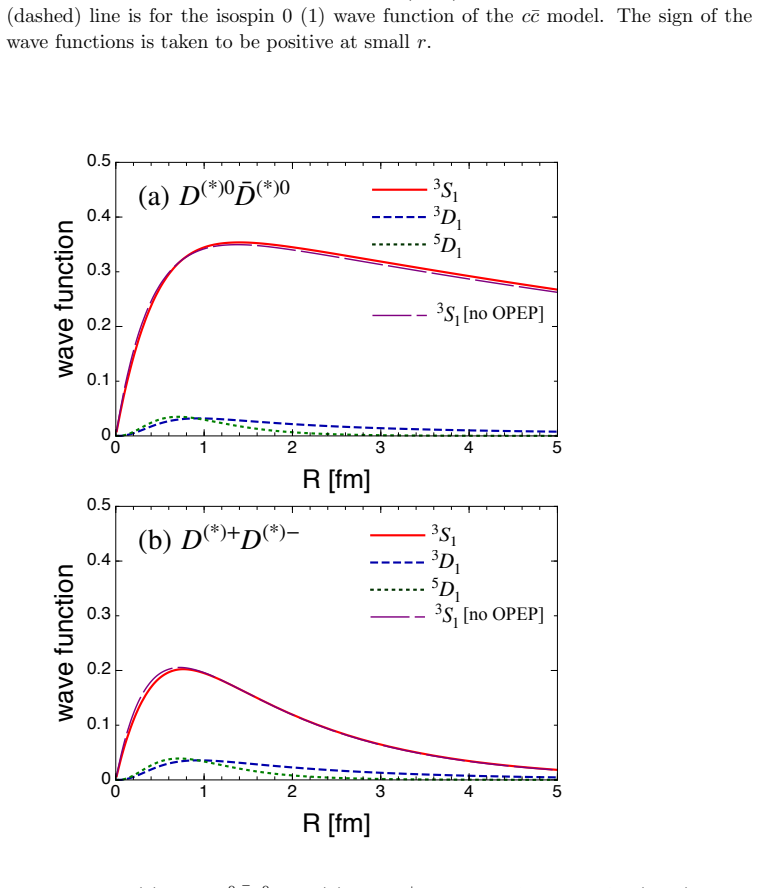

Figure 12. Figure 12: (a) The D0D¯ ∗0 and (b) the D+D∗− wave function of X(3872) in the cc¯-OPEP model with the same convention as in figure 10 [PITH_FULL_IMAGE:figures/full_fig_p042_12.png]
Figure 13

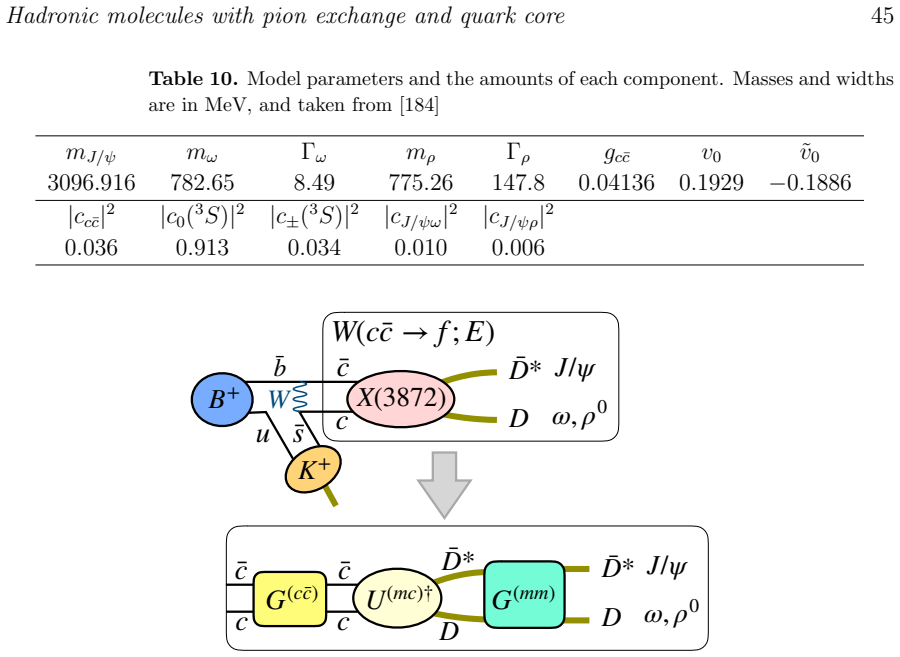

Figure 13. Figure 13: The B meson weak decay. See text. component is D0D¯ ∗0 while the D+D∗− component is considerably smaller because of the threshold difference. The amount of the cc¯ component is somewhat smaller but still sizable. The J/ψω and J/ψρ components are small comparing to the…
Figure 14
Figure 14. Figure 14: The transfer strength from the cc¯ state to the final two-meson states. The energy E is the center of mass energy of the two-meson states. Figure (b) is the same as (a) but magnified at around the D0D¯ ∗0 threshold. Taken from [38]. Let us discuss the mechanism to hav…
Figure 15

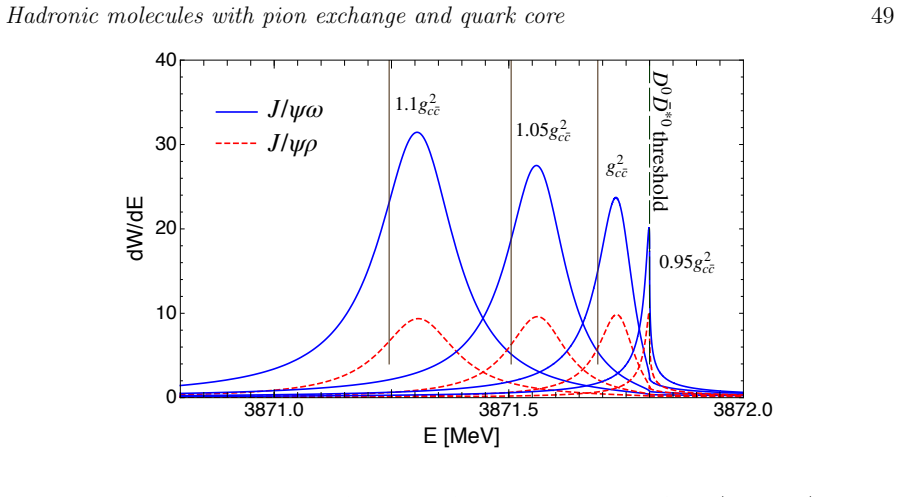

Figure 15. Figure 15: The transfer strength from the cc¯ state to the final J/ψω and J/ψρ states. Note that the energy abscissa is taken to be from 3870.8 to 3872 MeV. Final states are J/ψω (Solid lines), and J/ψρ (dashed lines). The coupling g 2 cc¯ is factored by 1.1, 1.05, 1, 0.95. The …
Figure 16
Figure 16. Figure 16: Trial calculation to estimate the effects of constructing mesons’ width. The J/ψω channel is assumed to couple to the cc¯ core, and the width is enhanced by hand. (See text.) The solid line is for the final J/ψω fraction, the dashed line is for the final J/ψρ fraction…
Figure 17
Figure 17. Figure 17: The boundary lines of the isovector P (∗)P¯(∗) bound states in the (gA,Λ) plane for J P C = 0++, 1++ and 1+−. The results of the D(∗)D¯(∗) and B(∗)B¯(∗) states are shown by the solid and dashed lines, respectively. The right side beyond the line is the bound region, w…
Figure 18
Figure 18. Figure 18: The boundary lines of the D(∗)D¯(∗) bound states J P C = 1++ in the (gA,Λ) plane for the isospin I = 1 and 0. The solid and dashed lines show the results for I = 1 and for I = 0, respectively, which are obtained in figure 17 and figure 7. The right side beyond the lin…
Figure 19
Figure 19. Figure 19: The boundary of the isovector D(∗)D¯(∗) bound state with Vπ and Vσ for (i) J P C = 0++, (ii) 1++ and (iii) 1+− in the (gA,Λ) plane. The solid line shows the result for gσ = 0, namely only with Vπ, while the dashed and dashed-dot lines are the results for gσ = 0.76 and…
Figure 20
Figure 20. Figure 20: The boundary of the isovector B(∗)B¯(∗) bound state for (i) J P C = 0++, (ii) 1++ and (iii) 1+− in the (gA,Λ) plane. The same convention is used as figure 19, while the vertical and horizontal solid lines show the values at gA = 0.55 and Λ = ΛB = 0.88 GeV, respectivel…
Figure 21
Figure 21. Figure 21: The boundary of the isovector (i) D(∗)D¯(∗) and (ii) B(∗)B¯(∗) bound states in the (gσ,Λ) plane. The vertical lines show the values at gs = 0.76 and gs = 3.65. The horizontal lines show the values at Λ = ΛD = 0.92 GeV for (i) D(∗)D¯(∗) and at Λ = ΛB = 0.88 GeV for (ii…
