arxiv: 1907.06538 · v1 · pith:TBTGHZVTnew · submitted 2019-07-15 · 💻 cs.SE · cs.CY

Patterns of Effort Contribution and Demand and User Classification based on Participation Patterns in NPM Ecosystem

Tapajit Dey , Yuxing Ma , Audris Mockus This is my paper

Pith reviewed 2026-05-24 21:28 UTC · model grok-4.3

classification 💻 cs.SE cs.CY
keywords NPM ecosystemeffort contributionsupply chainuser clusteringopen source participationcompany affiliationdependency analysisissue tracking
0
0 comments X

The pith

Developers in NPM primarily contribute to and demand effort from direct dependencies rather than transitive ones

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines participation patterns across the NPM ecosystem using data on 1.3 million issues and pull requests plus commit histories for 272,000 users across 4,400 popular packages. It establishes that most contributions and demands target packages a user depends on directly, with only a tiny share reaching transitive dependencies and a notable share falling outside the visible supply chain. Clustering reveals three distinct groups by demand patterns and two by contribution patterns, while random forest classification predicts company affiliation from these patterns at AUC-ROC 0.68. These findings matter because they map where effort actually flows in a large open-source dependency network and point to where visibility may be insufficient.

Core claim

Users contribute and demand effort primarily from packages that they depend on directly with only a tiny fraction of contributions and demand going to transitive dependencies. A significant portion of demand goes into packages outside the users' respective supply chains (constructed based on publicly visible version control data). Three and two different groups of users are observed based on the effort demand and effort contribution patterns respectively. The Random Forest model used for identifying the company affiliation of the users gives a AUC-ROC value of 0.68.

What carries the argument

Fuzzy c-means clustering applied to per-user effort contribution and demand vectors built from issues, pull requests, and commit activity linked to direct and transitive NPM dependencies.

If this is right

  • Most maintainer effort can focus on direct rather than transitive relationships.
  • A meaningful share of demand originates outside any single user's visible supply chain and may require separate support mechanisms.
  • User groups defined by demand versus contribution patterns may need distinct engagement or tooling approaches.
  • Participation patterns carry a detectable signal for inferring commercial versus volunteer status.
  • Increasing upstream visibility is needed to better align demand with supply across the ecosystem.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same clustering and prediction approach could be tested on other package registries to check whether direct-dependency concentration is general.
  • Incomplete public supply chains may systematically understate the true reach of demand, suggesting a need for hybrid public-private dependency mapping.
  • If company affiliation can be inferred from patterns, ecosystems might use similar signals to measure commercial involvement without self-reporting.
  • The existence of demand outside supply chains implies potential sustainability risks for packages that receive effort without reciprocal contribution links.

Load-bearing premise

The supply chains constructed from public version control data accurately reflect real dependencies and the public commit records of issue creators capture their full participation without substantial private or missing activity.

What would settle it

A dataset that includes private repositories and finds large fractions of contributions or demands going to transitive dependencies would falsify the concentration on direct dependencies.

Figures

Figures reproduced from arXiv: 1907.06538 by Audris Mockus, Tapajit Dey, Yuxing Ma.

Figure 1

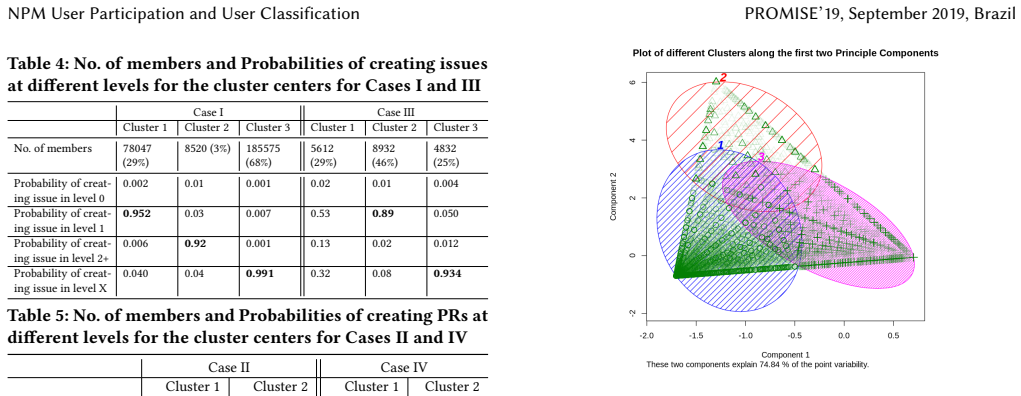

Figure 1. Figure 1: Visual Representation of the 3 clusters for Case I [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

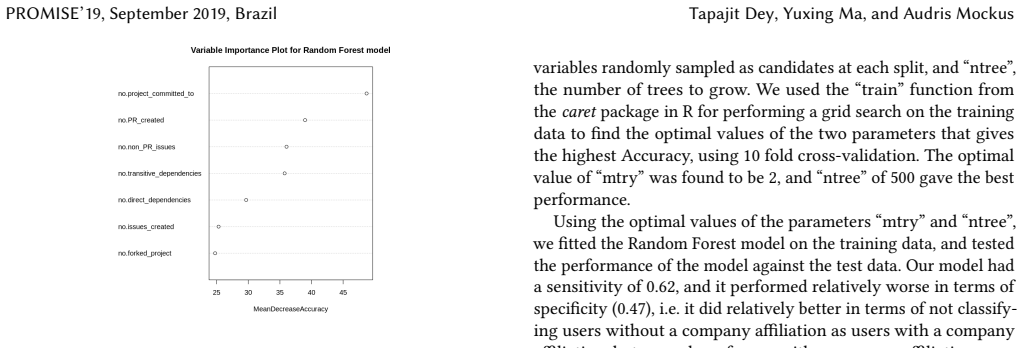

Figure 2. Figure 2: The 7 predictors we selected for our final model were (in [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
read the original abstract

Background: Open source requires participation of volunteer and commercial developers (users) in order to deliver functional high-quality components. Developers both contribute effort in the form of patches and demand effort from the component maintainers to resolve issues reported against it. Aim: Identify and characterize patterns of effort contribution and demand throughout the open source supply chain and investigate if and how these patterns vary with developer activity; identify different groups of developers; and predict developers' company affiliation based on their participation patterns. Method: 1,376,946 issues and pull-requests created for 4433 NPM packages with over 10,000 monthly downloads and full (public) commit activity data of the 272,142 issue creators is obtained and analyzed and dependencies on NPM packages are identified. Fuzzy c-means clustering algorithm is used to find the groups among the users based on their effort contribution and demand patterns, and Random Forest is used as the predictive modeling technique to identify their company affiliations. Result: Users contribute and demand effort primarily from packages that they depend on directly with only a tiny fraction of contributions and demand going to transitive dependencies. A significant portion of demand goes into packages outside the users' respective supply chains (constructed based on publicly visible version control data). Three and two different groups of users are observed based on the effort demand and effort contribution patterns respectively. The Random Forest model used for identifying the company affiliation of the users gives a AUC-ROC value of 0.68. Conclusion: Our results give new insights into effort demand and supply at different parts of the supply chain of the NPM ecosystem and its users and suggests the need to increase visibility further upstream.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper analyzes patterns of effort contribution (via commits) and demand (via issues/PRs) in the NPM ecosystem using data on 1,376,946 issues/PRs across 4433 high-download packages and full public commit histories for their 272,142 creators. It reports that both contribution and demand are overwhelmingly directed at direct dependencies (with negligible shares to transitive dependencies), that a substantial fraction of demand targets packages outside each user's inferred supply chain, that fuzzy c-means clustering identifies three distinct demand-pattern groups and two contribution-pattern groups, and that a Random Forest classifier predicts company affiliation from these patterns with AUC-ROC 0.68.

Significance. If the supply-chain inferences hold, the work supplies large-scale empirical evidence on how effort flows through real OSS dependency graphs and documents heterogeneity in developer behavior, which could inform maintenance prioritization and tooling for upstream visibility. The dataset scale (hundreds of thousands of users and over a million events) is a clear strength; the modest classifier performance and the reliance on public data alone are acknowledged limitations in the text.

major comments (2)
  1. [Method] Method section (dependency and supply-chain construction): the headline claim that a significant portion of demand falls outside users' supply chains rests on the accuracy of inferring each of the 272k users' direct and transitive dependencies solely from public commit histories and the dependency graph among the 4433 packages. The description does not specify how exact versions or version ranges are resolved, whether packages outside the 4433-set are considered, or how private/unlisted dependencies are handled; any systematic under-approximation would inflate the 'outside' bucket by construction and directly undermine the central supply-chain result.
  2. [Results] Results (clustering): the reported three demand groups and two contribution groups are obtained via fuzzy c-means with the number of clusters treated as a free parameter; no cluster-validity indices, stability analysis across random seeds, or sensitivity checks are described, yet these groupings are presented as a primary finding characterizing user heterogeneity.
minor comments (2)
  1. [Abstract / Method] The abstract and Method section would benefit from one additional sentence on the exact procedure used to map issues to packages and to build per-user supply chains (e.g., whether dependency metadata was taken from package.json at the time of the issue or from the latest version).
  2. [Results] Table or figure presenting the cluster centroids or feature distributions would make the 'three and two groups' claim easier to interpret without requiring the reader to reconstruct the patterns from text alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight areas where additional methodological detail and validation will strengthen the paper. We address each major comment below and commit to revisions that directly respond to the concerns raised.

read point-by-point responses

  1. Referee: [Method] Method section (dependency and supply-chain construction): the headline claim that a significant portion of demand falls outside users' supply chains rests on the accuracy of inferring each of the 272k users' direct and transitive dependencies solely from public commit histories and the dependency graph among the 4433 packages. The description does not specify how exact versions or version ranges are resolved, whether packages outside the 4433-set are considered, or how private/unlisted dependencies are handled; any systematic under-approximation would inflate the 'outside' bucket by construction and directly undermine the central supply-chain result.

    Authors: We agree that the current method description is insufficient to allow full assessment of the supply-chain inferences. In the revised manuscript we will add a dedicated subsection detailing the dependency extraction process: parsing of package.json files from the public commit histories of the 272,142 users, resolution of version ranges against the NPM registry snapshot available at data collection time, explicit restriction to the 4433-package dependency graph, and a clear statement of the limitation that private or unlisted dependencies cannot be observed. This expanded description will also discuss the potential for under-approximation and its implications for the 'outside supply chain' category, allowing readers to evaluate the robustness of the central result. revision: yes

  2. Referee: [Results] Results (clustering): the reported three demand groups and two contribution groups are obtained via fuzzy c-means with the number of clusters treated as a free parameter; no cluster-validity indices, stability analysis across random seeds, or sensitivity checks are described, yet these groupings are presented as a primary finding characterizing user heterogeneity.

    Authors: We accept that the clustering results require additional validation to be presented as robust characterizations of user heterogeneity. The revised version will include (i) computation of standard fuzzy cluster validity indices (Xie-Beni and fuzzy silhouette) to support the choice of three demand clusters and two contribution clusters, (ii) stability analysis by repeating fuzzy c-means across multiple random seeds and reporting variation in cluster assignments, and (iii) sensitivity checks on the fuzziness parameter m. These additions will be placed in the results section alongside the existing group descriptions. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical data analysis

full rationale

The paper collects public NPM issue/PR and commit data for 4433 packages and 272k users, constructs supply chains from visible dependencies, applies fuzzy c-means clustering to identify user groups, and trains a Random Forest to predict company affiliation (AUC-ROC 0.68). No equations, derivations, or self-citations reduce any claim to its inputs by construction. All results are direct empirical outputs from standard statistical and ML methods applied to observed data; the supply-chain step is a one-time methodological preprocessing step whose outputs are then measured, not redefined. This is self-contained observational analysis with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The study relies on empirical data collection and standard ML techniques; the main assumptions are about data representativeness.

free parameters (2)
  • Number of clusters (demand) = 3
    Determined by fuzzy c-means algorithm on effort demand patterns.
  • Number of clusters (contribution) = 2
    Determined by fuzzy c-means algorithm on effort contribution patterns.
axioms (1)
  • domain assumption Public commit activity data accurately represents user participation and supply chain dependencies.
    Used to construct supply chains and analyze 272,142 issue creators.

pith-pipeline@v0.9.0 · 5833 in / 1227 out tokens · 38142 ms · 2026-05-24T21:28:34.321128+00:00 · methodology
