Cascaded F\"orster Resonance Energy Transfer and Role of the Relay Dye

C. K. R. Namboodiri , P. B. Bisht , V. R. Dantham This is my paper

Pith reviewed 2026-05-24 23:40 UTC · model grok-4.3

classification ⚛️ physics.chem-ph physics.app-ph
keywords Förster resonance energy transferrelay dyecascaded FRETenergy transfer efficiencydonor-acceptor systemcritical transfer distancereduced concentration
0
0 comments X

The pith

A relay dye increases donor-to-acceptor energy transfer efficiency in cascaded FRET compared with the direct two-dye system.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether inserting a relay dye between a donor and acceptor raises overall energy transfer efficiency. It calculates and compares the critical transfer distance, reduced concentration, and measured efficiency for both the two-dye and three-dye cascaded arrangements. The central experimental result is that the relay dye produces a measurable rise in transfer from donor to acceptor. A reader would care because many light-harvesting or sensing setups are limited by low direct-transfer yields. The work treats the relay as an additional intermediate that participates in sequential Förster steps.

Core claim

In the cascaded donor-relay-acceptor system the measured energy transfer efficiency from donor to acceptor exceeds the efficiency of the corresponding donor-acceptor pair without the relay, as shown by direct comparison of the critical transfer distances and reduced concentrations extracted from the same experimental conditions.

What carries the argument

Cascaded Förster resonance energy transfer mediated by a relay dye that accepts energy from the donor and passes it onward to the acceptor.

If this is right

  • The three-dye cascaded arrangement yields higher net transfer efficiency than the two-dye arrangement under otherwise identical conditions.
  • Critical transfer distance and reduced concentration take different values once the relay dye is introduced.
  • Energy transfer in the cascaded system proceeds through two sequential steps rather than one direct step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The relay approach could extend usable distances in systems where direct donor-acceptor separation exceeds the Förster radius.
  • Sequential transfer might reduce losses that occur when a single step must bridge a large energy gap.
  • The same relay principle could be tested in solid films or nanostructures to check whether the efficiency gain survives changes in dimensionality.

Load-bearing premise

The measured efficiency increase arises only from the presence of the relay dye and is not produced by changes in total dye concentration, molecular orientation, aggregation, or direct excitation of the acceptor.

What would settle it

Repeating the steady-state and time-resolved measurements on the same donor-acceptor pair with and without the relay dye and finding equal or lower transfer efficiency in the three-dye mixture would falsify the claim.

Figures

Figures reproduced from arXiv: 1907.04622 by C. K. R. Namboodiri, P. B. Bisht, V. R. Dantham.

Figure 1
Figure 1. Figure 1: The normalized absorption (solid lines- a1, a2, and a3) and the fluorescence (symbols- f1, f2, and f3) spectra of CALN, DODCI, and HITCI respectively are shown in panel A. Panel B gives a schematic diagram of various FRET pathways in D-R1-A1 system. Table I (b) gives the spectral overlap (JDA) and R0A values for various dye-pairs. Besides the large value of JDA for CALN-RhB (D-R2) and DODCI- DTTCI (R1- A1)… view at source ↗
Figure 2
Figure 2. Figure 2: Fluorescence spectrum of donor (D) (○) and absorption spectrum of relay dye (R1) (solid line) (top panel). The shaded region shows the spectral overlap. The fluorescence spectra of D-R1 system are given in bottom panel for [D]= 0.1 mM. The relay dye concentrations are indicated in figure. The arrows indicate the peak positions for the fluorescence of D & R1. Quenching of fluorescence can also take place be… view at source ↗
Figure 3
Figure 3. Figure 3: Fluorescence spectrum of relay dye (R1) (○) and absorption spectrum of acceptor (A1) (solid line) (top panel). The shaded region shows the spectral overlap. The fluorescence spectra of R1-A1 system are given in bottom panel for [R1]= 0.1 mM. The acceptor concentrations are indicated in figure. The arrows indicate the peak positions for the fluorescence of R1 & A1 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Fluorescence spectrum of donor (D) (○) and absorption spectrum of acceptor (A1) (solid line) (top panel). The shaded region is the spectral overlap. The fluorescence spectra of D-A1 system are given in bottom panel for [D]= 0.1 mM. The acceptor concentrations are indicated in figure. The arrows indicate the peak positions for the fluorescence of D & A1. The fluorescence decay curves were recorded for this … view at source ↗
Figure 6
Figure 6. Figure 6: Panel A shows the fluorescence decay curves of D (0.1 mM) (●) and the D-R1-A1 system (Δ) at 520 nm with [R1] = 1 mM and [A1] = 5 mM. The solid lines show the single exponential fit for donor decay and Förster fit for the decay of the D-R1-A1 system, respectively. Panels B and C respectively show the residuals of the single exponential and Förster fits. Panel D shows fluorescence decay profiles of the D-R1-… view at source ↗

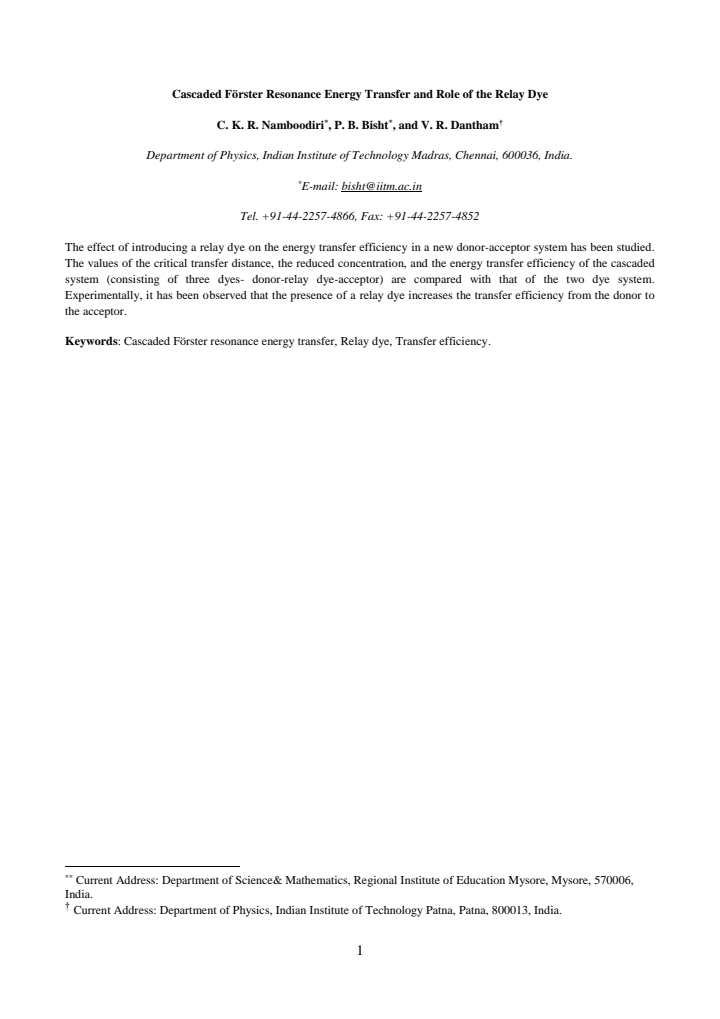

read the original abstract

The effect of introducing a relay dye on the energy transfer efficiency in a new donor-acceptor system has been studied. The values of the critical transfer distance, the reduced concentration, and the energy transfer efficiency of the cascaded system (consisting of three dyes- donor-relay dye-acceptor) are compared with that of the two dye system. Experimentally, it has been observed that the presence of a relay dye increases the transfer efficiency from the donor to the acceptor.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript studies cascaded Förster resonance energy transfer (FRET) in a donor-relay-acceptor three-dye system versus a conventional donor-acceptor two-dye system. It compares the critical transfer distance, reduced concentration, and energy transfer efficiency between the systems and reports an experimental observation that introducing the relay dye increases the donor-to-acceptor transfer efficiency.

Significance. If substantiated with proper controls, the observation that a relay dye can enhance overall transfer efficiency would be a useful empirical result for designing multi-chromophore FRET cascades in applications such as light harvesting or biosensing. The manuscript contains no machine-checked derivations, reproducible code, or parameter-free predictions.

major comments (2)
  1. [Abstract] Abstract: The central claim that 'the presence of a relay dye increases the transfer efficiency from the donor to the acceptor' is presented as a direct experimental observation but is unsupported by any data, figures, error bars, sample-preparation details, or statistical analysis. Without these, it is impossible to verify that the reported efficiency increase arises from cascaded FRET rather than uncontrolled changes in total dye concentration, direct acceptor excitation, or aggregation.
  2. [Abstract] The experimental isolation of the relay-dye effect (the load-bearing assumption for attributing any efficiency gain to cascaded FRET) requires explicit controls for identical total dye concentrations across samples, excitation at a wavelength where the acceptor absorption is negligible, and checks for aggregation or orientation changes (e.g., via concentration series or anisotropy). None of these controls are described or referenced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed review and valuable comments on our manuscript. We have carefully considered the points raised regarding the presentation of experimental evidence and controls in the abstract and will revise the manuscript to address these concerns.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that 'the presence of a relay dye increases the transfer efficiency from the donor to the acceptor' is presented as a direct experimental observation but is unsupported by any data, figures, error bars, sample-preparation details, or statistical analysis. Without these, it is impossible to verify that the reported efficiency increase arises from cascaded FRET rather than uncontrolled changes in total dye concentration, direct acceptor excitation, or aggregation.

    Authors: We acknowledge that the abstract, being a concise summary, does not embed the full supporting data or statistical details. The experimental observations are detailed in the results section of the manuscript, including comparisons of energy transfer efficiencies. To improve clarity, we will revise the abstract to briefly indicate the basis of the claim and add cross-references to the relevant figures and analysis in the main text. revision: yes

  2. Referee: [Abstract] The experimental isolation of the relay-dye effect (the load-bearing assumption for attributing any efficiency gain to cascaded FRET) requires explicit controls for identical total dye concentrations across samples, excitation at a wavelength where the acceptor absorption is negligible, and checks for aggregation or orientation changes (e.g., via concentration series or anisotropy). None of these controls are described or referenced.

    Authors: We agree that explicit controls are crucial to isolate the relay-dye effect. The manuscript describes the dye concentrations and excitation conditions in the experimental methods, but we recognize that a more detailed discussion of the controls is warranted. In the revision, we will add explicit statements confirming that total dye concentrations were matched, excitation was chosen to minimize direct acceptor excitation, and no aggregation was observed via concentration-dependent measurements. revision: yes

Circularity Check

0 steps flagged

No circularity detected; claim is direct experimental observation

full rationale

The paper's central claim is an experimental observation that introducing a relay dye increases donor-to-acceptor transfer efficiency, with comparisons of critical transfer distance, reduced concentration, and efficiency between two-dye and three-dye systems. No derivation chain, fitted parameters presented as predictions, self-citations used as load-bearing uniqueness theorems, or ansatzes are present in the provided text. The result does not reduce to its inputs by construction and is self-contained as a report of measured values.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no equations, parameters, or background assumptions; the ledger is therefore empty.
