Surface States in Strain-Induced Nodal-Line Topological Semiconductors

Vitaly N. Golovach , Alexander Khaetskii This is my paper

Pith reviewed 2026-05-25 05:37 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords topological semimetalssurface statesnodal-line semimetalstrain effectsLuttinger modelspin texturesbulk inversion asymmetryinverted band gap
0
0 comments X

The pith

Non-analyticity appears in surface-state dispersion at the projected nodal line from distinct terminating patches with unique spin textures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps the topological phase diagram of inverted-band-gap semiconductors under strain and spin-orbit coupling from bulk inversion asymmetry using a minimal Luttinger Hamiltonian. It tracks the evolution of surface states across transitions from a three-dimensional topological insulator to Dirac, nodal-line, and Weyl semimetals. Analytical solutions are provided for surface states in high-symmetry directions and limits. The key finding is a non-analyticity in the dispersion at the projected nodal line caused by separate patches of surface states that terminate there, each carrying distinct spin textures. This unifies prior descriptions of these phases and establishes a hierarchy of energy scales for realizing them.

Core claim

Using a minimalistic Luttinger Hamiltonian, the transitions between a 3D topological insulator, a Dirac semimetal, a nodal-line semimetal, and a Weyl semimetal are followed as strain and spin-orbit coupling are varied. Surface states are solved analytically for high-symmetry directions and limiting cases, showing continuous evolution across phase boundaries. As spin-orbit coupling from bulk inversion asymmetry is introduced, the system progresses from Dirac to nodal-line to Weyl semimetal. A non-analyticity in the surface-state dispersion appears at the projected nodal line, originating from distinct terminating patches of surface states with unique spin textures in momentum space.

What carries the argument

The minimalistic Luttinger Hamiltonian model, which incorporates strain and bulk-inversion-asymmetry spin-orbit coupling to describe the phase transitions and surface states.

If this is right

  • Surface states evolve continuously across phase boundaries from 3D topological insulator to Dirac, nodal-line, and Weyl semimetals.
  • A hierarchy of energy scales defines the criteria for realizing each phase.
  • Analytical and exact solutions for surface states exist in high-symmetry directions and several limiting cases.
  • Introduction of bulk-inversion-asymmetry spin-orbit coupling drives the progression from Dirac to nodal-line to Weyl semimetal.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The non-analyticity could appear as a kink or discontinuity detectable by surface-sensitive probes like angle-resolved photoemission spectroscopy.
  • The distinct spin textures in the terminating patches may affect spin-polarized currents or responses at the surface in device contexts.
  • Analogous non-analytic features might arise in other strained topological materials when nodal lines project onto surfaces.

Load-bearing premise

The minimalistic Luttinger Hamiltonian model is sufficient to capture all essential physics of the inverted-band-gap semiconductors under strain and bulk-inversion-asymmetry spin-orbit coupling.

What would settle it

A calculation or measurement showing analytic surface-state dispersion across the projected nodal line, or identical spin textures in all terminating patches, would contradict the central claim.

Figures

Figures reproduced from arXiv: 2605.23000 by Alexander Khaetskii, Vitaly N. Golovach.

Figure 1
Figure 1. Figure 1: (a) Interface geometry: an HgTe crystal capped by a barrier or exposed to [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Effect of strain and spin-orbit splitting on the [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Projected density of states (PDOS) and surface states for [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Surface states along two high-symmetry directions of the wave vector [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
read the original abstract

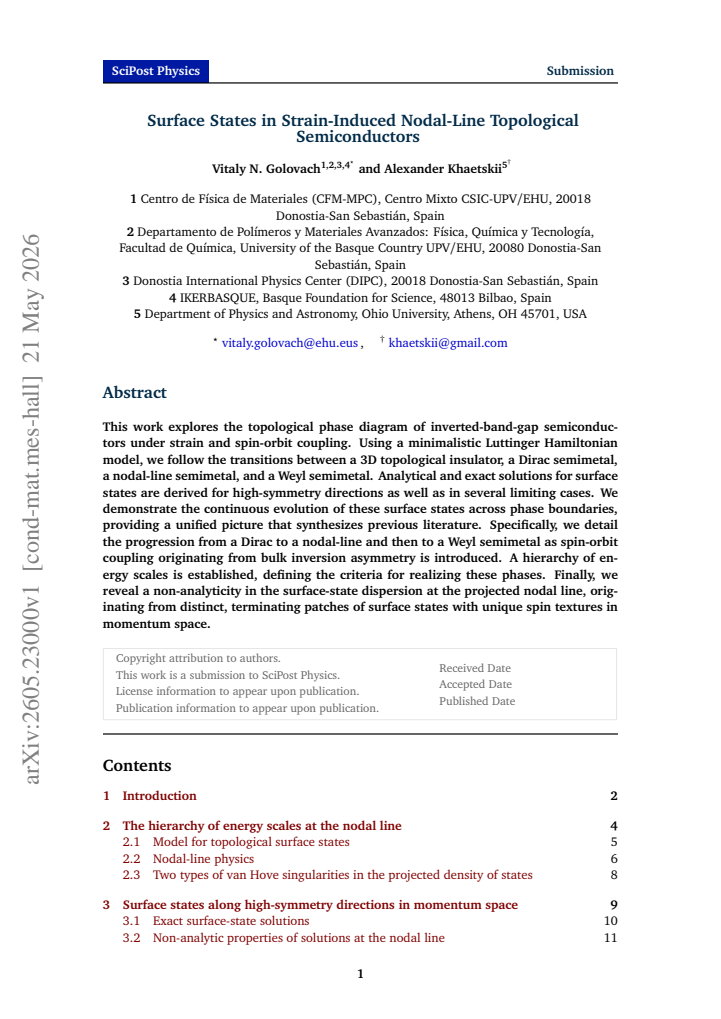

This work explores the topological phase diagram of inverted-band-gap semiconductors under strain and spin-orbit coupling. Using a minimalistic Luttinger Hamiltonian model, we follow the transitions between a 3D topological insulator, a Dirac semimetal, a nodal-line semimetal, and a Weyl semimetal. Analytical and exact solutions for surface states are derived for high-symmetry directions as well as in several limiting cases. We demonstrate the continuous evolution of these surface states across phase boundaries, providing a unified picture that synthesizes previous literature. Specifically, we detail the progression from a Dirac to a nodal-line and then to a Weyl semimetal as spin-orbit coupling originating from bulk inversion asymmetry is introduced. A hierarchy of energy scales is established, defining the criteria for realizing these phases. Finally, we reveal a non-analyticity in the surface-state dispersion at the projected nodal line, originating from distinct, terminating patches of surface states with unique spin textures in momentum space.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses a minimal Luttinger Hamiltonian to map the topological phase diagram of inverted-band-gap semiconductors under strain and bulk-inversion-asymmetry spin-orbit coupling, identifying transitions among 3D topological insulator, Dirac, nodal-line, and Weyl semimetal phases. It derives exact analytical surface-state solutions along high-symmetry directions and in limiting cases, demonstrates their continuous evolution across boundaries, establishes an energy-scale hierarchy, and reports a non-analyticity in the surface-state dispersion at the projected nodal line arising from distinct terminating patches with unique spin textures.

Significance. If the central claims hold, the work supplies a unified analytical framework for surface states across these phases and highlights an unexpected non-analytic feature tied to spin-texture patches. The provision of exact solutions for the minimal model is a clear strength that could aid future comparisons with numerics or experiment.

major comments (2)
  1. [Hamiltonian definition and surface-state derivation sections] The non-analyticity claim (abstract and final section) is load-bearing for the paper's main result, yet rests on the unverified assumption that the minimal Luttinger model captures all relevant low-energy surface physics. No explicit check is shown that the feature survives addition of higher-order k·p terms, remote-band mixing, or material-specific corrections that could regularize the dispersion or merge the spin-texture patches.
  2. [Energy-scale hierarchy paragraph] The hierarchy of energy scales is invoked to justify the phase sequence and the validity of the exact solutions, but the manuscript provides no quantitative bounds or sensitivity analysis demonstrating that the non-analyticity remains robust when those scales are relaxed within the model.
minor comments (2)
  1. [Model section] Notation for the strain and BIA SOC terms should be defined explicitly at first use to aid readability for readers outside the immediate subfield.
  2. [Figures] Figure captions for the surface-state dispersion plots would benefit from explicit labels indicating which limiting case or phase each panel corresponds to.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the significance of our work on the minimal Luttinger model. We address each major comment below.

read point-by-point responses

  1. Referee: [Hamiltonian definition and surface-state derivation sections] The non-analyticity claim (abstract and final section) is load-bearing for the paper's main result, yet rests on the unverified assumption that the minimal Luttinger model captures all relevant low-energy surface physics. No explicit check is shown that the feature survives addition of higher-order k·p terms, remote-band mixing, or material-specific corrections that could regularize the dispersion or merge the spin-texture patches.

    Authors: We agree that the non-analyticity is demonstrated strictly within the minimal Luttinger Hamiltonian, and that higher-order k·p terms or remote-band effects could in principle regularize the dispersion or alter the spin-texture patches. Our central claim is that this feature arises in the exact analytical solutions of the minimal model; we do not assert robustness beyond it. To clarify the scope, we will revise the abstract, introduction, and concluding section to explicitly state that the non-analyticity is a property of the effective model and to note the potential impact of additional terms as a limitation of the present analysis. revision: partial

  2. Referee: [Energy-scale hierarchy paragraph] The hierarchy of energy scales is invoked to justify the phase sequence and the validity of the exact solutions, but the manuscript provides no quantitative bounds or sensitivity analysis demonstrating that the non-analyticity remains robust when those scales are relaxed within the model.

    Authors: The hierarchy is obtained directly from the parameter regime of the Luttinger model that separates the topological phases. We acknowledge that quantitative sensitivity analysis is absent. In the revised manuscript we will add a short subsection (or appendix) that varies the relative scales within the model while remaining inside the nodal-line phase and shows that the non-analyticity at the projected nodal line persists provided the bulk gap and strain-induced splitting remain finite. revision: yes

Circularity Check

0 steps flagged

No circularity: derivations are direct solutions of the stated minimal Luttinger model

full rationale

The paper starts from an explicit minimalistic Luttinger Hamiltonian (with strain and BIA SOC terms) and obtains analytical surface-state solutions by direct diagonalization or boundary-condition matching in high-symmetry directions and limiting cases. No parameter is fitted to a target observable and then re-used as a prediction; no uniqueness theorem or ansatz is imported via self-citation; the non-analyticity result is an output of the model's exact solution rather than a re-labeling of an input. The derivation chain is therefore self-contained against the model's own equations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the adequacy of the minimal Luttinger model and the validity of the analytical solutions derived from it; no free parameters, invented entities, or additional axioms are identifiable from the abstract alone.

axioms (1)
  • domain assumption The Luttinger Hamiltonian provides a minimal yet sufficient description of the inverted-band-gap semiconductors under strain and spin-orbit coupling
    Explicitly stated as the modeling choice in the abstract
