Decodable Is Not Grounded: A Vision-Ablation Arbiter for VLM Spatial Reasoning

Chih-Ting Liao , Fei Shen , Xin Cao , Tat-Seng Chua This is my paper

Pith reviewed 2026-07-01 06:20 UTC · model grok-4.3

classification 💻 cs.CV
keywords vision-language modelsspatial reasoninggroundinglinear probesblank imagesteeringaxis inversionvision ablation
0
0 comments X

The pith

A blank-image replacement shows that decodable spatial knowledge in VLMs is not necessarily grounded in vision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that linear probes and steering vectors can make it appear that vision-language models ground spatial reasoning in images when they do not. By swapping the input image for a uniform gray blank, the authors isolate whether performance depends on visual input. This reveals three regimes: axes where the model truly uses the image, axes where it falls back to a learned prior regardless of the image, and axes where the model has learned an inverted mapping that produces systematically wrong answers. The distinction matters because it means many claims about what VLMs know from images may actually reflect language priors or training artifacts. Across fourteen models the pattern is consistent, with horizontal often grounded, vertical a prior, and depth inverted.

Core claim

The central claim is that the standard combination of a linear probe and a training-free steering recovery can systematically overstate visual grounding in VLMs. The one-line causal control of replacing the image with a gray blank refutes apparent grounding on some axes and exposes an inversion regime where the model deploys the decoded direction with the wrong sign, scoring below chance. This taxonomy of grounded, prior, and inverted regimes holds across models from multiple families, with the inversion appearing at larger scales within families.

What carries the argument

The blank-image arbiter, a causal control that replaces the visual input with a uniform gray field to test dependence on actual image content.

If this is right

  • Horizontal spatial axes are grounded in vision for the models tested.
  • Vertical axes behave as image-independent priors.
  • Depth axes are inverted, with decodable information deployed in the opposite direction.
  • The complexity of correcting the inversion varies across models, from simple rotations to low-rank edits.
  • The blank-image test cleanly separates the three regimes and should serve as a standard control.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Applying the same blank-image control to other reasoning tasks could reveal similar hidden priors or inversions.
  • Training data biases may systematically produce inverted mappings on certain geometric dimensions.
  • Future steering methods might need to include sign checks derived from ablation tests.
  • The per-model spectrum of correction complexity suggests that some VLMs have more distributed representations of spatial inversions.

Load-bearing premise

Replacing the image with a gray blank cleanly isolates whether the model's spatial decisions depend on visual content rather than introducing new processing artifacts from uniform inputs.

What would settle it

If accuracy on real images for an axis does not drop when the image is replaced by a blank, while the claimed regime predicts a drop for grounded or a specific pattern for inverted, that would falsify the separation into three regimes.

Figures

Figures reproduced from arXiv: 2606.31257 by Chih-Ting Liao, Fei Shen, Tat-Seng Chua, Xin Cao.

Figure 1

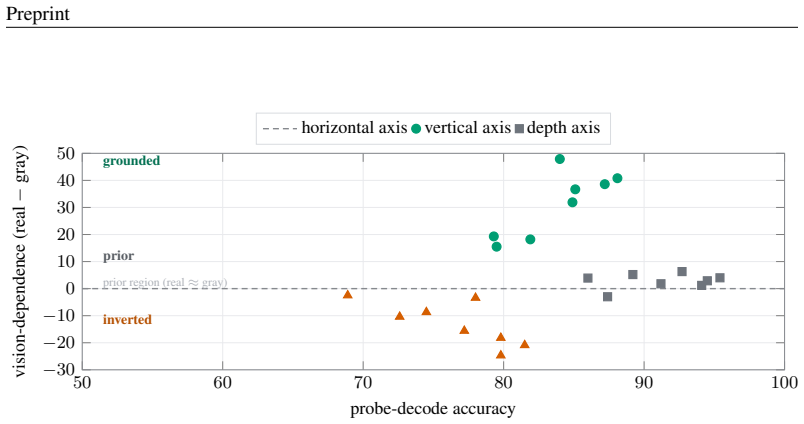

Figure 1. Figure 1: Decodability does not predict whether behavior depends on the image. Each point is a (model, axis) pair across 8 VLMs: x is probe decoding accuracy, y is vision-dependence (real￾image − gray-image behavior). Probes decode every axis well (x>70%), but behavior splits into three regimes probing cannot see: horizontal grounded (high), vertical a prior (zero), depth inverted (below zero). The arbiter recovers … view at source ↗

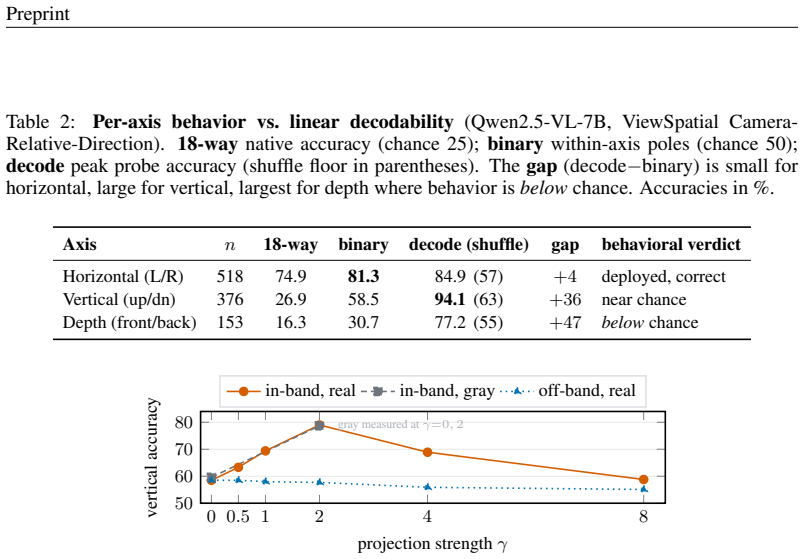

Figure 2
Figure 2. Figure 2: The recovery is prior amplification, not visual deployment. Training-free projection along the localized vertical direction lifts vertical from 58.5 to 79 at γ = 2 with horizontal intact. But the same projection with a gray-blank image (dashed) gains just as much (+19.1 vs. +20.5): the lever amplifies a non-visual prior. An off-band projection (L2–6, dotted) does nothing. Percentages. signature. A multi-la… view at source ↗
Figure 3

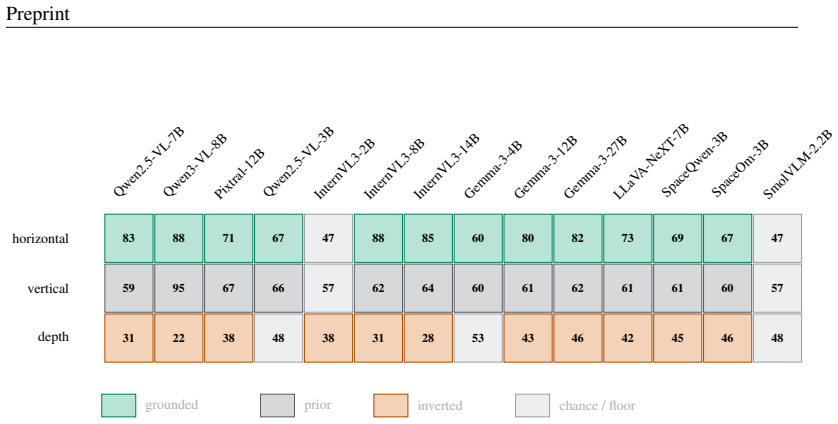

Figure 3. Figure 3: The grounding taxonomy as a cross-model card. Real-image accuracy on the three ViewSpatial axes for 14 VLMs (six LM families, 2B–27B), each cell colored by its arbiter regime. At a glance: horizontal grounded, vertical a prior, depth inverted in every capable model, with depth inversion scale-emergent within families (InternVL3 38 → 31 → 28; Gemma non-monotone 53→43→46); SmolVLM-2.2B is a capability floor.… view at source ↗
Figure 4

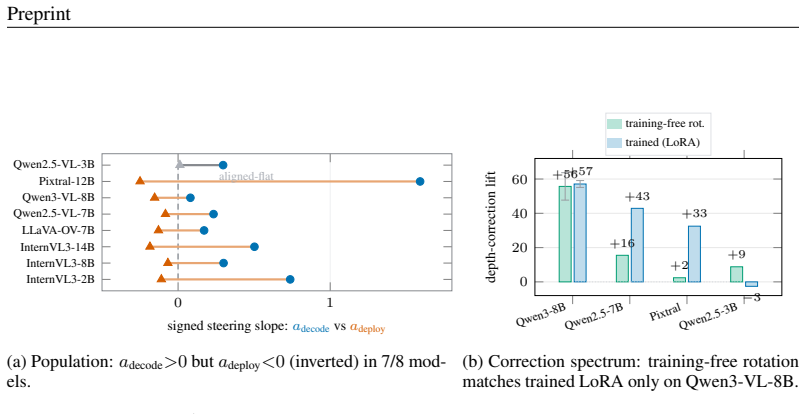

Figure 4. Figure 4: The decode̸=deploy inversion is a population phenomenon (left); which minimal edit re-deploys it reads out each model’s geometry (right). Left: signed steering slope of decodability (adecode, blue) and behaviour (adeploy, vermillion) along depth; decodability rises everywhere while behaviour moves the opposite way in 7/8 models across five LM families (exception: the not-yet￾inverted Qwen2.5-VL-3B). Right:… view at source ↗

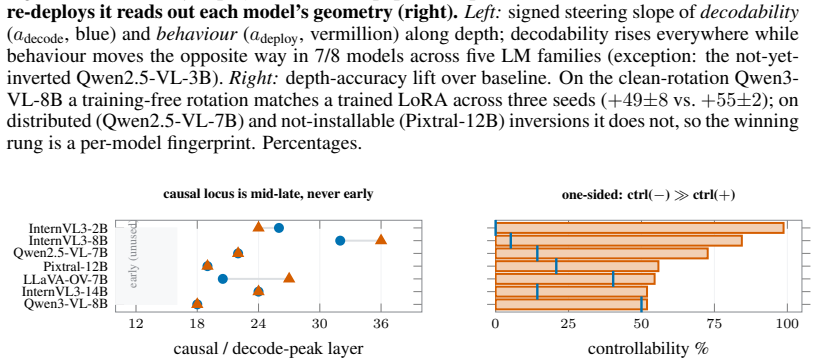

Figure 5
Figure 5. Figure 5: The inverted depth channel is causal and localized across the population, with a one-sided directional signature. Seven inverted models. Left: the probe-decode-peak (blue) and causal-controllability-peak (vermillion) layers both sit mid-late, never early (shaded). Right: causal controllability is strongly asymmetric, the ctrl(−) steer (bar) recovers correct depth while ctrl(+) (tick) does almost nothing, i… view at source ↗
Figure 6

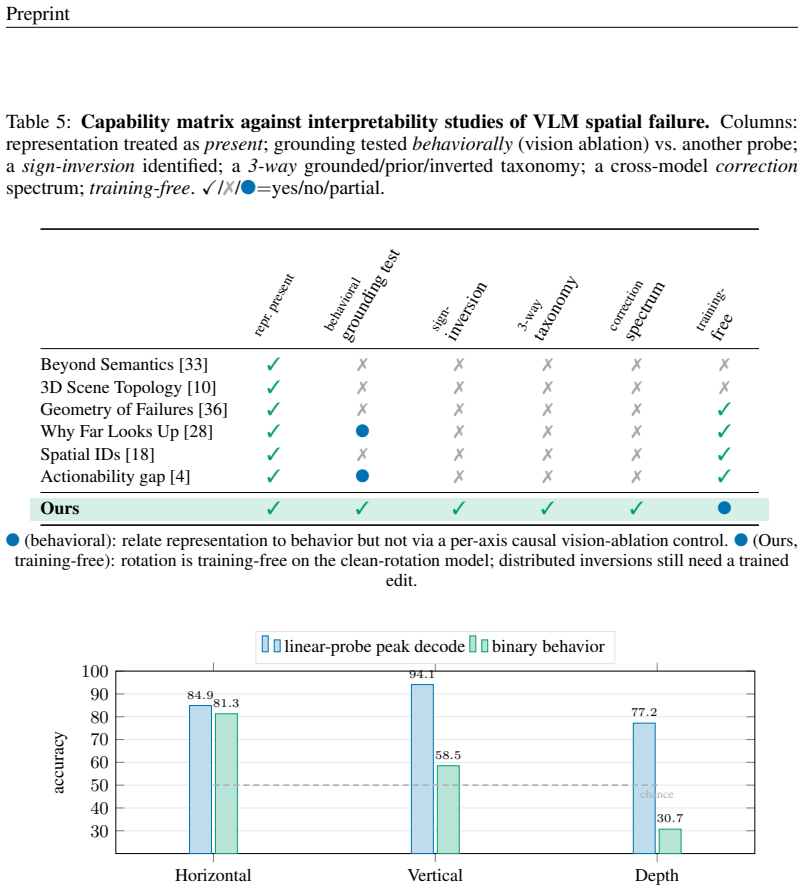

Figure 6. Figure 6: The decodability–behavior dissociation that invites a wrong conclusion. Peak probe￾decode accuracy (blue) vs. actual binary behavior (teal). Horizontal is decoded and deployed (gap +4). Vertical is the most decodable axis yet sits near chance behaviorally (gap +36). Depth is decodable but behavior is below chance (gap +47, anti-correlated). Read alone, this looks like “knowledge present, not deployed” and … view at source ↗
Figure 7

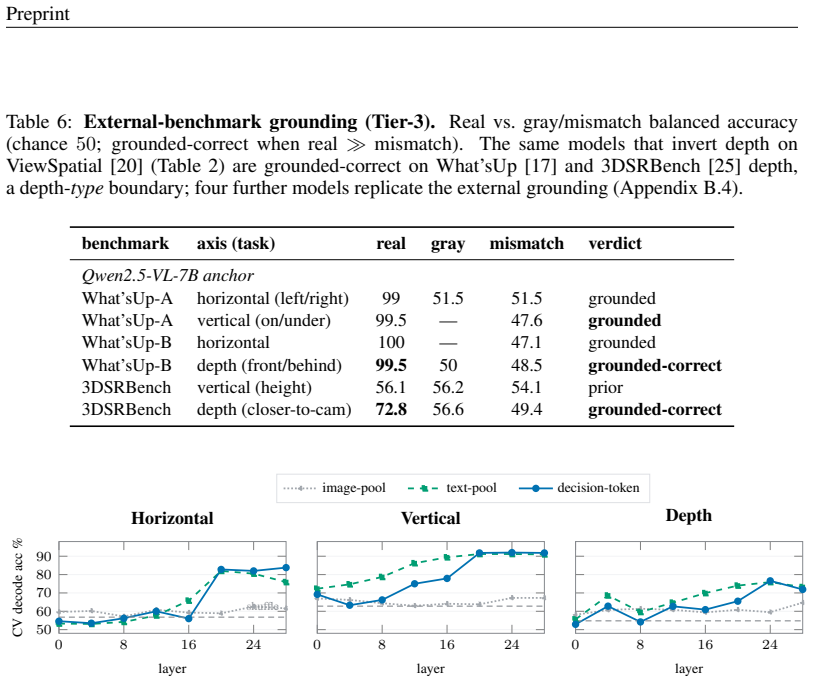

Figure 7. Figure 7: The axis signal is assembled LM-side, not in raw image tokens (Qwen2.5-VL-7B, five￾fold CV probe). Per-layer decode accuracy of the within-axis pole from three loci: decision token, mean-pooled text tokens, and mean-pooled image tokens (grey). On all three axes the image-pool trace stays flat near its shuffle floor (dashed) while the decision/text traces rise sharply at L16–24: the direction is composed in… view at source ↗

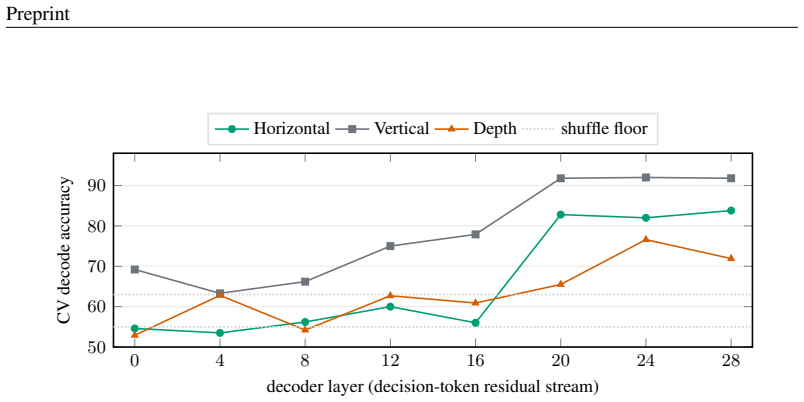

Figure 8
Figure 8. Figure 8: All three axes are linearly decodable; vertical most of all. Five-fold cross-validated logistic-probe accuracy for the two within-axis poles, read from the decision-token residual stream at each layer (PCA-50 features). Decoding rises sharply at L16–24 for every axis. Vertical peaks high￾est (94 at L23), above horizontal (85); depth reaches 77. The dotted band is the per-axis shuffled￾label floor (55–63). … view at source ↗
Figure 9

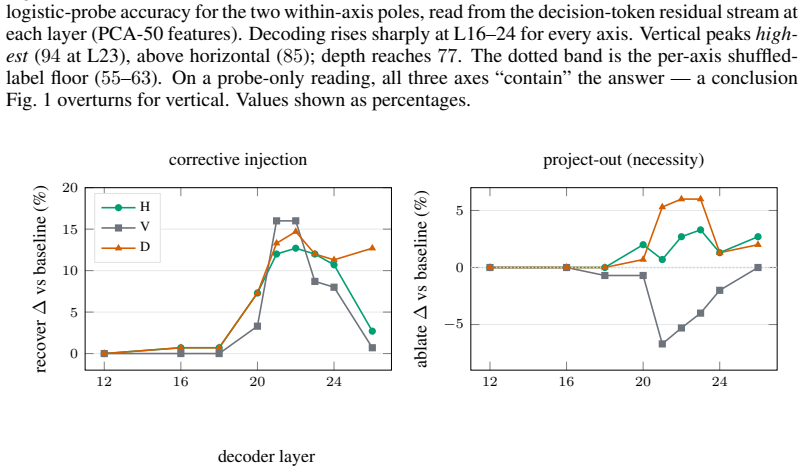

Figure 9. Figure 9: The deployment locus is a distributed L20–24 path, and vertical necessity is local￾ized there (S4). Left: corrective-injection gain peaks at L21–22 for all axes, matching the decode onset ( [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10

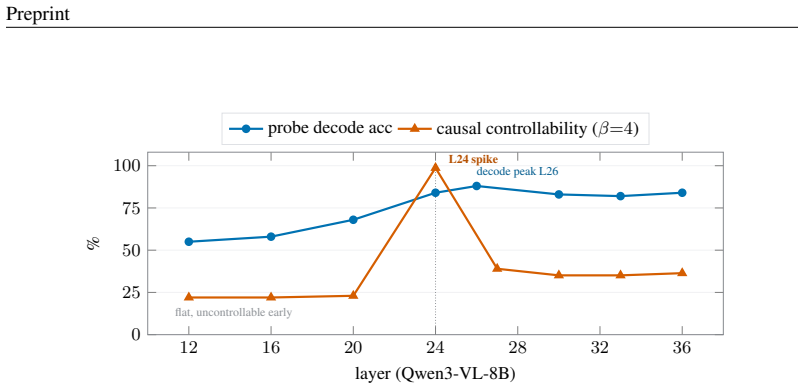

Figure 10. Figure 10: Layer-wise decode and causal controllability (Qwen3-VL-8B depth). Probe-decoding accuracy (blue) climbs from chance in the early layers to a peak at L26, while one-sided causal controllability (vermillion, β=4) is flat and near-zero early, then spikes to 98.7% at L24 before falling back to ∼35–39% in the later layers. The narrow controllability spike at the decode-onset region—strongly asymmetric, recover… view at source ↗

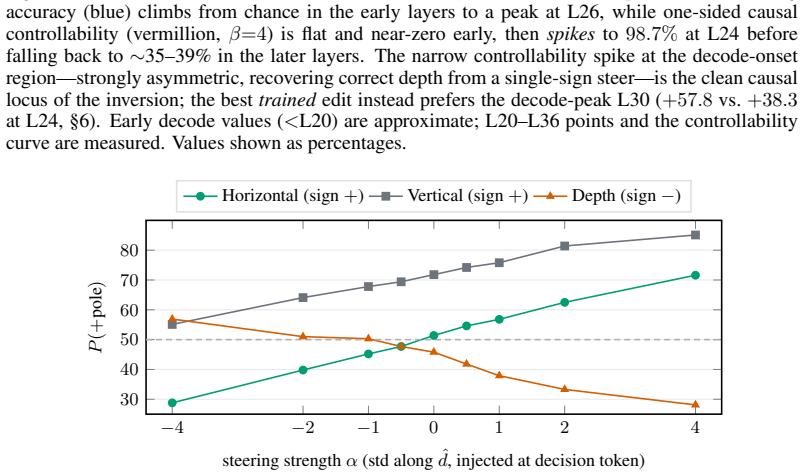

Figure 11
Figure 11. Figure 11: Causal control is clean and monotone on all three axes (S3). Probability of the positive pole as the per-axis diff-of-means direction is added at the decision token (full n=1047, Qwen2.5- VL-7B). Horizontal and vertical increase with α (auto-detected readout sign +1); depth decreases (sign −1), the steering signature of an inverted readout. Each axis is causally steerable—which, like decodability ( [PITH… view at source ↗

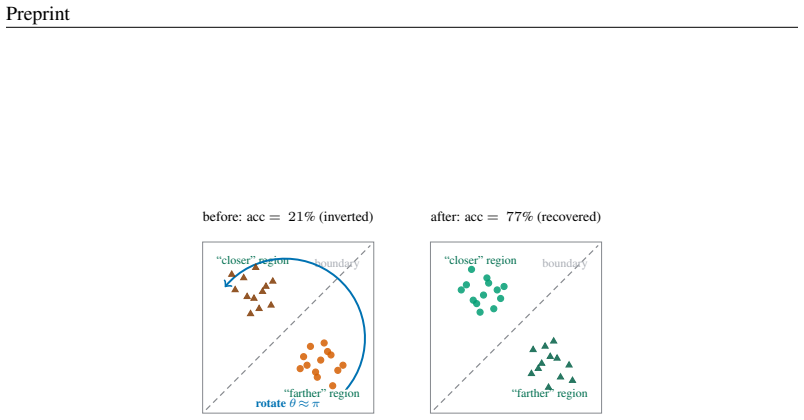

Figure 12
Figure 12. Figure 12: The depth inversion is a clean low-dimensional rotation in Qwen3-VL-8B. Schematic of the depth readout plane. Left: the model’s readout places true-“closer” items on the “farther” side of the decision boundary (and vice-versa)—a systematic sign inversion of an otherwise well￾separated representation (accuracy 21.4, well below chance). Right: a single training-free, norm￾preserving rotation by θ≈π re-align… view at source ↗

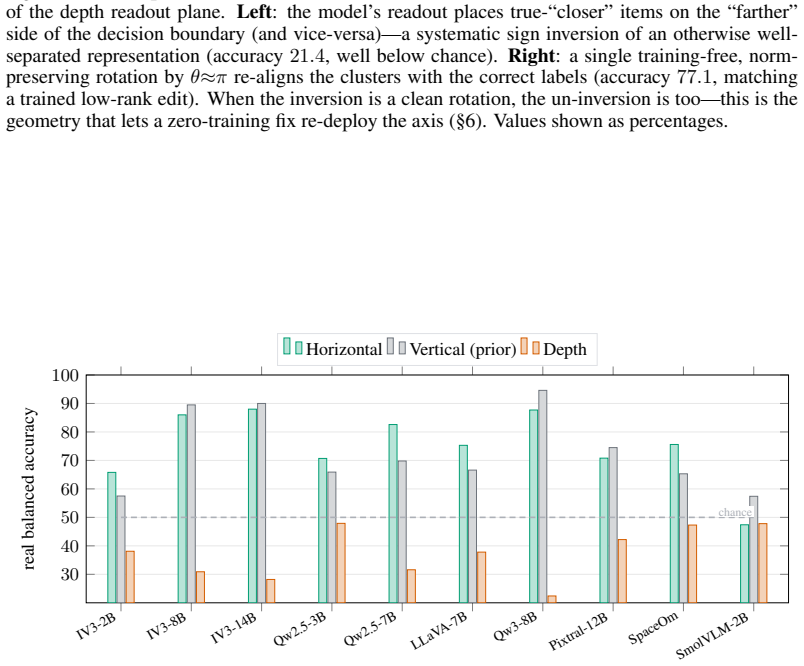

Figure 13
Figure 13. Figure 13: The three-regime taxonomy is architecture-general (10 of 14 models shown; full set in [PITH_FULL_IMAGE:figures/full_fig_p018_13.png] view at source ↗
Figure 14

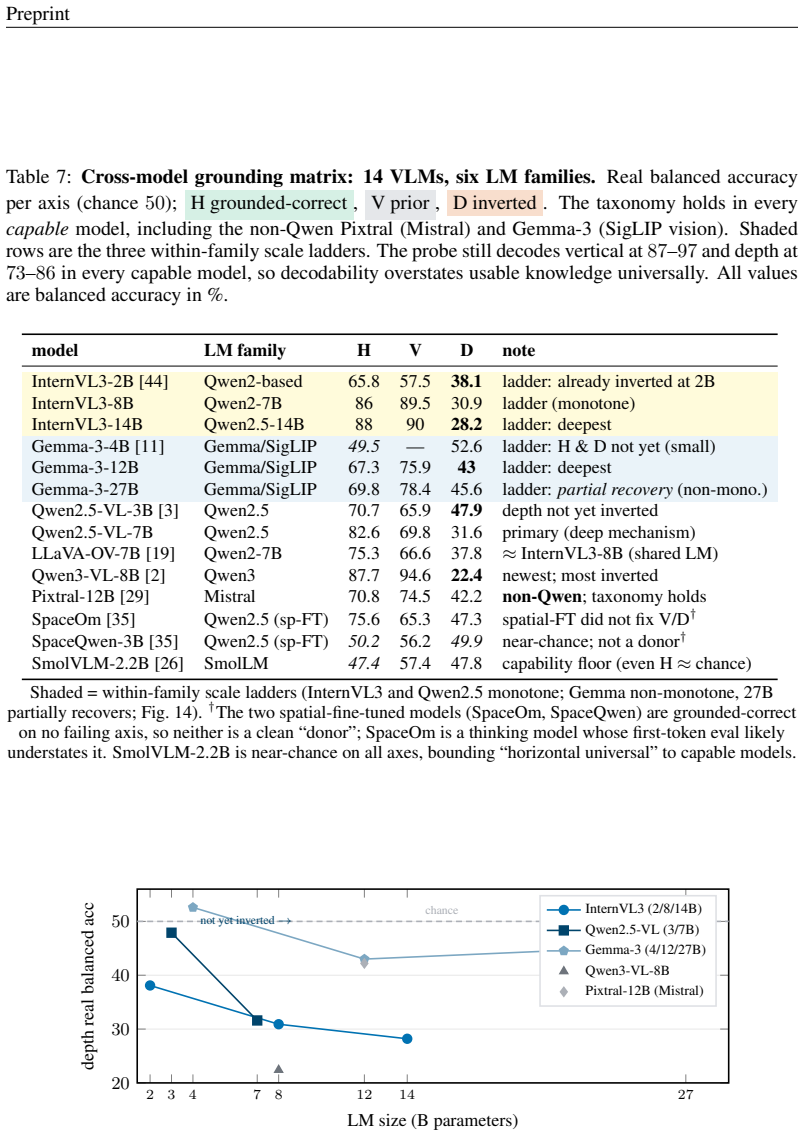

Figure 14. Figure 14: Depth inversion emerges with LM scale within families, but the size–severity rela￾tion is family-specific and not strictly monotone. InternVL3 (2B 38.1 → 8B 30.9 → 14B 28.2) and Qwen2.5-VL (3B 47.9 → 7B 31.6) deepen monotonically with size, whereas Gemma-3 (4B 52.6 → 12B 43 → 27B 45.6) emerges then partially recovers at 27B—a clean within-family non-monotonicity. Onset differs by family (InternVL3 already… view at source ↗

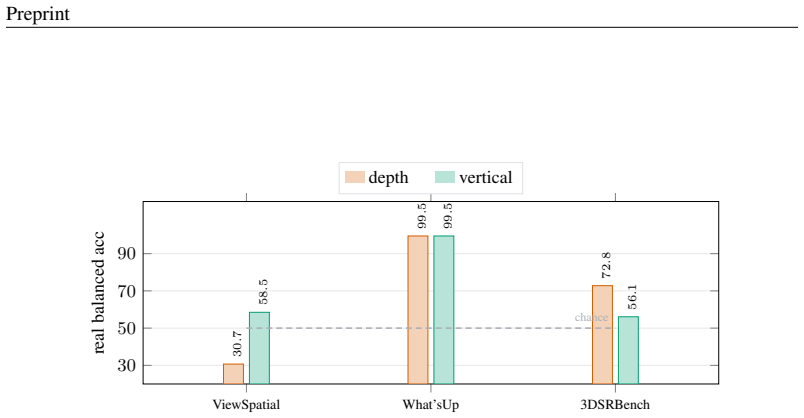

Figure 15
Figure 15. Figure 15: Grounding is task-type-specific: the depth inversion is ViewSpatial-camera￾egocentric, not a general depth failure (Qwen2.5-VL-7B; depth on What’sUp-B front/behind and 3DSRBench closer-to-camera, vertical on What’sUp-A on/under and 3DSRBench height). The same model that inverts depth on ViewSpatial’s camera-relative front/back (30.7) is grounded-correct on near-field front/behind (99.5) and metric closer-… view at source ↗
read the original abstract

The standard way to read latent knowledge out of a model, a linear probe confirmed by a steering recovery, can systematically overstate what a vision-language model (VLM) actually grounds in the image. We show this on spatial reasoning, where the error is invisible to both probing and steering yet exposed by a one-line causal control: replacing the image with a gray blank. Probes decode the within-axis answer at 73--97% across axes, and a training-free projection lifts a near-chance axis from 59% to 79%, exactly the signature of unlocking latent knowledge. The blank-image arbiter refutes it, revealing three grounding regimes that probing conflates: an axis can be grounded (vision-dependent, correct), a prior (vision-independent, with its decode and its apparent recovery a directional default rather than perception), or, surprisingly, inverted: decodable, causally controllable, but deployed with the wrong sign, so the model scores below chance and the error requires looking. The taxonomy holds across the studied VLMs: in fourteen models spanning six language-model families and 2B--27B, horizontal is grounded, vertical is a prior, and depth is inverted, with the inversion emerging at scale within families. The decode-versus-deploy inversion replicates on seven of eight models across five families, and the minimal edit that re-deploys it varies with geometry: a training-free rotation matches a trained edit on the cleanest model, while distributed inversions need a trained low-rank edit, tracing a per-model correction-complexity spectrum. The cheap, self-calibrating arbiter cleanly separates grounded perception, inverted perception, and prior substitution; we argue it should be a default control for latent-knowledge and steering claims in VLMs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that standard linear probing and steering recovery in VLMs overstate visual grounding for spatial reasoning tasks. Using a blank-image (gray) ablation as a causal control, it identifies three regimes—grounded (vision-dependent and correct), prior (vision-independent directional default), and inverted (decodable and steerable but with wrong sign, yielding below-chance performance)—that probing conflates. Horizontal axes are grounded, vertical are priors, and depth is inverted (emerging at scale); the pattern replicates across 14 models in 6 families (2B–27B). A training-free rotation or low-rank edit can correct inversions, with complexity varying by model. The blank-image arbiter is proposed as a default control for grounding claims.

Significance. If the blank-image control validly isolates vision dependence, the result supplies a cheap, self-calibrating diagnostic that separates true perceptual grounding from language priors and sign inversions, directly challenging reliance on probe accuracy or steering recovery alone. The broad evaluation across model families and scales, plus the geometry-specific correction spectrum, strengthens the practical takeaway. The work credits the external control for exposing patterns invisible to internal methods and offers falsifiable per-axis predictions.

major comments (2)
  1. [Methods (blank-image control)] Methods / blank-image arbiter description: The central taxonomy (grounded vs. prior vs. inverted) is defined solely by comparing real-image vs. gray-blank performance. No validation is reported that uniform gray inputs do not themselves trigger model-specific attention shifts, logit biases, or out-of-distribution defaults; if they do, the 'prior' and 'inverted' labels become artifacts of the control rather than evidence about grounding on actual images. This directly undermines the claim that the arbiter cleanly separates the three regimes.
  2. [Results (depth inversion)] Results (cross-model patterns, e.g., depth inversion at scale): The inversion claim for depth (and its emergence within families) rests on the gray-blank baseline being neutral. Without auxiliary controls (e.g., Gaussian noise, black images, or scrambled patches) to confirm the gray field does not systematically invert or default the depth axis, the scale-dependent pattern cannot be attributed to grounding failure rather than control artifact.
minor comments (2)
  1. [Abstract / Results] Abstract and §4: The reported accuracy ranges (73–97%, 59% to 79%) would benefit from per-model, per-axis tables with confidence intervals or statistical tests to support the 'exactly the signature' claim for steering recovery.
  2. [Figures] Figure captions: Clarify whether the gray blank is a constant RGB value or sampled; this affects reproducibility of the control.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the need for stronger validation of the blank-image control. We agree that additional auxiliary controls would increase confidence in the taxonomy and will incorporate them in the revision.

read point-by-point responses

  1. Referee: Methods / blank-image arbiter description: The central taxonomy (grounded vs. prior vs. inverted) is defined solely by comparing real-image vs. gray-blank performance. No validation is reported that uniform gray inputs do not themselves trigger model-specific attention shifts, logit biases, or out-of-distribution defaults; if they do, the 'prior' and 'inverted' labels become artifacts of the control rather than evidence about grounding on actual images. This directly undermines the claim that the arbiter cleanly separates the three regimes.

    Authors: We acknowledge that the manuscript reports no explicit comparison of the gray blank against other neutral inputs. In the revised manuscript we will add experiments replacing the image with Gaussian noise and with solid black fields, reporting probe accuracies and steering recovery under each. If the grounded/prior/inverted classification remains stable across these controls, this will confirm that the taxonomy reflects model behavior on real images rather than a gray-specific artifact. revision: yes

  2. Referee: Results (cross-model patterns, e.g., depth inversion at scale): The inversion claim for depth (and its emergence within families) rests on the gray-blank baseline being neutral. Without auxiliary controls (e.g., Gaussian noise, black images, or scrambled patches) to confirm the gray field does not systematically invert or default the depth axis, the scale-dependent pattern cannot be attributed to grounding failure rather than control artifact.

    Authors: We agree that the depth-inversion result would be more robust with the suggested auxiliary controls. The revision will include per-axis probe and steering results under Gaussian noise and black-image baselines, with particular attention to whether the below-chance depth performance and its scale dependence persist. This will allow us to attribute the inversion to the models rather than to the choice of gray field. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical control defines taxonomy independently

full rationale

The paper's central result is an empirical taxonomy (grounded / prior / inverted) obtained by direct performance comparison between real images and gray-blank ablations across 14 models. This is an external causal intervention, not a quantity fitted to data and then renamed as a prediction, nor any self-definitional mapping, nor a load-bearing self-citation. No equations, ansatzes, or uniqueness theorems are invoked; the three regimes are observed outcomes of the control experiment itself. The derivation chain therefore contains no reduction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical derivations, free parameters, or new postulated entities appear in the abstract; the work rests on empirical ablation results.

pith-pipeline@v0.9.1-grok · 5862 in / 1162 out tokens · 40765 ms · 2026-07-01T06:20:47.005914+00:00 · methodology
