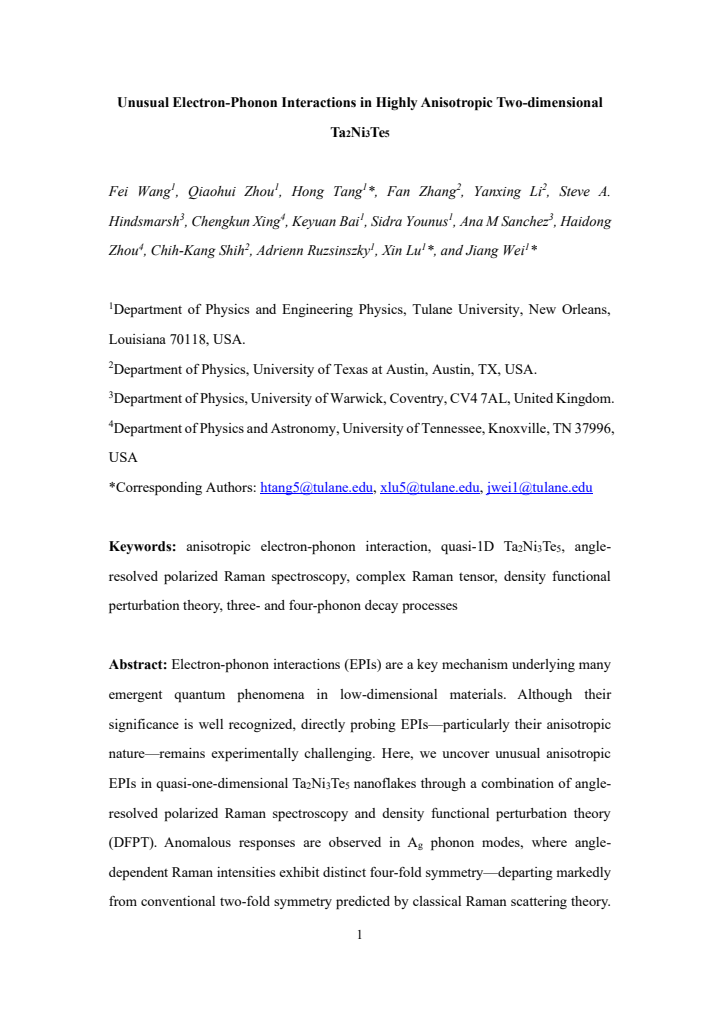

Unusual Electron-Phonon Interactions in Highly Anisotropic Two-Dimensional $Ta_2$$Ni_3$$Te_5$

T0 review · 3 major / 4 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Anisotropic electron-phonon coupling explains the four-fold Raman patterns measured in Ta2Ni3Te5 flakes.

desk verdict A careful Raman study with a real DFPT calculation, but the monolayer-for-few-layer substitution leaves the central EPI-anisotropy claim plausible rather than proven. read the letter →

arxiv 2506.05809 v2 pith:TS3JV44L submitted 2025-06-06 cond-mat.mtrl-sci cond-mat.mes-hallcond-mat.othercond-mat.str-el

Fei Wang , Qiaohui Zhou , Hong Tang , Fan Zhang , Yanxing Li , Ana M Sanchez , Keyuan Bai , Sidra Younus
show 4 more authors
Chih-Kang Shih Adrienn Ruzsinszky Xin Lu Jiang Wei
This is my paper
classification cond-mat.mtrl-scicond-mat.mes-hallcond-mat.othercond-mat.str-el PACS 78.30.-j71.38.-k
keywords anisotropicelectron-phononinteractionTa2Ni3Te5quasi-one-dimensionalangle-resolvedpolarizedRamanspectroscopycomplextensordensityfunctionalperturbationtheoryphonondecayfour-phononprocess
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the unusual four-fold angular dependence of the Ag Raman modes in few-layer Ta2Ni3Te5 is not an artefact of classical Raman tensor fitting or sample birefringence but a fingerprint of intrinsically anisotropic electron-phonon interactions. The claim matters because low-symmetry quasi-one-dimensional materials are candidate platforms for excitonic, topological, and superconducting phases whose properties are set by how strongly phonons couple to electrons along different crystal directions, so a direct optical probe of that anisotropy would give experimenters a way to test those phases. The evidence combines angle-resolved polarized Raman spectra on 9- and 12-layer flakes with full quantum perturbation theory and density functional perturbation theory calculations that reproduce the measured polar plots only when anisotropic electron-phonon coupling is included. The paper further argues that temperature-dependent Raman shifts in several modes require four-phonon decay processes, and connects that higher-order anharmonicity to the same anisotropic coupling.

What carries the argument

The load-bearing object is the complex Raman tensor, whose off-diagonal phase differences control the Ag angular pattern. It is derived from a third-order perturbation-theory expression for Stokes Raman intensity (Eq. 13) in which the intermediate-state sum is constrained by symmetry-allowed optical transitions (dipole selection rules) and by the electron-phonon matrix element for emitting the phonon. The paper computes these complex tensors with density functional perturbation theory for the monolayer (point group C2v), relying on the statement that the monolayer A1 mode retains the same Raman tensor form as the bulk Ag mode of the measured few-layer flakes; those calculated tensors, with anisotropic electron-phonon coupling included, generate polar plots matching the measured four-fold Ag patterns.

What would settle it

Measure angle-resolved polarized Raman spectra of the same Ag modes on monolayer and on flakes of several thicknesses: if the four-fold pattern is intrinsic anisotropic electron-phonon coupling, it should persist in the monolayer with the calculated C2v complex tensors; if birefringence were responsible, the fitted phase difference should grow linearly with thickness (Eq. 9) and vanish for the thinnest flakes.

Watch

Extended reading notes

Core claim

The central discovery is that the complex Raman tensor needed to fit the anomalous Ag-mode polar plots in Ta2Ni3Te5 has a microscopic origin in the anisotropy of electron-phonon interactions, rather than in classical light absorption phenomenology or linear birefringence. In the full quantum treatment of Stokes scattering, the intensity is built from two electron-photon matrix elements and one electron-phonon matrix element with explicit optical dipole selection rules; when the electron-phonon element is treated as isotropic, the calculation predicts two-fold Ag symmetry, contradicting the measured four-fold patterns, whereas including anisotropic electron-phonon interactions in DFPT reproduces the measured polar plots. The paper also shows that, in parallel polarization, absorptive complex tensors and birefringence produce mathematically identical Ag intensity formulas, and it argues on thickness and mode-by-mode phase-difference grounds that the operative mechanism is the intrinsic anisotropic interaction, not birefringence. Taken at face value, the result makes Ta2Ni3Te5 a concrete system in which anisotropic electron-phonon coupling is directly observable in an optical experiment.

Load-bearing premise

The calculations are done for a monolayer with C2v symmetry, and the paper assumes that its A1 mode has the same Raman tensor form as the bulk Ag mode of the measured 9- and 12-layer flakes, without a bulk calculation or layer-by-layer validation.

Editorial extensions

If this is right

  • Angle-resolved polarized Raman spectroscopy combined with full quantum DFPT becomes a workflow for mapping anisotropic electron-phonon coupling in low-symmetry layered materials, not just in Ta2Ni3Te5.
  • The four-fold Ag patterns can serve as a symmetry-resolved fingerprint for identifying chain orientation in exfoliated flakes, since the lobe geometry is tied to the b-axis chain direction.
  • For several phonon modes the four-phonon decay channel dominates over the three-phonon channel, so models of phonon lifetimes and heat dissipation in this material must include quartic anharmonicity.
  • Because absorption and birefringence enter the same Ag intensity formula, experiments on other orthorhombic two-dimensional materials must separate the two before assigning unusual polar patterns to intrinsic anisotropic electron-phonon coupling.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the monolayer-to-bulk Raman tensor correspondence holds, a thickness series of angle-resolved Raman measurements should show the four-fold Ag pattern persisting down to monolayer thickness, whereas a birefringence-dominated interpretation would predict the fitted phase difference to shrink linearly with thickness (Eq. 9).
  • The dominance of four-phonon decay in specific modes could be tested independently by measuring mode-resolved phonon lifetimes, for example with coherent phonon spectroscopy, and comparing them with the anharmonic constants extracted from the temperature fits.
  • Because the anisotropy is electronic in origin, electrostatic gating or doping should modulate the complex Raman tensors and thereby reshape the Ag polar plots, offering a tunable optical probe of the same electron-phonon coupling.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript reports angle-resolved polarized Raman spectroscopy, temperature-dependent Raman measurements, and DFPT-based Raman tensor calculations for few-layer Ta2Ni3Te5, aiming to explain an unusual four-fold angular response of Ag phonon modes. The authors attribute this response to anisotropic electron-photon and electron-phonon interactions, supported by QERaman calculations of complex Raman tensors for a monolayer model. They also analyze temperature-dependent peak shifts with three- and four-phonon decay models and report dominant four-phonon contributions for some modes.

Significance. If the central attribution is quantitatively established, the paper would offer a useful demonstration of combining angle-resolved polarized Raman spectroscopy with first-principles quantum Raman calculations to probe anisotropic electron-phonon interactions in low-symmetry 2D materials. The experimental data set is extensive, including structural imaging, polar plots for many modes, and temperature-dependent measurements. A notable strength is that the QERaman tensors are computed ab initio rather than fitted to the polar data, and the derivation showing the identical angular forms of absorption and birefringence in the parallel configuration is a useful contribution. However, the load-bearing connection between the monolayer DFPT result and the measured few-layer flakes is asserted rather than quantitatively demonstrated, and the comparison between calculated and measured polar plots is qualitative.

major comments (3)
  1. [Section 2.3 and Supporting Section S5] The step from monolayer DFPT to few-layer experiment is not quantitatively justified. The manuscript states in Section 2.3 that bulk DFPT "exceeds our current resources" and therefore uses a monolayer C2v calculation, justified by the statement that "the monolayer A1 mode retains the same Raman tensor form as the bulk Ag mode." That group-theoretic statement fixes the allowed nonzero components but not their magnitudes and phases. Equation 5 shows that the four-fold contribution in the Ag response is controlled by the phase difference between the b and c tensor elements, while Equation 13 shows that these phases arise from sums over intermediate states with complex resonant denominators. The monolayer has C2v symmetry and a ~50 meV gap at the Gamma point (Figure S16a), whereas the measured 9L/12L flakes have D2h symmetry and a different band structure, so the intermediate-state spectra can differ substantially. The paper provides no bulk DFPT Raman tensor and no layer-dependent validation such as comparing 1L, 3L, and 9L polar plots. I recommend either providing bulk or few-layer QERaman tensors or quantitatively testing the monolayer tensors against measured few-layer polar data.
  2. [Figure 4d-f and Figure S9] The comparison between calculated and measured polar plots is qualitative only. The text says the DFPT intensities "successfully reproduce" the complex angular dependence, but no numerical metric is reported, such as fitted phase differences, amplitude ratios, or a chi-squared/overlap measure between the calculated and experimental polar plots. Since the experimental fits in Figure S9 already assign per-mode phase differences and amplitude ratios, these fitted parameters should be tabulated and compared with the corresponding values extracted from the calculated complex tensors. Without such a quantitative comparison, the central claim that the four-fold Ag response originates from the computed anisotropic electron-phonon interactions remains plausible but not established.
  3. [Section 2.4 and Table S13] The inference that a dominant four-phonon process in several modes is "a possible manifestation of strong anisotropic electron-phonon interactions" is not supported by the presented analysis. The fitted A and B coefficients in Equation 16 are empirical anharmonic parameters; no calculation or model connects their relative magnitude to electron-phonon matrix elements or to their anisotropy. This statement appears in the abstract and conclusion as a substantive finding, but the paper offers no independent evidence for that link. I suggest either adding a microscopic calculation of anharmonic phonon decay weighted by electron-phonon coupling or explicitly labeling this as a speculative remark.
minor comments (4)
  1. [Supporting Information S3] Several equations in Supporting Section S3 contain corrupted or unreadable mathematical symbols, particularly Equations S2, S3, S8, and S9. These should be regenerated so that the derivations are fully legible.
  2. [Section 4, Experimental Section] In the crystal growth description, the text lists "selenium (Alfa Aesar, 99.99% purity)" as a starting material, but Ta2Ni3Te5 contains tellurium. This is presumably a typo and should be corrected.
  3. [Figure 3 caption and Section 2.2] The caption of Figure 3 states the flake is 12L, while the text in Section 2.2 describes initial measurements on a 9L flake and complementary measurements on a 12L flake. The manuscript should clarify which flake is used for the polar plots in Figures 3 and S9-S10.
  4. [Table S13] The statement that "the four-phonon process is not only significant but even dominant" for several modes is somewhat stronger than the table indicates: only one listed mode has B/A clearly greater than unity, and several modes have B/A below 0.1. The wording should be aligned with the fitted values.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the DFPT complex Raman tensors are ab initio and are not fitted to the experimental polar data, and the paper explicitly acknowledges the degeneracy between absorption and birefringence interpretations.

full rationale

The central derivation chain is not circular. The experimental Ag-mode polar plots are first fitted with the complex-tensor expression of Equation 5, introducing per-mode amplitudes and phase differences. These fitted parameters are not fed back into the DFPT calculations. The calculated Raman polar plots in Figure 4d-f and Figure S17 are produced independently by QERaman from monolayer band structures and electron-photon and electron-phonon matrix elements; the paper does not tune those ab initio tensors to match the experimental fits. The monolayer calculation is justified by the group-theoretic statement that the monolayer A1 mode retains the same Raman tensor form as the bulk Ag mode; that statement fixes allowed tensor components, and while it is a modeling assumption that could limit quantitative fidelity, it is not a circular reduction because the complex phases that produce the four-fold pattern are computed, not imposed from experiment. The paper also explicitly acknowledges the alternative birefringence mechanism and states that fitting alone cannot distinguish it from absorption, then rules out birefringence using thickness and mode-dependent phase arguments; this is a self-consistent physical argument, not a tautology. No load-bearing self-citation is present: the cited QERaman code is external, and the cited black-phosphorus work is used for contrast, not to justify the central claim. Temperature-dependent phonon-decay analysis is an independent fit with the Balkanski model and is not used to derive the anisotropic-EPI conclusion. The weakest assumptions, such as monolayer substitution for few-layer flakes and the qualitative nature of the polar-plot comparison, are correctness or validation concerns, not circularity.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central EPI-anisotropy claim depends on per-mode fitted Raman tensor parameters (b/c and phase differences) and on the transferability of monolayer DFPT to few-layer flakes. The temperature-dependent claim relies on A and B fitted to the Balkanski model. No new physical entities are introduced.

free parameters (4)
  • Raman tensor element ratio b/c for each Ag mode = varies per mode; not explicitly tabulated in main text
    Fitted to angle-resolved Raman intensities via Equation 5; used to characterize the 2-fold vs 4-fold shapes of Ag modes.
  • Phase difference phi_bc for each Ag mode = varies per mode; shown in Figure S9 fits
    Fitted to angle-resolved Raman intensities via Equation 5; the variation of phase across modes is used to rule out birefringence as the dominant origin.
  • Anharmonic constants A and B per Raman mode = listed in Table S13, e.g., A=-0.247 cm^-1, B=-0.0013 cm^-1 for Ag7
    Fit to temperature-dependent Raman shifts using the Balkanski model (Equation 16); the ratio B/A quantifies the four-phonon contribution.
  • Linear temperature coefficient chi for select modes = e.g., -0.0072 cm^-1/K for Ag7
    Linear fits to the limited temperature ranges (red dashed lines in Figure 5); used as a cross-check alongside the Balkanski model.
assumptions (4)
  • standard math Third-order perturbation theory for Raman intensity with dipole approximation (Equation 13)
    Foundation for the quantum Raman calculation; standard in resonance Raman literature.
  • domain assumption PBE functional with DFT-D3 and SOC adequately describe the electronic ground state and phonons
    Phonon dispersion has no imaginary frequencies, but PBE is an approximate functional; no hybrid or GW validation is provided for the optical transitions.
  • ad hoc to paper Monolayer A1 mode retains the bulk Ag Raman tensor form, so monolayer DFPT applies to few-layer flakes
    Explicitly stated in Section 2.3; no layer-dependent or bulk DFPT validation is given.
  • domain assumption Balkanski equal-energy three- and four-phonon decay model (Equation 16)
    Standard empirical model used to fit temperature-dependent shifts; equal-energy decay is an approximation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Unusual Electron-Phonon Interactions in Highly Anisotropic Two-Dimensional $Ta_2$$Ni_3$$Te_5$." pith.science (2026). https://pith.science/paper/TS3JV44L

@misc{pith2026250605809,
  author       = {Pith},
  title        = {Pith review of: Unusual Electron-Phonon Interactions in Highly Anisotropic Two-Dimensional $Ta_2$$Ni_3$$Te_5$},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TS3JV44L}},
  note         = {Machine review of arXiv:2506.05809}
}
abstract

Electron-phonon interactions (EPIs) represent a fundamental cornerstone of condensed matter physics, commanding persistent attention due to their pivotal role in driving novel quantum phenomena within low-dimensional materials. Here, we unveil unusual anisotropic electron-phonon coupling behaviors in quasi-one-dimensional $Ta_2$$Ni_3$$Te_5$ nano-flakes through a powerful combination of angle-resolved polarized Raman spectroscopy and density functional perturbation theory (DFPT). High-resolution transmission electron microscopy and scanning tunneling microscopy directly visualize the pronounced quasi-one-dimensional atomic chains within the crystal structure, establishing a structural foundation for the observed anisotropic interactions. Our Raman investigations reveal remarkable polarization-dependent responses in $A_g$ phonon modes that deviate significantly from conventional behavior, which our theoretical analyses attribute to complex anisotropic electron-photon and electron-phonon interactions. Temperature-dependent Raman measurements further uncover an intriguing phonon decay mechanism involving both three- and four-phonon processes, with the latter showing significant contributions in some modes - a possible manifestation of strong anisotropic electron-phonon interactions. Beyond revealing $Ta_2$$Ni_3$$Te_5$ as an exceptional platform for exploring anisotropic EPIs, this work demonstrates that integrating angle-resolved polarized Raman spectroscopy with DFPT calculations offers a powerful methodology for investigating electron-phonon interactions in emerging low-dimensional quantum materials.

Figures

Figures reproduced from arXiv: 2506.05809 by the authors.

Figure 1
Figure 1. Strong in-plane anisotropy and quasi-1D structure of layered Ta2Ni3Te5. Crystal structure of Ta2Ni3Te5 represented in a) perspective view of multilayer form and b) top view of the monolayer. c) Representative optical image of an elongated, nanoribbon-like Ta2Ni3Te5 flake exfoliated onto SiO2/Si substrate. d) Corresponding AFM characterization of the flake shown in c). Inset is the height profile. e) HRTEM image of a… view at source ↗
Figure 2
Figure 2. Phonon modes of Ta2Ni3Te5. a) A representative Raman spectrum of the Ta2Ni3Te5 flake, with calculated Raman peaks indicated by red (Ag modes) and blue (B3g modes) vertical lines. Atomic displacements of the b) B3g 1 and c) Ag 1 modes [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Unusual phonon response of the Ag Raman modes in Ta2Ni3Te5 investigated with angle-resolved polarized Raman spectroscopy. a) Schematic diagram of the measurement performed in the parallel configuration. The Ta2Ni3Te5 flake (12L) was put on the sample stage with the straight edge (atomic chain direction) carefully aligned with the Y direction to guarantee that the incident light is polarized along the chain direction… view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Anisotropic electron-photon and electron-phonon interactions in the Raman scatterings of Ta2Ni3Te5. a) Symmetry-allowed optical transitions represented in the band structure, with irreducible representations marked for bands at the Γ point. The thick blue (orange) arro…
Figure 5
Figure 5. Figure 5: Temperature-dependent Raman measurements and the corresponding phonon decay process in Ta2Ni3Te5. a-c) Temperature dependence of the Raman modes. Experimental data are represented as blue dots, blue solid lines (green dashed lines) are the corresponding fitting curves …
