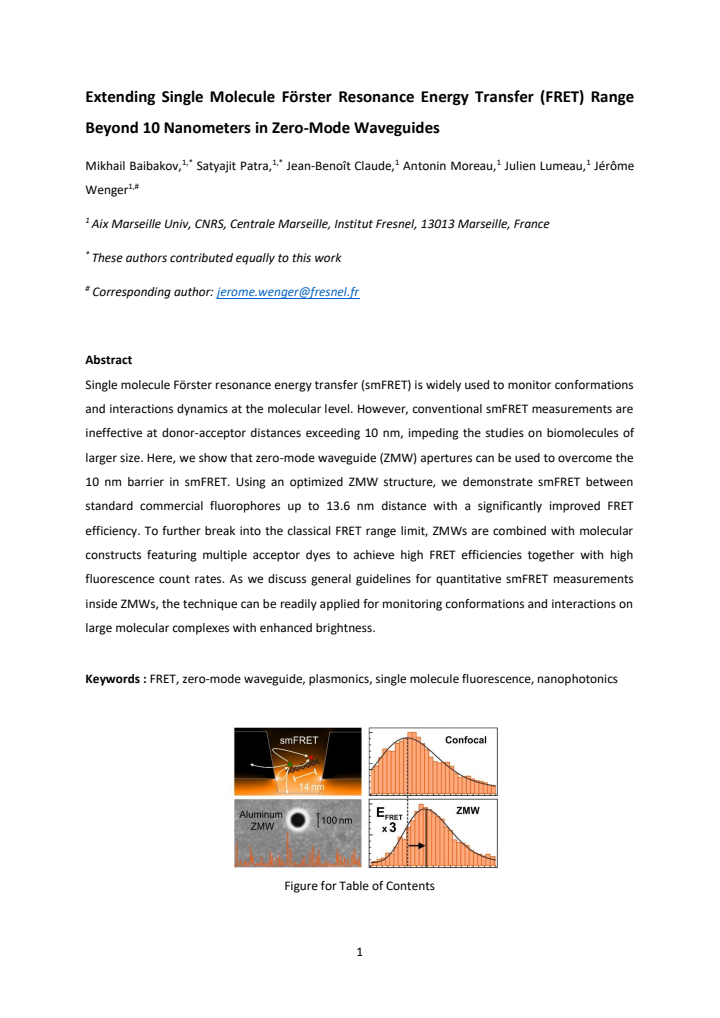

Extending Single Molecule F\"orster Resonance Energy Transfer (FRET) Range Beyond 10 Nanometers in Zero-Mode Waveguides
Pith reviewed 2026-05-25 00:44 UTC · model grok-4.3
The pith
Zero-mode waveguide apertures extend smFRET to 13.6 nm using standard fluorophores.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Optimized zero-mode waveguide apertures enable single-molecule FRET between standard commercial fluorophores at donor-acceptor separations up to 13.6 nm with markedly higher efficiency than in free solution; combining the apertures with multi-acceptor molecular constructs further increases both transfer efficiency and fluorescence count rates while remaining compatible with quantitative analysis.
What carries the argument
Zero-mode waveguide (ZMW) apertures, which restrict the excitation volume to nanoscale dimensions and modify the local electromagnetic environment to increase long-range energy transfer.
If this is right
- Conformational dynamics can now be tracked in molecular complexes larger than 10 nm using off-the-shelf dyes.
- Higher count rates inside ZMWs improve temporal resolution for fast interaction events.
- Multi-acceptor labeling combined with ZMWs provides a practical route to still longer effective ranges.
- The supplied guidelines allow conversion of observed efficiencies into distance estimates inside the apertures.
Where Pith is reading between the lines
- Cellular or membrane-embedded complexes previously inaccessible to smFRET could become measurable if ZMWs are fabricated on compatible substrates.
- Distance calibration curves may have to be re-derived for each ZMW geometry rather than taken from bulk FRET standards.
- The same confinement principle might be tested with other plasmonic or photonic structures to push the range still farther.
Load-bearing premise
The FRET efficiencies recorded inside the ZMW apertures report the true donor-acceptor separation without large systematic shifts caused by the metal structure or its optical effects.
What would settle it
A side-by-side measurement of a calibrated 12 nm donor-acceptor pair showing identical efficiency inside the ZMW and in free solution would indicate that the reported range extension does not arise from the waveguide itself.
read the original abstract
Single molecule F\"orster resonance energy transfer (smFRET) is widely used to monitor conformations and interactions dynamics at the molecular level. However, conventional smFRET measurements are ineffective at donor-acceptor distances exceeding 10 nm, impeding the studies on biomolecules of larger size. Here, we show that zero-mode waveguide (ZMW) apertures can be used to overcome the 10 nm barrier in smFRET. Using an optimized ZMW structure, we demonstrate smFRET between standard commercial fluorophores up to 13.6 nm distance with a significantly improved FRET efficiency. To further break into the classical FRET range limit, ZMWs are combined with molecular constructs featuring multiple acceptor dyes to achieve high FRET efficiencies together with high fluorescence count rates. As we discuss general guidelines for quantitative smFRET measurements inside ZMWs, the technique can be readily applied for monitoring conformations and interactions on large molecular complexes with enhanced brightness.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that optimized zero-mode waveguide (ZMW) apertures enable single-molecule FRET (smFRET) between standard commercial fluorophores at donor-acceptor separations up to 13.6 nm, exceeding the conventional ~10 nm limit, with significantly improved FRET efficiency. It further reports that combining ZMWs with multi-acceptor constructs yields high efficiencies and count rates, and provides general guidelines for quantitative smFRET measurements inside ZMWs to allow application to larger biomolecular complexes.
Significance. If the distance calibration holds without nanostructure-induced artifacts, the result would be a practical advance for single-molecule biophysics, enabling conformational and interaction studies on larger complexes with enhanced brightness using off-the-shelf dyes. The emphasis on quantitative guidelines is a positive feature for reproducibility.
major comments (1)
- [Abstract] Abstract: The headline result (smFRET up to 13.6 nm) requires that measured efficiencies map to physical donor-acceptor distance via the unmodified Förster formula. The ZMW metal apertures modify the local density of optical states (Purcell effect), produce inhomogeneous excitation fields, and can alter radiative/non-radiative rates in a position-dependent way on the scale of the aperture (~tens of nm). No mention is made of lifetime measurements, outside-ZMW controls, or explicit verification that the E(r) curve is unaltered inside the structure; without these, the mapping from efficiency to distance remains unanchored and the 13.6 nm claim cannot be evaluated.
minor comments (1)
- [Abstract] Abstract: Inclusion of error bars, number of molecules, or statistical support for the 13.6 nm value and the 'significantly improved' efficiency would strengthen the presentation even at the abstract level.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive review. The concern about potential ZMW-induced modifications to the FRET process is important, and we address it directly below while clarifying how distances are assigned in the work.
read point-by-point responses
-
Referee: [Abstract] Abstract: The headline result (smFRET up to 13.6 nm) requires that measured efficiencies map to physical donor-acceptor distance via the unmodified Förster formula. The ZMW metal apertures modify the local density of optical states (Purcell effect), produce inhomogeneous excitation fields, and can alter radiative/non-radiative rates in a position-dependent way on the scale of the aperture (~tens of nm). No mention is made of lifetime measurements, outside-ZMW controls, or explicit verification that the E(r) curve is unaltered inside the structure; without these, the mapping from efficiency to distance remains unanchored and the 13.6 nm claim cannot be evaluated.
Authors: The reported donor-acceptor separations (including 13.6 nm) are fixed by the molecular construct geometry (DNA rulers of calibrated length) rather than inferred from measured efficiency via the Förster equation. The central experimental result is that measurable FRET efficiency appears at these large separations inside optimized ZMWs, while the same constructs yield negligible efficiency in free solution. Outside-ZMW control data for the identical constructs are included in the manuscript and supplementary information. We agree that the ZMW environment can in principle alter radiative and non-radiative rates through changes in the local density of states. The original manuscript does not contain lifetime measurements or an explicit discussion of possible modifications to the E(r) relation. We will therefore add a new section that (i) summarizes the expected magnitude of Purcell and excitation-field effects on the scale of the aperture, (ii) presents any available lifetime data, and (iii) states the assumption under which the standard Förster relation is used. The abstract will be revised to make the construct-based distance assignment explicit. revision: yes
Circularity Check
No circularity: purely experimental demonstration
full rationale
The paper contains no derivation chain, equations, fitted models, or self-citations used to justify a prediction. It reports direct experimental measurements of FRET efficiencies in ZMW apertures for commercial fluorophores at separations up to 13.6 nm. All load-bearing claims rest on observed count rates and efficiencies rather than any reduction to prior inputs by construction. The work is therefore self-contained as an experimental study with no circular steps.
