Representations of the D=2 Euclidean and Poincar\'e groups

Giovanni Camilletti; Mar\'ia A. Lled\'o; Mariano A. del Olmo

arxiv: 2602.05677 · v2 · pith:U2LBWTZNnew · submitted 2026-02-05 · 🧮 math-ph · hep-th· math.MP

Representations of the D=2 Euclidean and Poincar\'e groups

Giovanni Camilletti , Mar\'ia A. Lled\'o , Mariano A. del Olmo This is my paper

Pith reviewed 2026-05-21 14:02 UTC · model grok-4.3

classification 🧮 math-ph hep-thmath.MP

keywords unitary irreducible representationsEuclidean groupPoincaré groupMackey induced representationslittle groupsBessel functionsrigged Hilbert spacestwo-dimensional relativity

0 comments

The pith

Unitary irreducible representations of the two-dimensional Euclidean and Poincaré groups are built explicitly from Mackey induction on their little groups.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs all unitary irreducible representations of the 2D Euclidean and Poincaré groups, including their spin double covers, by inducing representations from the little groups of each momentum orbit. Because the little groups in two dimensions are simple, every orbit can be parametrized, every equivariant wavefunction written down, and every group operator written in closed form. For the Euclidean group the matrix elements turn out to be Bessel functions; for the Poincaré group they involve modified Bessel and Hankel functions, sometimes as tempered distributions handled inside rigged Hilbert spaces. A reader who wants concrete formulas rather than abstract existence proofs for symmetries in two-dimensional relativistic physics can now perform explicit calculations with these expressions.

Core claim

We present an explicit construction of the unitary irreducible representations of the two-dimensional Euclidean and Poincaré groups, together with their Spin double covers, by means of Mackey's theory of induced representations for semidirect products. In dimension D=2, the simplicity of the corresponding little groups allows a complete explicit treatment of momentum orbits, equivariant wavefunctions, and representation operators. For the Euclidean group the matrix elements are expressed in terms of Bessel functions; for the Poincaré group the richer orbit structure leads to modified Bessel and Hankel functions and, in some cases, tempered distributions treated in rigged Hilbert spaces.

What carries the argument

Mackey's induced representations for semidirect products, applied to the 2D Euclidean and Poincaré groups where the little groups are low-dimensional and permit explicit orbit classification and wavefunction construction.

If this is right

All momentum orbits and corresponding equivariant wavefunctions receive explicit parametrizations.
Matrix elements of the infinite-dimensional representations for the Euclidean group are given by Bessel functions.
Matrix elements for the Poincaré group involve modified Bessel functions, Hankel functions, or tempered distributions.
The same explicit treatment extends to the spin double covers of both groups.
Rigged Hilbert spaces are required to make the distributional representations rigorous.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

These closed-form operators could be inserted directly into 2D relativistic quantum mechanics to compute transition amplitudes without further abstract work.
The orbit-by-orbit construction supplies a concrete test case for comparing Mackey induction with other methods such as geometric quantization on the same groups.
The pattern of using rigged Hilbert spaces for certain Poincaré representations may recur in other low-dimensional groups that possess continuous-series representations.

Load-bearing premise

The little groups in two dimensions are simple enough to allow a complete explicit parametrization of all momentum orbits and equivariant wavefunctions while keeping the induced operators unitary on rigged Hilbert spaces for the distributional cases.

What would settle it

A direct calculation, for a chosen timelike orbit of the Poincaré group, showing that the induced operator for a Lorentz boost fails to preserve the norm of the corresponding equivariant wavefunction when the wavefunction is a tempered distribution.

Figures

Figures reproduced from arXiv: 2602.05677 by Giovanni Camilletti, Mar\'ia A. Lled\'o, Mariano A. del Olmo.

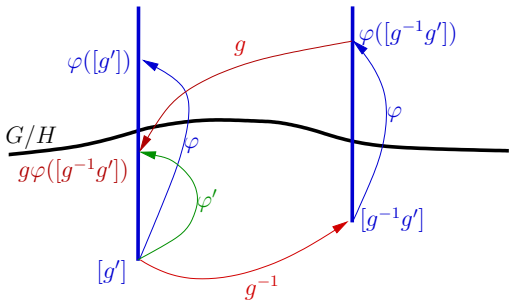

**Figure 1.** Figure 1: Action of G on Γ(E). There is another way of describing the set of sections Γ(E). One can prove that the set of sections is in one to one correspondence with the set of equivariant functions F = {f : G → Hσ continuous | f(gh) = σ(h) −1 f(g), g ∈ G, h ∈ H}. (2) In fact, let f ∈ F. We can construct the section ϕ G/H ϕ −−−→ E [g] −−−→ [g, f(g)], (3) which is well defined due to the equivariance property. In t… view at source ↗

read the original abstract

We present an explicit construction of the unitary irreducible representations of the two-dimensional Euclidean and Poincar\'e groups, together with their Spin double covers, by means of Mackey's theory of induced representations for semidirect products. In dimension D=2, the simplicity of the corresponding little groups allows a complete explicit treatment of momentum orbits, equivariant wavefunctions, and representation operators. For the Euclidean group, the matrix elements of the infinite-dimensional representations are expressed in terms of Bessel functions. For the Poincar\'e group, the richer Lorentzian orbit structure leads to matrix elements involving modified Bessel and Hankel functions and, in some cases, tempered distributions, requiring the use of Rigged Hilbert Spaces. This work illustrates the interplay among induced representations, harmonic analysis on Lie groups, Spin geometry, and special functions in a fully explicit relativistic setting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper works out explicit matrix elements for the 2D Euclidean and Poincaré representations via Mackey induction, using Bessel-type functions and rigged spaces for the lightlike cases.

read the letter

The main takeaway is that the authors give concrete expressions for the unitary irreducible representations of the two-dimensional Euclidean and Poincaré groups and their double covers. They use Mackey's induction on the semidirect product structure, and because the little groups are small in D=2 they can parametrize every orbit, write down the equivariant functions, and produce the representation operators explicitly. For the Euclidean group this yields matrix elements with ordinary Bessel functions on L2 spaces. For the Poincaré group the timelike and spacelike orbits give modified Bessel functions while the lightlike ones involve Hankel functions and tempered distributions, which they treat with rigged Hilbert spaces to keep the action unitary. That explicitness is the real addition beyond the general Mackey framework they cite. The construction follows the standard route without circular definitions or free parameters, and the citation pattern is appropriate for this kind of work. The one soft spot worth checking is the rigged-space step for the lightlike Poincaré representations. The paper assumes the induced operators extend unitarily from the dense test-function subspace, but if the verification is only indicated rather than supplied with an explicit sesquilinear form and continuity estimates, a referee might ask for more detail on domain issues and irreducibility. That concern is limited to one family of representations and does not affect the Euclidean or massive cases. This paper is for people doing concrete calculations in low-dimensional QFT or anyon models who need formulas they can actually plug in rather than abstract existence statements. A reader who already knows Mackey theory but wants the special-function realizations will find it useful. It shows clear, honest engagement with the literature and the functional-analysis details. I would send it to peer review; the explicit constructions are worth referee time even if the distributional unitarity needs a bit more spelling out in revision.

Referee Report

1 major / 1 minor

Summary. The manuscript presents an explicit construction of the unitary irreducible representations of the two-dimensional Euclidean and Poincaré groups, together with their Spin double covers, via Mackey's theory of induced representations for semidirect products. In D=2 the little groups are simple enough to permit complete parametrization of momentum orbits, equivariant wavefunctions, and representation operators. Matrix elements for the Euclidean case are given in terms of Bessel functions on L² spaces; for the Poincaré group they involve modified Bessel and Hankel functions, with lightlike orbits realized on tempered distributions via rigged Hilbert spaces.

Significance. If the constructions are fully rigorous, the paper supplies a valuable explicit reference for low-dimensional relativistic representations, demonstrating the interplay of induced-representation theory, harmonic analysis, and special functions. The complete orbit classification and the explicit matrix-element formulae constitute a clear strength.

major comments (1)

[Poincaré lightlike case (rigged Hilbert space extension)] The section treating lightlike Poincaré orbits invokes rigged Hilbert spaces to restore unitarity for the distributional realizations, yet supplies neither an explicit sesquilinear form on the rigged space nor continuity estimates showing that the induced operators extend to unitary operators on that space. This verification step is load-bearing for the central claim that all representations, including the distributional ones, are unitary.

minor comments (1)

Clarify in the text whether the cocycle data for the Spin double covers are derived explicitly or taken from standard references.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and for the constructive comment on the lightlike case. We address the concern directly below and will revise the manuscript to strengthen the presentation.

read point-by-point responses

Referee: The section treating lightlike Poincaré orbits invokes rigged Hilbert spaces to restore unitarity for the distributional realizations, yet supplies neither an explicit sesquilinear form on the rigged space nor continuity estimates showing that the induced operators extend to unitary operators on that space. This verification step is load-bearing for the central claim that all representations, including the distributional ones, are unitary.

Authors: We agree that the current treatment would benefit from greater explicitness on this point. In the revised manuscript we will add a dedicated subsection that defines the sesquilinear form on the rigged Hilbert space explicitly and supplies the requisite continuity estimates for the induced operators, thereby confirming that they extend to unitary operators on the completed space. This addition will make the unitarity claim fully rigorous without altering the overall construction. revision: yes

Circularity Check

0 steps flagged

No circularity: explicit Mackey induction on external semidirect-product structure with standard rigged-Hilbert extension

full rationale

The derivation applies Mackey's theorem for induced representations of semidirect products to the D=2 Euclidean and Poincaré groups, parametrizing orbits and little-group representations explicitly because the little groups are low-dimensional and abelian or compact. Matrix elements are expressed via Bessel, modified Bessel, and Hankel functions on L2 spaces for timelike and spacelike orbits, while lightlike cases are realized on tempered distributions extended via rigged Hilbert spaces. All steps rest on independently established external results (Mackey theory, harmonic analysis on Lie groups, and rigged-Hilbert-space functional analysis) rather than any self-definition, fitted parameter renamed as prediction, or load-bearing self-citation chain. The central claims therefore remain non-circular and self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The construction rests on Mackey's theorem for semidirect products and standard properties of rigged Hilbert spaces; no free parameters or new entities are introduced.

axioms (2)

standard math Mackey's theorem on induced representations for semidirect products
Invoked as the method to construct the representations from little-group data.
standard math Existence and properties of rigged Hilbert spaces for tempered distributions
Used to make sense of distributional matrix elements in the Poincaré case.

pith-pipeline@v0.9.0 · 5685 in / 1278 out tokens · 73978 ms · 2026-05-21T14:02:27.093447+00:00 · methodology
