The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper aims to establish that multimodal GPTs—models that accept both images and text—are a turning point for the interaction between software engineering and generative AI. The author argues that UML diagrams and hand-drawn sketches, which developers already use for communication, can act as a high-resolution and denotative channel for guiding code generation, code summarisation, and software design. Seven use cases in the paper show a multimodal model translating class, sequence, state, and activity diagrams into working Python code, and also reverse-engineering code back into PlantUML diagrams. If the claim is right, developers gain a practical way to combine visual modelling languages with generative AI, without needing diagrams to be complete specifications—the reason earlier code-generation CASE tools struggled. The paper positions these demonstrations as the first investigation of SE tasks via multimodal GPTs prompted with a mix of diagrams and natural language.

What carries the argument

The central mechanism is the multimodal diagram-and-text prompt chain: a chat in which the user attaches an image of a UML or hand-drawn diagram together with a short text instruction, and each successive prompt builds on the previous outputs. The paper's key move is to treat visual modelling languages as denotative technical languages—they mean one thing and one thing only—in contrast to connotative natural language, and to let the diagram carry the structural information while the text carries the task instruction. PlantUML notation serves as the round-trip format: code can be produced from a diagram, and a diagram can be regenerated from code, which is what allows the author to validate the generated code and to summarise behaviour visually. The demonstrations rely on GPT-4 (via an image-capable chatbot) and an equivalent image-capable pipeline for reproducibility, with all parameters left at defaults and no role or context instructions.

What would settle it

A concrete check would be to run the same seven use-case prompts against a text-only language model given a natural-language description of each diagram (listing the classes, relations, cardinalities, and control flow) and compare the resulting code with the diagram-guided output on the same correctness criteria; if the text-only baseline matches or beats the diagram-guided version, the paper's claim that diagrams add unique value collapses. A second, cheaper check is to audit diagram-to-code outputs on a corpus of diagrams with explicit labels and cardinality constraints and count how often the generated code misses those constraints, as the paper itself reports for the reconstructed class diagram.

Watch

Extended reading notes

Core claim

The paper's central claim is that the advent of multimodal GPTs, such as GPT-4, may represent a watershed in the interplay between software engineering and generative AI, because such models accept image and text inputs and can therefore be prompted with a mix of diagrams and natural language. The core discovery, demonstrated across seven use cases, is that a multimodal GPT can use UML class diagrams, sequence diagrams, state diagrams, and hand-drawn activity diagrams to guide the implementation of Python classes, method behaviour, and complete applications, and can also generate PlantUML diagrams that summarise the structure and behaviour of code. In the author's telling, the model extracts the intended semantics from the diagrams—including relationship labels, states, and even the control flow of a hand-drawn bubble-sort activity diagram—and converts them into working code, while the reverse process produces diagrams that, in one instance, only partly capture the original cardinality constraints. The paper reports this as the first application of multimodal GPTs to software development, software design, and diagram-level code generation, and to code summarisation that returns a diagram.

Load-bearing premise

The load-bearing premise is that the multimodal model can reliably extract the intended meaning from diagram images—including connection labels, cardinality constraints, and hand-drawn notation—so the workflow is only as dependable as the model's image understanding.

Editorial extensions

If this is right

  • Developers can attach UML class, sequence, state, or activity diagrams to a multimodal GPT and get working Python code, so diagrams shift from post-hoc documentation to input specifications.
  • Code summarisation can take the form of PlantUML diagrams, giving a visual, high-resolution view of a system's structure and behaviour that complements textual summaries.
  • Design patterns can be injected visually: attaching a diagram of a pattern such as Adapter steers the model's design decisions without a lengthy textual description.
  • Complex applications (the paper shows tic tac toe and checkers) can be built incrementally through short, chained prompts that start from a class diagram and feed error stack traces back to the model.
  • Because diagrams compress information relative to natural language, diagram-based prompting is expected to be more information-efficient for SE tasks than text-only prompting.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If this workflow becomes dependable, the practical incentive to maintain live UML diagrams rises, potentially reviving modelling practices that declined after earlier code-generation tools failed.
  • The claims suggest a directly testable hypothesis: on paired diagram-versus-text descriptions of the same design, multimodal prompting should outperform text-only prompting on structural tasks such as class generation and behaviour specification.
  • The paper's own admission that cardinality constraints were not fully captured points to a natural hardening step: coupling diagram prompting with a verification pass that regenerates a diagram from the produced code and diffs it against the source diagram.
  • A further extension the author leaves implicit is treating the diagram itself as a test oracle—generating unit tests from the diagram's stated constraints and using them to validate the model's code.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper argues that multimodal GPT models such as GPT-4 mark a 'watershed' for generative software engineering because they can accept prompts that mix images of UML diagrams with natural language. The author presents a portfolio of use cases: generating Python classes from a class diagram, implementing dynamic behaviour from a sequence diagram, generating code from a hand-drawn activity diagram, applying design patterns from a class diagram, and building larger applications (an expression evaluator, tic-tac-toe, and checkers) guided by UML diagrams. The paper also demonstrates reverse engineering of PlantUML diagrams from code and reports partial successes and failures. The central claim is that diagram-based prompting is advantageous over pure natural language prompting in information-transfer efficiency, and that these use cases open new research directions in software engineering and generative AI.

Significance. If the central claim were rigorously established, the paper would open a useful direction for software engineering: visual modelling languages could become a practical interface to generative code assistants, and reverse-engineered diagrams could support code summarisation and documentation. The paper has concrete strengths: it provides documented prompt chains, includes a supplementary Gemini-based Jupyter notebook for reproducibility, and candidly reports cases where the generated output only partially matches the input diagram. However, the evidence is anecdotal, lacks a text-only baseline, and does not quantify errors or selection. The significance is therefore conditional; the paper is better read as an experience report than as a demonstration that visual structure itself is load-bearing.

major comments (4)
  1. [Abstract, Section 5] The central claim that 'diagram-based prompting may be advantageous, in terms of information transfer efficiency, compared to pure natural language prompting' is never tested against a text-only serialisation of the same diagram content. In Section 4.1 and Section 4.3, the relevant content of Figure 1 and Figure 8 (classes, attributes, operations, multiplicities, activity steps) can be fully expressed as text, yet no comparison shows whether the visual layout, cardinality notation, or spatial relationships contribute anything beyond the textual labels. Because the title and abstract rest on the visual modality adding value, this missing baseline is load-bearing.
  2. [Section 4.1, paragraph after Figure 2] The paper reports that the reconstructed class diagram 'only partly matches the original design' because cardinality constraints are not fully captured. This is an admission that image understanding is imperfect, but the work does not quantify how often or in what ways the multimodal model fails to extract intended semantics from diagram images. Without such analysis, the assumption that the workflow reliably depends on the diagram as a technical language remains unsupported.
  3. [Sections 4.3 and 4.5] The evaluation is anecdotal and lacks systematic measurement. There are no error counts, no repeated runs, no comparison conditions, and no explicit acceptance criteria. For example, Section 4.3 mentions PlantUML syntax errors in the generated activity diagram, and Section 4.5 reports ten corrective prompts for the checkers application, including game-logic errors such as a piece not being removed after a jump; these are treated as inconsequential, but they directly bear on the reliability of the proposed workflow and should be analysed rather than dismissed.
  4. [Section 3] The methodology does not specify how the presented use cases were selected or whether less successful attempts were omitted. This makes it impossible to infer the success rate of the proposed approach or to rule out selection bias. The authors should disclose the full set of attempted interactions or explicitly state the selection criteria, or alternatively frame the paper as an exploratory demonstration rather than an evaluation.
minor comments (5)
  1. [Section 4.4] The prompt text contains a typo: 'Extend the UML diagram by using the Adapter design patter' should read 'pattern'.
  2. [Sections 4.1-4.5] References to 'the SM' are vague; the supplementary material should include explicit pointers to file names, notebook cells, and line numbers for each claimed output so that readers can verify the reported interactions.
  3. [Abstract and Section 5] The claim that 'no other work has investigated similar use cases' is difficult to verify and should be scoped with a literature cut-off date or a more careful formulation, especially since the paper itself cites related work on image-based UML generation by Conrardy and Cabot.
  4. [Section 4.1] The text says the reconstructed class diagram 'only partly matches' the original but does not provide a visual diff or a list of mismatches; adding such a comparison would help readers judge the severity of the discrepancy.
  5. [Section 2.2] The description of 'Voting/self-consistency' and other prompting techniques is brief and would benefit from concrete examples tied to the use cases that follow.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the paper reports empirical demonstrations of multimodal GPT use cases; there are no equations, fitted parameters, or load-bearing self-citations whose conclusions are built into their inputs.

full rationale

The paper's central claims are that certain GenSE use cases with multimodal GPTs are novel and that diagram-based prompting may be efficient. The argument is carried by illustrative chat sessions in Section 4, not by a formal derivation chain. There are no fitted parameters, no equations whose outputs are defined from their inputs, no uniqueness theorems, and no ansatz secretly imported from the author's own prior work. The only substantive empirical assertion, 'diagram-based prompting may be advantageous, in terms of information transfer efficiency, compared to pure natural language prompting' (Section 5), lacks a text-only baseline and is therefore a validity/evidence weakness rather than circularity: the conclusion is not built into the demonstration, because the input diagrams are genuinely visual and the outputs (Python code, PlantUML diagrams) are independently checkable artifacts. Section 4.1 even notes that the reconstructed class diagram 'only partly matches the original design' because cardinality constraints are not fully captured, which is a candid limitation, not a circular move. Citations to [Huang et al., 2024], [Hou et al., 2024], and [Li et al., 2024b] are external support, not self-citations, and none is used to forbid alternatives or to define the paper's result into existence. No specific circular reduction can be quoted, so the honest finding is no significant circularity.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

No free parameters or invent entities. The paper depends on empirical assumptions about LLM visual parsing and the representativeness of selected examples.

assumptions (3)
  • domain assumption Multimodal LLMs can correctly parse and interpret UML diagrams from image input.
    The entire Section 4 relies on this; e.g., Section 4.1 attaches Figure 1 and assumes Copilot derives the class structure correctly.
  • domain assumption Visual diagrams are a higher-resolution and less ambiguous communication channel than natural language for SE specifications.
    Invoked in Section 1 (Tufte quote) and Section 5 (compression argument) to support the claim of importance.
  • ad hoc to paper The reported successful examples are representative of typical use in practice.
    The conclusions about 'watershed' and future practice rest on generalizing from a handful of curated demonstrations; failures are not counted.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The importance of visual modelling languages in generative software engineering." pith.science (2026). https://pith.science/paper/U7XGZM2K

@misc{pith2026241117976,
  author       = {Pith},
  title        = {Pith review of: The importance of visual modelling languages in generative software engineering},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/U7XGZM2K}},
  note         = {Machine review of arXiv:2411.17976}
}
read the original abstract

Multimodal GPTs represent a watershed in the interplay between Software Engineering and Generative Artificial Intelligence. GPT-4 accepts image and text inputs, rather than simply natural language. We investigate relevant use cases stemming from these enhanced capabilities of GPT-4. To the best of our knowledge, no other work has investigated similar use cases involving Software Engineering tasks carried out via multimodal GPTs prompted with a mix of diagrams and natural language.

Figures

Figures reproduced from arXiv: 2411.17976 by the authors.

Figure 2

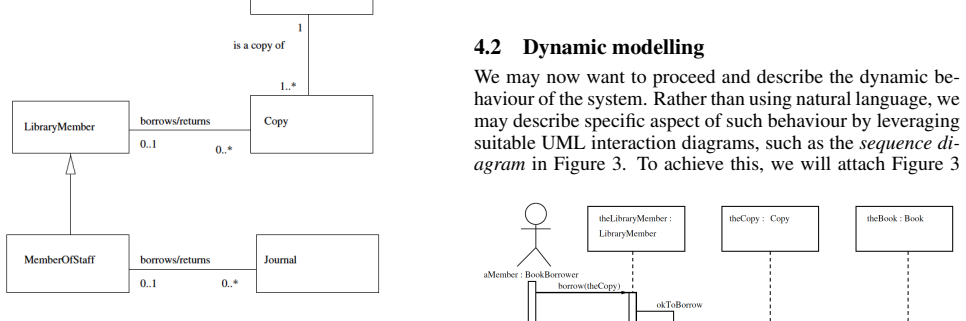

Figure 2. The reconstructed class diagram 4.2 Dynamic modelling We may now want to proceed and describe the dynamic be￾haviour of the system. Rather than using natural language, we may describe specific aspect of such behaviour by leveraging suitable UML interaction diagrams, such as the sequence di￾agram in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
