CFM-Bench provides a common substrate for comparing channel foundation models across six radio configurations and six task groups, using leakage-resistant partitions and a test-exposure policy that make transfer comparisons trustworthy.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

T0 review · deepseek-v4-flash

2026-08-02 00:31 UTC pith:UINJPSK5

load-bearing objection A coherent, genuinely useful benchmark protocol for CFMs, but it ships without baseline experiments or usable links, and its leakage guarantee is honor-system only. the 2 major comments →

arxiv 2607.14975 v1 pith:UINJPSK5 submitted 2026-07-16 cs.AI

CFM-Bench: A Unified Multi-Domain, Multi-Task Benchmark for Channel Foundation Models

classification cs.AI
keywords channel foundation modelsbenchmarktest isolationCSI feedbackbeam predictionlocalizationmulti-task learningwireless AI
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that current evaluations of channel foundation models (CFMs) are not comparable: each study uses its own data, splits, and metrics, so reported pretraining gains cannot be ranked across models. To fix this, the authors release CFM-Bench, which curates one representative configuration from each of six radio data sources—statistical, ray-traced, measured, and multimodal—and imposes a common evaluation contract. The contract makes test units untouchable during development, requires disclosure of all pretraining data, and defines six task groups across physical-layer, network-decision, and sensing applications. If adopted, the benchmark would let any CFM be compared fairly against other CFMs and against task-specific models, and would expose which transfer gains are real rather than artifacts of leakage or pipeline differences.

Core claim

The central claim is that CFM-Bench makes cross-model comparison meaningful by fixing the things that currently vary between papers. It selects one fixed radio configuration per source, partitions at the largest independent physical unit (complete trajectories, measurement sessions, vehicle links, simulation realizations, or buffered spatial regions), and forbids any benchmark split from being used in foundation-model pretraining. It also requires a data-exposure statement listing every dataset used during development, and disables scientifically unsupported task–domain combinations rather than manufacturing labels. The result is a shared substrate on which a pretrained channel representatio

What carries the argument

The load-bearing mechanism is unit-level leakage-resistant partitioning combined with a mandatory data-exposure policy and a task-support matrix. Partitions are drawn at the level of complete physical units so that spatially or temporally correlated samples never straddle the train/test boundary; the policy reserves official splits exclusively for fine-tuning and scoring; and the task-support matrix encodes which tasks are physically meaningful per domain, preventing superficially similar labels from being compared under incompatible semantics.

Load-bearing premise

The fairness guarantee rests on voluntary disclosure and public test sets; if a participant silently uses test units during development, the benchmark's central promise of trustworthy comparison collapses.

What would settle it

Compute the average complex-CSI similarity between official training and test units and compare it with the similarity within the training set. If the cross-split similarity distribution substantially overlaps the within-split distribution, the unit-level partitioning has not removed information leakage, and rankings built on the benchmark would be inflated.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • Any pretrained channel model can be ranked against other CFMs and against task-specific networks under identical data, splits, and metrics.
  • Reported pretraining gains can be checked for authenticity: gains that vanish under unit-level isolation are exposed as leakage artifacts.
  • Transferability can be assessed across statistical, ray-traced, measured, and multimodal channels within a single protocol.
  • Per-domain scores become the unit of comparison, with an unweighted macro-average explicitly demoted to a secondary summary.
  • Researchers get a fixed test-exposure policy that disambiguates compliant results from test-exposed or transductive ones.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The benchmark's design suggests a natural next step: adding a hidden test-set tier would close the acknowledged gap that public test sets cannot prevent repeated manual adaptation.
  • The task-support matrix—disabling unsupported domain–task combinations—could become a template for other foundation-model benchmarks where physical semantics vary by domain.
  • Because domains differ in difficulty and sample count, the macro-average score should be read with caution; per-domain inspection will likely be more informative than any single number.
  • The strict exclusion of tasks like temporal extrapolation on measured domains may understate what sophisticated signal processing can extract; future releases could add processed variants as separate tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. CFM-Bench is a benchmark/resource paper for channel foundation models (CFMs). It curates one fixed radio configuration from each of six public channel data sources — a 3GPP statistical urban-microcell domain, two ray-tracing domains (Wireless InSite and Sionna/MOCSID), two measured massive-MIMO domains (DICHASUS, MaMIMO-UAV), and a synchronized vehicular multimodal domain — and imposes unit-level train/validation/test partitions based on trajectories, sessions, vehicle links, simulators, or spatial regions. The paper defines six task groups spanning PHY, RAN, and ISAC, with per-domain eligibility rules, metrics such as NMSE, SGCS, Macro-F1, Top-k beam accuracy, and localization error, and a mandatory test-exposure/data-disclosure policy. The central claim is that the benchmark provides a common substrate for fair and trustworthy comparison of CFMs across models, domains, and tasks.

Significance. If adopted, CFM-Bench would address a real gap in CFM evaluation: the lack of a unified protocol with matched downstream tasks and leakage-resistant partitions. The paper has several genuine strengths: it spans complementary channel-generation mechanisms, disables unsupported domain-task combinations instead of forcing labels, retains physical metadata without prescribing a fixed input shape, provides explicit per-domain metrics and codebook definitions, and documents quality-control and licensing choices. I found no circular derivation or hidden fitted parameters; this is a resource paper. However, the paper's central promise that its test-isolation policy prevents undeclared test-set reuse is not currently enforceable with a fully public test set and self-reported disclosure, and no baseline experiments demonstrate that the proposed tasks and partitions behave as intended. Both issues are fixable, but they are load-bearing for the benchmark's fairness and usability claims.

major comments (2)
  1. [Sec. V.A and Sec. VII] The test-isolation guarantee is not operational. All test units are released publicly, there is no hidden evaluation server, and enforcement rests solely on a mandatory data-exposure statement. Because the six domains derive from public upstream datasets (DeepMIMO, MOCSID, DICHASUS, MaMIMO-UAV, Multimodal-Wireless), a participant can obtain the same held-out trajectories, sessions, flights, or vehicle links from the original repositories without touching CFM-Bench files, making any detection impossible. Section VII itself concedes: 'The public test sets favor reproducibility but cannot prevent undeclared reuse or repeated manual adaptation.' This concession contradicts the Abstract's promise to 'prevent pretraining leakage' and contribution bullet 3's claim that the test-isolation rule 'ensures' a test-exposed model cannot be presented as compliant. The fairness claim is therefore condit
  2. [Secs. IV-V, Tables II and V] The benchmark defines official splits, tasks, and metrics but reports no experimental validation. There are no baselines showing that any of the six task groups is solvable, that the official metrics produce meaningful and stable values, or that unit-level partitions create a measurable train/test gap. For example, Section VII states that E2 future-beam prediction 'admits a strong persistence baseline,' yet no persistence baseline is reported; M1 localization permits RGB/LiDAR inputs that can reveal absolute position through visual landmarks, but no modality ablation is provided to show whether the task measures channel representations or visual place recognition. Without at least simple baselines (random/prior, linear models, small neural networks, persistence for temporal tasks) and a demonstration that performance degrades on held-out units relative to random splits, the claims of 'st
minor comments (5)
  1. [Eq. (2)] N in the SGCS formula is not defined in the text. It presumably denotes the number of samples; please state this explicitly.
  2. [Table I, R2 row] The row lists 'Unspecified / 1.92 MHz' for carrier/bandwidth, while Sec. IV.B defines a derived 64-tone, 30-kHz relative baseband grid. Please clarify the relation between the upstream dataset's bandwidth and the benchmark-defined grid, and state whether the 1.92 MHz figure is from the original MOCSID release.
  3. [Sec. V.E] M1 localization prohibits pose, GPS, and world-coordinate fields, but allows RGB and LiDAR. Since these modalities can reveal absolute position through visual landmarks, please state whether a CSI-only ranking will be maintained or explicitly report modality-controlled baselines. Otherwise the channel-model interpretation of the M1 score is ambiguous.
  4. [Sec. IV.E] The temporal test views are described by number of windows and window lengths, but it is not specified whether scores are computed per window, per frame, or aggregated across windows. Please define the official aggregation for temporal tasks.
  5. [Sec. VI] The paper states that evaluation software, split definitions, and documentation are released, but it provides no repository URL, DOI, or persistent identifier for the benchmark release itself. Please add one.

Circularity Check

0 steps flagged

No circularity: CFM-Bench is a benchmark/resource paper with no fitted parameter renamed as a prediction, no uniqueness claim imported from authors, and no load-bearing self-citation chain.

full rationale

CFM-Bench does not present a derivation chain that reduces to its inputs. It curates six existing data sources, defines partitions, task protocols, and metrics, and releases them as a benchmark substrate. There is no fitted parameter that is later called a prediction; the benchmark's claims are about providing evaluation infrastructure, not about deriving empirical results from a theory. Self-citations appear only as contextual references (e.g., [4] for the CFM concept, [18] for CSI-CLIP++, [27]-[33] for surveys) and are not used to justify the benchmark's validity or to force a modeling choice. The paper explicitly concedes its central enforcement limitation in Section VII: 'The public test sets favor reproducibility but cannot prevent undeclared reuse or repeated manual adaptation.' That is an acknowledged limitation of the benchmark's fairness guarantee, not a circular step: the argument does not assume the conclusion, and no equation or fitted value is equivalent to the input by construction. Consequently, no specific circular step can be quoted, and the appropriate finding is no significant circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The benchmark rests on assumptions about split leakage, self-reported disclosure, and domain representativeness; these are acknowledged but unverified.

axioms (3)
  • domain assumption Unit-level isolation is sufficient to prevent information leakage between train and test.
    The benchmark partitions at trajectory/session/flight/link level (Sec. III-B, Table IV), but units may share the same environment (e.g., M1 is an unseen vehicle link within the same Town05 run), so scene-level correlation may remain; the paper itself says it guarantees 'unit-level isolation rather than universal scene-level isolation' (Sec. V-A).
  • domain assumption Self-disclosed data-exposure statements ensure test isolation in practice.
    Sec. V-A requires a data-exposure statement; there is no hidden test server or technical enforcement. The paper states this cannot prevent undeclared reuse (Sec. VII).
  • domain assumption The six selected configurations are representative of channel diversity for benchmarking CFMs.
    Sec. III-A selects one fixed configuration per source; whether this spans the space relevant to CFM transferability is a judgment call.

pith-pipeline@v1.3.0-alltime-deepseek · 12922 in / 10550 out tokens · 112204 ms · 2026-08-02T00:31:23.952147+00:00 · methodology

0 comments
read the original abstract

Channel foundation models (CFMs) are developing rapidly, with recent studies reporting benefits from pretraining across downstream wireless tasks. Yet CFMs are commonly evaluated in model-specific pipelines with different data, radio configurations, partitions, adaptation procedures, task definitions, and metrics. Reported comparisons therefore tend to show that pretraining improves over supervised training from scratch within one pipeline, but neither rank CFMs nor compare them fairly with task-specific models. We release CFM-Bench, a unified multi-domain, multi-task benchmark designed to address this gap. It curates six channel configurations spanning 3GPP statistical simulation, two independent ray-tracing pipelines, industrial and aerial measurements, and synchronized vehicular multimodal simulation. Official partitions isolate complete trajectories, measurement sessions, vehicle links, simulation realizations, or buffered spatial regions. CFM-Bench does not prescribe an external pretraining corpus or strategy; no benchmark split may be used for foundation-model pretraining, and the official training split is reserved exclusively for downstream fine-tuning. The benchmark additionally requires disclosure of all data used during model development and prohibits training-stage use of official test units. Six task groups are organized along three CFM application dimensions: physical-layer (PHY) channel intelligence, radio-access-network (RAN) decision intelligence, and integrated sensing and communication (ISAC). They cover CSI feedback, frequency and temporal channel extrapolation, propagation-state classification, current- and future-beam prediction, and single-frame and temporal localization. CFM-Bench provides a common substrate for comparing the transferability of channel representations across models, domains, and tasks.

Figures

Figures reproduced from arXiv: 2607.14975 by Jun Jiang, Shugong Xu, Wenjun Yu, Xinyu Guo, Yuan Gao, Yunfan Li.

Figure 1

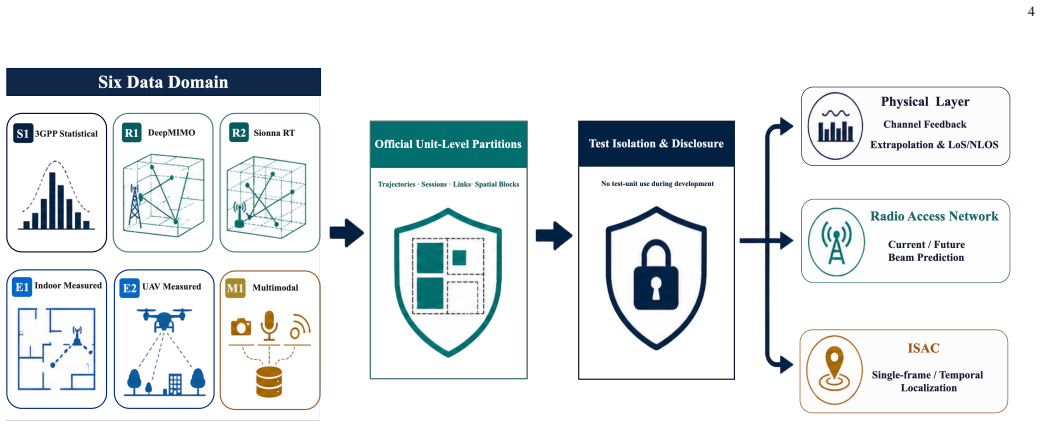

Figure 1. Figure 1: CFM-Bench fixes independent train, validation, and test units across six data domains, requires strict test isolation and disclosure of model-development [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Single-frame CSI examples by data domain and split. Bar lengths use [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
