Instruments for Focal Plane X-Ray Polarimetry in the Next Decade

Fabio Muleri , Stefano Cesare , Enrico Costa , Walter Cugno , Klaus Desch , Alessandro Di Marco , Sergio Fabiani , Riccardo Ferrazzoli
show 13 more authors
Markus Gruber Daniel Heuchel Saba Imtiaz Jochen Kaminski Dawoon Edwin Kim Alessandro Lacerenza Carlo Lefevre Hemanth Manikantan Vladislavs Plesanovs John Rankin Ajay Ratheesh Alda Rubini Paolo Soffitta
This is my paper

Pith reviewed 2026-06-26 15:36 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords X-ray polarimetryfocal-plane instrumentsmultilayer mirrorsphotoelectric polarimeterCompton polarimeterIXPE missionspace instrumentation
0
0 comments X

The pith

A focal-plane polarimeter using multilayer mirrors and stacked detectors extends X-ray polarization measurements to tens of keV.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the development of a focal-plane polarimeter to extend the energy range of the IXPE mission up to tens of keV while improving sensitivity and lowering background. It proposes using multilayer mirrors together with a stack of either a low- or medium-energy imaging photoelectric polarimeter and an active Compton polarimeter. This approach builds on hardware components that have already flown in space. A sympathetic reader would care because the IXPE results have demonstrated the scientific value of X-ray polarimetry, yet many topics require higher energies and better performance that could be delivered on a relatively short development timeline.

Core claim

The design is based on the use of multilayer mirrors and stacked instrumentation, comprising either a low- or medium-energy imaging photoelectric polarimeter and an active Compton polarimeter. Such an approach relies on hardware with flight heritage and has the potential to answer compelling scientific questions and to soon become competitive from the point of view of feasibility for space applications.

What carries the argument

Multilayer mirrors combined with a stacked configuration of an imaging photoelectric polarimeter and an active Compton polarimeter that together provide extended energy coverage.

If this is right

  • Extends X-ray polarization measurements to tens of keV.
  • Delivers higher sensitivity than current instruments.
  • Reduces background levels in the focal plane.
  • Relies on components with prior flight heritage for faster development.
  • Becomes competitive for space applications on a short timescale.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single focal-plane stack might enable broadband polarimetry without requiring separate instruments for different energy bands.
  • Emphasis on heritage components could shorten the timeline for deploying polarimeters on future X-ray missions.
  • The design might first be validated through balloon-borne or small-satellite tests before full orbital deployment.

Load-bearing premise

Hardware with existing flight heritage can be successfully adapted and integrated into a stacked focal-plane configuration that simultaneously achieves extended energy coverage, higher sensitivity, and lower background.

What would settle it

A laboratory or flight demonstration of the integrated stacked instrument that meets the target sensitivity and background levels across the extended energy band would support the claim; failure to reach those performance metrics during integration would challenge it.

Figures

Figures reproduced from arXiv: 2606.20337 by Ajay Ratheesh, Alda Rubini, Alessandro Di Marco, Alessandro Lacerenza, Carlo Lefevre, Daniel Heuchel, Dawoon Edwin Kim, Enrico Costa, Fabio Muleri, Hemanth Manikantan, Jochen Kaminski, John Rankin, Klaus Desch, Markus Gruber, Paolo Soffitta, Riccardo Ferrazzoli, Saba Imtiaz, Sergio Fabiani, Stefano Cesare, Vladislavs Plesanovs, Walter Cugno.

Figure 1

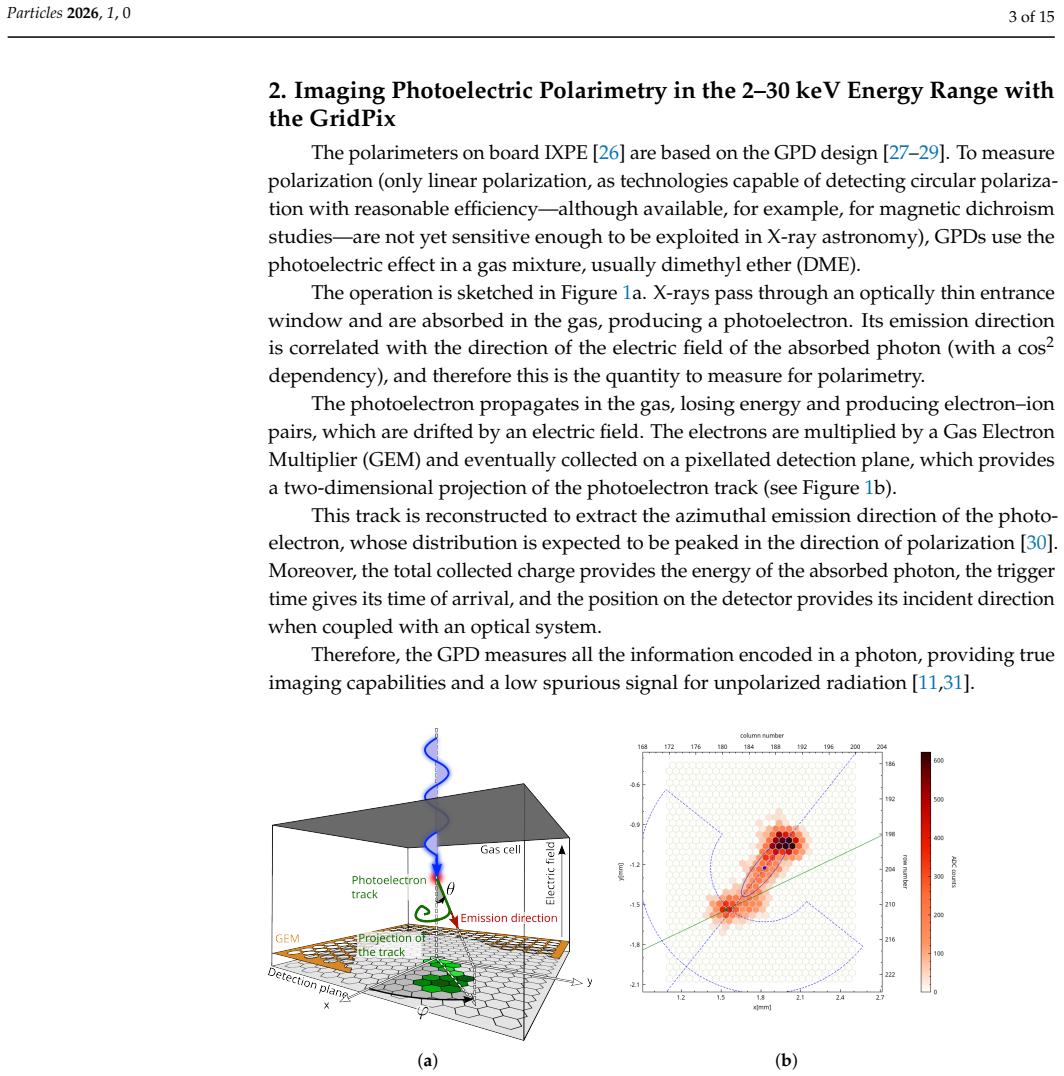

Figure 1. Figure 1: (a) Operation of a photoelectric polarimeter with the Gas Pixel Detector design. X-rays enter a gas cell passing through a window and are converted into photoelectrons. These propagate in the gas mixture, ionizing atoms along the way. Primary electrons are collected with a drift field, multiplied with a Gas Electron Multiplier (GEM), and eventually imaged by a pixellated ASIC. (b) A real photoelectron trac… view at source ↗
Figure 2

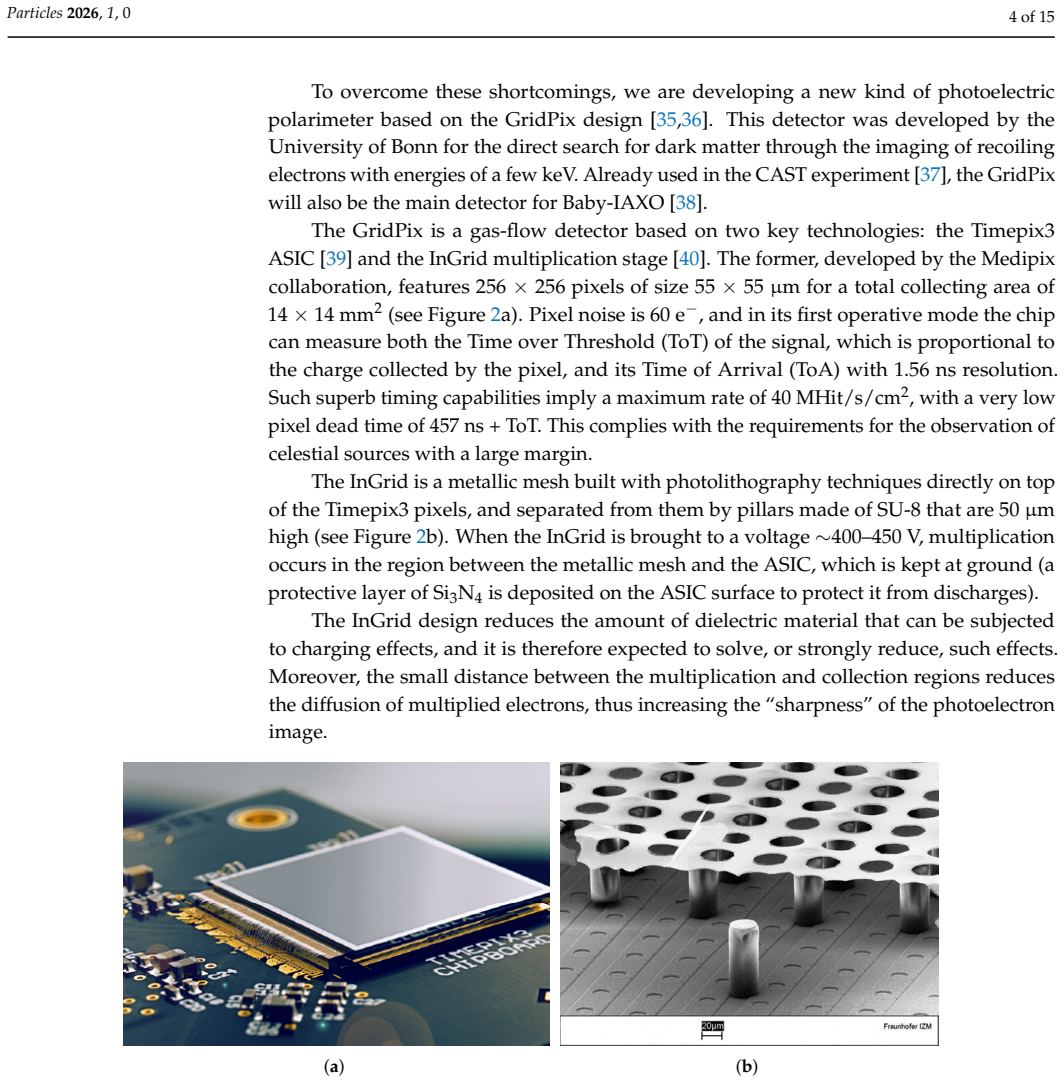

Figure 2. Figure 2: Key technologies of the GridPix detector. Panel (a) shows the Timepix3 ASIC bonded to its read-out board. Panel (b) provides a scanning-electron-microscope view of the InGrid multiplication stage, built directly on the Timepix3. It features a metallic mesh built on top of electrically insulating pillars: electron multiplication occurs in the region delimited by the mesh and the ASIC. A collaboration betwee… view at source ↗
Figure 3

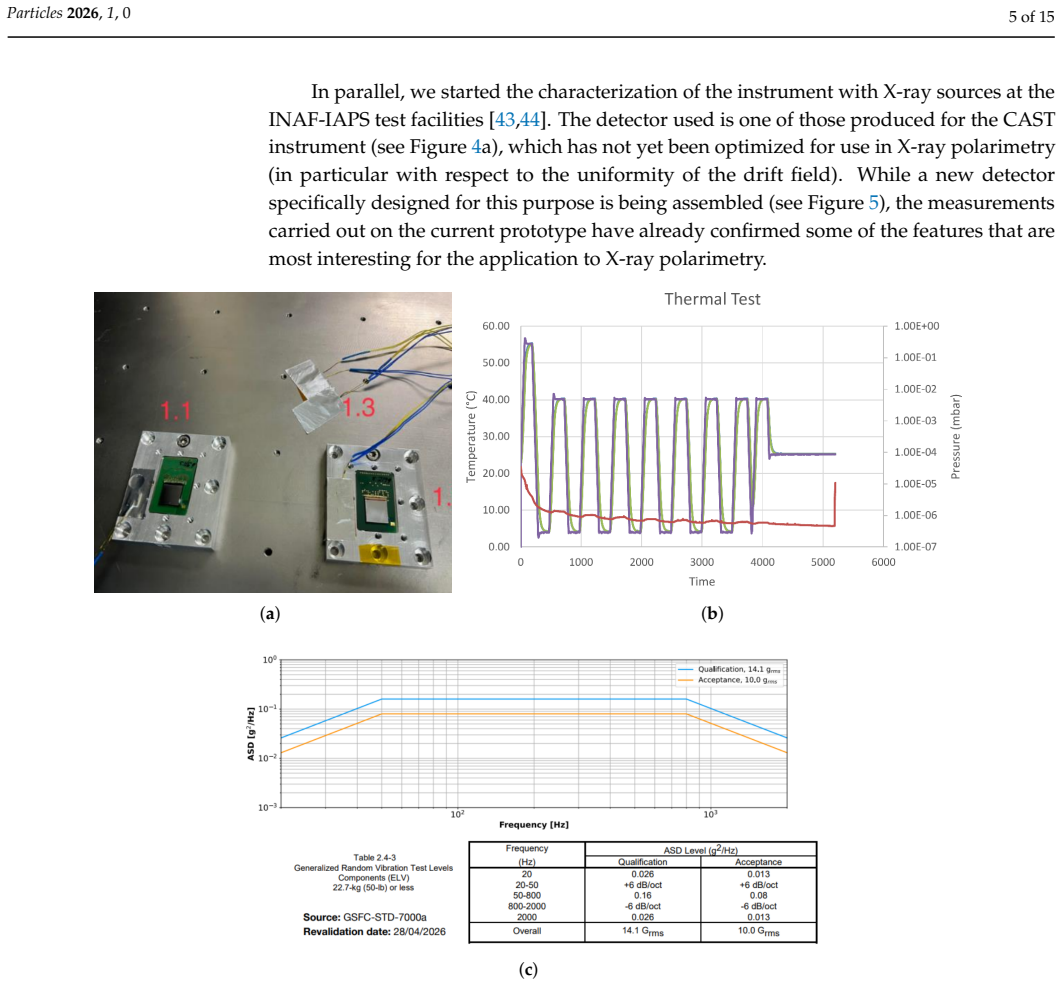

Figure 3. Figure 3: Picture of the set-up for the thermovacuum tests of the InGrid (a) and the temperature as a function of time during the thermal loops (b). The temperature was cycled from +5 to +40 ◦C, with a peak at 55 ◦C. (c) Vibration profile for the vibration test of the same item. The test was carried out at the qualification level (blue curve), instead of the lower acceptance level (orange line). https://doi.org/10.3… view at source ↗
Figure 4

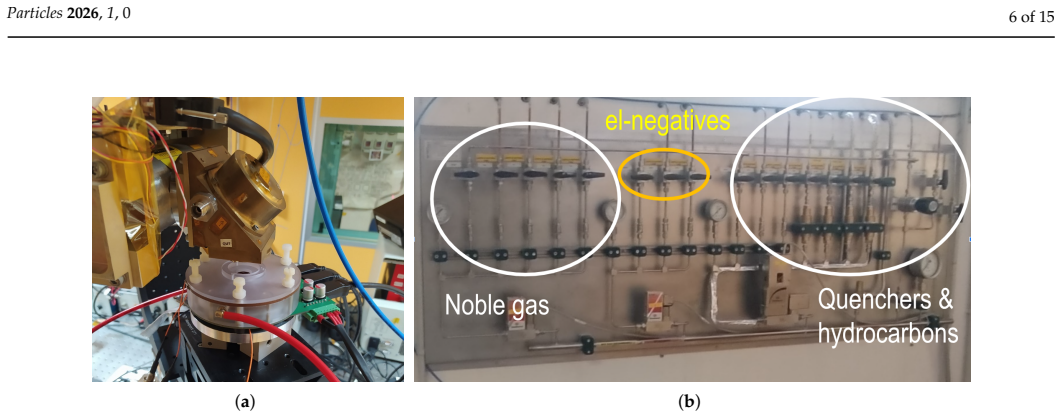

Figure 4. Figure 4: (a) The GridPix mounted in one of the INAF-IAPS X-ray test facilities. (b) The gas mixture system at INAF-IAPS used to flow different mixtures inside the GridPix. (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

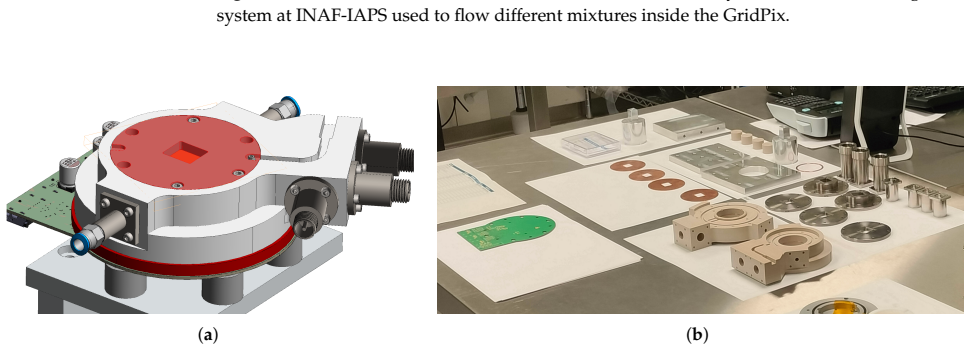

Figure 5. Figure 5: (a) The new design optimized for studying the application of the GridPix to X-ray polarime￾try. (b) Mechanical parts being assembled in the INAF-IAPS clean room. We obtained the relation between measured and expected flux by increasing, in a controlled way, the high-voltage and current settings of an X-ray tube with an iron anode, emitting at 6.4 keV. The relation remains linear at least up to ∼7000 counts… view at source ↗
Figure 6

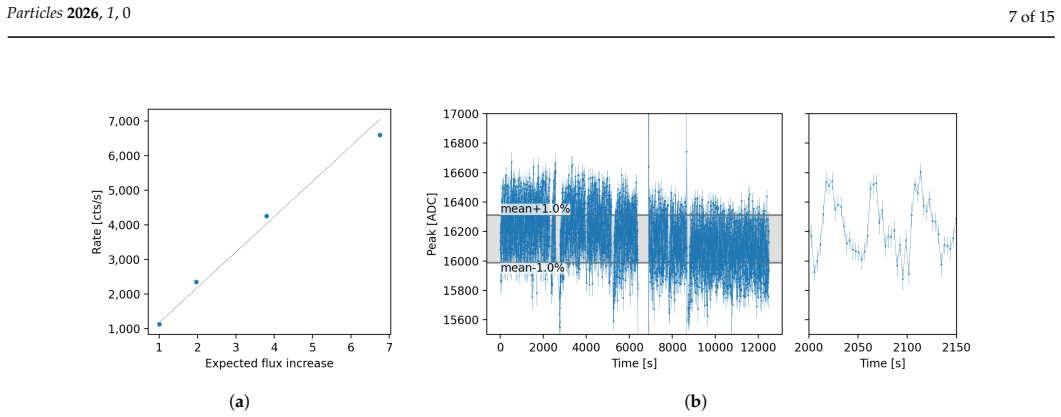

Figure 6. Figure 6: (a) Relation between the measured rate and the expected flux increase (blue dots) derived by changing in a controlled way the high-voltage and current settings of an X-ray tube with an iron anode. Dashed line represents the expected linear increase. The GridPix was filled with an Argon+CO2 mixture at 1 bar and the gas cell was 1 cm thick. Statistical uncertainties are shown but are not visible. (b) Gain as… view at source ↗
Figure 7

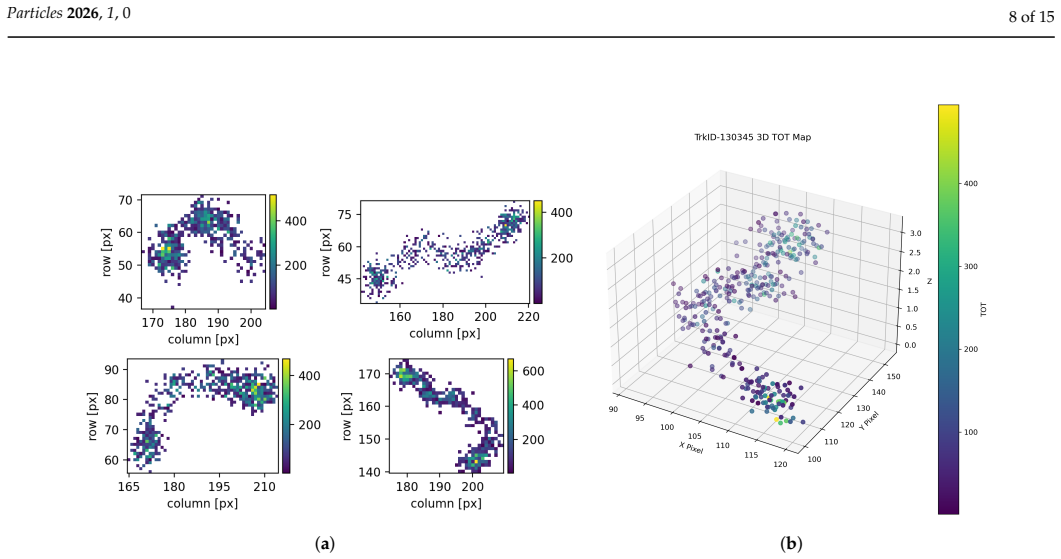

Figure 7. Figure 7: Tracks measured with the GridPix at 17.4 keV: “usual” two-dimensional projection (a) and an example of three-dimensional reconstruction (b). 3. Polarimetry Beyond 30 keV GridPix detectors filled with appropriate argon-based gas mixtures can operate up to ∼30 keV. Beyond this energy, polarization is usually measured using Compton scat￾tering [51]. Compton polarimeters have been developed for more than 50 ye… view at source ↗
Figure 8

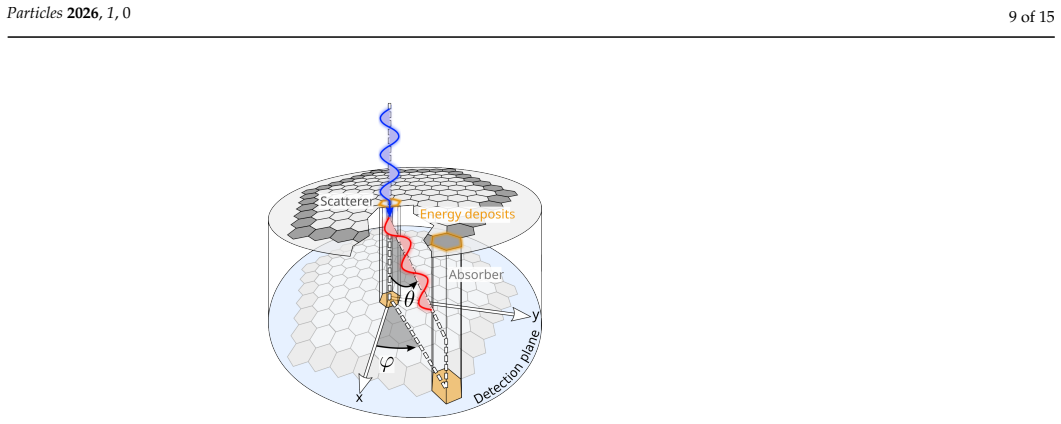

Figure 8. Figure 8: Possible implementation of a Compton polarimeter for a focal-plane application. Incident photons (in blue) scatter in a low-atomic-number detector and are then absorbed in a second detector (in red), which provides the azimuthal scattering direction φ, correlated with the polarization of the incident photon. 4. A Mission Concept for Fast Imaging Polarimetry in a Wide Energy Range The specifications and the… view at source ↗
Figure 9

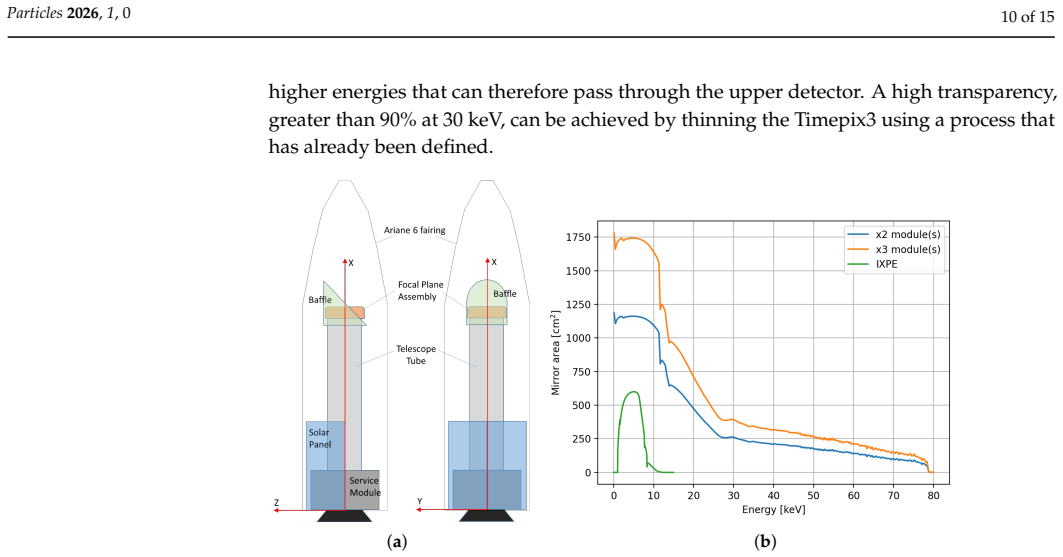

Figure 9. Figure 9: (a) Accommodation of the assumed mirrors, with a focal length of 10 m, in the fairing of the Ariane 6 launcher. (b) Comparison of the total mirror area with IXPE. Two mirrors are assumed to be dedicated to polarimetry in the soft X-ray band, while three are used in the medium-energy interval to compensate for the typical decrease of flux from celestial sources with energy. In total, the payload comprises t… view at source ↗
read the original abstract

The successful detection of X-ray polarization from many celestial sources belonging to different classes by the IXPE mission has opened a new window in X-ray astronomy. While an impressive number of scientific topics have already been addressed by IXPE, many of them would benefit from a new class of instrumentation that could be launched on a relatively short time scale. In this contribution, we present the development activities of a focal-plane polarimeter whose goal is to extend the energy range of IXPE up to tens of keV, with better sensitivity and lower background. Our design is based on the use of multilayer mirrors and stacked instrumentation, comprising either a low- or medium-energy imaging photoelectric polarimeter and an active Compton polarimeter. Such an approach relies on hardware with flight heritage and -- although still under development for the specific application in X-ray polarimetry -- it has the potential to answer compelling scientific questions and to soon become competitive from the point of view of feasibility for space applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript presents development activities for a focal-plane X-ray polarimeter concept to extend the IXPE mission's energy coverage up to tens of keV. The design relies on multilayer mirrors combined with a stacked configuration of either a low- or medium-energy imaging photoelectric polarimeter and an active Compton polarimeter, drawing on hardware with flight heritage to target improved sensitivity and reduced background while remaining competitive for near-term space applications.

Significance. If successfully realized, the proposed approach could open new observational capabilities in X-ray polarimetry by extending the energy band and leveraging proven technologies, thereby addressing additional scientific questions on a relatively short development timeline. The emphasis on flight-heritage components is a constructive element that supports the feasibility argument.

major comments (1)
  1. [Abstract] Abstract: the claims of 'better sensitivity and lower background' are presented without any quantitative simulations, performance estimates, measured data, or error budgets to support them; this is load-bearing for assessing whether the stacked design can deliver the stated advantages and become competitive for space applications.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and the recommendation for major revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claims of 'better sensitivity and lower background' are presented without any quantitative simulations, performance estimates, measured data, or error budgets to support them; this is load-bearing for assessing whether the stacked design can deliver the stated advantages and become competitive for space applications.

    Authors: We agree that the abstract makes forward-looking claims about sensitivity and background without accompanying quantitative support in the current text. The manuscript is a conceptual design paper describing development activities that draw on flight-heritage hardware; the qualitative advantages are argued from the stacked architecture and component heritage rather than from new end-to-end simulations. To address the concern, we will revise the abstract to qualify the language (e.g., “has the potential to provide improved sensitivity and reduced background”) and will add a brief forward reference to planned performance modeling. If space permits in revision, we can also include order-of-magnitude estimates derived from the heritage instruments already cited. revision: yes

Circularity Check

0 steps flagged

No significant circularity; proposal paper with no derivations or fitted predictions

full rationale

The manuscript is an instrumentation concept proposal describing a stacked focal-plane design using multilayer mirrors, heritage photoelectric polarimeters, and Compton polarimeters. No equations, quantitative predictions, or first-principles derivations are presented that could reduce to fitted inputs or self-citations. The central claim is a forward-looking feasibility assessment relying on existing flight heritage hardware, with no load-bearing steps that equate outputs to inputs by construction. This is the expected outcome for a status-report-style paper without empirical modeling or parameter fitting.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an instrumentation proposal paper. No free parameters, mathematical axioms, or new physical entities are introduced or fitted.
