arxiv: 1906.11522 · v2 · pith:V6EJHA5Unew · submitted 2019-06-27 · ✦ hep-ph

Estimation of nucleon D-term in QCD

I.V. Anikin This is my paper

Pith reviewed 2026-05-25 14:47 UTC · model grok-4.3

classification ✦ hep-ph
keywords nucleon D-termgravitational form factorslight-cone sum rulesQCDenergy-momentum tensornucleon structureD-term form factor
0
0 comments X

The pith

Light-cone sum rules at leading order yield a preliminary upper estimate for the nucleon gravitational form factor D(t).

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method based on light-cone sum rules in QCD to obtain an upper bound on the D-term gravitational form factor of the nucleon. This form factor enters the parametrization of the nucleon matrix element of the energy-momentum tensor and is tied to the distribution of pressure and shear forces inside the nucleon. The calculation is performed at leading order and the resulting bound is compared directly with existing experimental extractions and with results from other models. A reader would care because the approach supplies a QCD-derived constraint on a quantity that otherwise requires model assumptions or non-perturbative input.

Core claim

Using the light-cone sum rules at leading order, the authors present an approach to perform the preliminary upper estimation for the nucleon gravitational form factor D(t) (D-term contribution). Comparison with the experimental data and with the results of different models is discussed.

What carries the argument

Leading-order light-cone sum rules applied to the nucleon matrix elements of the energy-momentum tensor to bound the D-term form factor D(t).

If this is right

  • The D-term receives a concrete QCD-derived upper limit that can be tested against data from deeply virtual Compton scattering.
  • The bound supplies a benchmark against which model calculations of nucleon mechanical properties can be checked.
  • The same sum-rule framework can in principle be applied to other gravitational form factors of the nucleon.
  • If the upper limit holds, it restricts the allowable range of pressure distributions inside the nucleon.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Inclusion of higher-order perturbative corrections would be needed to convert the present upper estimate into a more precise central value.
  • The method could be extended to strange or heavy baryons to compare D-term behavior across the baryon octet.
  • Direct comparison with lattice QCD evaluations of the same matrix elements would provide an independent cross-check of the bound.

Load-bearing premise

The leading-order light-cone sum rule approximation is sufficient to produce a meaningful upper bound on D(t) without higher-order corrections or additional systematic uncertainties that would invalidate the bound.

What would settle it

A next-to-leading-order light-cone sum rule calculation or a direct experimental measurement that places D(t) above the reported upper bound at any accessible momentum transfer would falsify the claim.

Figures

Figures reproduced from arXiv: 1906.11522 by I.V. Anikin.

Figure 1

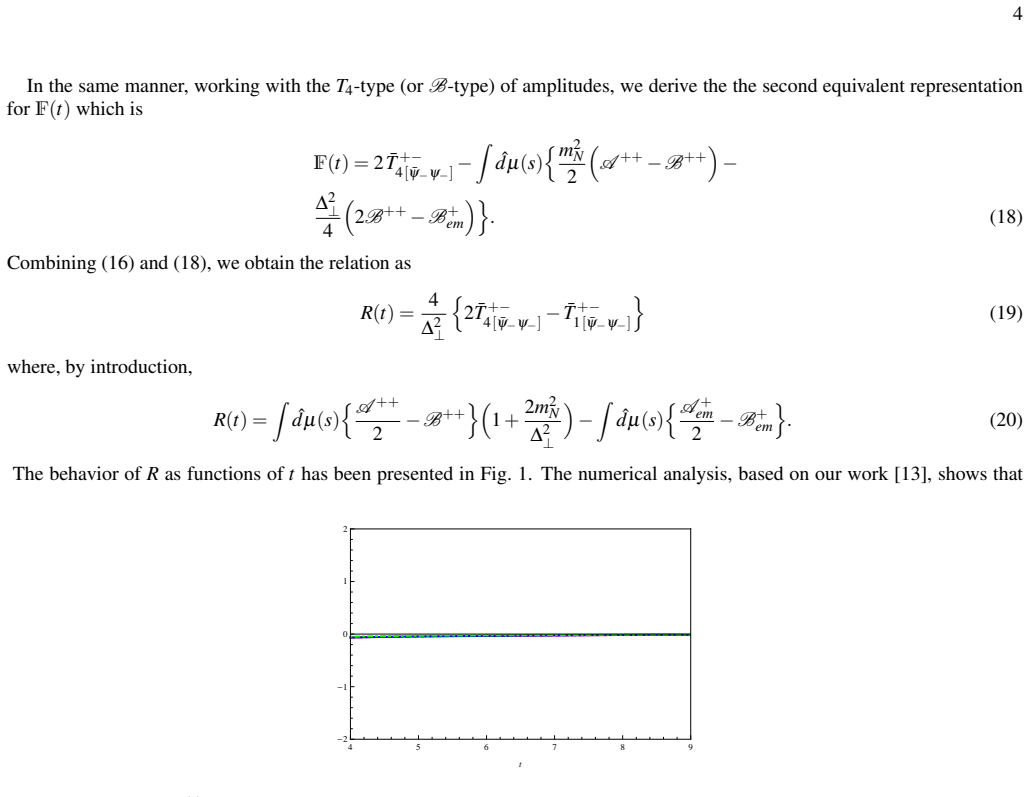

Figure 1. Figure 1: FIG. 1: The functions [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

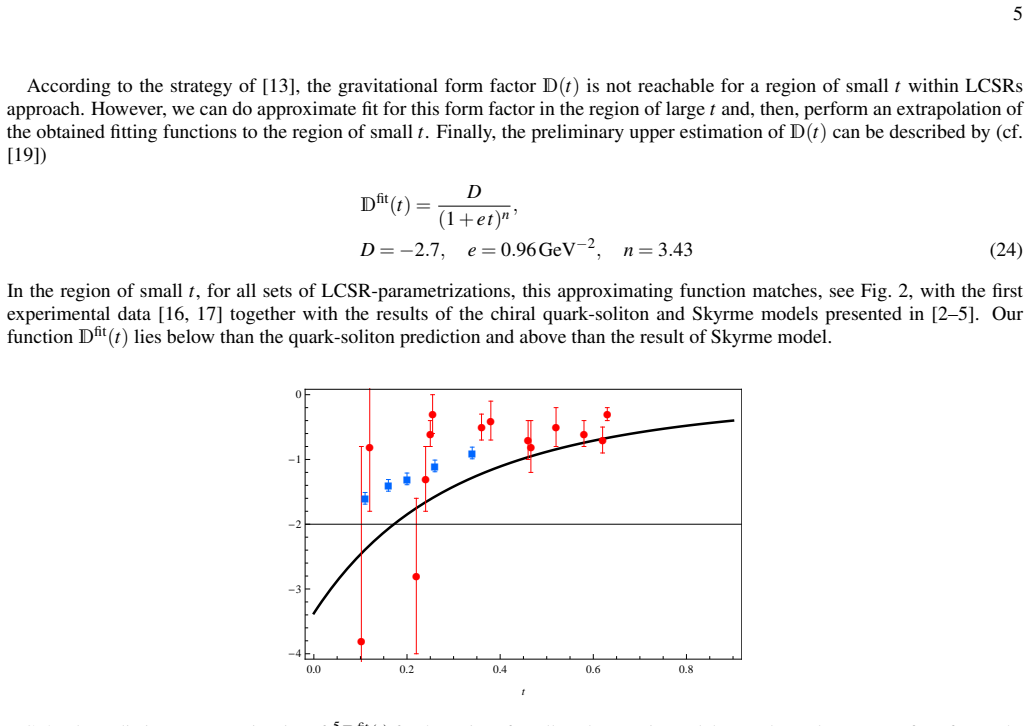

Figure 2. Figure 2: FIG. 2: The preliminary upper estimation of [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
read the original abstract

Using the light-cone sum rules at leading order, we present an approach to perform the preliminary upper estimation for the nucleon gravitational form factor $D(t)$ ($D$-term contribution). Comparison with the experimental data and with the results of different models is discussed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper proposes using leading-order light-cone sum rules to obtain a preliminary upper estimate for the nucleon gravitational form factor D(t) (the D-term contribution) and compares the result to experimental data and other models.

Significance. If the upper bound is robust against higher-order effects, it would supply a useful QCD-derived constraint on D(t) at low momentum transfer, which encodes information on the nucleon's mechanical properties. The approach is presented as preliminary, which appropriately tempers expectations given the LO truncation.

major comments (1)
  1. [Abstract] Abstract and introduction: the central claim that leading-order LCSR produces a meaningful preliminary upper bound on D(t) is load-bearing for the paper's result, yet the manuscript provides no estimate or bound on the size of omitted NLO perturbative corrections, higher-twist contributions, or variations in Borel window/continuum threshold. In analogous LCSR applications to nucleon form factors these corrections are typically O(30-100)%, which could shift or invalidate the reported upper limit.
minor comments (1)
  1. The abstract states that comparisons with data and models are discussed, but the manuscript should clarify the kinematic range of t over which the bound is claimed to apply.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comment. We address the major point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract and introduction: the central claim that leading-order LCSR produces a meaningful preliminary upper bound on D(t) is load-bearing for the paper's result, yet the manuscript provides no estimate or bound on the size of omitted NLO perturbative corrections, higher-twist contributions, or variations in Borel window/continuum threshold. In analogous LCSR applications to nucleon form factors these corrections are typically O(30-100)%, which could shift or invalidate the reported upper limit.

    Authors: We agree that the manuscript does not provide quantitative estimates of NLO perturbative corrections, higher-twist contributions, or parameter variations. The work is presented as a leading-order preliminary estimate, and the upper bound should be interpreted in that restricted context. In the revised version we will expand the abstract and introduction to explicitly reference the typical magnitude of such corrections in related nucleon LCSR studies and to state more clearly that the reported bound is subject to these uncertainties. A full NLO calculation remains outside the scope of this preliminary study. revision: partial

Circularity Check

0 steps flagged

No circularity: standard LCSR estimation with independent inputs

full rationale

The paper applies leading-order light-cone sum rules to obtain a preliminary upper bound on the nucleon D-term form factor. The derivation relies on standard QCD sum-rule machinery (correlation functions, Borel transform, continuum subtraction) whose parameters are chosen from external stability criteria rather than being fitted directly to D(t) itself. No equation reduces the claimed bound to a self-definition, a renamed fit, or a load-bearing self-citation chain; the result is presented as an estimate whose validity rests on the usual LCSR assumptions, not on tautological re-expression of its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms or invented entities are stated. The leading-order light-cone sum-rule framework is presupposed but its internal assumptions are not enumerated.
