Prior Availability in Industrial Visual Sim-to-Real: A Review of CAD-Guided and CAD-Unavailable Regimes

T0 review · 1 major / 2 minor · reviewed 2026-06-29 · grok-4.3

Pith's one-line read Industrial visual sim-to-real transfer should be organized by the availability of CAD and other priors rather than by task-specific leaderboards.

desk verdict A review that usefully links CAD pose work with anomaly detection via a prior-availability taxonomy, but its anchors mix mismatched tasks so the claimed distinctions are suggestive rather than isolated. read the letter →

arxiv 2605.30581 v2 pith:VCXY7RQN submitted 2026-05-28 cs.CV cs.AIcs.RO

classification cs.CVcs.AIcs.RO
keywords sim-to-realtransferindustrialinspectionCADmodelsdomaingapanomalydetectionposeestimationvisualprioravailability
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper reframes industrial visual sim-to-real as a domain-gap problem organized by prior availability instead of treating it as a uniform transfer from synthetic to real images. It distinguishes CAD-available settings, where explicit object geometry supports rendering, calibration, pose estimation, segmentation, and test-time verification, from CAD-unavailable settings that rely on normal-reference appearance, feature distributions, teacher-student residuals, or foundation features, plus boundary-prior cases that retain only partial geometric information. This taxonomy connects pose-estimation and detection literature with anomaly and surface-inspection work that are usually reviewed separately. Empirical anchors on T-LESS/BOP, MVTec AD, and VisA show that CAD render count alone does not determine success; source-distribution design, detector capacity, and small real calibration often matter more. The review concludes that deployment decisions should be grounded in the specific priors available rather than a single cross-task leaderboard.

What carries the argument

The taxonomy of CAD-available, CAD-unavailable, and boundary-prior regimes that organizes the domain-gap problem according to what geometric or appearance evidence is accessible before deployment.

What would settle it

An experiment that controls for render quality, data volume, and detector capacity and still finds transfer performance correlating more strongly with task category than with prior availability would undermine the proposed taxonomy.

Watch

Extended reading notes

Core claim

Organizing the domain gap by prior availability—CAD-available regimes where geometry enables multiple operations and verification channels, CAD-unavailable regimes where geometry is replaced by appearance or feature-based normality, and boundary-prior regimes that preserve only part of the CAD role—explains differences in how transfer is achieved and verified across industrial visual tasks.

Load-bearing premise

The distinctions between CAD-available, CAD-unavailable, and boundary-prior settings capture the essential differences that affect transfer performance in industrial settings.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

1 major / 2 minor

Summary. The paper is a literature review that reframes industrial visual sim-to-real as a domain-gap problem organized by prior availability. It distinguishes CAD-available regimes (explicit geometry supporting rendering, calibration, pose estimation, and geometric verification), CAD-unavailable regimes (relying on normal-reference appearance, feature distributions, teacher-student residuals, synthetic anomalies, foundation features, or vision-language priors), and boundary-prior regimes (approximate models or partial correspondences). The review connects 6D pose estimation and anomaly detection literatures, uses empirical anchors from T-LESS/BOP, MVTec AD, and VisA to illustrate that CAD render count alone does not close transfer gaps while source-distribution design, detector capacity, and small real calibration can matter more, and argues against a single cross-task leaderboard in favor of deployment decisions grounded in available priors.

Significance. If the taxonomy holds, the review supplies a useful organizational framework that bridges two subfields typically reviewed in isolation and shifts evaluation emphasis from generic leaderboards toward prior-specific verification channels (geometric consistency vs. calibrated normality). The observation that render count is not decisive and that small real calibration can be more impactful offers practical guidance for industrial deployment.

major comments (1)
  1. [Empirical anchors discussion (referenced in Abstract)] Empirical anchors (T-LESS/BOP for 6D pose vs. MVTec AD/VisA for anomaly detection): these datasets belong to disjoint problem classes with non-overlapping metrics, object sets, and protocols. The manuscript states that the anchors 'show that CAD render count alone does not close transfer' and that 'prior type drives performance,' yet no within-task controlled comparison is described that holds detector, training regime, and test distribution fixed while varying only prior availability. Consequently the observed differences could be attributable to task semantics rather than the taxonomy axis, weakening support for the central claim that the CAD-available / CAD-unavailable distinction precludes a single cross-task leaderboard.
minor comments (2)
  1. [Taxonomy definition] The boundary-prior category is introduced but its operational distinction from CAD-unavailable settings is illustrated only briefly; additional concrete examples (e.g., specific reference-view or template methods) would sharpen the taxonomy.
  2. [Introduction / Related work] The review cites standard datasets but does not report the search strategy, inclusion criteria, or total number of papers surveyed; adding a methods paragraph would improve reproducibility of the literature mapping.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comments. We address the major comment on the empirical anchors below.

read point-by-point responses
  1. Referee: Empirical anchors (T-LESS/BOP for 6D pose vs. MVTec AD/VisA for anomaly detection): these datasets belong to disjoint problem classes with non-overlapping metrics, object sets, and protocols. The manuscript states that the anchors 'show that CAD render count alone does not close transfer' and that 'prior type drives performance,' yet no within-task controlled comparison is described that holds detector, training regime, and test distribution fixed while varying only prior availability. Consequently the observed differences could be attributable to task semantics rather than the taxonomy axis, weakening support for the central claim that the CAD-available / CAD-unavailable distinction precludes a single cross-task leaderboard.

    Authors: We acknowledge that a controlled experiment holding all factors fixed except prior availability would strengthen the causal interpretation. The manuscript uses the anchors to illustrate that in practice, across established benchmarks, factors like source distribution design and small real calibration appear more impactful than render count alone, and that the verification mechanisms differ fundamentally (geometric vs. normality-based). The argument against a single leaderboard rests primarily on these differing verification channels rather than on cross-task performance comparisons. We will add a clarification in the revised manuscript that the anchors are meant as illustrative examples from the respective literatures and do not constitute a controlled ablation across tasks. revision: partial

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: literature review with external anchors

full rationale

The paper is a literature review proposing a taxonomy (CAD-available / CAD-unavailable / boundary-prior) to organize existing sim-to-real work. It contains no equations, fitted parameters, predictions, or derivations. The central claim rests on cited empirical anchors (T-LESS/BOP, MVTec AD, VisA) drawn from the external literature rather than self-generated results or self-citation chains. No step reduces by construction to the paper's own inputs; the framework is an organizational lens applied to independent prior work.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

The paper is a review and introduces no new free parameters, axioms beyond standard domain knowledge, or invented entities. The taxonomy itself is the contribution.

assumptions (1)
  • domain assumption CAD models provide explicit object geometry that can support rendering, calibration, pose estimation, segmentation, and test-time geometric verification.
    Stated in the abstract as the basis for CAD-available settings.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Prior Availability in Industrial Visual Sim-to-Real: A Review of CAD-Guided and CAD-Unavailable Regimes." pith.science (2026). https://pith.science/paper/VCXY7RQN

@misc{pith2026260530581,
  author       = {Pith},
  title        = {Pith review of: Prior Availability in Industrial Visual Sim-to-Real: A Review of CAD-Guided and CAD-Unavailable Regimes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VCXY7RQN}},
  note         = {Machine review of arXiv:2605.30581}
}
read the original abstract

Industrial visual sim-to-real is often described as transferring from synthetic images to real images, but industrial deployment usually involves a broader mismatch between available evidence and required decisions. A system may be built from CAD renderings, simulated RGB-D observations, normal reference images, synthetic defects, pretrained feature spaces, or language prompts, yet deployed under different sensors, lighting, materials, fixtures, calibration, production variation, and rare defect modes. This review reframes industrial visual sim-to-real as a domain-gap problem organized by prior availability. We distinguish CAD-available settings, where explicit object geometry can support rendering, calibration, pose estimation, segmentation, and test-time geometric verification; CAD-unavailable settings, where geometry is replaced by normal-reference appearance, feature distributions, teacher-student residuals, synthetic anomaly assumptions, foundation features, or vision-language priors; and boundary-prior settings, where approximate models, templates, reference views, or semantic correspondences preserve only part of the CAD role. This framing connects CAD-based detection and 6D pose-estimation literature with industrial anomaly and surface-inspection literature that is usually reviewed separately. To make the taxonomy concrete, we use empirical anchors on T-LESS/BOP, MVTec AD, and VisA. The anchors show that CAD render count alone does not close transfer; source-distribution design, detector capacity, and small real calibration can matter more. They also show that CAD at test time creates a distinct verification channel through mask, pose, and depth consistency, whereas CAD-unavailable inspection relies on calibrated normality and feature deviation. The review therefore argues against a single cross-task leaderboard and instead asks what prior grounds the deployment decision.

Figures

Figures reproduced from arXiv: 2605.30581 by the authors.

Figure 1

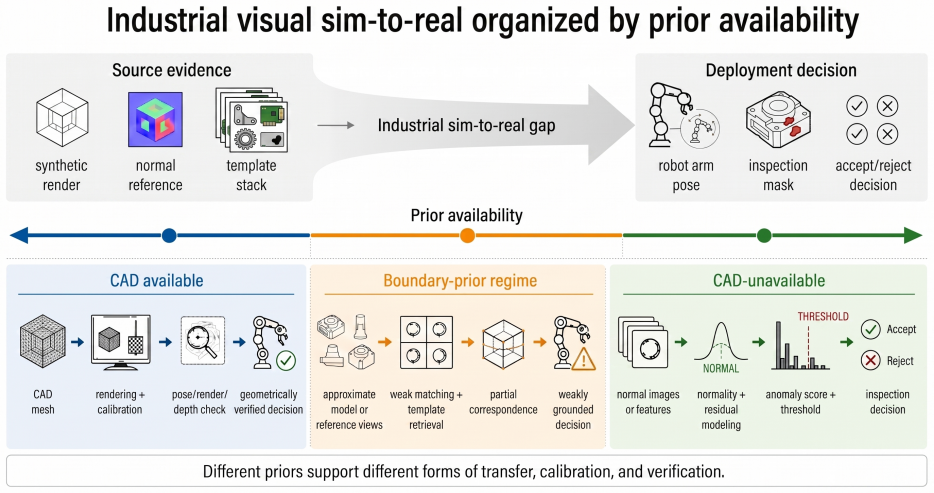

Figure 1. Prior-availability view of industrial visual sim-to-real. Source evidence may include [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

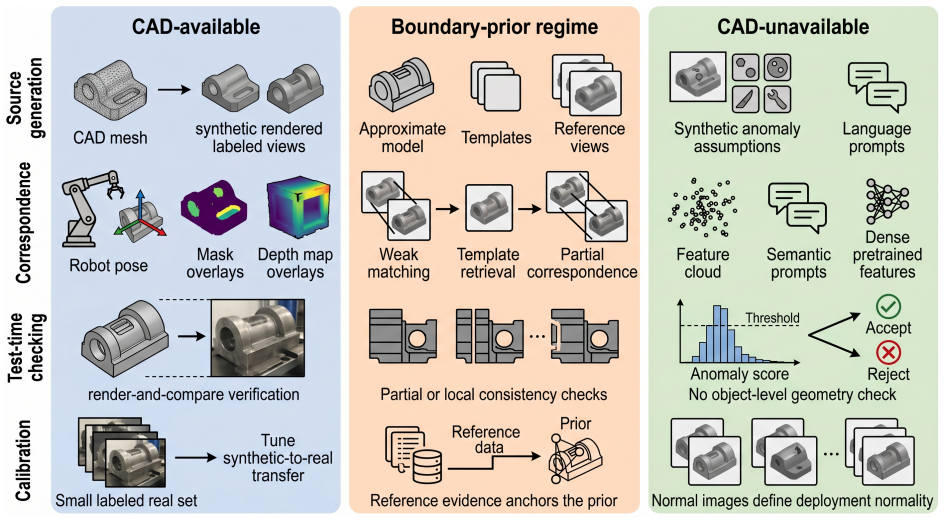

Figure 2. Mechanism view of the prior-availability distinction. CAD-available settings can use explicit [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

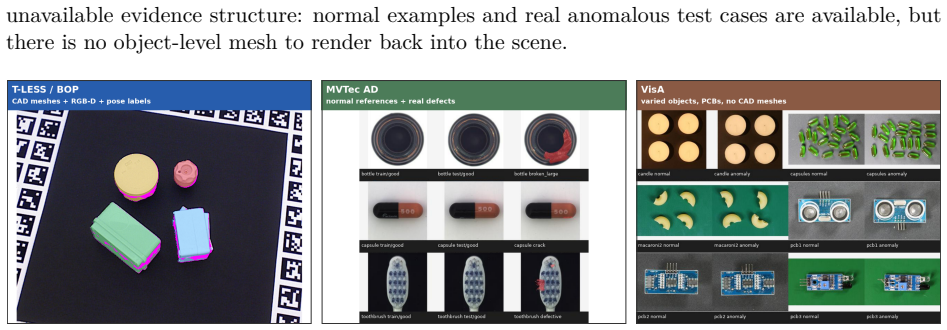

Figure 3. Dataset regimes used to anchor Section 6. T-LESS/BOP [ [PITH_FULL_IMAGE:figures/full_fig_p022_3.png] view at source ↗
Figures from the paper (13 more)
Figure 4

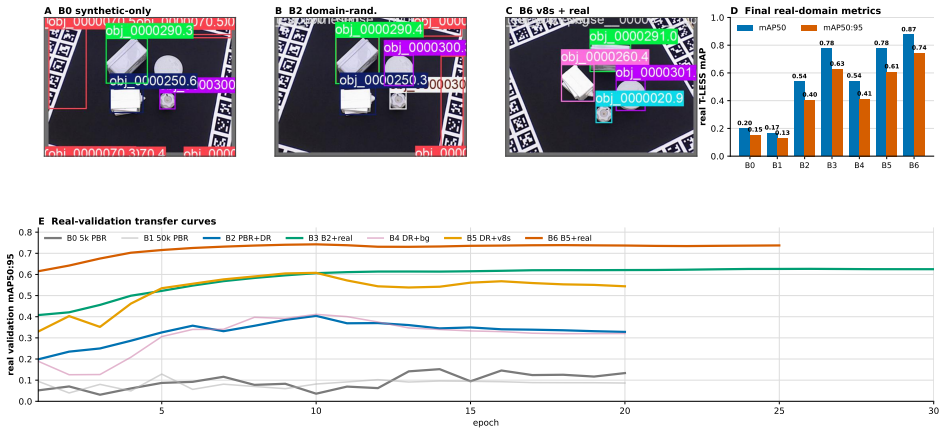

Figure 4. Figure 4: CAD-as-renderer transfer on real T-LESS images [ [PITH_FULL_IMAGE:figures/full_fig_p024_4.png]
Figure 5

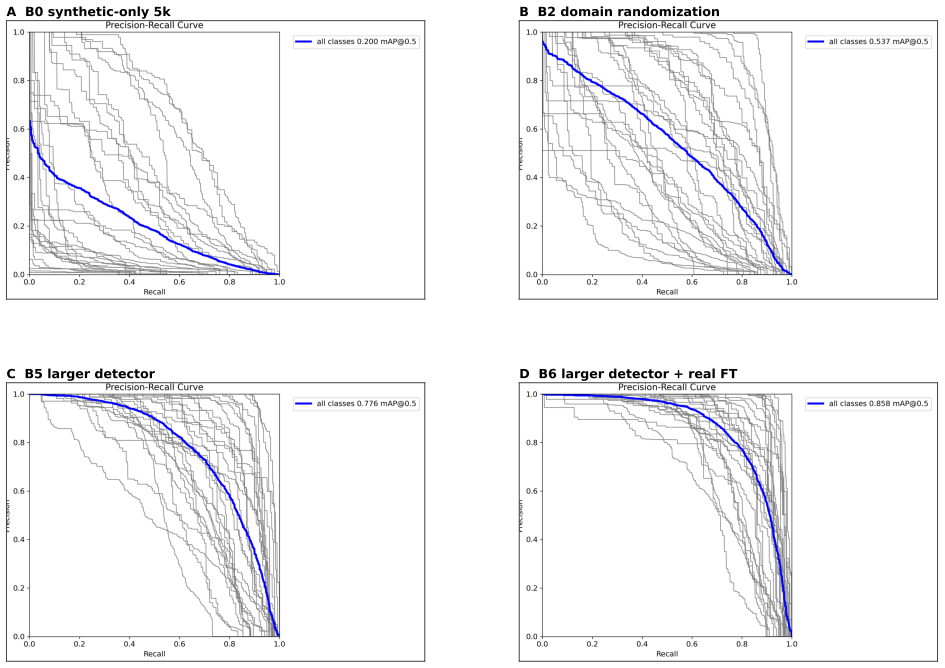

Figure 5. Figure 5: Precision-recall diagnostics for representative CAD-as-renderer detector runs on T [PITH_FULL_IMAGE:figures/full_fig_p025_5.png]
Figure 6

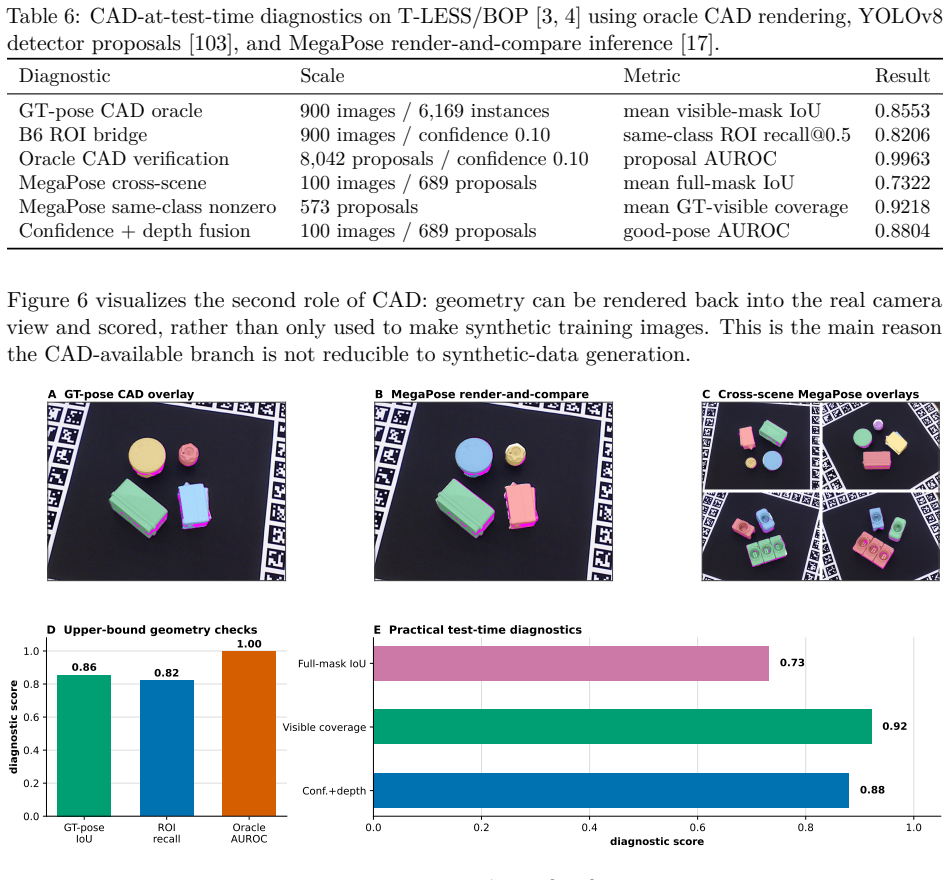

Figure 6. Figure 6: CAD-at-test-time geometry on T-LESS/BOP [ [PITH_FULL_IMAGE:figures/full_fig_p027_6.png]
Figure 7

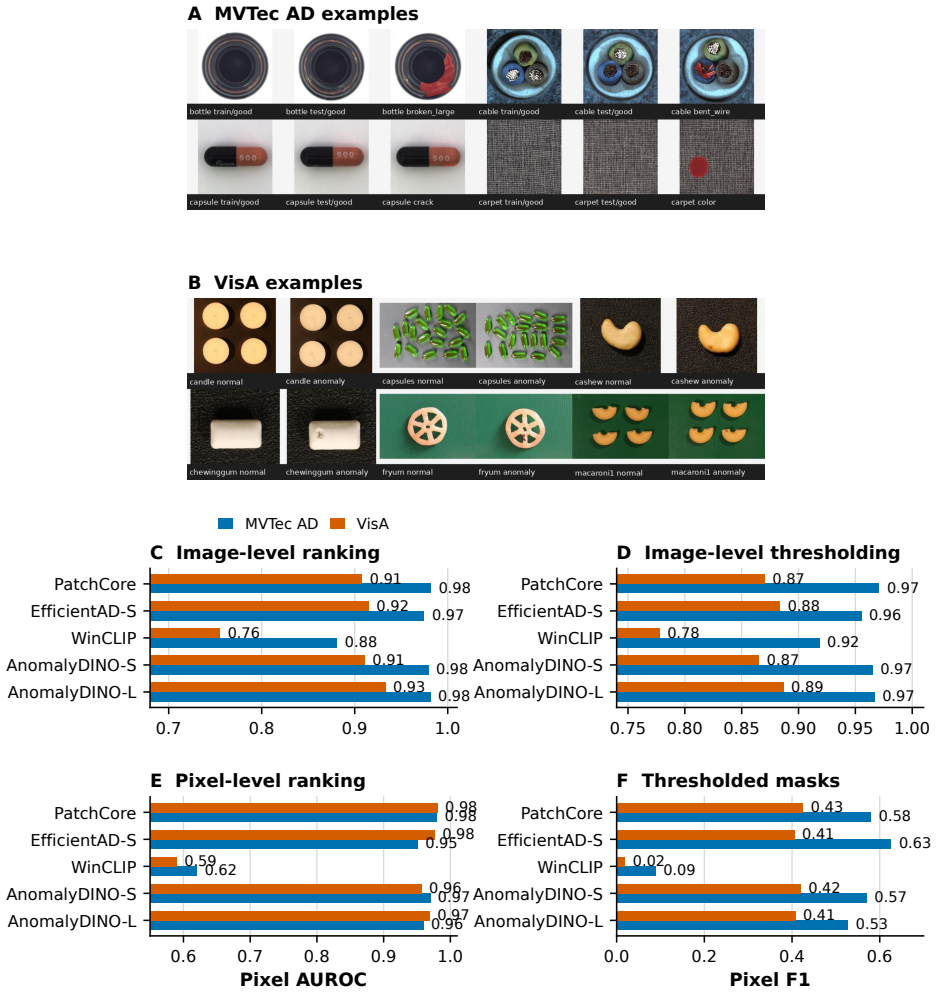

Figure 7. Figure 7: CAD-unavailable anomaly-detection anchors on MVTec AD [ [PITH_FULL_IMAGE:figures/full_fig_p030_7.png]
Figure 8

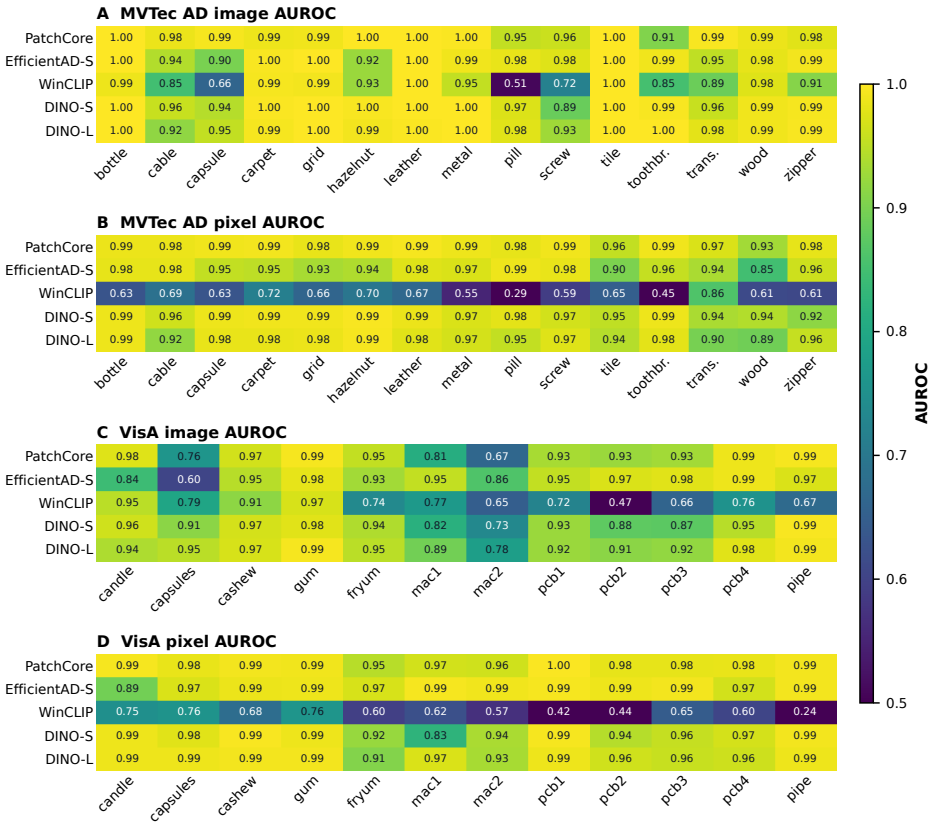

Figure 8. Figure 8: Category-level CAD-unavailable diagnostics for MVTec AD [ [PITH_FULL_IMAGE:figures/full_fig_p032_8.png]
Figure 9

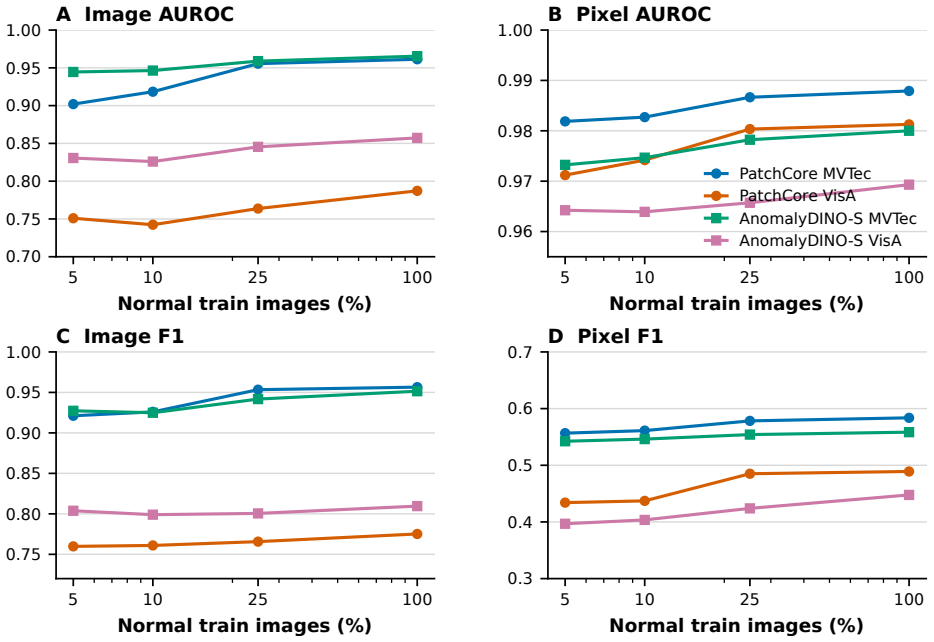

Figure 9. Figure 9: Selected-category normal-reference budget curves for the CAD-unavailable branch. Patch [PITH_FULL_IMAGE:figures/full_fig_p034_9.png]
Figure 10

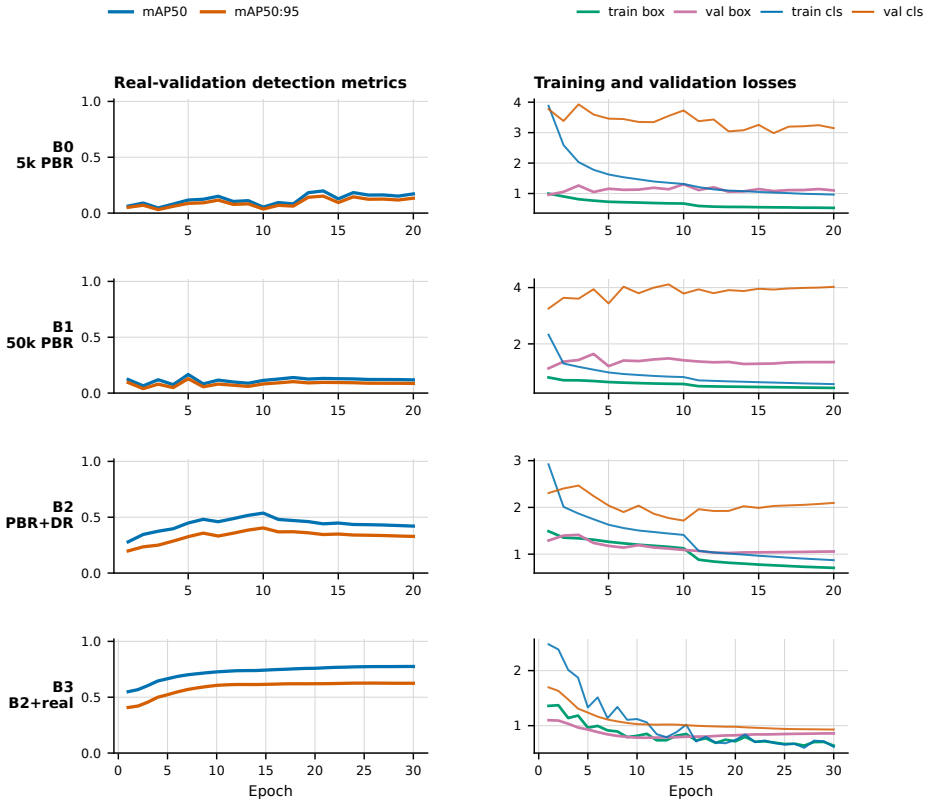

Figure 10. Figure 10: YOLOv8 [103] CAD-as-renderer training diagnostics for B0–B3 on T-LESS/BOP [3, 4]. Each row corresponds to one detector configuration from [PITH_FULL_IMAGE:figures/full_fig_p047_10.png]
Figure 11

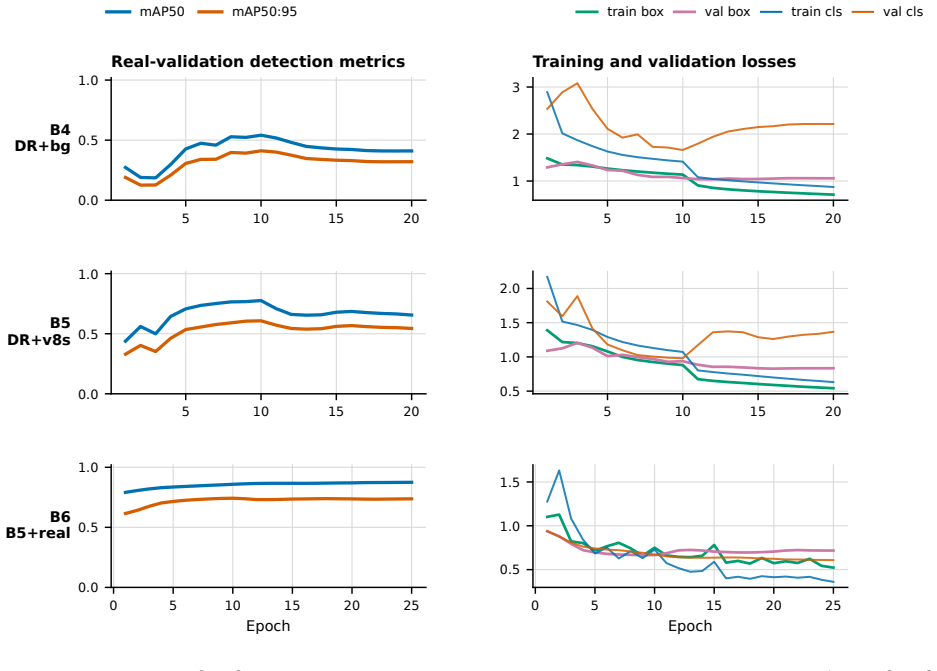

Figure 11. Figure 11: YOLOv8 [103] CAD-as-renderer training diagnostics for B4–B6 on T-LESS/BOP [3, 4]. The same real-validation target is used across runs. B4 adds real background negatives to the randomized synthetic source, B5 increases detector capacity, and B6 combines the larger dete…
Figure 12

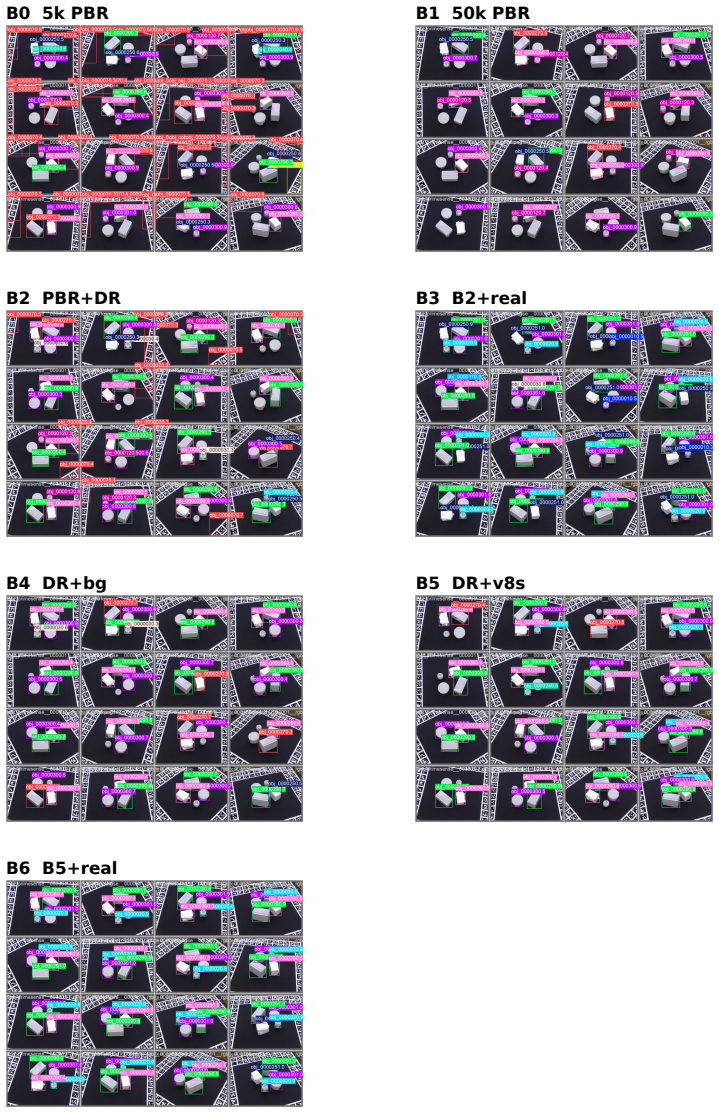

Figure 12. Figure 12: Representative real-validation prediction grids for the seven CAD-as-renderer detector [PITH_FULL_IMAGE:figures/full_fig_p049_12.png]
Figure 13

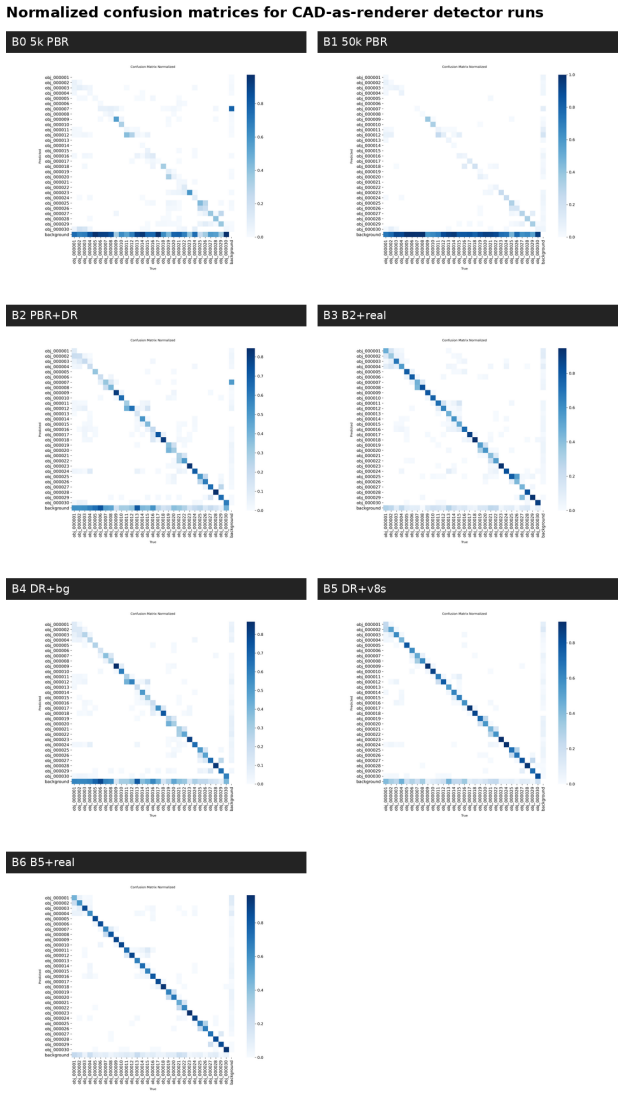

Figure 13. Figure 13: Normalized confusion matrices for the YOLOv8 [ [PITH_FULL_IMAGE:figures/full_fig_p050_13.png]
Figure 14

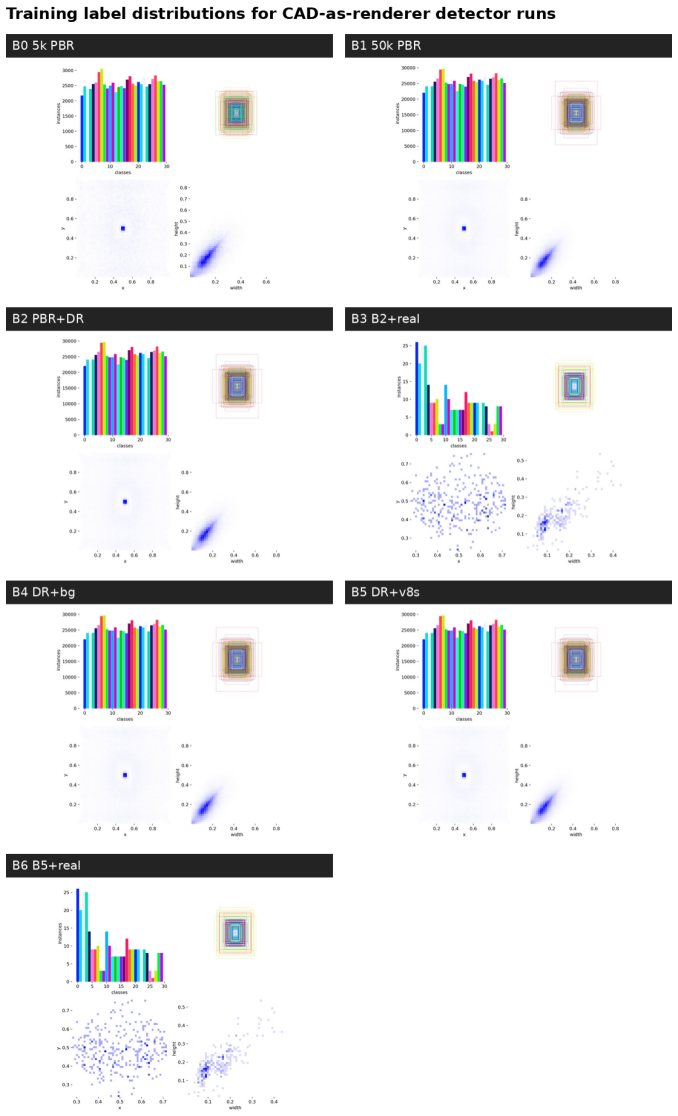

Figure 14. Figure 14: Training label distributions for the CAD-as-renderer detector runs on T-LESS/BOP [ [PITH_FULL_IMAGE:figures/full_fig_p051_14.png]
Figure 15

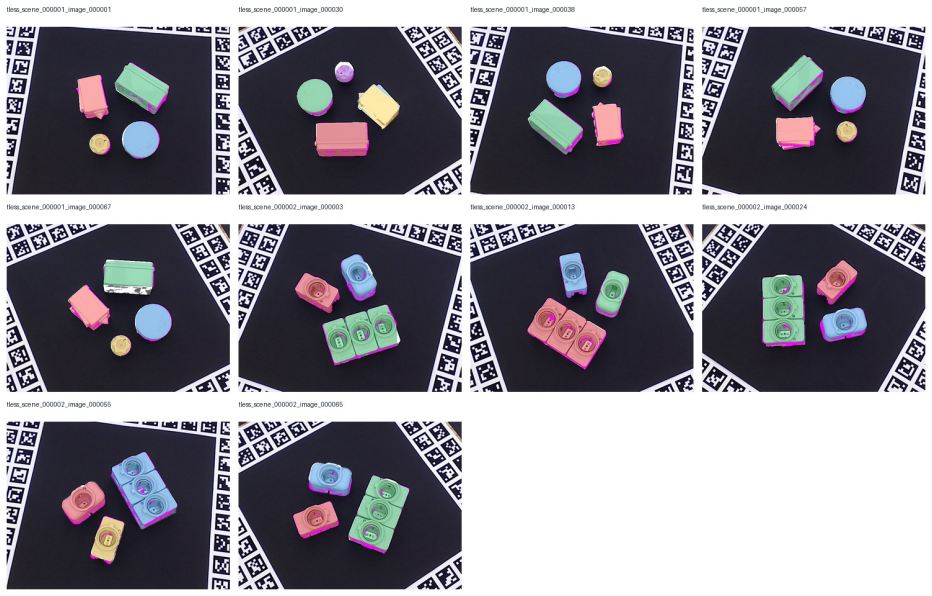

Figure 15. Figure 15: Additional CAD-at-test-time qualitative diagnostics. The contact sheet shows Mega [PITH_FULL_IMAGE:figures/full_fig_p052_15.png]
Figure 16

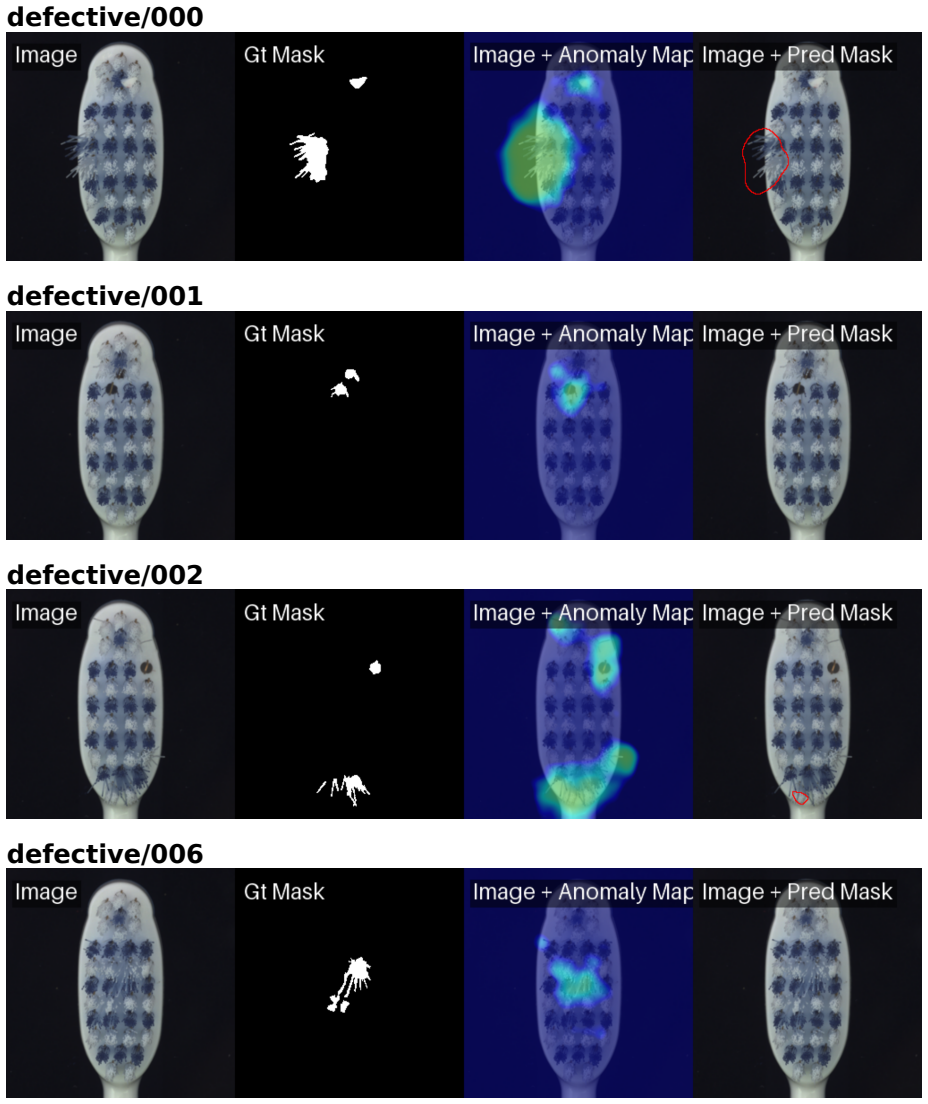

Figure 16. Figure 16: Additional CAD-unavailable qualitative diagnostics for the synthetic-anomaly probe. [PITH_FULL_IMAGE:figures/full_fig_p053_16.png]
