arxiv: 1907.10892 · v1 · pith:VFRJSKHMnew · submitted 2019-07-25 · 💻 cs.LG · cs.CV· stat.ML

Simultaneous multi-view instance detection with learned geometric soft-constraints

Ahmed Samy Nassar , Sebastien Lefevre , Jan D. Wegner This is my paper

Pith reviewed 2026-05-24 16:21 UTC · model grok-4.3

classification 💻 cs.LG cs.CVstat.ML
keywords multi-view object detectioninstance re-identificationgeometric soft constraintsend-to-end learningstreet-level panoramascross-view detectionurban object detection
0
0 comments X

The pith

Jointly learning detection and cross-view re-identification lets a single network capture both appearance and geometric soft constraints end-to-end.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to make multi-view instance detection more robust by converting the separate problems of object detection and instance re-identification into one joint training task. This lets the model absorb both visual appearance cues and learned geometric relationships between views without requiring explicit camera poses or separate 3D modules. The authors release a large new dataset of street-level urban panoramas and a dedicated annotation tool to support the task, then show that the combined model beats several baselines.

Core claim

By turning object detection and instance re-identification in different views into a joint learning task, both image appearance and geometric soft constraints can be incorporated into a single, multi-view detection process that is learnable end-to-end.

What carries the argument

A neural network that performs simultaneous multi-view detection and re-identification while learning geometric soft constraints directly from paired image data.

If this is right

  • Detection remains accurate despite large viewpoint, lighting, and scale changes across views.
  • The approach produces a single trainable pipeline instead of separate detection, matching, and geometry stages.
  • A large public dataset of urban panoramas becomes available for multi-view instance tasks.
  • A custom annotation tool tailored to labeling the same instances across multiple views is released.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method may reduce the need for calibrated multi-camera rigs in applications such as traffic monitoring.
  • Similar joint learning could be tested on video sequences where frames act as changing views of the same objects.
  • If the soft constraints prove sufficient, future work could drop explicit 3D reconstruction steps in other cross-view problems.

Load-bearing premise

Geometric relationships between views can be captured as learnable soft constraints inside the same network that processes appearance, without explicit camera poses or separate geometric modules.

What would settle it

An experiment in which the joint end-to-end model does not outperform a pipeline that first runs independent detectors and then applies explicit geometric matching or separate re-identification on the street-level panorama dataset.

Figures

Figures reproduced from arXiv: 1907.10892 by Ahmed Samy Nassar, Jan D. Wegner, Sebastien Lefevre.

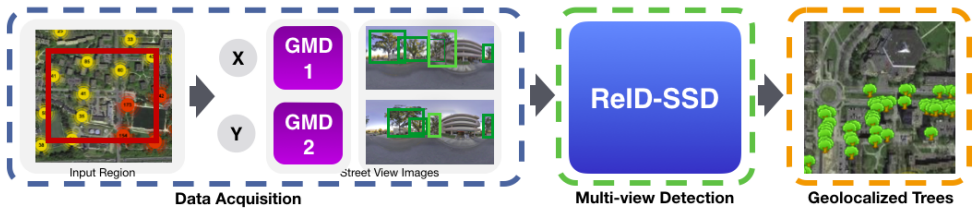

Figure 1
Figure 1. Figure 1: A pair of images is fed to our multi-view object detectors, matching projected predictions is learned, and the geo-coordinate of [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

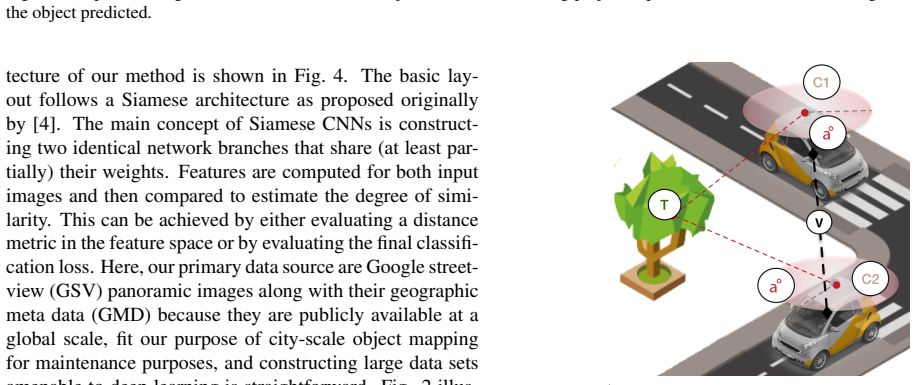

Figure 2
Figure 2. Figure 2: C ∗ : Camera with geo-position. T: The tree has its actual geographic coordinates, and location within the panorama. a ◦ : heading angle inside panorama. v: Distance between cameras [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

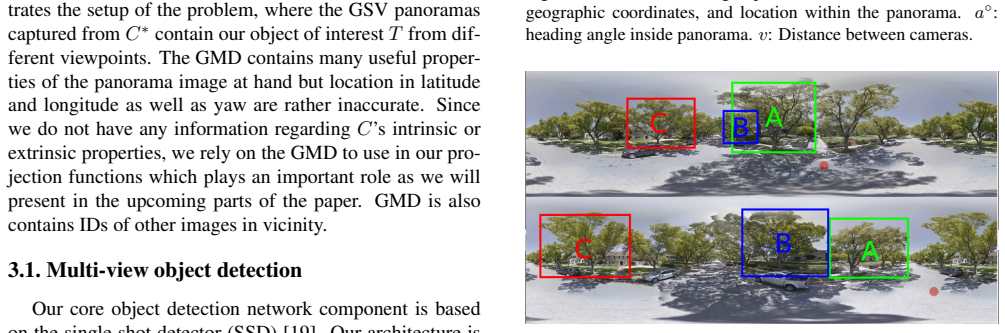

Figure 3
Figure 3. Figure 3: Tree instance re-identification problem (color indicates [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

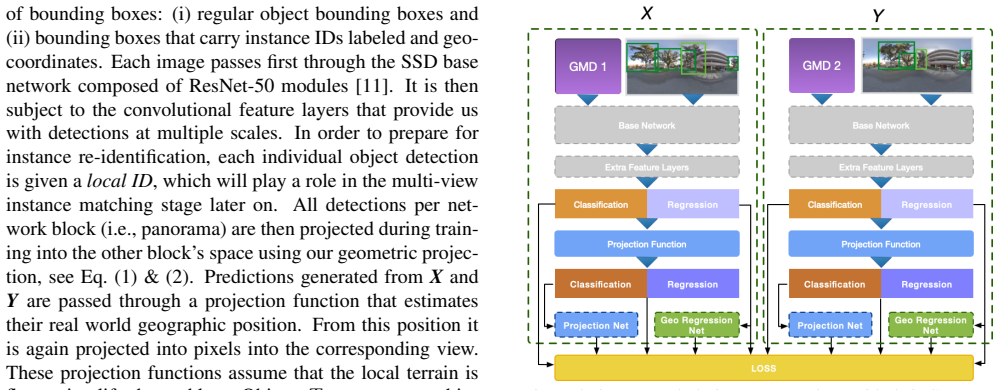

Figure 4
Figure 4. Figure 4: Our network design: Images along with their GMD are [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

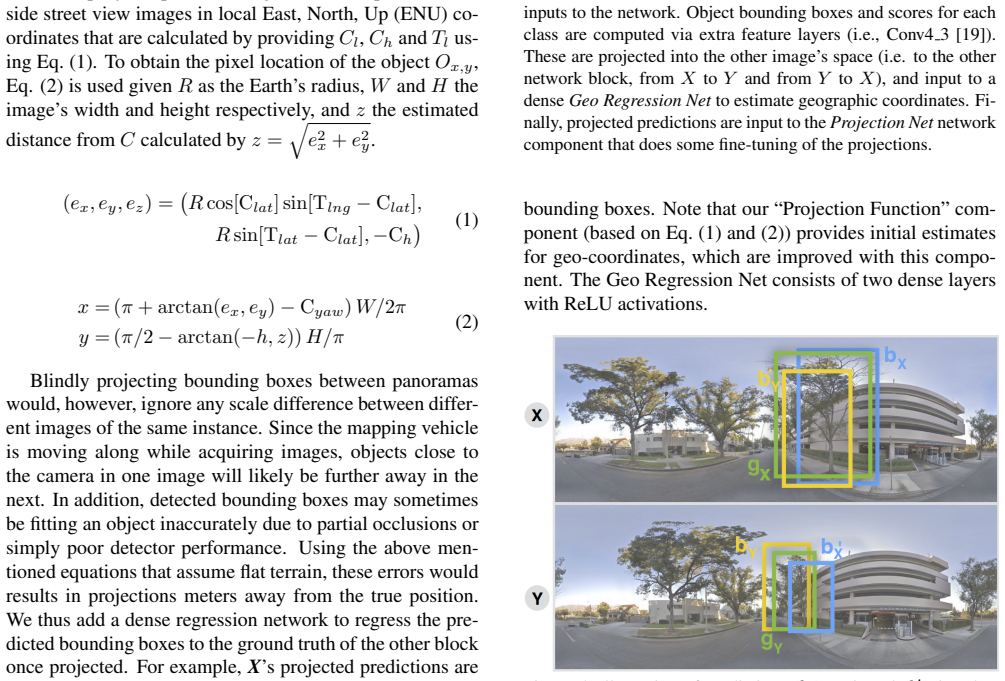

Figure 5. Figure 5: Illustration of predictions (b∗) projected (b 0 ∗) in other views and their ground truth (g∗). Projection Net: This network component fine-tunes pro￾jected predictions b 0 ∗ by learning to regress the discrepancy between them and the other block’s ground truth as illus￾trated in [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

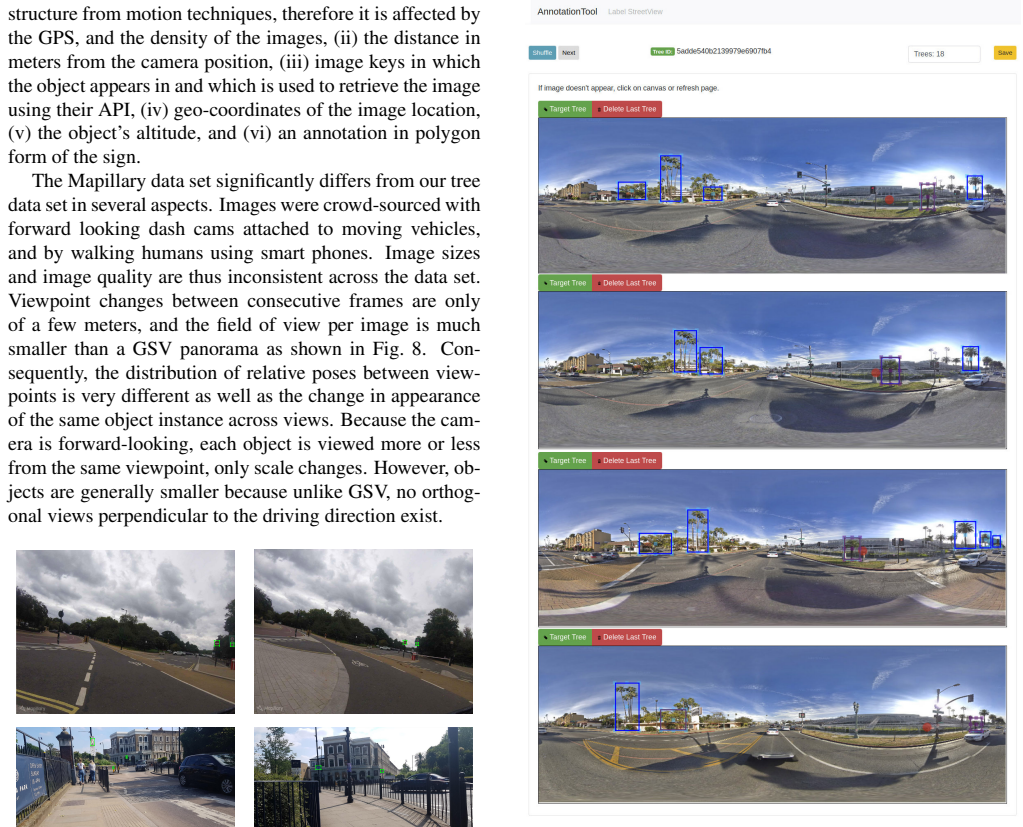

Figure 7
Figure 7. Figure 7: Our annotation tool provides 4 multi-view panoramas [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

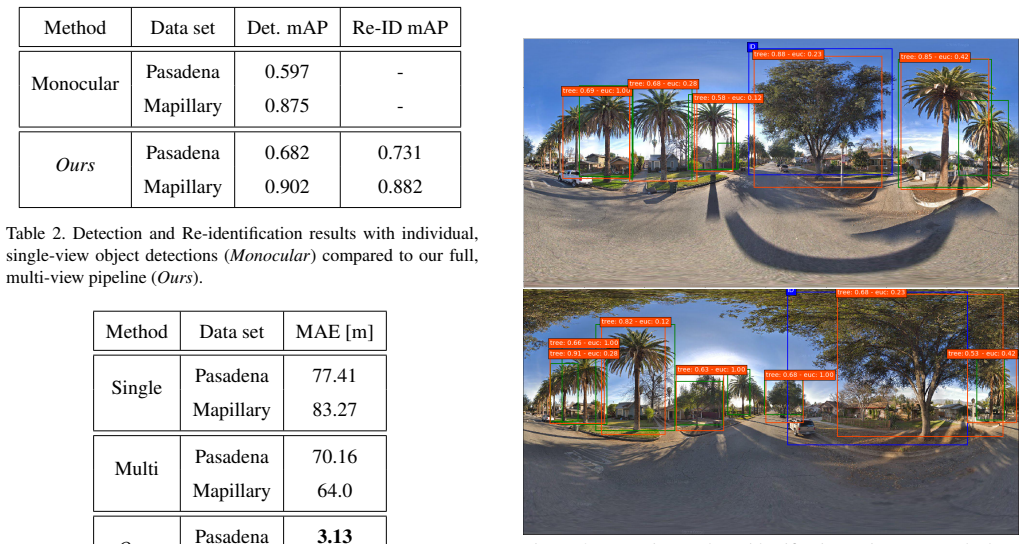

Figure 8
Figure 8. Figure 8: Detection and Re-identification using our method. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

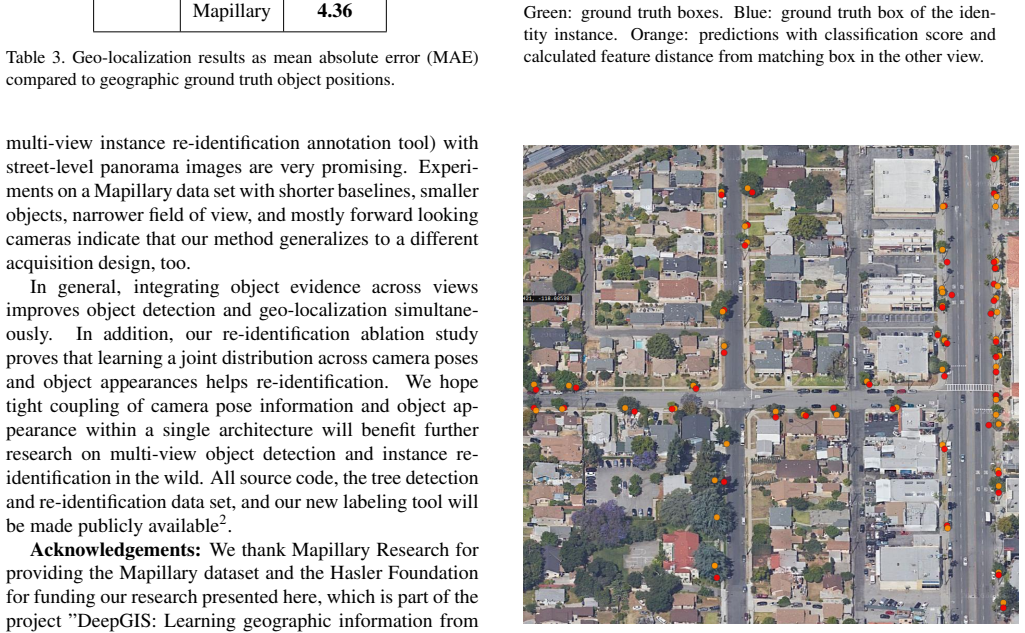

Figure 9
Figure 9. Figure 9: Small subset of tree predictions (red) overlaid to an aerial [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
read the original abstract

We propose to jointly learn multi-view geometry and warping between views of the same object instances for robust cross-view object detection. What makes multi-view object instance detection difficult are strong changes in viewpoint, lighting conditions, high similarity of neighbouring objects, and strong variability in scale. By turning object detection and instance re-identification in different views into a joint learning task, we are able to incorporate both image appearance and geometric soft constraints into a single, multi-view detection process that is learnable end-to-end. We validate our method on a new, large data set of street-level panoramas of urban objects and show superior performance compared to various baselines. Our contribution is threefold: a large-scale, publicly available data set for multi-view instance detection and re-identification; an annotation tool custom-tailored for multi-view instance detection; and a novel, holistic multi-view instance detection and re-identification method that jointly models geometry and appearance across views.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript proposes jointly learning multi-view geometry and warping for cross-view object instance detection by turning detection and re-identification into a single end-to-end task that incorporates image appearance and geometric soft constraints. It contributes a new large-scale dataset of street-level urban panoramas, a custom annotation tool, and experimental results claiming superior performance over baselines.

Significance. If the end-to-end integration of learned geometric soft-constraints without explicit camera poses or separate modules holds, the approach could simplify multi-view detection pipelines and improve robustness to viewpoint and scale changes in applications such as urban object monitoring. The public dataset release is a clear positive contribution to the field.

minor comments (2)
  1. [Abstract] Abstract: the claim of 'superior performance' would benefit from a brief quantitative statement (e.g., mAP improvement) rather than a qualitative assertion alone.
  2. [Abstract] The threefold contribution list in the abstract repeats the dataset and tool descriptions; consolidating this paragraph would improve readability.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. We are pleased that the end-to-end integration of learned geometric soft-constraints and the public dataset release are viewed as potentially valuable contributions.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The provided abstract and text describe a joint end-to-end learning task for multi-view detection that incorporates appearance and geometric soft constraints without any equations, loss terms, or derivation steps shown. No self-citations, fitted parameters renamed as predictions, or self-definitional constructs are present in the given material. The central claim of a learnable holistic method stands as an independent proposal validated on a new dataset, with no reduction of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities can be identified from the provided text.

pith-pipeline@v0.9.0 · 5697 in / 1067 out tokens · 24021 ms · 2026-05-24T16:21:57.075422+00:00 · methodology
