Magneto-electronic properties of twisted bilayer graphene system

Chiun-Yan Lin , Ming-Fa Lin This is my paper

Pith reviewed 2026-05-24 18:38 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords twisted bilayer graphenemagneto-electronic propertiesLandau levelsMoire superlatticeDirac conestight-binding modelzero-gap semiconductorsaddle-point dispersion
0
0 comments X

The pith

Twisted bilayer graphene forms a zero-gap semiconductor with double-degenerate Dirac cones and saddle points at low energies for small twist angles, producing multiple Landau-level subgroups through Moire zone folding.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a generalized tight-binding model that incorporates all interlayer and intralayer atomic interactions within the Moire superlattice of twisted bilayer graphene. It establishes that the system is a zero-gap semiconductor featuring double-degenerate Dirac-cone structures, with saddle-point dispersions emerging at low energies when twisting angles are small. The model identifies rich magnetic quantization effects in which many distinct Landau-level subgroups arise from Moire zone folding as the stacking angle varies. These levels exhibit hybridized traits drawn from monolayer graphene and from AA and AB bilayer stackings, with detailed sublattice relations across layers.

Core claim

The twisted bilayer graphene system is a zero-gap semiconductor with double-degenerate Dirac-cone structures, and saddle-point energy dispersions appearing at low energies for cases of small twisting angles. There exist rich and unique magnetic quantization phenomena, in which many Landau-level subgroups are induced due to specific Moire zone folding through modulating the various stacking angles. The Landau-level spectrum shows hybridized characteristics associated with those in monolayer, and AA & AB stackings. The complex relations among the different sublattices on the same and different graphene layers are explored in detail.

What carries the argument

The generalized tight-binding model that includes all interlayer and intralayer atomic interactions in the Moire superlattice, which produces the magneto-electronic spectrum via angle-dependent zone folding.

If this is right

  • Varying the twist angle produces tunable numbers of Landau-level subgroups through changes in Moire zone folding.
  • The Landau-level spectrum combines features of isolated monolayer graphene with those of AA and AB stacked bilayers.
  • Sublattice relations between layers determine the degeneracy and hybridization pattern of the quantized states.
  • Magnetic quantization remains rich even at low energies where saddle points appear for small angles.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The angle dependence implies that transport or spectroscopy experiments could map twist angle directly onto the number of observable level subgroups.
  • The same Moire-folding mechanism may apply to other twisted bilayer systems such as transition-metal dichalcogenides, yielding analogous subgroup structures.
  • If many-body effects remain negligible, the model supplies a baseline spectrum against which interaction-driven renormalizations can be measured.

Load-bearing premise

The generalized tight-binding model that includes all interlayer and intralayer atomic interactions in the Moire superlattice is sufficient to capture the magneto-electronic spectrum without additional many-body corrections or higher-order terms.

What would settle it

Spectroscopic or transport measurements on twisted bilayer graphene at small twist angles that fail to resolve the predicted multiple Landau-level subgroups or that reveal large gaps inconsistent with the zero-gap Dirac cones would falsify the central claims.

Figures

Figures reproduced from arXiv: 1907.08858 by Chiun-Yan Lin, Ming-Fa Lin.

Figure 1

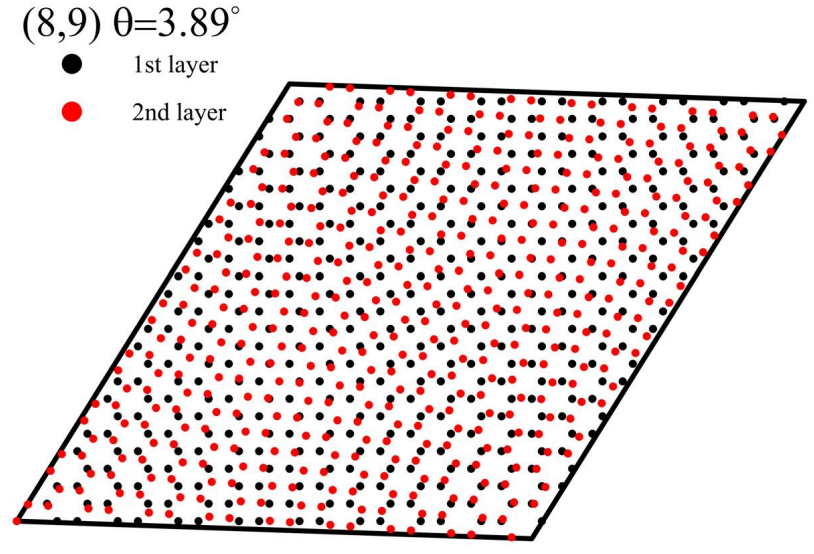

Figure 1. Figure 1: The geometric structure of a twisted bilayer graphene, such as for a (1,2) [PITH_FULL_IMAGE:figures/full_fig_p031_1.png] view at source ↗
Figure 2

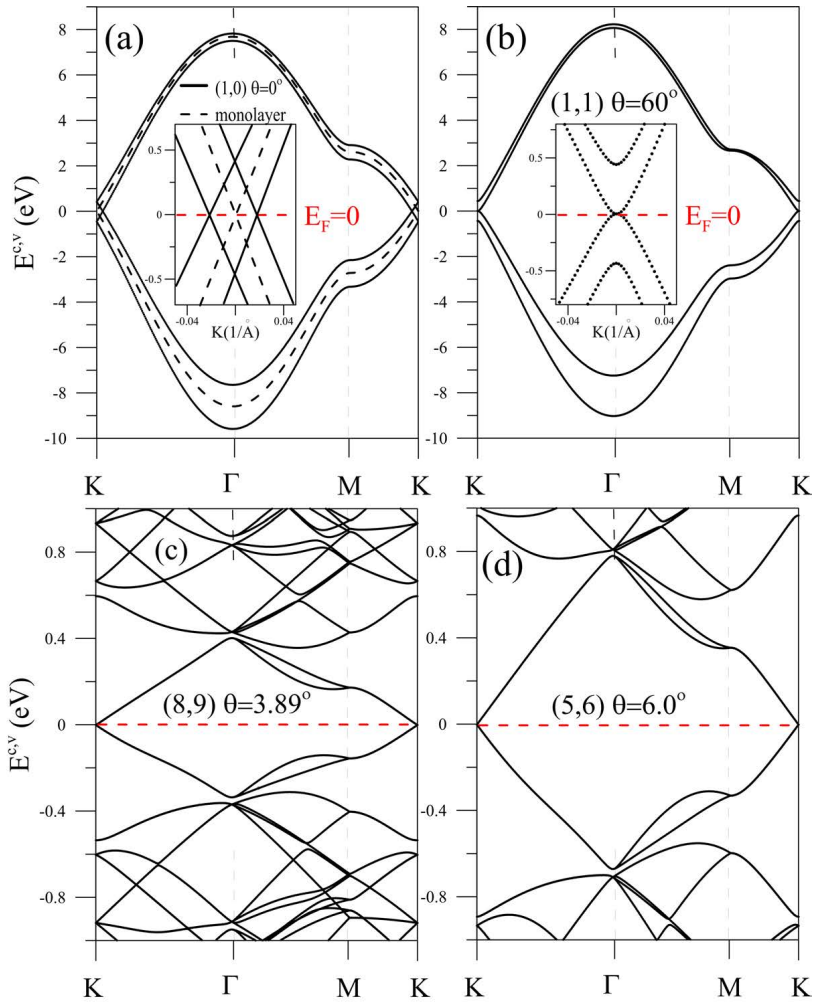

Figure 2. Figure 2: The band structures due to the C-2pz orbitals for bilayer graphene systems with the different twisted angles: (a) θ = 0◦ [AA], (b) 60◦ [AB], (c) 3.89◦ [(8,9)] and (d) 6.0◦ [(5,6)]. Also shown in (a) is that of monolayer graphene by the dashed curve. 32 [PITH_FULL_IMAGE:figures/full_fig_p032_2.png] view at source ↗
Figure 3

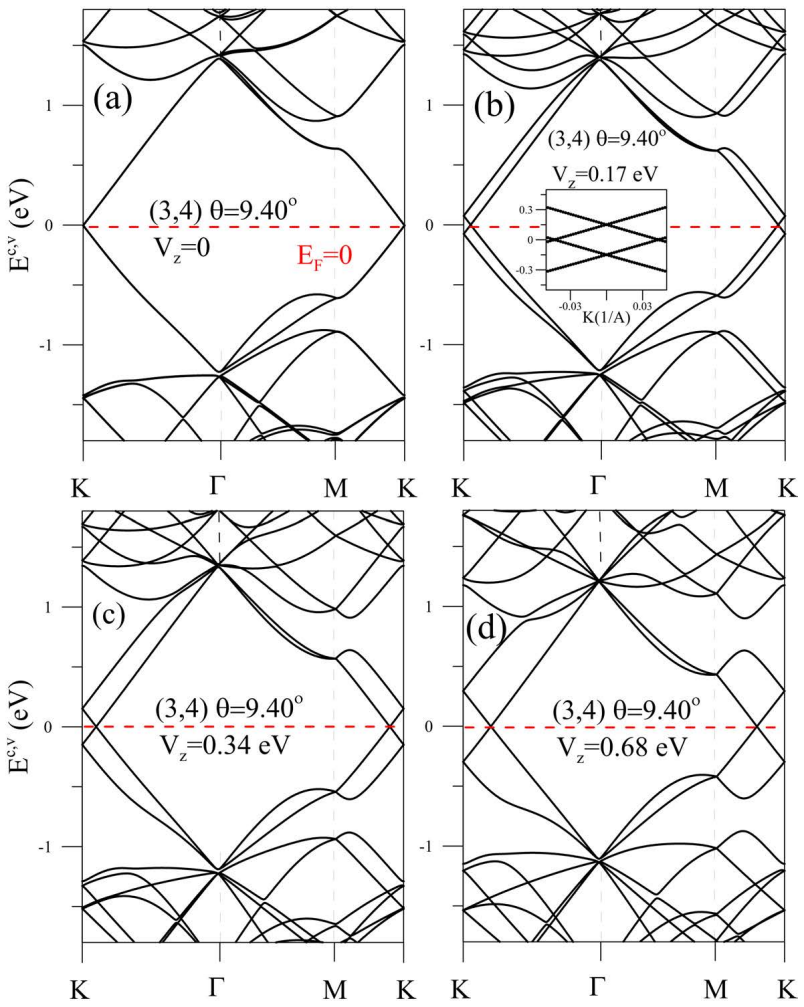

Figure 3. Figure 3: The band structures of the twisted (3,4) bilayer graphene [ [PITH_FULL_IMAGE:figures/full_fig_p033_3.png] view at source ↗
Figure 4

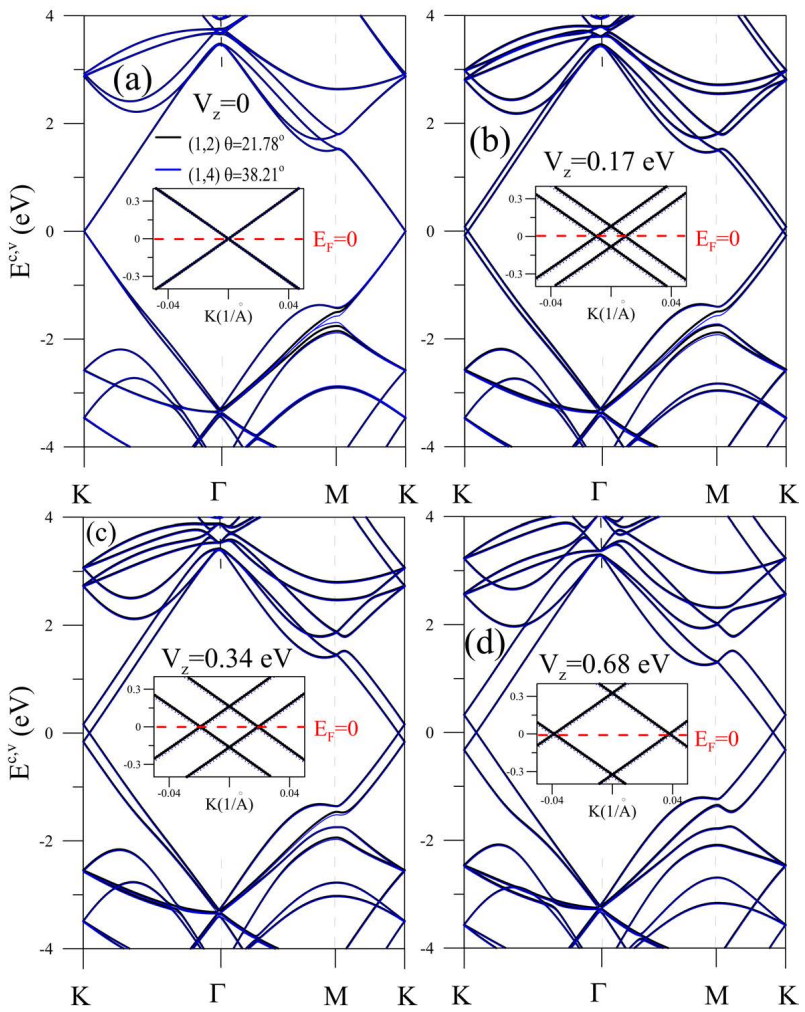

Figure 4. Figure 4: Similar plot as Fig. 4.3, being shown for the (1,2) bilayer graphene with [PITH_FULL_IMAGE:figures/full_fig_p034_4.png] view at source ↗
Figure 5

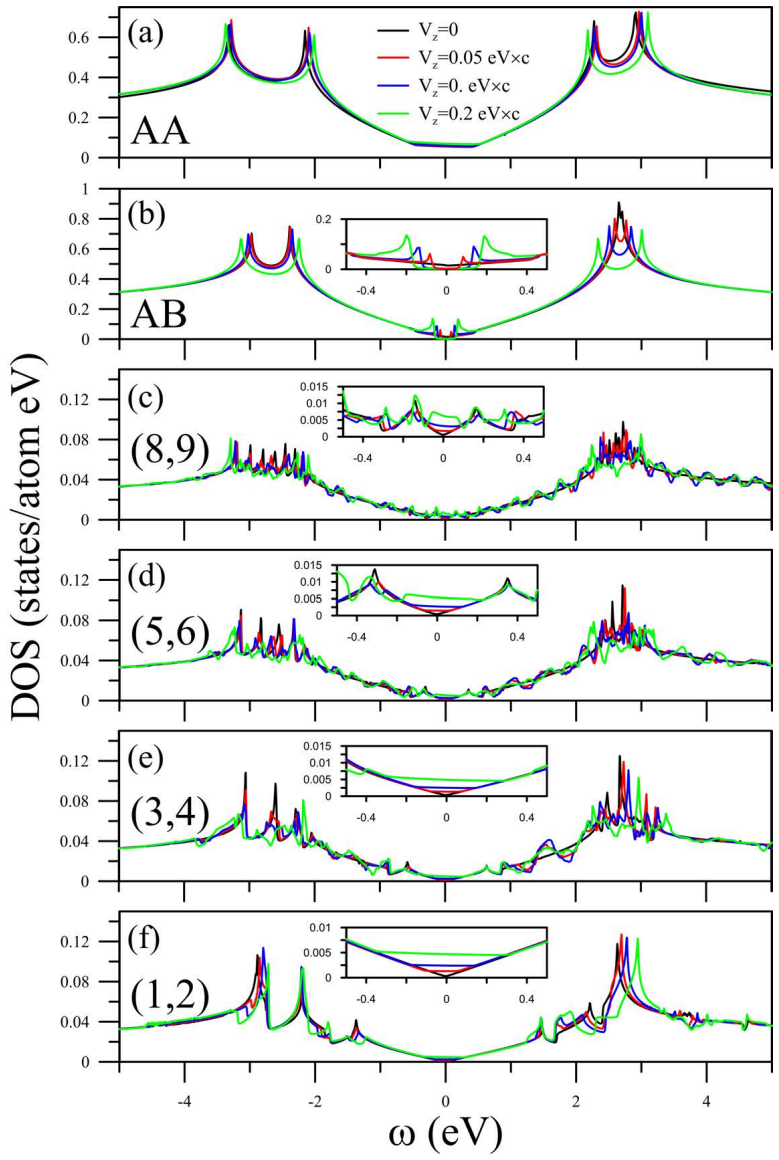

Figure 5. Figure 5: the twisted-angle- and gate-voltage-dependent densities of states for the bilayer [PITH_FULL_IMAGE:figures/full_fig_p035_5.png] view at source ↗
Figure 6

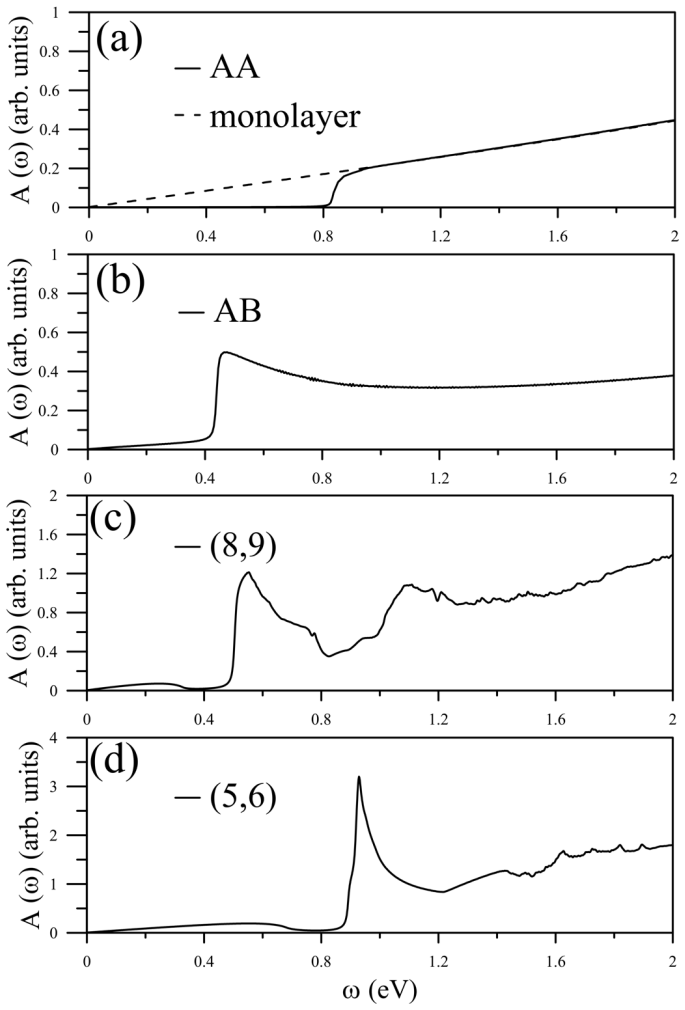

Figure 6. Figure 6: The optical absorption spectra for (a) AA, (b) AB, (c) (8,9) and (d) (5,6). Also [PITH_FULL_IMAGE:figures/full_fig_p036_6.png] view at source ↗
Figure 7

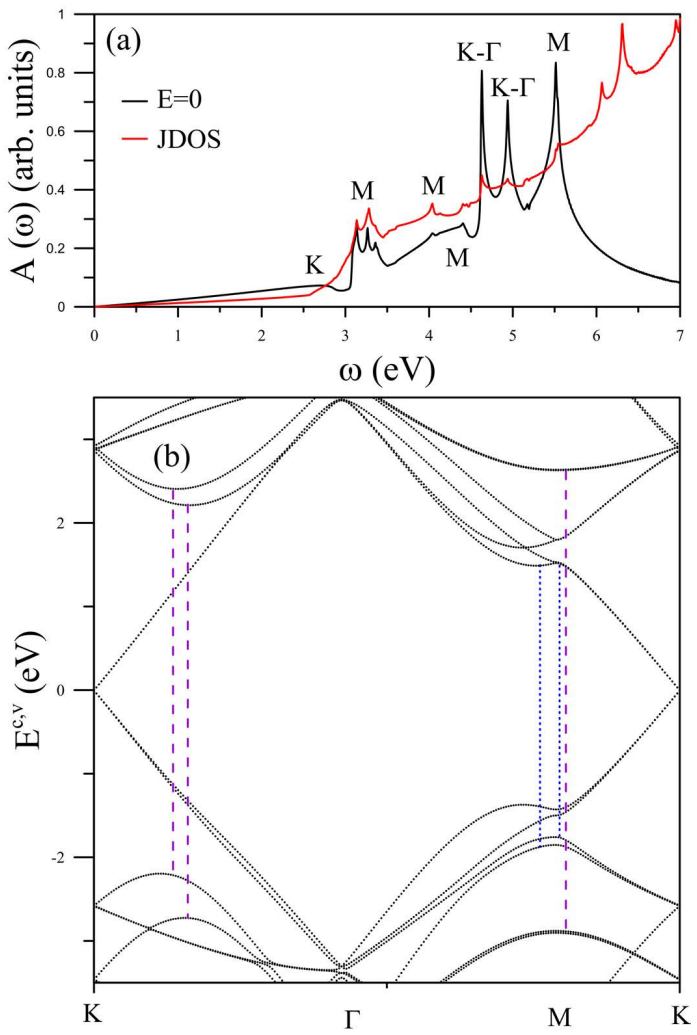

Figure 7. Figure 7: (a) The joint densities of state [the red curve] and optical excitation [the black [PITH_FULL_IMAGE:figures/full_fig_p037_7.png] view at source ↗
Figure 9

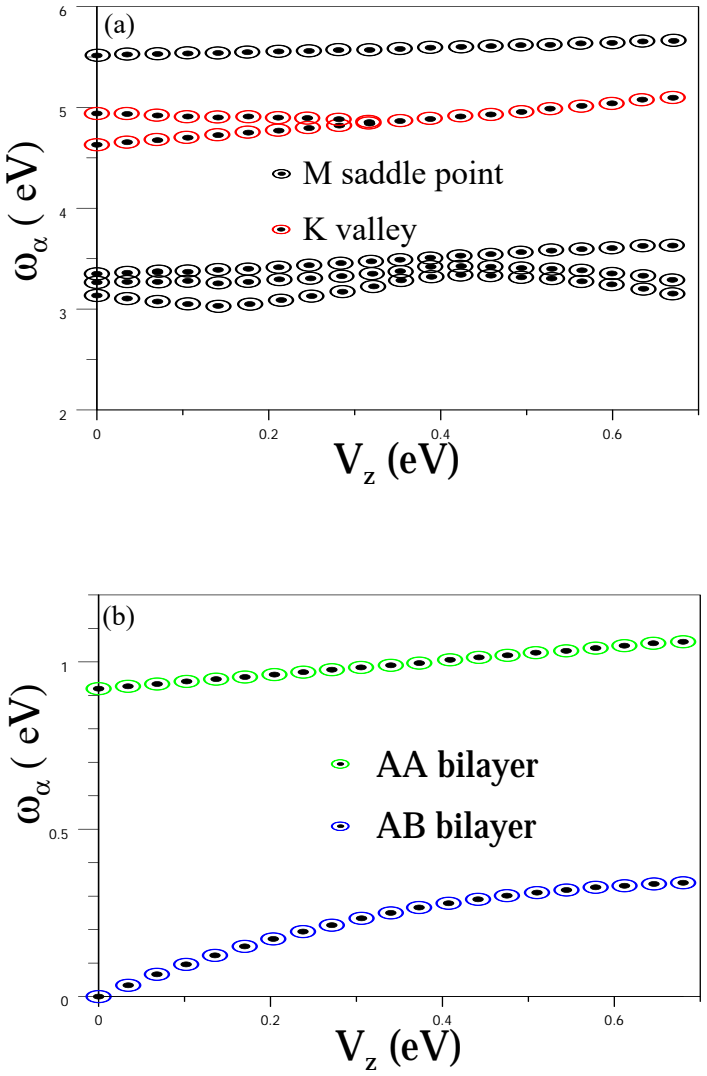

Figure 9. Figure 9: The gate-voltage-dependent excitation frequencies corresponding to (a) the [PITH_FULL_IMAGE:figures/full_fig_p040_9.png] view at source ↗
Figure 10

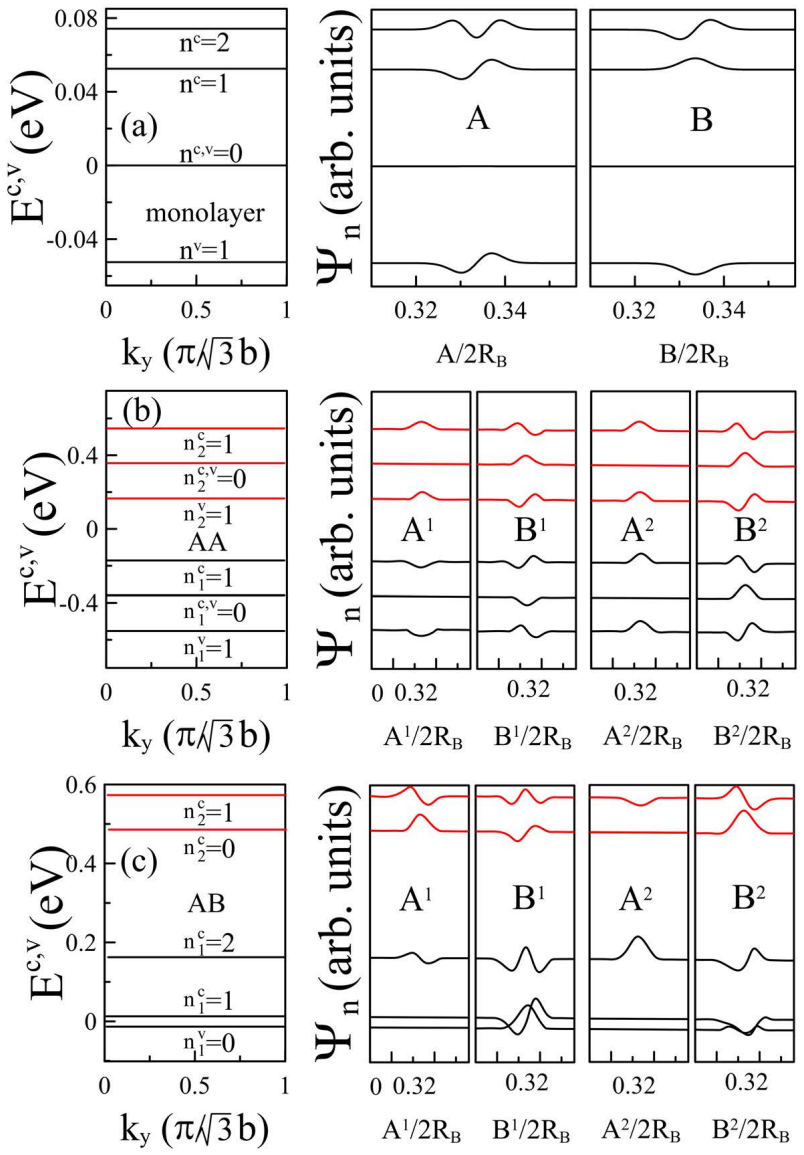

Figure 10. Figure 10: The Landau-level energies and subenvelope functions for the (a) monolayer [PITH_FULL_IMAGE:figures/full_fig_p041_10.png] view at source ↗
Figure 11

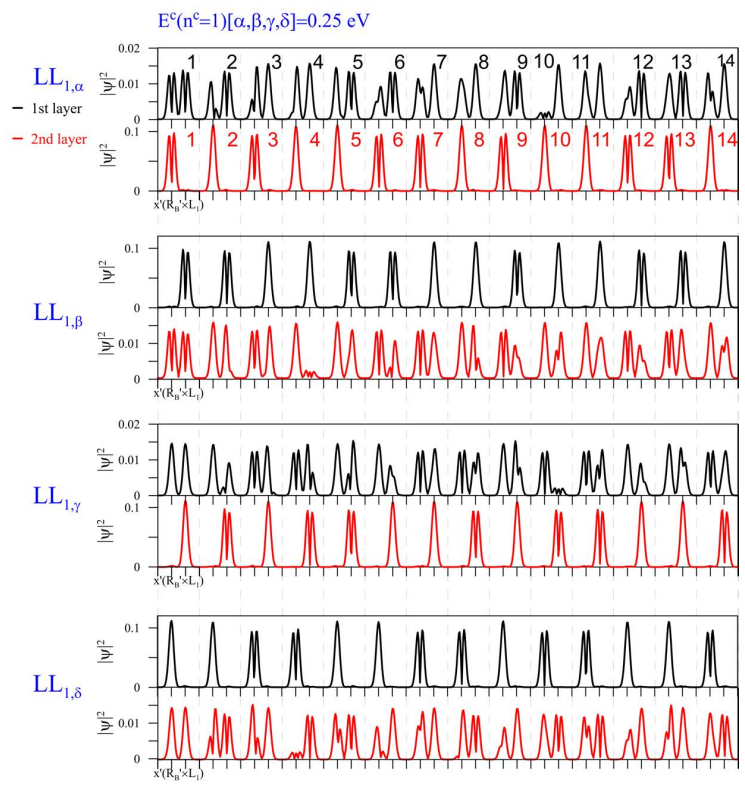

Figure 11. Figure 11: The magneto-electronic wave functions of the twisted (1,2) bilayer graphene, [PITH_FULL_IMAGE:figures/full_fig_p042_11.png] view at source ↗
Figure 13

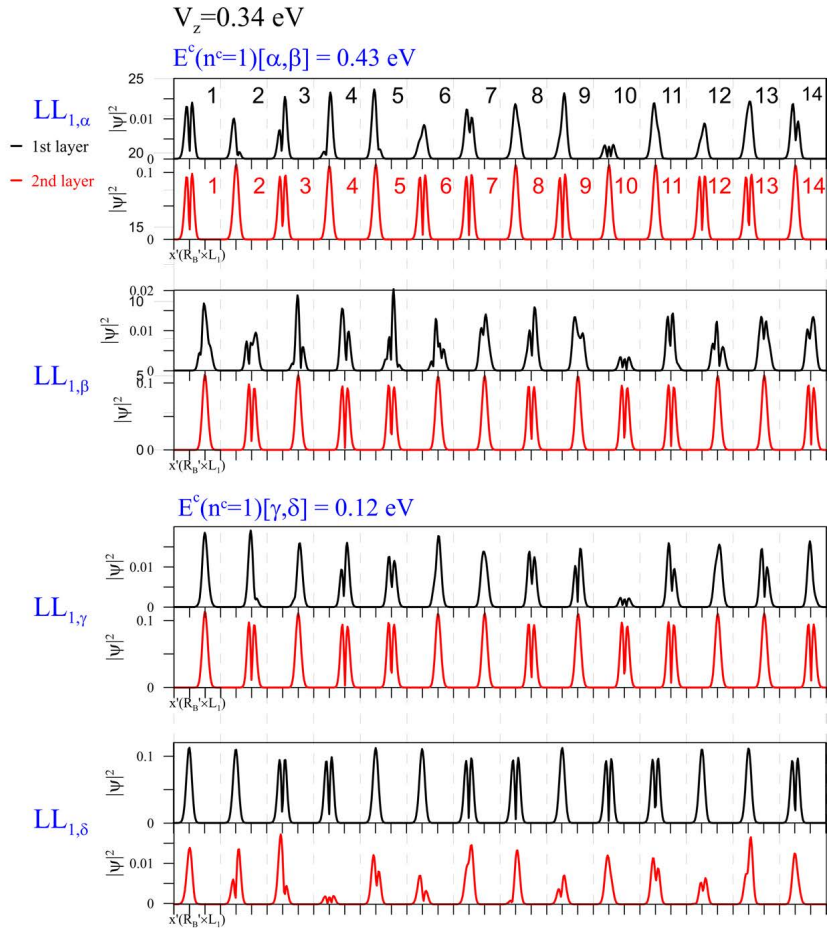

Figure 13. Figure 13: Similar plot as Fig. 11, while displayed under [PITH_FULL_IMAGE:figures/full_fig_p045_13.png] view at source ↗
Figure 14

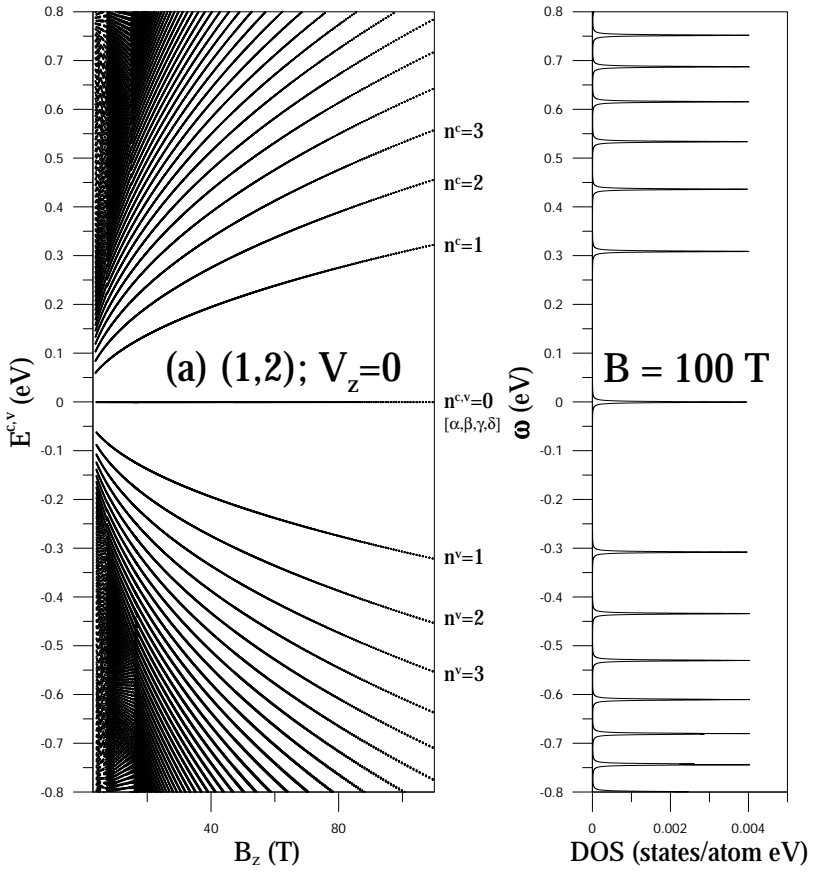

Figure 14. Figure 14: (a) The magnetic-field-dependent Landau-level energy spectrum of the (1,2) [PITH_FULL_IMAGE:figures/full_fig_p046_14.png] view at source ↗
Figure 15

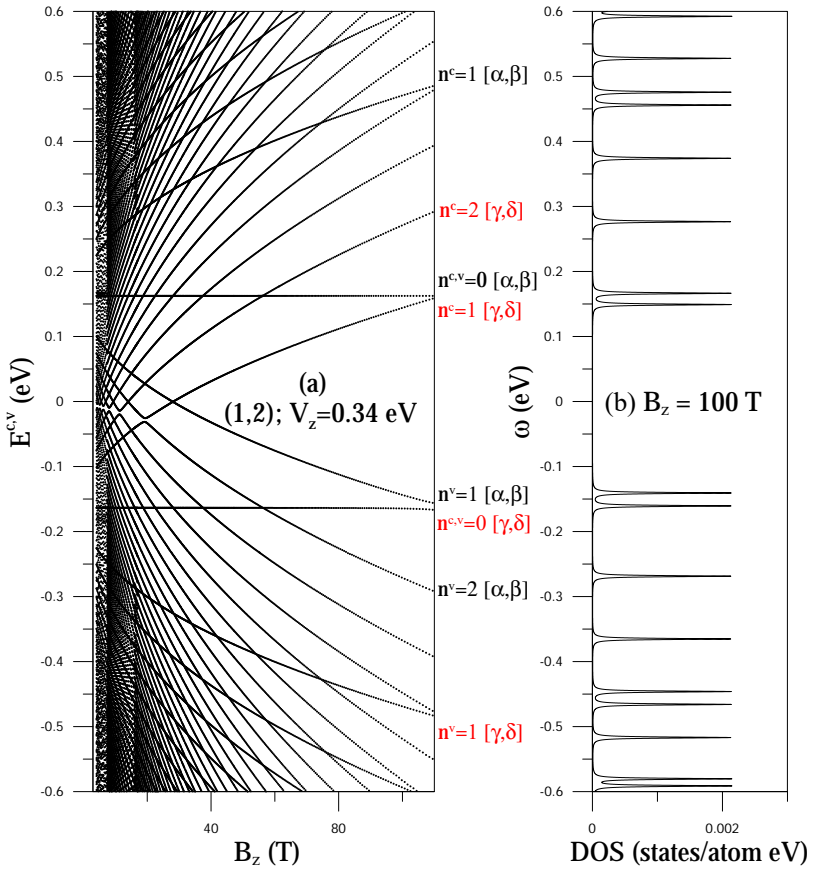

Figure 15. Figure 15: Similar plot as Fig. 14, but shown at (a) [PITH_FULL_IMAGE:figures/full_fig_p047_15.png] view at source ↗
Figure 16

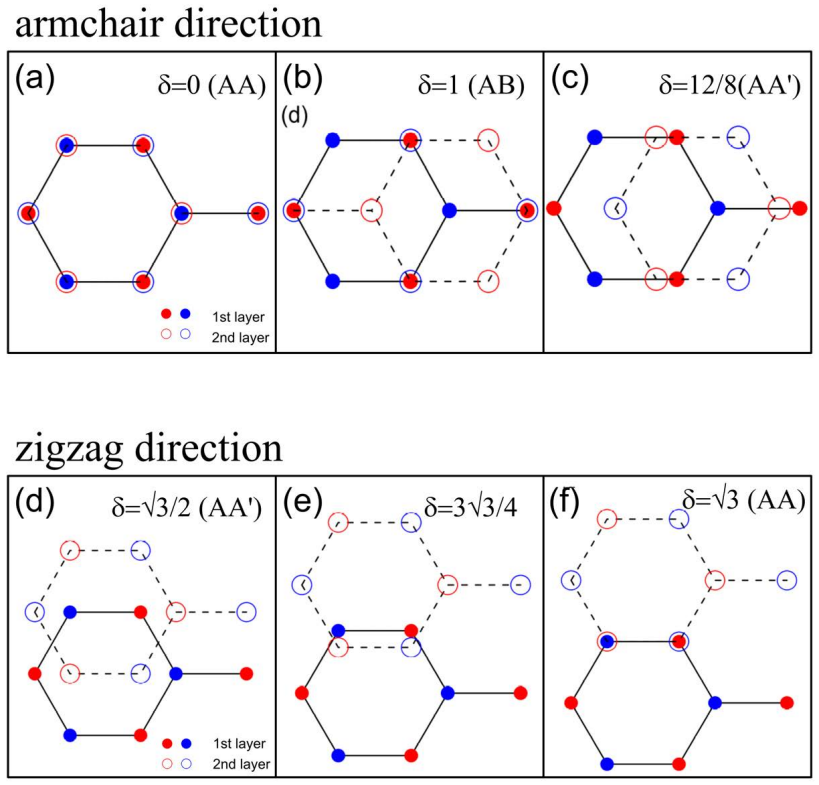

Figure 16. Figure 16: The sliding bilayer graphene systems with the relative shifts along the [PITH_FULL_IMAGE:figures/full_fig_p048_16.png] view at source ↗
read the original abstract

The generalized tight-binding model is developed to investigate the magneto-electronic properties in twisted bilayer graphene system. All the interlayer and intralayer atomic interactions are included in the Moire superlattice. The twisted bilayer graphene system is a zero-gap semiconductor with double-degenerate Dirac-cone structures, and saddle-point energy dispersions appearing at low energies for cases of small twisting angles. There exist rich and unique magnetic quantization phenomena, in which many Landau-level subgroups are induced due to specific Moire zone folding through modulating the various stacking angles. The Landau-level spectrum shows hybridized characteristics associated with the those in monolayer, and AA $\&$ AB stackings. The complex relations among the different sublattices on the same and different graphene layers are explored in detail.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a generalized tight-binding model that incorporates all interlayer and intralayer atomic interactions within the Moire superlattice of twisted bilayer graphene. It claims that the system is a zero-gap semiconductor featuring double-degenerate Dirac-cone structures, with saddle-point dispersions emerging at low energies for small twist angles. The work further asserts the existence of rich magnetic quantization phenomena, including multiple Landau-level subgroups induced by Moire zone folding upon varying the stacking angle, with the spectrum exhibiting hybridized characteristics associated with those of monolayer graphene and AA/AB stackings. The complex sublattice relations across layers are explored in detail.

Significance. If the single-particle calculations hold without significant many-body renormalizations, the results would offer a detailed account of how twist-angle-dependent Moire folding produces hybridized Landau-level subgroups, extending the understanding of magneto-electronic spectra in moire superlattices. The explicit inclusion of all hoppings is a positive feature of the approach.

major comments (2)
  1. [Model and results sections] The central claim that the generalized tight-binding model suffices to capture the low-energy spectrum and Landau-level hybridization rests on the unexamined assumption that many-body corrections can be neglected. This assumption is load-bearing for the reported saddle-point dispersions and subgroup structure at small twist angles, yet the manuscript provides no quantitative estimate or test of interaction effects in that regime.
  2. [Abstract and model description] No explicit Hamiltonian matrix elements, parameter values, or derivation of the Moire zone folding are supplied in a form that allows independent verification of whether the reported Landau-level subgroups are independent of input choices or reduce by construction to the model's definitions.
minor comments (2)
  1. [Abstract] Abstract: 'associated with the those in monolayer' contains a grammatical error and should read 'associated with those in monolayer'.
  2. [Introduction and discussion] The manuscript would benefit from a clear statement of the twist-angle range over which the saddle-point and subgroup claims are asserted, together with a comparison to existing literature on twisted bilayer graphene Landau levels.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address the two major comments point by point below, indicating the revisions we will implement.

read point-by-point responses

  1. Referee: [Model and results sections] The central claim that the generalized tight-binding model suffices to capture the low-energy spectrum and Landau-level hybridization rests on the unexamined assumption that many-body corrections can be neglected. This assumption is load-bearing for the reported saddle-point dispersions and subgroup structure at small twist angles, yet the manuscript provides no quantitative estimate or test of interaction effects in that regime.

    Authors: We agree that the calculations are performed strictly within the single-particle tight-binding approximation and that many-body effects are not quantified. The reported saddle points and hybridized Landau-level subgroups are obtained from the non-interacting model; the manuscript does not claim to include interaction renormalizations. A quantitative estimate of interaction strength would require additional many-body calculations outside the present scope. In the revised manuscript we will add an explicit statement in the introduction and a short paragraph in the discussion section clarifying that the results are single-particle only and noting the regime where interaction effects may become important. revision: partial

  2. Referee: [Abstract and model description] No explicit Hamiltonian matrix elements, parameter values, or derivation of the Moire zone folding are supplied in a form that allows independent verification of whether the reported Landau-level subgroups are independent of input choices or reduce by construction to the model's definitions.

    Authors: The Model section constructs the generalized tight-binding Hamiltonian by including all intralayer and interlayer hoppings on the Moire superlattice, with parameters taken from standard Slater-Koster values for carbon. The Moire zone folding follows directly from the commensurate supercell geometry for each twist angle. To enable independent verification we will add an appendix that lists the explicit Hamiltonian matrix elements (including the distance-dependent hopping functions) and provides a step-by-step derivation of the supercell construction and zone folding for representative angles. revision: yes

Circularity Check

0 steps flagged

No circularity: results are direct outputs of the stated tight-binding model

full rationale

The paper constructs a generalized tight-binding Hamiltonian that explicitly includes all interlayer and intralayer hoppings in the Moire superlattice, then diagonalizes it to obtain the zero-gap Dirac cones, saddle points, and Landau-level subgroups. These are computed quantities, not quantities defined in terms of themselves or obtained by fitting a subset and relabeling the fit as a prediction. No self-citation is invoked as a uniqueness theorem or to smuggle an ansatz; the derivation chain is self-contained within the model definition and its numerical solution. The single-particle approximation is an explicit modeling choice whose validity is external to the calculation itself.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; all such elements remain unknown.
