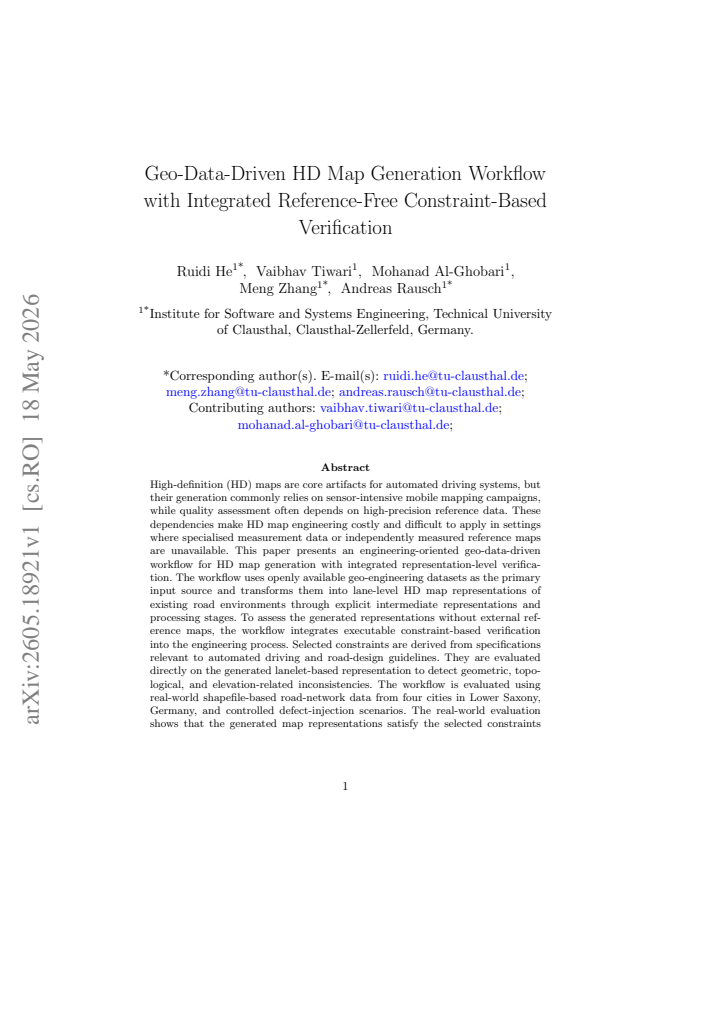

Geo-Data-Driven HD Map Generation Workflow with Integrated Reference-Free Constraint-Based Verification

Ruidi He , Vaibhav Tiwari , Mohanad Al-Ghobari , Meng Zhang , Andreas Rausch This is my paper

Pith reviewed 2026-05-20 09:57 UTC · model grok-4.3

classification 💻 cs.RO
keywords HD map generationgeo-dataconstraint-based verificationreference-freeautomated drivinglanelet representationshapefile processingdefect detection
0
0 comments X

The pith

A workflow turns open road shapefiles into lane-level HD maps and verifies them with built-in constraints that require no external references or heavy sensors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a complete engineering process that starts with publicly available geo-engineering shapefiles and produces detailed lane-level map representations suitable for automated driving. The process includes explicit conversion steps that create intermediate lanelet-based structures and then applies executable checks for geometric accuracy, topology, and elevation against rules drawn from driving specifications and road-design guidelines. Because the checks operate directly on the generated representation, they can flag problems without any separate high-precision reference map or additional sensor surveys. Evaluation on real shapefile data from four cities in Lower Saxony shows the output maps meet the chosen constraints, while separate tests that deliberately insert defects confirm the verification step catches every introduced error type with no false positives reported.

Core claim

The paper claims that open geo-engineering shapefile data can be transformed through a structured workflow into lane-level HD map representations, and that executable constraint-based verification integrated into the same workflow can detect geometric, topological, and elevation inconsistencies without external reference data. The generated representations satisfy the selected constraints in the evaluated real-world scenarios from four Lower Saxony cities, and controlled defect-injection experiments show complete detection of the considered defect types without observed false positives.

What carries the argument

The geo-data-driven workflow that converts shapefile road-network data into lanelet-based HD map representations and evaluates executable constraints directly on those representations to identify inconsistencies.

If this is right

  • HD map creation can proceed at lower cost in areas where open geo data exists and specialized mobile mapping is impractical.
  • Quality verification becomes feasible in settings that lack independently measured reference maps.
  • The modular stages allow targeted inspection and correction at each processing step using explicit, executable rules.
  • The approach can serve as a practical complement to sensor-intensive mapping pipelines when reference data or high-precision measurements are unavailable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same workflow structure could be tested on open road data published by other countries or states that use comparable shapefile formats.
  • Adding more constraint categories, such as traffic-sign placement rules or connectivity for dynamic elements, would extend the verification coverage without changing the core process.
  • Combining the initial data transformation steps with automated cleaning routines might reduce the need for manual review of input shapefiles.

Load-bearing premise

The openly available geo-engineering shapefile data from the four Lower Saxony cities already contains sufficient geometric and topological accuracy to serve as the primary input without systematic biases that would invalidate the downstream constraint checks.

What would settle it

Apply the workflow to shapefile data from additional cities or regions and check whether the generated maps fail the constraints or whether injected defects of the same types go undetected.

read the original abstract

High-definition (HD) maps are core artifacts for automated driving systems, but their generation commonly relies on sensor-intensive mobile mapping campaigns, while quality assessment often depends on high-precision reference data. These dependencies make HD map engineering costly and difficult to apply in settings where specialised measurement data or independently measured reference maps are unavailable. This paper presents an engineering-oriented geo-data-driven workflow for HD map generation with integrated representation-level verification. The workflow uses openly available geo-engineering datasets as the primary input source and transforms them into lane-level HD map representations of existing road environments through explicit intermediate representations and processing stages. To assess the generated representations without external reference maps, the workflow integrates executable constraint-based verification into the engineering process. Selected constraints are derived from specifications relevant to automated driving and road-design guidelines. They are evaluated directly on the generated lanelet-based representation to detect geometric, topological, and elevation-related inconsistencies. The workflow is evaluated using real-world shapefile-based road-network data from four cities in Lower Saxony, Germany, and controlled defect-injection scenarios. The real-world evaluation shows that the generated map representations satisfy the selected constraints in the evaluated scenarios, while the defect-injection study demonstrates complete detection of the considered defect types without observed false positives. The results indicate that geo-data-driven HD map generation with integrated executable verification can provide a modular and inspectable complement to sensor-intensive mapping workflows under reduced sensing and reference-data availability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes a geo-data-driven workflow that transforms open shapefile road-network data from four Lower Saxony cities into lanelet-based HD map representations. It integrates constraint-based verification using geometric, topological, and elevation constraints derived from automated driving and road-design specifications to enable reference-free quality assessment. The evaluation reports that generated maps satisfy the constraints and that controlled defect injection is fully detected without false positives.

Significance. If substantiated, this work could lower barriers to HD map creation for automated vehicles by leveraging existing municipal geo-data and built-in verification, serving as a complement to traditional sensor-based mapping. The explicit intermediate representations and executable constraints are positive aspects for modularity and inspectability.

major comments (2)
  1. [Evaluation] Evaluation section: The real-world evaluation claims that the generated map representations satisfy the selected constraints, but provides no quantitative metrics, error bars, violation counts, or details on constraint selection/implementation thresholds, weakening support for the central claim of usable reference-free verification.
  2. [Methods] Methods and evaluation: The defect-injection study only tests artificial defects added after generation; it does not address whether systematic biases in the primary open shapefile inputs (e.g., simplified topology or elevation inaccuracies typical of municipal GIS layers) propagate undetected through the transformation and satisfy the downstream constraints by construction.
minor comments (2)
  1. [Abstract] Abstract: Results are stated qualitatively ('satisfy the selected constraints', 'complete detection without observed false positives') without specific numbers or ranges, reducing clarity.
  2. [Workflow description] The paper could add a short discussion of how the lanelet intermediate representation handles common GIS data artifacts such as self-intersections or inconsistent elevation sampling.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's potential significance. We address the major comments point by point below, indicating planned revisions to improve the manuscript.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation section: The real-world evaluation claims that the generated map representations satisfy the selected constraints, but provides no quantitative metrics, error bars, violation counts, or details on constraint selection/implementation thresholds, weakening support for the central claim of usable reference-free verification.

    Authors: We agree that additional quantitative detail would strengthen the evaluation. In the revised manuscript we will expand the evaluation section to report the total number of constraints evaluated, explicit violation counts (zero across the tested maps), implementation thresholds for geometric, topological and elevation constraints, and aggregated statistics from the four Lower Saxony datasets. Where meaningful we will also include measures of variability to better support the claim of usable reference-free verification. revision: yes

  2. Referee: [Methods] Methods and evaluation: The defect-injection study only tests artificial defects added after generation; it does not address whether systematic biases in the primary open shapefile inputs (e.g., simplified topology or elevation inaccuracies typical of municipal GIS layers) propagate undetected through the transformation and satisfy the downstream constraints by construction.

    Authors: We acknowledge the scope limitation. The defect-injection experiments were designed to test detection of post-generation errors. Systematic biases in the municipal shapefile inputs that produce internally consistent representations satisfying the constraints would indeed remain undetected; this is an inherent property of any reference-free verification approach. In the revision we will add explicit discussion of this assumption, clarify how the selected constraints (derived from road-design guidelines and automated-driving specifications) mitigate but cannot fully eliminate such risks, and state the evaluation boundaries more precisely. revision: partial

Circularity Check

0 steps flagged

No load-bearing circularity; verification uses external constraints on independently generated representations.

full rationale

The paper presents an engineering workflow that ingests public Lower Saxony shapefiles, applies explicit transformation stages to produce lanelet representations, and then evaluates a separate set of geometric/topological/elevation constraints drawn from road-design guidelines and automated-driving specifications. These constraints are not shown to be fitted or redefined inside the paper; the defect-injection experiments add artificial post-generation defects and measure detection rates on the output. No equations, self-citations, or uniqueness theorems are invoked that would make the satisfaction claim equivalent to the generation process by construction. The derivation chain therefore remains self-contained against external benchmarks, warranting only a minimal score for possible unexamined input-data biases that lie outside the circularity criteria.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that publicly available shapefile road-network data is sufficiently complete and accurate for lane-level map generation and that the chosen constraints from automated driving specifications and road-design guidelines are both necessary and sufficient to detect relevant geometric, topological, and elevation inconsistencies.

axioms (2)
  • domain assumption Openly available geo-engineering shapefile datasets contain the necessary road geometry and attributes to derive lane-level HD map representations without additional sensor data.
    Invoked in the description of primary input source and transformation stages.
  • domain assumption Selected constraints derived from automated driving specifications and road-design guidelines are adequate to detect all relevant inconsistencies in the generated representations.
    Stated in the verification integration section of the abstract.
