Bit-ViP: Leveraging Bit-planes to Preserve Visual Privacy in Images through Obfuscation
Pith reviewed 2026-06-30 07:54 UTC · model grok-4.3
The pith
Bit-ViP obfuscates images via bit-plane modification with Lorenz chaotic noise and differential privacy to prevent reconstruction while preserving usability for activity recognition.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The Bit-ViP scheme produces secure, usable images by incorporating an innovative end-to-end obfuscation function. The obfuscated image contains non-invertible noise generated by Lorenz's chaotic system and differential privacy, making it hard for an adversary to reconstruct the original image.
What carries the argument

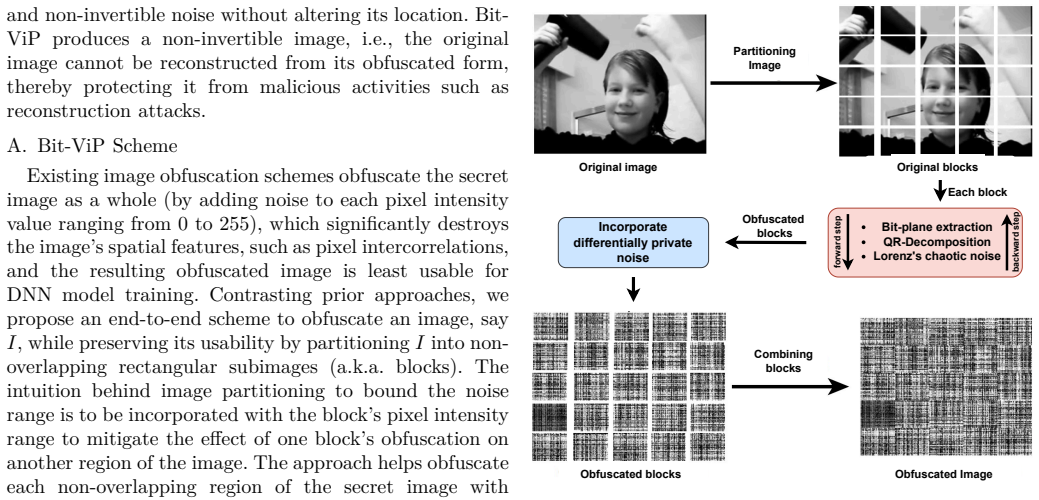

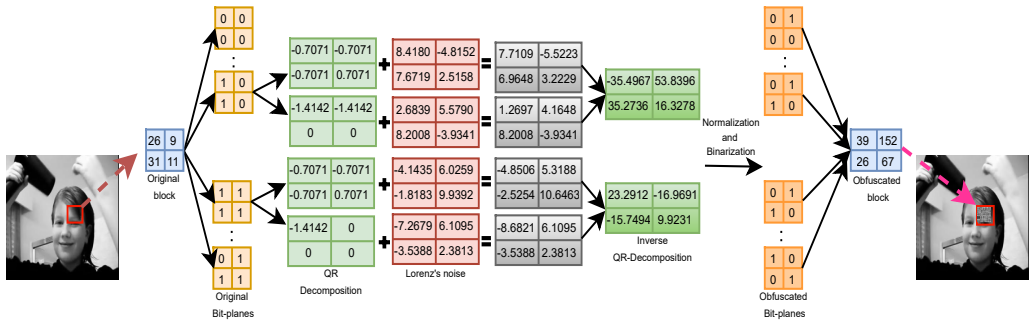

The end-to-end bit-plane obfuscation function that integrates Lorenz chaotic system noise and differential privacy to alter image bit-planes.
If this is right
- Obfuscated images from Bit-ViP can be stored on cloud servers without exposing original visual content to inversion attacks.

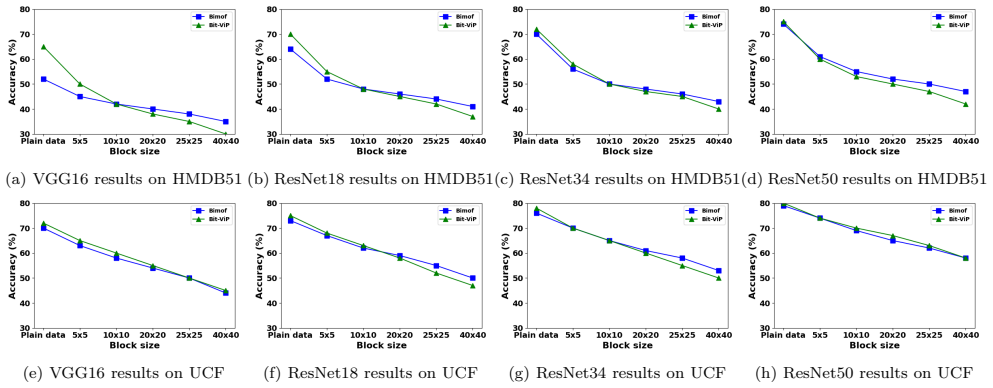

- Downstream models achieve reasonable accuracy on activity recognition after training on the obfuscated versions of UCF101 and HMDB51.

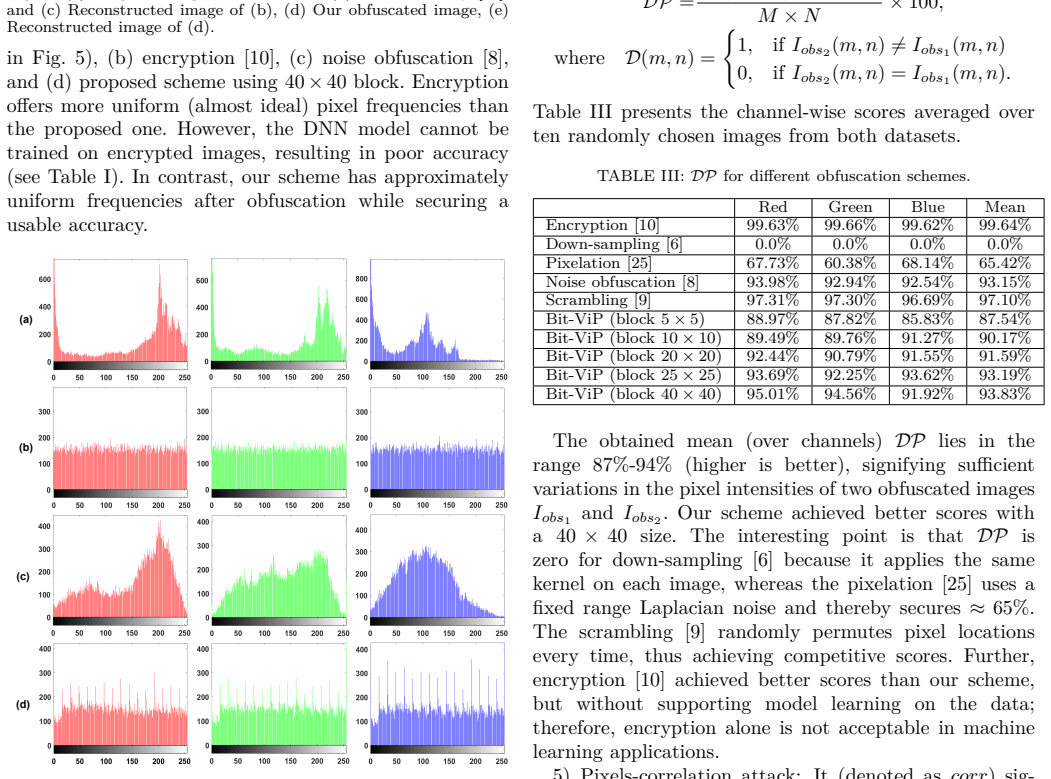

- Security holds against multiple attack vectors including pixel frequency analysis and information entropy measures.
- The approach improves on prior methods that either allow reconstruction or yield non-trainable images.
Where Pith is reading between the lines
- The method could extend to other vision tasks such as object detection if the bit-plane noise preserves enough structural features.
- Video sequences might benefit from applying the same per-frame obfuscation if temporal consistency is maintained.
- Parameter choices in the Lorenz system and privacy budget could be tuned further to trade privacy strength against task accuracy.
Load-bearing premise
The specific mix of bit-plane changes, Lorenz noise, and differential privacy keeps the images informative enough for activity recognition models yet non-invertible to the tested attacks.
What would settle it

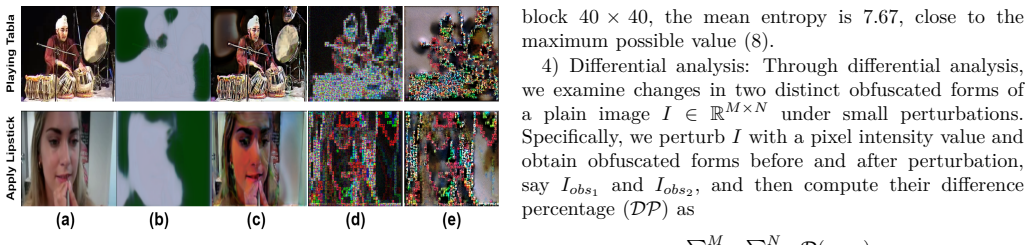

A successful high-fidelity reconstruction attack on Bit-ViP outputs from UCF101 or HMDB51, or activity recognition accuracy falling substantially below existing schemes on those datasets.
Figures
read the original abstract
The unprecedented growth of computer vision applications, such as surveillance systems and social media, raises security and visual privacy concerns, especially when data is stored on cloud servers. Image obfuscation offers a way to preserve visual privacy while maintaining an adequate level of usability; thus, it has been a topic of great interest in recent years. However, prior obfuscation schemes are either vulnerable to malicious attacks, such as model inversion to reconstruct original images from obfuscated images, or generate non-trainable obfuscated images, making them unusable for achieving reasonable accuracy. This paper proposes a novel bit-plane-based image obfuscation scheme, {\em Bit-ViP}, to preserve visual privacy for image-based recognition tasks. The Bit-ViP scheme produces secure, usable images by incorporating an innovative end-to-end obfuscation function. While doing so, the obfuscated image would contain non-invertible noise (generated by Lorenz's chaotic system and differential privacy), making it hard for an adversary to reconstruct the original image. We conduct extensive experiments on two popular activity recognition datasets, namely UCF101 and HMDB51, to validate the effectiveness of Bit-ViP. In the face of attacks on reconstruction, pixel frequency, information entropy, and pixel inter-correlation, we present a rigorous security analysis demonstrating tangible improvements over existing schemes.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes Bit-ViP, a novel bit-plane-based image obfuscation scheme incorporating an end-to-end function that adds non-invertible noise generated via Lorenz's chaotic system and differential privacy. It claims this produces secure yet usable obfuscated images for activity recognition, validated through extensive experiments on UCF101 and HMDB51 datasets, with a rigorous security analysis against reconstruction, pixel frequency, information entropy, and pixel inter-correlation attacks showing tangible improvements over prior schemes.
Significance. If the empirical claims hold with supporting quantitative evidence, the approach could provide a practical balance between visual privacy and downstream model usability in cloud-based computer vision applications, addressing limitations of existing obfuscation methods that are either attack-vulnerable or produce non-trainable outputs.
major comments (1)
- [Abstract] Abstract: The central claim of effectiveness rests on 'extensive experiments' and 'rigorous security analysis demonstrating tangible improvements,' yet the abstract supplies no quantitative metrics, error bars, accuracy numbers, dataset splits, or attack success rates; this absence is load-bearing for evaluating whether the non-invertibility and usability assertions are supported.
minor comments (1)
- The abstract contains LaTeX markup ({\em Bit-ViP}) that should be rendered as italics in the published version for readability.
Simulated Author's Rebuttal
We thank the referee for highlighting the need for quantitative support in the abstract. We agree this is a valid point and will revise the abstract accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim of effectiveness rests on 'extensive experiments' and 'rigorous security analysis demonstrating tangible improvements,' yet the abstract supplies no quantitative metrics, error bars, accuracy numbers, dataset splits, or attack success rates; this absence is load-bearing for evaluating whether the non-invertibility and usability assertions are supported.
Authors: We agree that the abstract would benefit from including key quantitative results to substantiate the claims. In the revised manuscript, we will incorporate specific metrics from our experiments, such as activity recognition accuracies on UCF101 and HMDB51 (with dataset splits), attack success rates for reconstruction and other attacks, and comparative improvements over baselines, along with any available error bars or statistical details. revision: yes
Circularity Check
No significant circularity
full rationale
The abstract and description present an empirical obfuscation scheme (bit-plane processing + Lorenz noise + differential privacy) validated by experiments on UCF101/HMDB51 against listed attacks. No equations, derivations, predictions, or first-principles claims appear that could reduce to inputs by construction. No self-citation chains, fitted parameters renamed as predictions, or ansatzes are visible. The central claim is an engineering construction whose security is asserted via independent empirical testing, not by algebraic identity or self-reference.
