Dora: Sampling and Benchmarking for 3D Shape Variational Auto-Encoders

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Sharp edge sampling lets a compact 3D shape auto-encoder match a dense one with an 8x smaller latent.

desk verdict Solid 3D VAE paper with a genuinely useful sampling idea, but the headline XCube comparison is not fully controlled and the benchmark is co-designed with the method. read the letter →

arxiv 2412.17808 v3 pith:WBFRFICA submitted 2024-12-23 cs.CV

Rui Chen , Jianfeng Zhang , Yixun Liang , Guan Luo , Weiyu Li , Jiarui Liu , Xiu Li , Xiaoxiao Long
show 2 more authors
Jiashi Feng Ping Tan
This is my paper · ORCID
classification cs.CV
keywords 3DshapeVAEsharpedgesamplingimportancelatentdiffusionoccupancyfieldsmeshreconstructionNormalErrorgeometrydetailbenchmark
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that uniform point sampling, the standard way to feed a 3D mesh to a shape auto-encoder, is the main reason reconstructed shapes lose fine geometry. It proposes Dora-VAE, which mixes uniformly sampled surface points with extra points concentrated along sharp edges and encodes the two groups with separate cross-attention branches before merging them. On the paper's own benchmark, Dora-VAE with 1,280 latent codes reconstructs detail at a level comparable to the dense XCube-VAE, which uses more than 10,000 codes. The paper also introduces Dora-bench and a Sharp Normal Error metric to score reconstruction specifically at salient geometric features. The paper concludes that compact latent spaces can support high-detail 3D diffusion generation without the detail loss normally associated with them.

What carries the argument

Sharp Edge Sampling (SES): identify mesh edges whose adjacent faces meet at a dihedral angle $\theta_e > \tau$ with $\tau=30^\circ$, collect their vertices, sample $N_{\mathrm{desired}}=16384$ salient points from that set (interpolating along edges when vertices are scarce), and union them with uniformly sampled points. Dual cross-attention: compute $C_u = \mathrm{CrossAttn}(P_s, P_u, P_u)$ and $C_a = \mathrm{CrossAttn}(P_s, P_a, P_a)$ with separate key/value sets for uniform and salient points, and sum the results, so the encoder can treat smooth and sharp regions differently. Dora-bench and SNE: classify test meshes into four detail levels by the count $N_\Gamma$ of sharp edges, and score reconstructions by the mean squared error between ground-truth and reconstructed rendered normal maps inside dilated Canny edge masks.

What would settle it

Build a test set of shapes whose important details are smooth or curved with no dihedral angles above 30 degrees and re-run the benchmark; if a uniform-sampling VAE matches or beats Dora-VAE there, the claim that sharp-edge sampling is what preserves detail would be falsified, and a threshold sweep over the angle and Canny parameters would show whether the benchmark's ranking is stable.

Watch

Extended reading notes

Core claim

The central claim is that reconstruction fidelity in vector-set 3D VAEs is bottlenecked by the surface sampling strategy, not by encoder capacity. Dora-VAE adds points sampled from edges whose adjacent-face dihedral angle exceeds 30 degrees, then runs separate cross-attention over the uniform and salient point sets and sums the resulting features before self-attention produces the latent code. With this sampling-plus-attention change, the model matches the dense volumetric XCube-VAE in reconstruction quality at a latent size at least 8x smaller (1,280 vs >10,000 codes), and a diffusion model trained on its latents preserves more geometry in single-image 3D generation than one trained on a uniform-sampling baseline. The paper presents Dora-bench as a sharper evaluation, grouping test shapes by sharp-edge count and measuring normal error only inside Canny-detected sharp regions.

Load-bearing premise

The central comparison relies on treating sharp corners (edges where the surface bends more than 30 degrees) as the definition of detail, and on blaming the dense baseline's lower scores on its mesh-extraction step rather than on the auto-encoder itself.

Editorial extensions

If this is right

  • Uniform point sampling, not model capacity, is the main source of lost geometric detail in vector-set 3D VAEs; replacing it with saliency-aware sampling recovers the detail.
  • Latent code length can drop from more than 10,000 to 1,280 without a reconstruction-quality penalty, removing a major obstacle to training latent diffusion models on these codes.
  • Evaluating reconstruction inside sharp-edge regions (SNE) and separately by complexity level exposes quality differences that global F-score or Chamfer distance hide.
  • A latent diffusion model built on Dora-VAE produces single-image 3D results with sharper geometry than one built on a uniform-sampling VAE under the same training budget.
  • Ablations show both components matter: removing SES and dual cross-attention, or removing only the dual attention, degrades reconstruction most on high-complexity shapes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Extension: because Dora-bench and SNE define detail with the same sharp-edge geometry that SES targets, the reported margins may shrink if detail is defined differently, such as by curvature or by surface texture boundaries.
  • Extension: the 8x comparison is against XCube as configured with NKSR mesh extraction; a dense baseline with a different extraction step could change the comparison, since the paper attributes part of XCube's lower scores to that step.
  • Extension: SES is a general mesh-sampling recipe that could be dropped into other point-based 3D networks besides VAEs; the paper only demonstrates it in the VAE and downstream diffusion setting.
  • Extension: SNE depends on rendering views and Canny thresholds, so sweeping those thresholds would test whether the benchmark's ranking is stable or an artifact of its parameter choices.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript presents Dora-VAE, a transformer-based 3D shape VAE built on 3DShape2VecSet, which replaces uniform surface sampling with a Sharp Edge Sampling (SES) strategy that concentrates points on edges with dihedral angle above τ=30, and encodes uniform and salient point sets with dual cross-attention. It also introduces Dora-bench, a benchmark that groups test shapes into four complexity levels based on the sharp-edge count N_Γ, and a Sharp Normal Error (SNE) metric computed as normal-map MSE in Canny-detected sharp regions. Experiments compare Dora-VAE with XCube, XCube fine-tuned on the same data, Craftsman, and 3DShape2VecSet on F-score, Chamfer distance, and SNE, and show a downstream image-to-3D application with a latent diffusion model.

Significance. The contribution is potentially useful: SES is simple, adds no extra inference parameters, and the ablation in Table 1 shows consistent gains over the uniform-sampling baseline, supporting the claim that both SES and dual cross-attention matter. The benchmark idea of stratifying by geometric complexity addresses a real gap in existing VAE evaluations. However, the headline comparison with XCube rests on an uncontrolled difference in mesh extraction, and the benchmark's complexity definition is aligned with the method's own saliency criterion. The absence of released code, data, benchmark annotations, and error bars is a further barrier to independent verification.

major comments (3)
  1. [Section 4.4 / Appendix B] The central claim of 'comparable reconstruction to XCube-VAE with an at least 8x smaller latent' is an end-to-end comparison over decoded meshes, but the two systems use different mesh-extraction pipelines. The paper attributes XCube's lower CD and SNE to 'its use of NKSR [24] for mesh extraction, which introduces additional quantization errors' (Section 4.4), yet no experiment controls for extraction. Please run both occupancy fields through the same iso-surface extraction, or apply NKSR to Dora-VAE's output, and report the same metrics. Without this, the '8x smaller latent' parity stated in the abstract cannot be assigned to the VAE itself.
  2. [Section 3.2.1 / Eq. (5) / Section 3.3.1] The evaluation framework is built on the same geometric-saliency definition that Dora-VAE is designed to exploit. Dora-bench complexity levels are thresholds on N_Γ computed with τ=30, which is exactly the threshold used by SES to define salient edges, and SNE restricts evaluation to Canny-detected sharp normal regions. Because the training loss is occupancy MSE, this is not a circular fit of the metric, but it does mean the reported margins are conditional on this sharp-edge notion of detail. Please report results on a random or unstratified test set and, if feasible, under alternative complexity definitions (e.g., curvature-based or local-feature-size based) to show the advantage is not specific to the N_Γ/τ=30 definition.
  3. [Section 4.1 / 4.2 / Table 1] No error bars, multi-seed statistics, or bootstrap intervals are reported, and no code, trained models, benchmark splits, or metric implementation are released. Several claimed advantages are small (e.g., SNE at Level 4: 1.579 vs 1.639 for XCube†; F-score(0.01) differences below 0.1 for L1–L3), so the quantitative conclusions are underdetermined without variance estimates. Please provide standard deviations across seeds or bootstrap over test shapes, and release the benchmark construction details so that Dora-bench can actually be used by the community.
minor comments (5)
  1. [Section 3.2.2 / 4.2] There are typos and grammatical slips: 'seperately' should be 'separately' (Section 3.2.2); Section 4.2 contains 'as as'; the F-score definition sentence is missing a verb: 'which reconstruction accuracy by computing...' should be 'which measures reconstruction accuracy by computing...'.
  2. [Table 1 / Table S2] The row grouping for 'Ours w/o DCA' and 'w/o SES, DCA' is visually confusing because the LCL values (256 vs 1280) are not aligned with clearly separated model names; please reformat so each configuration is a distinct, labeled row.
  3. [Appendix D] The limitations section lists only compression-efficiency challenges; it should also acknowledge the mesh-extraction confound in the XCube comparison and the metric-specific nature of Dora-bench, since both are directly relevant to interpreting the results.
  4. [Figure 4 / Section 3.3.2] The SNE pipeline is described only by a schematic; the text should state precisely how the Canny masks are dilated, how occluded or background pixels are excluded from the MSE computation, and whether the 22 viewpoints are the same for all shapes.
  5. [Project page] The paper provides a project-page link but no URL for code, benchmark data, or model weights; please include these so that the proposed benchmark and metric are reproducible.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central reconstruction claim is supported by independent F-score and Chamfer-distance metrics, and no derivation step reduces to its own inputs.

full rationale

The paper's key claims are empirical rather than derived, and the derivation chain does not reduce to its own inputs. Dora-VAE is trained by occupancy MSE (Eq. 12) on point clouds formed by SES; the headline comparison to XCube-VAE is evaluated with F-score (0.01/0.005), Chamfer distance, and SNE. F-score and CD are computed via Kaolin on 1M sampled points and are external to SES's dihedral-angle definition, so the central 8x-latent parity claim has independent content. SNE is not the training loss; it is rendered-normal MSE inside Canny-detected regions, and although it is conceptually aligned with SES's sharp-edge bias, the reported SNE gains are empirical rather than forced by construction. The one evaluation-design overlap is that Dora-bench's complexity levels use N_Gamma defined in Eq. (5), the same salient-edge count that SES targets; this is benchmark alignment, not a derivation step, and it does not make the main comparison circular because the model is not optimized for SNE and the general geometric metrics remain independent. The paper's attribution of XCube's lower scores to NKSR mesh-extraction quantization is an asserted confound without a controlled experiment, but this is an experimental-validity concern, not circularity. Self-citations (e.g., Craftsman, 3DShape2VecSet) are background methodology and motivation, not load-bearing justifications of the central claim. Appendix D's stated limitation about further reducing latent tokens is an honest scope note rather than a circular step.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central claims rest on hand-chosen thresholds (tau, Ndesired, level bins, Canny) and on the assumption that sharp-edge density is the correct complexity measure. No new physical or mathematical entities are introduced.

free parameters (4)
  • Ndesired (target salient point count) = 16384
    Hand-chosen balance between sharp-edge and uniform samples; affects reconstruction detail and training cost.
  • tau (dihedral angle threshold) = 30 degrees
    Defines which edges count as salient in SES and drives the complexity levels in Dora-bench; central to the method and benchmark.
  • Dora-bench level thresholds = 5000, 10000, 50000 edges
    Arbitrary bins for L1-L4 complexity; changes the reported per-level numbers.
  • Canny thresholds for SNE = low 20, high 200
    Chosen for detecting sharp regions in rendered normal maps; affects the SNE masks and therefore the ranking.
assumptions (4)
  • domain assumption Occupancy-field supervision with sampled surface points is a sufficient learning target for 3D shape VAE reconstruction.
    The method inherits this from 3DShape2VecSet [63] without re-deriving it.
  • domain assumption Improved VAE reconstruction quality transfers to improved downstream latent diffusion generation.
    Invoked in Section 1 and 5, citing [31, 62]; not proven in this paper.
  • ad hoc to paper Sharp-edge density, as measured by dihedral angle over tau, is the right notion of geometric complexity for evaluating VAEs.
    Used to build Dora-bench levels and to justify SES; without this assumption the benchmark and method lose their shared grounding.
  • standard math Standard components (FPS, Poisson disk sampling, cross-attention, Canny edge detection) behave as expected in this pipeline.
    Taken as validated tools from prior literature.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Dora: Sampling and Benchmarking for 3D Shape Variational Auto-Encoders." pith.science (2026). https://pith.science/paper/WBFRFICA

@misc{pith2026241217808,
  author       = {Pith},
  title        = {Pith review of: Dora: Sampling and Benchmarking for 3D Shape Variational Auto-Encoders},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WBFRFICA}},
  note         = {Machine review of arXiv:2412.17808}
}
abstract

Recent 3D content generation pipelines commonly employ Variational Autoencoders (VAEs) to encode shapes into compact latent representations for diffusion-based generation. However, the widely adopted uniform point sampling strategy in Shape VAE training often leads to a significant loss of geometric details, limiting the quality of shape reconstruction and downstream generation tasks. We present Dora-VAE, a novel approach that enhances VAE reconstruction through our proposed sharp edge sampling strategy and a dual cross-attention mechanism. By identifying and prioritizing regions with high geometric complexity during training, our method significantly improves the preservation of fine-grained shape features. Such sampling strategy and the dual attention mechanism enable the VAE to focus on crucial geometric details that are typically missed by uniform sampling approaches. To systematically evaluate VAE reconstruction quality, we additionally propose Dora-bench, a benchmark that quantifies shape complexity through the density of sharp edges, introducing a new metric focused on reconstruction accuracy at these salient geometric features. Extensive experiments on the Dora-bench demonstrate that Dora-VAE achieves comparable reconstruction quality to the state-of-the-art dense XCube-VAE while requiring a latent space at least 8$\times$ smaller (1,280 vs. > 10,000 codes).

Figures

Figures reproduced from arXiv: 2412.17808 by the authors.

Figure 1
Figure 1. Sampling strategy comparison. Given the ground truth mesh shown in (a), we visualize point clouds produced by uniform [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Overview of Dora-VAE. (a) We utilize the proposed sharp edge sampling technique to extract both salient and uni￾form points from the input mesh. These points are then com￾bined with dense points, effectively capturing both salient regions and smooth areas. (b) To enhance the encoding of point clouds sampled through sharp edge sampling, we design a dual cross￾attention architecture. While this method generates compac… view at source ↗
Figure 3
Figure 3. Our proposed benchmark include 3D shapes from the [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: The process of computing sharp normal errors (SNE). [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Qualitative comparison of the VAE reconstruction results. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6

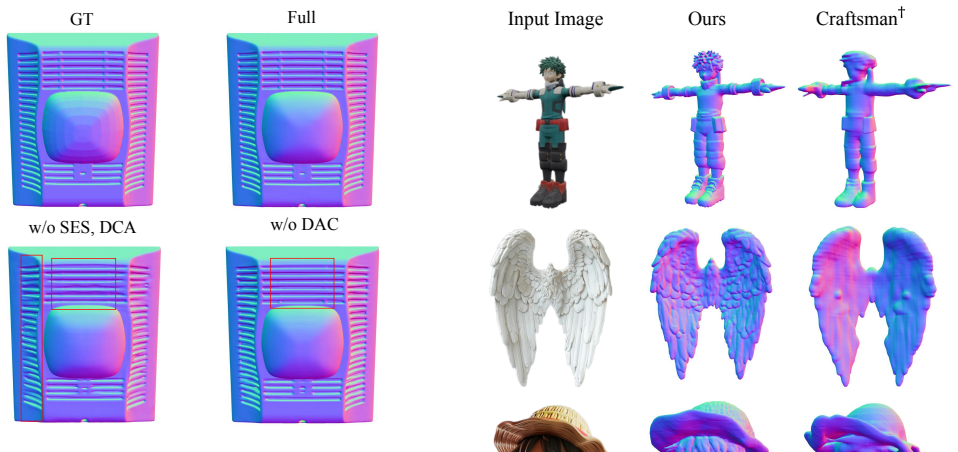

Figure 6. Figure 6: Ablation studies of our method. Given the ground truth [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
