KappaPlace: Learning Hyperspherical Uncertainty for Visual Place Recognition via Prototype-Anchored Supervision

Maya Yanko , Yoli Shavit This is my paper

Pith reviewed 2026-05-20 05:43 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords visual place recognitionuncertainty estimationvon Mises-Fisher distributionprototype supervisionaleatoric uncertaintycalibration errorhyperspherical embeddings
0
0 comments X

The pith

KappaPlace learns calibrated uncertainty for visual place recognition by supervising von Mises-Fisher descriptors against class prototypes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Visual place recognition systems must not only retrieve correct matches but also flag when a query is ambiguous or a match is unreliable. KappaPlace introduces prototype-anchored supervision that treats latent class representatives as targets in a probabilistic objective. Image descriptors are modeled as von Mises-Fisher variables on the hypersphere, and a lightweight module predicts the concentration parameter to serve as an aleatoric uncertainty signal. This yields a match-level reliability score rather than a query-only view. On five benchmarks the approach cuts expected calibration error by up to half while preserving or raising retrieval recall, and it works both in joint training and as a post-hoc addition to frozen backbones.

Core claim

The central claim is that anchoring supervision to class prototypes while modeling descriptors as von Mises-Fisher distributions produces concentration parameters that directly quantify match-level aleatoric uncertainty, delivering substantially lower calibration error than prior VPR methods without any post-hoc recalibration or access to ground-truth match labels at inference time.

What carries the argument

Prototype-anchored supervision, which uses latent class representatives as targets for a probabilistic objective to train a module that predicts the concentration parameter of von Mises-Fisher image descriptors.

If this is right

  • VPR pipelines can now reject or re-query ambiguous matches in real time using the learned uncertainty signal.
  • A match-level rather than query-only uncertainty formulation becomes available for downstream planning.
  • Existing frozen VPR backbones can be extended with the lightweight concentration predictor without retraining the entire model.
  • Calibration improvements hold across indoor, outdoor, and seasonal benchmark shifts while recall is maintained.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same prototype-anchored scheme could be applied to other hyperspherical embedding tasks such as face recognition or metric learning.
  • Robotics systems might use the uncertainty value to modulate exploration or fallback localization strategies.
  • If concentration parameters prove stable under domain shift, the method could reduce the need for frequent model recalibration in deployed navigation.

Load-bearing premise

Prototype-anchored supervision produces concentration parameters that are already well-calibrated measures of aleatoric uncertainty and require neither post-hoc recalibration nor ground-truth match correctness at inference.

What would settle it

Measure whether the predicted concentration parameters correlate with actual match error rates on held-out query-reference pairs; if the correlation is absent or expected calibration error stays comparable to baselines, the claim is falsified.

Figures

Figures reproduced from arXiv: 2605.19435 by Maya Yanko, Yoli Shavit.

Figure 1
Figure 1. Figure 1: Aggregated ECE@K calibration results across benchmarks. [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

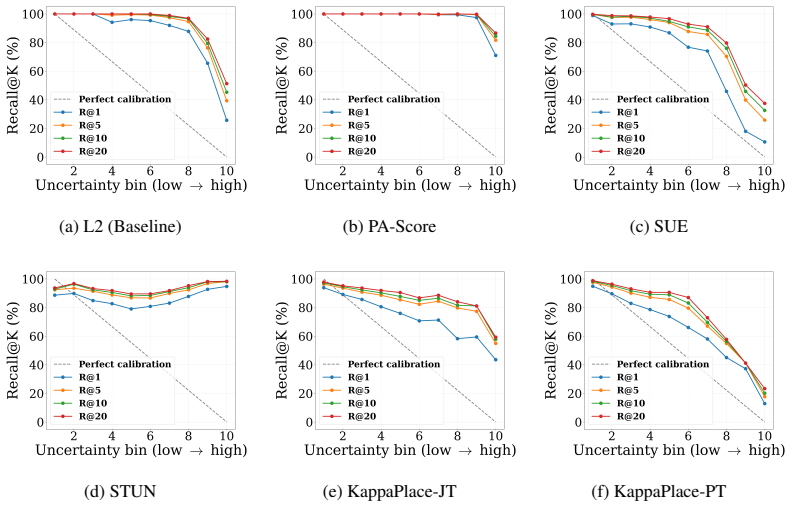

Figure 2. Figure 2: Aggregated Recall@K results across uncertainty-sorted bins. The diagonal represents [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

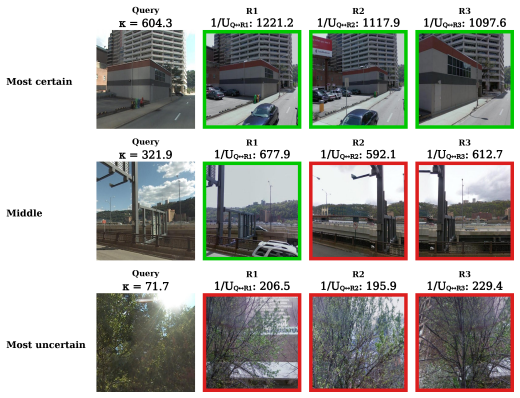

Figure 3. Figure 3: For three representative queries, we display the top-3 references ( [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 3
Figure 3. Figure 3: Match-level Confidence Analysis. Top-3 retrievals for queries with high, medium, and low [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Overview of the KappaPlace architecture during training and inference. [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
read the original abstract

Visual Place Recognition (VPR) is critical for autonomous navigation, yet state-of-the-art methods lack well-calibrated uncertainty estimation. Standard pipelines cannot reliably signal when a query is ambiguous or a match is likely incorrect, posing risks in safety-critical robotics. We propose KappaPlace, a principled framework for learning uncertainty-aware VPR representations. Our core contribution is a Prototype-Anchored supervision strategy that leverages latent class representatives as targets for a probabilistic objective. By modeling image descriptors as von Mises-Fisher (vMF) variables, we learn a lightweight module to predict the concentration parameter as a direct proxy for aleatoric uncertainty. While existing VPR uncertainty methods are typically restricted to a query-centric view, we derive a novel match-level formulation to quantify the reliability of specific query-reference pairs. Across five diverse benchmarks, KappaPlace reduces Expected Calibration Error (ECE@K) by up to 50% compared to existing methods while maintaining or improving retrieval recall. We provide both a joint-training variant and a post-training extension for frozen backbones. Our results demonstrate that KappaPlace provides a robust, stable, and well-calibrated signal that enables reliable decision-making within the VPR pipeline. Our code is available at: https://github.com/mayayank95/UncertaintyAwareVPR

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces KappaPlace, a framework for uncertainty-aware visual place recognition (VPR). It models descriptors as von Mises-Fisher (vMF) distributions on the hypersphere and proposes a prototype-anchored supervision strategy to train a lightweight module that predicts the concentration parameter kappa as a direct proxy for aleatoric uncertainty. A novel match-level formulation is derived to assess reliability of specific query-reference pairs. Experiments across five benchmarks report up to 50% reduction in Expected Calibration Error (ECE@K) relative to prior methods, while maintaining or improving retrieval recall; both joint-training and post-training (frozen-backbone) variants are presented, with code released.

Significance. If the calibration results hold under independent verification, the work addresses a practical gap in safety-critical VPR by supplying a stable, query-reference-specific uncertainty signal without post-hoc recalibration. The open-source code release is a clear strength that aids reproducibility and follow-up work.

major comments (2)
  1. [Evaluation section] Evaluation section (results on ECE@K): the reported reductions of up to 50% are load-bearing for the central claim, yet the manuscript provides no explicit statement on whether an independent calibration hold-out set was withheld from the kappa-prediction training or whether the positive/negative pairs used to compute ECE@K overlap with those seen during prototype-anchored supervision. This leaves open the possibility that kappa is optimized for the surrogate vMF or contrastive objective rather than true match-probability calibration.
  2. [§3 and §4] §3 (Prototype-Anchored Supervision) and §4 (Match-Level Formulation): the claim that kappa serves as a direct, well-calibrated proxy for aleatoric uncertainty rests on the modeling assumption that anchoring to class prototypes during training produces concentration values that generalize to query ambiguity and descriptor noise. The paper should supply a concrete diagnostic (e.g., correlation between predicted kappa and observed match error rates on a distribution-shifted test set, or comparison against isotonic recalibration) to rule out the alternative that kappa primarily encodes intra-class compactness of the training places.
minor comments (2)
  1. [Abstract / Introduction] The abstract states results on 'five diverse benchmarks' but does not name them; the introduction or experimental setup should list the datasets explicitly for immediate context.
  2. [Method] Notation for the vMF density and the match-level probability should be introduced once with a clear equation reference rather than scattered across sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's significance. We address each major comment below with clarifications based on the experimental setup and indicate the specific revisions planned for the next manuscript version.

read point-by-point responses

  1. Referee: [Evaluation section] Evaluation section (results on ECE@K): the reported reductions of up to 50% are load-bearing for the central claim, yet the manuscript provides no explicit statement on whether an independent calibration hold-out set was withheld from the kappa-prediction training or whether the positive/negative pairs used to compute ECE@K overlap with those seen during prototype-anchored supervision. This leaves open the possibility that kappa is optimized for the surrogate vMF or contrastive objective rather than true match-probability calibration.

    Authors: We thank the referee for this observation. The kappa-prediction module (whether trained jointly or post-hoc) uses only the training splits for prototype-anchored supervision. All ECE@K metrics are computed exclusively on the standard test splits of the five benchmarks, which are disjoint from training data and contain no pairs seen during supervision. To remove any ambiguity, we will add an explicit paragraph in the revised Evaluation section (Section 5) stating the data partitioning and confirming that calibration evaluation uses completely held-out test pairs. This is a clarification rather than a change to the results. revision: yes

  2. Referee: [§3 and §4] §3 (Prototype-Anchored Supervision) and §4 (Match-Level Formulation): the claim that kappa serves as a direct, well-calibrated proxy for aleatoric uncertainty rests on the modeling assumption that anchoring to class prototypes during training produces concentration values that generalize to query ambiguity and descriptor noise. The paper should supply a concrete diagnostic (e.g., correlation between predicted kappa and observed match error rates on a distribution-shifted test set, or comparison against isotonic recalibration) to rule out the alternative that kappa primarily encodes intra-class compactness of the training places.

    Authors: We agree that an explicit diagnostic would strengthen the justification for kappa as a generalizable uncertainty signal. While the existing multi-benchmark results already span datasets with distribution shifts, we will add the requested analyses in the revised manuscript: (i) Pearson correlation between predicted kappa and observed match error rates on held-out test sets, and (ii) a direct comparison against isotonic recalibration applied to the same descriptors. These will appear in an expanded Section 5.3 with accompanying figures. The additions are based on additional post-hoc analysis we have conducted and support the original claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper introduces a learning framework that models image descriptors as von Mises-Fisher variables and trains a lightweight module via prototype-anchored supervision to output the concentration parameter kappa, presented as a proxy for aleatoric uncertainty. A novel match-level formulation is derived from this probabilistic model to assess query-reference reliability. The reported ECE@K reductions are empirical results measured on five external benchmarks rather than quantities forced by construction from the training objective or any self-citation chain. No load-bearing step reduces a claimed prediction or first-principles result to an input by definitional equivalence, and the method includes both joint-training and post-training variants that remain falsifiable against held-out data.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that von Mises-Fisher concentration can be learned as a direct uncertainty proxy and that prototype anchors provide sufficient supervision without introducing bias in the calibration metric.

free parameters (1)
  • kappa prediction module weights
    The lightweight module that outputs the concentration parameter is trained and therefore contains fitted parameters.
axioms (1)
  • domain assumption Image descriptors can be modeled as vMF random variables on the hypersphere.
    Stated in the abstract as the modeling choice for descriptors.

pith-pipeline@v0.9.0 · 5763 in / 1338 out tokens · 29935 ms · 2026-05-20T05:43:40.999083+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    We model image descriptors as von Mises-Fisher (vMF) variables... learn a lightweight module to predict the concentration parameter κ as a direct proxy for aleatoric uncertainty... match-level uncertainty UQ↔R = 1 / sqrt(κQ² + κR² + 2 κQ κR (zQ⊤ zR))

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
