arxiv: 2606.26029 · v1 · pith:XOFUYOZLnew · submitted 2026-06-24 · 💻 cs.CV · cs.AI

TriViewBench: Controlled Complexity Scaling for Multi-View Structural Reasoning in MLLMs

Yu-Yang Chen , Lan-Zhe Guo This is my paper

Pith reviewed 2026-06-25 19:18 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords multimodal large language modelsmulti-view reasoningvisual benchmarkstructural complexitychain-of-thought promptingspatial representationocclusion handling
0
0 comments X

The pith

All 18 MLLMs follow the same task hierarchy and degrade sharply on multi-view global recovery as scene complexity increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates TriViewBench from synthetic 3D scenes that vary object count and occlusion in a controlled way to test multi-view structural reasoning in MLLMs. It runs 18 models through tasks in three categories and four complexity levels and finds every model ranks local decisions highest, then object counting, then global recovery. Performance falls steadily with added complexity, single-view counting errs by missing hidden objects while multi-view counting errs by double-counting the same object, and chain-of-thought prompting changes overall scores by almost nothing. The pattern points to a shared limit in building consistent spatial representations across views rather than in reasoning steps themselves.

Core claim

All 18 models exhibit an identical capability hierarchy without exception (Local Decision > Object Counting > Global Recovery), performance degrades monotonically with complexity, and Chain-of-Thought prompting yields near-zero overall benefit, suggesting the bottleneck lies in cross-view spatial representation rather than reasoning strategy.

What carries the argument

TriViewBench, a benchmark of 1,923 synthetic 3D scenes and over 14K QA pairs organized into four complexity levels and three reasoning categories: Local Decision, Object Counting, and Global Recovery.

If this is right

  • Local Decision tasks decline only modestly with complexity while Object Counting drops 59 percent and Global Recovery drops 80 percent.
  • Single-view counting fails mainly through undercounting from occlusion, whereas the multi-view version fails through overcounting from identity confusion across views.
  • Chain-of-thought prompting has negligible overall effect and its small benefit on global tasks appears only for stronger base models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the hierarchy is universal, then simply increasing model scale is unlikely to resolve multi-view spatial failures without changes to how views are integrated.
  • Applications that need 3D scene understanding from multiple images, such as navigation or inspection, would inherit the same counting and recovery limits observed here.
  • Extending the benchmark to real photographs or adding temporal views could test whether the same failure modes and ordering persist outside synthetic scenes.

Load-bearing premise

Synthetic 3D scenes with explicit control over object count and occlusion, together with a unified prompting protocol, produce measurements that generalize to real-world multi-view structural reasoning in MLLMs.

What would settle it

Finding even one model that ranks the three task categories in a different order or shows large gains from chain-of-thought prompting on global recovery tasks would falsify the universal hierarchy and bottleneck claim.

Figures

Figures reproduced from arXiv: 2606.26029 by Lan-Zhe Guo, Yu-Yang Chen.

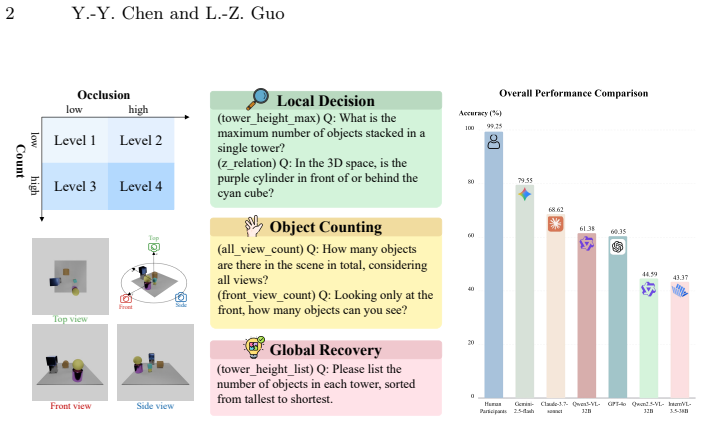

Figure 1
Figure 1. Figure 1: Overview of TriViewBench. Left: Four complexity levels defined by object count and occlusion density with three-view rendering. Center: Examples of questions in three reasoning categories (Local Decision, Object Counting, and Global Recovery). Right: Overall performance comparison between humans and representative MLLMs. visual cues [22, 27, 28]. Whether current MLLMs can maintain this level of rea￾soning … view at source ↗

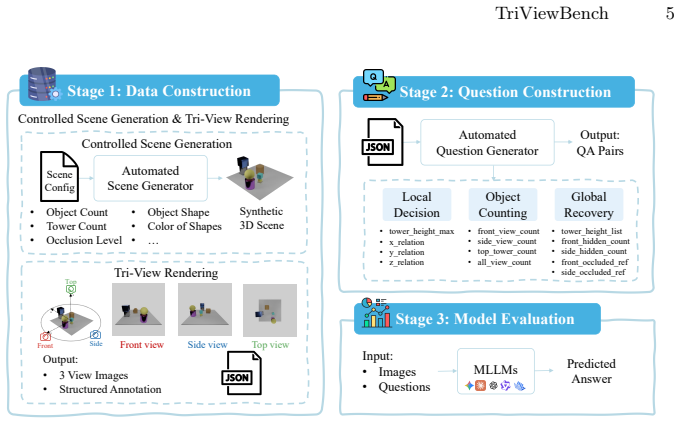

Figure 2
Figure 2. Figure 2: Illustration of the TriViewBench construction pipeline. The workflow comprises three main stages: (1) Data Construction: generating synthetic 3D scenes from pa￾rameterized configs and rendering three-view images with structured annotations; (2) Question Construction: automatically synthesizing QA pairs across three reasoning Categories (Local Decision, Object Counting, and Global Recovery) based on scene m… view at source ↗

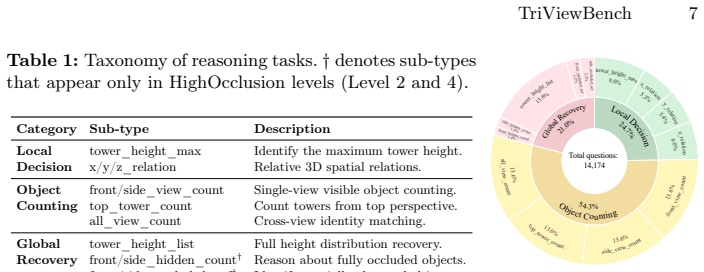

Figure 3
Figure 3. Figure 3: Task distribution. 3.2 Overview of TriViewBench TriViewBench contains 14,174 QA pairs spanning 13 reasoning sub-types orga￾nized into three categories. The task taxonomy is summarized in Tab. 1, and the distribution across categories is shown in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

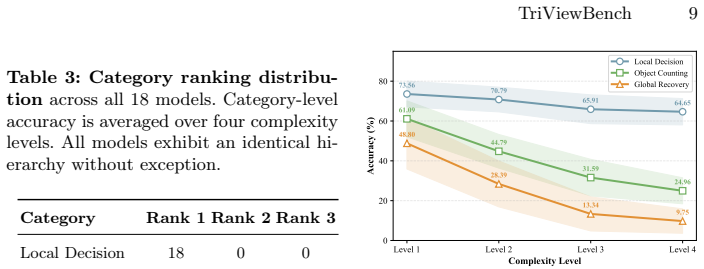

Figure 4
Figure 4. Figure 4: Category-level performance. Lines: average accuracy over 18 MLLMs; Shaded areas: 95% confidence intervals. Level 4. At Level 1, several models exceed 85% accuracy; by Level 4, most fall below the mid-40% range. Human performance remains near ceiling, exposing a persistent gap. Human participants maintain high accuracy across all levels, revealing that the structural challenges in our benchmark are well wit… view at source ↗

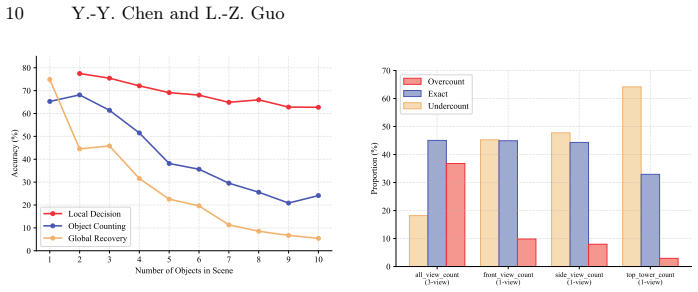

Figure 5
Figure 5. Figure 5: Accuracy vs. Object Count per Reasoning Category. all_view_count (3-view) front_view_count (1-view) side_view_count (1-view) top_tower_count (1-view) 0 10 20 30 40 50 60 70 Proportion (%) Overcount Exact Undercount [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

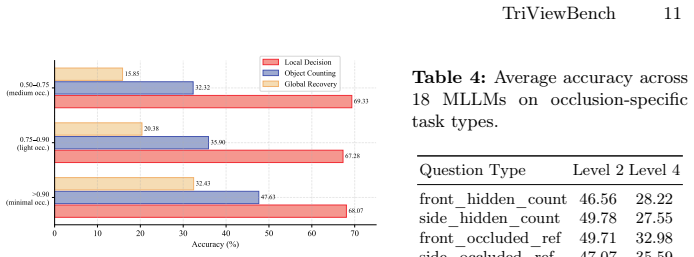

Figure 7
Figure 7. Figure 7: Accuracy by scene-level visibility ratio [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

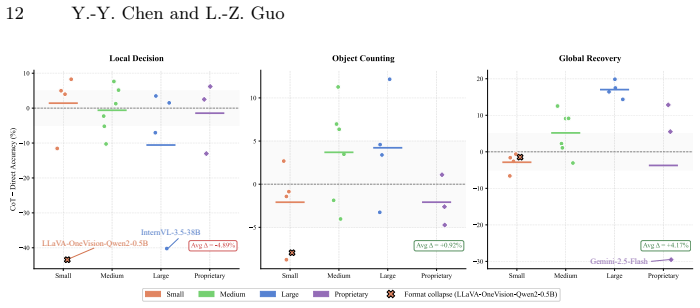

Figure 8
Figure 8. Figure 8: CoT − Direct accuracy gap by reasoning category and model scale. Each point is one model; horizontal bars show group means (format-collapsed models excluded from means). For open-source models, Small denotes models with less than 3B parameters, Medium refers to those with 4B–8B parameters, and Large indicates models with 14B parameters or more. by the occlusion state of other scene objects. Object Counting… view at source ↗
read the original abstract

Multimodal Large Language Models (MLLMs) demonstrate strong performance on standard visual question answering benchmarks, yet their scalability under controlled structural complexity remains poorly understood. We introduce TriViewBench, a controlled three-view visual reasoning benchmark constructed from synthetic 3D scenes with explicitly parameterized object count and occlusion. The benchmark contains 1,923 scenes and over 14K Question-Answer (QA) pairs organized into four complexity levels and three reasoning categories: Local Decision, Object Counting, and Global Recovery. We evaluate 18 open- and closed-source MLLMs under a unified prompting protocol. All 18 models exhibit an identical capability hierarchy without exception (Local Decision > Object Counting > Global Recovery), and performance degrades monotonically with complexity: Local Decision tasks decline modestly (12.11% relative drop), while Object Counting degrades substantially (59.14%) and Global Recovery collapses severely (80.02%). Error analysis on Object Counting reveals two mechanistically independent failure modes: single-view tasks are dominated by undercounting due to occlusion blindness, whereas the multi-view task reverses to overcounting due to cross-view identity confusion. Chain-of-Thought (CoT) prompting yields near-zero overall benefit ($\Delta = -0.16\%$) and its effect on Global Recovery is strongly capability-gated, suggesting that the bottleneck lies in cross-view spatial representation rather than reasoning strategy. These findings reveal fundamental scalability limitations in current MLLMs and position TriViewBench as a controlled diagnostic framework for analyzing structural reasoning failures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces TriViewBench, a controlled synthetic three-view benchmark with 1,923 scenes and over 14K QA pairs across four complexity levels and three reasoning categories (Local Decision, Object Counting, Global Recovery). It evaluates 18 MLLMs under a unified prompting protocol, reporting an identical capability hierarchy without exception, monotonic performance degradation with complexity (modest for Local Decision, severe for Global Recovery), two independent error modes in counting (occlusion blindness vs. identity confusion), and near-zero overall benefit from Chain-of-Thought prompting (Δ = -0.16%), concluding that the bottleneck is cross-view spatial representation rather than reasoning strategy.

Significance. If the synthetic results hold and generalize, TriViewBench supplies a reproducible, parameterized diagnostic for isolating structural reasoning failures in MLLMs, with the reported error-mode separation and CoT ineffectiveness offering concrete targets for architectural improvements in multi-view spatial encoding.

major comments (1)
  1. [Abstract] Abstract: the central claim of 'fundamental scalability limitations in current MLLMs' and the assertion that the bottleneck 'lies in cross-view spatial representation rather than reasoning strategy' rest exclusively on results from the synthetic generation process with explicit object-count and occlusion parameterization. No transfer experiments on real multi-view imagery (variable lighting, texture, non-parametric occlusions) are described, so it remains possible that the observed hierarchy, monotonic degradation, and CoT Δ = -0.16% do not generalize, undermining the scope of the conclusion.
minor comments (2)
  1. [Abstract] The precise construction details of the four complexity levels and the three reasoning categories (including how occlusion and object count are parameterized) are referenced but not expanded in the provided abstract; a methods subsection or supplementary table would improve reproducibility.
  2. [Abstract] The abstract states 'all 18 models exhibit an identical capability hierarchy without exception'; if a supplementary table or figure lists per-model scores, it should be cross-referenced here to allow direct verification of the 'without exception' claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for highlighting the important issue of generalization from our synthetic benchmark. We address the concern directly below and propose a targeted revision to better scope our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of 'fundamental scalability limitations in current MLLMs' and the assertion that the bottleneck 'lies in cross-view spatial representation rather than reasoning strategy' rest exclusively on results from the synthetic generation process with explicit object-count and occlusion parameterization. No transfer experiments on real multi-view imagery (variable lighting, texture, non-parametric occlusions) are described, so it remains possible that the observed hierarchy, monotonic degradation, and CoT Δ = -0.16% do not generalize, undermining the scope of the conclusion.

    Authors: We agree that the manuscript contains no experiments on real multi-view imagery and that this limits the direct generalizability of the quantitative results. TriViewBench was intentionally designed as a fully synthetic, parametrically controlled benchmark precisely to isolate the effects of object count and occlusion—factors that cannot be independently varied in real data without confounding variables. The identical capability hierarchy across all 18 models (including both open- and closed-source) and the separation of the two counting error modes provide internal evidence that the failures are not artifacts of the particular synthetic renderer. Nevertheless, the referee is correct that the abstract's phrasing of 'fundamental scalability limitations in current MLLMs' and the bottleneck conclusion could be read as applying beyond the synthetic regime. We will therefore revise the abstract to qualify the claims as holding 'under controlled synthetic multi-view conditions' and add an explicit limitations paragraph discussing the need for future real-world validation. This is a partial revision: we cannot add new real-image experiments, but we can and will adjust the scope and framing of the conclusions. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical benchmark evaluation with direct model measurements

full rationale

The paper introduces TriViewBench as a new synthetic dataset with parameterized scenes and reports direct evaluation results across 18 MLLMs under fixed prompting. No equations, fitted parameters, or derived predictions appear; the hierarchy, monotonic degradation, error modes, and CoT Δ = −0.16% are measured outputs, not inputs renamed or self-referentially defined. No self-citation chains, uniqueness theorems, or ansatzes are invoked to justify the core claims. The work is self-contained against external benchmarks via explicit construction and unified protocol.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the assumption that the synthetic scenes and prompting protocol isolate genuine model limitations rather than artifacts of data generation or evaluation design.

axioms (1)
  • domain assumption Synthetic 3D scenes with parameterized object count and occlusion accurately reflect the structural reasoning demands placed on MLLMs in real applications.
    Invoked to generalize the observed performance hierarchy and failure modes beyond the benchmark itself.

pith-pipeline@v0.9.1-grok · 5805 in / 1310 out tokens · 27759 ms · 2026-06-25T19:18:32.823816+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
