Deep Learning for CSI Feedback Based on Superimposed Coding

Pith reviewed 2026-05-24 15:13 UTC · model grok-4.3

classification 💻 cs.NI cs.ITcs.LGmath.IT
keywords CSI feedbacksuperimposed codingdeep learningmassive MIMOmulti-task neural networkMMSEFDD
0
0 comments X

The pith

A multi-task neural network trained at one SNR and power coefficient improves downlink CSI estimation from superimposed signals while maintaining uplink data detection across varying conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper combines deep learning with superimposed coding to reduce uplink bandwidth usage for CSI feedback in massive MIMO FDD systems. It proposes a multi-task NN at the base station that unfolds two MMSE iterations to jointly recover downlink CSI and uplink user sequences. Trained subnet-by-subnet at a fixed SNR and PPC, this network is shown to outperform standalone SC methods in CSI accuracy with comparable or better UL-US detection even when SNR and PPC change.

Core claim

By unfolding two iterations of the MMSE criterion-based interference reduction into a multi-task neural network architecture and training it subnet-by-subnet, the network recovers downlink CSI and UL-US from superimposed signals, and when trained at a specific SNR and PPC, it consistently improves downlink CSI estimation with similar or better UL-US detection under varying SNR and PPC compared to standalone SC-based CSI scheme.

What carries the argument

The multi-task neural network that unfolds two MMSE iterations for interference reduction, allowing joint recovery of CSI and user data.

If this is right

  • Reduces the occupation of uplink bandwidth resources for CSI feedback in massive MIMO.
  • Improves estimation accuracy of downlink CSI without sacrificing uplink user data detection.
  • Enables the use of superimposed coding with deep learning to handle varying channel conditions without retraining.
  • Facilitates parameter tuning and faster convergence through subnet-by-subnet training.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach could reduce the need for frequent retraining in dynamic wireless environments.
  • Similar unfolding techniques might apply to other interference cancellation problems in communications.
  • The method suggests that learned interference reduction can generalize better than traditional iterative methods across parameter ranges.

Load-bearing premise

That a network unfolding exactly two MMSE iterations trained at one SNR and PPC will generalize to other SNR and PPC values without retraining.

What would settle it

Testing the multi-task NN on a range of SNRs and PPCs different from the training values and checking if CSI estimation error increases or UL-US detection worsens compared to the standalone SC scheme.

Figures

Figures reproduced from arXiv: 1907.11836 by Bin Cai, Chaojin Qing, Chuan Huang, Jiafan Wang, Qingyao Yang.

Figure 1
Figure 1. Figure 1: FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: 1) NETWORK FUNCTION SUMMARY For ease of description, we denote four subnets as CSI-NET1, DET-NET1, CSI-NET2, and DET-NET2, respectively. The functionality of the network components is summarized as follows: • CSI-NETi corresponds to the MMSE estimation of downlink CSI (i.e., (3) in SC-baseline), while i = 1, 2 represents the first and second iteration, respectively. • DET-NET1 and DET-NET2 respectively det… view at source ↗

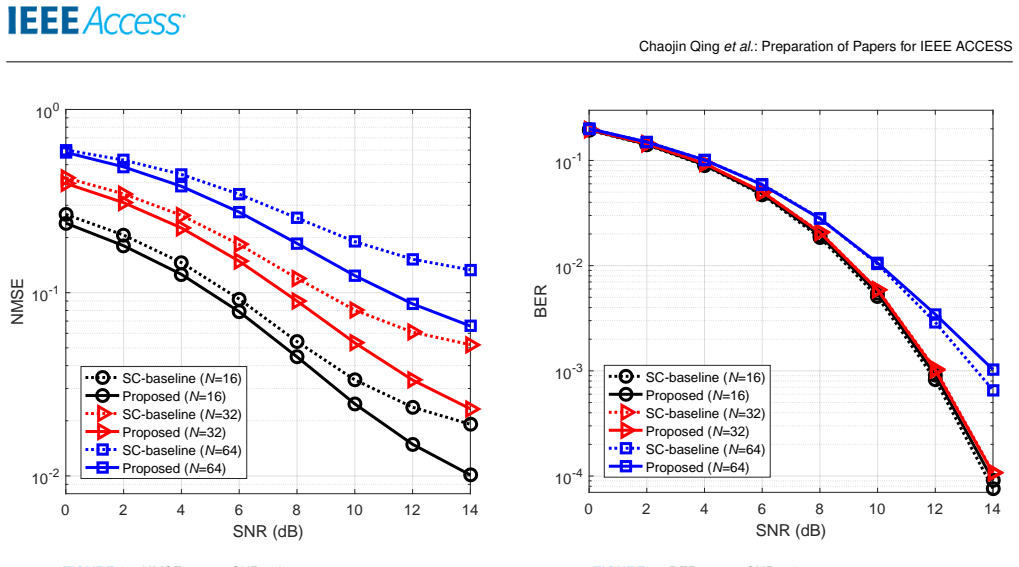

Figure 3
Figure 3. Figure 3: shows that the NMSE of each model (i.e., N = 16, N = 32, and N = 64) outperforms the SC-baseline, especially at high SNR. Although SNR = 5dB is adopted in training phase, the three trained network models work well in the entire SNR span varying from 0dB to 14dB. Thus, it is obvious that the designed and trained subnets (i.e., CSI￾NET1 and CSI-NET2) have a good generalization ability for 0 2 4 6 8 10 12 14 … view at source ↗
Figure 10
Figure 10. Figure 10: Note that, from Fig. 5 to Fig. 10, the NN training [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

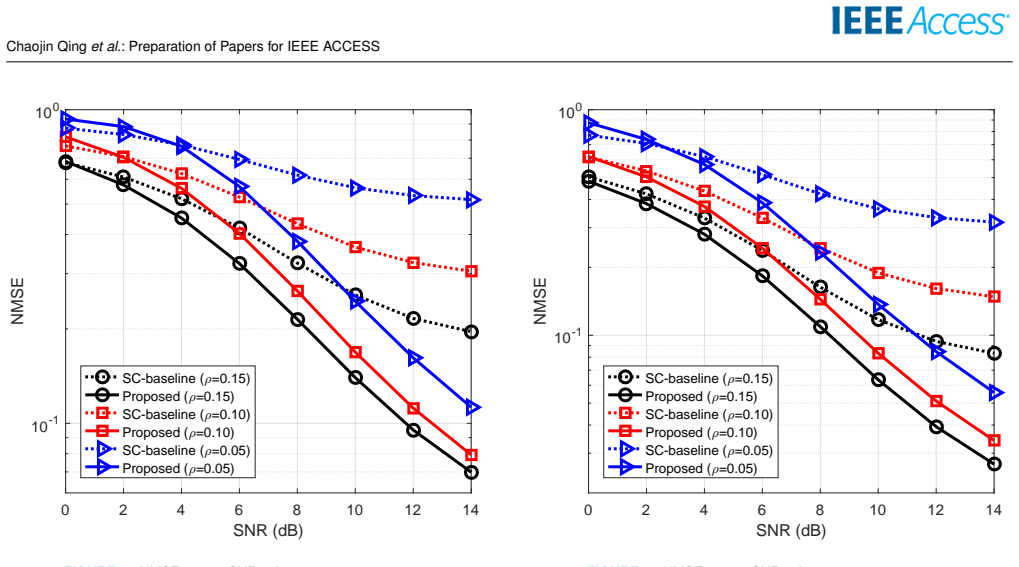

Figure 5
Figure 5. Figure 5: FIGURE 5 [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

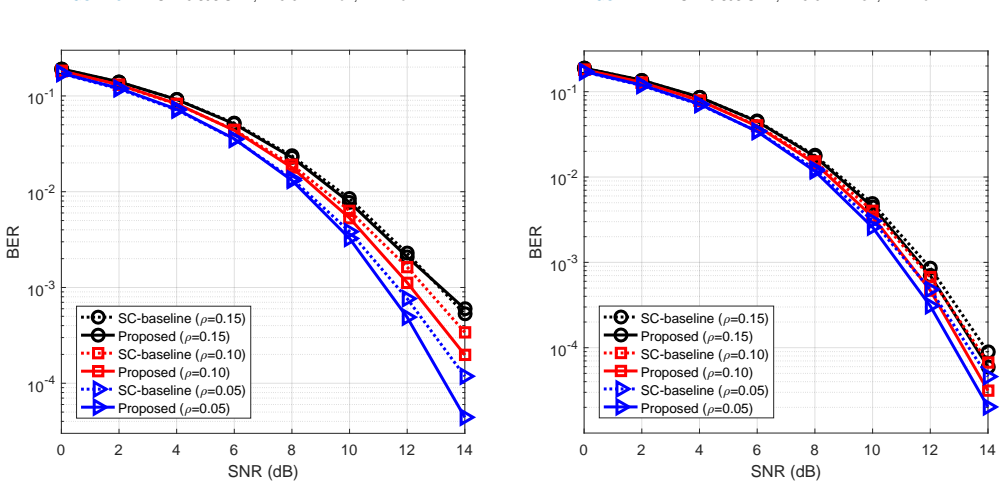

Figure 6
Figure 6. Figure 6: FIGURE 6 [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIGURE 9 [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗

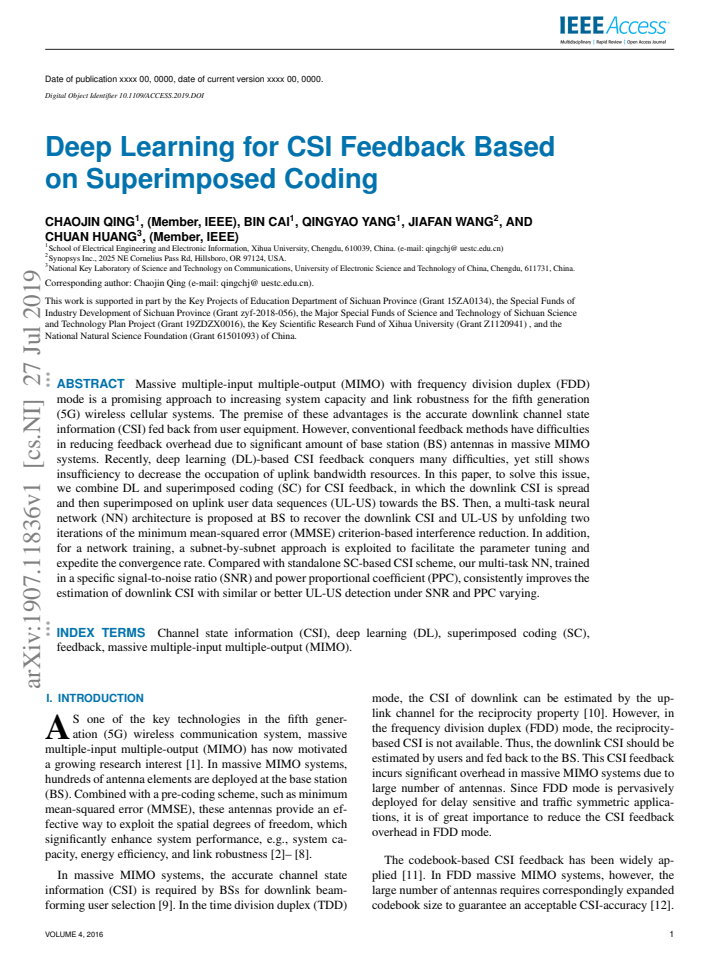

read the original abstract

Massive multiple-input multiple-output (MIMO) with frequency division duplex (FDD) mode is a promising approach to increasing system capacity and link robustness for the fifth generation (5G) wireless cellular systems. The premise of these advantages is the accurate downlink channel state information (CSI) fed back from user equipment. However, conventional feedback methods have difficulties in reducing feedback overhead due to significant amount of base station (BS) antennas in massive MIMO systems. Recently, deep learning (DL)-based CSI feedback conquers many difficulties, yet still shows insufficiency to decrease the occupation of uplink bandwidth resources. In this paper, to solve this issue, we combine DL and superimposed coding (SC) for CSI feedback, in which the downlink CSI is spread and then superimposed on uplink user data sequences (UL-US) toward the BS. Then, a multi-task neural network (NN) architecture is proposed at BS to recover the downlink CSI and UL-US by unfolding two iterations of the minimum mean-squared error (MMSE) criterion-based interference reduction. In addition, for a network training, a subnet-by-subnet approach is exploited to facilitate the parameter tuning and expedite the convergence rate. Compared with standalone SC-based CSI scheme, our multi-task NN, trained in a specific signal-to-noise ratio (SNR) and power proportional coefficient (PPC), consistently improves the estimation of downlink CSI with similar or better UL-US detection under SNR and PPC varying.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes combining deep learning with superimposed coding for downlink CSI feedback in massive MIMO FDD systems. Downlink CSI is spread and superimposed onto uplink user data sequences; at the BS a multi-task NN recovers both by unfolding exactly two MMSE iterations, trained subnet-by-subnet at one fixed SNR/PPC pair. The central claim is that this yields consistently better downlink CSI NMSE and comparable or superior UL-US detection when SNR and PPC deviate from the training values.

Significance. If the empirical robustness result holds, the approach would demonstrate a practical route to lowering uplink bandwidth consumption for CSI feedback while preserving data detection performance. The subnet-by-subnet training procedure is a concrete implementation detail that could aid reproducibility. The significance remains provisional because the generalization across operating points rests on an unverified architectural assumption rather than an explicit invariance mechanism.

major comments (2)
  1. [Abstract] Abstract: the claim that the multi-task NN 'consistently improves' downlink CSI estimation under SNR and PPC variation is asserted without any numerical results, error bars, dataset description, or ablation studies; this empirical assertion is load-bearing for the central contribution.
  2. [Abstract] Abstract: the architecture unfolds exactly two MMSE iterations and is trained at one fixed SNR/PPC pair via subnet-by-subnet training, yet no input normalization, PPC/SNR embedding, or regularization is described that would render the learned canceller independent of the operating point; the generalization claim therefore reduces to an unverified robustness assumption.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive comments. We address the two major comments on the abstract point by point below.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the claim that the multi-task NN 'consistently improves' downlink CSI estimation under SNR and PPC variation is asserted without any numerical results, error bars, dataset description, or ablation studies; this empirical assertion is load-bearing for the central contribution.

    Authors: The abstract summarizes the main empirical findings of the work. The supporting evidence—including NMSE curves for downlink CSI under SNR and PPC sweeps (with direct comparisons to standalone SC), simulation parameters, channel dataset generation details, and performance of the multi-task architecture versus single-task baselines—is contained in Sections IV and V together with the associated figures. These results quantify the consistent improvement and include the operating-point variation tests. We are willing to revise the abstract to include a brief parenthetical reference to these sections if the editor deems it necessary for clarity. revision: partial

  2. Referee: [Abstract] Abstract: the architecture unfolds exactly two MMSE iterations and is trained at one fixed SNR/PPC pair via subnet-by-subnet training, yet no input normalization, PPC/SNR embedding, or regularization is described that would render the learned canceller independent of the operating point; the generalization claim therefore reduces to an unverified robustness assumption.

    Authors: The architecture deliberately unfolds a fixed number of MMSE iterations and employs subnet-by-subnet training at a single operating point to obtain stable convergence. No explicit SNR/PPC embedding or additional regularization for invariance is introduced. Nevertheless, the manuscript reports extensive cross-validation experiments (detailed in the results section) in which the same trained network is evaluated at SNR and PPC values different from the training point; these experiments show that downlink CSI NMSE remains superior to standalone SC while UL-US detection stays comparable. The generalization claim is therefore grounded in the reported empirical behavior rather than an architectural invariance guarantee. We do not claim theoretical independence from the operating point. revision: no

Circularity Check

0 steps flagged

No significant circularity; empirical DL architecture with no self-referential derivation

full rationale

The paper proposes an empirical multi-task NN obtained by unfolding two MMSE iterations for joint CSI and UL-US recovery under superimposed coding, trained subnet-by-subnet at one SNR/PPC pair. The abstract and description contain no equations, uniqueness theorems, or self-citations that reduce the claimed generalization or NMSE improvement to a fitted input by construction, a renamed known result, or a load-bearing self-citation chain. Performance claims rest on simulation comparisons rather than a closed mathematical derivation that loops back to its own inputs; the architecture is presented as a trainable approximator, not a self-defining identity.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard MMSE interference-reduction criterion and the assumption that a two-iteration unfolding suffices; no new physical constants or ad-hoc entities are introduced.

free parameters (2)
  • power proportional coefficient (PPC)
    Used both for signal superposition and for training the network; its specific value is chosen for training and affects generalization claims.
  • training SNR
    Network is trained at one specific SNR; performance under varying SNR is asserted but the training value itself is a design choice.
axioms (1)
  • domain assumption MMSE criterion provides a suitable interference-reduction step that can be unfolded into neural-network layers
    Invoked when the architecture is described as 'unfolding two iterations of the minimum mean-squared error (MMSE) criterion-based interference reduction'.
