Across 16 DNN workloads and three IEEE 754 formats, the lowest fraction bits can be flipped without crossing a 1% task-quality bound, and this threshold can be turned into a cheaper unequal-error-protection memory design.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

T0 review · deepseek-v4-flash

2026-08-01 12:13 UTC pith:YNS3ZPBP

load-bearing objection Solid empirical bit-sensitivity study, but the BF16 UEP design uses X=5 while the paper's own floor is X=4, undercutting the headline hardware savings. the 3 major comments →

arxiv 2607.19623 v1 pith:YNS3ZPBP submitted 2026-07-21 cs.AR cs.LG

From Bit-Position Sensitivity to Unequal Error Protection for DNN Inference Memory

classification cs.AR cs.LG
keywords per-bit-position fault sensitivityunequal error protectionXsafe thresholdfloating-point reliabilityDNN inference memoryselective ECCdual-voltage SRAMsoft errors
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper's central claim is that the IEEE 754 floating-point formats used in DNN inference have a built-in safety margin: the lowest few mantissa bits can be corrupted by memory faults with less than 1% degradation in task quality, while bits near the exponent field cause catastrophic collapse. By systematically flipping each bit position across 16 models in FP16, BF16, and FP32, the paper derives a data-type-specific threshold, Xsafe (FP16=6, BF16=4, FP32=15), below which ECC coverage is unnecessary. It then builds an unequal-error-protection codec and a dual-voltage SRAM architecture that leaves those bits unprotected, cutting ECC logic area by 27.8% and BF16 read energy by about 17%, without retraining. A sympathetic reader should care because it turns a reliability cost into a function of the data format itself, and offers a concrete hardware design parameter.

Core claim

Flipping any of the least-significant fraction bits up to a data-type-specific threshold, Xsafe, degrades task metrics by under 1% in deterministic single-bit stress tests; sensitivity then ramps through the upper fraction bits and spikes at the exponent-mantissa boundary, where a single-bit flip is catastrophic. The paper argues this transition is a property of the IEEE 754 data type, not of any particular model architecture: attention-free CNNs show the same pattern as transformers, and statistical tests place significance only at exponent and sign positions. On that basis it claims conservative floors FP16 Xsafe=6, BF16 Xsafe=4, FP32 Xsafe=15 are stable across the 16 evaluated workloads,

What carries the argument

The central object is Xsafe, the number of least-significant fraction bits below which flips are benign; it is read off the sharp 'cliff' in per-bit-position sensitivity curves where quality holds flat then collapses near the exponent boundary. The carrying mechanism is a three-tier unequal-error-protection codec: sign/exponent bits get full SECDED (odd-parity codes), upper fraction bits get single-error correction (even-parity codes), and the Xsafe low bits are stored with no code, physically separated into a low-voltage SRAM partition selected by a per-cacheline 3-bit tag.

Load-bearing premise

The argument rests on assuming that measuring sensitivity at one injection site per model—pre-softmax QK^T scores for attention models and FFN/MLP outputs otherwise—reveals the most fault-sensitive tensor; if some other tensor (embeddings, normalization statistics, residual stream, or an untested layer) is more sensitive at low fraction bits, the Xsafe floor would not be a true worst-case bound.

What would settle it

Run the deterministic single-bit-position sweep (pword = 1, every word's bit toggled) on every tensor of a text-conditioned diffusion model—embeddings, normalization statistics, residual stream, and attention outputs—in BF16, and check whether any fraction bit at or below bit 3 degrades PSNR by more than the allowed bound (first bit before a single-step PSNR drop > 5 dB); if such a bit exists, the BF16 floor of 4 is not worst-case.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

Share X Bluesky LinkedIn Reddit HN

If this is right

  • Bit-protection thresholds can be fixed in hardware at design time because they vary by at most one bit across datasets, injection sites, and sample counts.
  • A single 136-bit physical word and one codec serve FP16, BF16, and FP32; only the per-cacheline tag changes routing.
  • Multi-cell upsets that straddle the Xsafe boundary contract the safe region by at most one bit per additional flipped bit, so the floor remains usable under MCU-2 and MCU-3 faults.
  • Leaving the low partition unprotected at reduced voltage yields ~17% gross BF16 read-energy savings with a ~4% macro-area overhead recovered by the energy savings, and the most aggressive dual-voltage operating point keeps MTTF around 900 years.
  • Workload-aware tiers widen the unprotected region (up to X=10 for FP16) for vision, NLU, and resilient LLM workloads, boosting ECC savings to 37.5–62.5% without retraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The paper leaves implicit that the same bit-sensitivity logic applies to weights once protection cost is amortized over a load-once lifetime; since it notes weight LSBs are tolerant, a weight-side UEP is a natural extension.
  • The per-layer sensitivity spreads, which exceed an order of magnitude across LLM layers, suggest that per-tensor protection tiers could reclaim more energy than the per-model tiers reported here.
  • Because Xsafe is defined against task-specific quality bounds, stricter safety contracts would tighten the floors monotonically; applications with hard quality requirements should treat the quoted floors as ceilings, not defaults.
  • The codec's reduced double-error detection means a safety-critical deployment should pay the extra check bit to restore full SECDED; the paper enables this as an option, making the throughput-versus-safety tradeoff a policy decision.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper characterizes per-bit-position fault sensitivity in FP16/BF16/FP32 values across 16 DNN workloads, reports a sharp transition between benign low-order fraction bits and catastrophic exponent-bit faults, and uses the observed threshold Xsafe (FP16=6, BF16=4, FP32=15) to motivate a three-tier Unequal Error Protection (UEP) codec and a dual-partition SRAM. The claimed contributions are: a data-type-level Xsafe floor stable across workloads; workload-aware protection tiers; an RTL-synthesized UEP codec with per-cacheline format tags; validation under random, persistent, and multi-bit correlated upsets; and area/energy estimates showing a 27.8% codec-area reduction and roughly 17% gross BF16 read-energy savings.

Significance. If the empirical floors and their generality hold, this is a practically relevant result for ML inference memories: a fixed hardware partition, a small per-cacheline tag, and no retraining could make selective ECC deployable across FP16/BF16/FP32 accelerators. The paper has genuine strengths: 16 models across 6 modalities, deterministic sweeps complemented by stochastic, persistent, and MCU-2/3 campaigns, statistical tests (McNemar, Wilcoxon), RTL verification with 146k+ vectors, and an honest discussion of limitations in §7. However, the load-bearing generalization from a few injection sites to all tensors, and the internal mismatch between the certified Xsafe floor and the implemented RTL bypass width, must be resolved before the hardware claims are credible.

major comments (3)
  1. [§3.3, §4.1.1, Table 5, Table 6] Xsafe is defined as the number of fraction LSBs that can safely remain unprotected. Under that definition, for FP16 (10 fraction bits), BF16 (7 fraction bits), and FP32 (23 fraction bits), Xsafe cannot exceed the fraction width. Table 5 lists FP16 values 11, 12, 14 (ViT-L/16, BERT-base, Swin-B), BF16 values 8 (BERT, ViT, Swin), and FP32 values 24, 25, 27, all of which exceed the corresponding fraction widths. Table 6 deepens the contradiction: for ViT-L/16 it reports Xsafe=11 but labels b10 as the first bit above Xsafe, and b11 (which should be below the threshold) already shows a 3.94pp top-1 drop, crossing the 1pp bound. Since Table 5 feeds the workload tiers in Table 8, the tier boundaries inherit this inconsistency. The authors should correct the per-model Xsafe values, clarify the bit indexing used, or revise the definition so that Table 5 and Table 6 are mutually consistent.
  2. [§5.1.5, Table 11, Table 14, §6.4] The hardware implementation and validation do not use the certified BF16 floor Xsafe=4. Table 11 and Table 14 size BF16 Partition B as 40 data bits (5×8 words), i.e., X=5 unprotected fraction LSBs, and §6.4 confirms the RTL operating point is k=11 for BF16 with '5 unprotected LSBs, bits 0–4.' The text calls this a conservative boundary distinct from Xsafe, but the paper's headline energy and area claims (17% gross BF16 read-energy reduction, 27.8% codec-area reduction) and the end-to-end task validation in Tables 20–21 are all computed at this wider X=5 point. At the actual floor X=4, Partition B would be 32 bits/word, f_nc would drop from 40/136 to 32/136, and the energy saving would shrink accordingly. The paper needs to either validate and justify X=5 as its own design point, or re-derive the hardware claims and validation at Xsafe=4.
  3. [§3.3, Table 4, §4.1.1] The claim that Xsafe is a data-type-level property, not a model artifact, is load-bearing for the hardware design, because a single floor is applied to all inference-produced values. However, per §3.3, the primary injection site is the pre-Softmax QK^T score tensor for attention models and FFN/MLP outputs otherwise, with additional loci tested only 'for selected models when a within-model sensitivity ranking is needed.' Table 4 reports at most a one-bit shift across injection sites, but this axis is exercised on a subset of models only. The floor-setting models (e.g., SD3.5-Medium, PixArt-α) are not shown with per-tensor Xsafe sweeps covering residual streams, normalization statistics, embeddings, or KV-cache tensors. The authors should report per-site sweeps for at least the floor-setting models, or temper the universality conclusion.
minor comments (5)
  1. [Table 8] The tier table is hard to read and appears internally inconsistent. The 'Models in tier' entries (4, 7, 16) seem to mix non-cumulative and cumulative counts, and Tier 1 at X=9 cannot include 'all below' if models with Xsafe=6 are in the same list. Please recast the table so coverage counts and membership are unambiguous.
  2. [§4.1.1, Table 6] The prose says Llama-3 8B perplexity 'remains stable through bit 11' while Table 6 reports 7.01 at b11 against a baseline of 6.64, which is already above the 1% bound used to define Xsafe. Please align the narrative with the table values.
  3. [§3.2, §4.1.3] The C4/HellaSwag external-validity check for Llama-3 8B is mentioned in §3.2 but no result is reported. Either add the data or remove the claim.
  4. [§5.3.2, Eq. (3)–(4)] The read-energy saving is reported as 'gross' and 'net positive after level shifters,' but the dynamic/leakage split and the read vs. write energy mix are not stated. Clarifying the energy model would make the 17% figure easier to reproduce.
  5. [§6.4] The RTL operating points k=11/12/24 are described as 'conservative boundaries distinct from the Xsafe floors,' but the relationship between k and Xsafe is never formalized. A short derivation or table mapping k to the number of unprotected LSBs per format would remove ambiguity.

Circularity Check

0 steps flagged

No significant circularity: Xsafe thresholds are empirically calibrated and cross-validated under independent fault patterns; the BF16 X=5 vs Xsafe=4 mismatch is an internal consistency issue, not circularity.

full rationale

The paper's central claims are empirical rather than deductive. Xsafe is defined in §3.3 as the number of fraction LSBs that can remain unprotected while staying within a modality-specific quality bound, and then measured in §4.1.1 via deterministic single-bit-position sweeps. The later validations (§4.1.2–§4.1.5, §6.4) use different fault families—persistent stuck-at faults, stochastic BER sweeps, MCU-2/3, and tiered-BER end-to-end runs—so the safety claim is cross-validated, not obtained by restating the calibration. The hardware equations (§5.1.5, §5.3) are arithmetic consequences of the chosen code parameters, and the ECC area/energy numbers follow from the codeword construction rather than from the sensitivity data alone. No author-overlap citations are invoked as load-bearing uniqueness arguments, and no ansatz is imported via self-citation. The one notable issue is an internal inconsistency: the BF16 RTL operating point k=11 exposes 5 unprotected LSBs (§6.4) while the certified floor is Xsafe=4 (Table 5), and the headline BF16 energy saving is computed at f_nc=40/136 (§5.3.2). This is a correctness/consistency concern about whether the evaluated configuration matches the certified floor, not a circularity: the k=11 experiment is an independent (if mismatched) measurement, not a reduction of the conclusion to its premise.

Axiom & Free-Parameter Ledger

5 free parameters · 5 axioms · 2 invented entities

The central safety claim is an empirical calibration governed by quality bounds; the hardware gains follow from simulation models and the representativeness of the injection site. The Xsafe floors are fitted values, not derived constants, and the codec/partition are proposed designs with no external falsifiable handle outside the paper.

free parameters (5)
  • Xsafe floors (FP16/BF16/FP32) = 6 / 4 / 15
    Empirically selected bit positions where deterministic single-bit stress crosses each modality's quality bound; minima across 16 models. Not predicted from theory; shifts with quality bound (Table 4).
  • FP16 workload tiers X = 6 / 9 / 10
    Chosen from per-model Xsafe values (Table 5) to create tier groups; conservative family minima.
  • Modality quality bounds = PPL≤1.01x; acc≥-1pp; WER≤+1pp; first bit before PSNR drop >5dB
    These thresholds define Xsafe; a stricter bound tightens the floors monotonically, so Xsafe is calibration-dependent.
  • Low-voltage partition operating point Vlow = 1.2 V (sky130, Vnom=1.8 V)
    Selected from Figure 11 so that net read-energy savings remain positive after level-shifter overhead.
  • RTL validation boundaries k = BF16 k=11 (5 unprotected LSBs); FP16 k=12 (4); FP32 k=24 (8)
    Operating points used for end-to-end BER validation; note BF16's k=11 exposes one more LSB than its Xsafe floor of 4, an internal inconsistency.
axioms (5)
  • domain assumption The measured injection loci (QK^T scores for attention; FFN/MLP outputs otherwise) are worst-case representatives for all tensors in each model.
    Xsafe floors are model-level parameters derived from these loci; Table 4 tests injection-site variation on only a subset of models.
  • domain assumption Deterministic single-bit stress at p_word=1 plus random/MCU sweeps adequately captures SRAM soft-error behavior relevant to the design.
    The paper acknowledges in §7 that synthetic/bounded-neighborhood injection only partially captures field-correlated fault processes.
  • standard math The odd/even parity-class capacity split of Hsiao SECDED supports Tier 1/Tier 2 code assignment as encoded in Eqs. (1)-(2).
    Standard coding-theory counting of odd/even parity columns; used to set r=7 or r=8.
  • domain assumption SRAM bit-error rate at Vlow follows the Stutz mapping, and CACTI 7.0 plus published 7nm scaling equations give valid area/energy projections.
    Hardware numbers (Table 12, Table 14, Fig. 11) rely on these simulation models; no silicon validation.
  • domain assumption The terrestrial-neutron SER model (1000 FIT/Mbit) and lambda_SEU=1e-12/bit/hr are valid for the FIT/MTTF calculations.
    Table 19 relies on analytic SER models and assumed flux from references.
invented entities (2)
  • Three-tier UEP codec (Tier 1 SECDED / Tier 2 SEC / Tier 3 bypass) no independent evidence
    purpose: To provide graded error protection by bit significance, cutting ECC area vs uniform SECDED.
    A proposed hardware design; evaluated only through RTL synthesis and directed/random vector tests, not silicon or an external falsifiable prediction.
  • Dual-partition SRAM with per-cacheline format tag no independent evidence
    purpose: To store bypassed LSBs in a low-voltage partition while tags select protection mode per data type/workload.
    Architectural proposal; area/energy estimates from CACTI and analytical voltage-scaling equations, not measured hardware.

pith-pipeline@v1.3.0-alltime-deepseek · 27800 in / 26047 out tokens · 252379 ms · 2026-08-01T12:13:13.965443+00:00 · methodology

0 comments
Cite this review

Pith. "Pith review of From Bit-Position Sensitivity to Unequal Error Protection for DNN Inference Memory." pith.science (2026). https://pith.science/paper/YNS3ZPBP

@misc{pith2026260719623,
  author       = {Pith},
  title        = {Pith review of: From Bit-Position Sensitivity to Unequal Error Protection for DNN Inference Memory},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YNS3ZPBP}},
  note         = {Machine review of arXiv:2607.19623}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

We characterize per-bit-position fault sensitivity in ML inference across 16 workloads -- spanning transformer-based models and attention-free CNNs -- and across three floating-point formats. Our central empirical finding is a sharp bit-sensitivity transition: flipping any of the least-significant fraction bits up to a data-type-specific threshold, Xsafe, degrades task metrics by less than 1% under deterministic single-bit stress tests. Sensitivity rises through the upper fraction bits and spikes at the exponent-mantissa boundary, where a single-bit flip causes catastrophic collapse. Because low-order bits are largely inconsequential while high-order and exponent bits are critical, uniform SECDED protection -- which guards every bit equally at 12.5% storage overhead -- is unnecessarily conservative. We derive per-data-type Xsafe floors (FP16: 6, BF16: 4, FP32: 15) and workload-aware tiers that widen the unprotected region for resilient model classes, raising ECC savings to 37.5-62.5% without retraining. Text-conditioned diffusion models dictate the conservative floor; vision encoders, NLU models, and resilient LLMs tolerate wider bypass regions. These floors and tiers drive an Unequal Error Protection (UEP) codec with per-cacheline data-type tags and a dual-partition SRAM architecture for ML accelerators. Validation across 870+ fault-injection runs confirms selective protection holds under contiguous 2- and 3-bit upsets. The codec reduces ECC area by 27.8% relative to uniform SECDED; dual-voltage operation of the non-critical partition lowers gross BF16 read energy by about 17%, with a roughly 4% dual-partition macro-area overhead.

Figures

Figures reproduced from arXiv: 2607.19623 by Karthik Mohan Kumar, Keshavan Varadarajan, Kunal Tyagi, Muhammad Husnain Mubarik, Pedro Antonio Pena.

Figure 1
Figure 1. Figure 1: Per-model SSIM under deterministic single-bit-position stress tests [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Paired McNemar tests for single-bit flips at matrix-multiply outputs [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Attention-path Xsafe for five decoder LLMs plotted against their heads/KV ratio — the number of query heads sharing each key-value head pair — on a log scale, for FP16, BF16, and FP32. A higher heads/KV ratio (as in multi￾query attention) compresses key-value memory across more query heads and could in principle confer redundancy that masks bit errors. Spearman correlation is non-significant across all dat… view at source ↗
Figure 4
Figure 4. Figure 4: Permanent stuck-at-0 (solid lines) and stuck-at-1 (dashed lines) faults [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Aggregate SD3.5-Medium PSNR under random bit-flips as a function [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Left: BF16 and FP16 Xsafe under MCU-2 and MCU-3 compared to single-bit faults, showing a contraction of at most one bit per additional flipped bit. Right: cross-architecture BF16 MLP sensitivity-transition positions under MCU-2 and MCU-3, confirming that the contraction pattern is consistent across all evaluated models [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Matched-variance comparison across four noise families (Gauss [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 10

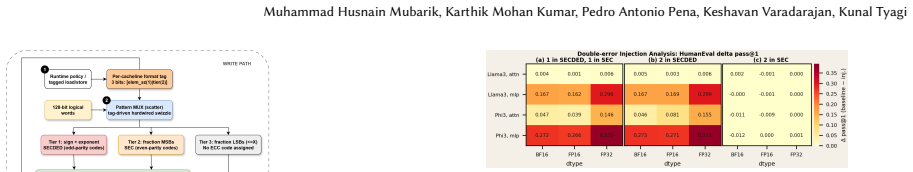

Figure 10. Figure 10: Mean HumanEval pass@1 drop (baseline minus injected), averaged [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Tagged selective-ECC access path for one 128-bit granule: the per [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Net SRAM read-energy savings vs.𝑉low for BF16, FP16, and FP32. The adopted operating point 𝑉low=1.2 V (dashed line) yields positive net savings for all three formats after level-shifter overhead [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Design-space tradeoffs for the 𝑋-boundary sweep. Left: codec area across BF16, FP16, and FP32 as the protection boundary 𝑋 is varied. Right: relative BCH𝑡 = 2 and Hamming SECDED area for the representative protected payload widths used in this section. 6.2 MCU-Aware Design Selection BCH 𝑡=2 costs 3.9–4.2× Hamming SECDED [20, 24] area across tested codeword widths (64, 128, 256 bits). Once bit-plane inter￾… view at source ↗
