The pith

The blue channel transmittance in optical microscopy images determines the thickness of MoS2 and related materials on transparent stamps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that separating transmission-mode optical images into red green and blue channels yields a practical way to measure the number of layers in flakes of MoS2, MoSe2, WS2 and WSe2 sitting on transparent stamps. The blue channel shows a strong and steady change with added layers while remaining consistent from flake to flake and unaffected by doping variations in MoS2. This optical route supplies layer counts before the flakes are moved to new surfaces. Researchers who rely on deterministic transfer of these materials can therefore avoid extra instruments for thickness checks.

Core claim

The transmittance extracted from the blue channel of transmission optical microscopy images exhibits a large and monotonic dependence on layer number for MoS2, MoSe2, WS2 and WSe2 on transparent stamps, while red and green channels provide supporting information, and the blue signal stays robust against small flake-to-flake differences and doping changes.

What carries the argument

Blue channel transmittance from transmission optical images, which acts as the thickness probe because its value changes steadily with added layers.

If this is right

  • Layer numbers for these four materials can be read from ordinary optical microscope images without atomic force microscopy or Raman spectroscopy.
  • The same image analysis works across MoS2, MoSe2, WS2 and WSe2.
  • Doping changes in MoS2 do not alter the reliability of the thickness reading.
  • Small natural differences between flakes do not prevent consistent thickness assignment.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The optical channel method could be extended to additional layered materials placed on transparent supports.
  • Image-processing routines could automate the channel analysis and reduce manual inspection time during sample preparation.
  • Recording the blue transmittance during the transfer step itself might allow real-time thickness verification.

Load-bearing premise

The measured blue transmittance is caused mainly by the number of layers in the flake rather than by differences in stamp thickness, interface quality, or lighting conditions.

What would settle it

Independent atomic force microscopy measurements on the same flakes show either non-monotonic blue transmittance values or large scatter between flakes of identical layer count.

Figures

Figures reproduced from arXiv: 1907.07365 by Andres Castellanos-Gomez, Iris Niehues, Mar Garc\'ia-Hern\'andez, Najme S. Taghavi, Patricia Gant, Peng Huang, Riccardo Frisenda, Robert Schmidt, Rudolf Bratschitsch, Steffen Michaelis de Vasconcellos.

Figure 1

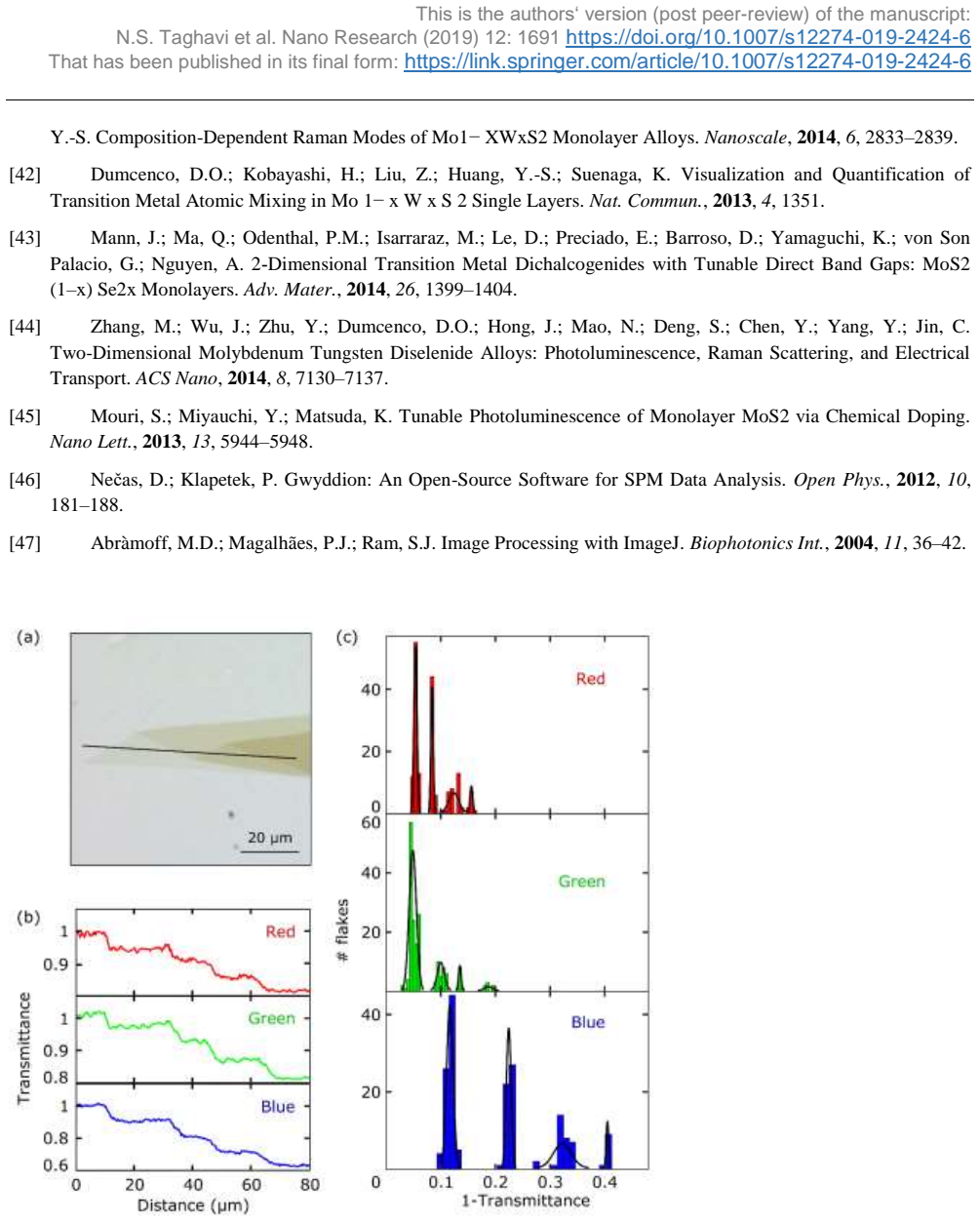

Figure 1. Figure 1: (a) Optical image in transmission mode of a MoS2 flake with different thicknesses. (b) Line profiles of the intensities of the red, green and blue channels of the image in 1a. (c) Histograms of the 1-transmission value in the RGB channels for several MoS2 flakes [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
