Quantum stick-slip motion in nanoscaled friction
Pith reviewed 2026-05-23 03:06 UTC · model grok-4.3
The pith
Landau-Zener tunneling reduces frictional dissipation in the quantum Prandtl-Tomlinson model compared to classical motion.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the quantum mechanical Prandtl-Tomlinson model, the Landau-Zener tunneling is a key factor in the overall reduction of the frictional dissipation when compared to the classical motion in which such tunneling is absent. Other regimes of motion controlled by the corrugation parameter are also identified.
What carries the argument
Landau-Zener tunneling in the quantum Prandtl-Tomlinson model with Markovian dissipation to a bath, which enables transitions that reduce energy loss.
If this is right
- The frictional force decreases due to quantum tunneling effects.
- Regimes of motion depend on the corrugation parameter and other system properties.
- Interplay of velocity, interaction strength, and temperature controls the frictional behavior.
- Guidelines are provided for interpreting experimental data on nanoscaled friction.
Where Pith is reading between the lines
- This could imply that quantum corrections are necessary for accurate modeling of friction in devices operating at low temperatures or small scales.
- Connections might exist to other quantum transport phenomena where tunneling affects dissipation.
- Testing in systems with tunable corrugation could reveal the predicted motion regimes.
Load-bearing premise
The dissipation process is assumed to occur via release of heat to an external bath under the Markov approximation for the Liouville-von Neumann equation, which treats the coupling as memoryless.
What would settle it
An experiment measuring the frictional force in a nanosystem where Landau-Zener tunneling is expected but finding dissipation rates identical to the classical prediction without reduction would challenge the claim.

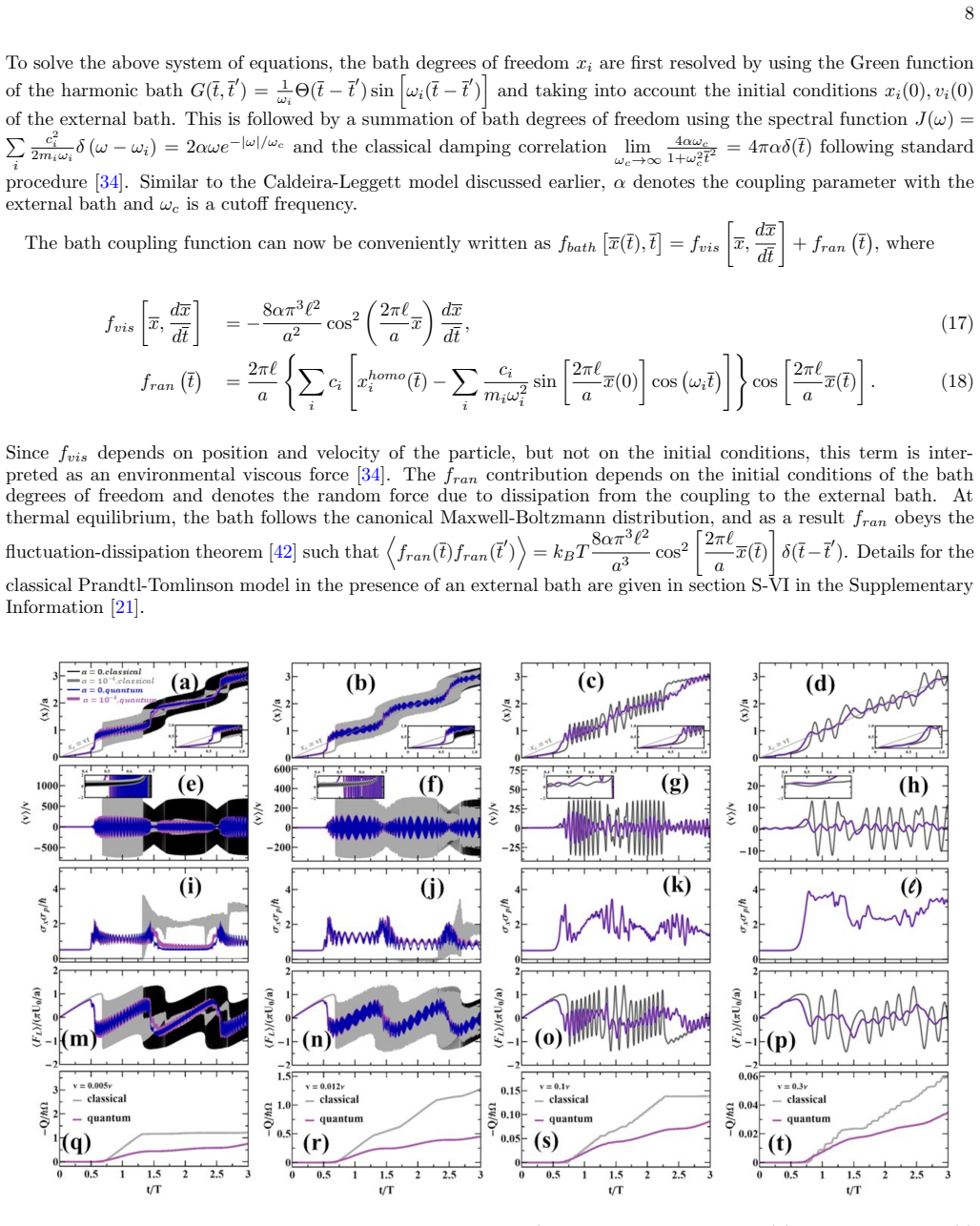

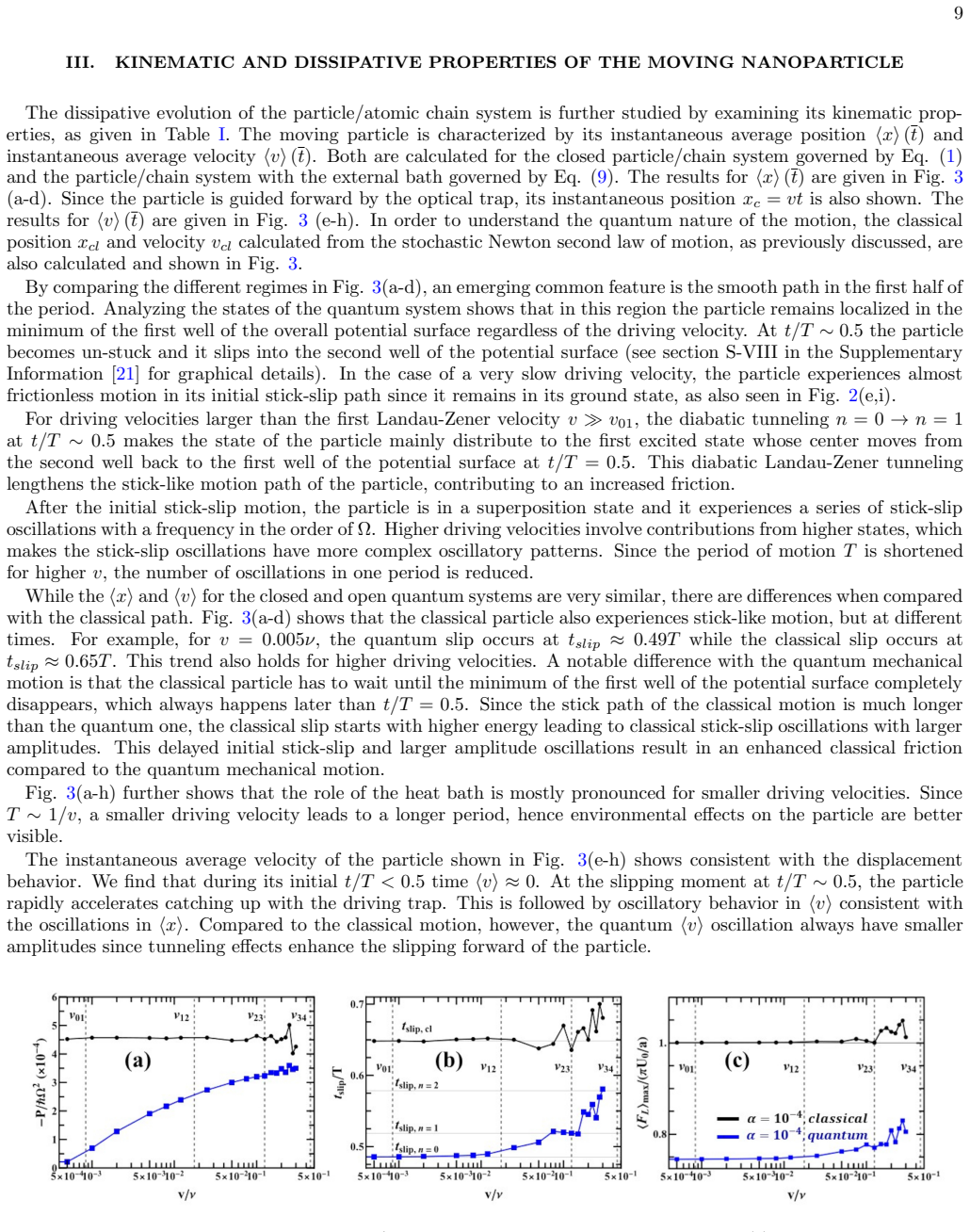

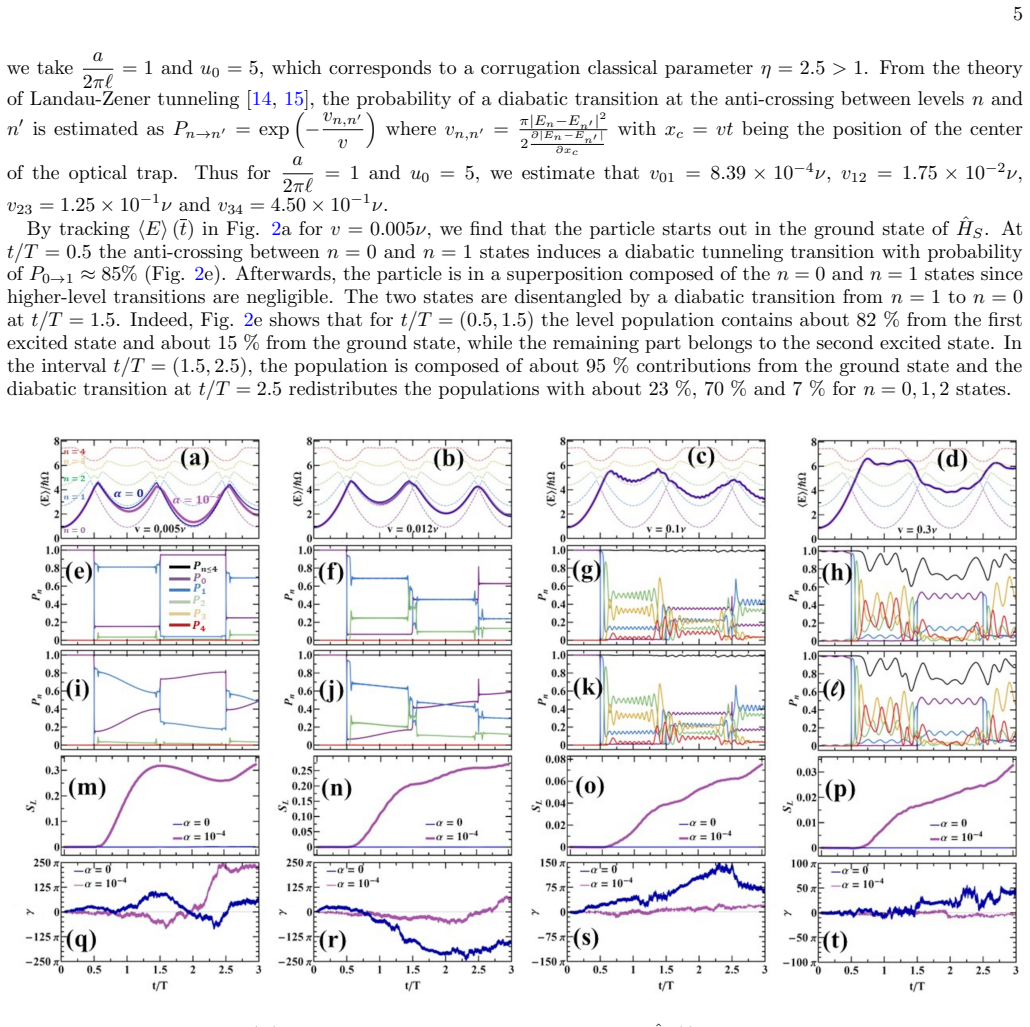

Figures

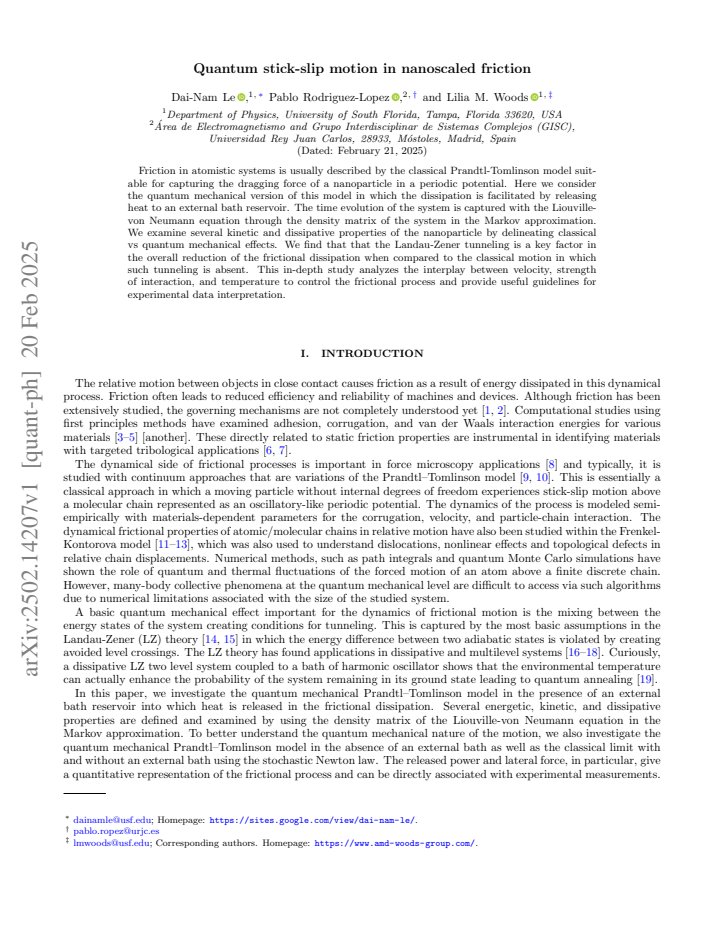

read the original abstract
Friction in atomistic systems is usually described by the classical Prandtl-Tomlinson model suitable for capturing the dragging force of a nanoparticle in a periodic potential. Here we consider the quantum mechanical version of this model in which the dissipation is facilitated by releasing heat to an external bath reservoir. The time evolution of the system is captured with the Liouville-von Neumann equation through the density matrix of the system in the Markov approximation. We examine several kinetic and dissipative properties of the nanoparticle by delineating classical vs quantum mechanical effects. We find that the Landau-Zener tunneling is a key factor in the overall reduction of the frictional dissipation when compared to the classical motion in which such tunneling is absent. Other regimes of motion, controlled by the corrugation parameter and other properties, are also found. This in-depth study analyzes the interplay between velocity, strength of interaction, and temperature to control the frictional {force} and provide useful guidelines for experimental data interpretation.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript extends the classical Prandtl-Tomlinson model to a quantum version of a nanoparticle in a periodic potential, with dissipation modeled via the Markovian Liouville-von Neumann equation coupled to a bath. It compares classical and quantum regimes, claiming that Landau-Zener tunneling is the dominant mechanism reducing frictional dissipation relative to the classical stick-slip case, while also exploring regimes controlled by corrugation parameter, velocity, interaction strength, and temperature.
Significance. If the central attribution to Landau-Zener tunneling is rigorously isolated and the comparison to the classical limit is placed on equal footing, the work could offer concrete guidelines for interpreting nanoscale friction experiments where quantum effects become relevant.
major comments (2)
- [Abstract] Abstract and results sections: the claim that 'Landau-Zener tunneling is a key factor in the overall reduction of the frictional dissipation' is not supported by any reported control (e.g., artificially suppressed LZ probability at fixed ħ via slower velocity or larger gap, or explicit correlation between computed LZ transition probability and observed force reduction). Without such isolation, the reduction cannot be attributed specifically to LZ transitions rather than other quantum or bath effects.
- Methods and results: the classical comparison is performed separately rather than recovered as the ħ→0 limit of the same open-system Lindblad/LvN dynamics; this leaves open whether the reported dissipation reduction survives a consistent semiclassical limit or arises from differences in how the bath is coupled.
minor comments (1)
- [Abstract] The abstract states that 'several kinetic and dissipative properties' are examined but does not list them; a brief enumeration would improve clarity.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major point below and indicate where revisions will be made to strengthen the presentation and support for our claims.
read point-by-point responses
-
Referee: [Abstract] Abstract and results sections: the claim that 'Landau-Zener tunneling is a key factor in the overall reduction of the frictional dissipation' is not supported by any reported control (e.g., artificially suppressed LZ probability at fixed ħ via slower velocity or larger gap, or explicit correlation between computed LZ transition probability and observed force reduction). Without such isolation, the reduction cannot be attributed specifically to LZ transitions rather than other quantum or bath effects.
Authors: We agree that an explicit isolation of the Landau-Zener contribution would make the attribution more rigorous. Our existing parameter scans (velocity, corrugation) exhibit trends consistent with LZ expectations, but we did not compute direct correlations or perform controls such as gap variation at fixed ħ. In the revised manuscript we will add a dedicated analysis that extracts LZ transition probabilities from the dynamics and correlates them with the observed frictional force reduction; the abstract claim will be revised accordingly to reflect the new evidence. revision: yes
-
Referee: Methods and results: the classical comparison is performed separately rather than recovered as the ħ→0 limit of the same open-system Lindblad/LvN dynamics; this leaves open whether the reported dissipation reduction survives a consistent semiclassical limit or arises from differences in how the bath is coupled.
Authors: The referee correctly identifies that our classical results use the deterministic Prandtl-Tomlinson equations while the quantum results employ the open-system LvN equation. We will add, where numerically tractable, a direct ħ→0 limit study within the same Lindblad framework and compare the resulting dissipation to the separate classical runs. Any residual differences in bath coupling will be discussed explicitly; if the semiclassical limit is not fully recoverable we will state the limitation and clarify the modeling choices. revision: partial
Circularity Check
No significant circularity; derivation rests on explicit solution of open quantum dynamics
full rationale
The paper solves the Markovian Liouville-von Neumann equation for the quantum Prandtl-Tomlinson model and compares the resulting frictional force and dissipation to the classical limit. The central claim that Landau-Zener tunneling contributes to reduced dissipation is presented as an outcome of those dynamics rather than a re-expression of fitted parameters or a self-citation chain. No equations are shown to reduce to their own inputs by construction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled via citation. The Markov approximation and bath coupling are stated assumptions whose validity is external to the derivation itself. The comparison to classical motion is performed separately and does not rely on re-labeling a fitted quantity as a prediction.
Axiom & Free-Parameter Ledger
free parameters (1)
- corrugation parameter
axioms (1)
- domain assumption Markov approximation for bath coupling in the Liouville-von Neumann equation
Forward citations
Cited by 1 Pith paper
-
Tuning of quantum nanoscaled friction within the Prandtl-Tomlinson model
Within the Prandtl-Tomlinson framework, frictional dynamics in nanoscaled systems are controlled by corrugation and characteristic length ratio parameters, revealing multiple motion types and the importance of quantum...
Reference graph
Works this paper leans on
-
[6]
M. Wolloch, G. Levita, P. Restuccia, and M. C. Righi, Interfacial Charge Density and Its Connection to Adhesion and Frictional Forces, Phys. Rev. Lett. 121, 026804 (2018)
work page 2018
- [22]
-
[42]
S. M. Rytov, Y. A. Kravtsov, and V. I. Tatarskii, Principles of Statistical Radiophysics 3 (Springer, Berlin, Germany, 1989)
work page 1989
-
[49]
J. Wilkie and M. C ¸ etinba¸ s, Variable-stepsize runge–kutta methods for stochastic schr¨ odinger equations, Physics Letters A 337, 166 (2005). S-1 Supplemental materials for: Quantum stick-slip motion in nanoscaled friction Dai-Nam Le 1,∗ , Pablo Rodriguez-Lopez 2,† , Lilia M. Woods 1,‡ 1Department of Physics, University of South Florida, Tampa, Florida...
work page 2005
-
[50]
Quantum theory of open system in weak coupling and Born-Markov approximations S-7
-
[51]
Caldeira–Leggett model of thermal harmonic bath S-10
-
[52]
A r 2πddc a2 e− d dc − 3πC6 8d5a # + 2
Choice of F(ˆx) and Matrix representations in the basis set of moving harmonic oscillator n(0)(t) S-12 S-XI. Classical dynamical evolution with enviroment: the case of Caldeira-Leggett model S-13 S-XII. Geometry phase S-15 S-XIII. Tunneling and slipping of quantum quasi-static eigenstates and classical trajectory S-16 S-XIV. Animation of quantum and class...
-
[53]
Quantum theory of open system in weak coupling and Born-Markov approximations Let us consider the general Hamiltonian describing a system ( S) interacting with a surrounding environment i.e bath (B) [25] ˆH(t) = ˆHS(t) ⊗ ˆ1B + ˆ1S ⊗ ˆHB + λ ˆHSB(t), (S-31) where the interacting Hamiltonian ˆHSB(t) generally takes the following form ˆHSB(t) = X α Aα(t) ⊗ B...
-
[54]
Caldeira–Leggett model of thermal harmonic bath The Caldeira–Leggett or harmonic bath model is commonly used to demonstrate the quantum dissipation [33, 34] ˆHint+B = X i " ˆp2 i 2mi + 1 2 miω2 i ˆxi − ci miω2 i F (ˆx) 2# , (S-56) where the choice of F (ˆx) strongly depends on the global sysmetry of the system ’s Hamiltonian ˆHS. The bath is characterized...
-
[55]
xhomo i (t) − X i ci miω2 i sin 2πℓ a x(0) cos ωit #) cos 2πℓ a x(t) −4π2ℓ2 a2 cos 2πℓ a x(t) tZ 0
Choice of F(ˆx) and Matrix representations in the basis set of moving harmonic oscillator n(0)(t) E The Hamiltonian of the system ˆHS can be re-written in another form, ˆHS(t) = −1 2 ∂2 ∂x2 + 1 2 x − vt 2 + 1 2 u0 − 1 2 u0 cos 2πℓ a x , (S-76) in order to illustrate its periodicity of 2πℓ a x . Then it is obvious to choose F(ˆx) as a smooth periodic funct...
-
[56]
A. I. Volokitin and B. N. J. Persson, Near-field radiative heat transfer and noncontact friction, Rev. Mod. Phys. 79, 1291 (2007)
work page 2007
-
[57]
A. Vakis, V. Yastrebov, J. Scheibert, L. Nicola, D. Dini, C. Minfray, A. Almqvist, M. Paggi, S. Lee, G. Limbert, J. Molinari, G. Anciaux, R. Aghababaei, S. Echeverri Restrepo, A. Papangelo, A. Cammarata, P. Nicolini, C. Putignano, G. Carbone, S. Stupkiewicz, J. Lengiewicz, G. Costagliola, F. Bosia, R. Guarino, N. Pugno, M. M¨ user, and M. Ciavarella, Mode...
work page 2018
-
[58]
M. Wolloch, G. Losi, M. Ferrario, and M. C. Righi, High-throughput screening of the static friction and ideal cleavage strength of solid interfaces, Sci. Rep. 9, 17062 (2019)
work page 2019
-
[59]
S. Cahangirov, C. Ataca, M. Topsakal, H. Sahin, and S. Ciraci, Frictional Figures of Merit for Single Layered Nanostruc- tures, Phys. Rev. Lett. 108, 126103 (2012)
work page 2012
-
[60]
R. K. Barik and L. M. Woods, Frictional Properties of Two-Dimensional Materials: Data-Driven Machine Learning Pre- dictive Modeling, ACS Applied Materials & Interfaces 16, 40149 (2024), https://doi.org/10.1021/acsami.4c05532
-
[61]
M. Wolloch, G. Levita, P. Restuccia, and M. C. Righi, Interfacial Charge Density and Its Connection to Adhesion and Frictional Forces, Phys. Rev. Lett. 121, 026804 (2018). S-19
work page 2018
-
[62]
P. C. Torche, A. Silva, D. Kramer, T. Polcar, and O. Hovorka, Multi-scale model predicting friction of crystalline materials, Adv. Mater. Interfaces 9, 2100914 (2022)
work page 2022
-
[63]
I. Szlufarska, M. Chandross, and R. W. Carpick, Recent advances in single-asperity nanotribology, J. Phys. D: Appl. Phys. 41, 123001 (2008)
work page 2008
-
[64]
G. Tomlinson, CVI. A molecular theory of friction , London Edinb. Dublin Philos. Mag. J. Sci. 7, 905 (1929)
work page 1929
-
[65]
Prandtl, Ein Gedankenmodell zur kinetischen Theorie der festen K¨ orper, J
L. Prandtl, Ein Gedankenmodell zur kinetischen Theorie der festen K¨ orper, J. Appl. Math. Mech. 8, 8, 85 (1928)
work page 1928
-
[66]
F. R. Krajewski and M. H. M¨ user, Quantum Creep and Quantum-Creep Transitions in 1D Sine-Gordon Chains, Phys. Rev. Lett. 92, 030601 (2004)
work page 2004
-
[67]
F. R. Krajewski and M. H. M¨ user, Quantum dynamics in the highly discrete, commensurate Frenkel Kontorova model: A path-integral molecular dynamics study, J. Chem. Phys. 122, 124711 (2005)
work page 2005
-
[68]
H. Xu, W. Chen, and Y. Zhu, Influence of the bond defect in driven Frenkel-Kontorova chains, Phys. Rev. B 75, 224303 (2007)
work page 2007
-
[69]
Landau, Zur Theorie der Energieubertragung
L. Landau, Zur Theorie der Energieubertragung. II, Physikalische Zeitschrift der Sowjetunion 2, 46–51 (1932)
work page 1932
-
[70]
Zener, Non-Adiabatic Crossing of Energy Levels, Proc
C. Zener, Non-Adiabatic Crossing of Energy Levels, Proc. R. Soc. London Ser. A 137, 696 (1932)
work page 1932
-
[71]
V. L. Pokrovsky and N. A. Sinitsyn, Landau-Zener transitions in a linear chain, Phys. Rev. B 65, 153105 (2002)
work page 2002
-
[72]
Z. Huang and Y. Zhao, Dynamics of dissipative Landau-Zener transitions, Phys. Rev. A 97, 013803 (2018)
work page 2018
- [73]
- [74]
-
[75]
Stone, The Theory of Intermolecular Forces (Oxford University Press, 2013)
A. Stone, The Theory of Intermolecular Forces (Oxford University Press, 2013)
work page 2013
-
[76]
See Supplementary Information for detail derivations of coupling potential between the nanoparticle and the atomic chain, matrix elements of quantum Prandtl-Tomlison Hamiltonian in moving harmonic oscillator basis set, numerical calculation for quasi-static eigenenergies and eigenstates, quantum evolution with and without external bath reservoir, classica...
- [77]
-
[78]
M. H. M¨ user, Velocity dependence of kinetic friction in the Prandtl-Tomlinson model, Phys. Rev. B 84, 125419 (2011)
work page 2011
-
[79]
J. J. Sakurai and J. Napolitano, Modern Quantum Mechanics, 3rd ed. (Cambridge University Press, 2020)
work page 2020
-
[80]
M. Yamaguchi, T. Yuge, and T. Ogawa, Markovian quantum master equation beyond adiabatic regime, Phys. Rev. E 95, 012136 (2017)
work page 2017
-
[81]
The considered time domain for the moving particle (from tmin = 0 to tmax = 3 T in this study) is divided evenly by infinitesimal small intervals ∆ t who must be smaller than the smallest period of Bohr oscillation between eigenstates ∆t < max(En(t) − Em(t)) −1
-
[82]
N. A. Peters, T.-C. Wei, and P. G. Kwiat, Mixed-state sensitivity of several quantum-information benchmarks, Phys. Rev. A 70, 052309 (2004)
work page 2004
-
[83]
D. M. Tong, E. Sj¨ oqvist, L. C. Kwek, and C. H. Oh, Kinematic Approach to the Mixed State Geometric Phase in Nonunitary Evolution, Phys. Rev. Lett. 93, 080405 (2004)
work page 2004
-
[84]
A. Socoliuc, R. Bennewitz, E. Gnecco, and E. Meyer, Transition from Stick-Slip to Continuous Sliding in Atomic Friction: Entering a New Regime of Ultralow Friction, Phys. Rev. Lett. 92, 134301 (2004)
work page 2004
-
[85]
D. Gangloff, A. Bylinskii, I. Counts, W. Jhe, and V. Vuleti´ c, Velocity tuning of friction with two trapped atoms, Nat. Phys. 11, 915–919 (2015)
work page 2015
- [86]
-
[87]
D.-N. Le, N.-T. D. Hoang, and V.-H. Le, Exact analytical solutions of the schr¨ odinger equation for a two dimensional purely sextic double-well potential, Journal of Mathematical Physics 59, 032101 (2018), https://doi.org/10.1063/1.4997532
-
[88]
A. O. Caldeira and A. J. Leggett, Influence of Dissipation on Quantum Tunneling in Macroscopic Systems, Phys. Rev. Lett. 46, 211 (1981)
work page 1981
-
[89]
Weiss, Quantum Dissipative Systems , 4th ed
U. Weiss, Quantum Dissipative Systems , 4th ed. (World Scientific, Singapore, 2012)
work page 2012
-
[90]
T. Dittrich, P. H¨ aanggi, G.-L. Ingold, B. Krammer, G. Sch¨ on, and W. Zwerger,Quantum transport and dissipation (Wiley- VCH, Weinheim, Germany, 1998)
work page 1998
-
[91]
S. Shevchenko, S. Ashhab, and F. Nori, Landau–zener–st¨ uckelberg interferometry, Physics Reports492, 1 (2010)
work page 2010
-
[92]
D. Bouwmeester, G. P. Karman, C. A. Schrama, and J. P. Woerdman, Observation of interference in transitions due to local geometric phases, Phys. Rev. A 53, 985 (1996)
work page 1996
-
[93]
S. Gasparinetti, P. Solinas, and J. P. Pekola, Geometric landau-zener interferometry, Phys. Rev. Lett. 107, 207002 (2011)
work page 2011
- [94]
-
[95]
F. C. Lombardo and P. I. Villar, Geometric phases in open systems: A model to study how they are corrected by decoherence, Phys. Rev. A 74, 042311 (2006)
work page 2006
- [96]
-
[97]
S. M. Rytov, Y. A. Kravtsov, and V. I. Tatarskii, Principles of Statistical Radiophysics 3 (Springer, Berlin, Germany, S-20 1989)
work page 1989
-
[98]
C.-W. Yang, K.-t. Leung, R.-F. Ding, H.-C. Ko, Y.-H. Lu, C.-K. Fang, and I.-S. Hwang, Lateral force microscopy of interfacial nanobubbles: Friction reduction and novel frictional behavior, Scientific Reports 8, 3125 (2018)
work page 2018
-
[99]
E. Sch¨ affer, S. F. Nørrelykke, and J. Howard, Surface forces and drag coefficients of microspheres near a plane surface measured with optical tweezers, Langmuir 23, 3654 (2007)
work page 2007
- [100]
- [101]
-
[102]
A. Zenesini, H. Lignier, G. Tayebirad, J. Radogostowicz, D. Ciampini, R. Mannella, S. Wimberger, O. Morsch, and E. Arimondo, Time-resolved measurement of landau-zener tunneling in periodic potentials, Phys. Rev. Lett. 103, 090403 (2009)
work page 2009
-
[103]
I. S. Gradshteyn and I. M. Ryzhik, Table of integrals, series, and products (Academic press, 2014)
work page 2014
-
[104]
J. Wilkie and M. C ¸ etinba¸ s, Variable-stepsize runge–kutta methods for stochastic schr¨ odinger equations, Physics Letters A 337, 166 (2005)
work page 2005
