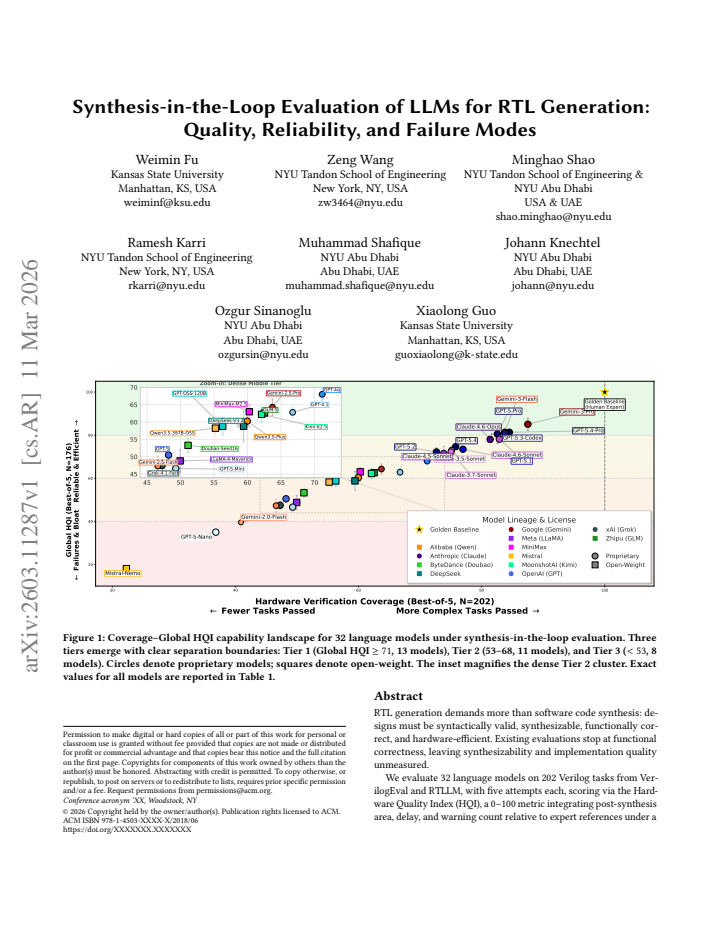

Synthesis-in-the-Loop Evaluation of LLMs for RTL Generation: Quality, Reliability, and Failure Modes

Weimin Fu , Zeng Wang , Minghao Shao , Ramesh Karri , Muhammad Shafique , Johann Knechtel , Ozgur Sinanoglu , Xiaolong Guo

Authors on Pith no claims yet

Pith reviewed 2026-05-15 12:31 UTC · model grok-4.3

classification 💻 cs.AR cs.SE

keywords RTL generationLLM evaluationVerilog synthesisHardware Quality Indexfailure taxonomysynthesis failurespost-synthesis quality

0 comments

The pith

Evaluating 32 LLMs on 202 Verilog tasks with synthesis-in-the-loop reveals three performance regimes and distinct failure patterns by model type.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether LLM-generated RTL can be assessed for hardware quality beyond syntax and function by running designs through a full synthesis flow. It defines the Hardware Quality Index to score outputs on area, delay, and warnings compared to expert references in a 45nm process. Results divide the 32 models into three groups: 14 strong performers above 66 HQI, 15 in the middle range, and 3 weak ones below 43, with multiple sampling attempts lifting scores by several to over 20 points. Failure analysis of 195 cases shows proprietary models hitting problems late in elaboration or timing out, while open models fail early from structural omissions or non-synthesizable code. This matters for using LLMs in actual hardware pipelines where the generated code must produce efficient, working silicon.

Core claim

When 32 language models generate RTL for 202 Verilog tasks, three regimes emerge with 14 frontier models above 66 HQI led by Gemini-3-Pro at 87.5 percent coverage and 85.1 HQI, 15 models clustered between 43 and 66, and 3 below 43. The gap between best-of-five and single-attempt quality reaches 3.7 to 22.1 HQI points. A taxonomy of 195 synthesis failures shows proprietary models failing late through elaboration errors and synthesis timeout while open models fail early from missing module wrappers and non-synthesizable constructs, a pattern tied to training data skewed toward simulation rather than synthesis-grade RTL.

What carries the argument

Hardware Quality Index (HQI) that combines post-synthesis area, delay, and warning counts relative to expert reference designs in a Nangate45 45nm flow.

If this is right

Best-of-five sampling is required to reach usable RTL quality, limiting direct single-shot deployment in agentic design systems.
Open models need training data that emphasizes synthesizable constructs and proper module structure to reduce early failures.
Proprietary models require improved robustness against late-stage elaboration and timeout errors.
Synthesis feedback must be incorporated into evaluation and generation loops for reliable hardware output.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

A closed-loop system that feeds synthesis warnings and area reports back to the model could iteratively raise HQI scores beyond current single-pass levels.
The early-failure pattern in open models suggests that expanding training corpora with verified synthesis examples would narrow the gap to frontier performance.
Testing the same tasks on additional process nodes would clarify whether the observed quality regimes are technology-specific or broadly consistent.

Load-bearing premise

The specific Nangate45 45nm synthesis flow and the chosen combination of area, delay, and warnings into HQI give a representative measure of hardware quality that holds across different technologies and design styles.

What would settle it

Re-running the full set of 202 tasks through an alternate synthesis flow such as a 7nm node or a different commercial tool would show whether the three performance regimes and the early-versus-late failure split remain stable or shift.

Figures

Figures reproduced from arXiv: 2603.11287 by Johann Knechtel, Minghao Shao, Muhammad Shafique, Ozgur Sinanoglu, Ramesh Karri, Weimin Fu, Xiaolong Guo, Zeng Wang.

**Figure 1.** Figure 1: Coverage–Global HQI capability landscape for 32 language models under synthesis-in-the-loop evaluation. Three [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

**Figure 2.** Figure 2: Best-of-five HQI heatmap across eight hardware categories and 32 models. Models are ordered left-to-right by Global [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Per-attempt Expected HQI heatmap across eight hardware categories and 32 models, using the same ordering as [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: Inference characteristics across all 32 models measured via the OpenRouter API. Cost and TTFT use log scale. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

read the original abstract

RTL generation is more than code synthesis. Designs must be syntactically valid, synthesizable, correct, hardware-efficient. SOTA evaluations stop at functional correctness and do not measure synthesis and implementation quality. This paper evaluates 32 language models on 202 Verilog tasks from VerilogEval and RTLLM using the Hardware Quality Index (HQI) that combines post-synthesis area, delay, and warnings related to expert references in a Nangate45 45\,nm flow. Three performance regimes emerge: 14 frontier models achieve HQI $>$ 66, led by Gemini-3-Pro at 87.5\% coverage and 85.1 HQI; 15 models cluster 43--66 HQI; 3 are below 43. Gap between best-of-five capability and single-attempt quality spans 3.7--22.1 HQI points, limiting integration into agentic pipelines. A taxonomy of 195 synthesis failures reveals systematic divergence: proprietary models fail late through elaboration errors and synthesis timeout; open models fail early often due to missing module wrappers and non-synthesizable constructs, a pattern consistent with training corpora skewed toward simulation over synthesis-grade RTL.
