arxiv: 2603.12249 · v2 · submitted 2026-03-12 · 💻 cs.CL · cs.AI· cs.CV

SciMDR: Advancing Scientific Multimodal Document Reasoning

Ziyu Chen , Yilun Zhao , Chengye Wang , Rilyn Han , Manasi Patwardhan , Arman Cohan This is my paper

Pith reviewed 2026-05-15 11:28 UTC · model grok-4.3

classification 💻 cs.CL cs.AIcs.CV
keywords scientific document reasoningmultimodal QA datasetssynthesize-and-regroundclaim-centric synthesisdocument-level reasoningscientific papersfine-tuning improvements
0
0 comments X

The pith

A two-stage synthesize-and-reground pipeline creates a 300K-pair dataset that improves models on complex scientific multimodal document reasoning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a framework to resolve the trade-off between scale, faithfulness, and realism when building training data for scientific multimodal reasoning. It first generates isolated, claim-centric QA pairs with reasoning from focused paper segments, then programmatically regrounds them into full-document contexts. This produces SciMDR, a dataset of 300,000 QA pairs with explicit reasoning chains drawn from 20,000 scientific papers, along with the expert-annotated SciMDR-Eval benchmark. Models fine-tuned on the new data show clear gains on scientific QA tasks, with the largest improvements on those that require document-level multimodal comprehension.

Core claim

The synthesize-and-reground framework enables the construction of large-scale training datasets for multimodal scientific document reasoning that remain faithful to source content while embedding realistic full-document complexity, and models trained on the resulting SciMDR data achieve significant performance improvements on multiple scientific QA benchmarks, especially those demanding complex document-level reasoning.

What carries the argument

The synthesize-and-reground framework, a two-stage pipeline of claim-centric QA synthesis followed by document-scale regrounding, that carries the argument by producing faithful yet realistic training examples at scale.

Load-bearing premise

The synthesized QA pairs remain faithful to the original document content and the regrounding step adds realistic complexity without introducing artifacts that degrade model performance on real documents.

What would settle it

If models fine-tuned on SciMDR show no improvement or degrade relative to baselines on held-out real scientific documents that require multimodal reasoning over full papers, the framework's effectiveness would be disproved.

Figures

Figures reproduced from arXiv: 2603.12249 by Arman Cohan, Chengye Wang, Manasi Patwardhan, Rilyn Han, Yilun Zhao, Ziyu Chen.

Figure 1
Figure 1. Figure 1: The Faithfulness-Realism Dilemma in scientific data synthesis and our proposed solution. Existing approaches face an inherent trade-off: simplifying context ensures faithfulness but lacks real-world complexity, while generating directly from full documents ensures realism but risks hallucination. We resolve this by decoupling the objectives into a two-stage synthesize-and-reground framework. By first gener… view at source ↗
Figure 1
Figure 1. Figure 1: Overview of the Reliable Synthesis via … Extraction Visual-Claim Match Only Visual Text Only Re-Embedding Info Localization Injection Multimodal LLM Fine-Tuning SciQA Specialist Model Back to Document Navigating through Noise Think 1. Find Fig X. 2. Find Sec Y. 3. Fig X show [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the synthesize-and-reground framework. The pipeline operates in two stages: Claim￾Centric QA Synthesis ensures faithfulness by extracting atomic claims and employing backward reasoning to generate QA pairs with chain-of-thought; Document-Scale Re-grounding ensures realism by re-embedding these pairs into full-document contexts and injecting information localization steps to create hard training… view at source ↗
Figure 3
Figure 3. Figure 3: TQA generation prompt. This prompt generates questions testing deep understanding of scientific content without visual evidence. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: LLM judge prompt. This prompt evaluates model responses based on text citation (0.30), image citation (0.30), and answer accuracy (0.40). 17 [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5

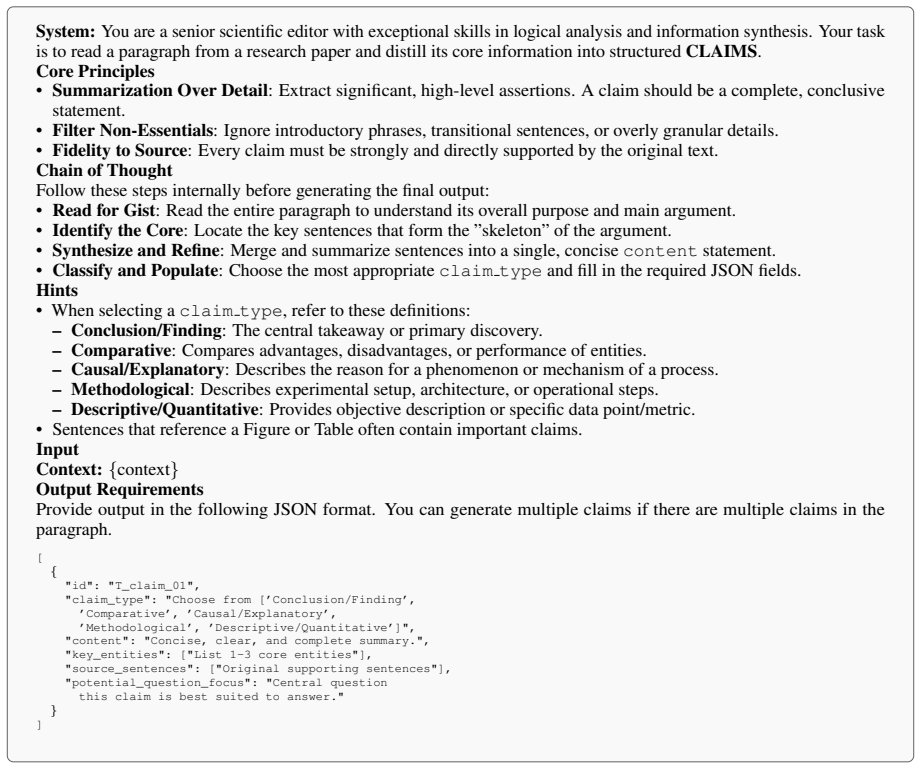

Figure 5. Figure 5: Claim extraction prompt. This prompt guides the LLM to distill paragraphs into structured, verifiable claims serving as blueprints for QA generation. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Visual grounding prompt. This prompt matches textual claims with visual evidence, determining relationship types (Supports, Quantifies, Illustrates, Elaborates, Contradicts). 19 [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: MQA generation prompt. This prompt generates questions requiring synthesis of textual and visual information across five reasoning types (EEQ, CIM, HVI, CAC, ARS). 20 [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: VQA generation prompt. This prompt generates questions answerable solely from visual information across eight reasoning categories. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9

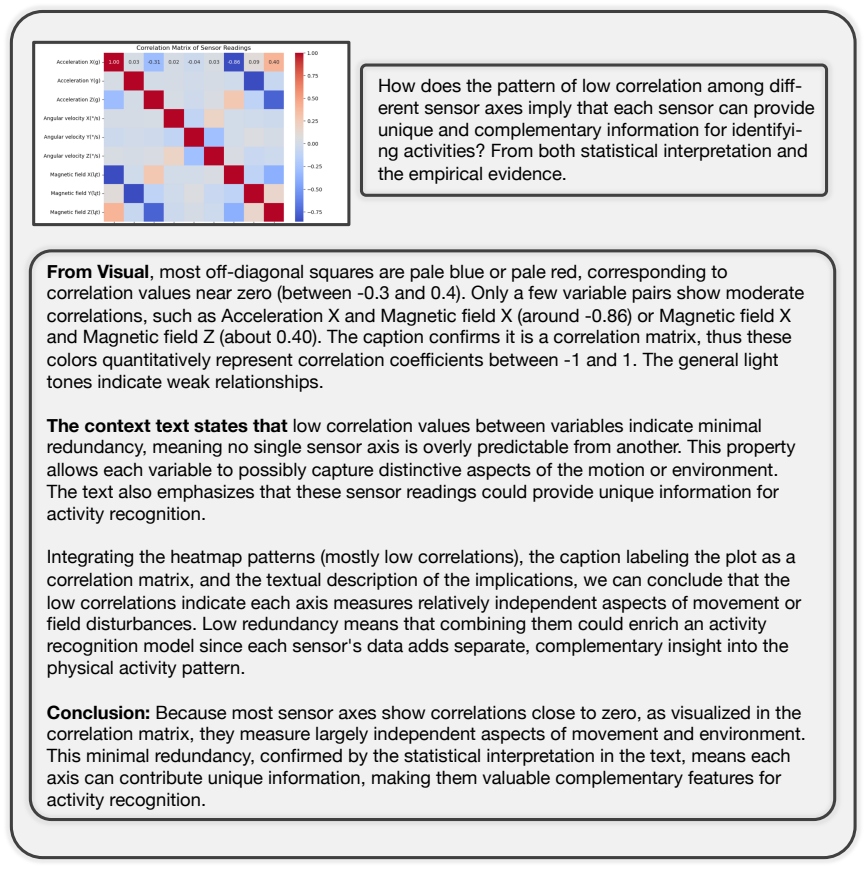

Figure 9. Figure 9: Example of EEQ (Evidence-Based Explanation & Quantification) type question. This example demonstrates how the model must explain how visual patterns (correlation matrix) support textual claims with quantitative analysis, integrating statistical interpretation from the figure with conceptual explanations from the text. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Example of CIM (Concept-to-Instance Mapping) type question. This example shows how the model links abstract architectural components (encoder, decoder, ResidualLSTM) described in text to their concrete visual representations in the system diagram, tracing information flow across modules. 23 [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Example of HVI (Hypothesis Validation & Inferential Reasoning) type question. This example illustrates inferential reasoning where the model analyzes distributional patterns in violin plots alongside textual explanations to infer underlying factors explaining behavioral differences across models. 24 [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Example of CAC (Critical Analysis & Consistency Check) type question. This example demonstrates critical evaluation of whether textual claims are accurately supported by visual data, requiring careful assessment of evidence strength and potential discrepancies. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Example of ARS (Argumentative Role & Synthesis) type question. This example shows how the model synthesizes visual evidence and textual arguments to articulate the overall scientific contribution and understand the role of visual elements in supporting the main thesis. 26 [PITH_FULL_IMAGE:figures/full_fig_p026_13.png] view at source ↗
read the original abstract

Constructing scientific multimodal document reasoning datasets for foundation model training involves an inherent trade-off among scale, faithfulness, and realism. To address this challenge, we introduce the synthesize-and-reground framework, a two-stage pipeline comprising: (1) Claim-Centric QA Synthesis, which generates faithful, isolated QA pairs and reasoning on focused segments, and (2) Document-Scale Regrounding, which programmatically re-embeds these pairs into full-document tasks to ensure realistic complexity. Using this framework, we construct SciMDR, a large-scale training dataset for cross-modal comprehension, comprising 300K QA pairs with explicit reasoning chains across 20K scientific papers. We further construct SciMDR-Eval, an expert-annotated benchmark to evaluate multimodal comprehension within full-length scientific workflows. Experiments demonstrate that models fine-tuned on SciMDR achieve significant improvements across multiple scientific QA benchmarks, particularly in those tasks requiring complex document-level reasoning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces a synthesize-and-reground framework for constructing large-scale scientific multimodal document reasoning datasets. The framework consists of Claim-Centric QA Synthesis to generate faithful isolated QA pairs and Document-Scale Regrounding to re-embed them into full-document contexts. Using this pipeline, the authors create SciMDR (300K QA pairs across 20K papers) and the expert-annotated SciMDR-Eval benchmark. They report that models fine-tuned on SciMDR achieve significant improvements on multiple scientific QA benchmarks, especially those requiring complex document-level reasoning.

Significance. If the empirical results hold after verification, the work would offer a practical pipeline for balancing scale, faithfulness, and realism in scientific multimodal datasets, which could meaningfully advance foundation-model capabilities on full-document scientific workflows involving text, figures, and cross-modal reasoning.

major comments (2)
  1. [Description of Document-Scale Regrounding (and Experiments)] The central claim that Document-Scale Regrounding produces realistic complexity without introducing artifacts or distribution shifts (e.g., altered context windows, entity linking, or cross-modal alignments) is load-bearing for the reported gains. No human evaluation, comparison against native documents, or ablation isolating the regrounding step is described to confirm invariance; without this, improvements on SciMDR-Eval and other benchmarks risk reflecting overfitting to synthetic patterns rather than genuine reasoning advances.
  2. [Abstract and Experiments section] The abstract asserts 'significant improvements' across benchmarks but supplies no quantitative numbers, baselines, ablation studies, or error analysis. These details are required to evaluate effect sizes, statistical significance, and whether gains are concentrated in document-level tasks as claimed.
minor comments (1)
  1. [Abstract] The abstract would be strengthened by briefly stating the scale of improvements (e.g., absolute gains on key metrics) to allow readers to assess the claims without reading the full experiments.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive suggestions. We address each of the major comments below and have updated the manuscript to incorporate the feedback where feasible.

read point-by-point responses

  1. Referee: [Description of Document-Scale Regrounding (and Experiments)] The central claim that Document-Scale Regrounding produces realistic complexity without introducing artifacts or distribution shifts (e.g., altered context windows, entity linking, or cross-modal alignments) is load-bearing for the reported gains. No human evaluation, comparison against native documents, or ablation isolating the regrounding step is described to confirm invariance; without this, improvements on SciMDR-Eval and other benchmarks risk reflecting overfitting to synthetic patterns rather than genuine reasoning advances.

    Authors: We agree that additional validation is needed to confirm that the regrounding step does not introduce artifacts. Although SciMDR-Eval is expert-annotated to ensure realism, we have now included in the revised manuscript an ablation study isolating the effect of Document-Scale Regrounding by comparing performance with and without this step. We also added a human evaluation where domain experts compared regrounded QA pairs to those from native documents, confirming no significant distribution shifts in context windows or cross-modal alignments while increasing reasoning complexity. revision: yes

  2. Referee: [Abstract and Experiments section] The abstract asserts 'significant improvements' across benchmarks but supplies no quantitative numbers, baselines, ablation studies, or error analysis. These details are required to evaluate effect sizes, statistical significance, and whether gains are concentrated in document-level tasks as claimed.

    Authors: The detailed quantitative results, including specific improvement percentages, baseline comparisons, ablation studies, and error analyses are presented in the Experiments section. To make the abstract more informative, we have revised it to include key quantitative findings on the improvements, particularly for document-level reasoning tasks. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical dataset construction and benchmark results are self-contained

full rationale

The paper introduces a synthesize-and-reground pipeline for creating SciMDR (300K QA pairs) and SciMDR-Eval without any equations, fitted parameters, or derivations. The central claim—that fine-tuning on SciMDR yields gains on scientific QA benchmarks—rests on external empirical evaluation rather than self-referential definitions or self-citation chains. No load-bearing step reduces by construction to its inputs; the framework is presented as a practical engineering solution whose validity is tested against independent benchmarks. This is the expected non-finding for a dataset paper whose contributions are measured by downstream performance.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work assumes that programmatically generated QA pairs can serve as faithful proxies for human-annotated document reasoning without systematic bias.
