Inertial-Range Suppression and Ponderomotive Density Cavitation in Broadband Sub-Alfv\'{e}nic Turbulence under Plasma Sheet Boundary Layer Conditions
Pith reviewed 2026-05-15 11:33 UTC · model grok-4.3
The pith
Broadband KAW turbulence self-organizes into coherent density structures and suppresses inertial-range cascades due to moderate Reynolds numbers.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In two-dimensional simulations of the MNLS-MS system for broadband sub-Alfvénic KAW turbulence at β ~ 0.1-0.3, initialized with a k^{-5/6} spectrum on a 256×256 grid, magnetic field intensity and plasma density develop filamentary structures within a few wave periods through ponderomotive density cavitation. The magnetic energy spectra exhibit inertial-range suppression with a rapid transition from injection to dissipation, consistent with Rm ~ 250-370, showing that the spectral character is governed primarily by moderate-Reynolds-number constraints rather than by the wave physics alone.
What carries the argument
The modified nonlinear Schrödinger-magnetosonic (MNLS-MS) system governing the evolution of KAW envelopes and their ponderomotive coupling to compressive density fluctuations.
If this is right
- Filamentary magnetic and density structures form rapidly through ponderomotive cavitation and plasma expulsion from wave-intense regions.
- The nonlinearity parameter stays near 0.25, preserving broadband sub-Alfvénic conditions throughout the run.

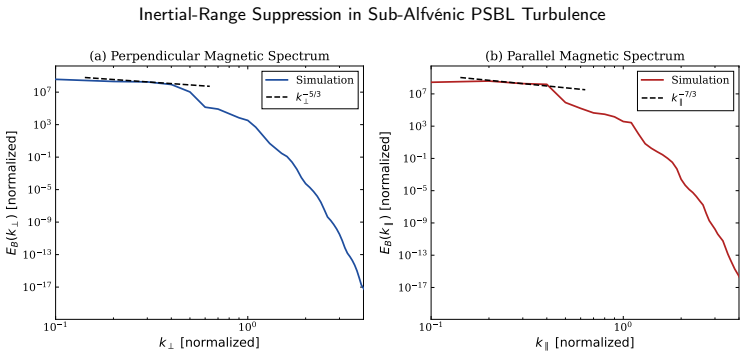

- Magnetic energy spectra show suppression in the inertial range and a direct jump to dissipation scales.
- Total energy remains conserved to within 0.085 percent in undamped cases, with modest losses when dissipation is active.
Where Pith is reading between the lines
- Observations of KAW spectra in the plasma sheet boundary layer may need to account for Reynolds-number effects when interpreting the absence of extended cascades.
- Similar ponderomotive self-organization into density cavities could appear in other low-beta astrophysical plasmas with broadband KAW turbulence.
- Three-dimensional extensions of the model would test whether the rapid structure formation and spectral suppression persist beyond two dimensions.
- The results point toward prioritizing dissipation modeling over pure wave-interaction cascades when studying energy transfer at kinetic scales in space plasmas.
Load-bearing premise
The modified nonlinear Schrödinger-magnetosonic system accurately captures the essential physics of broadband KAW envelopes under the chosen beta range, initial spectrum, two-dimensional geometry, and moderate Reynolds number.
What would settle it
A higher-resolution simulation at significantly larger magnetic Reynolds number that develops a clear extended power-law inertial-range cascade in the magnetic energy spectrum would falsify the claim that moderate Reynolds-number constraints primarily govern the spectral character.
Figures
read the original abstract
Kinetic Alfv\'{e}n waves (KAWs) are among the most pervasive electromagnetic fluctuations in magnetized astrophysical plasmas, from Earth's magnetosphere to galaxy clusters. Their ponderomotive coupling to compressive density fluctuations is poorly understood in the broadband turbulent regime. We present two-dimensional pseudospectral simulations of the modified nonlinear Schr\"{o}dinger--magnetosonic (MNLS--MS) system governing KAW envelopes, initialized with a broadband power-law spectrum ($|\psi(\mathbf{k})|^2\propto k^{-5/6}$) spanning many interacting modes, at $\beta \sim 0.1$--$0.3$ representative of plasma sheet boundary layer (PSBL) conditions. A fourth-order Runge--Kutta scheme on a $256\times 256$ grid integrates the system to $t = 40$ (normalized), with total energy conserved to within $0.085\%$ in the undamped run; a damped run with dissipation loses $\sim 4\%$ of the magnetic energy over the same interval. The nonlinearity parameter $\chi_\mathrm{NL} \approx 0.25$ confirms broadband sub-Alfv\'{e}nic turbulence throughout. Magnetic field intensity and plasma density develop spatially intermittent, filamentary structures within the first few wave periods, consistent with ponderomotive density cavitation and plasma expulsion from wave-intense regions. The magnetic energy spectra show inertial-range suppression, with a rapid transition from injection ($k < 0.3$) to dissipation without an extended power-law cascade, in agreement with the moderate magnetic Reynolds number ($\mathrm{R_m} \sim 250$--$370$) of the simulation and the observationally constrained range for PSBL turbulence. These results provide numerical evidence that broadband KAW turbulence self-organizes into coherent density structures at kinetic scales, and that the spectral character of such turbulence is governed primarily by moderate-Reynolds-number constraints rather than by the wave physics alone.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports two-dimensional pseudospectral simulations of the modified nonlinear Schrödinger-magnetosonic (MNLS-MS) system for broadband sub-Alfvénic kinetic Alfvén wave (KAW) turbulence under plasma sheet boundary layer conditions. Initialized with a power-law spectrum spanning many modes at β ≈ 0.1-0.3, the simulations show the development of spatially intermittent filamentary structures in magnetic field and density due to ponderomotive effects, along with inertial-range suppression in the magnetic energy spectra without an extended cascade. The authors attribute this spectral behavior primarily to the moderate magnetic Reynolds numbers (Rm ~ 250-370) of the runs rather than to the intrinsic wave dynamics of the MNLS-MS system, while reporting energy conservation to within 0.085%.
Significance. If the separation of Reynolds-number effects from wave-physics effects can be established through additional controls, the work would provide valuable numerical evidence that broadband KAW turbulence self-organizes into coherent density structures at kinetic scales and that moderate-Rm constraints dominate the spectral character in PSBL-like conditions. This could help interpret observations of turbulence in Earth's magnetosphere and similar astrophysical plasmas.
major comments (1)
- [Abstract] The headline claim that the observed inertial-range suppression is governed primarily by moderate-Reynolds-number constraints rather than wave physics lacks supporting evidence from the presented simulations. All runs use the same fixed dissipation on a 256×256 grid; there are no higher-Rm (weaker dissipation or finer grid) control simulations and no derivation of the expected ideal-limit spectrum from the MNLS-MS equations to separate the two effects.
minor comments (2)
- [Abstract] The nonlinearity parameter χ_NL ≈ 0.25 is stated without details on its calculation, error bars, or time evolution, which would help confirm the sub-Alfvénic broadband regime throughout the simulation.
- The manuscript would benefit from explicit statements on grid resolution convergence and comparisons to narrower-band initial spectra to isolate the effects of broadband initialization.
Simulated Author's Rebuttal
We thank the referee for the constructive review and for highlighting the need to better separate Reynolds-number effects from intrinsic wave dynamics. We address the major comment below and indicate the revisions planned for the manuscript.
read point-by-point responses
-
Referee: [Abstract] The headline claim that the observed inertial-range suppression is governed primarily by moderate-Reynolds-number constraints rather than wave physics lacks supporting evidence from the presented simulations. All runs use the same fixed dissipation on a 256×256 grid; there are no higher-Rm (weaker dissipation or finer grid) control simulations and no derivation of the expected ideal-limit spectrum from the MNLS-MS equations to separate the two effects.
Authors: We agree that the presented simulations, performed at fixed moderate Rm on a 256×256 grid, lack higher-Rm control runs and an explicit derivation of the ideal (inviscid) spectrum from the MNLS-MS equations. The attribution in the abstract rests on the observed spectral transition matching the computed Rm ∼ 250–370 and observational PSBL constraints, together with early-time development of ponderomotive structures prior to significant dissipation. We will revise the abstract and discussion to state that the inertial-range suppression is consistent with moderate-Reynolds-number constraints in the simulated regime, rather than claiming it is governed primarily by them. This is a partial revision; new higher-Rm runs are noted as a desirable future extension but are outside the scope of the current work. revision: partial
- Derivation of the expected ideal-limit spectrum from the MNLS-MS equations to separate Reynolds-number and wave-physics effects
Circularity Check
No significant circularity; results emerge from direct integration of stated equations
full rationale
The paper reports direct numerical integration of the MNLS-MS system on a 256x256 grid with explicit initial broadband spectrum, fourth-order Runge-Kutta time stepping, and controlled dissipation yielding Rm~250-370. Spectral suppression and density cavitation are outputs of that time evolution, not inputs renamed as predictions. No equations reduce the reported inertial-range behavior to a fitted parameter by construction, no self-citation chain justifies a uniqueness theorem, and no ansatz is smuggled via prior work. The central claim that moderate-Rm constraints dominate is an interpretation of the simulation outcomes rather than a definitional tautology.
Axiom & Free-Parameter Ledger
free parameters (3)
- nonlinearity parameter χ_NL =
0.25
- plasma beta β =
0.1-0.3
- magnetic Reynolds number Rm =
250-370
axioms (2)
- domain assumption The modified nonlinear Schrödinger--magnetosonic system governs the evolution of KAW envelopes
- domain assumption A 256×256 pseudospectral grid with fourth-order Runge--Kutta integration is adequate to capture the inertial-range dynamics up to t=40
Reference graph
Works this paper leans on
-
[1]
Physical Review Letters 94, 215002
Measurement of the electric fluctuation spectrum of magnetohydrodynamic turbulence. Physical Review Letters 94, 215002. doi:10.1103/PhysRevLett.94.215002. Boldyrev, S., Perez, J.C.,
-
[2]
The Astrophysical Journal Letters 758, L44
Spectrum of kinetic-Alfvén turbulence. The Astrophysical Journal Letters 758, L44. doi:10.1088/2041-8205/ 758/2/L44. Brunetti, G., Lazarian, A.,
-
[3]
Compressible turbulence in galaxy clusters: physics and stochastic particle re-acceleration. Monthly Notices of the Royal Astronomical Society 378, 245–275. doi:10.1111/j.1365-2966.2007.11771.x. Chaston, C.C., Bonnell, J.W., Carlson, C.W., McFadden, J.P., Mozer, F., Ergun, R.E., Strangeway, R.J.,
-
[4]
Geophysical Research Letters 35, L02105
Kinetic effects in the acceleration of auroral electrons in small-scale Alfvén waves: a FAST case study. Geophysical Research Letters 35, L02105. doi:10.1029/2007GL032603. Chen, C.H.K., Boldyrev, S., Xia, Q., Perez, J.C.,
-
[5]
Physical Review Letters 110, 225002
Nature of sub-proton scale turbulence in the solar wind. Physical Review Letters 110, 225002. doi:10.1103/PhysRevLett.110.225002. Chen, C.H.K., Klein, K.G., Howes, G.G.,
-
[6]
Chettri,M.K.,Shrivastav,V.,Mukherjee,R.,Gaur,N.,Sharma,R.,Singh,H.D.,2024
doi:10.1038/s41467-019-08435-3. Chettri,M.K.,Shrivastav,V.,Mukherjee,R.,Gaur,N.,Sharma,R.,Singh,H.D.,2024. NonlinearcouplingofkineticAlfvénwavesandionacoustic waves in the inner heliosphere. Research in Astronomy and Astrophysics 24, 105009. Chettri, M.K., Singh, H.D., Mukherjee, R.,
-
[7]
arXiv preprint arXiv:2603.07969
Mms observations of kinetic Alfvén wave turbulence and steep kinetic-range spectra in the outer plasma sheet boundary layer. arXiv preprint arXiv:2603.07969 . Chettri, M.K., Singh, H.D., Shrivastav, V., Singh, B., Mukherjee, R.,
-
[8]
arXiv preprint arXiv:2512.09828
Damped kinetic Alfvén waves in earth’s magnetosheath: Numerical simulations and mms observations. arXiv preprint arXiv:2512.09828 . Cranmer,S.R.,vanBallegooijen,A.A.,2012. Proton,electron,andionheatinginthefastsolarwindfromnonlinearcouplingbetweenAlfvénicand fast-mode turbulence. The Astrophysical Journal 754,
-
[9]
doi:10.1088/0004-637X/754/2/92. Denton,R.E.,etal.,2010. MultipleharmonicULFwavesintheplasmasheetboundarylayer:instabilityanalysis. JournalofGeophysicalResearch 115, A12224. doi:10.1029/2010JA015505. Du, A.M., et al.,
-
[10]
Journal of Geophysical Research 116, A03216
Fast tailward flows in the plasma sheet boundary layer during a substorm on 9 March 2008: THEMIS observations. Journal of Geophysical Research 116, A03216. doi:10.1029/2010JA015969. Galtier, S., Nazarenko, S.V., Newell, A.C., Pouquet, A.,
-
[11]
A weak turbulence theory for incompressible magnetohydrodynamics. Journal of Plasma Physics 63, 447–488. doi:10.1017/S0022377899008284. Gershman, D.J., et al., 2017a. Magnetic holes in a kinetic turbulent plasma. Journal of Geophysical Research: Space Physics 122, 11108–11120. doi:10.1002/2017JA024263. Gershman,D.J.,etal.,2017b. Wave-particleenergyexchang...
-
[12]
Parametric decay of “kinetic Alfvén wave” and its application to plasma heating. Physical Review Letters 36, 1362–1365. doi:10.1103/PhysRevLett.36.1362. Howes, G.G., Cowley, S.C., Dorland, W., Hammett, G.W., Quataert, E., Schekochihin, A.A.,
-
[13]
Geophysical Research Letters 44, 7131–7139
MMS observations of ion-scale magnetic holes in the plasma sheet. Geophysical Research Letters 44, 7131–7139. doi:10.1002/2017GL074778. Lazarian, A., Beresnyak, A.,
-
[14]
Cosmic ray scattering in compressible turbulence. Monthly Notices of the Royal Astronomical Society 373, 1195–1202. doi:10.1111/j.1365-2966.2006.11093.x. Leamon, R.J., Smith, C.W., Ness, N.F., Wong, H.K.,
-
[15]
Journal of Geophysical Research 104, 22331–22344
Dissipation range dynamics: kinetic Alfvén waves and the importance of𝛽𝑒. Journal of Geophysical Research 104, 22331–22344. doi:10.1029/1999JA900158. Matthaeus, W.H., Velli, M.,
-
[16]
Space Science Reviews 160, 145–168
Who needs turbulence? A review of turbulence effects in the heliosphere and on the fundamental process of reconnection. Space Science Reviews 160, 145–168. doi:10.1007/s11214-011-9793-9. Mininni,P.D.,Gómez,D.O.,Mahajan,S.M.,2004. DynamoactioninmagnetohydrodynamicsandHall-magnetohydrodynamics. TheAstrophysical Journal 587, 472–481. doi:10.1086/368181. Mani...
-
[17]
Journal of Geophysical Research: Space Physics 123, 6998–7009
Observation of an MHD Alfvén vortex in the slow solar wind. Journal of Geophysical Research: Space Physics 123, 6998–7009. doi:10.1029/2018JA025248. Sahraoui, F., Goldstein, M.L., Robert, P., Khotyaintsev, Y.V.,
-
[18]
Physical Review Letters 102, 231102
Evidence of a cascade and dissipation of solar-wind turbulence at the electron gyroscale. Physical Review Letters 102, 231102. doi:10.1103/PhysRevLett.102.231102. Schekochihin, A.A., et al.,
-
[19]
Astrophysical gyrokinetics: kinetic and fluid turbulent cascades in magnetized weakly collisional plasmas. The Astrophysical Journal Supplement Series 182, 310–377. doi:10.1088/0067-0049/182/1/310. Shrivastava,G.,Shrivastava,J.,Ahirwar,G.,2015. KineticAlfvénwaveinthepresenceofkappadistributionfunctionintheplasmasheetboundary layer, in: AIP Conference Proc...
-
[20]
Physics of Plasmas 6, 4120–4124
Nonlinear propagation of kinetic Alfvén waves. Physics of Plasmas 6, 4120–4124. doi:10.1063/1.873674. St-Onge, D.A., Kunz, M.W., Squire, J., Schekochihin, A.A.,
-
[21]
Journal of Plasma Physics 86, 905860503
Fluctuation dynamo in a collisionless, weakly magnetized plasma. Journal of Plasma Physics 86, 905860503. doi:10.1017/S0022377820000860. Stawarz, J.E., et al.,
-
[22]
Geophysical Research Letters 44, 7106–7113
Magnetospheric Multiscale analysis of intense field-aligned Poynting flux near the Earth’s plasma sheet boundary. Geophysical Research Letters 44, 7106–7113. doi:10.1002/2017GL074109. Terradas, J., Soler, R., Oliver, R., Ballester, J.L.,
-
[23]
Astronomy & Astrophysics 660, A136
Parametric decay of standing Alfvén waves in a coronal loop. Astronomy & Astrophysics 660, A136. doi:10.1051/0004-6361/202142975. Verscharen, D., Klein, K.G., Maruca, B.A.,
-
[24]
doi:10.1007/ s41116-019-0021-0. Verscharen,D.,etal.,2024.ParametricdecayinstabilityofcircularlypolarisedAlfvénwaveswithaspectrumofwavevectors:3Dhybridsimulations. arXiv preprint arXiv:2403.08179. doi:10.48550/arXiv.2403.08179. Weygand,J.M.,Matthaeus,W.,Dasso,S.,Kivelson,M.,Walker,R.,2007. Taylorscaleandeffectivemagneticreynoldsnumberdeterminationfrom plas...
-
[25]
doi:10.1029/2001JA900113. Yan, H., Lazarian, A.,
-
[26]
The Astrophysical Journal 614, 757–769
Cosmic-ray scattering and streaming in compressible magnetohydrodynamic turbulence. The Astrophysical Journal 614, 757–769. doi:10.1086/423733. Zhou, X.Z., et al.,
-
[27]
Journal of Geophysical Research 117, A10216
Emergence of the active magnetotail plasma sheet boundary from transient, localized ion acceleration. Journal of Geophysical Research 117, A10216. doi:10.1029/2012JA018171. Mani K Chettri et al.:Preprint submitted to ElsevierPage 14 of 14
