Free-Energy Analysis of Bubble Nucleation on Electrocatalytic Surfaces

Qingguang Xie , Paolo Malgaretti , Othmane Aouane , Simon Thiele , Jens Harting This is my paper

Pith reviewed 2026-05-15 09:01 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.chem-ph
keywords bubble nucleationfree-energy modelelectrocatalysissupersaturationelectrolysisnucleation barrier
0
0 comments X

The pith

A free-energy model predicts activation energies and critical radii for bubbles on electrocatalyst surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a free-energy model that calculates the energy barrier and size of the critical nucleus for gas bubbles forming on catalyst surfaces during electrolysis. The model incorporates gas supersaturation, temperature, pressure, and surface wettability to forecast nucleation behavior. It derives power-law scalings where the activation energy falls as the inverse square of supersaturation and the critical radius falls as the inverse of supersaturation. Predictions of critical radii for hydrogen, oxygen, and nitrogen bubbles match experimental values. A coupled diffusion-reaction model further connects supersaturation levels to applied current density.

Core claim

The free-energy model shows that the maximum activation barrier ΔG_max scales as ζ^{-2} with supersaturation ζ while the critical nucleus radius R_c scales as ζ^{-1}. These relations, combined with surface wettability, yield quantitative agreement between predicted critical radii for H2, O2, and N2 bubbles and measured values across experimental conditions.

What carries the argument

Classical free-energy expression for bubble nucleation that balances supersaturation-driven volume energy against surface tension cost, adjusted for contact angle on the catalyst surface.

If this is right

  • Activation energies can be computed directly for any supersaturation, temperature, and wettability to guide electrolyzer operation.
  • Critical bubble sizes decrease inversely with supersaturation, setting thresholds for when bubbles appear at a given current.
  • Coupling gas diffusion to reaction kinetics gives the highest achievable supersaturation at a prescribed current density.
  • Catalyst layer design can target wettability and geometry to raise or lower nucleation barriers for better gas removal.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Operating currents could be chosen to stay below nucleation thresholds predicted by the scaling laws, reducing overpotentials from bubble blocking.
  • If real surfaces show strong heterogeneity, the model would underpredict the spread in nucleation sites and require statistical averaging over local contact angles.
  • The same free-energy framework could extend to other gas-evolving reactions such as chlorine or CO2 reduction by swapping gas properties into the same equations.

Load-bearing premise

Classical nucleation theory remains valid for nanoscale bubbles on real catalyst surfaces with given wettability and no significant non-classical effects or heterogeneity.

What would settle it

A set of measured critical radii for hydrogen bubbles at several supersaturations that deviate from the predicted inverse scaling with supersaturation.

Figures

Figures reproduced from arXiv: 2603.17486 by Jens Harting, Othmane Aouane, Paolo Malgaretti, Qingguang Xie, Simon Thiele.

Figure 1

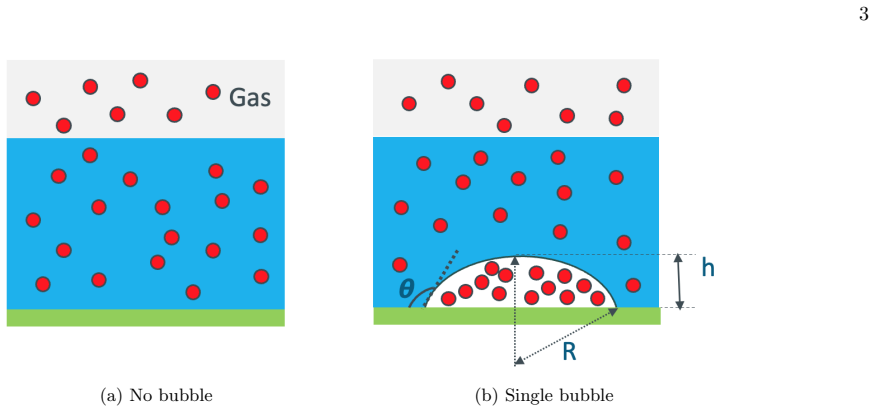

Figure 1. Figure 1: FIG. 1: Sketch of a system with a mixture of gas molecules and water without a bubble (a) and with a bubble (b). [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
