arxiv: 2604.14917 · v1 · submitted 2026-04-16 · ⚛️ physics.optics · cond-mat.mes-hall· cond-mat.mtrl-sci· cond-mat.soft

Light-propelled microparticles based on symmetry-broken refractive index profiles

Julian Jeggle , Matthias R\"uschenbaum , Adrian Paskert , Ivan Kalthoff , Elena Vinnemeier , Jesco Sch\"onfelder , J\"org Imbrock , Cornelia Denz
show 2 more authors
Marcel Rey Raphael Wittkowski
This is my paper

Pith reviewed 2026-05-10 10:34 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hallcond-mat.mtrl-scicond-mat.soft
keywords light propulsionmicroparticlesrefractive index profilesactive colloidal matter3D printingoptical symmetry breakingvolumetric active matteroptical actuation
0
0 comments X

The pith

Symmetry-broken refractive index profiles inside microparticles enable directed propulsion by asymmetric light refraction alone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that microparticles can be fabricated with internal refractive index variations that break optical symmetry, producing net momentum transfer from refracted light rays and resulting in directed motion. This internal mechanism works independently of the particle's outer geometry, so even perfectly symmetric shapes can propel when illuminated. A reader would care because the approach relies on transparency rather than absorption or reflection, which reduces heating and allows light to reach particles deep inside dense collections. The authors develop a theoretical model, run ray-tracing and finite-volume simulations, and test the idea experimentally with geometrically asymmetric particles. If the central claim holds, propulsion becomes decoupled from shape and supports the creation of volumetric active matter with dynamic optical feedback.

Core claim

SBRIP particles achieve propulsion through direct momentum transfer from asymmetric light refraction. Internal refractive-index gradients provide optical symmetry breaking independent of external shape. Geometrically symmetry-broken particles with a homogeneous refractive index are another special case, where propulsion originates from refractive contrast at the boundary instead of within the particle. Unlike conventional systems relying on absorption or reflection, this transparency-based mechanism minimizes heating and mitigates shadowing in bulk suspensions.

What carries the argument

The symmetry-broken refractive index profile (SBRIP), an internal gradient that refracts incoming light asymmetrically to produce net momentum transfer and sustained directed motion.

If this is right

  • Propulsion occurs for particles whose external shape is perfectly symmetric.
  • High transparency permits light to penetrate thick suspensions without strong shadowing.
  • Heating remains low because propulsion does not require absorption.
  • Volumetric active matter becomes feasible, with particles reorganizing throughout a three-dimensional volume.
  • Light-driven particle motion can create a feedback loop that modulates the local refractive index of the material.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Particles of this type could be packed into dense volumes where collective motion alters the overall light transmission in a self-consistent way.
  • The same internal-asymmetry principle might be tested at other wavelengths or with non-optical waves to check generality.
  • Systematic variation of the internal gradient strength in printed particles would reveal how propulsion force scales with the degree of symmetry breaking.

Load-bearing premise

The 3D-printed refractive index profiles can be realized with enough spatial precision and stability that the intended internal asymmetry produces a measurable net force over fabrication imperfections or scattering.

What would settle it

Fabricating particles with the designed internal index gradient but symmetric outer shape and measuring no net propulsion velocity under uniform illumination would falsify the momentum-transfer mechanism.

Figures

Figures reproduced from arXiv: 2604.14917 by Adrian Paskert, Cornelia Denz, Elena Vinnemeier, Ivan Kalthoff, Jesco Sch\"onfelder, J\"org Imbrock, Julian Jeggle, Marcel Rey, Matthias R\"uschenbaum, Raphael Wittkowski.

Figure 1

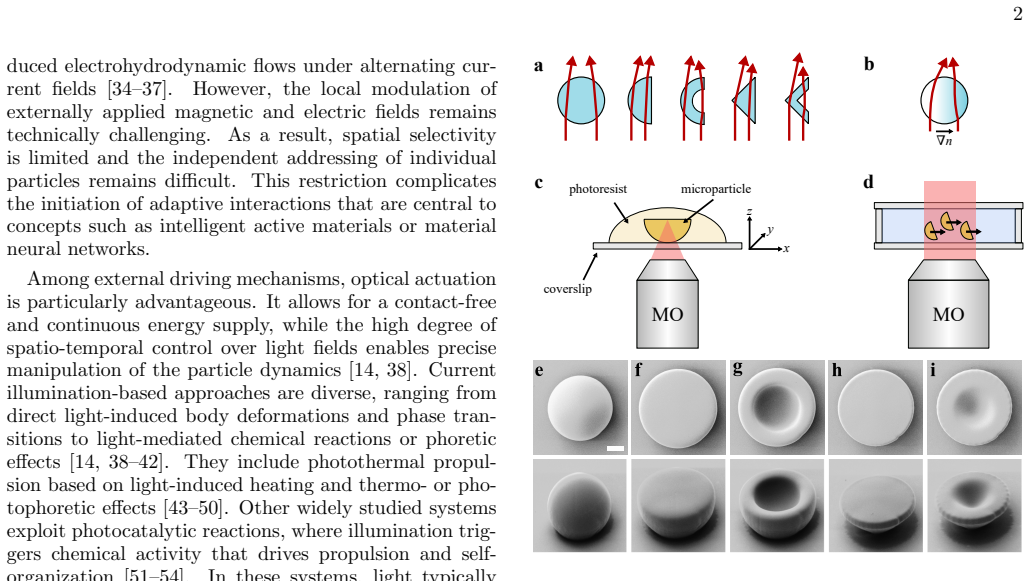

Figure 1. Figure 1: FIG. 1. Design and fabrication of symmetry-broken refractive [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

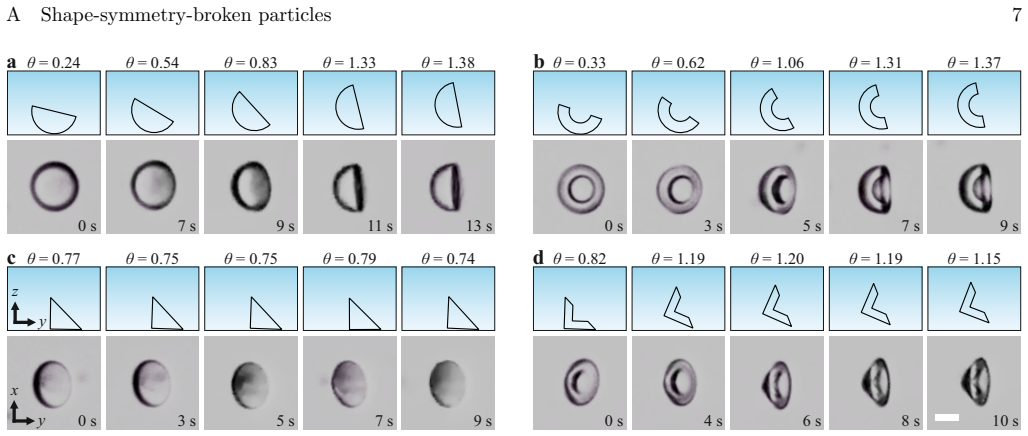

Figure 2. Figure 2: FIG. 2. Reorientation of SBRIP particles under illumination from below. Top row: schematic side views illustrating the [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

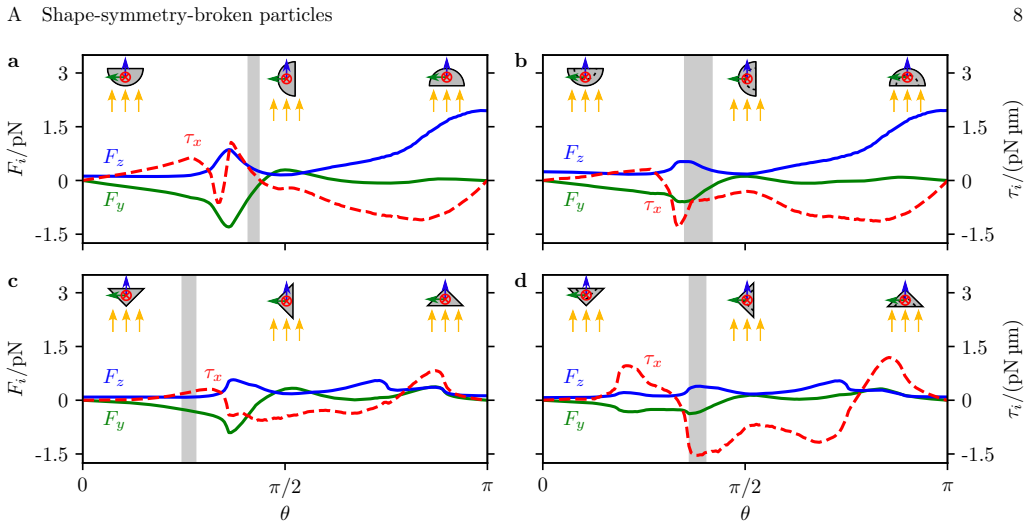

Figure 3. Figure 3: FIG. 3. Simulation results for the forces and torques acting on particles with the shape of a [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

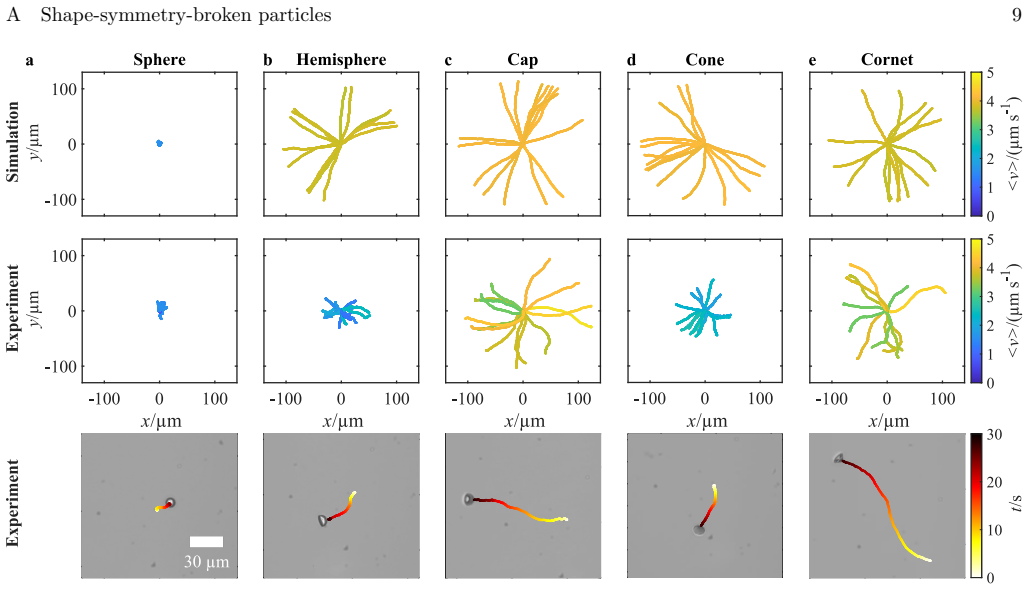

Figure 4. Figure 4: FIG. 4. Lateral trajectories of propelled [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

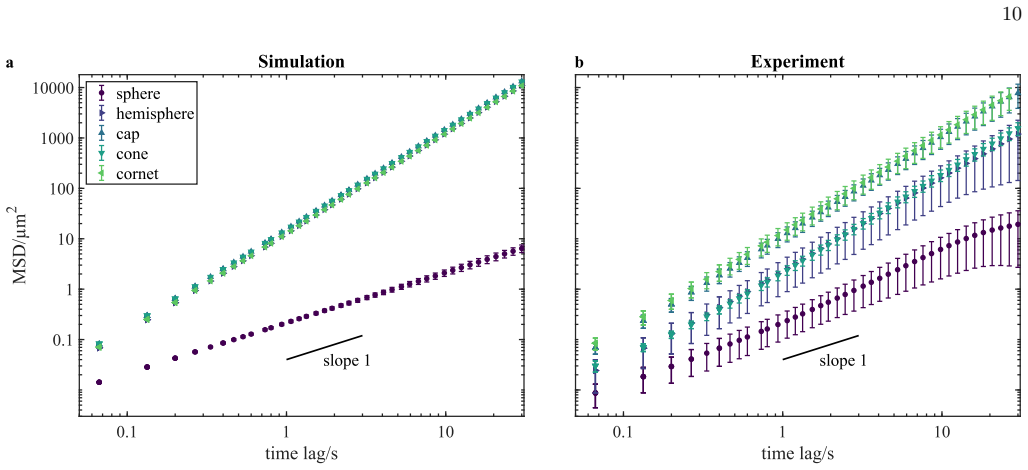

Figure 5. Figure 5: FIG. 5. Mean squared displacement of propelled microparticles (sphere, hemisphere, cap, cone, and cornet) as a function of [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

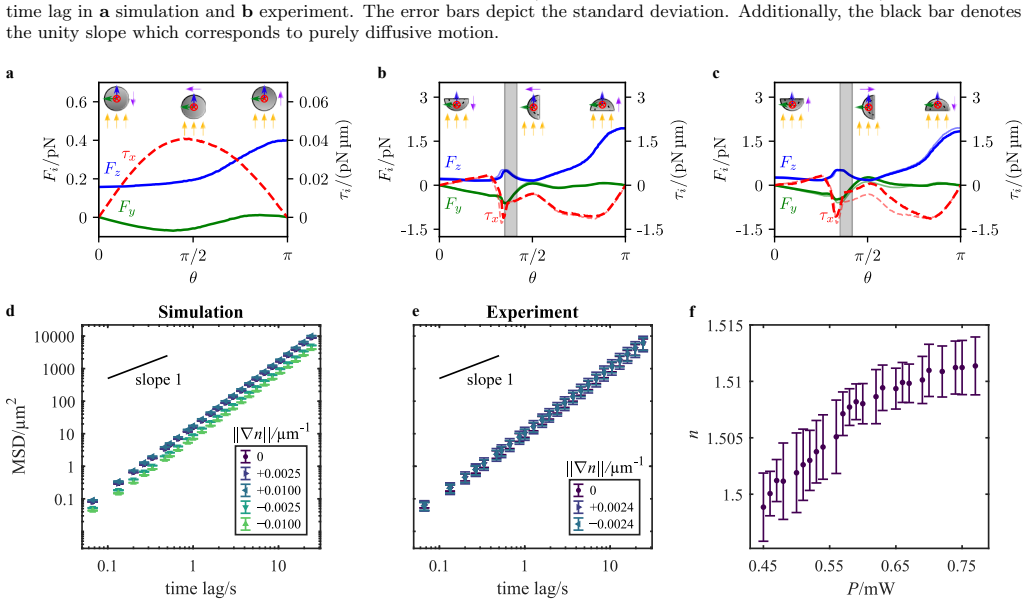

Figure 6. Figure 6: FIG. 6. Forces and torque acting on [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
read the original abstract

Active colloidal microparticles require reliable actuation to sustain directed motion. Light-based propulsion is particularly attractive as it provides persistent energy supply and enables direct spatiotemporal control. Here, we introduce 3D-printable particles with symmetry-broken refractive index profiles (SBRIP particles) that achieve propulsion through direct momentum transfer from asymmetric light refraction. Internal refractive-index gradients provide optical symmetry breaking independent of external shape, fundamentally decoupling propulsion from particle geometry. Geometrically symmetry-broken particles with a homogeneous refractive index are another special case, where propulsion originates from refractive contrast at the boundary instead of within the particle. Unlike conventional systems relying on absorption or reflection, this transparency-based mechanism minimizes heating and mitigates shadowing in bulk suspensions. We present a theoretical framework for refractive propulsion as well as numerical simulations of the SBRIP particles using raytracing and the finite volume method. This is complemented by experiments, validating the momentum transfer mechanism using particles with geometric symmetry breaking. The high transparency of our particles ensures deep light penetration, enabling the realization of volumetric active matter. This opens pathways toward adaptive nonlinear optical materials where light-driven particle reorganization modulates the local refractive index, establishing a dynamic feedback loop between the optical field and the material structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces 3D-printable symmetry-broken refractive index profile (SBRIP) microparticles that achieve directed propulsion through asymmetric refraction of light, with internal refractive-index gradients providing the symmetry breaking independent of external particle shape. It develops a theoretical framework for refractive momentum transfer, presents ray-tracing and finite-volume method simulations for SBRIP particles, and reports experiments validating the underlying mechanism on geometrically asymmetric particles with homogeneous refractive index. The transparency of the particles is emphasized for enabling volumetric active matter and adaptive optical materials.

Significance. If the internal-gradient mechanism is confirmed, the work would offer a notable advance in optical actuation of colloids by decoupling propulsion from geometry and minimizing heating, supporting applications in bulk suspensions and dynamic refractive-index materials. The theoretical framework, combined simulations, and experimental check on the geometric case provide a solid foundation for the momentum-transfer concept.

major comments (2)
  1. [Abstract and experimental validation] The central claim that internal refractive-index gradients enable propulsion independent of external shape is supported only by ray-tracing and FVM simulations; the experiments are restricted to geometrically symmetry-broken particles with uniform index. This gap means the decoupling remains a prediction rather than a demonstrated result, and the abstract and conclusions should explicitly distinguish the validated geometric case from the simulated SBRIP case.
  2. [Numerical simulations section] At micron scales, the geometric-optics approximation in the ray-tracing simulations may be affected by diffraction or scattering at internal interfaces; a quantitative assessment of the validity range or a comparison to wave-optics methods is needed to support the force predictions for SBRIP particles.
minor comments (1)
  1. [Theoretical framework] The notation for refractive-index profiles and the definition of the symmetry-breaking parameter could be clarified with an explicit equation or diagram early in the theoretical framework.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive overall assessment of the manuscript. We address each major comment below, indicating the revisions we will implement.

read point-by-point responses

  1. Referee: [Abstract and experimental validation] The central claim that internal refractive-index gradients enable propulsion independent of external shape is supported only by ray-tracing and FVM simulations; the experiments are restricted to geometrically symmetry-broken particles with uniform index. This gap means the decoupling remains a prediction rather than a demonstrated result, and the abstract and conclusions should explicitly distinguish the validated geometric case from the simulated SBRIP case.

    Authors: We agree that the experiments validate the refractive momentum-transfer mechanism only for geometrically symmetry-broken particles with homogeneous refractive index, whereas propulsion via internal refractive-index gradients in SBRIP particles is supported by ray-tracing and FVM simulations. We will revise the abstract and conclusions to explicitly distinguish these cases, stating that experimental validation applies to the geometric analog while the internal-gradient decoupling is a numerical prediction. This change will accurately reflect the scope of the results without overstating the experimental evidence. revision: yes

  2. Referee: [Numerical simulations section] At micron scales, the geometric-optics approximation in the ray-tracing simulations may be affected by diffraction or scattering at internal interfaces; a quantitative assessment of the validity range or a comparison to wave-optics methods is needed to support the force predictions for SBRIP particles.

    Authors: We acknowledge that diffraction and scattering could become relevant at micron scales. Our simulations target particle feature sizes of several tens of microns with visible wavelengths, placing the system well within the geometric-optics regime (size parameter >> 1). To address the concern directly, we will add a quantitative validity assessment in the numerical simulations section, including an estimate of diffraction effects via the size parameter and a comparison of ray-tracing forces against a wave-optics (FDTD) calculation for a representative 2D SBRIP cross-section. This will confirm the accuracy of the reported propulsion forces. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation rests on external physical principles and independent validation

full rationale

The paper grounds refractive propulsion in standard momentum transfer from asymmetric light refraction, a first-principles optical principle independent of the SBRIP design. The theoretical framework applies ray-tracing and finite-volume methods directly to the prescribed internal refractive-index profiles to compute net forces, without fitting any parameter to the target propulsion result and then relabeling it as a prediction. Experiments on geometrically asymmetric homogeneous-index particles provide separate confirmation of the underlying mechanism, while the SBRIP internal-gradient case is presented as a simulation-based prediction rather than a tautology. No self-definitional equations, fitted-input predictions, load-bearing self-citations, or smuggled ansatzes appear in the derivation chain; the decoupling from external geometry follows from the model inputs rather than reducing to them by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard ray-optics momentum transfer and the assumption that the printed particles maintain the designed refractive-index distribution without significant scattering or absorption.

axioms (2)
  • standard math Light propagation can be modeled by geometric ray tracing with momentum transfer at refractive-index interfaces.
    Invoked in the theoretical framework and ray-tracing simulations described in the abstract.
  • domain assumption The fabricated particles exhibit negligible absorption and scattering so that propulsion arises purely from refraction.
    Stated as the transparency-based mechanism that minimizes heating and shadowing.

pith-pipeline@v0.9.0 · 5566 in / 1281 out tokens · 29459 ms · 2026-05-10T10:34:48.196714+00:00 · methodology
