Deep Hierarchical Knowledge Loss for Fault Intensity Diagnosis

Yu Sha , Shuiping Gou , Bo Liu , Haofan Lu , Ningtao Liu , Jiahui Fu , Horst Stoecker , Domagoj Vnucec
show 3 more authors
Nadine Wetzstein Andreas Widl Kai Zhou
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:21 UTC · model grok-4.3

classification 📡 eess.AS cs.AIcs.CVcs.LGcs.SDeess.SP
keywords fault intensity diagnosishierarchical lossdeep learningfault diagnosissubtle fault recognitionindustrial datasetstree constraints
0
0 comments X

The pith

A deep hierarchical knowledge loss framework models fault class dependencies to improve diagnosis of subtle faults.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a deep hierarchical knowledge loss to incorporate dependencies among target classes that prior fault intensity diagnosis methods overlooked. It builds a hierarchical tree loss using positive and negative constraints to map same-attribute classes together and adds a group tree triplet loss with dynamic margins derived from tree distances. Adaptive weighting schemes based on tree height and a focal variant increase flexibility. Tests across four industrial datasets show the combined losses raise accuracy on hard-to-distinguish faults compared with recent methods.

Core claim

The joint hierarchical tree loss and group tree triplet loss produce hierarchical consistent representations and predictions, which measurably raise recognition rates for subtle faults by enforcing tree-based positive and negative constraints plus boundary structural knowledge.

What carries the argument

The deep hierarchical knowledge loss that combines a tree-based positive/negative hierarchical constraint loss with a group tree triplet loss whose margin adapts to tree distance.

Load-bearing premise

Fault classes have stable hierarchical dependencies that a fixed tree structure can capture without creating new errors on unseen data.

What would settle it

A new industrial dataset where the assumed class tree does not match actual fault relationships and the method shows no accuracy gain or loses ground to non-hierarchical baselines.

Figures

Figures reproduced from arXiv: 2604.16459 by Andreas Widl, Bo Liu, Domagoj Vnucec, Haofan Lu, Horst Stoecker, Jiahui Fu, Kai Zhou, Nadine Wetzstein, Ningtao Liu, Shuiping Gou, Yu Sha.

Figure 1

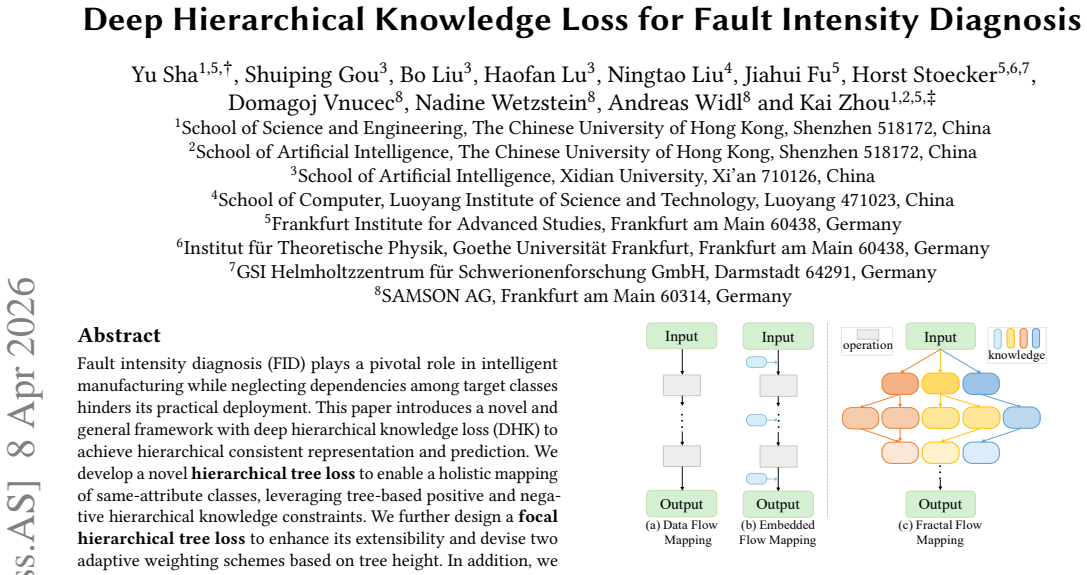

Figure 1. Figure 1: Schematic diagrams for visualising different map [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Evolution schematic of deep hierarchical knowledge loss (DHK), comprising hierarchical tree loss [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visualisation of the learned deep feature distribu [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

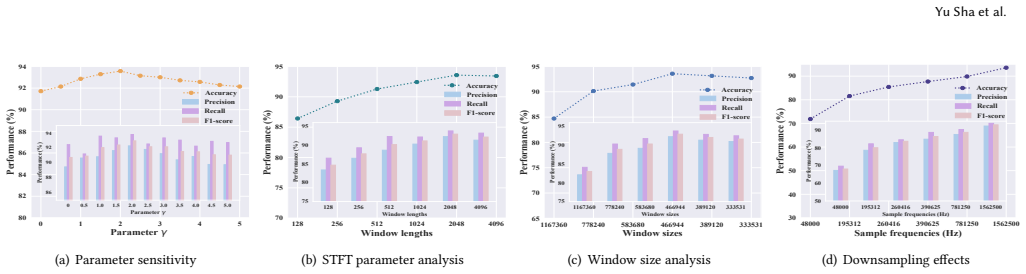

Figure 4. Figure 4: Results of different evaluation metrics from various ablation experiments on Cavitation-Short. (a)-(b) and (d) are all [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Fault intensity diagnosis (FID) plays a pivotal role in intelligent manufacturing while neglecting dependencies among target classes hinders its practical deployment. This paper introduces a novel and general framework with deep hierarchical knowledge loss (DHK) to achieve hierarchical consistent representation and prediction. We develop a novel hierarchical tree loss to enable a holistic mapping of same-attribute classes, leveraging tree-based positive and negative hierarchical knowledge constraints. We further design a focal hierarchical tree loss to enhance its extensibility and devise two adaptive weighting schemes based on tree height. In addition, we propose a group tree triplet loss with hierarchical dynamic margin by incorporating hierarchical group concepts and tree distance to model boundary structural knowledge across classes. The joint two losses significantly improve the recognition of subtle faults. Extensive experiments are performed on four real-world datasets from various industrial domains (three cavitation datasets from SAMSON AG and one publicly available dataset) for FID, all showing superior results and outperforming recent state-of-the-art FID methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper introduces a Deep Hierarchical Knowledge Loss (DHK) framework for fault intensity diagnosis (FID) that incorporates hierarchical class dependencies via a hierarchical tree loss (with positive/negative constraints), a focal hierarchical tree loss (with tree-height adaptive weighting), and a group tree triplet loss (with tree-distance dynamic margins). The central claim is that jointly optimizing these losses yields hierarchical-consistent representations that significantly improve subtle fault recognition, with extensive experiments on four real-world datasets (three cavitation datasets and one public) demonstrating outperformance over recent SOTA FID methods.

Significance. If the hierarchical dependencies are stable and the fixed tree accurately captures them without introducing spurious correlations, the DHK framework offers a principled way to embed structural knowledge into deep learning losses for FID, potentially improving generalization in industrial settings where fault intensities form natural hierarchies. The multi-dataset evaluation is a positive aspect, and the combination of focal weighting and dynamic margins addresses class imbalance and boundary issues in a targeted manner.

major comments (3)
  1. [§3.2] §3.2 (Hierarchical Tree Construction): The fixed tree structure underlying all positive/negative constraints, focal weighting, and dynamic margins is presented without justification, sensitivity analysis to alternative hierarchies (flat or differently branched), or validation against domain-derived dependencies; this is load-bearing because incorrect groupings would enforce spurious correlations rather than genuine knowledge, directly undermining the claim that the joint losses 'significantly improve' recognition beyond dataset-specific artifacts.
  2. [§4.2–4.3] §4.2–4.3 (Experimental Validation): While tables report superior accuracy/F1 on the four datasets, the manuscript lacks ablation studies isolating the contribution of each loss component (e.g., removing the group triplet loss), statistical significance tests (paired t-tests or Wilcoxon with p-values across runs), and standard deviations from multiple random seeds; without these, it is impossible to confirm that reported gains are robust rather than due to hyperparameter tuning or post-hoc tree selection.
  3. [Eq. (8)–(10)] Eq. (8)–(10) (Adaptive Weighting and Dynamic Margins): The tree-height adaptive scheme and tree-distance margins assume a balanced or correctly scaled hierarchy; if leaf depths vary substantially across the manually defined tree, the weighting can over- or under-emphasize certain constraints, yet no analysis of height distribution or margin sensitivity is provided, risking unstable training on new fault distributions.
minor comments (3)
  1. [Figure 2] Figure 2 and §3.1: The diagram of the DHK framework would benefit from explicit annotation of which loss terms operate on which embeddings (e.g., labeling the triplet sampling strategy).
  2. [§2] §2 (Related Work): The comparison to prior hierarchical loss methods (e.g., in image classification) is brief; adding 2–3 sentences on how DHK differs from existing tree-based or metric-learning approaches would clarify novelty.
  3. [§3] Notation in §3: The symbols for positive/negative pairs (e.g., P_h, N_h) and the exact definition of tree distance d_T should be introduced once in a table or early equation to avoid repeated inline definitions.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback. The comments have identified areas where additional justification and validation will strengthen the manuscript. We address each major comment below and will incorporate the suggested revisions.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (Hierarchical Tree Construction): The fixed tree structure underlying all positive/negative constraints, focal weighting, and dynamic margins is presented without justification, sensitivity analysis to alternative hierarchies (flat or differently branched), or validation against domain-derived dependencies; this is load-bearing because incorrect groupings would enforce spurious correlations rather than genuine knowledge, directly undermining the claim that the joint losses 'significantly improve' recognition beyond dataset-specific artifacts.

    Authors: We appreciate this observation. The tree structure is derived from domain knowledge of fault intensity hierarchies in cavitation processes, where classes share physical attributes such as severity levels and operational conditions, as informed by the industrial datasets from SAMSON AG. In the revision, we will expand §3.2 to provide explicit justification for the tree construction, including its grounding in real-world fault dependencies. We will also add a sensitivity analysis comparing the proposed hierarchy against flat and alternative branched structures to confirm that performance gains are not artifacts of the specific tree. revision: yes

  2. Referee: [§4.2–4.3] §4.2–4.3 (Experimental Validation): While tables report superior accuracy/F1 on the four datasets, the manuscript lacks ablation studies isolating the contribution of each loss component (e.g., removing the group triplet loss), statistical significance tests (paired t-tests or Wilcoxon with p-values across runs), and standard deviations from multiple random seeds; without these, it is impossible to confirm that reported gains are robust rather than due to hyperparameter tuning or post-hoc tree selection.

    Authors: We agree that these elements are necessary for demonstrating robustness. In the revised manuscript, we will include ablation studies that systematically isolate each DHK component (hierarchical tree loss, focal hierarchical tree loss, and group tree triplet loss). We will also report standard deviations from multiple random seeds (at least five runs per experiment) and add statistical significance tests, such as paired t-tests or Wilcoxon signed-rank tests with p-values, to validate that the observed improvements are statistically meaningful. revision: yes

  3. Referee: [Eq. (8)–(10)] Eq. (8)–(10) (Adaptive Weighting and Dynamic Margins): The tree-height adaptive scheme and tree-distance margins assume a balanced or correctly scaled hierarchy; if leaf depths vary substantially across the manually defined tree, the weighting can over- or under-emphasize certain constraints, yet no analysis of height distribution or margin sensitivity is provided, risking unstable training on new fault distributions.

    Authors: We acknowledge the potential sensitivity to tree depth variations. Our current trees exhibit relatively uniform depths (typically 3–4 levels) due to the natural structure of fault intensity classes. In the revision, we will add an explicit analysis of the height distribution across the trees used in our experiments. We will further include sensitivity studies on the adaptive weighting coefficients and dynamic margin parameters to demonstrate training stability and performance consistency under different configurations. revision: yes

Circularity Check

0 steps flagged

No circularity: new loss functions are additive constructions, not reductions to inputs

full rationale

The paper defines a novel DHK framework consisting of a hierarchical tree loss (positive/negative constraints on same-attribute classes), a focal hierarchical tree loss (with tree-height adaptive weighting), and a group tree triplet loss (with tree-distance dynamic margins). These are presented as original constructions in the method, without any equations or claims that reduce by definition to fitted parameters, prior predictions, or self-cited uniqueness theorems. The joint losses are applied to a fixed tree (presumably domain-defined) to produce representations, then validated empirically on four datasets; no step equates the output metric to the input tree or loss definitions themselves. This is a standard methods contribution with independent empirical content, so no load-bearing circularity exists.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Abstract-only review prevents exhaustive extraction; the central design rests on the unstated premise that fault classes admit a useful tree hierarchy and that the new loss terms will improve representation learning without additional regularization.

axioms (1)
  • domain assumption Fault intensity classes possess stable hierarchical relationships that can be encoded in a tree structure for positive and negative constraints.
    Invoked by the design of the hierarchical tree loss and group triplet loss.
invented entities (1)
  • Deep Hierarchical Knowledge Loss (DHK) framework no independent evidence
    purpose: To achieve hierarchical consistent representation and prediction for fault intensity diagnosis.
    New composite loss introduced in the paper.
