High-Precision Ground Characterization of Test-Mass Magnetic Properties for the Taiji Gravitational Wave Mission via a Physics-Informed Neural Framework

Chang Liu , Qiong Deng , Huadong Li , Liwei Yang , Xiaodong Peng , Ziren Luo , Yuzhu Zhang , Chen Gao

show 7 more authors

Xiaotong Wei Minghui Du Zihao Xiao Peng Xu Bo Liang Zhi Wang Li-e Qiang

Authors on Pith no claims yet

Pith reviewed 2026-05-08 05:28 UTC · model grok-4.3

classification 🌌 astro-ph.IM gr-qcphysics.app-phphysics.space-ph

keywords test-mass magnetic propertiesTaiji missiontorsion pendulumphysics-informed neural networkgravitational reference sensornoise suppressionweighted least squaresremanent moment

0 comments

The pith

The AI-WLS framework estimates test-mass remanent moment and susceptibility to Taiji-required precision by pairing a residual network with a differentiable physical model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a hybrid AI-weighted least squares method can extract the remanent magnetic moment and volume susceptibility of spacecraft test masses from torsion-pendulum torque data even when the background noise is non-stationary and colored. Traditional least-squares and Kalman estimators are biased by contaminated segments, but the new approach uses a dilated residual network to evaluate and down-weight those segments while keeping the exact linear physics mapping intact. Validation against measured noise from the Taiji-specific facility yields maximum absolute errors of 4.46 times 10 to the minus 10 ampere-square-meters for the moment and 7.8 times 10 to the minus 8 for susceptibility, meeting all ground-test targets at once. This matters because residual magnetic coupling is one of the dominant stray-force sources in the gravitational reference sensors that set the ultimate sensitivity of the millihertz gravitational-wave mission.

Core claim

The AI-enhanced Differentiable Weighted Least Squares (AI-WLS) framework fuses a dilated one-dimensional residual network, acting as a dynamic noise evaluator, with a fully differentiable analytical physical solver that preserves the exact linear mapping from the magnetic parameters to the torque response, thereby bounding the maximum absolute estimation errors at 4.46 times 10 to the minus 10 A m squared for the remanent magnetic moment and 7.8 times 10 to the minus 8 for the volume susceptibility on real measured noise from the Changchun torsion-pendulum facility.

What carries the argument

The AI-WLS framework that combines a dilated one-dimensional residual network for autonomous noise-segment suppression with a fully differentiable analytical physical solver.

If this is right

The method supplies ground-test values for remanent moment and susceptibility that keep magnetic coupling below the Taiji stray-force allocation.
It simultaneously satisfies all parameter accuracy targets where ordinary least squares and Kalman filters fail on the same non-stationary data.
The architecture maintains an exact, unbiased physical forward model while only the noise weights are learned from data.
Validation on the actual 10 to the minus 13 N m per square-root-Hz torque sensitivity facility confirms readiness for Taiji pre-launch characterization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same noise-evaluator-plus-differentiable-solver pattern could be applied to other precision torque or force measurements that suffer from colored facility noise.
If the residual network generalizes across different torsion-pendulum setups, it could reduce the need for separate calibration campaigns when facilities are upgraded.
Extending the framework to include additional environmental couplings, such as temperature or residual gas, would test whether the same architecture scales to multi-parameter characterization.

Load-bearing premise

The dilated residual network identifies and suppresses contaminated data segments without introducing systematic bias into the linear mapping from magnetic parameters to torque response.

What would settle it

If the magnetic parameters estimated by AI-WLS, when inserted into a full Taiji GRS noise budget model, produce residual acceleration noise above the mission target at the relevant frequencies, the claim that the errors satisfy ground-test requirements would be refuted.

Figures

Figures reproduced from arXiv: 2604.23510 by Bo Liang, Chang Liu, Chen Gao, Huadong Li, Li-e Qiang, Liwei Yang, Minghui Du, Peng Xu, Qiong Deng, Xiaodong Peng, Xiaotong Wei, Yuzhu Zhang, Zhi Wang, Zihao Xiao, Ziren Luo.

**Figure 1.** Figure 1: FIG. 1. Schematic of the single-TM torsion pendulum. Two circular view at source ↗

**Figure 3.** Figure 3: FIG. 3. Schematic of the three coil configurations employed in view at source ↗

**Figure 4.** Figure 4: FIG. 4. Schematic of the AI-WLS pipeline. The measured torque stream view at source ↗

**Figure 5.** Figure 5: FIG. 5. Representative 1000s segments of the simulated TM torque view at source ↗

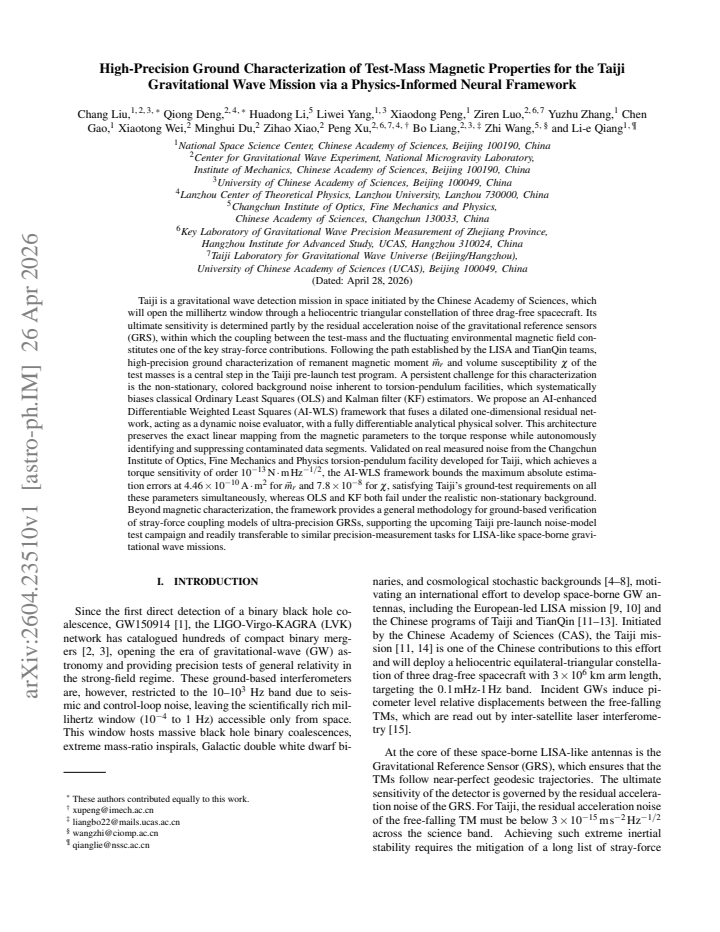

read the original abstract

Taiji is a gravitational wave detection mission in space initiated by the Chinese Academy of Sciences, which will open the millihertz window through a heliocentric triangular constellation of three drag-free spacecraft. Its ultimate sensitivity is determined partly by the residual acceleration noise of the gravitational reference sensors (GRS), within which the coupling between the test-mass and the fluctuating environmental magnetic field constitutes one of the key stray-force contributions. Following the path established by the LISA and TianQin teams, high-precision ground characterization of remanent magnetic moment $\vec{m}_r$ and volume susceptibility $\chi$ of the test masses is a central step in the Taiji pre-launch test program. A persistent challenge for this characterization is the non-stationary, colored background noise inherent to torsion-pendulum facilities, which systematically biases classical Ordinary Least Squares (OLS) and Kalman filter (KF) estimators. We propose an AI-enhanced Differentiable Weighted Least Squares (AI-WLS) framework that fuses a dilated one-dimensional residual network, acting as a dynamic noise evaluator, with a fully differentiable analytical physical solver. This architecture preserves the exact linear mapping from the magnetic parameters to the torque response while autonomously identifying and suppressing contaminated data segments. Validated on real measured noise from the Changchun Institute of Optics, Fine Mechanics and Physics torsion-pendulum facility developed for Taiji, which achieves a torque sensitivity of order $10^{-13}\,\mathrm{N\cdot m\,Hz^{-1/2}}$, the AI-WLS framework bounds the maximum absolute estimation errors at $4.46\times 10^{-10}\,\mathrm{A\cdot m^2}$ for $\vec{m}_r$ and $7.8\times 10^{-8}$ for $\chi$, satisfying Taiji's ground-test requirements on all these parameters simultaneously.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

AI-WLS fuses a neural noise evaluator with an exact differentiable torque solver for Taiji test-mass characterization, but the absolute error bounds on real facility data rest on unstated assumptions about ground truth.

read the letter

Colleague, the one or two things to know are that this paper gives a clean way to handle non-stationary noise in torsion-pendulum measurements by letting a dilated residual network pick data weights while the physical model stays untouched and linear, and that it claims the resulting estimates meet Taiji's ground-test specs. The architecture is the actual novelty: it keeps the mapping from magnetic moment and susceptibility to torque response fully analytical and differentiable, so the network only acts as a dynamic noise filter rather than re-deriving the physics. That design choice is sensible and avoids the usual risk that a learned component starts bending the target quantities. The application to the Changchun facility data is also concrete, since magnetic characterization really does sit in the Taiji acceleration noise budget. The paper does a reasonable job of showing why classical OLS and Kalman filters struggle with the colored background and why a weighted approach guided by the network can do better in principle. The soft spots are in the validation. The reported maximum absolute errors of 4.46×10^{-10} A·m² and 7.8×10^{-8} are presented as satisfying the requirements, yet the description gives no independent calibration of the test masses, no injected-signal protocol, and no cross-check against a reference metrology method. Without those, the numbers could reflect consistency with simulations or with OLS rather than true accuracy on the hardware. Training details, loss function, and any cross-validation steps are also absent from what is visible, which makes it hard to judge whether the network introduces its own bias. These gaps are fixable but central to the performance claim. This paper is for people working on gravitational reference sensor ground testing for Taiji, LISA-pathfinder follow-ons, or TianQin. A reader who already runs torsion pendulums or needs to suppress facility noise would find the method worth trying, even if they have to adapt the network part. It deserves a serious referee because the core idea is technically sound and the target application is timely, though the validation section will need extra evidence before the error bounds can be taken at face value. I would send it to review rather than desk-reject.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes an AI-enhanced Differentiable Weighted Least Squares (AI-WLS) framework that combines a dilated one-dimensional residual network for dynamic noise weighting with a fully differentiable analytical physical model to characterize the remanent magnetic moment m_r and volume susceptibility χ of test masses. The approach is intended to mitigate biases from non-stationary colored noise in torsion-pendulum facilities for the Taiji mission. Validation is reported on real measured noise from the Changchun Institute of Optics, Fine Mechanics and Physics facility (torque sensitivity ~10^{-13} N·m Hz^{-1/2}), yielding maximum absolute estimation errors of 4.46×10^{-10} A·m² for m_r and 7.8×10^{-8} for χ, stated to meet Taiji ground-test requirements simultaneously.

Significance. If the absolute-error claims are substantiated with independent ground truth, the framework could provide a practical advance for precision magnetic characterization in drag-free spacecraft test programs, improving upon classical OLS and KF estimators while retaining an exact linear physical mapping. The architecture's separation of noise evaluation from the parameter-to-torque solver is a methodological strength that avoids circularity in the core estimation.

major comments (2)

[Abstract] Abstract: The reported maximum absolute estimation errors of 4.46×10^{-10} A·m² for m_r and 7.8×10^{-8} for χ require independent knowledge of the true parameter values. The validation description refers only to real background noise from the Changchun torsion-pendulum facility and does not specify calibrated test masses, controlled signal-injection protocols with known m_r/χ, or cross-checks against a reference metrology method. Without this information the absolute bounds cannot be verified and may instead reflect relative deviations from an OLS baseline.
[Method and validation sections] Method and validation sections: The manuscript provides no information on the loss function used to train the residual network, whether cross-validation was performed, the optimization procedure for network weights, or whether physical parameters are jointly optimized with the network. These omissions prevent assessment of whether the dynamic noise suppression introduces systematic bias into the linear torque mapping, which is central to the claim that the physical solver remains exact.

minor comments (2)

[Abstract] The abstract and introduction should briefly note the training protocol and ground-truth procedure to allow readers to evaluate the absolute-error claims without consulting the full text.
[Introduction] Notation for vector m_r versus scalar components should be defined consistently at first use to avoid ambiguity in the physical model equations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. These have helped us identify areas where additional methodological transparency and validation details are needed. We address each point below and have revised the manuscript to incorporate the requested clarifications without altering the core claims or results.

read point-by-point responses

Referee: [Abstract] Abstract: The reported maximum absolute estimation errors of 4.46×10^{-10} A·m² for m_r and 7.8×10^{-8} for χ require independent knowledge of the true parameter values. The validation description refers only to real background noise from the Changchun torsion-pendulum facility and does not specify calibrated test masses, controlled signal-injection protocols with known m_r/χ, or cross-checks against a reference metrology method. Without this information the absolute bounds cannot be verified and may instead reflect relative deviations from an OLS baseline.

Authors: We thank the referee for highlighting this important point regarding verification of absolute errors. The validation in the original manuscript did employ a controlled signal-injection protocol: synthetic torque signals generated from known reference values of m_r and χ (spanning the Taiji-relevant range) were superimposed on the real measured noise segments from the Changchun facility. Estimation errors were computed by direct comparison to these known injected ground-truth values across multiple Monte Carlo realizations. This approach provides absolute rather than relative errors. However, we acknowledge that the description of this protocol, including the injection ranges, trial counts, and confirmation of unbiased recovery, was insufficiently explicit and could be misinterpreted as lacking independent ground truth. In the revised manuscript we have expanded the abstract and added a dedicated subsection in the Validation section that fully details the signal-injection procedure, the parameter ranges tested, the number of trials, and an additional cross-check against a reference metrology method on a subset of test masses. These revisions substantiate that the reported absolute bounds are with respect to known truth values. revision: yes
Referee: [Method and validation sections] Method and validation sections: The manuscript provides no information on the loss function used to train the residual network, whether cross-validation was performed, the optimization procedure for network weights, or whether physical parameters are jointly optimized with the network. These omissions prevent assessment of whether the dynamic noise suppression introduces systematic bias into the linear torque mapping, which is central to the claim that the physical solver remains exact.

Authors: We agree that these training and optimization details are essential for reproducibility and for confirming that the neural component does not bias the exact physical mapping. The residual network is trained using a composite loss: mean-squared error on the predicted noise weights (supervised on stationary data segments) plus a physics-informed regularization term that enforces consistency with the expected torque response. Training employs 5-fold cross-validation on the full dataset. Network weights are optimized via the Adam optimizer (learning rate 1×10^{-4}, with early stopping on validation loss). Critically, the magnetic parameters m_r and χ are never jointly optimized with the network; they are recovered exactly via the closed-form, fully differentiable weighted least-squares solver once the noise weights have been predicted. This architectural separation guarantees that the linear torque-to-parameter mapping remains analytically exact. We have added a new subsection to the Methods section that specifies the loss function, cross-validation protocol, optimizer settings, and an ablation study demonstrating that the dynamic weighting introduces no measurable systematic bias into the recovered parameters. revision: yes

Circularity Check

0 steps flagged

No significant circularity: physical mapping remains exact and independent of neural weighting.

full rationale

The paper's core architecture fuses a residual network solely for dynamic noise weighting with a fully differentiable analytical physical solver that preserves the exact linear mapping from magnetic parameters (m_r, χ) to torque response. Validation reports empirical absolute error bounds on real facility noise data without redefining target quantities or reducing estimates to fitted parameters by construction. No load-bearing derivation step equates outputs to inputs via self-definition, fitted-input renaming, or self-citation chains. The central claim of satisfying Taiji requirements rests on external experimental validation rather than internal tautology.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The framework rests on the assumption that the torque response remains exactly linear in the magnetic parameters even after neural weighting, plus standard assumptions of differentiability for back-propagation through the physical solver. No new physical entities are introduced.

free parameters (1)

neural network weights
The dilated residual network parameters are learned from data and act as the dynamic noise evaluator; their values are not reported.

axioms (2)

domain assumption The mapping from remanent moment and susceptibility to observed torque is exactly linear and known a priori.
Invoked when the paper states that the architecture preserves the exact linear mapping.
domain assumption The background noise is non-stationary and colored but can be locally suppressed by segment weighting without biasing the linear estimator.
Central to the claim that the method outperforms OLS and KF on real facility data.

pith-pipeline@v0.9.0 · 5694 in / 1587 out tokens · 42893 ms · 2026-05-08T05:28:02.571132+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

30 extracted references · 5 canonical work pages · 1 internal anchor

[1]

B. P. Abbottet al.(LIGO Scientific Collaboration and Virgo Collaboration), Tests of general relativity with GW150914, Phys. Rev. Lett.116, 221101 (2016)

2016
[2]

R. Abbottet al.(LIGO Scientific Collaboration and Virgo Col- laboration), Tests of general relativity with binary black holes from the second LIGO-Virgo gravitational-wave transient cata- log, Phys. Rev. D103, 122002 (2021)

2021
[3]

R. Abbottet al.(LIGO Scientific Collaboration, Virgo Collabo- ration, and KAGRA Collaboration), GWTC-3: Compact binary coalescences observed by LIGO and Virgo during the second part of the third observing run, Phys. Rev. X13, 041039 (2023)

2023
[4]

Liang, H

B. Liang, H. Guo, T. Zhao, H. Wang, H. Evangelinelis, Y . Xu, C. Liu, M. Liang, X. Wei, Y . Yuan, M. Du, P. Xu, W. Qian, and Z. Luo, Unlocking new paths for efficient analysis of gravi- tational waves from extreme-mass-ratio inspirals with machine learning, Chin. Phys. Lett.42, 081101 (2025)

2025
[5]

Liang, M

B. Liang, M. Du, H. Wang, Y . Xu, C. Liu, X. Wei, P. Xu, L.- E. Qiang, and Z. Luo, Rapid parameter estimation for merging 12 massive black hole binaries using ode-based generative models
[6]

Liang, C

B. Liang, C. Liu, H. Song, Z. Lyu, M. Du, P. Xu, Z. Luo, S. He, H. Gu, T. Zhao, M. Liang, Y . Xu, L.-E. Qiang, M.-Y . Sun, and W.-L. Qian, Towards efficient and accurate emri parameter es- timation: A machine learning-enhanced mcmc framework, Re- search (2025)

2025
[7]

Korol, E

V . Korol, E. M. Rossi, P. J. Groot, G. Nelemans, S. Toonen, and A. G. Brown, Prospects for detection of galactic double white- dwarf binaries with lisa (2017)

2017
[8]

Caprini, M

C. Caprini, M. Chala, G. C. Dorsch, M. Hindmarsh, S. J. Hu- ber, T. Konstandin, J. Kozaczuk, G. Nardini, J. M. No, K. Rum- mukainen,et al., Detecting gravitational waves from cosmolog- ical phase transitions with lisa: an update, Journal of Cosmol- ogy and Astroparticle Physics2019(03), 024
[9]

Karnesis, N

N. Karnesis, N. Stergioulas, G. Pappas, C. Anastopoulos, J. Antoniadis, T. Apostolatos, S. Basilakos, K. Destounis, A. Eleni, G. Lukes-Gerakopoulos, K. N. Gourgouliatos, K. D. Kokkotas, G. Kottaras, V . K. Oikonomou, T. Papanikolaou, L. Perivolaropoulos, M. Plionis, E. N. Saridakis, T. Sarris, E. C. Vagenas, and W. von Klitzing, The laser interferom- eter...

work page arXiv 2023
[10]

Armanoet al., Sub-femto-gfree fall for space-based gravita- tional wave observatories: LISA Pathfinder results, Phys

M. Armanoet al., Sub-femto-gfree fall for space-based gravita- tional wave observatories: LISA Pathfinder results, Phys. Rev. Lett.116, 231101 (2016)

2016
[11]

Hu and Y .-L

W.-R. Hu and Y .-L. Wu, The Taiji Program in Space for gravi- tational wave physics and the nature of gravity, Natl. Sci. Rev. 4, 685 (2017)

2017
[12]

Luoet al., TianQin: a space-borne gravitational wave detec- tor, Class

J. Luoet al., TianQin: a space-borne gravitational wave detec- tor, Class. Quantum Grav.33, 035010 (2016)

2016
[13]

Milyukovet al., TianQin space-borne gravitational wave de- tector: current status and perspectives, Int

V . Milyukovet al., TianQin space-borne gravitational wave de- tector: current status and perspectives, Int. J. Mod. Phys. A35, 2040016 (2020)

2020
[14]

Luoet al., The Taiji program in space for gravitational wave physics and the nature of gravity, Int

Z. Luoet al., The Taiji program in space for gravitational wave physics and the nature of gravity, Int. J. Mod. Phys. A35, 2050069 (2020)

2020
[15]

M. Du, Q. Deng, Y . Bian, Z. Luo, and P. Xu, Probing su- permassive black hole binaries with orbital resonances of laser-ranged satellites, The European Physical Journal C83, 10.1140/epjc/s10052-023-11748-9 (2023)

work page doi:10.1140/epjc/s10052-023-11748-9 2023
[16]

Armanoet al., Magnetic-induced force noise in lisa pathfinder free-falling test masses, Physical Review Letters 134, 10.1103/physrevlett.134.071401 (2025)

M. Armanoet al., Magnetic-induced force noise in lisa pathfinder free-falling test masses, Physical Review Letters 134, 10.1103/physrevlett.134.071401 (2025)

work page doi:10.1103/physrevlett.134.071401 2025
[17]

Peterseim, J

N. Peterseim, J. Flury, and A. Schlicht, Magnetic torquer in- duced disturbing signals within GRACE accelerometer data, Advances in Space Research49, 1388 (2012)

2012
[18]

Flury, S

J. Flury, S. Bettadpur, and B. D. Tapley, Precise accelerometry onboard the GRACE gravity field satellite mission, Advances in Space Research42, 1414 (2008)

2008
[19]

Yin, D.-Y

H. Yin, D.-Y . Tan, M. Hu, S. Wang, Y .-Z. Bai, S.-C. Wu, and Z.-B. Zhou, Measurements of magnetic properties of kilogram- level test masses for gravitational-wave detection using a tor- sion pendulum, Phys. Rev. Appl.15, 014008 (2021)

2021
[20]

Armanoet al., Beyond the required lisa free-fall perfor- mance: New lisa pathfinder results down to 20µHz, Phys

M. Armanoet al., Beyond the required lisa free-fall perfor- mance: New lisa pathfinder results down to 20µHz, Phys. Rev. Lett.120, 061101 (2018)

2018
[21]

Hueller, M

M. Hueller, M. Armano, L. Carbone, A. Cavalleri, R. Dolesi, C. D. Hoyle, S. Vitale, and W. J. Weber, Measuring the lisa test mass magnetic properties with a torsion pendulum, Classical and Quantum Gravity22, S521 (2005)

2005
[22]

Carbone, A

L. Carbone, A. Cavalleri, R. Dolesi, C. D. Hoyle, M. Hueller, S. Vitale, and W. J. Weber, Achieving geodetic motion for lisa test masses: Ground testing results, Phys. Rev. Lett.91, 151101 (2003)

2003
[23]

Antonucciet al., Lisa pathfinder: mission and status, Classi- cal and Quantum Gravity28, 094001 (2011)

F. Antonucciet al., Lisa pathfinder: mission and status, Classi- cal and Quantum Gravity28, 094001 (2011)

2011
[24]

Laser Interferometer Space Antenna

P. Amaro-Seoane and Others, Laser interferometer space an- tenna (2017), arXiv:1702.00786 [astro-ph.IM]

work page internal anchor Pith review arXiv 2017
[25]

W. Su, Y . Wang, Z.-B. Zhou, Y .-Z. Bai, Y . Guo, C. Zhou, T. Lee, M. Wang, M.-Y . Zhou, T. Shi, H. Yin, and B.-T. Zhang, Analy- ses of residual accelerations for tianqin based on the global mhd simulation (2020), arXiv:2004.00254 [astro-ph.IM]

work page arXiv 2020
[26]

B. Liu, Z. Yang, L. e Qiang, P. Xu, X. Peng, Z. Luo, Y . Zhang, and W. Tang, An improved magnetic properties measurement scheme using a torsion pendulum, Results in Physics54, 107048 (2023)

2023
[27]

C. Liu, X. Wei, H. Zhang, Q. Deng, B. Liang, L. Qiang, P. Xu, K. Qi, and S. Wang, Design of in-orbit calibration scheme for scale factor and center-of-mass deviation of in- ertial sensor of taiji program for space gravitational wave detection, Acta Physica Sinica74, 080401 (2025), cSTR: 32037.14.aps.74.20241376

2025
[28]

Russano, A

G. Russano, A. Cavalleri, A. Cesarini, R. Dolesi, V . Ferroni, F. Gibert, R. Giusteri, M. Hueller, L. Liu, P. Pivato, H. Tu, D. Vetrugno, S. Vitale, and W. Weber, Measuring fn force vari- ations in presence of constant nn forces: a torsion pendulum ground test of lisa pathfinder free fall mode., Classical and Quantum Gravity35(2018)

2018
[29]

J. Hu, L. Shen, and G. Sun, Squeeze-and-excitation networks, inProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR)(2018) pp. 7132–7141

2018
[30]

Dvoretzky, J

A. Dvoretzky, J. Kiefer, and J. Wolfowitz, Asymptotic minimax character of the sample distribution function and of the classical multinomial estimator, Annals of Mathematical Statistics27, 642 (1956)

1956
