arxiv: 2604.27272 · v1 · submitted 2026-04-29 · 💻 cs.CL · cs.AI· cs.LG

When 2D Tasks Meet 1D Serialization: On Serialization Friction in Structured Tasks

Chung-Hsiang Lo , Lu Li , Diji Yang , Tianyu Zhang , Yunkai Zhang , Yoshua Bengio , Yi Zhang This is my paper

Pith reviewed 2026-05-07 09:08 UTC · model grok-4.3

classification 💻 cs.CL cs.AIcs.LG
keywords serialization friction2D structured taskslanguage modelsvision augmentationmatrix transposeGame of LifeLU decomposition
0
0 comments X

The pith

Converting 2D structured tasks to 1D text sequences adds a burden that vision pathways avoid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines whether turning grids and matrices into linear text hurts language models on tasks that need spatial awareness. It compares a standard text-only model against one that also sees the same data laid out in 2D images. On three synthetic tasks the 2D version does better, especially as the grids get bigger, and the text version's mistakes start to follow spatial patterns. This matters because many real problems involve tables, maps, or simulations where keeping the layout explicit could improve accuracy.

Core claim

Across matrix transpose, Conway's Game of Life, and LU decomposition, a vision-augmented pathway that receives 2D renderings consistently outperforms a text-only pathway over serialized inputs on the same language backbone. The advantage grows with larger dimensions, and errors under serialization become increasingly spatially structured.

What carries the argument

serialization friction, the extra representational load created when 2D row-column alignments and neighborhoods must be inferred from a flattened 1D token sequence instead of being directly visible.

If this is right

  • Performance gaps between the two pathways increase as task size grows.
  • Textual errors shift toward spatially organized patterns rather than random ones.
  • Keeping explicit 2D layout in the input is a promising approach for tasks whose logic depends on spatial structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar friction may appear in other structured domains such as graph algorithms or spreadsheet calculations when forced into linear text.
  • Multimodal training that includes 2D renderings could be tested on real-world planning or scientific simulation tasks to measure transfer.
  • Future model designs might embed 2D positional encodings directly rather than relying on external vision modules.

Load-bearing premise

That the performance edge of the vision pathway comes mainly from preserving the 2D layout and not from other differences in model architecture or training data.

What would settle it

A controlled experiment in which the text-only pathway matches or surpasses the vision pathway on the same tasks at larger scales, or in which textual errors show no increase in spatial structure.

Figures

Figures reproduced from arXiv: 2604.27272 by Chung-Hsiang Lo, Diji Yang, Lu Li, Tianyu Zhang, Yi Zhang, Yoshua Bengio, Yunkai Zhang.

Figure 1
Figure 1. Figure 1: a. Illustration of serialization friction. In 2D layout, structural relations such as column alignment are explicit; under 1D serialization, the same relations must be inferred from sequential position and delimiters.b. Illustration of the three tasks used in our study: (i) matrix transpose, (ii) Conway’s Game of Life, and (iii) LU decomposition. Details of the actual rendered inputs are provided in Append… view at source ↗
Figure 2
Figure 2. Figure 2: Accuracy of finetuned Glyph and GLM models on matrix transpose. (a) Evaluation view at source ↗
Figure 3
Figure 3. Figure 3: Accuracy of finetuned Glyph and GLM models on Conway’s Game of Life. (a) view at source ↗
Figure 4
Figure 4. Figure 4: Accuracy of finetuned GLM and Glyph models on LU decomposition across view at source ↗
Figure 5
Figure 5. Figure 5: Accuracy of finetuned GLM, Glyph, and disruptive-Glyph models on matrix view at source ↗
Figure 6
Figure 6. Figure 6: Cell-level transpose error heatmaps across matrix sizes for 2D layout (top) and view at source ↗
Figure 7
Figure 7. Figure 7: Cell-wise error-rate difference heatmaps for Conway’s Game of Life across grid view at source ↗
Figure 8
Figure 8. Figure 8: Cell-level error heatmaps for LU decomposition across training configurations for view at source ↗
Figure 9
Figure 9. Figure 9: Rendering parameter setting for matrix visual inputs. The left column lists the view at source ↗
Figure 10
Figure 10. Figure 10: Rendering parameter setting for Conway grid visual inputs. The left column view at source ↗

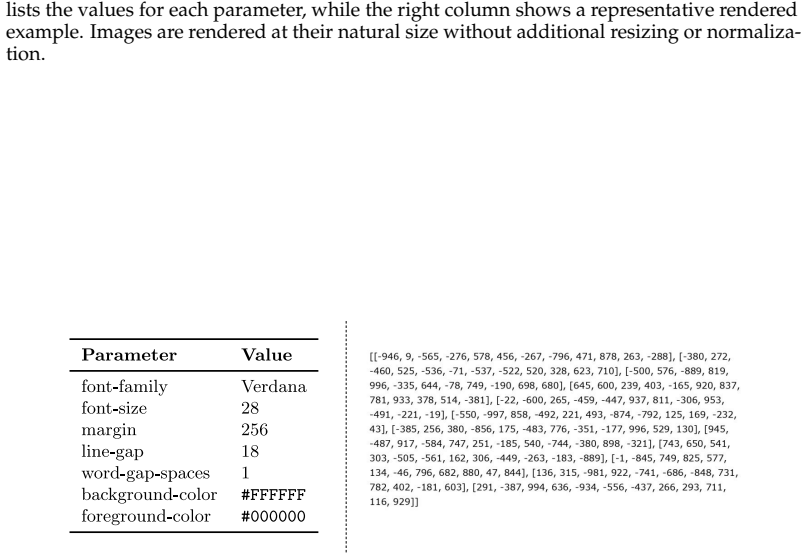

Figure 11
Figure 11. Figure 11: Rendering parameter setting for disruptive matrix visual inputs. The left column view at source ↗
Figure 12
Figure 12. Figure 12: Representative reasoning trajectories for LU decomposition under 2D layout (left) view at source ↗

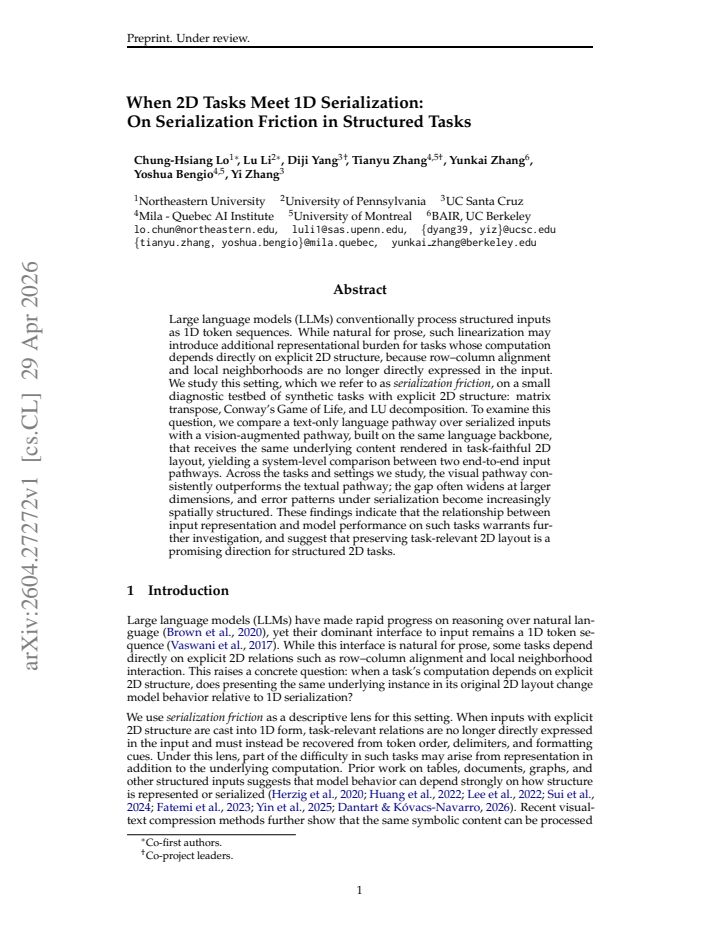

read the original abstract

Large language models (LLMs) conventionally process structured inputs as 1D token sequences. While natural for prose, such linearization may introduce additional representational burden for tasks whose computation depends directly on explicit 2D structure, because row--column alignment and local neighborhoods are no longer directly expressed in the input. We study this setting, which we refer to as serialization friction, on a small diagnostic testbed of synthetic tasks with explicit 2D structure: matrix transpose, Conway's Game of Life, and LU decomposition. To examine this question, we compare a text-only language pathway over serialized inputs with a vision-augmented pathway, built on the same language backbone, that receives the same underlying content rendered in task-faithful 2D layout, yielding a system-level comparison between two end-to-end input pathways. Across the tasks and settings we study, the visual pathway consistently outperforms the textual pathway; the gap often widens at larger dimensions, and error patterns under serialization become increasingly spatially structured. These findings indicate that the relationship between input representation and model performance on such tasks warrants further investigation, and suggest that preserving task-relevant 2D layout is a promising direction for structured 2D tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper studies 'serialization friction' in LLMs processing structured 2D inputs by comparing a text-only pathway (1D serialized sequences) against a vision-augmented pathway (task-faithful 2D layouts) built on the same language backbone. Using synthetic diagnostic tasks—matrix transpose, Conway's Game of Life, and LU decomposition—it reports that the visual pathway consistently outperforms the textual one, with the gap often widening at larger dimensions and serialization errors becoming increasingly spatially structured.

Significance. If the pathways are shown to be matched in all respects except input representation, the work offers a controlled demonstration that explicit 2D layout preservation can reduce representational burden on spatial tasks. The diagnostic testbed is a strength for isolating effects, and the spatial error analysis provides mechanistic insight. Such findings could guide multimodal architectures for grid-based or matrix reasoning, though the current attribution to layout alone requires stronger controls to be definitive.

major comments (2)
  1. The abstract states the vision pathway is 'built on the same language backbone' and receives 'task-faithful 2D layout,' but the experimental setup does not specify whether parameter counts, training data, optimization schedules, and integration details (e.g., presence of a separate vision encoder) are identical across pathways. Without these controls, performance differences cannot be isolated to serialization friction versus other factors such as added capacity or inductive biases. This is load-bearing for the central claim of consistent outperformance and widening gaps.
  2. Results on widening gaps at larger dimensions and spatially structured errors are presented without reported statistical tests, error bars, or ablation on dimension scaling. If these patterns are to support the claim that serialization friction increases with scale, quantitative verification of significance and controls for task-specific difficulty are needed.
minor comments (1)
  1. The abstract could include a short concrete example of how one task (e.g., a small matrix) is rendered in the 2D pathway versus serialized in the textual pathway to clarify 'task-faithful 2D layout.'

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our study of serialization friction. The comments highlight important areas for strengthening experimental controls and statistical reporting. We address each major comment below and will incorporate revisions to provide greater clarity and rigor.

read point-by-point responses

  1. Referee: The abstract states the vision pathway is 'built on the same language backbone' and receives 'task-faithful 2D layout,' but the experimental setup does not specify whether parameter counts, training data, optimization schedules, and integration details (e.g., presence of a separate vision encoder) are identical across pathways. Without these controls, performance differences cannot be isolated to serialization friction versus other factors such as added capacity or inductive biases. This is load-bearing for the central claim of consistent outperformance and widening gaps.

    Authors: We agree that explicit matching of experimental conditions is necessary to isolate the effect of input representation. The manuscript states that the vision-augmented pathway is built on the same language backbone and provides a system-level comparison, but the experimental details section would benefit from additional specification. In the revised manuscript, we will add a table and expanded text detailing parameter counts (noting the lightweight vision encoder addition), identical training data and optimization schedules for the shared backbone, and integration specifics. We will also include capacity-matched text-only baselines to further support attribution to layout preservation rather than capacity differences. revision: yes

  2. Referee: Results on widening gaps at larger dimensions and spatially structured errors are presented without reported statistical tests, error bars, or ablation on dimension scaling. If these patterns are to support the claim that serialization friction increases with scale, quantitative verification of significance and controls for task-specific difficulty are needed.

    Authors: We acknowledge that the scaling observations and error analyses would be strengthened by statistical verification. The reported trends are based on consistent patterns across dimensions, but we agree single-run results limit robustness. In the revision, we will add error bars from multiple random seeds, report statistical tests (e.g., paired significance tests) for the performance gaps, and include an ablation that scales dimensions while controlling for task difficulty via normalized metrics. This will provide quantitative support for the claim that serialization friction effects intensify with scale. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical pathway comparison

full rationale

The paper reports experimental results from comparing a text-only language pathway against a vision-augmented pathway on synthetic tasks (matrix transpose, Game of Life, LU decomposition). No mathematical derivation chain, fitted parameters presented as predictions, self-definitional constructs, or load-bearing self-citations appear in the abstract or described methodology. The central finding is a measured performance gap between two input representations, which is self-contained as an empirical observation rather than a result forced by construction or prior author work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the chosen synthetic tasks require explicit 2D structure; no free parameters or invented entities are described in the abstract.

axioms (1)
  • domain assumption The synthetic tasks (matrix transpose, Conway's Game of Life, LU decomposition) have computations that depend directly on explicit 2D structure such as row-column alignment and local neighborhoods.
    This premise defines the existence of serialization friction and motivates the text-versus-vision comparison.
