Pith's one-line read PPOC-LL, a compact landmark-localization network, claims to beat the previous state of the art on three medical-imaging benchmarks by correcting landmark positions stepwise through prototype-guided patch matching.

desk verdict The method is a clean integration of known ideas with honest ablations, but the state-of-the-art claim rests on baseline comparisons that are currently unverifiable: a corrupted Table 1 and a likely unfair 'ResNet18 for all models' protocol. read the letter →

arxiv 2608.09182 v2 pith:R3YZVKEK submitted 2026-08-10 cs.CV cs.AIcs.LG

Jingxian Xu , Yuhao Huang , Rusi Chen , Yanfeng Zhou , Dong Ni This is my paper · ORCID

classification cs.CVcs.AIcs.LG

keywords landmarklocalizationprototypelearningprogressiveoffsetcorrectionmulti-scalefeaturepyramidcephalometriclandmarksfetalultrasoundreliabilityregularizationheatmapregression

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to show that costly multi-stage refinement for medical landmark localization can be replaced by a compact single-network pipeline that corrects landmark positions step by step. It introduces PPOC-LL, which first produces rough landmarks from a feature pyramid, then iteratively samples small patches around each current estimate and reads off a displacement from prototype-guided matching. On two public and one private dataset, the authors report mean radial errors of 1.09 mm, 1.43 mm, and 7.34 px, each better than the previous best method. The practical point is that accurate landmarks drive cephalometric, intrapartum, and fetal-heart measurements, and a smaller model is more plausible for clinical use. The authors present the gain as a favorable balance of accuracy and model complexity rather than a large accuracy jump.

What carries the argument

The load-bearing object is the re-centered, multi-scale local patch paired with a per-landmark learnable prototype. The patch gives the model a changing receptive field as refinement proceeds, from coarse to fine, and the prototype supplies a semantic reference that makes local matching robust to texture changes and anatomical similarity. The offset is not regressed directly; it is the expectation of a fixed offset field under the softmax of cosine similarities between the prototype and patch features. The third mechanism is the error-aware reliability regularizer, which converts the current Euclidean error into a soft target and supervises the peak of the matching distribution, so confidence is tied to actual localization error.

What would settle it

Re-run the two best methods on the same test images with several random seeds and the paper's stated training settings; if the reported CE-Test1 mean radial error difference between PPOC-LL and the previous best does not reproduce within about 0.03 mm, the ranking claim is not stable.

Watch

Extended reading notes

Core claim

The central claim is that progressive offset correction with prototype-based local matching offers a better trade-off than global single-pass heatmap regression or heavy cascaded refinement. In PPOC-LL, each refinement step re-centers a patch on the current predicted location, selects a pyramid level and patch size from a hand-set radius schedule, computes a cosine-similarity map between the patch features and one learnable prototype per landmark, softmax-normalizes it, and updates the coordinate by the expectation under a fixed offset field. A reliability regularizer predicts the current error from the peak of the matching distribution, which stabilizes training. The authors report PPOC-LL as best or second-best across all tested thresholds, with lower standard deviations than the previous best method and the best fully-supervised result on the IUGC benchmark.

Load-bearing premise

The central result depends on the comparison methods in Table 1 being set up fairly and their reported numbers being correct, since the headline gains over the previous best are as small as 0.05 mm on one test set.

Editorial extensions

If this is right

On the CE, FHU, and IUGC benchmarks, the stated mean radial errors are lower than the previous best method's, so if the numbers hold, PPOC-LL is the best reported fully-supervised landmark localizer on these test sets.
The accuracy plateau at five or six refinement steps means the schedule is not sensitive to extra iterations, so deployment can choose the step count by compute budget.
The small mean-error differences and lower standard deviations imply at least as much of a practical advantage from consistency and model size as from raw accuracy.
On IUGC, PPOC-LL uses no unlabeled data yet is reported comparable to semi-supervised methods, suggesting the refinement mechanics recover some of the benefit of additional data.
The tolerance parameter for the reliability regularizer is stable across a wide range, so the method does not require precise per-dataset tuning of that term.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The prototype-matching readout is not tied to the three tested anatomies and could be applied to other tasks with repetitive local structure, such as spine or retinal keypoints, as a direct extension of the same expectation-over-offset-field idea.
The predicted reliability from the regularizer is a natural candidate for an uncertainty or quality-control signal at deployment, though the paper does not evaluate it in that role.
The hand-set radius schedules could be replaced by a learned search-range policy; the reported insensitivity to iteration count suggests such a policy would mainly help early steps.
Because the reported gains over the previous best are near 0.05-0.23 units, an independent reimplementation with identical evaluation protocol is the quickest way to confirm the ordering; the larger margin may be parameter economy rather than a big accuracy lead.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

You should know this paper before reading: the method is a sensible integration of known building blocks and the ablations support every component, but the headline "state of the art" claim rests on baseline comparisons I cannot verify. Table 1 as provided is corrupted—duplicated labels and cells—and the paper says ResNet18 was used for all models, which for HRNet, SHG, and DSNT is not a neutral choice. Those are not backbone-plus-head architectures; re-implementing them on a ResNet18 base changes their design.

What's actually new: the specific combination of multi-scale dynamic patch sampling with a coarse-to-fine schedule, prototype-based similarity matching for offset prediction, and the tolerance-based reliability regularizer. None of these is new in isolation, but the integration is clean and the ablation shows each piece helps: MRE goes from 1.37 to 1.26 mm on CE. The gamma sensitivity table is honest—performance stays in 1.09–1.16 mm across gamma 2–10, which is a good sign the regularizer is not a knife's-edge trick. Three-seed averaging for their own method is better than usual.

The soft spots are exactly where the stress-test lands. The gains over NFDP are tiny: 0.05 mm on CE-Test1, 0.03 mm on CE-Test2, 0.23 px on FHU. Those margins are within plausible run-to-run variation, and there are no significance tests or baseline error bars. The corrupted table alone prevents me from trusting the exact numbers as printed. The baseline adaptation protocol is the load-bearing question: if HRNet and SHG were rebuilt on ResNet18 without their native multi-resolution or hourglass structures, their reported numbers may be unfairly low. Without code, configs, or a detailed adaptation description, the central claim is under-supported.

None of this is fatal to the method itself. The internal evidence is coherent, the loss design is not circular, and the writing is straightforward. The paper's value is the parameter-efficient progressive refinement recipe with a decent validation across three datasets. If the authors release code and clarify the baseline setups, I'd believe the SOTA claim; as-is, I'd treat it as plausible but unverified.

Who this is for: people working on medical landmark localization, especially cephalometrics and fetal ultrasound, who want a lightweight alternative to cascade ensembles. The reliability regularizer idea might transfer to other coordinate regression tasks.

Recommendation: send it to peer review. A serious referee can ask for the corrected table, the baseline details, and significance testing. The method deserves that round of scrutiny, and the subfield would benefit from a verifiable comparison.

Referee Report

3 major / 5 minor

Summary. The paper proposes PPOC-LL, a prototype-learning-based progressive offset correction framework for medical landmark localization. The method combines a multi-scale dynamic perception strategy for coarse-to-fine patch refinement, similarity-driven prototype learning for offset prediction, and an error-aware reliability regularizer that supervises per-step matching confidence. Experiments are reported on two public datasets (cephalograms, CE; intrapartum ultrasound, IUGC) and one private fetal heart ultrasound dataset (FHU). The authors claim that PPOC-LL achieves MREs of 1.09 mm, 1.43 mm, and 7.34 px on CE-Test1, CE-Test2, and FHU, respectively, surpassing the previous state-of-the-art NFDP while maintaining a favorable model size. Ablations on CE attribute consistent gains to the progressive refinement paradigm and the reliability regularization.

Significance. The proposed architecture is parameter-economic and the design of progressive offset correction with prototype-based local matching is well motivated and internally coherent. The ablation study in Table 2 shows monotonic improvements from each proposed component, which supports the internal validity of the method. The evaluation spans two imaging modalities and three datasets, and the reported model-size/accuracy trade-off in Fig. 3 is attractive. However, the central claim of state-of-the-art performance currently rests on comparison tables whose formatting is corrupted in the provided version, and on baseline adaptations whose fairness is not documented. If the tables are corrected and the comparison protocol is made verifiable, this would be a solid and practical contribution to medical landmark localization.

major comments (3)

[Section 3, Table 1] Table 1 is severely corrupted in the provided manuscript: the PPOC-LL rows contain repeated labels and duplicated numeric values across the SDR columns (e.g., 'PPOC-LL PPOC-LL PPOC-LL PPOC-LL 1.09 1.09 1.09 1.09 0.87 88.49 88.49 88.49 88.49 ...'), and the NFDP row shows the same value repeated multiple times (e.g., '7.57 6.62 6.62 6.62 6.62 22.19 22.19 22.19 22.19 32.83 51.93 66.85'). Similar duplication artifacts also appear in Table 2 (e.g., '1.26 1.26 1.26 1.26 82.14 82.14 ...') and Table 3 (e.g., '1.09 1.09 1.09 1.09 0.87 0.87 0.87 0.87 88.49 ...'). Because the paper's central claim is the reported superiority over NFDP by margins as small as 0.05 mm in MRE, the exact compared numbers must be verifiable. The authors should provide a clean, correctly formatted version of all tables, and ideally release the underlying per-run results.
[Section 3, Implementation Details] The statement 'ResNet18 is used as the backbone for all models' is problematic for several baselines. HRNet is a high-resolution multi-branch architecture, SHG is a stacked hourglass network, and DSNT is a fully convolutional coordinate regression design; these are not backbone-plus-head architectures, and replacing their native encoders with ResNet18 changes their inductive biases and can materially affect accuracy. Since the reported gains over NFDP are only 0.05 mm, 0.03 mm, and 0.23 px on CE-Test1, CE-Test2, and FHU, comparison fairness is load-bearing. The authors need to describe exactly how each baseline was adapted to ResNet18, provide configuration files or code, or use the baselines' original architectures for the comparison.
[Section 3, Implementation Details and Table 1] No significance testing or seed-wise variance is reported for the comparison in Table 1. The text says PPOC-LL and ablation variants were repeated with three random seeds and averaged, but the small values shown next to the MREs are described as 'standard deviation of radial errors on the test set' (i.e., across test images), not across training runs. For the baseline methods, no per-seed results or variance measures are provided at all. A MRE difference of 0.05 mm between PPOC-LL and NFDP on CE-Test1 could plausibly fall within run-to-run variation. The authors should report per-seed breakdowns or appropriate significance tests (e.g., paired tests or bootstrap confidence intervals) for the main comparisons.

minor comments (5)

[Section 2, first paragraph] The word 'progressivly' is a typo and should be 'progressively'.
[Section 2.1, paragraph 3] The phrase 'centered at the xt' should be 'centered at xt' (remove the definite article before the variable) for formal clarity.
[Section 3, Table 1 caption] The caption says 'The best results are shown in bolded'; this should be 'shown in bold'.
[Section 3, Implementation Details] The explanation that 'the small values shown in the right-down corner indicate the standard deviation of radial errors on the test set' is ambiguous, because in Tables 1–3 these values appear immediately after the MRE in the same cell or column (e.g., '1.09 0.87') rather than in a corner. Please clarify the notation or provide a separate column for standard deviation.
[Section 3, Table 2 and Table 3] The formatting corruption that affects Table 1 also appears to affect Tables 2 and 3, with repeated numeric values across SDR columns. These tables should be reformatted so that each cell contains a single value.

Circularity Check

0 steps flagged · score 0.0 of 10

No material circularity: PPOC-LL's central claims are grounded in external benchmarks and standard supervised training.

full rationale

The paper's derivation chain is self-contained against external data rather than reducing to its own inputs. The proposed reliability target in Eq. 6 is constructed from ground-truth localization error with a tolerance parameter gamma, which is a training signal for the reliability regularizer, not a quantity presented as a prediction; the coordinate supervision L_c and heatmap loss L_hm likewise use standard ground-truth annotations. The patch sampling schedule, prototype vectors, and offset field are learned or fixed geometric constructions, and hyperparameters such as T and gamma are selected on validation data, which is standard practice. The paper does not fit a parameter to a subset of data and then 'predict' the same or a closely related quantity. The few self-citations in the introduction and baseline descriptions are background references and are not load-bearing for the method's correctness or for the claimed superiority. Concerns about baseline fairness and the visibly corrupted formatting of Table 1 affect verifiability and are legitimate correctness risks, but they are not circularity: the comparison protocol is external, not derived from the method's assumptions. No self-definitional step, imported uniqueness theorem, or ansatz smuggled via citation was found. Therefore the circularity score is 0.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

No new physical or biological entities are postulated. Learned prototype vectors are internal network parameters, not independently evidenced entities. The listed free parameters are design hyperparameters selected on validation data; they do not constitute a derivation of a natural constant, but they are part of the evidence on which the central empirical claim rests.

free parameters (4)

Refinement steps T = T=5 (CE), 6 (IUGC), 6 (FHU)
Chosen based on validation performance; Table 3 shows MRE improves as T increases and plateaus around T=5 or 6.
Tolerance parameter gamma = gamma=3 (CE), 3 (IUGC), 8 (FHU)
Controls the clip threshold in the reliability target in Eq. 6 and is set per dataset to preserve geometric consistency under multi-scale resizing.
Search radius schedule R_t = {112,80,48,48,28} for 512x512 inputs; {119,56,20,20,12,8} for 256x256 inputs
Defines the coarse-to-fine patch sampling schedule used in Eq. 2 and is chosen by hand for each input resolution.
Loss weights lambda_1, lambda_2, lambda_3 = 1, 20, 0.2
Set in Section 3, Implementation Details, with no ablation to justify the specific values.

assumptions (5)

domain assumption The ground-truth landmark annotations in CE, IUGC, and FHU are accurate and consistent across annotators.
Ground-truth coordinates supervise the heatmap loss, coordinate loss, and reliability target in Eq. 7, so systematic label noise would bias both training and evaluation.
domain assumption A single learnable prototype per landmark is a sufficient semantic reference across subjects and acquisition conditions.
Section 2.2 relies on cosine similarity between patch features and a single prototype q_k to compute offsets, so prototype capacity limits matching quality.
domain assumption The peak probability of the local matching distribution is a meaningful proxy for localization reliability.
Section 2.3, Eq. 5 defines r_t,k as the predicted reliability; if peak sharpness does not correlate with positional error, the regularizer may not help.
standard math The linear coordinate conversion in Eq. 1 correctly maps patch offsets to normalized input coordinates.
Assumes feature coordinates are linearly scaled from input coordinates, which is standard for FPN-style coordinate mapping.
domain assumption Iterative re-centering of patches on the current estimate converges for the tested landmarks.
The sliding record in Section 2.1 assumes repeated local corrections do not oscillate or drift; the T-ablation provides empirical support but no stability guarantee.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Rethinking Medical Landmark Localization with Prototype Learning-based Progressive Offset Correction." pith.science (2026). https://pith.science/paper/R3YZVKEK

@misc{pith2026260809182,
  author       = {Pith},
  title        = {Pith review of: Rethinking Medical Landmark Localization with Prototype Learning-based Progressive Offset Correction},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/R3YZVKEK}},
  note         = {Machine review of arXiv:2608.09182}
}

read the original abstract

Accurate landmark localization in medical images is a fundamental step for quantitative clinical measurement and downstream analysis. Existing localization methods have advanced, among which multi-stage refinement is a superior solution. Although this strategy mitigates the anatomical ambiguity inherent in single-stage global predictions, its high computational cost limits practical applicability. In this work, we propose a parameter-economic model, PPOC-LL, which leverages Prototype learning-based Progressive Offset Correction for Landmark Localization. Our contribution is three-fold. First, to drive coarse-to-fine landmark optimization, we introduce a multi-scale dynamic perception strategy for patch-level feature pyramid modeling. Second, to effectively handle anatomically similar patterns, we design a similarity-driven prototype learning mechanism that captures informative local semantics for robust offset prediction. Last, to stabilize the model learning and improve the overall performance, we incorporate a novel error-aware reliability regularization via tolerance-based balancing. We collected a large validation cohort, including two public and one private datasets spanning X-ray and ultrasound modalities, covering cephalometric, symphysis-fetal head, and fetal heart landmarks. Extensive experiments demonstrate that PPOC-LL achieves satisfactory performance with a favorable trade-off between accuracy and model complexity.

Figures

Figures reproduced from arXiv: 2608.09182 by the authors.

**Figure 1.** Illustration of our proposed PPOC-LL. state-of-the-art methods. Moreover, PPOC-LL effectively balances performance and model complexity, indicating strong potential for clinical applicability. 2 Method [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Qualitative results on CE, FHU, and IUGC datasets. Rows 2-3 show [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

**Figure 3.** Comparison of different methods in terms of MRE and model size [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

Figures from the paper (1 more)

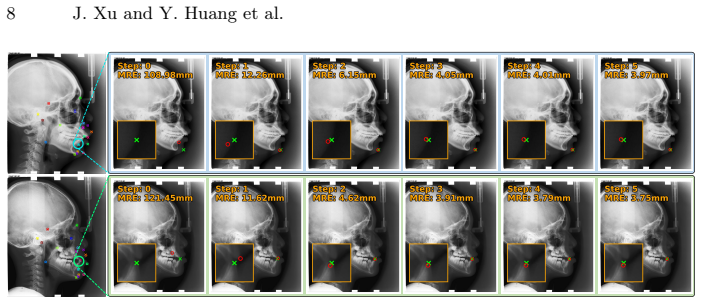

**Figure 4.** Figure 4: Visualization of the refinement process on the CE dataset. The lower [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
