Phase behaviour of empirical potentials of titanium dioxide

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Two TiO2 force fields each support many observed crystal forms, but their phase diagrams differ sharply and neither reproduces experiment.

desk verdict A careful, well-cross-checked free-energy study showing that two closely related TiO2 empirical potentials give different phase diagrams, with a real but acknowledged classical-nucleus caveat. read the letter →

arxiv 1908.03497 v1 pith:TWTNZH6H submitted 2019-08-09 cond-mat.stat-mech cond-mat.mtrl-sciphysics.chem-ph

Aleks Reinhardt This is my paper · ORCID
classification cond-mat.stat-mechcond-mat.mtrl-sciphysics.chem-ph
keywords titaniumdioxideTiO2polymorphsempiricalforcefieldsCoulomb-BuckinghampotentialLennard-Jonesfree-energycalculationsphasediagramsEinsteincrystalmethod
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Titanium dioxide is usually simulated with one of two closely related empirical models: the original Coulomb-plus-Buckingham model, whose short-range term is an exponential repulsion plus $r^{-6}$ attraction, and a later reparameterisation that replaces that term with a 12–6 Lennard-Jones potential. This paper computes absolute free energies for twelve TiO2 polymorphs for both models and constructs their pressure–temperature phase diagrams. It establishes that the two models support nearly all experimentally observed polymorphs as metastable structures, but the thermodynamically stable regions are very different: the reparameterised model gives the OI phase a large stability field and no stable columbite phase, while the original model stabilises columbite only below about 20 K. It further establishes that neither model's equilibrium phase behaviour matches the available experimental evidence, with a broad predicted pyrite stability region that has never been seen experimentally. The practical upshot is that replacing one repulsive term in a composite potential, without considering where the full potential's minimum lies, changes density by 10–15% and qualitatively changes phase behaviour.

What carries the argument

The work is carried by the Einstein crystal method of free-energy calculation: each atom is harmonically tethered to its lattice site, the free energy of the resulting Einstein crystal is known analytically, and Hamiltonian thermodynamic integration switches on the real potential and then removes the springs, giving an absolute Helmholtz free energy for each polymorph. Chemical potentials $\mu = G/N$ are then integrated along isotherms and isobars using the Gibbs–Duhem relation, with independent free-energy calculations at multiple pressures used as consistency checks and the Clapeyron equation used to trace coexistence lines. This machinery matters because enthalpy alone is not enough to order the phases: for the original potential, the OI analogue is enthalpically preferred up to 1600 K but is stabilised by entropy only below about 500 K. The object being compared is the full composite potential, in which the Coulomb attraction pulls opposite charges close enough that the steepness of the Lennard-Jones repulsion, rather than the shape near its own minimum, controls the equilibrium structure.

What would settle it

Hold fine-grained TiO2 in a hydrostatic high-pressure cell at 700 K for long times at pressures from 5 to 60 GPa and identify the equilibrium phase by X-ray diffraction; if the observed stable-phase sequence matches either potential's predicted sequence, such as the original model's rutile–columbite–pyrite path or the reparameterised model's absence of any columbite stability, the claim that neither potential matches experiment would be directly contradicted.

Watch

Extended reading notes

Core claim

The central discovery is that the two potentials are not interchangeable. When the Coulomb charges are kept identical and only the short-range repulsion is changed from a Buckingham form to a Lennard-Jones form, the minimum of the combined Ti–O potential moves into the steep $r^{-12}$ repulsive wall, so the solid phases of the reparameterised model are 10–15% less dense and are stabilised in a different order. Direct free-energy calculations show that the original MA potential makes rutile, columbite, pyrite, OI, and cotunnite the stable phases in different regions of the $P$–$T$ plane, whereas the LHZ potential never makes columbite thermodynamically stable and gives OI a much larger stability field; the two phase diagrams differ sharply. Both models can represent nearly all known TiO2 polymorphs as metastable or stable states, but the equilibrium diagrams are inconsistent with experiment: pyrite, which has only been considered theoretically, has a large stability region in both models, and neither model reproduces the experimental rutile–columbite or columbite–baddeleyite coexistence behaviour. The paper concludes that neither potential is fully consistent with available experimental evidence, and that potential parameterisation must be judged against the full composite potential, not against a single term in isolation.

Load-bearing premise

The whole comparison rests on treating the nuclei as classical particles and considering only the already-known crystal structures, even though the author notes that omitting nuclear quantum effects almost certainly makes the low-temperature behaviour wrong.

Editorial extensions

If this is right

  • Simulations run with the LJ-based model cannot be treated as equivalent to those run with the original model: at the same nominal state point the crystals differ in density by roughly 10–15% and the stable polymorph can be different.
  • Neither empirical model is a reliable predictor of TiO2 equilibrium phase behaviour; in particular, a large predicted pyrite stability region is suspect because pyrite has not been observed experimentally.
  • Entropy can reverse enthalpy-based stability rankings, so phase diagrams for empirical potentials need explicit free-energy calculations rather than energy minimisation alone.
  • Because the calculations are classical, the low-temperature parts of the reported phase diagrams are expected to be wrong; conclusions about which phases are stable near room temperature should be treated with caution.
  • Reparameterising a potential by fitting one term to another is not enough: a Lennard-Jones fit with the Ti–O minimum placed closer to the original yields polymorph densities within about 3%, showing the failure is in where the minimum sits, not in the Lennard-Jones form itself.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same free-energy pipeline could serve as a routine screening test for new TiO2 force fields: two models that match densities and elastic constants can still order the polymorphs differently, so coexistence calculations would catch errors that property matching misses.
  • The search space is not closed: the paper lists only polymorphs already reported for TiO2, and an unreported structure could be the true free-energy minimum for these potentials. A crystal-structure search coupled to these free-energy calculations could reveal such phases.
  • The sign of the OI–cotunnite coexistence slope differs between the empirical potentials and quasi-harmonic DFT, which suggests the two approaches disagree strongly on the entropy of the OI analogue; computing the vibrational density of states of the simulated OI structure would show whether the structural distortion seen in simulation is responsible.
  • The same comparison would be worth applying to machine-learned potentials, which are usually fitted to energies and forces rather than to free-energy differences; a learned potential could still misorder phase stability unless coexistence calculations are part of its validation.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The manuscript presents pressure–temperature phase diagrams for two empirical TiO2 potentials: the widely used Matsui–Akaogi (MA) Buckingham/Coulomb potential and the Luan–Huynh–Zhou (LHZ) Lennard-Jones reparameterisation, which is taken as representative of a family of LJ-based variants. Phase stabilities are computed with Einstein-crystal/Frenkel–Ladd free-energy calculations at multiple pressures, supplemented by thermodynamic integration along isotherms and isobars and by Gibbs–Duhem integration used as a consistency check. The central results are that both potentials support many experimentally known TiO2 polymorphs, that the stable phase regions differ substantially between the two potentials, and that neither potential reproduces the experimental phase behaviour. The paper also compares densities and elastic constants of rutile between the two models and against experiment.

Significance. If correct, this is a valuable and rigorous comparison of two widely used empirical models: it shows that a seemingly minor change in the repulsive part of the potential leads to large changes in the predicted phase diagram, and it provides a benchmark set of free-energy data that is independent of any fitting to the experimental phase behaviour. The calculations are internally consistent (chemical-potential spreads below 0.01 kBT per particle, multiple cross-checks), the supporting data are publicly archived, and the paper makes no ad-hoc parameter adjustments. The main caveat is that the calculations are classical, and the author explicitly states that the low-temperature behaviour is almost certainly not correct; this limits the strength of the paper's conclusions about agreement with experiment, especially at low temperature and high pressure.

major comments (2)
  1. [Abstract and Section VI] The abstract's third sentence asserts that 'neither potential results in phase behaviour that is fully consistent with the available experimental evidence,' but Section VI states that the phase diagrams were computed using 'classical statistical mechanics without any (nuclear) quantum corrections' and that 'This almost certainly means that the low-temperature behaviour that we see is not correct.' The phase diagrams in Fig. 4 extend to low temperature, and Section V's comparison with experiment includes the rutile–columbite boundary (Refs. 67 and 68), the MA columbite stability that exists only below about 20 K, and the columbite–baddeleyite transition (Refs. 69 and 70), all in the low-temperature/high-pressure regime that the author disclaims. Since the reported precision (better than 0.01 kBT per particle, Section IV) is far smaller than typical zero-point energy differences between TiO2 polymorphs, which can be on the order of 1–10 meV per atom, a quantitative estimate of nuclear quantum effects (e.g., quasiharmonic or path-integral calculations) is needed to assess which low-temperature regions of Fig. 4 survive. Without such an estimate, the unqualified experimental-consistency claim is not supported; the abstract and conclusions should be rephrased to restrict the claim to the temperature range in which the classical treatment is reliable, or supplemented with a quantum-correction analysis.
  2. [Section V] The statement that 'there may of course be other phases which we have not considered because they have not (yet) been reported for TiO2, and some of them may well have a lower free energy still for these empirical potentials' directly limits the conclusion that 'neither potential results in phase behaviour that is fully consistent with the available experimental evidence.' The phase diagrams in Fig. 4 are minima only over the enumerated set of polymorphs, and a phase outside that set could in principle be the global minimum for one of the potentials, altering the comparison with experiment. The manuscript's own text appropriately notes that 'we can only make comparisons between phases of which we are aware and not absolute predictions,' but this qualification is absent from the abstract. The abstract should be amended to say, for example, 'among the polymorphs considered, neither potential results in phase behaviour that is fully consistent with the experimental evidence.' I regard this as a matter of precision and scope in the central claim rather than as an error in the free-energy methodology.
minor comments (4)
  1. [Abstract and Section V] The paper uses the large stability region of the pyrite phase as evidence that the empirical potentials are poor for bulk phase behaviour, but the manuscript itself notes that pyrite 'has not been reported experimentally.' Absence of experimental observation is not strong evidence of inconsistency, since the phase might simply be kinetically inaccessible; the wording should distinguish 'not observed' from 'contradicted by experiment.'
  2. [Figure 1 caption] In the caption to Fig. 1, the space-group label 'C/2c' should read 'C2/c' to be consistent with the text and standard notation.
  3. [Table III] The note to Table III says that values in brackets refer to the lowest temperature reported (298 K), but brackets appear for C33, C44 and C23; the text should explicitly list which entries are measured at 298 K rather than 4 K.
  4. [Section IV] The description of truncation is asymmetric: the Buckingham part is truncated at 12 Å with no mention of a smoothing function, while the Lennard-Jones part uses a smoothing function between 10 and 12 Å; a sentence clarifying whether the Buckingham interaction is smoothed or abruptly truncated would remove ambiguity.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the phase diagrams are self-contained free-energy benchmarks of externally fixed potentials.

full rationale

This paper does not fit any parameter to the experimental phase behaviour it later compares against. The MA and LHZ potentials are fixed inputs taken from the literature (Refs. 1 and 4), and the phase diagrams are obtained from Frenkel-Ladd/Einstein-crystal free-energy calculations, thermodynamic integration along isotherms and isobars, and Gibbs-Duhem integration checks. The central claims, namely that both potentials stabilize many polymorphs, that the stability regions differ, and that neither matches experiment, are computed predictions rather than restatements of the input potentials or of the experimental coexistence data. The classical-nucleus caveat in the Conclusions is an acknowledged limitation about low-temperature accuracy, not a circular step; likewise, the footnote 76 back-of-envelope reparameterisation is an illustrative aside and is not used to derive the main phase diagrams. No load-bearing self-citation, imported uniqueness argument, or ansatz smuggled in via citation appears. The paper is therefore self-contained as a benchmark study, so the circularity score is 0.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

No free parameters are fitted in this work. The MA and LHZ potentials are taken from Refs. 1 and 4. The de Broglie wavelength is fixed at 1 Angstrom for convenience and cancels in phase comparisons. Cutoffs and time steps are numerical choices, not fitted quantities. No new entities are introduced; the only interaction models are previously published potentials.

assumptions (4)
  • domain assumption Classical statistical mechanics without nuclear quantum corrections
    Invoked throughout; the author explicitly states it likely makes low-temperature behaviour incorrect (Conclusions).
  • domain assumption The set of polymorphs considered is sufficient for the phase diagram
    The paper notes other phases may be lower in free energy than those considered, so the phase diagram is conditional on this set (Section V).
  • domain assumption MA and LHZ potential parameters are taken as published
    The paper tests the published potentials without refitting them; this is an input assumption for the comparison.
  • standard math Standard statistical mechanics identities are valid
    Frenkel-Ladd, Gibbs-Duhem, Clapeyron, and thermodynamic integration relations are used as established background.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Phase behaviour of empirical potentials of titanium dioxide." pith.science (2026). https://pith.science/paper/TWTNZH6H

@misc{pith2026190803497,
  author       = {Pith},
  title        = {Pith review of: Phase behaviour of empirical potentials of titanium dioxide},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TWTNZH6H}},
  note         = {Machine review of arXiv:1908.03497}
}
read the original abstract

In recent years, several relatively similar empirical models of titanium dioxide have been proposed as reparameterisations of the potential of Matsui and Akaogi, with the Buckingham interaction replaced by a Lennard-Jones interaction. However, because of the steepness of the repulsive region of the Lennard-Jones potential, such reparameterised models result in rather different mechanical and thermodynamic properties compared to the original potential. Here, we use free-energy calculations based on the Einstein crystal method to compute the phase diagram of both the Matsui-Akaogi potential and one of its Lennard-Jones-based reparameterisations. Both potentials are able to support a large number of distinct crystalline polymorphs of titanium dioxide that have been observed in experiment, but the regions of thermodynamic stability of the individual phases are significantly different from one another. Moreover, neither potential results in phase behaviour that is fully consistent with the available experimental evidence.

Figures

Figures reproduced from arXiv: 1908.03497 by the authors.

Figure 1

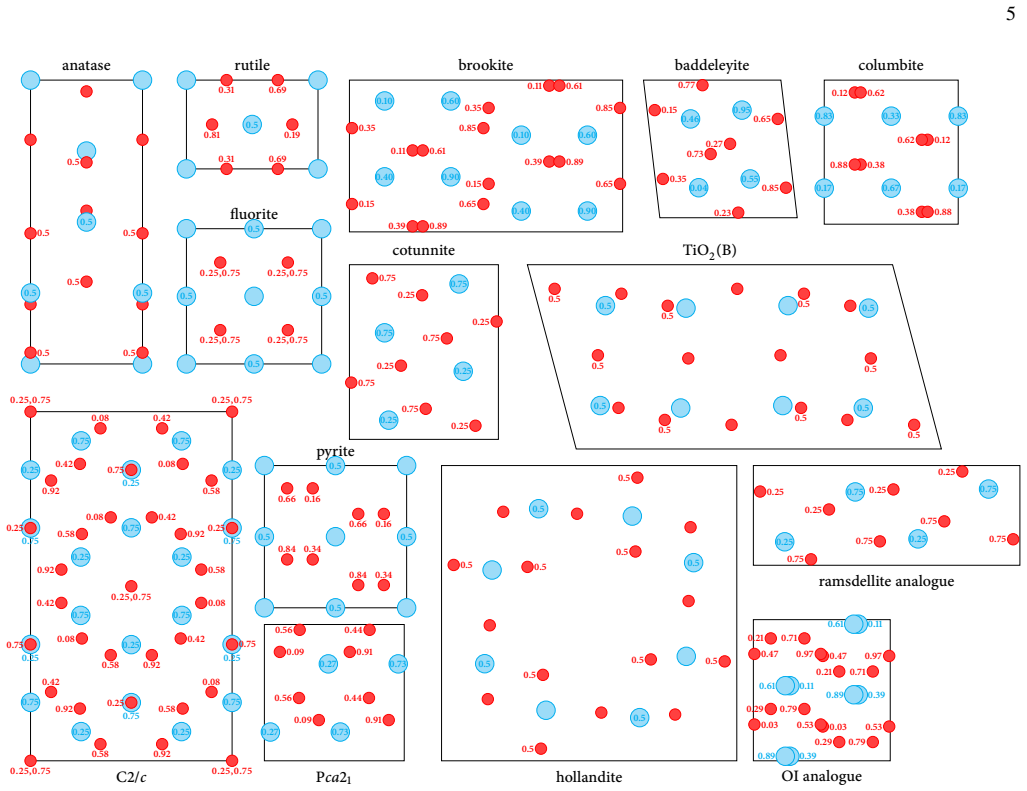

Figure 1. Plan views of unit cells of the crystal structures considered, as labelled. In all cases except for hollandite and C/2 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

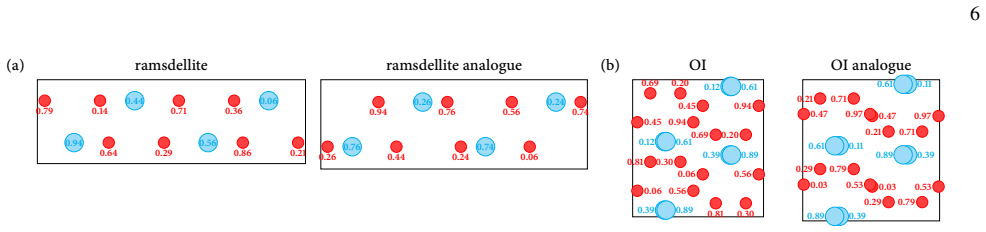

Figure 2. (a) Plan views of ramsdellite from Ref. 65 and the structure from simulation with the MA potential; both belong to the Pbnm (Pnma) space group. The structure is not stable with the LHZ potential and converts to the OI analogue. (b) Plan views of the OI phase from Ref. 55 and the structure from simulation (the structure is essentially the same with either the MA or the LHZ potential). Both belong to the Pbca space gr… view at source ↗
Figure 3

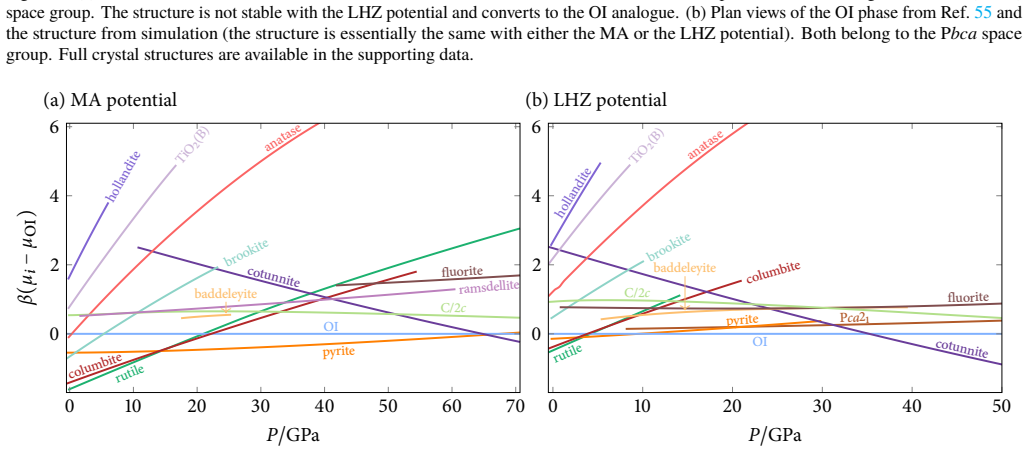

Figure 3. Chemical potentials for the (a) MA and (b) LHZ potential at [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4

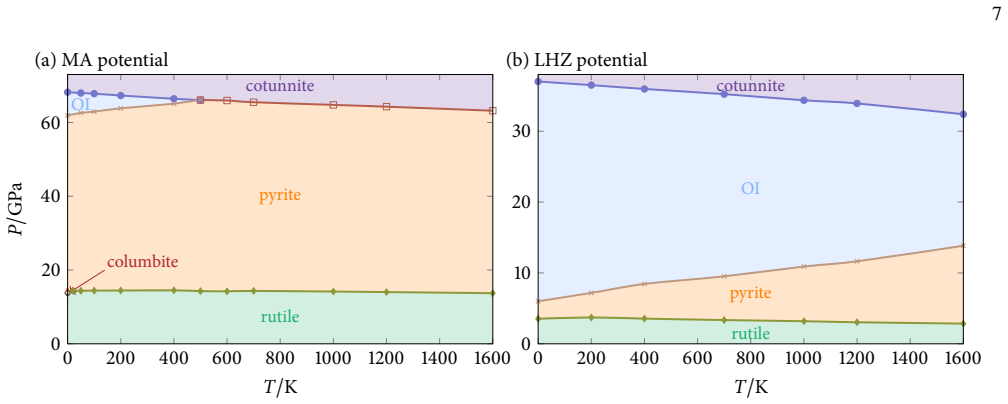

Figure 4. Figure 4: Pressure–temperature phase diagrams for (a) the MA and (b) the LHZ potential. Each marker corresponds to a full free-energy [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5

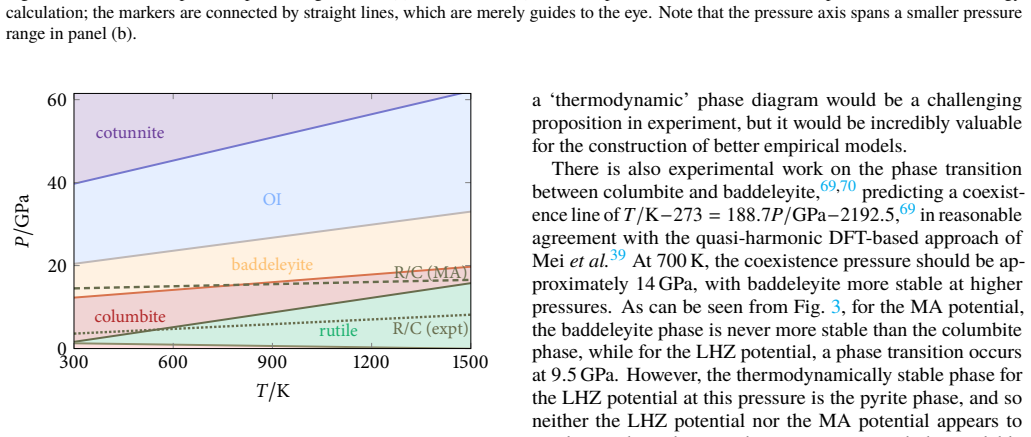

Figure 5. Figure 5: Pressure–temperature phase diagram redrawn from the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
