Spatiotemporally Constrained Action Space Attacks on Deep Reinforcement Learning Agents
T0 review · 3 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read A look-ahead attack that allocates a fixed adversarial budget non-uniformly over time, guided by the agent's own dynamics, degrades a deep reinforcement learning agent's cumulative reward substantially more than a static per-step attack…
desk verdict A genuinely new combination of dynamics-aware planning with action-space attacks, but the central comparison rests on 10 episodes with no inferential statistics and the theory section is a placeholder. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the temporally coupled attack budget, expressed as a mixed-norm constraint $\|\Delta\|_{p,q}\le B$ on the concatenated sequence of action perturbations over a horizon $H$, where $p$ and $q$ govern how the budget is split across action dimensions versus time steps. Projected gradient descent on the agent's network -- Q-values for value-based agents, action probabilities for policy-based agents, both treated as a noisy proxy for the true reward -- produces the perturbations, and the mixed-norm projection forces the attacker to allocate the total budget according to the agent's dynamics. A receding-horizon re-planning loop (plan $H$ steps ahead, apply only the first perturbation, then re-plan) corrects for divergence between the simulated and true trajectories.
What would settle it
Compute, over a batch of states, the cosine similarity between the gradient of the learned Q-function (or policy log-probability) with respect to the action and the gradient of the true environment reward with respect to the same action; if the average similarity is not clearly positive, the noisy-proxy assumption fails and the claimed convergence of projected gradient descent to a true-reward attack would not be expected to hold.
Extended reading notes
Core claim
Using the same total attack budget, allocating perturbations non-uniformly across a short receding horizon with the agent's dynamics (the Look-ahead Action Space attack, LAS) degrades a trained agent's cumulative reward substantially more than injecting a fixed per-step perturbation (the Myopic Action Space attack, MAS). The attack is generated by solving a constrained optimization problem that minimizes anticipated reward subject to a mixed-norm budget on the perturbation sequence, following projected gradient descent on the learned Q-function or policy distribution treated as a surrogate reward. Empirically, LAS dominates MAS across PPO and Double DQN agents in Lunar Lander, Bipedal-Walker, Hopper, Half-Cheetah, and Walker environments, at multiple budgets and horizons; at low budgets MAS can appear ineffective while LAS still drives the agent toward failure. The paper further shows that LAS concentrates its budget on particular action dimensions, exposing the most vulnerable actuators, and argues via a noisy projected-gradient-descent theorem that optimizing the surrogate matches optimizing the true reward.
Load-bearing premise
The load-bearing premise is that the learned network's gradient is an unbiased, i.i.d.-noisy proxy for the true reward gradient, a condition the authors themselves say is difficult to verify, together with the assumption that the adversary's simulation of the environment stays close enough to reality that re-planning each step corrects drift.
Editorial extensions
If this is right
- An adversary with a modest total budget can make a trained agent fail by spending the budget at moments where the dynamics make it count, even when the same budget spread uniformly per step looks harmless.
- The attack's non-uniform use of action dimensions identifies which actuators are most safety-critical, pointing to where defense or redundancy should be concentrated.
- The convergence argument implies that optimizing the learned network with projected gradient descent is a sound way to discover attacks, because the network behaves as an unbiased, noisy estimate of the true reward under the stated assumptions.
- Robustness evaluations of RL agents that only consider static per-step action perturbations will tend to underestimate the real threat from a budgeted adversary.
- Horizon length interacts with budget: short horizons concentrate the attack and are more damaging in some environments, while in others longer horizons prevent the agent from recovering between perturbed steps.
Reading between the lines
- Inference: The dynamics-aware budgeting principle likely transfers to state-space (observation) attacks, which the authors list as future work, and could be paired with an imperceptibility metric to design stealthier attacks.
- Inference: A natural defense suggested by the mixed-norm budget picture is to train agents against worst-case temporal allocations of a fixed budget (a min-max formulation); the paper does not test this.
- Inference: Because LAS relies on a model of the environment, the advantage over MAS should shrink as the attacker's model becomes inaccurate; a testable extension is to measure attack efficacy under deliberately mismatched dynamics.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes two white-box action-space attacks on deep RL agents: a Myopic Action Space (MAS) attack that perturbs each action under a per-step norm budget, and a Look-ahead Action Space (LAS) attack that allocates a total budget across both action dimensions and time steps using an approximate model of the agent's dynamics, with a receding-horizon re-planning scheme. The optimization problems are solved with projected gradient descent on a surrogate reward signal (Q-values or policy probabilities). Experiments on Lunar Lander, BipedalWalker, Hopper, Half-Cheetah, and Walker with PPO and DDQN agents compare cumulative rewards under MAS, LAS, and random attacks. The paper claims that, at equal total budget, LAS deteriorates agent performance significantly more than MAS, and that projected gradient descent on the surrogate converges to the same effect as on the true reward. The authors provide code and supplementary results.
Significance. If the central empirical trend is confirmed, this is a useful contribution: dynamics-aware temporal allocation of action-space perturbations is a materially stronger threat class than static action-space attacks, and the proposed vulnerability-decomposition analysis is a plausible practical tool. Strengths include the public code, the variety of environments and agent types, and a clean problem formulation with explicit threat-model assumptions. The paper does not fit free constants to the attack results, and the convergence theorem is cited from external literature rather than derived. However, the headline comparison currently rests on ten episodes per condition without inferential statistics, and the theoretical contribution is explicitly conditional on unverified smoothness and noise assumptions. Both issues are load-bearing for the claims as stated, so they need to be addressed before the paper's conclusions can be accepted.
major comments (3)
- [Experimental Results & Discussion, Fig. 2 and supplementary Figs. 4-9] The central claim that "the LAS attack deteriorates the agent's performance significantly more than the MAS attack" (abstract) is supported only by box plots of 10 episodes per condition, with no standard errors, confidence intervals, or significance tests. The body text itself uses hedged language such as "generally more effective" and "at least as effective," and with n=10 the observed ordering could be sampling noise, particularly in low-budget conditions such as Fig. 2a/d and in high-variance Mujoco conditions such as Fig. 8. Please report per-condition statistics with confidence intervals and an appropriate paired or nonparametric test across seeds, or soften the abstract's "significantly" claim accordingly.
- [Comparison of MAS and LAS Attacks, Eqs. (1)-(2) and Algorithm 1] The equal-resource comparison assumes that LAS with total budget B and horizon H uses the same resources as MAS with per-step budget b = B/H. However, the paper does not report the realized cumulative perturbation norms. LAS re-plans each step with B <- max(0, B - delta'_{t,k}) and H-1, so the actual applied perturbations depend on whether the norm balls are saturated by the gradient updates; MAS may likewise fail to saturate its per-step ball in some states. Without reporting the actual l_p norms of the applied perturbations over an episode, the claim of "same amount of resources" is not verified. Please report realized attack magnitudes in each condition.
- [Theoretical Analysis, Theorem 1] Contribution 4 claims that projected gradient descent on the surrogate reward converges to the same effect as projected gradient descent on the true reward. This is not established by the cited theorem. Theorem 1 requires f to be beta-smooth, L-Lipschitz, and to have a rho-Lipschitz Hessian, and it requires the noise terms xi_t to be i.i.d. with zero mean and bounded variance; the paper itself states "the iid-ness assumption on xi is hard to verify" and "it is difficult to ascertain whether the assumptions of the above theorem are satisfied in specific cases." In addition, the constraint set S = {x | c(x) = 0} is not shown to be convex or to correspond to the mixed-norm ball used in LAS, and the supplementary's analysis of double projections only derives projection formulas for special cases, not a convergence guarantee. The convergence claim should be reframed as a heuristic motivation or supported by explicit verification on the actual network architectures and attack procedures.
minor comments (6)
- [Algorithm 1, line 19] The update B <- max(0, B - delta'_{t,k}) is dimensionally inconsistent because B is a scalar while delta'_{t,k} is a vector; write B <- max(0, B - ||delta'_{t,k}||_p) or clarify the intended norm.
- [Eq. (2)] The matrix Delta = [delta_t, delta_{t+1}, ..., delta_{t+H}] contains H+1 elements while the text says the horizon is H; please standardize the indexing for consistency.
- [Figure 2 and supplementary figures] The legend labels "MAS1, MAS2, LAS11, LAS21, LAS12, LAS22" are not defined in the main text; please explain in the captions which spatial/temporal norm combinations they denote.
- [Proposed Algorithms, DDQN implementation] The statement that "for value-based methods, we randomly sample adversarial actions to compute numerical gradients" omits the number of samples and the estimator used; please add these details or point to the corresponding code lines for reproducibility.
- [References] Reference [Ge et al. 2015] contains a typo in the title ("saddle pointsonline stochastic gradient") and should be checked against the published version.

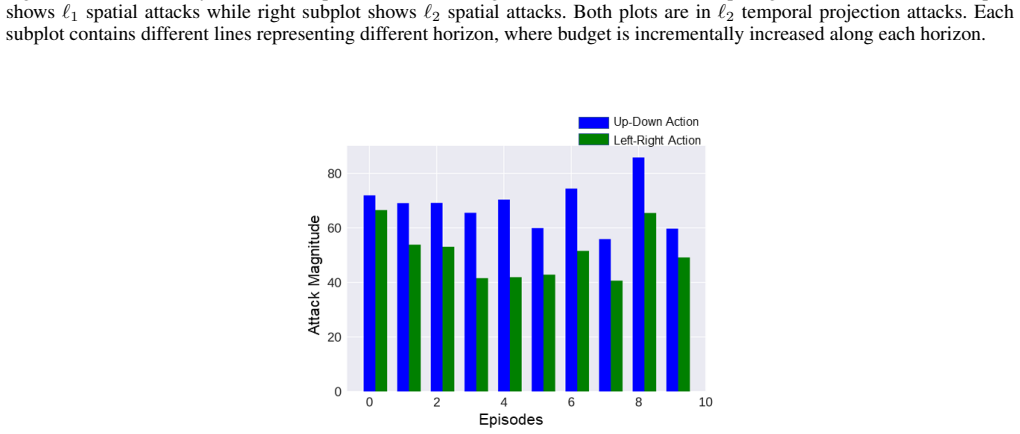

- [Supplementary, Action Space Dimension Decomposition] The claims that certain action dimensions are "more vulnerable" are based on visual inspection of bar plots for a small number of episodes; please label these as anecdotal or provide aggregated statistics over many episodes.
Circularity Check
No material circularity: the claimed LAS advantage is an empirical benchmark result with no fitted inputs, and the cited convergence theorem is external to this paper.
full rationale
No fitted parameter is reused as a prediction: the attack budgets B and the comparison value b = B/H are fixed by the experimental protocol rather than learned from the measured rewards, and the central LAS-vs-MAS comparison is an external benchmark against pre-trained agents in OpenAI Gym environments. The convergence argument depends on the external noisy projected-gradient-descent theorem of Ge et al. (2015), and the paper explicitly acknowledges that the i.i.d. noise assumption is hard to verify, which is a stated limitation rather than a circular step. The self-citations (Havens, Jiang, and Sarkar 2018; Lee et al. 2019; Tan et al. 2019; Joshi et al. 2019) are contextual related-work citations and do not carry the derivation or the empirical claim. Although LAS's temporally coupled constraint is formally a relaxation of MAS's per-step constraint when b = B/H, the paper does not present the empirical superiority as a theorem derived from this containment, and the actual PGD-based attack algorithms are approximate; hence this is a property of the problem formulation, not a circular prediction. The paper is self-contained against external benchmarks and contains no self-citation chain that forces its central result.
Assumptions & free parameters
free parameters (3)
- Projected gradient descent step size η and number of gradient iterations =
Not reported in main text
- Attack budget B and horizon H =
Varies across environments; B typically 2 to 9, H=5 or 10, MAS budget b=B/H
- Projection norms p and q =
p,q in {1,2}
assumptions (4)
- domain assumption The learned Q-function or policy probability distribution is a faithful noisy proxy for the true reward function.
- ad hoc to paper The objective and constraint functions satisfy β-smoothness, L-Lipschitz, ρ-Lipschitz Hessian, and the gradient noise is i.i.d. with zero mean, bounded variance and bounded magnitude.
- domain assumption The adversary's simulation environment matches the nominal environment over the attack horizon, and re-planning at each step corrects trajectory divergence.
- domain assumption Rewards after the look-ahead horizon can be represented by the nominal unperturbed trajectory.
Cite this review
Pith. "Pith review of Spatiotemporally Constrained Action Space Attacks on Deep Reinforcement Learning Agents." pith.science (2026). https://pith.science/paper/PT64C3PY
@misc{pith2026190902583,
author = {Pith},
title = {Pith review of: Spatiotemporally Constrained Action Space Attacks on Deep Reinforcement Learning Agents},
year = {2026},
howpublished = {\url{https://pith.science/paper/PT64C3PY}},
note = {Machine review of arXiv:1909.02583}
}
read the original abstract
Robustness of Deep Reinforcement Learning (DRL) algorithms towards adversarial attacks in real world applications such as those deployed in cyber-physical systems (CPS) are of increasing concern. Numerous studies have investigated the mechanisms of attacks on the RL agent's state space. Nonetheless, attacks on the RL agent's action space (AS) (corresponding to actuators in engineering systems) are equally perverse; such attacks are relatively less studied in the ML literature. In this work, we first frame the problem as an optimization problem of minimizing the cumulative reward of an RL agent with decoupled constraints as the budget of attack. We propose a white-box Myopic Action Space (MAS) attack algorithm that distributes the attacks across the action space dimensions. Next, we reformulate the optimization problem above with the same objective function, but with a temporally coupled constraint on the attack budget to take into account the approximated dynamics of the agent. This leads to the white-box Look-ahead Action Space (LAS) attack algorithm that distributes the attacks across the action and temporal dimensions. Our results shows that using the same amount of resources, the LAS attack deteriorates the agent's performance significantly more than the MAS attack. This reveals the possibility that with limited resource, an adversary can utilize the agent's dynamics to malevolently craft attacks that causes the agent to fail. Additionally, we leverage these attack strategies as a possible tool to gain insights on the potential vulnerabilities of DRL agents.
