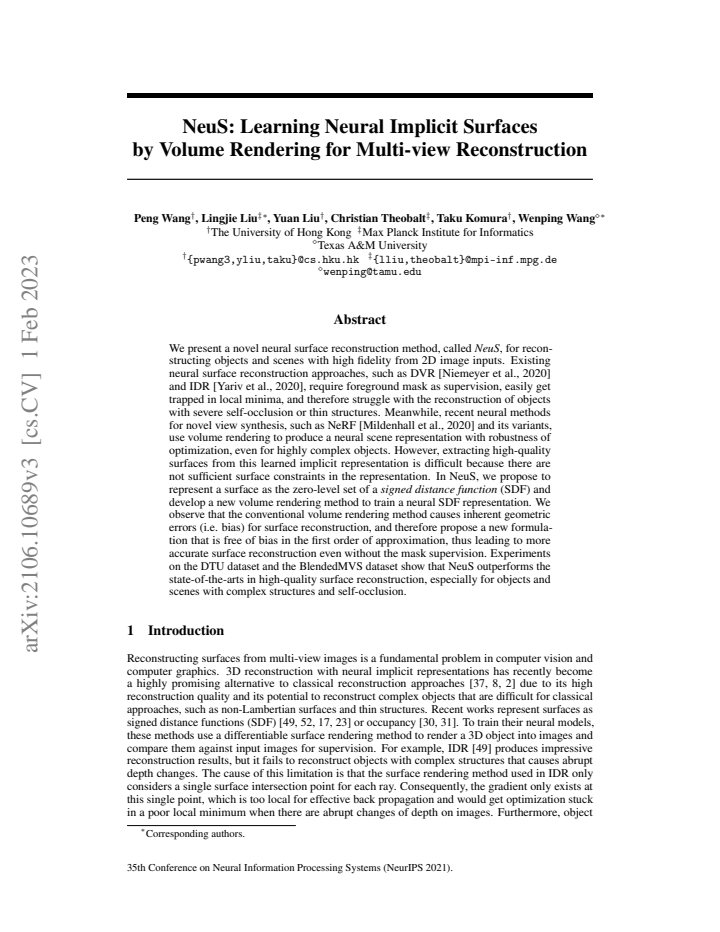

NeuS: Learning Neural Implicit Surfaces by Volume Rendering for Multi-view Reconstruction

Peng Wang , Lingjie Liu , Yuan Liu , Christian Theobalt , Taku Komura , Wenping Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-16 20:14 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords neural implicit surfacesvolume renderingsigned distance functionmulti-view reconstructionsurface reconstructionNeRFSDF
0
0 comments X

The pith

NeuS learns high-fidelity surfaces as neural signed distance functions by using a volume rendering formulation that removes first-order geometric bias.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a neural method that represents object surfaces as the zero level set of a learned signed distance function. It replaces standard volume rendering with a new formulation that avoids the geometric bias that arises when converting volume densities into surface locations. This change lets the network optimize directly from multi-view images without foreground masks, and it produces more accurate geometry on objects that have thin parts or heavy self-occlusion. The method is evaluated on the DTU and BlendedMVS benchmarks and is shown to outperform earlier surface and radiance-field approaches on those data.

Core claim

We represent a surface as the zero-level set of a signed distance function and develop a new volume rendering method to train a neural SDF representation. Conventional volume rendering introduces inherent geometric errors for surface reconstruction; the proposed formulation is free of bias in the first order of approximation and therefore yields more accurate surfaces even without mask supervision.

What carries the argument

A bias-free volume rendering integral for neural signed distance functions that approximates the surface integral to first order without geometric offset.

If this is right

  • Objects with severe self-occlusion or thin structures can be reconstructed to higher geometric accuracy without foreground masks.
  • Surface extraction from the learned implicit field becomes reliable enough to replace post-processing steps required by radiance-field methods.
  • The same network can be trained end-to-end on raw image collections that previously needed manual masking.
  • Reconstruction quality on standard multi-view benchmarks improves measurably over both DVR/IDR and NeRF-based baselines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same bias-correction idea could be applied to other implicit representations that combine volume rendering with explicit surface constraints.
  • If the first-order unbiased property holds under noisy camera poses, the method may tolerate less precise calibration than mask-dependent alternatives.
  • Extending the formulation to time-varying scenes would require only adding a temporal dimension to the SDF network while preserving the unbiased rendering integral.

Load-bearing premise

The new rendering equation removes first-order geometric bias without creating new systematic errors that would require extra constraints or mask data to correct.

What would settle it

A controlled experiment on synthetic spheres or planes where the reconstructed zero-level set deviates from ground-truth geometry by an amount proportional to the first-order bias term when the new rendering is replaced by standard NeRF-style rendering.

read the original abstract

We present a novel neural surface reconstruction method, called NeuS, for reconstructing objects and scenes with high fidelity from 2D image inputs. Existing neural surface reconstruction approaches, such as DVR and IDR, require foreground mask as supervision, easily get trapped in local minima, and therefore struggle with the reconstruction of objects with severe self-occlusion or thin structures. Meanwhile, recent neural methods for novel view synthesis, such as NeRF and its variants, use volume rendering to produce a neural scene representation with robustness of optimization, even for highly complex objects. However, extracting high-quality surfaces from this learned implicit representation is difficult because there are not sufficient surface constraints in the representation. In NeuS, we propose to represent a surface as the zero-level set of a signed distance function (SDF) and develop a new volume rendering method to train a neural SDF representation. We observe that the conventional volume rendering method causes inherent geometric errors (i.e. bias) for surface reconstruction, and therefore propose a new formulation that is free of bias in the first order of approximation, thus leading to more accurate surface reconstruction even without the mask supervision. Experiments on the DTU dataset and the BlendedMVS dataset show that NeuS outperforms the state-of-the-arts in high-quality surface reconstruction, especially for objects and scenes with complex structures and self-occlusion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents NeuS, a neural implicit surface reconstruction method that represents object surfaces as the zero-level set of a signed distance function (SDF) and introduces a new volume rendering formulation derived from the SDF. The key technical contribution is a rendering equation claimed to be free of geometric bias to first order in the approximation, enabling high-fidelity reconstruction from multi-view images without foreground mask supervision. Experiments on the DTU and BlendedMVS datasets report superior quantitative and qualitative results compared to prior methods such as DVR, IDR, and NeRF variants, particularly for scenes with self-occlusion and thin structures.

Significance. If the first-order bias-free property of the proposed volume rendering holds under the discretization and network approximation used in practice, the work would meaningfully advance multi-view 3D reconstruction by combining the optimization robustness of volume rendering with accurate surface constraints. The reported gains on standard benchmarks for challenging geometry suggest practical utility in computer vision and graphics applications.

major comments (2)
  1. [Abstract / §3] Abstract and the derivation of the rendering formulation (presumably §3): the central claim that the new volume rendering is 'free of bias in the first order of approximation' is load-bearing for the contribution and the no-mask result. However, no error bound, remainder term analysis, or empirical check is supplied for the neglected higher-order terms in the Taylor expansion of transmittance/opacity around the zero level set, nor for interactions with quadrature discretization, curvature, or sampling density. Without this, it remains possible that residual systematic offsets persist and that accuracy gains arise from the SDF representation rather than bias elimination.
  2. [§4] Experimental section (§4, Tables 1-2): the reported outperformance on DTU and BlendedMVS is presented as evidence for the bias-free formulation, yet the paper lacks ablations that hold the SDF fixed while swapping the conventional versus proposed renderer (or vice versa). This makes it difficult to isolate the contribution of the first-order unbiased property from other modeling choices.
minor comments (2)
  1. [§2 / §3] Notation for the SDF, opacity, and transmittance functions should be introduced once with explicit definitions and then used consistently; occasional re-use of symbols for related but distinct quantities reduces readability.
  2. [Figures 3-5] Figure captions and axis labels in the qualitative results could more explicitly indicate which method corresponds to each column to aid quick comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of our work. We address each major comment below and will revise the manuscript to strengthen the presentation of the bias-free property and experimental validation.

read point-by-point responses

  1. Referee: [Abstract / §3] Abstract and the derivation of the rendering formulation (presumably §3): the central claim that the new volume rendering is 'free of bias in the first order of approximation' is load-bearing for the contribution and the no-mask result. However, no error bound, remainder term analysis, or empirical check is supplied for the neglected higher-order terms in the Taylor expansion of transmittance/opacity around the zero level set, nor for interactions with quadrature discretization, curvature, or sampling density. Without this, it remains possible that residual systematic offsets persist and that accuracy gains arise from the SDF representation rather than bias elimination.

    Authors: We thank the referee for this insightful comment. In §3, we derive the new volume rendering by performing a first-order Taylor expansion of the transmittance around the zero-level set of the SDF. This eliminates the geometric bias to first order, as the standard formulation has a bias proportional to the distance from the surface. While a complete remainder term analysis is not included in the original paper, the approximation is justified by the fact that near the surface the higher-order terms become negligible for small step sizes. We will add a new subsection in the revised manuscript providing a more detailed discussion of the approximation error, including a brief analysis of the remainder and its dependence on sampling density and curvature. Additionally, we will include an empirical study varying the number of quadrature points to verify robustness. revision: partial

  2. Referee: [§4] Experimental section (§4, Tables 1-2): the reported outperformance on DTU and BlendedMVS is presented as evidence for the bias-free formulation, yet the paper lacks ablations that hold the SDF fixed while swapping the conventional versus proposed renderer (or vice versa). This makes it difficult to isolate the contribution of the first-order unbiased property from other modeling choices.

    Authors: We agree that such an ablation would better isolate the contribution of our rendering formulation. The current comparisons involve different scene representations across methods, which confounds direct attribution. In the revised version, we will add an ablation experiment on the DTU dataset where we use the identical SDF network architecture and training setup but replace our proposed renderer with the conventional volume rendering formulation from NeRF. We will report the Chamfer distance and other metrics to demonstrate the specific improvement due to the bias-free rendering. revision: yes

Circularity Check

0 steps flagged

No significant circularity; new volume rendering formulation derived independently from SDF without reduction to fitted inputs

full rationale

The paper's central contribution is a new volume rendering formulation for neural SDF representations, presented as free of geometric bias to first order. The abstract and description show this as a mathematical derivation from the SDF zero-level set and transmittance, not a re-expression of prior fitted parameters or self-citations. No load-bearing step reduces by construction to inputs (e.g., no fitted bias term renamed as prediction). External evaluations on DTU and BlendedMVS provide independent validation. Minor self-citations to NeRF/IDR are present but not load-bearing for the bias-free claim, which rests on the first-order approximation analysis. This is a normal non-finding for a derivation that remains self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the standard assumption that surfaces can be represented as zero-level sets of SDFs and that volume rendering can be adapted to enforce surface constraints without masks.

axioms (1)
  • domain assumption A surface can be represented as the zero-level set of a signed distance function
    Invoked in the abstract as the core representation for NeuS.

pith-pipeline@v0.9.0 · 5555 in / 1042 out tokens · 19403 ms · 2026-05-16T20:14:24.628814+00:00 · methodology
