arxiv: 2402.12797 · v4 · submitted 2024-02-20 · 💻 cs.CV · cs.CG

A Geometric Algorithm for Blood Vessel Reconstruction from Skeletal Representation

Guoqing Zhang , Yang Li This is my paper

Pith reviewed 2026-05-24 03:45 UTC · model grok-4.3

classification 💻 cs.CV cs.CG
keywords blood vessel reconstructionskeletal representationTSDFvoxel hashingtubular shapegeometric algorithm3D reconstructioncomputer vision
0
0 comments X

The pith

A geometric algorithm reconstructs tubular shapes from skeletal data by computing the full TSDF in voxel hashing without segmenting the input or solving matrix equations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that treating every skeletal point together allows direct computation of a truncated signed distance function for blood vessels and similar tubes. The signed distance from each voxel center to the surface is found with a simple geometric rule inside a voxel hashing structure. This replaces the common practice of dividing the skeleton into separate segments, sampling the surface, or optimizing large systems of equations. The authors report that the approach runs faster and produces usable reconstructions on vessel data. Readers would care if the method scales to real medical volumes because it removes several standard sources of slowdown and complexity.

Core claim

The central claim is that a geometric algorithm can compute the signed distance from every voxel center to the object surface for the entire skeletal structure at once, yielding a complete TSDF representation of the tubular shape inside a voxel hashing grid without any surface sampling or large matrix solves.

What carries the argument

The geometric algorithm that determines the signed distance between a voxel center and the nearest surface point implied by the skeletal representation.

If this is right

  • The input skeleton can be processed as one object rather than split into segments.
  • No surface sampling step or solution of large linear systems is required.
  • The output is a TSDF stored in voxel hashing that can be used directly for further operations.
  • Experiments on blood-vessel data show the method is both faster and effective.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same geometric distance rule might apply to other implicitly defined tubular structures outside medicine.
  • Lower per-voxel cost could allow larger volumes or higher resolution in time-critical settings.
  • If the rule generalizes, it may reduce the need for topology-specific fixes in related implicit-surface tasks.

Load-bearing premise

The geometric signed-distance calculation stays accurate and complete for arbitrary branching topologies and skeletal configurations without extra handling or post-processing steps.

What would settle it

Run the method on a skeleton containing a dense, high-curvature branching region and check whether the resulting TSDF produces surface distances or zero-level sets that match independent ground-truth measurements within voxel tolerance.

Figures

Figures reproduced from arXiv: 2402.12797 by Guoqing Zhang, Yang Li.

Figure 1
Figure 1. Figure 1: Overview of our shape reconstruction algorithm. Left: original shape and sampled skeletal points. Middle: [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of different skeletal representations. Left: original shape. Middle: the input skeletal points are [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The geometric view of SDF computing. Given two adjacent slices Sa = (ca, na, ra), Sb = (cb, nb, rb) and a voxel center point v, we use fSDF(Sa, Sb, v) to denote the SDF value of voxel v for the shape between slices Sa and Sb, where |a − b| = 1. The plane P that is uniquely determined by ca, cb and v intersects with Sa and Sb at four points, denoted as i1, i2, i3 and i4, respectively. The absolute value of … view at source ↗
Figure 4
Figure 4. Figure 4: A failure case when faced with poor sam [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

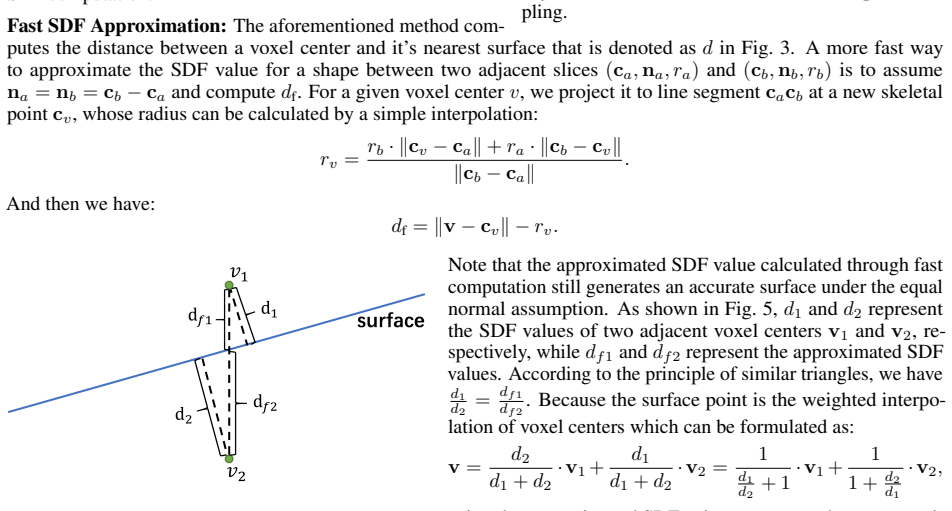

Figure 5. Figure 5: Surface extraction using different SDF val [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

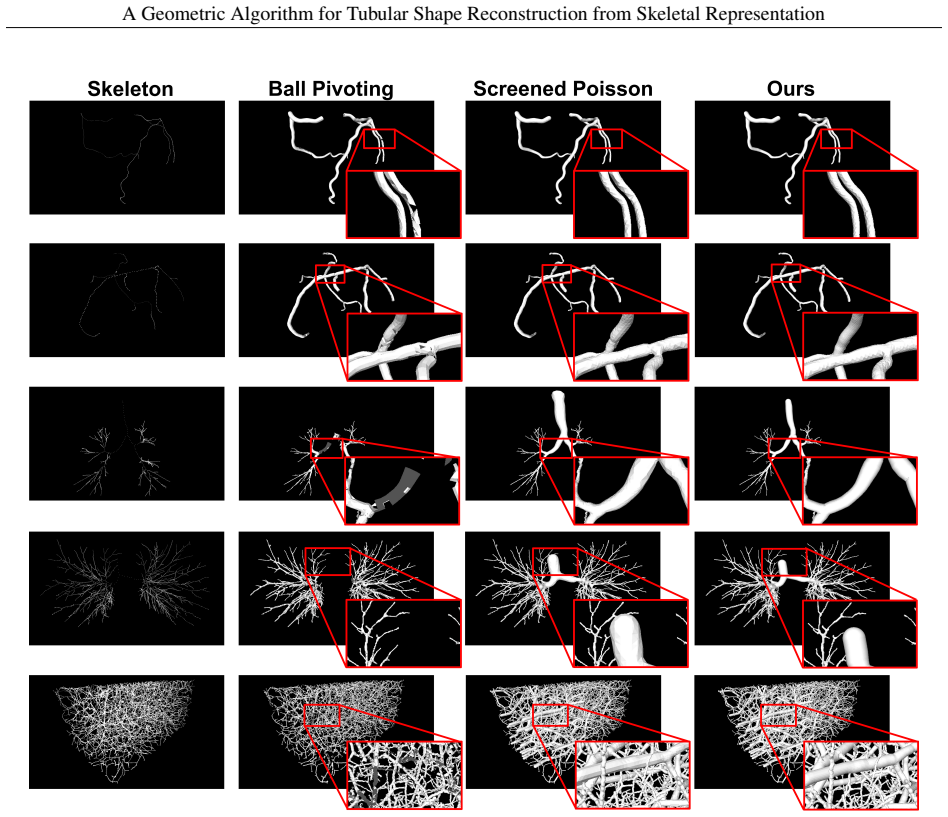

Figure 6. Figure 6: Qualitative experimental results. From top to bottom each row shows reconstruction results for datasets CAT08, [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

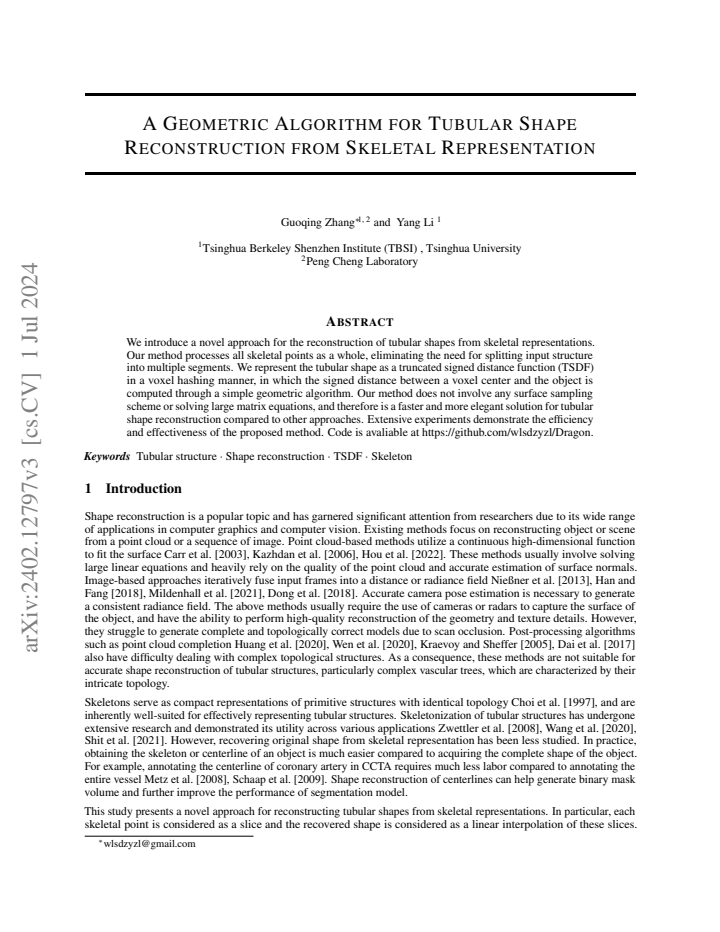

We introduce a novel approach for the reconstruction of tubular shapes from skeletal representations. Our method processes all skeletal points as a whole, eliminating the need for splitting input structure into multiple segments. We represent the tubular shape as a truncated signed distance function (TSDF) in a voxel hashing manner, in which the signed distance between a voxel center and the object is computed through a simple geometric algorithm. Our method does not involve any surface sampling scheme or solving large matrix equations, and therefore is a faster and more elegant solution for tubular shape reconstruction compared to other approaches. Experiments demonstrate the efficiency and effectiveness of the proposed method. Code is avaliable at https://github.com/wlsdzyzl/Dragon.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims a geometric algorithm for reconstructing tubular shapes such as blood vessels from skeletal representations. It processes the entire skeleton at once in a voxel-hashing TSDF representation, computing signed distances via direct geometric operations without segmenting the input, sampling surfaces, or solving large matrix equations, and reports faster performance than prior methods along with experimental validation.

Significance. If the geometric TSDF computation is shown to be accurate and complete, the method supplies a parameter-free, direct-computation alternative for vessel reconstruction that avoids common preprocessing and optimization steps; the public code release provides an independent verification path for the distance algorithm and runtime claims.

major comments (2)
  1. [Method] Method section (geometric distance computation): the description of how the signed distance from a voxel center to the tubular surface is obtained from skeletal points does not specify the exact rule for combining influences at branch points or when multiple skeletal elements affect the same voxel; this is load-bearing for the central claim that the whole skeleton can be processed without segmentation or hidden post-processing.
  2. [Experiments] Experiments: the reported efficiency gains are presented without quantitative comparison tables against the specific baselines that also avoid segmentation, making it impossible to isolate whether the improvement stems from the geometric formulation or from implementation details.
minor comments (2)
  1. [Abstract] Abstract: 'avaliable' should be 'available'.
  2. [Method] The voxel-hashing implementation details (hash function, truncation distance choice) are referenced but not given explicitly enough for direct re-implementation from the text alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and will revise the paper to improve clarity and experimental rigor.

read point-by-point responses

  1. Referee: [Method] Method section (geometric distance computation): the description of how the signed distance from a voxel center to the tubular surface is obtained from skeletal points does not specify the exact rule for combining influences at branch points or when multiple skeletal elements affect the same voxel; this is load-bearing for the central claim that the whole skeleton can be processed without segmentation or hidden post-processing.

    Authors: We agree the combination rule merits explicit statement. The algorithm computes the geometric (Euclidean) distance from each voxel center to every skeletal element and retains the minimum value; this minimum-distance selection automatically resolves branch-point overlaps and multi-element influences without segmentation or post-processing. We will add a concise paragraph in the revised Method section detailing this rule and confirming it operates on the full skeleton. revision: yes

  2. Referee: [Experiments] Experiments: the reported efficiency gains are presented without quantitative comparison tables against the specific baselines that also avoid segmentation, making it impossible to isolate whether the improvement stems from the geometric formulation or from implementation details.

    Authors: The referee is correct that isolating the contribution of the geometric formulation requires direct comparisons to other segmentation-free methods. We will augment the Experiments section with a new table reporting runtime and reconstruction accuracy on identical vessel datasets against the segmentation-free baselines cited in the related-work section, using the same hardware and metrics. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The provided abstract and description present the method as a direct geometric computation of TSDF from the full skeletal input in voxel hashing, with no equations, fitted parameters, self-citations, or ansatzes shown that reduce any claimed prediction or result to its own inputs by construction. The approach is positioned as avoiding surface sampling and matrix solving, and the code release offers an independent verification path. No load-bearing derivation chain is visible that matches any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract supplies no explicit free parameters, axioms, or invented entities; the method is presented as a direct geometric procedure on existing skeletal input and standard voxel hashing.
