arxiv: 2410.24116 · v3 · submitted 2024-10-31 · 💻 cs.CV · cs.AI· cs.LG

AIDOVECL: AI-generated Dataset of Outpainted Vehicles for Eye-level Classification and Localization

Amir Kazemi , Qurat ul ain Fatima , Volodymyr Kindratenko , Christopher W. Tessum This is my paper

Pith reviewed 2026-05-23 18:24 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LG
keywords outpaintingvehicle detectionsynthetic data generationdata augmentationeye-level imageryautomatic annotationobject localizationcomputer vision datasets
0
0 comments X

The pith

Outpainting cropped vehicles onto varied backgrounds produces automatically annotated images that raise eye-level detection performance when mixed into training data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to turn a small set of real vehicle photos into a much larger training resource by cropping the vehicles and using AI outpainting to place them in new scenes. The resulting images carry precise bounding-box and class labels generated without further human work. When these images are added to standard training sets, ablation tests record higher detection accuracy on real test images, with the largest lifts occurring for underrepresented vehicle types and in scenes that differ in scale, angle, or surroundings from the original data.

Core claim

AIDOVECL is built by detecting and cropping vehicles from seed photographs, then outpainting each crop onto larger canvases that simulate diverse real-world contexts; the outpainted results carry automatic high-quality ground-truth annotations. When the generated images are mixed with real training data, object detectors achieve up to 10 percent higher overall performance, up to 40 percent higher performance under greater diversity of context and scale, and up to 50 percent more true positives on underrepresented classes.

What carries the argument

Outpainting of cropped vehicle instances onto new canvases, which simultaneously creates varied contexts and supplies the corresponding bounding-box and class annotations.

If this is right

  • Mixing AIDOVECL images with real data raises overall detection accuracy by up to 10 percent.
  • The largest accuracy gains appear in test conditions that vary widely in context, object scale, and placement.
  • Underrepresented vehicle classes record up to 50 percent more true-positive detections.
  • The same outpainting-plus-annotation pipeline can be used to build fine-grained labeled sets for other object classes with reduced manual effort.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be applied to generate training data for detection tasks outside vehicles, such as pedestrians or traffic signs, by swapping the seed-object detector.
  • Because the generated images carry perfect labels by construction, they could also serve as a clean benchmark for measuring how much domain shift remains between synthetic and real scenes.
  • Repeated application of the pipeline might allow iterative dataset growth in which newly detected real vehicles are outpainted and fed back into training without additional labeling cost.

Load-bearing premise

The outpainted images look realistic enough that adding them to training improves, rather than harms, accuracy on real test photographs.

What would settle it

Train the same detector twice—once on real images alone and once on real images plus the outpainted set—then measure mean average precision on an untouched collection of real eye-level vehicle photographs; if the second model scores lower, the benefit claim is false.

Figures

Figures reproduced from arXiv: 2410.24116 by Amir Kazemi, Christopher W. Tessum, Qurat ul ain Fatima, Volodymyr Kindratenko.

Figure 1

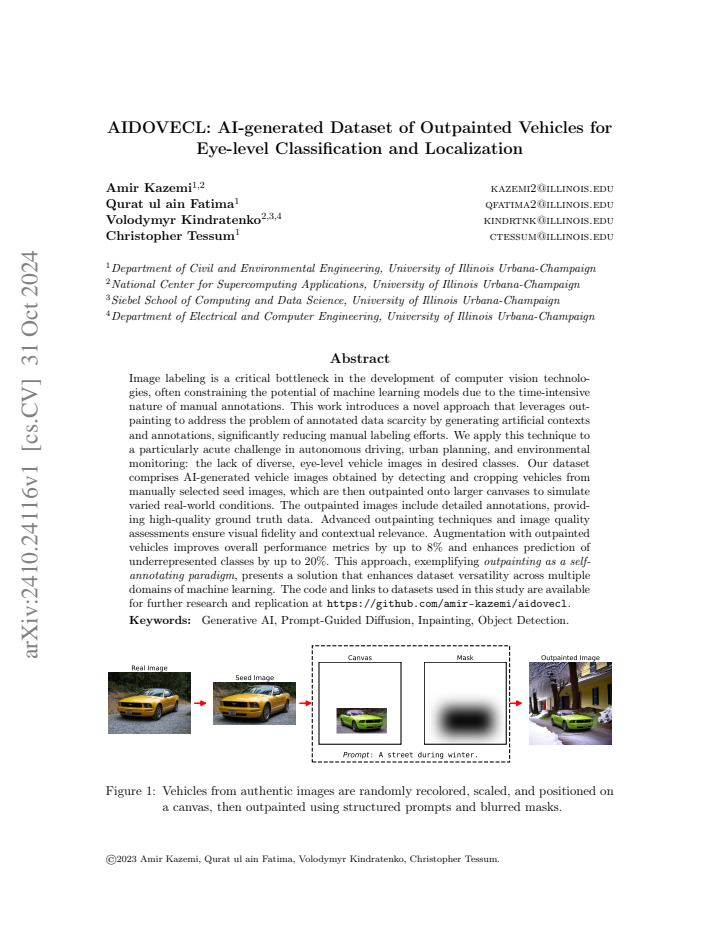

Figure 1. Figure 1: Vehicles from authentic images are randomly recolored, scaled, and positioned on a canvas, then outpainted using structured prompts and blurred masks. ©2023 Amir Kazemi, Qurat ul ain Fatima, Volodymyr Kindratenko, Christopher Tessum. arXiv:2410.24116v1 [cs.CV] 31 Oct 2024 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Outpainted images of various vehicle classes with BRISQUE ≤ 15, CLIP-IQA ≥ 0.9, and the downscaled (32x32 pixels) TV loss ≤ 15. 11 [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

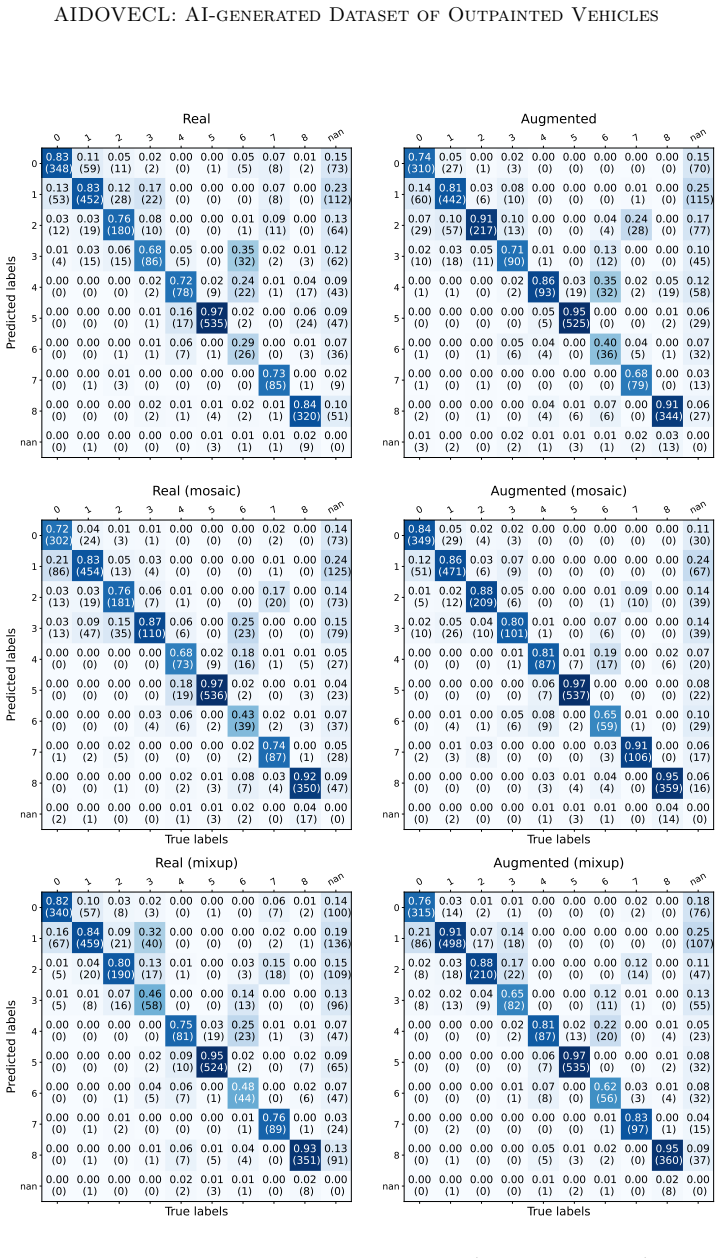

Figure 3. Figure 3: Confusion matrices for the real and augmented (with AIDOVECL) datasets using mixup and mosaic augmentations. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
read the original abstract

Image labeling is a critical bottleneck in the development of computer vision technologies, often constraining machine learning performance due to the time-intensive nature of manual annotations. This work introduces a novel approach that leverages outpainting to mitigate annotated data scarcity by generating artificial contexts and annotations, significantly reducing labeling efforts. We apply this technique to a particularly acute challenge in autonomous driving, urban planning, and environmental monitoring: the lack of diverse, eye-level vehicle images from desired classes. Our dataset comprises AI-generated vehicle images obtained by detecting and cropping vehicles from manually selected seed images, which are then outpainted onto larger canvases to simulate varied real-world conditions. The outpainted images include detailed annotations, providing high-quality ground truth data. Advanced outpainting techniques and image quality assessments ensure visual fidelity and contextual relevance. Ablation results show that incorporating AIDOVECL improves overall detection performance by up to about 10%, and delivers gains of up to about 40% in settings with greater diversity of context, object scale, and placement, with underrepresented classes achieving up to about 50% higher true positives. AIDOVECL enhances vehicle detection by augmenting real training data and supporting evaluation across diverse scenarios. By demonstrating outpainting as an automatic annotation paradigm, it offers a practical and versatile solution for building fine-grained datasets with reduced labeling effort across multiple machine learning domains. The code and links to datasets are available for further research and replication at https://github.com/amir-kazemi/aidovecl.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces AIDOVECL, an AI-generated dataset created by detecting and cropping vehicles from seed images and outpainting them onto larger canvases to simulate diverse eye-level real-world conditions with automatic annotations. The work targets data scarcity in vehicle detection for autonomous driving and related domains, claiming that advanced outpainting ensures visual fidelity. Ablation results are reported to show up to ~10% overall detection improvement, up to ~40% gains in diverse context/scale/placement settings, and up to ~50% higher true positives for underrepresented classes when the dataset augments real training data.

Significance. If the outpainted images prove artifact-free and the reported gains are shown to be robust, the dataset and outpainting-as-annotation paradigm could offer a practical route to scalable fine-grained data generation in computer vision, with particular value for rare classes and eye-level views. Public code and dataset links would aid reproducibility.

major comments (2)
  1. [Abstract] Abstract: the central performance claims (up to 10% overall, 40% in diverse settings, 50% higher true positives for underrepresented classes) are presented without any description of the experimental protocol, including baseline detectors, train/test splits, statistical significance testing, seed-image selection controls, or whether AIDOVECL images augment or replace real data at matched cardinality.
  2. [Abstract] Abstract: the load-bearing assumption that outpainted images are sufficiently realistic and free of systematic artifacts (e.g., texture seams, inconsistent lighting, implausible object-scene interactions) to improve rather than degrade generalization to real test images is asserted via 'advanced outpainting techniques and image quality assessments' but is unsupported by any named model, quantitative fidelity metrics, or ablation isolating artifact effects.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'advanced outpainting techniques' is used without naming the specific methods or providing citations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that the abstract requires additional detail on the experimental protocol and supporting evidence for image fidelity. We will revise the abstract and manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central performance claims (up to 10% overall, 40% in diverse settings, 50% higher true positives for underrepresented classes) are presented without any description of the experimental protocol, including baseline detectors, train/test splits, statistical significance testing, seed-image selection controls, or whether AIDOVECL images augment or replace real data at matched cardinality.

    Authors: We agree the abstract lacks these details. The revised version will add a concise description of the protocol, clarifying that AIDOVECL augments (rather than replaces) real training data at matched cardinality, using standard detectors on vehicle detection benchmarks with controlled seed-image selection for diversity. Gains are reported as averages over multiple runs; formal statistical significance testing was not performed. revision: yes

  2. Referee: [Abstract] Abstract: the load-bearing assumption that outpainted images are sufficiently realistic and free of systematic artifacts (e.g., texture seams, inconsistent lighting, implausible object-scene interactions) to improve rather than degrade generalization to real test images is asserted via 'advanced outpainting techniques and image quality assessments' but is unsupported by any named model, quantitative fidelity metrics, or ablation isolating artifact effects.

    Authors: We agree the abstract asserts fidelity without naming models or metrics. The revision will name the outpainting approach and report the quantitative fidelity metrics from our assessments. An ablation isolating artifact effects is not present in the current work and would require new experiments; we will either add a brief note on this limitation or include preliminary analysis where feasible. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical dataset and ablation study with no derivations or fitted parameters

full rationale

The paper presents an empirical contribution consisting of a generated dataset via outpainting of vehicle images and reports ablation results showing performance gains. The abstract contains no equations, derivations, mathematical models, or parameter-fitting steps. Claims rest on experimental outcomes rather than any self-referential definitions, renamed known results, or self-citation chains. The load-bearing assumption about image realism is an empirical question subject to external verification, not a circular construction by definition or construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work contains no mathematical derivations, free parameters, axioms, or invented physical entities; it is an applied dataset-generation study.

pith-pipeline@v0.9.0 · 5792 in / 1095 out tokens · 33575 ms · 2026-05-23T18:24:40.765249+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · 3 internal anchors

  1. [1]

    YOLOv4: Optimal Speed and Accuracy of Object Detection

    URL https://kaggle.com/competitions/ imagenet-object-localization-challenge. Alexey Bochkovskiy, Chien-Yao Wang, and Hong-Yuan Mark Liao. Yolov4: Optimal speed and accuracy of object detection.arXiv preprint arXiv:2004.10934,

    work page internal anchor Pith review Pith/arXiv arXiv 2004

  2. [2]

    Image in- painting: A review.Neural Processing Letters, 51:2007–2028,

    Omar Elharrouss, Noor Almaadeed, Somaya Al-Maadeed, and Younes Akbari. Image in- painting: A review.Neural Processing Letters, 51:2007–2028,

    work page 2007

  3. [3]

    Generating Sequences With Recurrent Neural Networks

    Alex Graves. Generating sequences with recurrent neural networks. arXiv preprint arXiv:1308.0850,

    work page internal anchor Pith review Pith/arXiv arXiv

  4. [4]

    Auto-Encoding Variational Bayes

    Gerrit Hoekstra. Uk truck brands dataset, 2024a. URL https://www.kaggle.com/ datasets/bignosethethird/uk-truck-brands-dataset. Accessed: 2024-05-15. Gerrit Hoekstra. Vehicle brand dataset scraping, 2024b. URL https://github.com/ gerritonagoodday/VehicleBrandDatasetScraping. Accessed: 2024-05-15. Diederik P Kingma and Max Welling. Auto-encoding variational...

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  5. [5]

    Accessed: 2024-05-15

    URL https://www.kaggle.com/datasets/ rishabkoul1/vechicle-dataset. Accessed: 2024-05-15. Jonathan Krause, Michael Stark, Jia Deng, and Li Fei-Fei. 3d object representations for fine- grained categorization. InProceedings of the IEEE International Conference on Computer Vision Workshops, pages 554–561,

    work page 2024

  6. [6]

    Guidance and evaluation: Semantic-aware image inpainting for mixed scenes

    Liang Liao, Jing Xiao, Zheng Wang, Chia-Wen Lin, and Shin’ichi Satoh. Guidance and evaluation: Semantic-aware image inpainting for mixed scenes. In Computer Vision– ECCV 2020: 16th European Conference, Glasgow, UK, August 23–28, 2020, Proceedings, Part XXVII 16, pages 683–700. Springer,

    work page 2020

  7. [7]

    Microsoft coco: Common objects in context

    Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C Lawrence Zitnick. Microsoft coco: Common objects in context. In Computer Vision–ECCV 2014: 13th European Conference, Zurich, Switzerland, Septem- ber 6-12, 2014, Proceedings, Part V 13, pages 740–755. Springer,

    work page 2014

  8. [8]

    Ssd: Single shot multibox detector

    Wei Liu, Dragomir Anguelov, Dumitru Erhan, Christian Szegedy, Scott Reed, Cheng-Yang Fu, and Alexander C Berg. Ssd: Single shot multibox detector. In Computer Vision– ECCV 2016: 14th European Conference, Amsterdam, The Netherlands, October 11–14, 2016, Proceedings, Part I 14, pages 21–37. Springer,

    work page 2016

  9. [9]

    Stable diffusion inpainting.https://huggingface.co/benjamin-paine/ stable-diffusion-v1-5-inpainting, 2024a

    Benjamin Paine. Stable diffusion inpainting.https://huggingface.co/benjamin-paine/ stable-diffusion-v1-5-inpainting, 2024a. Accessed: 2024-10-29. Benjamin Paine. Stable diffusion v1.5. https://huggingface.co/benjamin-paine/ stable-diffusion-v1-5, 2024b. Accessed: 2024-10-29. Xingchao Peng, Qinxun Bai, Xide Xia, Zijun Huang, Kate Saenko, and Bo Wang. Momen...

    work page 2024

  10. [10]

    Visited on 2024-04-15

    URL https://universe.roboflow.com/pob/ sedan-cars. Visited on 2024-04-15. Joseph Redmon, Santosh Divvala, Ross Girshick, and Ali Farhadi. You only look once: Unified, real-time object detection. InProceedings of the IEEE conference on computer vision and pattern recognition, pages 779–788,

    work page 2024

  11. [11]

    Fcos: Fullyconvolutionalone-stageobject detection

    ZhiTian, ChunhuaShen, HaoChen, andTongHe. Fcos: Fullyconvolutionalone-stageobject detection. In 2019 IEEE/CVF International Conference on Computer Vision (ICCV), pages 9626–9635. IEEE Computer Society,

    work page 2019

  12. [12]

    Ziyu Wan, Jingbo Zhang, Dongdong Chen, and Jing Liao

    Accessed: 2024-06-01. Ziyu Wan, Jingbo Zhang, Dongdong Chen, and Jing Liao. High-fidelity pluralistic image completion with transformers. InProceedings of the IEEE/CVF International Conference on Computer Vision, pages 4692–4701,

    work page 2024

  13. [13]

    Jiahui Yu, Zhe Lin, Jimei Yang, Xiaohui Shen, Xin Lu, and Thomas S Huang

    doi: 10.1109/CVPR.2018.00577. Jiahui Yu, Zhe Lin, Jimei Yang, Xiaohui Shen, Xin Lu, and Thomas S Huang. Free-form image inpainting with gated convolution. InProceedings of the IEEE/CVF international conference on computer vision, pages 4471–4480,

    work page doi:10.1109/cvpr.2018.00577 2018

  14. [14]

    Visited on 2024-05-15

    URL https://universe.roboflow.com/ zatoichi-elw9y/bus_photos. Visited on 2024-05-15. Yu Zeng, Zhe Lin, Jimei Yang, Jianming Zhang, Eli Shechtman, and Huchuan Lu. High- resolution image inpainting with iterative confidence feedback and guided upsampling. In Computer Vision–ECCV 2020: 16th European Conference, Glasgow, UK, August 23–28, 2020, Proceedings, P...

    work page 2024

  15. [15]

    Semantic image inpainting with progressive generative networks

    18 AIDOVECL: AI-generated Dataset of Outpainted Vehicles Haoran Zhang, Zhenzhen Hu, Changzhi Luo, Wangmeng Zuo, and Meng Wang. Semantic image inpainting with progressive generative networks. InProceedings of the 26th ACM international conference on Multimedia, pages 1939–1947, 2018a. Hongyi Zhang, Moustapha Cisse, Yann N. Dauphin, and David Lopez-Paz. mix...

    work page 1939
