arxiv: 2411.09764 · v4 · submitted 2024-11-14 · 📡 eess.SY · cs.SY

ModelPredictiveControl.jl: advanced process control made easy in Julia

Francis Gagnon , Alex Thivierge , Andr\'e Desbiens , Fredrik Bagge Carlson This is my paper

Pith reviewed 2026-05-23 17:36 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords model predictive controlJulia programming languageopen source softwarenonlinear controlmoving horizon estimationprocess controlsimulation case studies
0
0 comments X

The pith

ModelPredictiveControl.jl is an open-source Julia package that supports design of model predictive controllers with nonlinear and moving horizon features through modular code.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents ModelPredictiveControl.jl as an open-source package for model predictive control in the Julia language. It seeks to provide an easy-to-use and modular alternative to proprietary software while incorporating advanced capabilities such as nonlinear control and moving horizon estimation. The package builds on Julia's existing frameworks for control systems, optimization, and automatic differentiation to streamline the creation of state estimators and controllers. Case studies include a linear continuously stirred tank reactor and various controllers for an inverted pendulum. Solving times are compared to MATLAB implementations to demonstrate efficiency.

Core claim

ModelPredictiveControl.jl is an open-source software package for designing model predictive controllers in the Julia programming language. It is designed to be easy to use and modular while providing advanced features like nonlinear control and moving horizon estimation. It relies on powerful control system, mathematical optimization and automatic differentiation frameworks to simplify the construction and testing of state estimators and predictive controllers. It also integrates with the standard plotting library to quickly visualize closed-loop data. The paper presents the main functionalities and illustrates them with two case studies in simulation, with solving times benchmarked against

What carries the argument

ModelPredictiveControl.jl package, which integrates with control system, mathematical optimization, and automatic differentiation frameworks to simplify construction of state estimators and predictive controllers.

If this is right

  • Nonlinear model predictive control and moving horizon estimation become available without proprietary software.
  • Users can combine economic and successive linearization controllers in the same open-source framework.
  • Closed-loop data from simulations can be visualized immediately using standard Julia plotting libraries.
  • Solving times for the tested cases are competitive with MATLAB implementations.
  • Modular structure supports customization and testing of different predictive control approaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Wider adoption could promote greater transparency and code sharing in process control research.
  • The package may lower barriers for prototyping economic model predictive control strategies in industry.
  • Its structure suggests potential for extension to larger-scale systems or embedded real-time applications.
  • Side-by-side testing against other open-source control packages would clarify relative strengths.

Load-bearing premise

The simulation case studies and MATLAB timing comparisons accurately represent the package's usability, modularity, and computational performance in realistic settings without unstated implementation details or hardware-specific optimizations.

What would settle it

Independent execution of the inverted pendulum example code from the package on standard hardware, with direct measurement of solving times against an equivalent MATLAB implementation on the same machine.

Figures

Figures reproduced from arXiv: 2411.09764 by Alex Thivierge, Andr\'e Desbiens, Francis Gagnon, Fredrik Bagge Carlson.

Figure 1

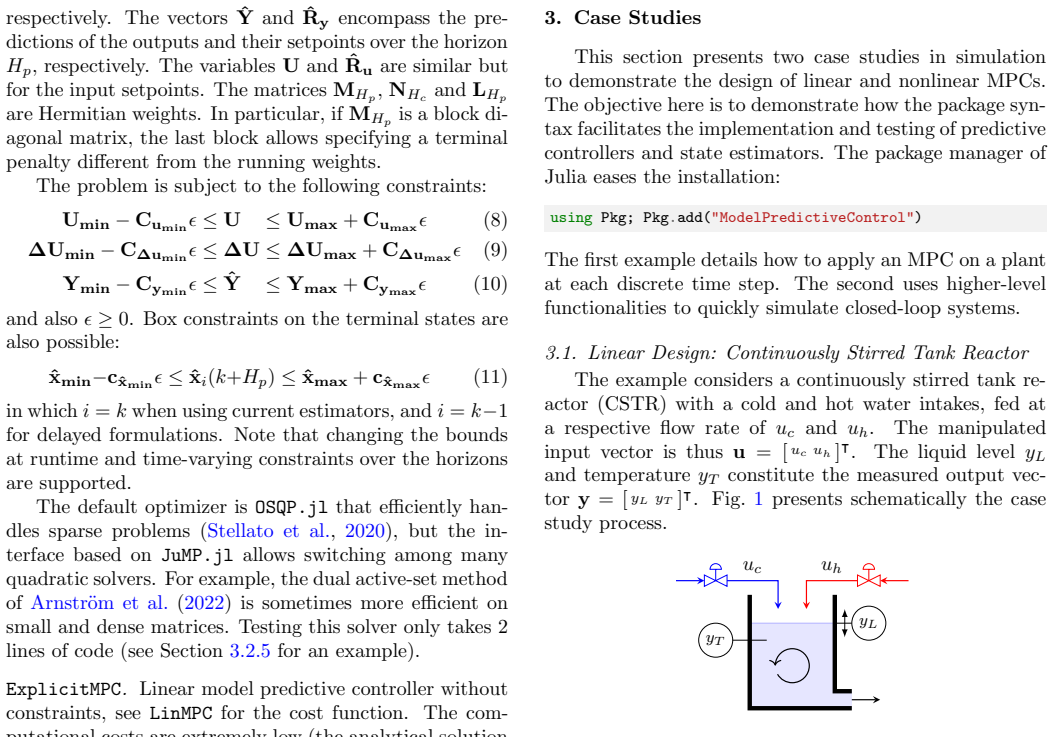

Figure 1. Figure 1: CSTR process. 3.1.1. Linear Model At the steady-state operating point uc = uh = 20, yL = 50, and yT = 30, the following linear model accurately describes the plant dynamics: G(s) = y(s) u(s) = " 1.90 18s+1 1.90 18s+1 −0.74 8s+1 0.74 8s+1 # (14) The syntax to construct a linear model with a sample time of 2 s is: using ModelPredictiveControl, ControlSystemsBase G = [ tf(1.90, [18, 1]) tf(1.90, [18, 1]); tf(… view at source ↗
Figure 2

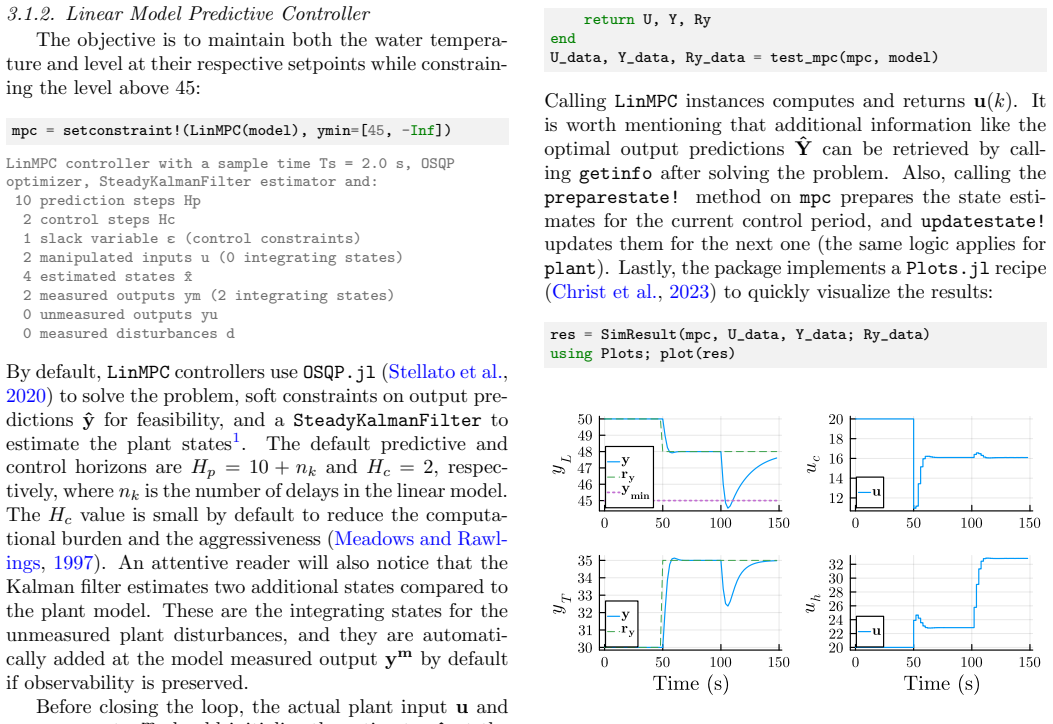

Figure 2. Figure 2: CSTR closed-loop simulation (MPC) [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

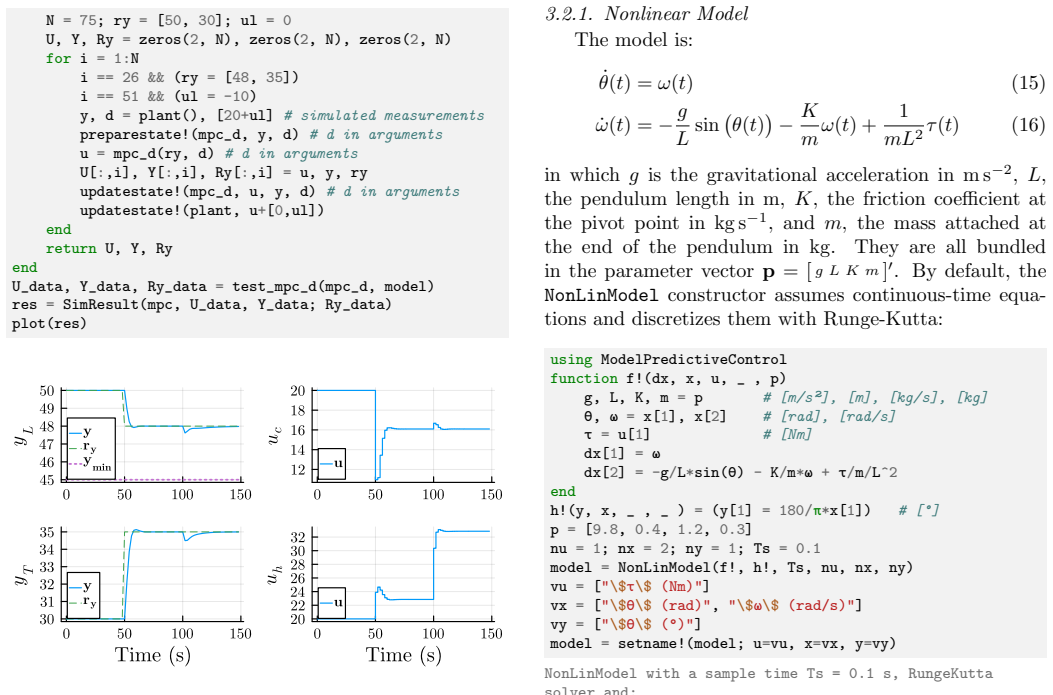

Figure 3. Figure 3: CSTR closed-loop simulation with feedforward (MPC). [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

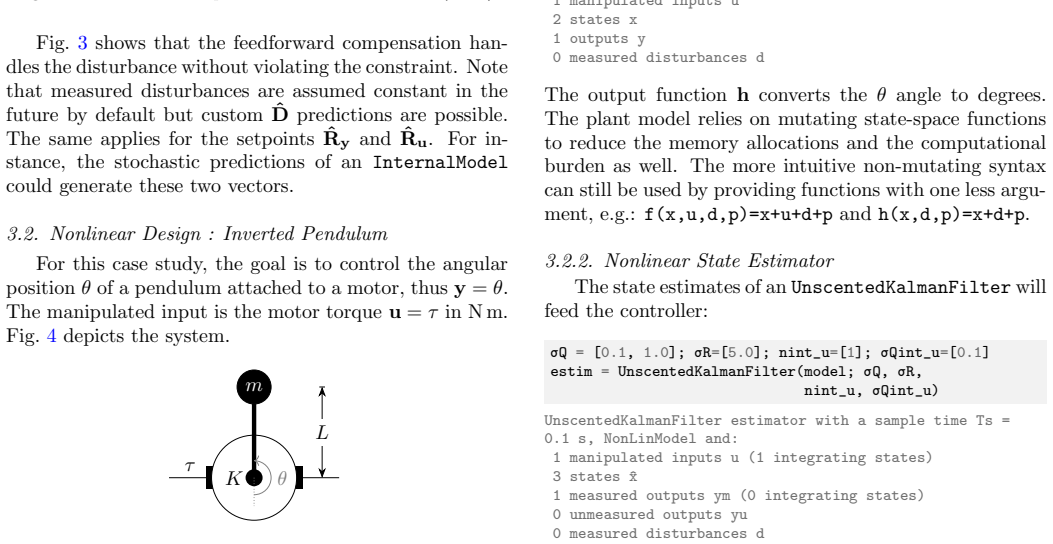

Figure 4. Figure 4: depicts the system. τ K θ m L [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

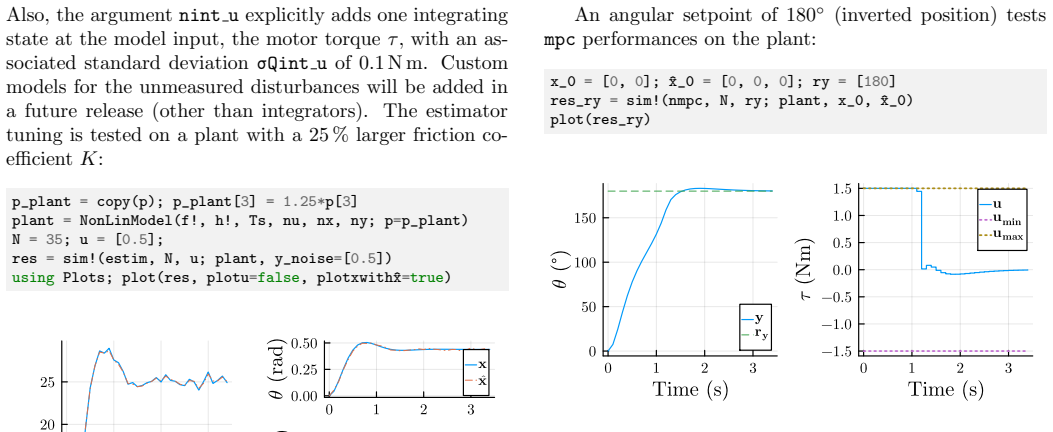

Figure 6. Figure 6: Pendulum output setpoint tracking (NMPC). [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5

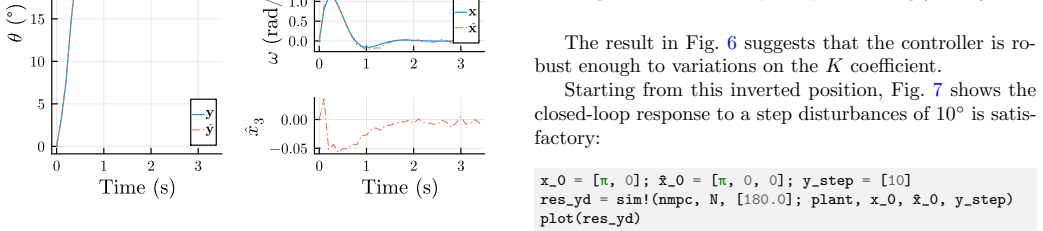

Figure 5. Figure 5: Pendulum state estimation [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

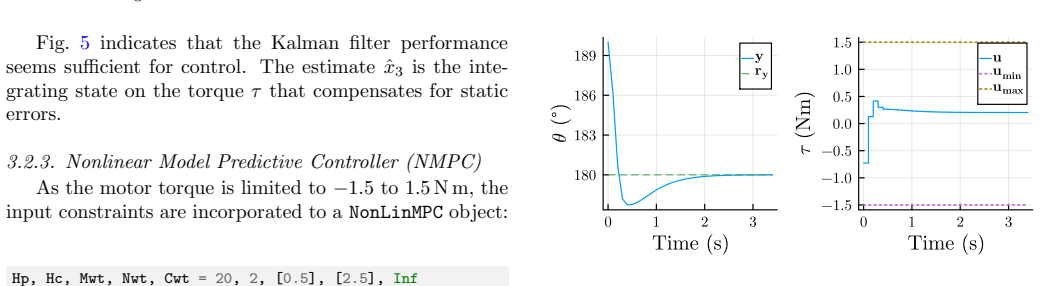

Figure 7. Figure 7: Pendulum output disturbance rejection (NMPC). [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

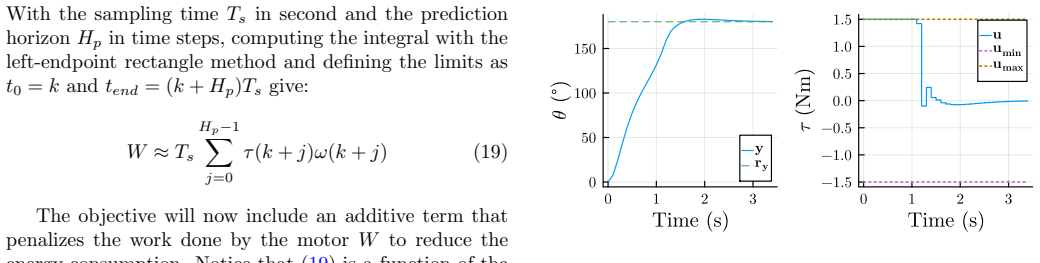

Figure 8. Figure 8: Pendulum output setpoint tracking (EMPC). [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

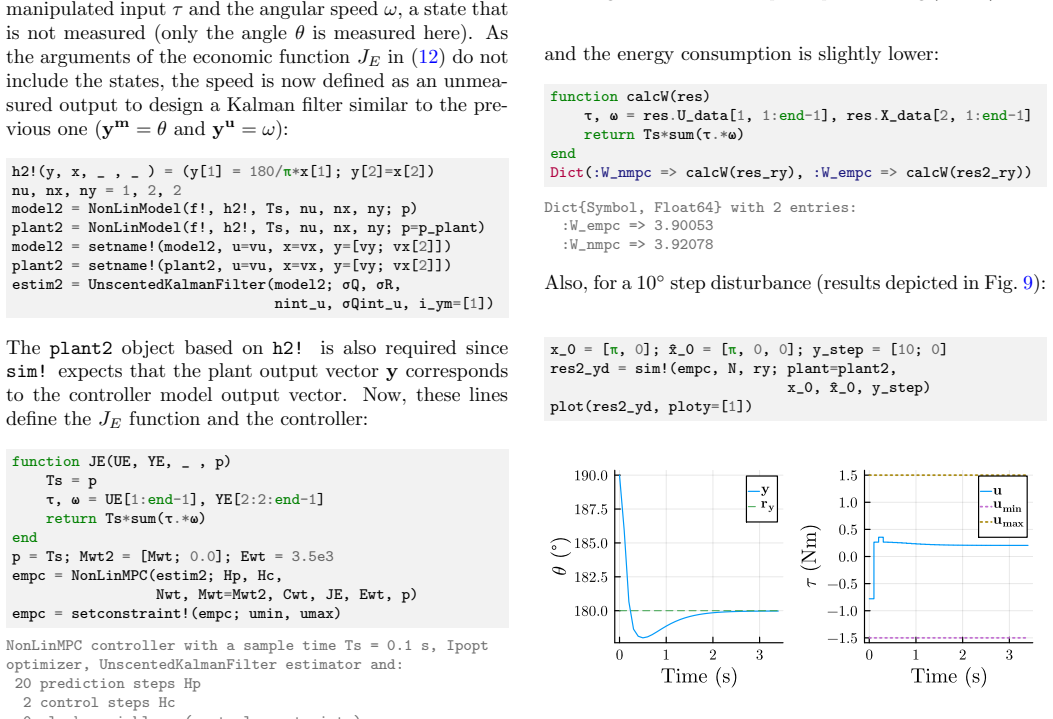

Figure 9. Figure 9: Pendulum output disturbance rejection (EMPC). [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

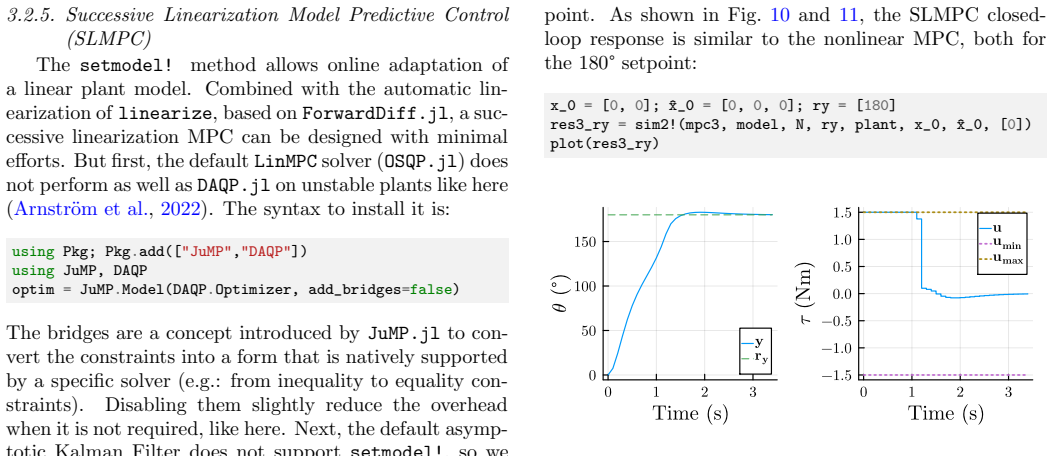

Figure 10. Figure 10: Pendulum output setpoint tracking (SLMPC). [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

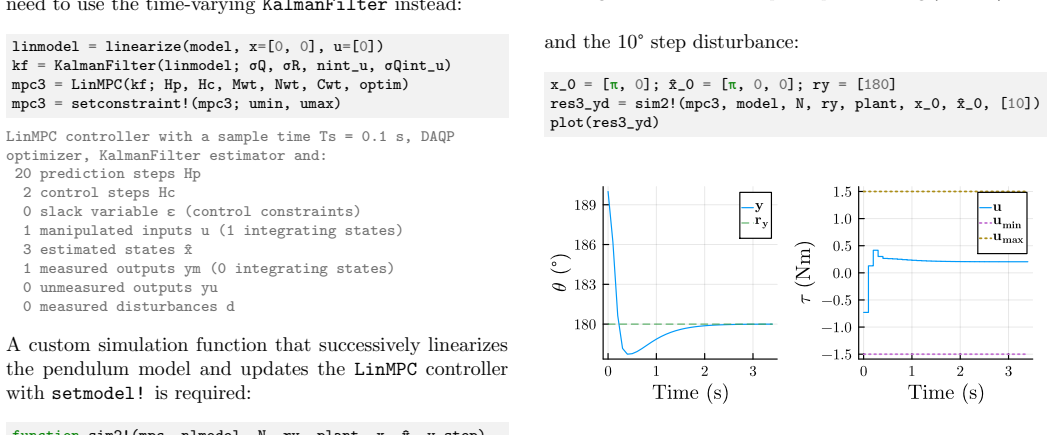

Figure 11. Figure 11: Pendulum output disturbance rejection (SLMPC). [PITH_FULL_IMAGE:figures/full_fig_p009_11.png] view at source ↗
read the original abstract

Proprietary closed-source software is still the norm in advanced process control. Transparency and reproducibility are key aspects of scientific research. Free and open-source toolkit can contribute to the development, sharing and advancement of new and efficient control approaches, and the industrial sector will certainly benefit from them. This paper presents ModelPredictiveControl.jl, an open-source software package for designing model predictive controllers in the Julia programming language. It is designed to be easy to use and modular, while providing advanced features like nonlinear control and moving horizon estimation. It relies on powerful control system, mathematical optimization and automatic differentiation frameworks to simplify the construction and testing of state estimators and predictive controllers. It also integrates with the standard plotting library to quickly visualize closed-loop data. The paper presents the main functionalities and illustrates them with two case studies in simulation. The first example is a continuously stirred tank reactor described by linear dynamics. The second one implements a nonlinear, an economic, and a successive linearization model predictive controllers for an inverted pendulum. The solving times are benchmarked against equivalent implementations in MATLAB to show the efficiency of the package.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces ModelPredictiveControl.jl, an open-source Julia package for designing model predictive controllers. It emphasizes ease of use and modularity while supporting advanced capabilities including nonlinear MPC and moving horizon estimation, leveraging Julia's control, optimization, and automatic differentiation ecosystems. Functionalities are illustrated via two simulation case studies (linear CSTR dynamics and inverted pendulum with nonlinear/economic/successive-linearization MPC variants) and solving-time benchmarks against equivalent MATLAB implementations.

Significance. If the implementation and benchmarks hold, the package provides a transparent, reproducible open-source alternative to proprietary APC software, potentially lowering barriers for research and industrial adoption. Integration with established Julia frameworks for optimization and AD is a strength that could enable rapid prototyping of new control strategies; the public availability of the package supports independent verification.

major comments (2)
  1. [Benchmarking section] Benchmarking section: the efficiency claim rests on solving-time comparisons to MATLAB, but the manuscript does not specify the hardware platform, solver tolerances, or whether the MATLAB implementations use equivalent modeling and backend choices; this detail is needed to evaluate whether reported speedups are reproducible and general.
  2. [Case studies section] Case studies section: while the abstract lists moving horizon estimation among the advanced features, the two presented examples focus exclusively on MPC variants; a short note or additional illustration confirming MHE functionality would make the demonstration of all claimed capabilities more complete.
minor comments (2)
  1. Add a brief table or paragraph comparing ModelPredictiveControl.jl to other open-source MPC packages (e.g., in Julia or Python) to better position its modularity and feature set.
  2. Ensure that any code listings or pseudocode in the main text are accompanied by repository links or version tags for reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the recommendation of minor revision. The two major comments are addressed point by point below.

read point-by-point responses

  1. Referee: [Benchmarking section] Benchmarking section: the efficiency claim rests on solving-time comparisons to MATLAB, but the manuscript does not specify the hardware platform, solver tolerances, or whether the MATLAB implementations use equivalent modeling and backend choices; this detail is needed to evaluate whether reported speedups are reproducible and general.

    Authors: We agree that these details are required for reproducibility. In the revised manuscript we will add the hardware platform specifications, the solver tolerances applied in both Julia and MATLAB runs, and explicit confirmation that the MATLAB implementations use equivalent modeling formulations and backend solvers. revision: yes

  2. Referee: [Case studies section] Case studies section: while the abstract lists moving horizon estimation among the advanced features, the two presented examples focus exclusively on MPC variants; a short note or additional illustration confirming MHE functionality would make the demonstration of all claimed capabilities more complete.

    Authors: We acknowledge the observation. Although the package implements moving horizon estimation, the current case studies emphasize MPC. In the revised manuscript we will insert a concise note (and, if space permits, a brief additional illustration) confirming MHE functionality to demonstrate all advertised capabilities. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript presents a software package implementation together with two standard simulation demonstrations and timing benchmarks against MATLAB. No mathematical derivations, fitted parameters renamed as predictions, or load-bearing self-citations appear; the claims rest on direct description of code functionality and publicly inspectable examples rather than any self-referential reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a software package description paper with no mathematical derivations, fitted constants, or new physical models. No free parameters, axioms, or invented entities are introduced.
