Neural Internal Model Control: Learning a Robust Control Policy via Predictive Error Feedback

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper proposes Neural Internal Model Control, which feeds a rigid-body predictive-error signal into an RL policy, and presents evidence that this signal improves trajectory tracking and robustness on quadrotors and quadrupedal robots.

desk verdict NeuralIMC offers a genuinely simple plug-in disturbance signal for RL control, with strong simulation work and a real drone demo, but the paper never specifies how policy commands become the predictor's acceleration inputs—and for quadrupeds that gap may empty out the signal. read the letter →

arxiv 2411.13079 v3 pith:75AJLYJ4 submitted 2024-11-20 cs.RO cs.AI

Feng Gao , Chao Yu , Yu Wang , Yi Wu This is my paper · ORCID
classification cs.ROcs.AI
keywords robustcontrolreinforcementlearninginternalmodelpredictiveerrorfeedbackquadrotorquadrupedallocomotionrigid-bodydynamicssim-to-realtransfer
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Neural Internal Model Control proposes that a robot controller becomes more robust when the policy receives one extra input: the difference between the body state predicted by a simplified rigid-body model and the body state actually observed. This predictive error grows when external disturbances or unmodeled dynamics push the robot away from the predicted motion, and the paper argues that a model-free reinforcement learning policy can learn to act on it without needing a full-dynamics model or a hand-tuned disturbance estimator. The framework is generic enough to be wrapped around existing learned controllers, and the paper presents simulation results on quadrotors and quadrupedal robots plus a real quadrotor carrying rope-suspended payloads as evidence that the extra signal improves tracking and robustness.

What carries the argument

The load-bearing object is the predictive error feedback loop: an explicit predictor built from the Newton-Euler update equations converts the policy's command into a next-body-state prediction, and the gap between prediction and observation is encoded as a small error vector fed back into the policy at the next step. The deliberate simplification is to model only the robot body as a rigid transformation, so the predictor needs no actuator models, terrain models, or learned latent dynamics. In the Internal Model Control tradition, the difference between plant and model responses carries the disturbance information; here the RL policy learns to compensate for whatever the simplified predictor misses, which is why the authors describe the loop as closing model-based and model-free control.

What would settle it

Train a quadrotor policy with and without predictive error feedback while intentionally mis-specifying the mass used to convert collective thrust into acceleration and applying no external disturbance; if the error-feedback policy is not clearly better in that clean setting, the error signal is dominated by conversion error rather than by external disturbances, and the claimed mechanism is not the one producing robustness.

Watch

Extended reading notes

Core claim

The central claim is that a white-box rigid-body predictor, using only Newton-Euler kinematics for the main body, provides a feedback signal that makes an RL-trained control policy robust to disturbances and out-of-distribution dynamics. The predictor integrates the policy's acceleration and angular-acceleration commands into a next body state, and the predictive error vector, composed of position, velocity, angular velocity, and orientation cosine distance between predicted and observed states, is appended to the policy input. The paper asserts that this error directly signals state drift and disturbance magnitude, and that a policy trained on it outperforms estimator-based and estimator-free baselines on quadrotor trajectory tracking and quadruped locomotion, including under randomized external forces and unseen dynamics. Real-world deployment on a quadrotor with rope-suspended payloads is offered as evidence that the benefit survives sim-to-real transfer.

Load-bearing premise

The method's feedback signal only carries disturbance information if the policy's raw output can be treated as an acceleration or angular-acceleration command for the rigid-body model, and the paper does not specify or validate the conversion for collective thrust and reference velocity commands.

Editorial extensions

If this is right

  • Adding predictive error feedback to a PPO-trained policy reduces trajectory tracking error on quadrotors compared with L1-based controllers, CAL, RMA, and DATT baselines, with the largest gains under out-of-distribution dynamics.
  • On quadrupedal robots the same feedback structure improves linear velocity and yaw-rate tracking over PPO and HIM, and matches or exceeds a privileged RMA variant that receives ground-truth disturbances.
  • One-step predictive error feedback is sufficient: longer short-term or long-term input histories do not improve performance, according to the paper's ablations.
  • The simplified rigid-body predictor performs nearly as well as a full-dynamics model on quadrotor tracking, indicating that the simplification is not the main source of degradation.
  • Real quadrotor experiments with 200 g and 330 g rope-suspended payloads show the method keeps tracking stable, and removing the predictive error feedback degrades altitude control under the payload.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper leaves open exactly how command-to-acceleration conversions are implemented; a direct test would vary that conversion across a range of nominal masses and observe when the predictive error stops improving control.
  • Because the predictor is morphology-agnostic, the same error vector could be applied to other robots with body-state estimation, such as humanoids or aerial manipulators, whenever a command-to-acceleration proxy can be defined.
  • The result that predictive error feedback matches or beats a privileged teacher receiving ground-truth disturbances suggests that explicit rigid-body error can replace learned latent disturbance encoders in other teacher-student pipelines; that replacement is testable by removing the encoder and keeping the error input.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes Neural Internal Model Control (NeuralIMC), which combines a simplified Newton-Euler rigid-body predictive model with model-free RL policies by feeding the predictive error—the difference between the predicted next body state and the actual measured state—as an additional input to the policy. The method is implemented for quadrotors using a CTBR action space and for quadrupedal robots using reference velocity commands, and evaluated in simulation against several baselines (PPO, RMA, HIM, DATT, CAL, L1-based controllers) as well as in a real-world quadrotor experiment with suspended payloads. The authors claim consistent improvements in tracking accuracy and robustness across in-distribution and out-of-distribution dynamics, and release source code.

Significance. If the claims hold, the paper offers a simple, arguably general plug-in mechanism for improving robustness in RL-based control: replacing learned or handcrafted disturbance estimators with an explicit white-box rigid-body prediction and using the mismatch as policy feedback. The experimental effort is substantial—five seeds with 1024 parallel quadrotor trials and 4096 parallel environments for quadrupeds, OOD evaluation, ablations on history length, noise tolerance, and model complexity, plus a real-world deployment. The release of code and the explicit nature of the predictive model are clear strengths. However, the paper itself acknowledges limited hyperparameter tuning of baselines, and the precise definition of the predictive model inputs is under-specified, which currently leaves the central claim partially unsupported.

major comments (3)
  1. [§III-C1–III-C2, Eqs. (1)–(6)] The predictive model requires acceleration inputs a_k and \dot{\omega}_k, but the paper never specifies how these are derived from the actual action spaces: for quadrotors, the CTBR action contains collective thrust and bodyrate (a force and an angular velocity, not accelerations), and for quadrupeds the reference velocity commands are piecewise constant so their derivative is zero almost everywhere, making the predictor's acceleration input zero and the 'predictive error' degenerate to the measured velocity increment. Please specify the exact command-to-acceleration mapping used in the implementation, including the nominal mass used for thrust conversion and the treatment of \dot{\omega}_k; if the quadruped predictor is indeed driven by zero acceleration, state how the resulting signal differs from a simple state-difference feedback and why the IMC interpretation remains valid.
  2. [§IV-B, Table II and the paragraph following it] The paper acknowledges that 'limited hyperparameter sweeps in our experiments may contribute to the baselines’ degraded performance.' Since the central comparative claim is that NeuralIMC 'surpasses recent state-of-the-art control methods,' this admission is a direct caveat on that claim; the privileged variants DATT(GT) and RMA(T) mitigate but do not eliminate the concern, because those privileged variants are not the actual deployed baselines. Please either report additional hyperparameter tuning for the baselines or rephrase the conclusions to reflect that the comparison is against a particular (possibly suboptimally tuned) set of baselines.
  3. [§IV-D, Table V] In the model-complexity ablation, the full-dynamics model actually achieves lower evaluation errors than the simplified model under both static (0.095 vs 0.101 m) and disturbed (0.105 vs 0.119 m) conditions on the zigzag task, so the claim that 'performance degradation is marginal' is misleading; the text should report these numbers accurately and should not extrapolate from this single-morphology experiment to the claim that simplification 'improves generalization across different morphologies.'
minor comments (5)
  1. [Fig. 2 caption] The caption contains a typo: 'applirope' should likely be 'applicable to'.
  2. [Sec. II-B] There is a typo in the text: 'RL-baesd' should be 'RL-based'.
  3. [Sec. III-C2] The sentence 'To integrate our predictive model into the control loop,, we use reference velocity commands as model inputs' contains a double comma after 'loop'.
  4. [Sec. IV-E] The text reads 'MA VROS' but the intended name of the ROS-to-MAVLink bridge is 'MAVROS'.
  5. [Table II] The row labels 'Train' and 'Eval' are ambiguous; they appear to distinguish in-distribution from out-of-distribution dynamics evaluation, but the caption only explains the blue cells and percentages, not the row grouping.

Circularity Check

1 steps flagged · score 6.0 of 10

For the quadruped instantiation, the predictive model's acceleration inputs vanish on the constant-command evaluation protocol, so the 'predictive error' reduces to a finite difference of the observed body state; the claimed internal-model prediction is a renaming of standard state-history feedback in that domain.

  1. renaming known result [Sec. III-C.2 (Quadrupedal robots), Eqs. (2)-(7), with the evaluation protocol in Sec. IV-A.2]
    "To integrate our predictive model into the control loop,, we use reference velocity commands as model inputs, deriving linear and angular accelerations by differentiating consecutive commands. Setting other accelerations to zero ensures seamless integration with existing policies. ... The x-y linear velocity command is sampled from [-1.0, 1.0] m/s, and the yaw rate command from [-1.0, 1.0] rad/s."

    Under the sampled, held reference-velocity commands used in evaluation, the differentiated command acceleration a_k is zero almost everywhere. Substituting a_k=0 into Eq. (2) gives tilde-v_{k+1}=v_k, so the 'predicted' next velocity is just the current velocity, and the velocity component of the predictive error (Eq. (7)) is v_k - v_{k+1}, which is the negative of the measured velocity increment--a signal computable directly from successive body states with no internal model. The position error similarly reduces to a finite-difference velocity estimate.

full rationale

The quadrotor side of the paper is self-contained: the predictive error is computed by explicit Newton-Euler integration of the policy's collective-thrust and bodyrate commands, with no fitted parameters and no use of the target result in the derivation. The real-world deployment provides external evidence. The self-citations ([8], [25]) are used for background and simulator infrastructure, not as load-bearing justification for the method's central claim. The paper's own limitation statement about hyperparameter sweeps concerns baseline fairness, not circularity. The one concrete circular reduction is in the quadruped instantiation: because evaluation holds reference velocity commands constant, the command accelerations obtained by differentiation are zero, so Eq. (2) makes the predicted next velocity equal to the current velocity. The 'predictive error' then degenerates to a finite difference of the observed state, which is a known and standard feedback signal rather than a model-based prediction. This makes the internal-model framing partially a renaming of state-history feedback in the quadruped domain, while leaving the quadrotor contribution independently meaningful.

Assumptions & free parameters 1 free parameters · 4 assumptions · 0 invented entities

The central claim rests on the ability to compute a meaningful predictive error from a simplified rigid-body model driven by policy commands; the paper does not specify the command-to-acceleration conversions, and the assumption that the resulting error is an informative disturbance signal is central. No new physical entities are introduced; the predictive model uses standard Newtonian mechanics.

free parameters (1)
  • Nominal quadrotor mass used in the predictor = 1 kg
    The internal model converts collective thrust commands to linear acceleration; the paper states the quadrotor weighs approximately 1 kg and uses this nominal value even when payloads are added, so the predictive error captures mass mismatch. The exact conversion is not specified.
assumptions (4)
  • domain assumption Newtonian rigid-body kinematics (Eqs. 1-6) describe the commanded motion of the robot's body.
    The predictive model assumes the robot body state evolves according to constant acceleration over dt; actuator dynamics, flexible modes, and contact forces are not modeled.
  • ad hoc to paper The policy's action can be converted to an acceleration command for the predictor (collective thrust to linear acceleration via nominal mass; velocity command differentiated to acceleration).
    The conversion is not specified in the paper, yet it is required to compute the predicted state.
  • domain assumption The actual body state is available at every control step (from motion capture or VIO).
    The predictive error requires the measured state; the deployment uses MoCap and IMU.
  • domain assumption The predictive error is an informative and sufficient disturbance signal for the RL policy.
    The authors hypothesize that the error between predicted and actual state reveals external disturbances and nonlinear dynamics; the empirical results support this but there is no theoretical guarantee.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Neural Internal Model Control: Learning a Robust Control Policy via Predictive Error Feedback." pith.science (2026). https://pith.science/paper/75AJLYJ4

@misc{pith2026241113079,
  author       = {Pith},
  title        = {Pith review of: Neural Internal Model Control: Learning a Robust Control Policy via Predictive Error Feedback},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/75AJLYJ4}},
  note         = {Machine review of arXiv:2411.13079}
}
read the original abstract

Accurate motion control in the face of disturbances within complex environments remains a major challenge in robotics. Classical model-based approaches often struggle with nonlinearities and unstructured disturbances, while RL-based methods can be fragile when encountering unseen scenarios. In this paper, we propose a novel framework, Neural Internal Model Control, which integrates model-based control with RL-based control to enhance robustness. Our framework streamlines the predictive model by applying Newton-Euler equations for rigid-body dynamics, eliminating the need to capture complex high-dimensional nonlinearities. This internal model combines model-free RL algorithms with predictive error feedback. Such a design enables a closed-loop control structure to enhance the robustness and generalizability of the control system. We demonstrate the effectiveness of our framework on both quadrotors and quadrupedal robots, achieving superior performance compared to state-of-the-art methods. Furthermore, real-world deployment on a quadrotor with rope-suspended payloads highlights the framework's robustness in sim-to-real transfer. Our code is released at https://github.com/thu-uav/NeuralIMC.

Figures

Figures reproduced from arXiv: 2411.13079 by the authors.

Figure 1
Figure 1. Predictive errors can be caused by mismatched system [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The closed-loop NeuralIMC framework using an explicit predictive model to calculate the next body state, applirope [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

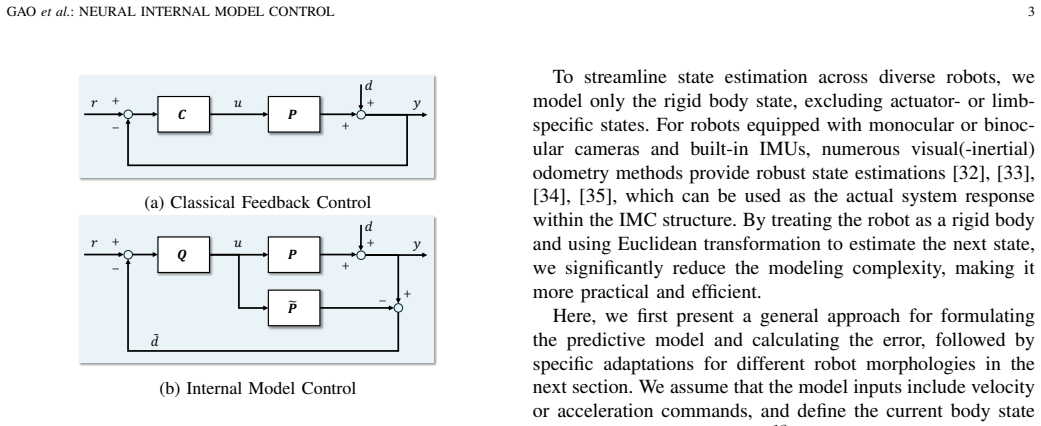

Figure 3. Feedback structures of classical feedback control and [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Ablation study on the feedback structure with different [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Real-world experiments on a quadrotor with two different rope-suspending payloads. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

Discussion (0). Continue with ORCID to comment.
